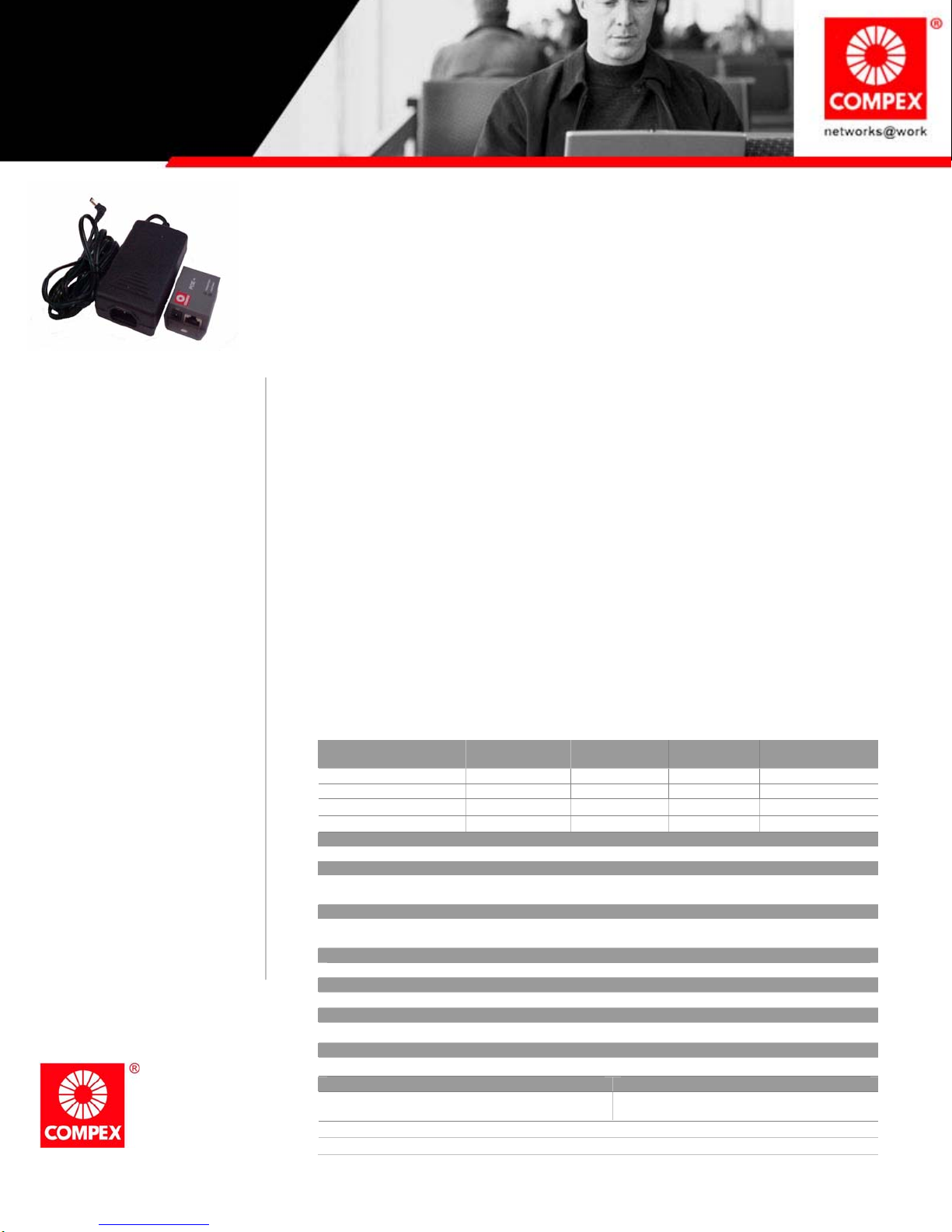

Compex PoE PLUS
PoE+ 1A4815 6A4815, PoE+ 1A4825 6A4825,
PoE+ 1P4830 6P4830
,
PoE+ 1P0000 6P0000
,
product datasheet
w
o
r
ps output power of 30W. This injec compatible
f
d
The Compex PoE+ (1A/6A4815) is an IEEE 802.3af compatible high po er active
injector designed for wireless Access Points. Supporting an output power f 15 W.
The Compex PoE+ (1A/6A4825) high power active injector supports a higher output
power of 25 W. It supports the same IEEE 802.3af handshake protocol as Compex
PoE+ (1A/6A4815) but has a higher current power source and a higher cur ent cutoff
setting.
The Compex PoE+ (1P/6P4830) is a high power passive injector that supports an
tor is not IEEE802.3af compatible, In
receiving equipment can be damaged by this injector.
The Compex PoE+ (1P/6P0000) is the injector of 1P/6P4830. The only di ference is
that it does not include the 48V power supply. The output power will then epend on
the power rating of the power supply that you choose to use (Up to 30W).
Advanced Auto-Sensing Algorithm (Only for 1A/6A4815 and 1A/6A4825)
Advanced Auto-Sensing Algorithm will provide power only to IEEE 802.3af compatible
equipment.
Cost Effective
Compex PoE Plus are cost–effective solution for deploying Wireless Access Point in indoor
or outdoor environments where power source is not readily available or power cables are
not permitted.
Supports both 10
or 100Mb
network
connectivity to a
Wireless Access
Point
Allows Wireless
Access Point to be
deployed without a
nearby power
source
TECHNICAL SPECIFICATIONS
Model PoE+
(1A/6A4815) PoE+ (1A/6A4825) PoE+ (1P/6P4830) PoE+ (1P/6P0000)
Active or Passive Acitve Active Passive Passive
Output Power 48V / 15W 48V / 25W 48V / 30W 48V / (Up to 30W)
802.3af COMPLIANCE Yes Yes* No No
Power Supply Included Yes Yes Yes No
STANDARD COMPLIANCE
IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX
INTERFACE
Injector: 2 X RJ45 port,
1 X Power Supply Connector
NETWORK MEDIA
10BASE-T Ethernet: UTP Cat. 3,4,5, Unshielded Twisted Pair (UTP) Cable
100BASE-TX Fast Ethernet: UTP Cat. 5, Unshielded Twisted Pair (UTP) Cable
DATA TRANSFER RATE
10 / 100 Mbps
LED INDICATORS
Injector: Remote Power, Local Power
TEMPERATURE
Operating: 0 ~ 40 oC Storage: -10 – 70 oC
DIMENSION (Without supplied Power Adapter)
220x25x22mm
CONFIGURATION CODES
PoE+ 1A (leaded)
PoE+ 6A (RoHS) PoE+ 1P (leaded) PoE+ 6P (RoHS)
*802.3af handshake protocol compatible but exceeds standard cut-off current ratings.
