Compressed Air Alliance TEM1 Series User manual
www.compressedairalliance.com 1
User Manual
Temperature Sensor -
4 to 20 mA Output
Model: TEM1xxxxx
Temperature Sensor –4 to 20 mA Output User Manual v1
www.compressedairalliance.com 2
Table of Contents
Notices...........................................................................................................................................3
Warnings .......................................................................................................................................3
About Temperature Sensors.......................................................................................................5
Specifications................................................................................................................................6
Temperature Sensor Pack...........................................................................................................7
Installation –Mechanical.............................................................................................................8
Installation –Electrical ...............................................................................................................12
Warranty......................................................................................................................................13
Calibration...................................................................................................................................13
Trouble Shooting........................................................................................................................14
Commissioning Report ..............................................................................................................15
Temperature Sensor –4 to 20 mA Output User Manual v1
www.compressedairalliance.com 3
Notices
Please read this manual in full and
carefully observe the notes and
instructions before and during
installation, operation and
maintenance. The manufacturer cannot
be held liable for any damage which
occurs as a result of noncompliance
with this manual.
Do not tamper with device. Should
the device be tampered with in any
manner other than a procedure which
is described and specified in this
manual, the warranty is cancelled and
the manufacturer is exempt from
liability.
The product is designed exclusively
for the described application. Use of
this product in conditions not specified
in this manual or, contrary to the
instructions provided by the
manufacturer, is considered improper
handling of the product and will void
your warranty. The manufacturer will
not be held liable for any damages
resulting from improper use of the
product.
This manual should be read carefully by
relevant personnel and the end user.
This manual should be kept with the
product and be made available as
needed. Once you install or use the
product, you accept that you have
read, understood and complied with
this manual.
Compressed Air Alliance endeavours to
make the content of this manual
correct, but is not responsible for
omissions or errors and the
consequences caused. In case of any
doubts or questions regarding this
manual or the product, please contact
Compressed Air Alliance.
Warnings
Ignoring the warnings can lead to
serious injury and/or cause damage!
When handling, operating or carrying
out maintenance on this product,
personnel must employ safe working
practices and observe all local health &
safety requirements and regulations.
Improper operation or maintenance of
this product could be dangerous and
result in an accident causing damage to
machinery or injury or death.
The manufacturer cannot anticipate
every possible circumstance which may
represent a potential hazard. The
warnings in this manual cover the most
common potential hazards and are
therefore not all-inclusive. If the user
employs an operating procedure, an
item of equipment or a method of
working which is not specifically
recommended by the manufacturer
they must ensure that the product will
not be damaged or made unsafe and
that there is no risk to persons or
property.
NEVER CHANGE ORIGINAL
COMPONENTS WITH ALTERNATIVES.
Temperature Sensor –4 to 20 mA Output User Manual v1
www.compressedairalliance.com 4
Compressed Air
Safety
Any contact with quickly escaping air
or bursting parts of the compressed
air system can lead to serious injuries
or even death.
•Do not exceed the maximum
permitted pressure.
•Only use pressure rated
installation materials and parts.
•Avoid getting hit by escaping air
or bursting parts.
•The system must be pressure-
less during maintenance work.
Electrical Safety
Any contact with energised parts of
the product, may lead to an electrical
shock which can lead to serious
injuries or even death. The user shall
take all measures necessary to
protect against electrical shock.
Consider all regulations for electrical
installations.
The system must be disconnected
from any power supply during
maintenance work.
Any electrical work on the system is
only allowed by authorised qualified
personal.
Storage and transportation
•Please make sure that the
transport and storage
temperature of the sensor is
between -40°C to +90°C (-40°F to
194°F) and the humidity is <90%,
no condensation.
•Avoid direct UV and solar
radiation during storage.
Cleaning
If you need to clean the sensor it is
recommended to use a clean, dry
cloth. For stubborn marks, use
distilled water or isopropyl alcohol
only.
Disposal
Electronic devices are recyclable
material and do not belong in the
household waste. The product,
accessories and its packing material
must be disposed according to local
statutory requirements.
Temperature Sensor –4 to 20 mA Output User Manual v1
www.compressedairalliance.com 5
About Temperature Sensors
Temperature sensors are used to
measure the temperature of liquids,
gases (including ambient air),
compressed air, and other mediums.
Understanding the temperature your
equipment operates at can help to
prevent issues with equipment
failures, diagnose problems, improve
performance, and optimise efficiency.
Almost every piece of equipment
comes with recommended operating
conditions for optimal performance;
this will certainly include a
temperature range for any input or
cooling mediums such as fluids,
ambient conditions or environmental
considerations.
Temperature sensors can be used in
conjunction with other control
equipment to trigger processes such
as when a specific temperature is
reached or switch on cooling
equipment when systems are starting
to overheat.
About the Sensor
Compressed Air Alliance’s
temperature sensor is easy to install.
The sensor can be suspended in the
ambient environment or the probe
can be inserted directly into the
medium being measured, such as
gases or liquids flowing in pipes.
Calibration requirements
Temperature sensors should be
calibrated every 2 years. Compressed
Air Alliance can arrange calibration
for you.
Permanent and temporary
solutions
Temperature sensors are available
for temporary or permanent
installations.
Key Features of Temperature
Sensors
All Compressed Air Alliance
temperature sensors come with:
•G1/4” Mounting thread
•Robust 8mm probe
•Stainless Steel Casing
•4 –20mA loop powered output
•24vDC powered
•IP65 rated
•Operating range between -50°C
to +200°C (-58°F to 392°F)
•M12 Connector with 5m Cable
option
Temperature Sensor –4 to 20 mA Output User Manual v1
www.compressedairalliance.com 6
Specifications
Temperature Sensor
Technology
PT100
Accuracy
±0.25% FS
Pressure Resistance
Up to 30 Mpa (300 bar)
Up to 4,351 psi
Measurement Ranges
Temperature Range
-50°C to +200°C
-58°F to +392°F
Outputs
Output
Analogue: 4 to 20mA (2 wire)
Analogue Output Signal
Temperature
Power
Power Supply
24V DC
Electrical Connection
4 pin M12, female
Other Information
Process Connection
ISO G1/4” thread
Probe Length
150 mm
(other lengths available,
40mm –2000 mm)
5.9”
(other lengths available,
1.6” – 78.7”)
Probe Diameter
8 mm
0.3”
Casing
Stainless Steel
IP Rating
IP65
Installation Type
Permanent or temporary installation
Calibration Frequency
Every 2 years
Warranty Period
12 months
Temperature Sensor –4 to 20 mA Output User Manual v1
www.compressedairalliance.com 7
Temperature Sensor Pack
Each Temperature Sensor Pack comes with:
✓Temperature sensor
✓Connector –either 5 meter cable with connector or connector only (no cable).
5 meter cable with
M12 connector
OR
M12 connector only
(no cable)
PLUS
Temperature Sensor
Temperature Sensor –4 to 20 mA Output User Manual v1
www.compressedairalliance.com 8
Installation –Mechanical
WARNING! Incorrect installation can damage the sensor or cause it to work
incorrectly.
Notes
•Before installing the sensor, make sure it is rated for your system (refer to
the “Specifications” section).
oUse of the product outside specified ranges or operating parameters can
lead to malfunctions and may damage the product or system.
•Do not use this product in explosive areas.
•Always use a spanner / wrench to install the product.
•Only use pressure rated materials and parts when installing and maintaining
the product.
•Do not disassemble the product.
•Please observe local and national regulations before/during installation and
operation.
•The product must be installed properly and calibrated regularly, otherwise it
may lead to inaccurate measurement values.

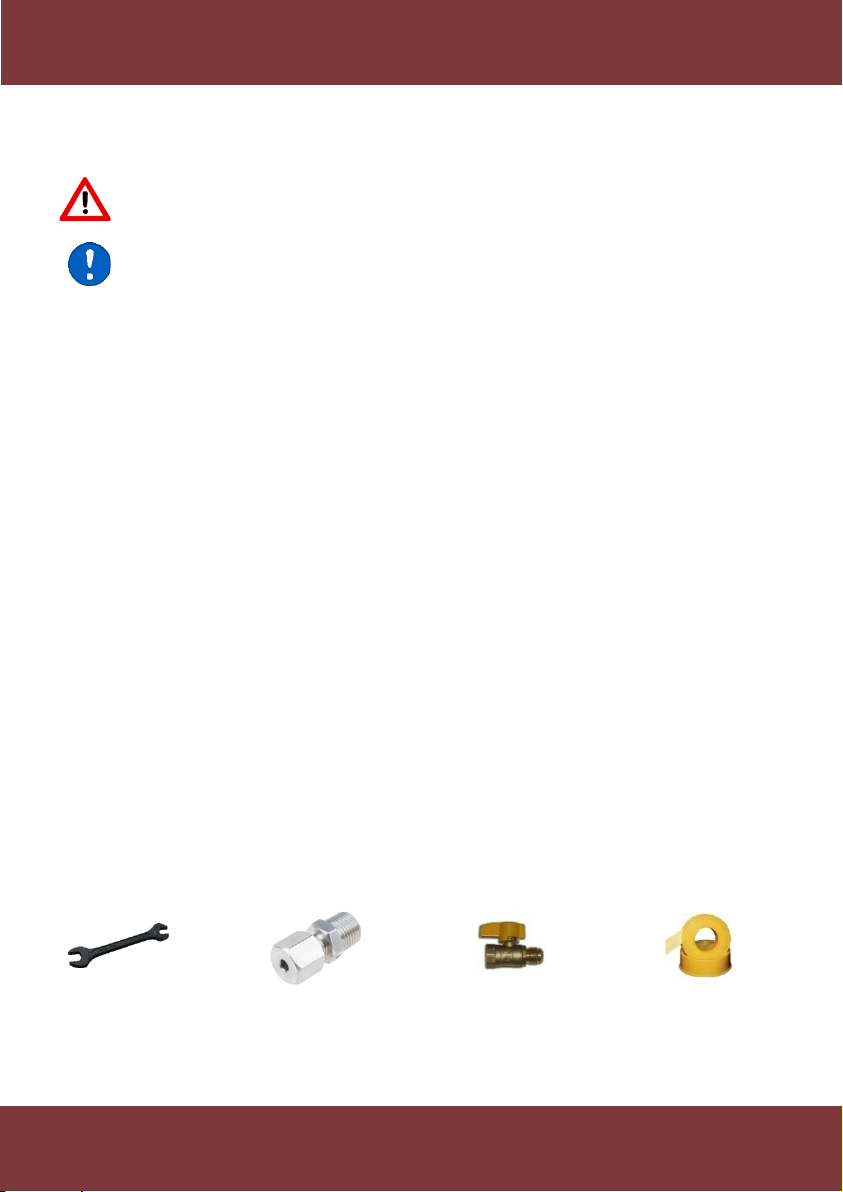

Tools and Equipment needed for installation
(not included with Temperature Sensor Pack)
Ball Valve
(optional)
Compression
fitting (optional)
Wrench /
Spanner
Thread Tape /
Sealant
Temperature Sensor –4 to 20 mA Output User Manual v1
www.compressedairalliance.com 9
Step 1 –Find a suitable location for the sensor
The method of mounting or installing the temperature sensor will depend on the
location and the desired measurement.
When installed in pipework, make sure the sensor location has enough room above
the pipe to install the sensor.
Measuring Ambient Temperature
If measuring ambient temperature, the probe should be mounted in a suitable
location with the tip exposed to the ambient conditions and not in direct contact
with anything else.
Measuring Liquid or Gas Temperature
If installing the temperature sensor to measure a gas or liquid temperature careful
attention must be paid to the insertion depth of the sensor.
✓The probe should be inserted into the medium by a minimum of 25 mm or 1”
Do not touch the probe tip with the inner wall of the pipe or conduit.
Correct Installation
Minimum insertion depth
= 25 mm or 1”
Temperature Sensor –4 to 20 mA Output User Manual v1
www.compressedairalliance.com 10

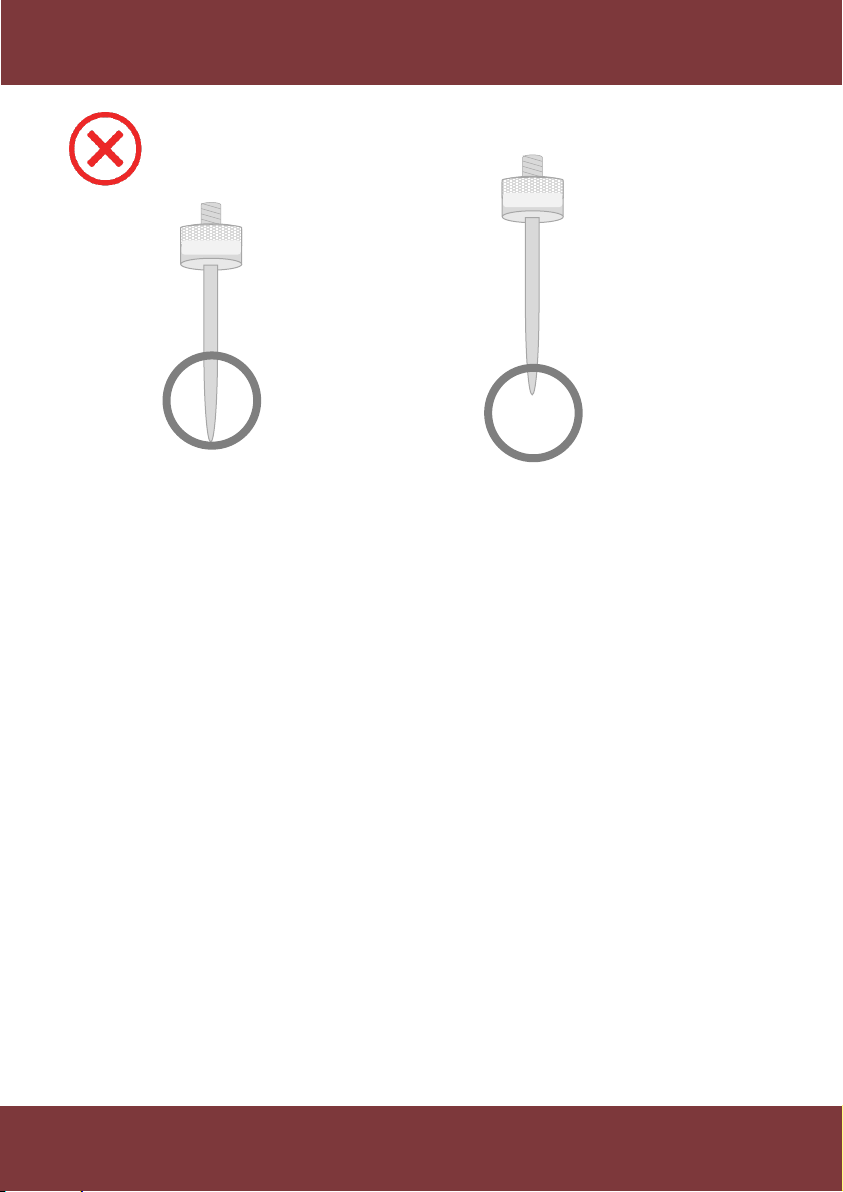

Incorrect Installation
Connection Point and Compression Fitting
To install the sensor on a pipe or conduit, you need:
•connection point, eg a ball valve or a nozzle or nipple (thread must be G 1/4")
and
•compression fitting.
oThe diameter of the hole must be ≥ 8 mm, otherwise the shaft cannot be
inserted
Use of a ball valve is optional - You do not need to use a valve to install the sensor.
However, using a valve will make removing the sensor easier (eg when you need to
remove the sensor for calibration).
If installing a ball valve, you can use a hot tap drill and clamp to create a connection
point on pressurized or unpressurised pipes. See the Compressed Air Alliance
website for information on hot tap drills and clamps.
Probe is not deep enough
Probe is touching the
inner wall of the conduit
Temperature Sensor –4 to 20 mA Output User Manual v1
www.compressedairalliance.com 11

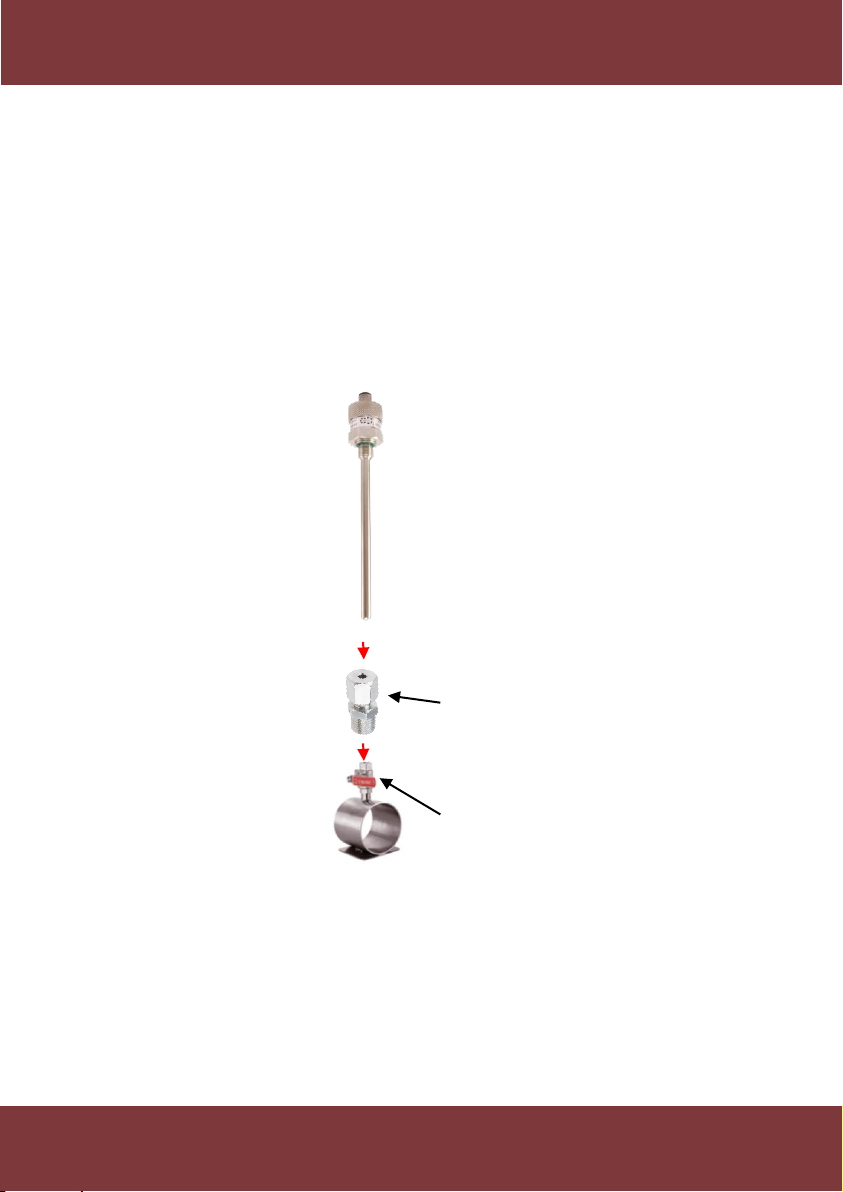

Installation of the instrument
•Screw the compression fitting tightly to the ball valve or nozzle of the pipe.
•Loosen the nut of the compression fitting.
•Insert the temperature sensor through the compression fitting into the pipe.
oAt least 25 mm or 1” of the sensor’s probe must be in the gas or liquid
being measured
oDo not let the sensor tip touch the inner wall of the pipe.
•Tighten the nut of the compression fitting.
Compression fitting
Temperature Sensor
Ball Valve
(optional)
Temperature Sensor –4 to 20 mA Output User Manual v1
www.compressedairalliance.com 12
Installation –Electrical
WARNING! Incorrect wiring can damage the sensor or cause it to work
incorrectly.
Notes:
•Do not screw the M12 connector using force, otherwise it may damage the
connection pins.
•Always check the M12 connectors to make sure they are wired correctly.
•Consider all local and national safety requirements and regulations for electrical
installations.
•The system must be disconnected from any power supply during
installation and maintenance work.
•Any electrical work on the system is only allowed by authorised and qualified
personal.
Connector
Pin 1
+24 vDC
Pin 2
4-20mA Output
Pin 3
Not used
Pin 4
Not used
4-20mA Scaling
The sensor has an analog output range of 4 to 20 mA, which is a 2-wire active
analog output. The analog output scaling is:
•4 mA = -50°C (-58°F)
•20 mA = +200°C (392°F)
+24vDC
4-20mA Output
M12 connector
www.compressedairalliance.com 13
Temperature Sensor –4 to 20 mA Output User Manual v1
Warranty
Compressed Air Alliance provides a 12-
month warranty for all sensors. The
warranty covers materials and
workmanship under the stated
operating conditions from the date of
delivery. Please report any findings
immediately and within the warranty
time.
If faults occur during the warranty
period Compressed Air Alliance will
repair or replace the defective unit,
without charge for repair labour and
material costs but there is a charge for
other services such as labour to remove
or reinstall the instrument, transport
and packing. Warranty repairs do not
extend the period of warranty.
The following damage is excluded from
this warranty:
•Improper use and non-
adherence to the user manual.
•Use of unsuitable accessories.
•External influences (e.g. damage
caused by vibration, damage
during transportation, excess
heat or moisture).
The warranty is cancelled when one
of the following situations occurs:
•The user opens the
measurement instrument
without a direct request written
in this manual.
•Repairs or modifications are
undertaken by third parties or
unauthorised persons.
•The serial number has been
changed, damaged or removed.
Other claims, especially damage
occurring on the outside of the
instrument (eg dents, marks), are not
included unless responsibility is
legally binding.
Calibration
The sensor is calibrated before delivery.
The calibration date is printed on the
certificate which is shipped with the
sensor.
Temperature Sensors require
calibration to remain accurate. The
frequency of calibration depends
greatly on the level of contamination
within your system.
We recommend you calibrate the
sensor every 2 years. Calibration is
excluded from the product warranty.
For more information, contact
Compressed Air Alliance.
Temperature Sensor –4 to 20 mA Output User Manual v1
www.compressedairalliance.com 14
Trouble Shooting
My sensor isn’t reading correctly
If your sensor is not reading the correct values, follow these steps.
1. Make sure the sensor is suitable for your system. Refer to the
”Specifications” section for details.
2. Make sure the sensor is calibrated. Sensors should be calibrated every 2
years. Contact your local dealer or Compressed Air Alliance for calibration.
Make sure the sensor is installed correctly. Refer to “Installation -
Mechanical“ section for more information.
3. Make sure the sensor is wired correctly. Refer to “Installation –Electrical “
section for more information.
4. Check 4-20mA settings. Is the scaling correct> Refer to “Installation –
Electrical“ section for more information.
5. Is your associated equipment compatible with the temperature sensor
output?
If you are still having problems, contact your local dealer or Compressed Air
Alliance.
www.compressedairalliance.com 15
Temperature Sensor –4 to 20 mA Output User Manual v1
Commissioning Report
About the Sensor
Part Number
(eg TEM100001)
Serial Number
Installed by
Installed Date
Installation
Step
Task
Yes
NA
No
Comments
Sign
1
Is the Temperature Sensor
installed correctly? (refer to
“Installation - Mechanical”)
2
Is the Temperature Sensor
wired correctly? (refer to
“Installation –Electrical”)
3
Is the 4-20mA scaling
correct?
4
Is the temperature reading
correct?
Temperature Sensor –4 to 20 mA Output User Manual v1
www.compressedairalliance.com 16
Compressed Air Alliance Pty Ltd
Address: 1 Arthur St, Dee Why NSW 2099, Australia
E-mail: sales@compressedairalliance.com
Website: www.compressedairalliance.com
Table of contents
Other Compressed Air Alliance Accessories manuals
