CONGRATULATIONS
Congratulations on the purchase of your new
camera. Your camera has been carefully engineered
and manufactured to give you dependable
operation. Read this manual before operating the
camera to become more familiar with it.
This manual has been written and formatted with
depth and detail so that you can easily follow the
instructions to maximize the features of your
camera.
ENGLISH
Duo 2000-E (511441-01) 18/10/02 6:48 pm Page 1

2
Table of Contents
Important Information......................................................................................4
Precautions ......................................................................................................5
Camera Features ..............................................................................................6
System Requirements ......................................................................................7
1. The Camera
Overview of your Concord Eye-Q Duo 2000....................................................8
Loading the Batteries ......................................................................................9
Turning the Camera On and Off ....................................................................10
LCD Menu Screens ..........................................................................................11
LCD Status Messages......................................................................................15
Turning the LCD On and Off ..........................................................................16
Camera Ready LED Status ..............................................................................16
Camera Memory..............................................................................................17
2. Camera Mode
Taking Images ................................................................................................19
Main Menu ......................................................................................................19
Mode..........................................................................................................20
Video Clips ............................................................................................20
Self-timer ................................................................................................21
Size............................................................................................................22
Quality ......................................................................................................23
Flash ..........................................................................................................24
EV ..............................................................................................................25
WB (White Balance) ..................................................................................26
Scene ........................................................................................................27
Brightness ................................................................................................28
Setup ........................................................................................................29
Digital Zoom ..................................................................................................33
Duo 2000-E (511441-01) 18/10/02 6:48 pm Page 2

3
3. Review Mode
Enlargement ..................................................................................................34
Viewing Video Clips ......................................................................................34
Main Menu ....................................................................................................35
Delete ........................................................................................................35
Thumbnail..................................................................................................37
4. Software Installation
Installing the Camera Drivers and ArcSoft Applications ................................38
5. Transferring Photos to the Computer
Connecting the Camera to the Computer......................................................39
WDM/TWAIN Drivers (PC) ..........................................................................40
ArcSoft PhotoImpression (PC)..............................................................40
Mass Storage Mode (DSC)........................................................................42
Unplugging the camera from the computer ............................................43
6. Other Features
ArcSoft VideoImpression (PC) ........................................................................44
Web Camera ..................................................................................................45
TV Mode ........................................................................................................46
7. Camera Maintenance
Cleaning the camera ......................................................................................49
8. Tips and Troubleshooting ..............................................................................50
9. Camera Specifications ....................................................................................54
Duo 2000-E (511441-01) 18/10/02 6:48 pm Page 3

4
IMPORTANT INFORMATION
FCC INFORMATION
FCC WARNING: This equipment meets the limits for a Class B digital device,
pursuant to Part 15 of FCC rules. Only the cable supplied with the camera
should be used. Operation with other cables is likely to result in interference to
radio and TV reception and could void the user’s authorization to operate this
equipment. This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
•This device may not cause harmful interference.
•This device must accept any interference received, including interference
that may cause undesired operation.
Tested To Comply
With FCC Standards
for HOME OR OFFICE USE
Changes or modifications not expressly approved by the manufacturer may void
the user’s authority to operate this equipment.
USER INFORMATION
NOTE: This equipment has been tested and found to comply with the limits for
a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment on and off, the
user is encouraged to try to correct the interference by one or more of the
following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
Duo 2000-E (511441-01) 18/10/02 6:48 pm Page 4

5
VCCI INFORMATION
This is a Class B product, to be used in a domestic environment, based on the
Technical Requirement of the Voluntary Control Council for Interference (VCCI)
from Information Technology Equipment. If this is used near a radio or
television receiver in a domestic environment, it may cause radio interference.
Please install and use the equipment according to this instruction manual.
PRECAUTIONS
Be sure to observe the following precautions when using the camera:
•Do not open the case of the camera or attempt your own repairs. Always
leave this service to authorized repair facilities.
•Keep the camera away from water and other liquids, and never let it get
wet. Never use outdoors when it is raining or snowing.
•Should foreign matter or water get into the unit, immediately turn the
power off and contact your local authorized service center.
•Physical damage and malfunction of this unit can cause the image data
stored in its memory to be deleted. Be sure to always keep backup copies
of data by transferring them to a personal computer.
•Under the environment with electrostatic discharge, the camera may
malfunction and require the user to reset the camera.
•Shielded cables must be used with this unit to ensure compliance with the
Class B FCC limits.
•Do not leave the camera in places subject to extremely high temperatures,
such as in a closed vehicle or in direct sunlight.
•Remove the battery when camera is not used for long periods of time.
•Use 2x AA LR6 batteries only.
•Dispose of the batteries in a manner that complies with applicable laws.
•Do not place the camera in unstable locations where the camera may fall
and be damaged.
•Do not press on the lens.
•Do not unplug the camera from the TV or computer while the camera is in
operation; otherwise, the memory may be corrupted.
•Do not turn the power off or open the battery compartment when the LED
is blinking or lit up; otherwise, the image may not be stored.
Duo 2000-E (511441-01) 18/10/02 6:48 pm Page 5

6
Camera Features
•Stores approximately 8 Fine, 15 Normal or 27 Economy (1600 x 1200
pixels) mode photos with 7MB internal memory
•Virtually unlimited storage using the removable MultiMediaCard (MMC)
or Secure Digital (SD). (MMC/SD memory cards are sold separately).
•1.6" Color LCD
•USB connection and cable
•TV connection (NTSC and PAL)
•Built-in automatic flash
•Focus free from 4 feet (1.2 meters) to infinity
•1600 x 1200 pixel output (2.0 Megapixels)
•TV On Screen Display (OSD) menu
•Up to 4X Digital Zoom
•EV Compensation
•Preset Scene Selection
•Video Clip Mode
•Web Camera (Windows only)
•Mass Storage Driver
•Self-timer
•Tripod socket
•Multi-language support
Duo 2000-E (511441-01) 18/10/02 6:48 pm Page 6

7
System Requirements
PC:
•Microsoft Windows 98SE/ME/2000 and XP
•IBM PC/AT or compatible, 200 Mhz or higher
•Minimum 32MB RAM (64MB recommended)
•USB Port
•640 x 480 monitor, minimum 16 bit color (1024 x 768 24 bit color
recommended)
•175MB free hard disk space
•56K or faster modem, ISDN or LAN connection (for the Web Camera
feature only)
•CD-ROM drive
Macintosh:
•Mac OS 9 or higher
•Macintosh Power PC or higher, Minimum 64MB of RAM
•USB Port
•100MB of available Hard Disk Space
Duo 2000-E (511441-01) 18/10/02 6:48 pm Page 7

8
1. The Camera
Overview of Your Concord Eye-Q Duo 2000
FRONT/TOP
1. Shutter Button
2. Lug for Neck / Wrist Strap
3. Viewfinder
4. Self-timer LED
5. Flash
6. Flash Sensor
7. Ir Filter and Lens
8. Power Button
9. Camera Ready LED
10. LCD
11. Cable Connection Panel
12. Tripod Socket
13. Mode Switch
14. Navigation Button
15. Menu Button
16. OK Button
17. LCD On/Off Button
18. Battery Door
BACK/BOTTOM
1
2
3
5
6
4
7
8
9
10
11
12
13
14
15
16
17
18
Duo 2000-E (511441-01) 18/10/02 6:48 pm Page 8

9
Loading the Batteries
The Concord Eye-Q Duo 2000 uses 2x AA LR6 batteries.
Loading the Batteries:
1. Locate the battery door on the bottom of the
camera.
2. Slide the button on the battery door towards the
center of the camera. (fig.1.1)
3. Lift the battery door to open.
4. Insert the batteries with the positive terminal
toward the + sign, and the negative terminal
toward the – sign. (fig.1.2)
5. Close the battery door.
Note: Remove the batteries from the Concord Eye-Q Duo 2000 if the
camera will not be used for an extended period of time to prevent
corrosion or battery leaks.
Checking the Batteries
The camera has a battery indicator that shows the current battery level.
FULL
Batteries are full
and ready to use.
LOW
Batteries are low
and need to be
replaced soon.
fig.1.1
fig.1.2
Duo 2000-E (511441-01) 18/10/02 6:48 pm Page 9

10
Turning the Camera on and off
When the camera is turned on, the camera ready LED
on the back of the camera blinks and the LCD will
display the default settings.
Turning the Camera on and off:

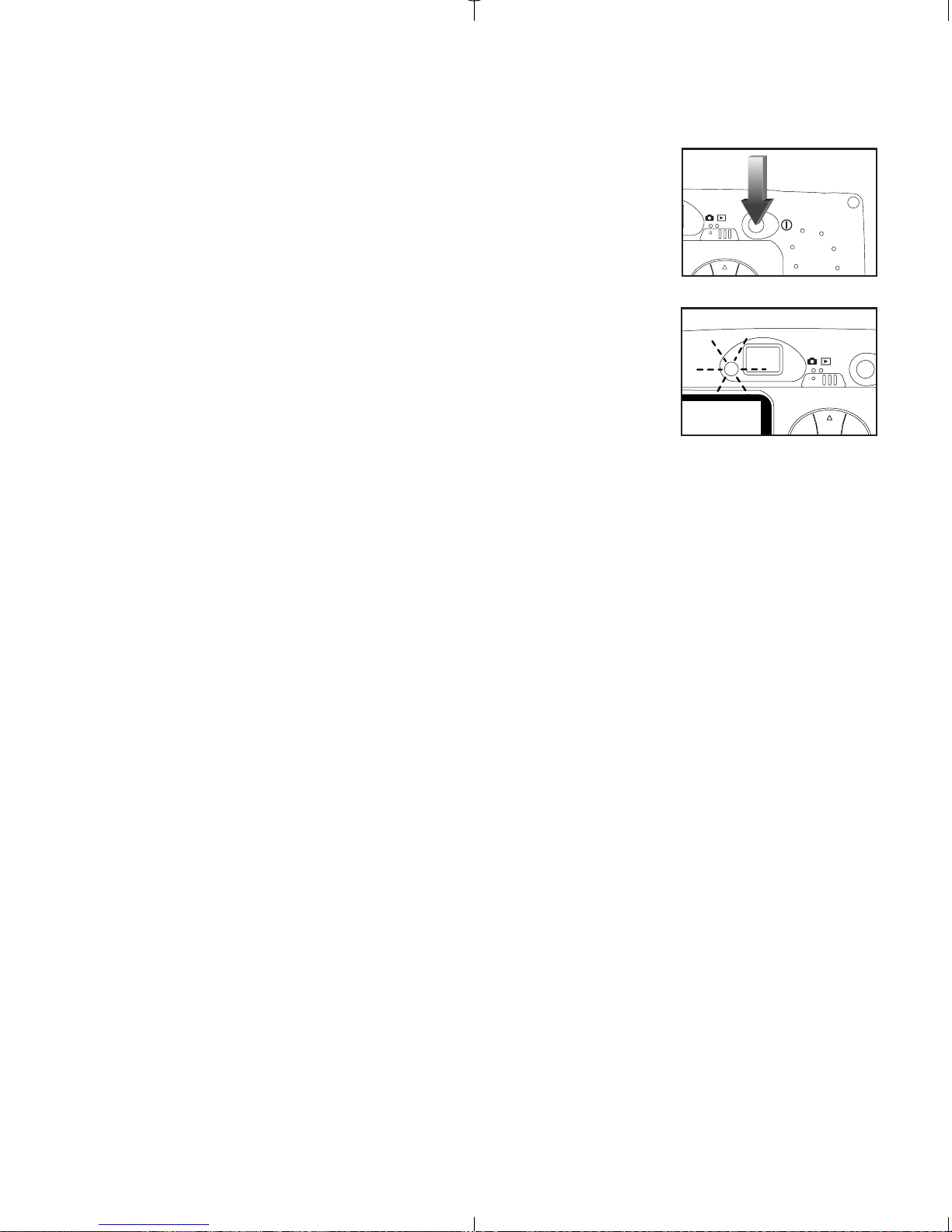

1. Press the Power button to turn the camera on.
(fig.1.3)
2. The camera is ready for picture taking when the
camera ready LED stops blinking. (fig.1.4)
3. To turn the camera off, press the Power button for
a few seconds.
T
fig.1.3
fig.1.4
T
Duo 2000-E (511441-01) 18/10/02 6:48 pm Page 10

11

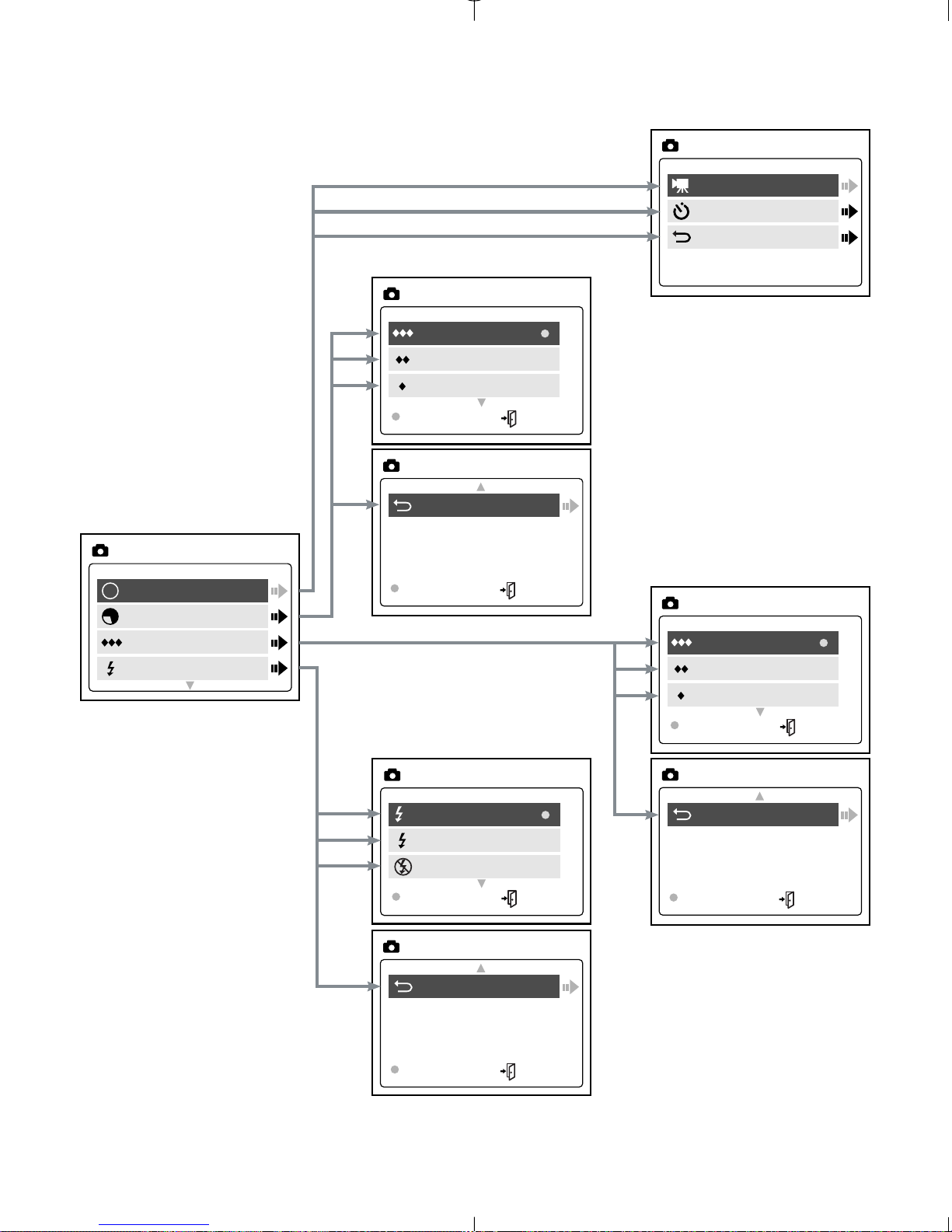

LCD Menu Screens
Mode
Size
Quality
Flash
MAIN MENU
M
Video Clip
Self-timer
Main Menu
MODE
1600 x 1200
1280 x 960
640 x 480
OK MENU
IMAGE SIZE
Fine
Normal
Economy
OK MENU
QUALITY
Auto
Flash
Flash Off
OK MENU
FLASH
A
Main Menu
OK MENU
IMAGE SIZE
Main Menu
OK MENU
QUALITY
Main Menu
OK MENU
FLASH
Duo 2000-E (511441-01) 18/10/02 6:48 pm Page 11

12
LCD Menu Screens
AWB
Sunny
Fluorescent
OK MENU
WB
Tungsten
Main Menu
OK MENU
WB
–EXPOSURE VALUE +
–Brightness +
EV
WB
Scene
Brightness
MAIN MENU
+
WB
S
–
O ff
O ff
SCENE
OK MENU
Duo 2000-E (511441-01) 18/10/02 6:48 pm Page 12

13

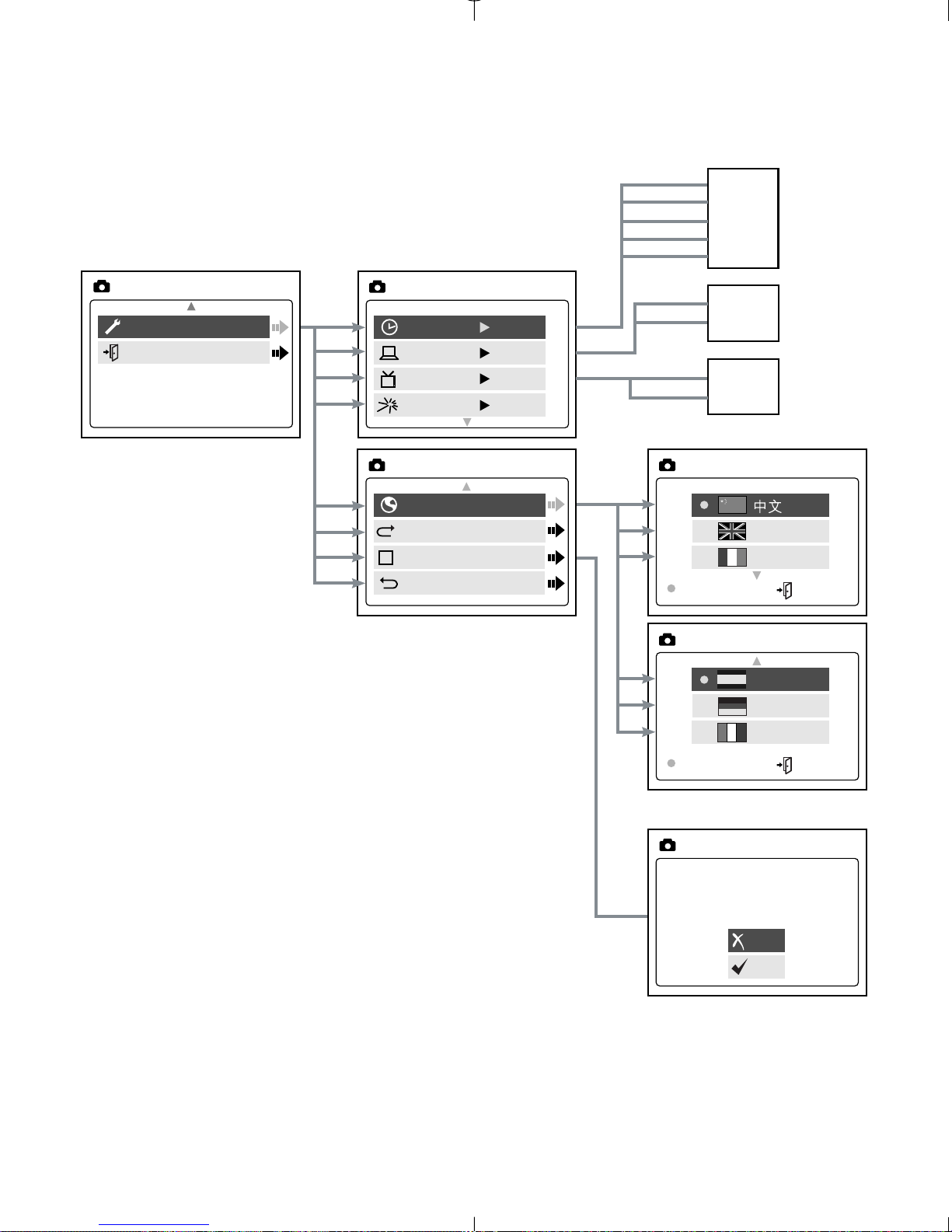

LCD Menu Screens
F
Language
Default
Format
Main Menu
SETUP
SETUP
Time-out 60S
Driver DSC
TV PAL
PlayLogo O f f
SETUP
Language
Español
Deutsch
Italiano
OK MENU
Language
Setup
Exit
MAIN MENU
PC
DSC
NTSC
PAL
15S
30S
60S
90S
None
English
Français
OK MENU
This operation will
delete all images
No
Yes
Duo 2000-E (511441-01) 18/10/02 6:48 pm Page 13

14

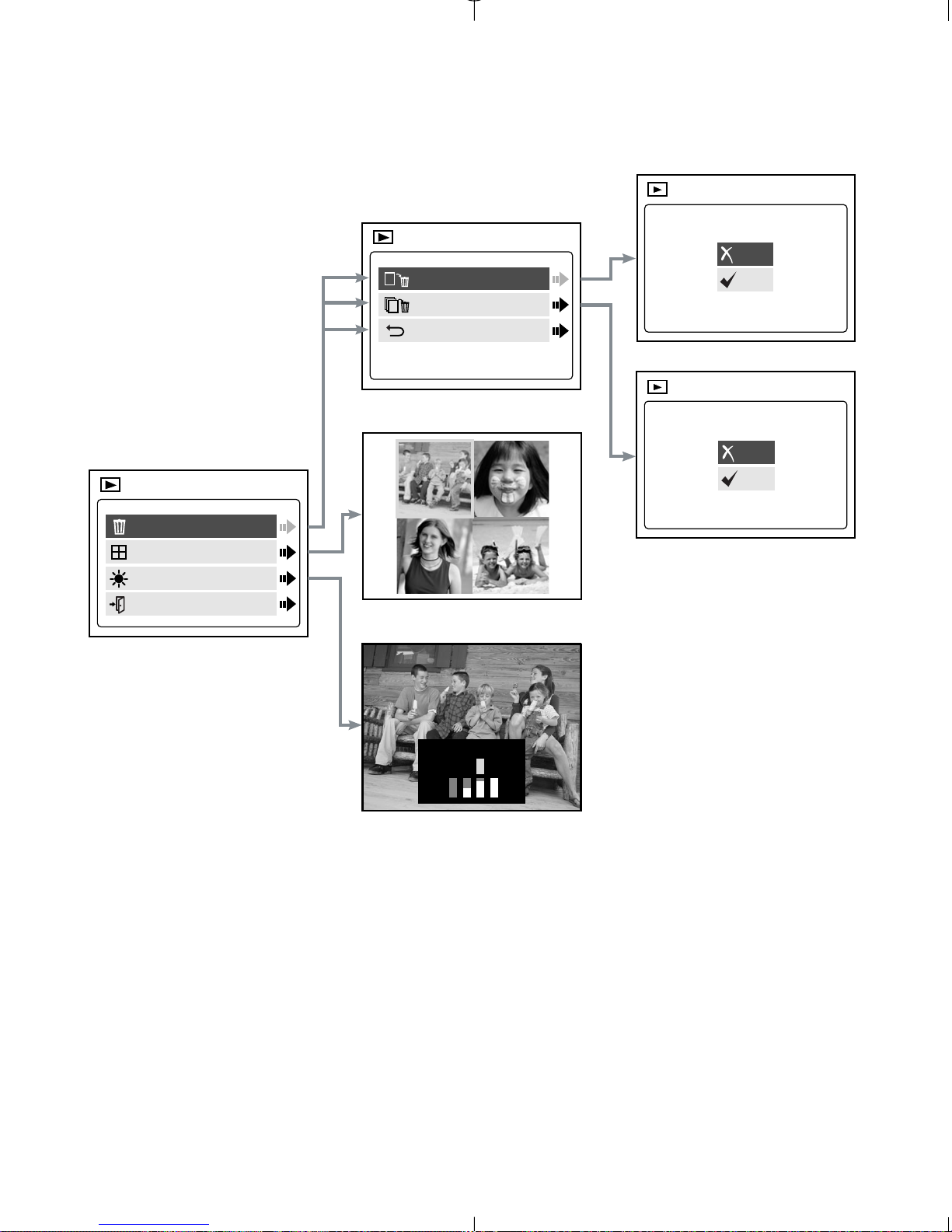

Delete
Thumbnail
Brightness
Exit
MAIN MENU
Delete One
Delete All
Main Menu
DELETE
DELETE
THIS FILE?
No
Yes
DELETE
ALL FILES?
No
Yes
–Brightness +
LCD Menu Screens
Duo 2000-E (511441-01) 18/10/02 6:48 pm Page 14

15
LCD Status Messages
Messages on the LCD indicate if the memory is full or if there is a
problem with the memory.
1. MEMORY CARD IS FULL:
The memory card is full.
2. INTERNAL MEMORY IS FULL:
The internal memory is full.
3. ERROR:
The camera’s internal memory or the
MMC/SD may be corrupted. Please format
the memory. (P.32)
MEMORY CARD FULL!
INTERNAL MEMORY FULL
ERROR!
Duo 2000-E (511441-01) 18/10/02 6:48 pm Page 15

16
Turning the LCD On and Off
By default, the LCD automatically turns on
when the camera is powered on. Press to
turn the LCD on or off.
Using the Display ON/OFF Button:
1. Press once to turn the LCD icons off.
2. Press again to turn the LCD off.
3. Press to turn the LCD on.
Camera Ready LED Status
When the Camera Ready LED is:
1. Steady
The camera is in capture mode. Please hold the
camera steady during this time; otherwise, the image
may come out blurry. (fig.1.5)
2. Blinking
The flash is recharging or the camera is in storage mode. You may move
the camera in this mode. (fig.1.5)
Note: Do not open the battery door or turn the power off while the
Camera Ready LED is steady or blinking; otherwise, the images or
video clips in the camera may be damaged.
A
005/080
AWB
1600
A
A
A
A
A
T
fig.1.5
Duo 2000-E (511441-01) 18/10/02 6:48 pm Page 16

17
Camera Memory
The Concord Eye-Q Duo 2000 can store files in one of two ways using
either the camera’s 7MB internal memory or the removable MMC/SD.
Memory cards are sold separately and can be purchased from major
electronic or computer retailers.
When the MMC/SD is inserted, the images and video clips stored in the
internal memory will be transferred automatically onto the memory card.
LCDDefault Memory
MMC/SD
No Internal Memory (7MB)
Note: If a MMC/SD with insufficient memory is inserted, there will only
be a partial transfer and the memory card will be filled. Please insert
a memory card with sufficient memory, or delete images. Please refer
to the Deleting Files section for instruction. (P. 35) The files that were
not transferred will remain in the internal memory.
When the camera’s internal memory or the MMC/SD is full, you will need
to delete images to continue to take pictures, or insert a new MMC/SD
memory card. Please refer to the Deleting Photos section for instructions.
Note: There may be available storage space by using a lower photo
quality setting. Refer to the QUALITY section to select a lower quality
setting on P. 23.
Duo 2000-E (511441-01) 18/10/02 6:48 pm Page 17

18
Inserting the MMC/SD
Inserting the MMC/SD:
1. Locate the battery door on the bottom of the
camera.
2. Slide the button on the battery door towards the
center of the camera and lift the door.

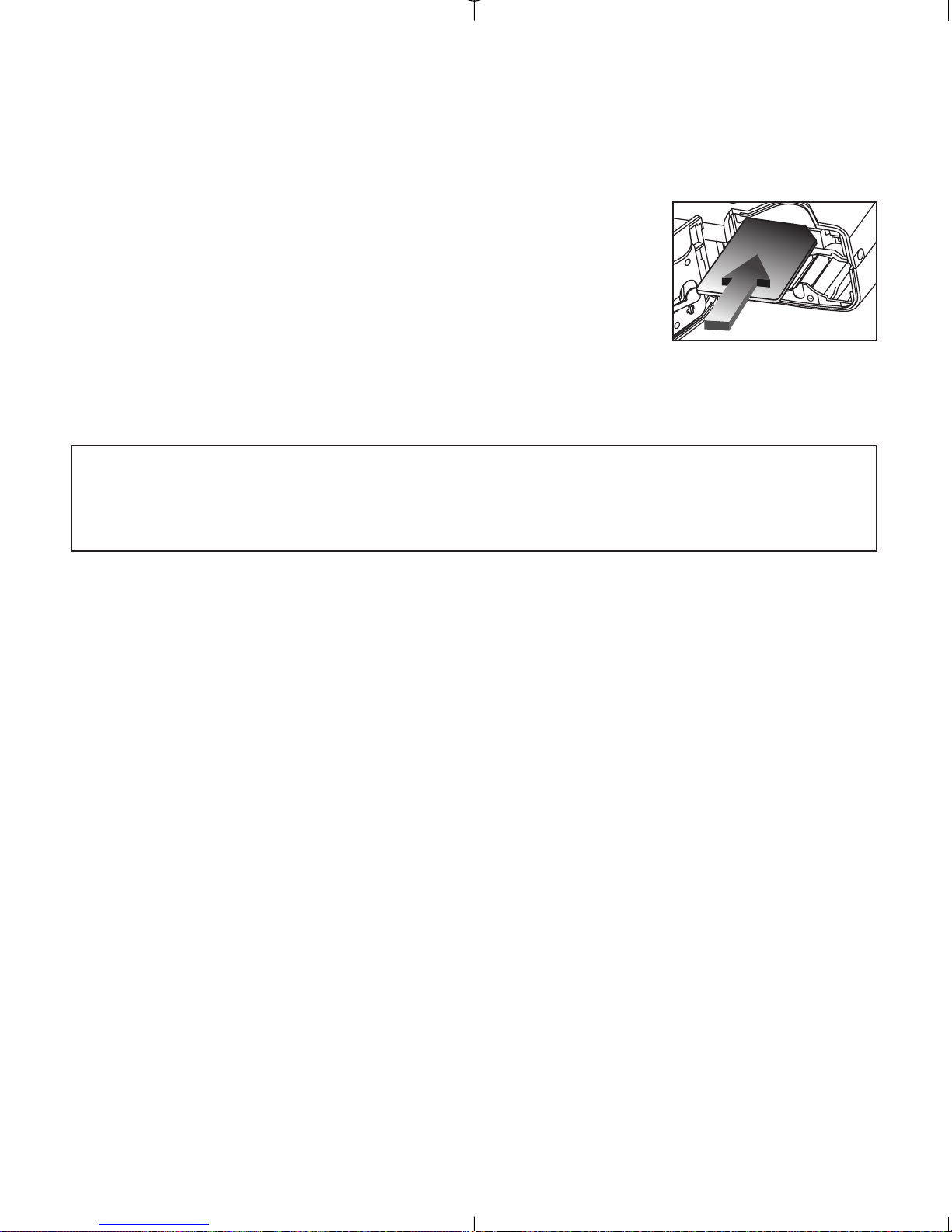

3. Insert the MMC/SD as indicated by the arrow.
(fig.1.6)
4. Close the battery door.
Note: If the internal memory or the MMC/SD is corrupted, the LCD will
read ERROR! The memory needs to be formatted. Please format all
files to continue. (P. 32)
fig.1.6
Duo 2000-E (511441-01) 18/10/02 6:48 pm Page 18
