Conino Lamborgini GBS 6036 LI User manual

Read operating instructions before use!
Accu Grass- and Shrub shear
GBS 6036 LI
50605023-LAU

1
Operating Instruction
1
2
5
3
1
4
6
7

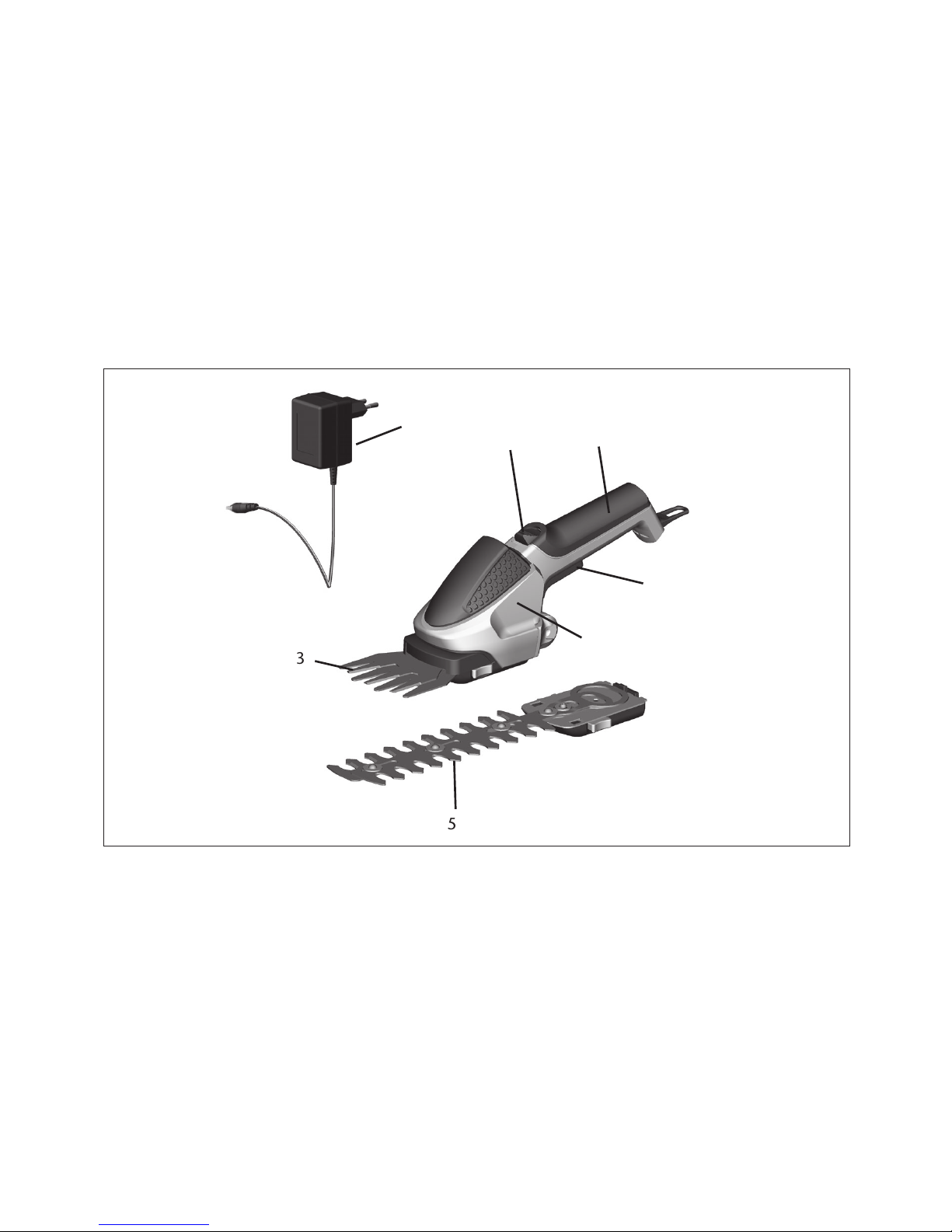

1 Accumulator
2 Charging device for accumulator
3 Grass cutting blade
4 Housing
5 Shrub cutting blade
6 Switch-on lock
7 Switch
Dear customer,
We have created this instruction manual for you in order to ensure the reliable operation of your clippers. By following
the instructions, your machine will always work to your satisfaction and we can guarantee its long lifetime.
Our machines were tested under extremely severe conditions prior to production. They were also subjected to
continuous testing during production. This series of tests guarantees the consumer a high quality product.
Design and performance are subject to change, without prior notice, due to improvements.

2
Operating Instruction
4
2
X
7
12
D
C
6
A
B
3
1
1
2
3
5

3
Operating Instruction
Technical Specications
Battery voltage/operation voltage V/DC 3,6
Battery type Ah/Wh 1,5 / 5,4 lithium-ion
Charging current mA 350
Charging time h 4 hours
Operating time min. ca. 40
Operation output W 5,5
Cutting movements min-1 1000 * / 2000 **
Cutting width * mm 80
Cutting length ** mm 160
Cutting thickness ** mm 8
Noise pressure level as per (DIN EN 60745-2-15) dB (A) 73 K=3,0 dB (A)
Vibrations (DIN EN 60745-2-15) m/s2 < 2,5 K=1,5 m/s2
The machines comply with the safety class III.
Technical changes are reserved.
* Grass trimmer ** Shrub trimmer
- The specied vibration emission value was measured by a standardized test methods and can compare with other
power tools are used.
- The specied vibration emission value can also be necessary for the assessment of work breaks are used.
- The specied vibration emission value can vary during the actual use of the electric tool by specifying the value,
depending on the way how to use the power tool.
- Note: You create the privilege against vascular pulsations of the hands in time breaks.
- Try to keep the stress due to vibration as low as possible. For example, measures to reduce vibration stress are
wearing gloves when using the tool and limiting the work time. All phase of the operating cycle must be considered
in this regard, (for example, times when the power tool is switched off, and times when the power tool is switched
on but is not running under load).
- Always keep hands and feet away from the cutting tools, particularly when switching on the motor!
Accu Grass- and Shrub shear GBS 6036 LI
CONTENT Page
Technical Specications 4
Pictogram illustration and explanation 5
Intended use 6
General safety information for power tools 6
Charging the battery 8
Switching the tool on/off 8
Retting the tool / Changing the shear systems 8
Hints for your work with the tool 8
Maintenance 9
Storage 9
Waste disposal and environmental protection 9
Warranty 9
Declaration of Conformity 9

4
Operating Instruction
1 2 3 4 5 6
7 8 9
Pictogram illustration and explanation
1 Use protective means for eyes and ears!
2 Warning!
4 Read the operation instructions
6 Keep third persons out of the danger zone
3 After-running of the appliance!
5 Do not use tool in wet weather conditions
7 Defective accumulators should be recycled!
8 Battery contains lithium! Do not dispose of as household refuse!
9 Attention: Environmental Protection! This device may not be disposed of with general/household waste.
Disposeof only at a designated collection point.

5
Operating Instruction
Attention: Noise protection! Please observe
the local regulations when operating your
device
Intended use
Application note:
The battery-powered grass and shrub shear
can not and should not replace your hedge
shears.
They are exclusively designed to trim and cut back
ornamental shrubs and brush -wood with a low
wood thickness. Any other use is not deemed
appropriate and the manufacturer/ supplier is not
liable for damages resulting from such use.
If required, the shrub trimmer may be easily turned
into a grass trimmer by replacing the assembled
shearing blade with the one provided with your
package.
General safety information for power tools
Attention! Read all instructions contained herein. Fail-
ure to observe the following instructions may result in
electric shock, burns and/or severe injury. The term
‘power tool’ used in the following includes both mains-
operated tools (with mains supply) and battery-operated
tools (without mains supply).
KEEP THESE INSTRUCTIONS CAREFULLY!
1. Working area
a) Keep your working area clean and tidy. Untidy
and poorly lit working areas may lead to ac-
cidents.
b) Do not operate the tool in potentially explosive
environments containing combustible uids,
gases or dusts. Power tools generate sparks that
may ignite dusts or fumes.
c) Keep children and other persons away when you
are operating the power tool. Distractions may
result in the operator loosing control over the tool.
2. Electrical safety
a) The mains plug of the power tool must t into
the mains socket. The plug must not be modied
in any way. Do not use adapter plugs/connectors
in combination with tools with protective earth-
ing. Unmodied plugs and tting sockets reduce the
risk of electric shock.
b) Avoid physical contact with earthed surfaces as
pipes, heaters, ovens and refrigerators. There
is an increased risk of electric shock if your body
earthed.
c) Keep the tool out of the rain. The penetration of
water into a power tool increases the risk of electric
shock.
3. Personal safety
a) Always pay attention to what you do and apply
reasonable care when working with a power tool.
Do not use the tool when you are tired or under
the inuence of medication, drugs or alcohol.
When working with power tools even a short moment
of inattentiveness may result in severe injury.
b) Wear personal protection equipment and always
wear eye protection (safety goggles). Wearing
personal protection equipment as a dust mask,
nonslip safety shoes, safety helmet or ear protectors
(depending on the type and use of the tool) reduces
the risk of injury.
c) Remove adjustment tools or wrenches and the
like before you switch the tool on. A wrench or
another tool that is inside or on a turning part of the
tool may cause injury.
d) Do not overestimate your abilities. Take care of a
safe footing and keep your balance at all times.
This will allow you to better control the tool in unex-
pected situations.
e) Wear suitable clothes. Do not wear wide clothing
or jewellery. Keep your hair, clothes and gloves
clear of all moving parts. Loose clothing, jewellery
or long hair may get caught in moving parts.
f) If dust extraction/collection devices are provided
make sure that they are connected and used
properly. The use of these devices reduces hazards
caused by dust.
4. Careful handling and use of power tools
a) Do not overtax the power tool. Use the power
tool intended for your type of work in each case.
The use of the suitable power tool within the stated
range of performance makes working more effective
and safer.
b) Do not use a power tool with a damaged switch.
A power tool that cannot be switched on or off any
more is dangerous and must be repaired.
c) Pull the mains plug out of the socket before you
adjust a tool, change accessories or put the tool
aside. This precaution avoids the unintentional start
of the tool.
d) Store power tools out of the reach of children.
Do not allow persons to use the tool if they are
not familiar with the tool or these instructions.
Power tools are dangerous if used by inexperienced
persons.
e) Thoroughly maintain your power tool. Check
whether moving parts are working properly and
are not jamming/sticking, and whether parts
are broken or otherwise damaged in a way that
affects the function of the tool. Have damaged
parts repaired before using the tool. Many acci-
dents are the result of poorly maintained power tools.
f) Keep cutting tools sharp and clean. Thoroughly
looked-after cutting tools with sharp cutting edges
are jamming less often and are easier to guide.
g) Use power tools, accessories, add-on tools, etc.
in accordance with these instructions and in the
way prescribed for the respective type of tool.
You should also consider the working conditions
and the work to be carried out. The use of power
tools for purposes other than those intended for the
respective tool may result in dangerous situations.

6
Operating Instruction
5. Service
a) Have the power tool serviced by qualied techni-
cal personnel only; repairs should be carried out
using exclusively original spare parts. This will
ensure the safe operation of the power tool.
6) Appropriate handling and use of battery-operated
power tools
a) Make sure that the device has been switched off
before inserting the battery. Inserting a battery into
a switched-on power tool may lead to accidents!
b) Only use charging devices recommended by the
manufacturer to charge the batteries. Charging
units are usually designed for certain types of bat-
teries; if used with other types there is a risk of re!
c) Only use batteries designed for your power tool.
The use of other batteries may lead to injury and
risk of re!
d) Keep unused batteries clear of paper clips, coins,
keys, nails, screws or other small metal objects
that may bridge the contacts. A short circuit be-
tween the battery contacts may lead to burns or re!
e) Improper use may result in uid leaking out of
the battery. Avoid any contact with battery uid.
Flush with water in case of contact. If battery
uid should get into your eyes seek medical ad-
vice additionally. Leaking battery uid may lead to
irritations of the skin or burns!
Safety instructions for grass- and shrub shear:
• Keep all parts of your body away from the cutting
blades. Do not try to remove cut-off matter with
the tool running. Do not try to hold material to be
cut off with your hand. Remove cut-off matter that
is stuck between the blades only with the tool be-
ing switched off! When working with hedge trimmers
even a short moment of inattentiveness may result in
severe injury.
• Carry the hedge trimmer at the handle with the
cutting blades standing still. Always put on the
protection cover when transporting or storing the
hedge trimmer. Careful handling reduces the risk of
injury through the cutting blades.
• Only hold the power tool on the insulated handle
surfaces, because the cutting blade can come
into contact with concealed power lines. If the
cutting blade comes into contact with an energised
line, device parts can become energised and cause
an electric shock.
• Before starting work, search the hedge for con-
cealed objects, e.g. wire, etc. Pay careful attention
to ensure that the cutting tool does not come into
contact with wire or other metal objects.
• Hold the power tool properly, e.g. with both hands
on the handles, if two handles are present. Losing
control of the device can result in injuries.
Grass shears safety warning
• This appliance is not intended for use by persons
(including children) with reduced physical, sen-
sory or mental capabilities, or lack of experience
and knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Children should be supervised to ensure that they
do not play with the appliance.
• This machine may cause serious injuries. Please
read the instruction manual carefully as to the
correct handling, the preparations, the mainte-
nance and the proper use of the hedgetrimmer.
Familiarize yourself with the machine before the
rst use and also have yourself introduced to
practical use of the machine.
• The cutting tool continues to run after the device
is switched off.
• Turn off power before cleaning.
• Beware! Keep your ngers away from the cutting
area!
• Only switch on the device if your hands and feet
are away from the cutting tools.
• Remove all debris from the working area before
use and pay attention to such debris while work-
ing!
• Turn the machine off before transporting and
wait until the blade stops moving. Maintenance
and cleaning should be performed only when the
machine is turned off.
• Children and teenagers under 16 years of age
must never use this device!
• Never permit children or persons who are not
familiar with the operating instructions to use
this device.
• Statutory regulations can restrict the age of the
operator.
• Be aware of third persons in the work area.
• Do not use the shears if other persons, children or
domestic animals are found nearby.
• Only use the shear in daylight or sufciently
bright articial illumination.
• The clippers must be subjected to regular main-
tenance and checks. Damaged blades must be
replaced as a pair. Professional repair is required
if damage occurs due to impact.
• The trimmer should be regularly maintained by an
accordingly authorised service point.
• Wear suitable working clothes, i.e. protective
glasses, protective means for ears, non-slippery
shoes and working gloves. Do not wear broad
clothes which could be caught by the moving
parts.
• After you nish using the clippers and before
cleaning them, it is necessary to ensure that the
machine cannot be accidentally turned on, such
as by unlocking the switch.
• Check the cutting unit regularly for damage
• Never hold the clippers by the blades, you may
run the risk of injury even when the clippers are
not moving!
• Never touch moving blades in an attempt to re-
move debris or if the blades are blocked. Always
switch off the device.

7
Operating Instruction
• Keep the machine away from children and store
it in a safe place.
• When working with the shears, always take a sta-
bile standing position, particularly when you are
using steps or a ladder.
• Do not use shears with a damaged or excessively
worn-out cutting part
• Ensure that all protective devices and handles
are installed on the machine. Never try to put an
incomplete machine in operation.
• Always use the protective part designed for the
blade when transporting and storing the shears.
• Before starting the work, make yourself famil-
iar with the surroundings and possible dangers
which you may not hear because of the noise.
• Only use the spare sparts and accessories recom-
mended by the manufacturer.
• Check the hedge for hidden objects such as wire
fencing before beginning to cut.
Before starting
Charging the battery
Safety Instructions:
The tool is delivered with the lithium-ion battery charged.
However, we recommend recharging the battery before
the tool is operated for the rst time.
- Use the included charging unit for charging the battery
only. It is specially designed to match the tool’s battery.
- Never use other charging unit. This will result in re
and/or explosion hazard!
- Always keep the charging unit clear of rain or moisture.
Hazard of electric shock! - Never charge the battery
in the open without protection, always choose a dry,
protected place.
- Never try to charge third-party batteries with this charg-
ing unit. This will result in re and/or explosion hazard!
- Check the housing, plug and cable for damage before
each use of the charging unit. Do not use the unit if
you detect damage.
- Do not open the charging unit by force. In case of a
defect, the charging unit must be replaced.
- The charging unit heats up during the charging proc-
ess. Do not place the unit on a ammable surface or
operate it in a ammable environment. Fire hazard!
- Never open the battery cells. Hazard of short circuits!
- In case of damage to the battery, hazardous vapours or
uids may escape. In case of incidental contact ush
with water and seek medical advice immediately. The
uid may have irritating or caustic effects on the skin.
- Protect the battery from heat, intense insolation and
re. Explosion hazard!
Charging process:
To charge the battery connect the charging unit to an
electrical socket. Then connect the plug of the charg-
ing cable to the charging socket of the grass and shrub

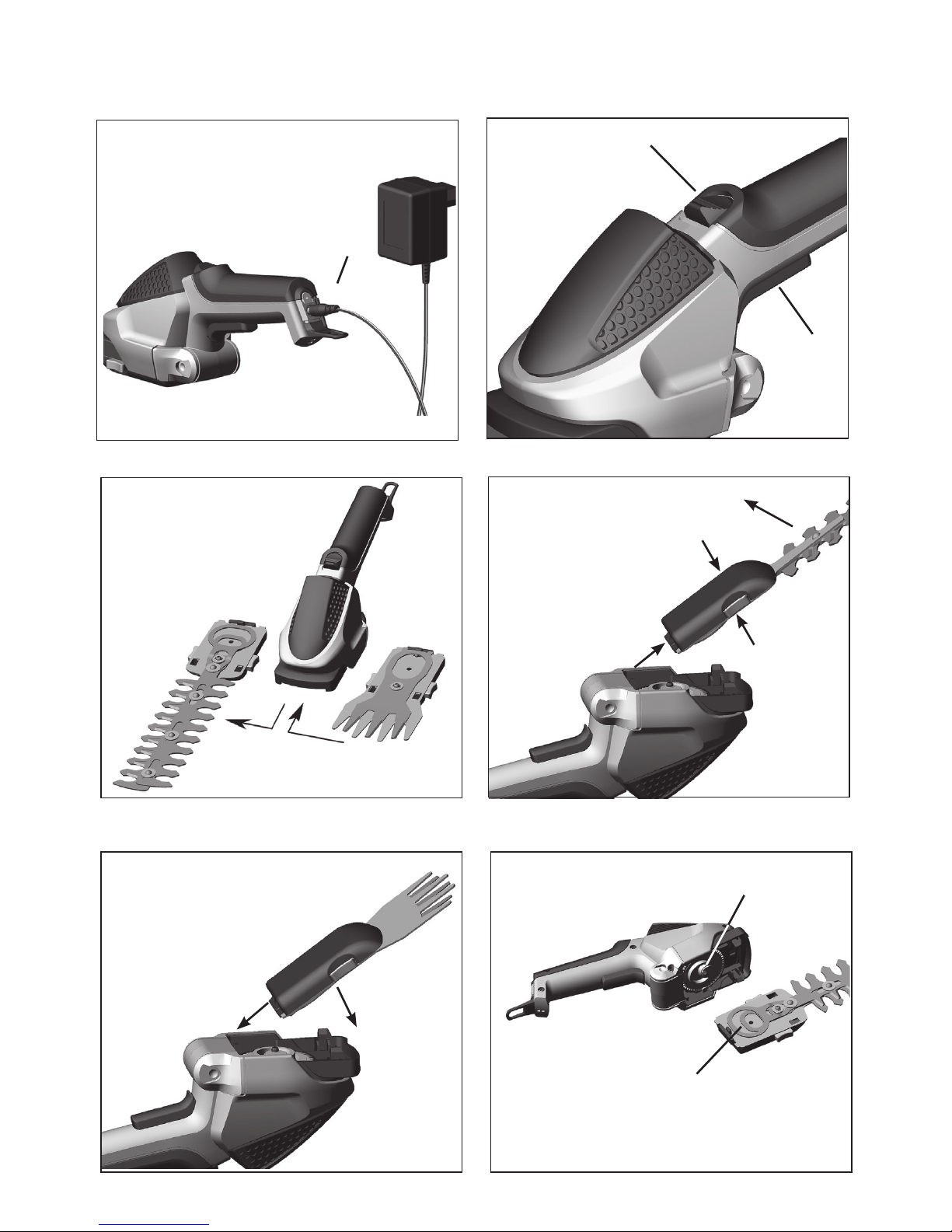

shears or trimmer (g. 2)
The start of the charging process is indicated by the
green control light (X) g. 2 at the end of the handle.
If the battery is completely empty the charging time is
about 4 hours. After the charging process has been
completed, the electronic control automatically switches
off the charging process. The green control light ex-
tinguishes thereby indicating the end of the charging
process. It is not required to monitor the charging time.
The charging unit and the handle of the tool heat up dur-
ing the charging process. This is nothing unusual.
Pull the plug of the charging unit if it is not in use.
The tool must never be switched on during the charging
process!
Recharge the battery every time you realise a consider-
able decrease of the tool’s cutting performance. The
battery additionally features an electronic total discharge
protection that protects the battery from damage. This
feature switches the battery off if the discharging thresh-
old is reached. Do not switch the tool on afterwards and
make sure to recharge the battery rst.
Switching the tool on/off
Slide the switch-on lock A (g. 3) forward and push
switch B. After the tool has been switched on, you do not
have to hold the switch-on lock A any longer.
To switch off just let go of the switch B.
Attention! The blades continue to run after the
tool has been switched off.
Retting the tool / Changing the shear systems
Put the included blade guard into the blade(s) and use
protective gloves to protect yourself from injury.
Push both lateral push buttons concurrently and remove
the shearing blades (Fig. 5).
Remove any dirt from the gear area (if necessary).
Please slightly grease the drive area using commercial
universal grease as described in the Maintenance sec-
tion before putting the replacement shears in place
(Fig. 7).
Lead the cutting blades with the rear holding toe into
the housing of the grass shears as shown in g. 6 and
lock the click system in place by strongly pushing on the
blade base plate.
The position of the eccentric drive does not have to be
considered when changing the blades. When the device
is switched on, the gear eccentric unit automatically
engages into the appropriate relief in the shearing blade.
The device is now ready for operation.
Hints for your work with the tool
The shrub trimmer cuts ornamental shrubs and light
undergrowth or bushes. The device is also well-suited
for ornamental cuts as, for example, for the care of
graves. As the device is operated with one hand please
be careful not to move the other hand near the running
cutting tools.
The grass shears allow for clean cuts of lawn edges or
hardly accessible lawn areas.

8
Operating Instruction
Maintenance (Fig. 7)
Clean the blade from any crushed plants and dirt. The
blades should be detached at least once a season for
the removal of debris. Lubricate the C pinion and the
D back of the blade with a light oil. Do not lubricate the
motor and other parts. Should the blade become dull
after a long period of use, a spare part can be ordered.
Warning! The leading edges of the blades must be oiled
to ensure proper lubrication. If the leading edges are not
oiled, blade durability may be adversely affected.
If the cutting tools have become dull after long use
please replace them with original spare parts.
Clean the device using only a brush or cloth. Do never
wash down the device with water and do never dip the
device into water.
Apply protective spray to the blades after each use.
Replace blunt blades.
Always put on the blade guard after use.
Examine the tool for obvious defects and have it repaired
in an authorised service shop if required.
Storage
Always store the tool in a dry, clean place outside the
reach of children. Make sure that the place of storage
is frost-free.
Waste disposal and environmental protection
Please observe the following directions for the
disposal of your accumulator/battery.
Batteries are not to be put into the rubbish. As a con-
sumer you are legally obliged to return used batteries
and accumulators. At the end of the duration of your ap-
paratus, the batteries or accumulators have to be taken
from the apparatus, disposing of them separately. You
have the possibility of delivering your old batteries and
accumulators to the local collecting points of your mu-
nicipality or to your dealer or to the distribution centers.
If your device should become useless somewhere in the
future or you do not need it any longer, do not dispose
of the device together with your domestic refuse, but
dispose of it in an environmentally friendly manner.
Please dispose of the device itself at an according col-
lecting/recycling point. By doing so, plastic and metal
parts can be separated and recycled. Information con-
cerning the disposal of materials and devices are avail-
able from your local administration.
Warranty
For this electric tool, the company provides the end
user - independently from the retailer‘s obligations re-
sulting from the purchasing contract - with the following
warranties:
The warranty period is 12 months beginning from the
hand-over of the device which has to be proved by the
original purchasing document. Wearing parts and de-
fects caused by the use of not tting accessories, repair
with parts that are no original parts of the manufacturer,
use of force, strokes and breaking as well as mischie-
vous overloading of the motor are excluded from this
warranty. Warranty repair shall exclusively be carried
out by authorized service partners or by the company‘s
customer service. In the case of any intervention of not
authorized personnel, the warranty will be held void.
For 12 months extension of warranty, register your prod-
uct online at www.powertoolsupport.com
For all warranty and service within Australia please
contact:
P:1800 909 909
E: [email protected]
W:powertoolsupport.com
EC Declaration of Conformity
We, Mogatec GmbH, Im Grund 14, D-09430 Drebach,
declare under our sole responsibility that the products
Accu Grass- and Shrub shear GBS 6036 LI, to which
this declaration relates correspond to the relevant basic
safety and health requirements of Directives 2006/42/
EC (Guideline of Machines) 2004/108/EC (EMC-Guide-
line), 2006/95/EC (Low Voltage Guideline) and 2000/14/
EC (noise directive) incl. modications. For the relevant
implementation of the safety and health requirements
mentioned in the Directives, the following standards and/
or technical specication(s) have been respected:
EN 60745-1:2009; EN 60745-1 Corr.:2009
EN 60745-1/A11:2010
EN 60745-2-15:2009+A1:2010
EN 60335-1:2002+A11+A1+A12+A2+A13+A14:2010
EN 60335-1/A15:2011
DIN VDE 0730 Teil 2ZP:1980-07
DIN EN ISO 12100:2011-03; EN ISO 1200:2010,
under consideration of DIN EN ISO 10517:2010
Charger:
EN 50366:2003; EN 55014-1:2006
EN 55014-2+A2:2008
EN 61000-3-2:2006; EN 61000-3-3:2008
EN 60335-2-29:2004
measured acoustic capacity level 77,5 dB (A)
guaranted acoustic capacity level 79,0 dB (A)
Conformity assessment method to annexe V / Directive
2000/14/EC
The year of manufacture is printed on the nameplate and can be ad-
ditionally retrieved via the consecutive serial number.
Münster, 11.02.2013
Gerhard Knorr, Technical Management Ikra GmbH
CE Conformity Ofcer Mogatec GmbH
Maintenance of technical documentation:
Gerhard Knorr, Kärcherstraße 57, DE-64839 Münster

ikra GmbH - Schlesier Straße 36 - 64839 Münster-Altheim (Germany) - Telefon: ++49 6071 3003 0 Telefax: ++49 6071 3003 30
[email protected] - www.tonino-lamborghini-garden.com
PRODOTTI DISTRIBUITI DA
PRODUCTS DISTRIBUTED BY
SU L ICENZA D I T ONINO L AMBORGHINI S p a
UNDER LICENSE O F T ONINO L AMBORGHINI S p a
WWW.LAMBORGHINI.IT
xxxxxxxx
For all warranty and service within Australia please contact:
P:1800 909 909
E: [email protected]
W: powertoolsupport.com
