Conquip Powerbrush User manual

User Guide
Powerbrush

3
Product Information
Overview
The Conquip Powerbrush is a hydraulic powered forkli sweeper that collects dirt
and waste. The Powerbrush incorporates a large water tank for dust suppression
and a cleaner sweep. The unit is durable and inexpensive to maintain.
Customisaon opons include a pressurised water spray system and a kerb brush.
The Powerbrush is a very cost eecve, easy method to keep construcon sites
clean, helping keep sites dy and safe at all mes. It oers total exibility and is
much more cost ecient than a truck road sweeper.
Key Benets
• Brushes can be replaced quickly, with just 7 brush secons, that can be easily
height adjusted as they wear.
• Simple hydraulic system with a single 1-way hydraulic valve, reducing the
number of wearing parts.
• Only 4 grease points for easy maintenance.
• Robust collector hopper gathers dirt and waste and the durable design oers
maximum protecon from manhole covers.
• 3 wheels for maximum stability and the ability to follow uneven ground.
• Manufactured in UK from high quality Brish and European steel and
components.
Customisaon Opons
• Pressurised water spray system for dust suppression and a clean sweep.
• Kerb / side brush for cleaning gullies and kerbs.
Flow Rate
• 90 litres per minute minimum requirement intermient.
• 78 litres per minute minimum requirement connuous running.

User Guide - Powerbrush
Product Information
Specication
Item Product Code
Powerbrush SA800AC-02100
Height Width Length Weight Fork Pockets Tank Capacity
1202mm 2340mm 2205mm 560kg 148 x 60mm 250 litres
Dimensions without Kerb Brush

5
Product Information

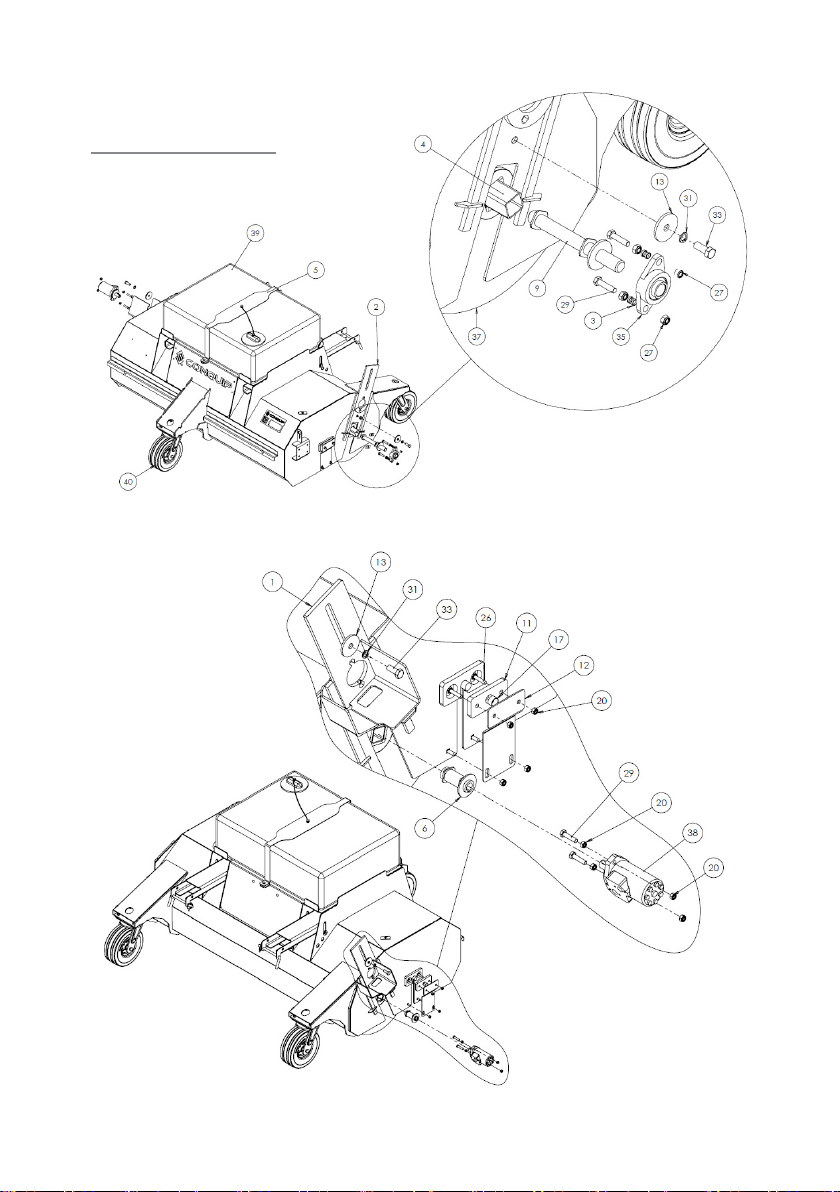

Parts Diagram
Powerbrush

User Guide - Powerbrush
Product Information

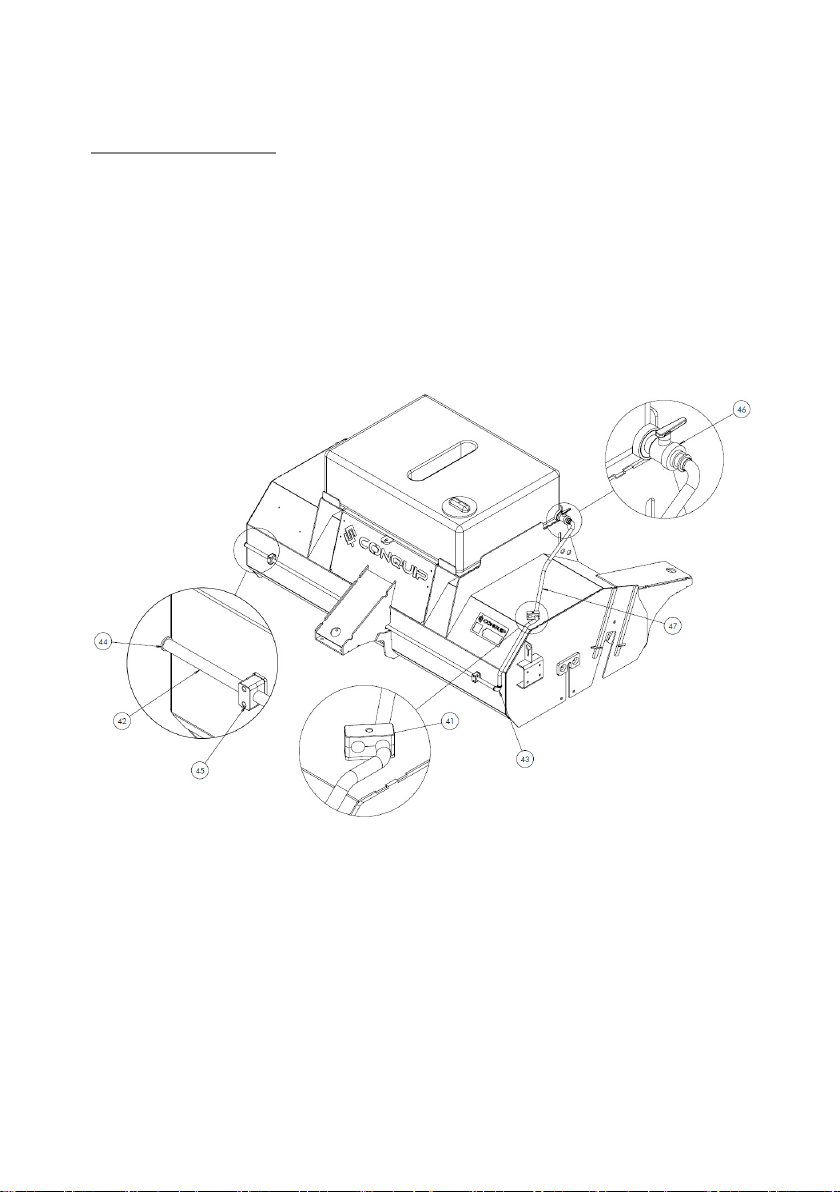

Parts Diagram
Powerbrush

7
Product Information
Parts Diagram
Powerbrush

User Guide - Powerbrush
NOTE: These parts are for this model, they may differ for previous versions. Please contact Conquip with any queries.
Item Number Part Number Descripon Quanty
1 ZZ220169 Brush Adjustment Assembly 1
2 ZZ220170 Brush Adjustment Assembly c/w Bearing 1
3ZZ960079 Washer 4mm x OD: 15.5mm x ID:12.5mm 4
4ZZ220173 Main Brush Sha, Length: 2065mm 1
5 ZZ220174 Water Tank Strap 1
6 ZZ220187 Sha Motor Insert Assembly 1
7 ZZ220176 Fork Pocket Retaining Pins 2
8 ZZ960078 Washer 6mm x OD:37mm x ID:21mm 2
9ZZ220177 Sha Bearing Insert Assembly 1
10 ZZ960077 Washer 6mm x OD:73mm x ID:30.5mm 1
11 ZZ220178 Hopper Bearing Bracket 2
12 ZZ220179 Hopper Safety Guard 2
13 ZZ960063 Washer 6mm x OD: 70mm x ID: 17mm 2
14 ZZ990000 Heel Pin, 16mm dia. Max Pocket Width
180mm (Single) 2
15 NS800804 4.8 x 20mm Alu Large Flange Blind (Pop) Rivets 4
16 ZZ990510 Coated Galvanised Restraint Wire, 500mm c/w
Nylon Eye 1
17 ZZ960064 Sleeve Bearing, Oilon, OD: 25mm x ID:15mm
x 28mm 2
18 ZZ220167 Splined Hub, 8mm Key, 100mm L, OD: 50mm
Ø, ID: 25mm Ø 1
19 ZZ990009 Linch Pin 6mm x 42mm 4
20 NS800013 M10 Nyloc Nut 18
21 NS800262 M10 Steel Washer A BZP 2
22 NS800888 M10 x 30mm Coach Bolt 4
23 NS800666 M10 X 30 Hex Head set BZP 2
24 NS800066 M10 x 35 8.8 HT Hex Head Set Screw BZP 1
25 NS800622 M8 x 30 Hex Head Set Screw BZP 1
26 NS800860 M10x60 Coach Bolt 4

9
NOTE: These parts are for this model, they may differ for previous versions. Please contact Conquip with any queries.
Item Number Part Number Descripon Quanty
27 NS800015 M12 Nyloc Nut BZP 16
28 NS800889 M12 x 40 Hex Head Set Screws 8.8 HT 12
29 NS800817 M12 x 50 8.8 HT BZP Hex Set Screws 4
30 NS800121 M16 Nyloc Nuts BZP 2
31 NS800249 M16 Spring Washer 2
32 NS800566 M16 x 130 Bolts BZP 1
33 NS800379 M16 x 40 Set Screw 2
34 NS800801 M16 x 70 Bolt BZP 1
35 ZZ220003 Flanged Bearing, 30mm c/w Grease Nipple 1
36 ZZ960065 Hydraulic Cylinder, 20mm Ø Piston, 400mm
Stroke 1
37 ZZ270000 Brush 100% PPN 295mm x 600mm Ø 7
38 ZZ220185 Hydraulic Motor AGMR 160 1
39 ZZ990506 Water Tank, 250L, c/w Conquip Branding 1
40 ZZ270141 Swivel Castor, Heavy Duty, 305mm Wheel
Diameter 3
41 ZZ220180 Hydraulic Double Hose Clamp, 3/8” 2
42 ZZ220042 2m UPVC Pipe, ID: ½” 1
43 ZZ220040 90° Elbow, ½” Thread, ½” Solvent UPVC 1
44 ZZ220043 End Cap, ID: ½” Solvent UPVC 1
45 ZZ220181 Hydraulic Single Hose Clamp, ½” 2
46 ZZ220126 Water Tap 1
47 ZZ220125 PVC Water Hose 1

User Guide - Powerbrush
NOTE: These parts are for this model, they may differ for previous versions. Please contact Conquip with any queries.
Item Number Part Number Descripon Quanty
1 ZZ220051 Poly Kerb Brush, 4 Fixing Bolts 1
2 ZZ220054 Kerb Brush Bracket 1
3NS800370 M8 x 50 HT Hex Bolt BZP 5
4NS800011 M8 Nylon Inset Nut BZP 4
5 NS800378 M8 Spring Washer 1
6 NS800817 M12 x 50 8.8 HT BZP Hex Set Screws 7
7 NS800015 M12 Nylon Inset Nut BZP 4
8 ZZ220185 Hydraulic Motor AGMR 160 1
9 ZZ990009 Linch Pin 6mm x 42mm 1
10 ZZ220054 Kerb Brush Bracket 1
11 ZZ990515 Chain, Galvanised, 8mm x 52mm x 32mm Long
Link (per metre) 4
12 ZZ110009 Quick Link, 8mm 1
Product Information
Parts Diagram
Powerbrush Kerb Brush

11
Product Information
Parts Diagram
Powerbrush Kerb Brush Hydraulics
NOTE: These parts are for this model, they may differ for previous versions. Please contact Conquip with any queries.
Item Number Part Number Descripon Quanty
1 ZZ220071 Male-Male Adaptor ⅜" X ⅜" BSP 3
2 ZZ220097 ½" Flat Face Female Quick Release Coupling 2
3ZZ220096 ½" Flat Face male Quick Release Coupling 2
4ZZ990561 Rubber Bonded Seal ½" (Dowty Washer) 4
5 ZZ220202 Male -Female Adaptor Swept 90° 1/2" x 1/2"
BSP 2
6 ZZ220070 Male-Male Adaptor, 1/2" X 1/2" BSP 2
7 ZZ220203 Hydraulic Hose, 3/8" Ø, 200mm, Ends: 3/8" F
/ 1/2" F 2
