Conrad DVP-702 User manual

COVER
ENGLISH
PORTABLE DVD PLAYER
OWNER`S MANUAL
MODEL NO :DVP-702
Please read this manual before operating
P1.
Table of Contents
Features......................................................................................................................... 1
Safety Information..................................................................………........................... 2
Remote Control....................………..............................................................................3
Description.....................................................................................................................4
Using the Remote
Control........................................................................................................................... 5
Connecting Earphones to the DVD Player.............................……................................6
Connecting to an External Component ……………….................................................7
Connecting to a TV……………………………............................................................8
Using the AC Adaptor………………............................................................................9
Using the Battery Pack.................................................................................................10
Cautions in Using Battery Pack…………………........................................................11
Playing a Disc……………….................................................................................12-16
Playing Picture CD……………...................................................................................17
Playing MP3 and Regular Audio CD...........................................................................18
Setting Language for OSD, Menu, Voice,
Subtitle..................................................................................…...................................19
Setting Screen and Audio............................................................................................20
Setting Parental Control, Password, Camera Angle.....................................................21
Adjusting LCD Screen.…............................................................................................22
Troubleshooting....................…….........................................................................23-24
Specifications...............................................................................................................25
P2
Safety Information
Please read all of the safety and operating instructions before operating this Player,
follow all warnings placed on the Player and in the user's manual. These safety and
operating instructions should be retained for future reference.

Safety Information
Do not expose the system to excessive moisture, rain, sand, or heat sources.
Place the DVD Player on a firm, flat surface.
Keep the DVD Player away from domestic heating equipment and direct sunlight.
When placing the DVD Player in a cabinet, allow about one inch of space all around
the DVD Player for ventilation.
SAFETY WARNING
CLASS 1 LASER PRODUCT / KLASSE 1 LASER PRODUKT / LUOKAN 1
LASER LAITE / KLASS 1 LASER APPARAT / PRODUCTO LASER CLASE.
INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED.
AVOID EXPOSURE TO BEAM.
△WARNING
1.To prevent fire or electrical shock, do not expose this Player to rain or moisture.
2.To avoid electrical shock, do not open the cabinet, no user-serviceable parts inside,
refer servicing to qualified personnel only.
3.Certain countries may regulate the disposal of the battery used to power this product.
Please consult with your local authority.
4.Listening with earphones for many hours at maximum volume may damage your
hearing.
5.The Player should be connected to a power supply only of the type described in the
operating instructions or as marked on the Player.
P3
Remote Control

1.L/R Button
2.P/N Button
Selects PAL/NTSC TV systems
3.TITLE Button
4.SUBTITLE Button
selects the subtitle's language.
5.Number Buttons (0,1,...,9)
6.SETUP Button
Brings up the setup MENU
to set up the system's
language, audio, display,
password etc.
7.ENTER/DIRECTION Buttons
8.PAUSE / STEP ( ) Button
9.SKIP FORWARD ( ) Button

Use to skip to next title, chapter or track.
10.SKIP BACKWARD ( ) Button
Use to skip to previous title,
chapter or track.
11.ZOOM Button
12.MENU/PBC Button
Brings up the disc menu
13.DISPLAY Button
Displays the current disc playback
information
14.MUTE Button
15.ANGLE Button
Use to access various
camera angles on a DVD.
16.LANGUAGE Button
Selects the voice language in a DVD
17.SLOW Button
18.PLAY Button
Starts disc play.
19.STOP Button
Stops disc play
20.FAST FORWARD ( ) Button
21.FAST REVERSE ( ) Button
22.REPEAT Button
Allows you to repeat play
a title, chapter, track, or disc.
23.MARK Button
Use to mark a point where the playback
starts each time when the MARK button
is pressed later on.
24.GOTO Button
Use to enter the specific time to playback
P4.
Description

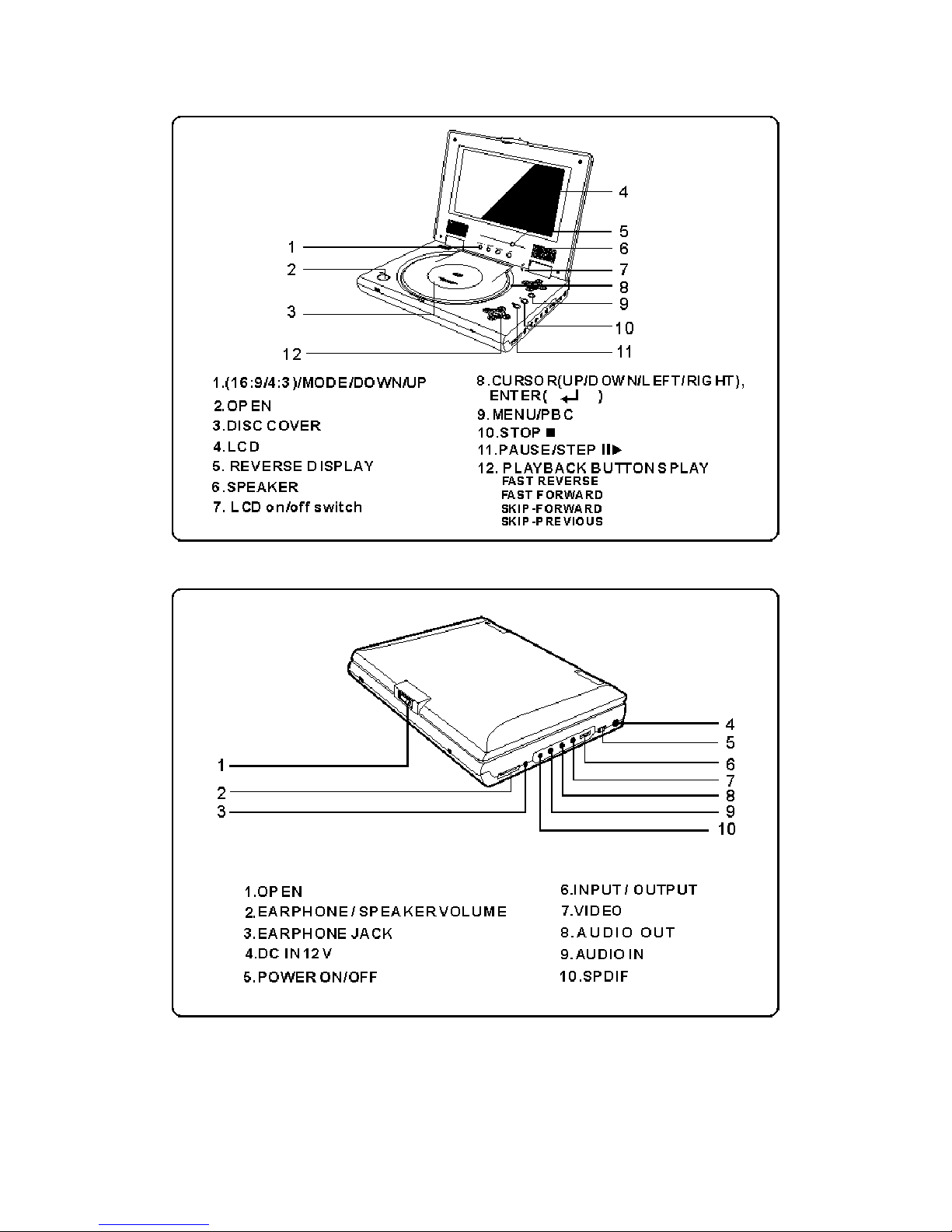

 Front View

 Right View

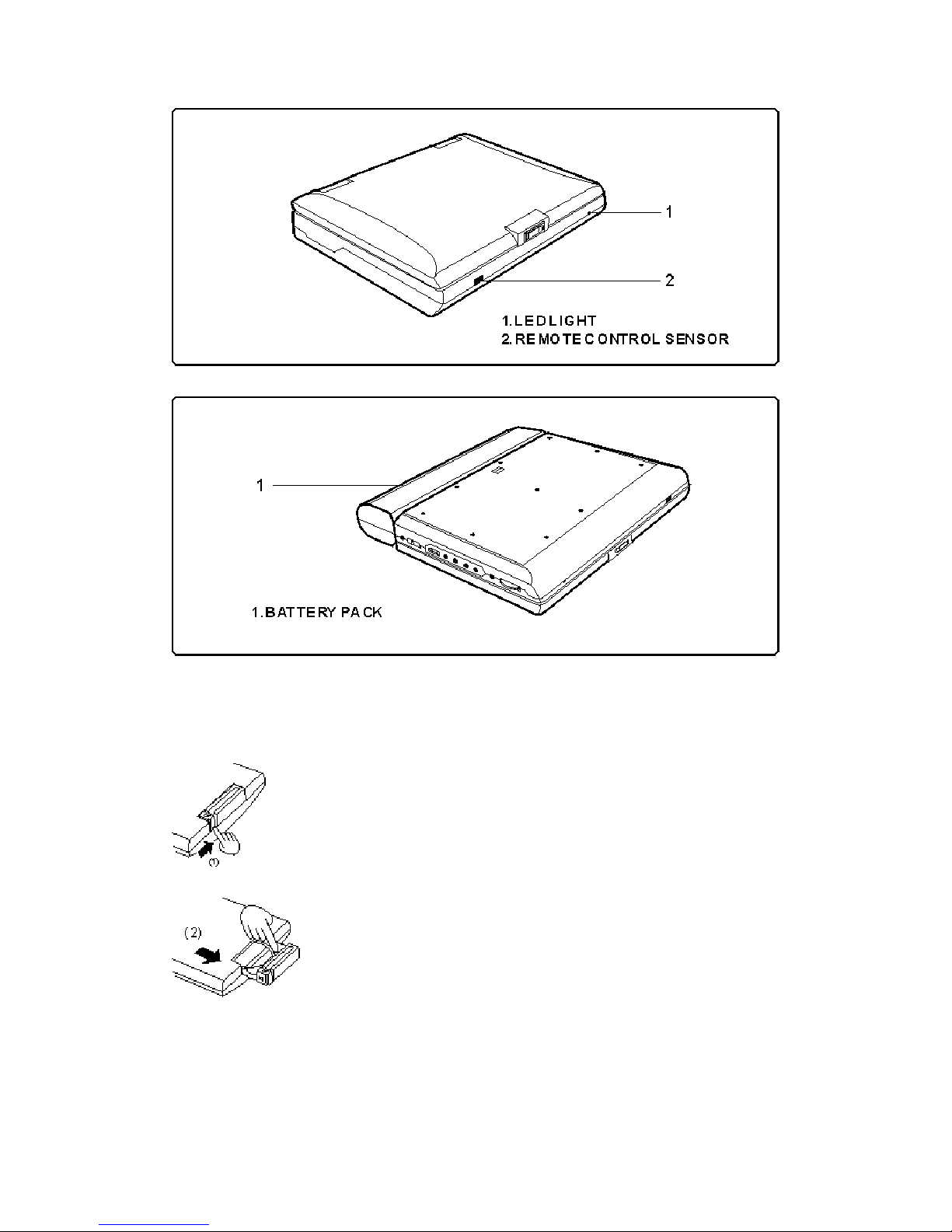

 Left View

 Bottom View
P5.
Using the Remote Control
1. Press the locking tab in the arrow direction.
2. Pull out the battery compartment lid.

3. Insert a 3V lithium battery into the compartment with the polarity ( + )
facing up as marked.
4. Replace the battery compartment by pushing it until it clicks into place.
Using the remote control
Point the remote control directly at the remote sensor
on the front of the DVD Player.
P6.

Connecting Earphones to the DVD Player
You can attach an earphone with a stereo mini-jack plug to the phone jack ( ) for
private listening. Its volume is adjustable using the VOLUME control dial. You can
also connect a second earphone to the AUDIO OUT jack, but its volume cannot be
adjusted.
Note: When the earphone is connected to the Phone Jack ( ), the speaker will be
disconnected.
P7.
Connecting to an External Component
You can enjoy video from your VCR or camcorder on your DVD player.
1. Turn off DVD player, VCR and other components.
2. Connect the audio and video cables as illustrated.
3. Slide INPUT/OUTPUT to INPUT.
4. Turn on power.
VCR or other component equipped with external output connectors

P8.
Connecting to a TV
You can enjoy DVD quality video on your TV screen.
1. Turn off DVD player and TV.
2. Connect the audio and video cables as illustrated.
3. Slide INPUT/OUTPUT to OUTPUT.
4.Turn on DVD player and TV.
5. Select corresponding Video Input which is connected to DVD player.
6. Press PLAY on DVD player.
Connect to a TV equipped with external connection jacks
TIPS
 If you wish to view video on your TV only, close the display panel of your DVD
player.
 With the display panel shut, use the remote to control DVD player.
P9.

Using the AC adaptor
This portable DVD player can be powered by A.C through the supplied switching
power AC adaptor. It can also use the
supplied battery pack to power.
When the AC adaptor is connected to the unit and powered, the unit will be
automatically and electrically disconnected from the
battery pack and powered by the AC power.
Important !
 Always turn off the DVD Player before connecting or disconnecting the AC
cord.
 Only use the AC adaptor supplied with this player. Using a different type of
adapter may cause malfunction or damage to the product.
 When the AC adapter is used for prolonged period of time, the adapter may
heat up. This is normal and is not a cause for concern.
 When not using the adapter, unplug it from the outlet.
P10.
Using The Battery Pack
Installing the battery pack

Align and insert the battery pack into the
corresponding slots on the back of the unit.
Slide the battery pack to the left until it clicks into place
Removing the battery pack
Slide down the latch

Slide the battery pack to the right, and remove
Charging the battery pack
1. Turn off the unit by sliding POWER ON/OFF to OFF.
Note: When the player is turned on, the battery will not be charged.
2. Attach the battery pack to the unit.
3. Connect one end of the AC cord to the jack on the AC adapter.
4. Plug the other end of the AC cord into an AC outlet.
5. Connect the DC cord to the DC IN 12V jack on the DVD player.
1. The LED lights ( red color ), and charging begins.
2. When battery is fully charged, the LED turns to green.
P11.
Cautions in using battery pack
Danger!
Strictly follow these safety information when using the battery pack. Otherwise, a
short circuit, overheating, smoke, fire,
or damage to the product may result.
Never disassemble or modify the battery pack in any way. Do not touch the
terminal of the battery pack with a metal object.
Do not place the battery pack in direct sunlight, dashboard of a vehicle, or high
temperature place. It can cause explosion or fire.
Do not expose the battery pack to water, fire, or heat.
Always use the included AC adapter when charging the battery pack.
This battery pack is designed exclusively for your portable DVD player. Do not
use it with other devices.

Warning!
1. Do not drop or subject to strong vibration.
2. Keep out of reach of children.
3. The battery pack may leak fluid that is harmful to your eyes.
If this fluid gets in your eyes, wash eyes immediately with large amounts of running
water and
get medical attention immediately.
If the fluid gets on your skin or clothing, wash immediately with water.
Caution!
1. When not using the battery pack, remove it and store in a cool place.
2. Do not use the AC adapter or battery pack for a prolonged period of time during
recharging.
3. Keep the battery pack free from smoke, steam, moisture, and dust.
4. Using the battery pack under 32 F or over 86 F can cause reduced battery
life.
P12.
Playing A Disc
Preparation for Playback
1. Make sure the unit has the power either from the battery pack or the AC adaptor.
2. Loading a disc, following these steps:
 Open the top cover by pushing the latch to the right and lift the top cover.
 Press the OPEN button to open the disc lid.
 Place a disc into the tray with the label side facing up.
 Close the disc lid.
3. Slide INPUT/OUTPUT to OUTPUT (located on the side of the player).

6. Slide POWER to ON to turn on the power
Play
Press to start play.
Stop
1. Press ■(on the remote) or STOP (on the player) to temporarily stop the
playback, "PRESTOP" appears on the screen.
2. Press ■or STOP again to stop the playback.
Pause
1. During playback, press (on the remote) or PAUSE (on the player) to
pause.
2. Press to resume playback
Resume
When you press ■or STOP, the player remembers where you stopped, and when
you press PLAY later,
it will play from where you stopped it. However, during which, if the disc is
removed, the STOP (■) button is pressed gain or the player is turned off, the
RESUME function will be lost.
P13.
Playing A Disc
Skip
You can skip chapters on DVD-Video, tracks on DVD-Audio, CDs, and Video CDs.
1. To skip forward, press during play or while paused; it skips to the next
chapter or track. Each press increases the numbers of skips.
2. To skip to previous chapter or track , press twice. Pressing once
will only move to the beginning of the current chapter or track.

Fast Forward and Reverse
1. During playback, to fast forward , repeatedly press to increase the fast
forward speed 2x, 4x, 8x, 16x, 32x.
2. During playback, to fast rewind, repeatedly press to increase the fast
reverse speed 2x 4x 8x 16x 32x.
3. To resume normal playback, press .
Slow Motion
1. During playback, repeatedly press SLOW to play at 1/2, 1/4, 1/6, 1/8, 1/32
speeds.
2. To resume normal playback, press .
You can only perform slow motion play in the forward direction.
Frame-by-Frame Playback
1. During playback, press or PAUSE to pause.
2. Repeatedly press or PAUSE to play one fame at a time.
3. To resume normal playback, press .
You can only perform step play in the forward direction
Repeat Playback
You can play a chapter, a track, a title, a file or the entire disc repeatedly.
1. During playback, repeatedly press REPEAT to choose a Repeat option.
Depending on the type of disc,
the Repeat options may be different.
2. To cancel repeat playback, repeatedly press REPEAT until OFF
appears on the screen.
P14.
Playing A Disc
Mark (Bookmark)
You can playback from a certain point using the MARK function.

1. During playback, press MARK to mark the point at which you want to start the
playback.
2. At any time, when MARK is pressed again, it starts to playback from the marked
point.
GOTO
GOTO lets you choose a specific elapsed playing time or a desired
Chapter/Title/Track to begin playback.
1. Press GOTO, title, chapter or track information appears depending on the disc
format.
2. Use key to change Chapter/Title/Track number, and
to move between Chapter/Title/Track.
3. Press GOTO again, to enter the elapsed time.
4. Press PLAY to start playback.
5. If you want to play from a specific Chapter, Title or Track, you can skip Step 3.
GOTO function is not valid for MP3/JPEG file in CD-ROM format and Picture CD.
Some DVDs do not allow this function during specific Title/Chapter is playing.
Zoom
ZOOM lets you enlarge the video image during playback and pan through the
enlarged image.
1. Press ZOOM repeatedly during video playback to enlarge the image to x 2 or x
4 times of the normal size.
2. Press ZOOM repeatedly while displaying JPEG file and Picture CD disc to
zoom in the picture at 150% or 200% and zoom out the picture at 25% or 50%.
Use direction keys ( and ) to move around (pan and scan) the enlarged
video or picture.
P15.
Playing A Disc
Mute
Press MUTE to silence the audio, press MUTE again to restore it.

Menu/PBC
During DVD playback, press MENU/PBC to return to the disc's Start Menu. If the
disc does not have the Start Menu,
or discs that refuse MENU function, appears.
For VCD playback, press MENU/PBC to turn on/off PBC (Playback Control). If
PBC is enabled,
menu of scene's thumbnails appears, you can make selection for playback.
Language
Repeatedly press LANGUAGE during DVD playback to change the language of the
voice if the disc has multiple languages. This function is only valid for DVDs.
Subtitle
Repeatedly press SUBTITLE during DVD playback to change the subtitle's language
If the disc has multiple subtitle's languages. This function is only valid for DVDs.
Angle
Repeatedly press ANGLE during DVD playback to change the camera angle if the
disc has different camera angles. This function is only valid for DVDs.
P16
Playing A Disc
Display
Press DISPLAY during DVD playback to display playback information such as
current title, chapter, track, elapsed time etc.
Press DISPLAY again to show additional information such as audio channels, TV
system, language etc.
Press DISPLAY again to remove information..
Audio Channel

When playing CD or VCD, repeatedly press L/R to change the sound output to Stereo,
left/left, right / right.
Turn Off The Player
1. Press STOP twice to stop the playback, if the unit is playing.
2. Slide POWER ON/OFF to OFF to turn off the power.
P17.
Playing Picture CD
Valid Picture CD
The player can play both Kodak Picture CD that you order from photo processing
store,
and home-made CD by burning JPEG files onto a CD-R or CD-RW disc.
Play
In most cases, after the disc is placed into the player, the player will start to slide show
automatically.
In other cases, the file manager appears. Use direction keys ( and ) to
select the picture and press PLAY to play.
Slide Show Speed
During slide show, the displaying time of each picture can be changed by repeatedly
pressing .
Available intervals are 2 sec, 4 sec, 8 sec and 10sec.
Pause
1. During playback, press (on the remote) or PAUSE (on the player) to pause.
2. Press to resume playback.
Rotate
The picture can be rotated and flipped.
1. During playback, press or Pause to temporarily stop the playback.
2. Use direction keys ( and ) to rotate right 90 degrees, left 90
degrees, flip vertically and flip horizontally respectively.

Next/Previous
You can manually skip to the next picture by pressing , and to skip to the
previous picture by pressing .
Transition Effect
There are 12 transition effects to move from one slide to another. To change
transition effect,
repeatedly press ANGLE.
1.Cover Up 2.Cover Down 3.Up Cover Up 4.Up Cover Down
5.Split Horizontal 6.Split Horizontal 7.Wipe Up
8.Wipe Down 9.Blinds Horizontal Up 10.Blinds Horizontal Down
11.Fade Trough Black 12.No Effect
P18.
Playing MP3 and Regular Audio CD
Valid MP3 CD
Your MP3 files should be ISO 9660 or JOLIET format.
Play
In most cases, when an MP3 or audio disc is placed into the player, the first song file
of the first folder plays.
In other cases, the file manager appears. Use direction keys ( and )
to select the song file and press PLAY to play.
P19.
Setting Language for OSD, Menu , Voice, Subtitle
1. Press SETUP on the remote control
2. Use the direction keys ( ) to select Language Setup and its sub-menu.
3. Press ENTER or SETUP to confirm and exit.

Changing OSD language
Changing menu language
Changing voice language
Changing subtitle language
