Continental Fireplaces CBHD4N User manual

! WARNING
SAFETY INFORMATION
CBHD4N
CBHD4P
This appliance may be installed in an
aftermarket, permanently located, manufactured
home (USA only) or mobile home, where not
prohibited by local codes.
This appliance is only for use with the type of
gas indicated on the rating plate. This appliance
is not convertible for use with other gases,
unless a certified kit is used.
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
NEVER LEAVE CHILDREN OR OTHER AT RISK INDIVIDUALS ALONE WITH THE APPLIANCE.
EN
INSTALLATION AND
OPERATING INSTRUCTIONS
FR
PG
65
CERTIFIED TO CANADIAN AND AMERICAN NATIONAL STANDARDS: CSA 2.22 AND ANSI Z21.50 FOR VENTED GAS FIREPLACES.
FOR INDOOR USE ONLY NATURALGAS
PROPANE
$10.00 1.8F
CE RT IFIE D
W415-1283 / E / 12.21.16
If the information in these instructions
are not followed exactly, a fire or
explosion may result causing property
damage, personal injury or loss of life.
HOT GLASS WILL CAUSE
BURNS.
DO NOT TOUCH GLASS UNTIL
COOLED.
NEVER ALLOW CHILDREN TO
TOUCH GLASS.
A barrier designed to reduce the risk of burns from
the hot viewing glass is provided with this appliance
and shall be installed for the protection of children
and other at-risk individuals.
DANGER
!
- Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS:
•Do not try to light any appliance.
•Do not touch any electrical switch; do not use
any phone in your building.
•Immediately call your gas supplier from a
neighbour‟s phone. Follow the gas supplier‟s
instructions.
•If you cannot reach your gas supplier, call the
fire department.
- Installation and service must be performed by a
qualified installer, service agency or the supplier.
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada /
103 Miller Drive, Crittenden, Kentucky, USA, 41030
Phone [phone] • Fax [phone] • www.continentalfireplaces.com • ask@continentalfire.on.ca

2
W415-1283/E/12.21.16
TABLE OF CONTENTS
The camera icon indicates video tutorials are available as additional reference, visit
http://mynapoleon.napoleonproducts.com/download/index/44/1
1.0 INSTALLATION OVERVIEW 3
INTRODUCTION 4
DIMENSIONS 5
GENERAL INSTRUCTIONS 6
GENERAL INFORMATION 7

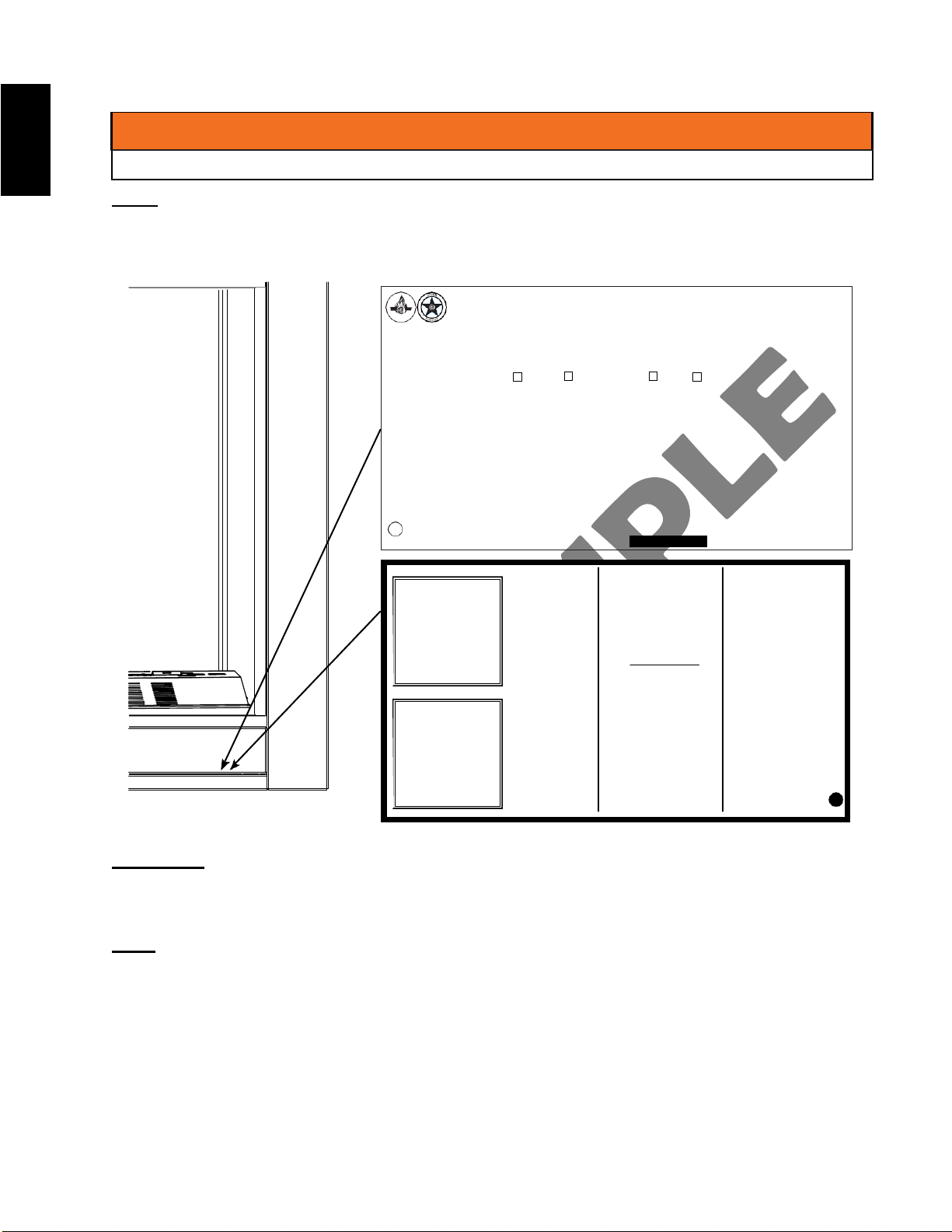

RATING PLATE / LIGHTING INSTRUCTION LOCATION 8
VENTING 9
VENTING LENGTHS AND COMPONENTS 10
TYPICAL VENT INSTALLATIONS 11
SPECIAL VENT INSTALLATIONS 12
PERISCOPE TERMINATION 12
REDUCED VENT CLEARANCE TO COMBUSTIBLES 12
CONVERTING FROM 5/8" TO 4/7" VENTING 13
VENT TERMINAL CLEARANCES 14
VENT APPLICATION FLOW CHART 15
DEFINITIONS 15
ELBOW VENT LENGTH VALUES 15
HORIZONTAL TERMINATION 16
VERTICAL TERMINATION 18
INSTALLATION 20
WALL AND CEILING PROTECTION 20
HORIZONTAL INSTALLATION 21
VERTICAL INSTALLATION 21
USING FLEXIBLE VENT COMPONENTS 22
HORIZONTAL AIR TERMINAL INSTALLATION 23
VERTICAL AIR TERMINAL INSTALLATION 24
APPLIANCE VENT CONNECTION 24
GAS INSTALLATION 25
MOBILE HOME INSTALLATION 25
ACCESS PANEL FOR GAS LINE CONNECTION 26
FRAMING 27
FRAMING 28
SEE-THRU FRAMING (CBHD4ST) 28
PENINSULA FRAMING (CBHD4P) 28
MINIMUM CLEARANCE TO COMBUSTIBLE ENCLOSURES 29
SEE-THRU (CBHD4ST) 29
PENINSULA (CBHD4P) 29
INSTALLING COMBUSTIBLE BOARD 30
FINISHING SUPPORT ADJUSTMENT 31
NON-COMBUSTIBLE FACING MATERIAL 32
ALCOVE ENCLOSURE 33
MINIMUM MANTEL CLEARANCES 33
NAILING TAB INSTALLATION 34
FINISHING 34
MAIN SAFETY SCREEN REMOVAL / INSTALLATION 34
END SAFETY SCREEN REMOVAL / INSTALLATION (BHD4P ONLY) 35
MAIN DOOR REMOVAL / INSTALLATION 36
END DOOR REMOVAL / INSTALLATION (CBHD4P ONLY) 37
CONTROL PANEL REMOVAL 37
LOG PLACEMENT 38
GLOWING EMBERS 39
CHARCOAL EMBERS 40
CHARCOAL LUMPS 40
GLASS MEDIA INSTALLATION 40
LOGO PLACEMENT 41
WIRING DIAGRAM 41
RECEPTACLE WIRING DIAGRAM 41
ELECTRONIC WIRING DIAGRAM 41
7.2.1 WIRING REQUIREMENTS 42
BATTERY BACK-UP INSTALLATION 43
OPERATING INSTRUCTIONS 44
OPERATING INSTRUCTIONS - FOR YOUR SAFETY READ BEFORE OPERATING 44
LIGHTING INSTRUCTIONS 44
ANTI CONDENSATION SWITCH 45
ADJUSTMENT 46
PILOT BURNER ADJUSTMENT 46
VENTURI ADJUSTMENT 46
FLAME CHARACTERISTICS 47
10.0 MAINTENANCE 48
10.2 GLASS / DOOR REPLACEMENT 49
10.1 ANNUAL MAINTENANCE 49
CARE OF GLASS 50
SHIPPING BRACKET 50
BURNER REMOVAL 51
LOG BURNER REMOVAL 51
GLASS BURNER REMOVAL 51
VALVE TRAIN REPLACEMENT 52
RESTRICTING VERTICAL VENTS 52
EN

3
W415-1283/E/ 12.21.16
REPLACEMENTS 53
CBHD4P OVERVIEW 54
CBHD4ST OVERVIEW 55
GLASS BURNER ASSEMBLY 56
GLASS BURNER VALVE TRAIN ASSEMBLY 57
LOG BURNER ASSEMBLY 58
LOG BURNER VALVE TRAIN ASSEMBLY 59
12.0 ACCESSORIES 60
13.0 TROUBLESHOOTING 61
14.0 WARRANTY 63
NOTE: Changes, other than editorial, are denoted by a vertical line in the margin.
1.0 INSTALLATION OVERVIEW
COMBUSTIBLE MATERIAL
Framing, see
“FRAMING” section
Mantel, see “MINIMUM
MANTEL CLEARANCES”
section Venting, see
“VENTING”
section
Door, see “ END DOOR
INSTALLATION” section
Door, see “DOOR REMOVAL/
INSTALLATION” section
Rating plate, see “RATING
PLATE INFORMATION”
section
Batteries must be disposed of according to the local laws and regulations. Some batteries may be
recycled, and may be accepted for disposal at your local recycling center. Check with your municipality
for recycling instructions.
EN

4
W415-1283/E/12.21.16
INTRODUCTION
EN
! WARNING
• THIS APPLIANCE IS HOT WHEN OPERATED AND CAN CAUSE SEVERE BURNS IF CONTACTED.
• ANY CHANGES OR ALTERATIONS TO THIS APPLIANCE OR ITS CONTROLS CAN BE DANGEROUS ANDIS
PROHIBITED.
• Do not operate appliance before reading and understanding operating instructions. Failure to operate appliance
according to operating instructions could cause fire or injury.
• Risk of fire or asphyxiation do not operate appliance with fixed glass removed.
• Do not connect 110 volts to the control valve.
• Risk of burns. The appliance should be turned off and cooled before servicing.
• Do not install damaged, incomplete or substitute components.
• Risk of cuts and abrasions. Wear protective gloves and safety glasses during installation. Sheet metal edges may
be sharp.
• Do not burn wood or other materials in this appliance.
• Children and adults should be alerted to the hazards of high surface temperature and should stay away to
avoid burns or clothing ignition.
• Young children should be carefully supervised when they are in the same room as the appliance.
Toddlers, young children and others may be susceptible to accidental contact burns. A physical barrier
is recommended if there are at risk individuals in the house. To restrict access to an appliance, installan
adjustable safety gate to keep toddlers, young children and other at risk individuals out of the room and
away from hot surfaces.
• Clothing or other flammable material should not be placed on or near the appliance.
• Due to high temperatures, the appliance should be located out of traffic and away from furniture and
draperies.
• Ensure you have incorporated adequate safety measure to protect infants/toddlers from touching hot surfaces.
• Even after the appliance is out, the glass and/or screen will remain hot for an extended period of time.
• Check with your local hearth specialty dealer for safety screens and hearth guards to protect children from hot
surfaces. These screens and guards must be fastened to the floor.
• Any safety screen, guard or barrier removed for servicing the appliance, must be replaced prior to operating
the appliance.
• The appliance is a vented gas-fired appliance. Do not burn wood or other materials in the appliance
• It is imperative that the control compartments, burners and circulating blower and its passageway in the appliance
and venting system are kept clean. The appliance and its venting system should be inspected before use and at
least annually by a qualified service person. More frequent cleaning may be required due to excessive lint from
carpeting, bedding material, etc. The appliance area must be kept clear and free from combustible materials,
gasoline and other flammable vapors and liquids.
• Under no circumstances should this appliance be modified.
• This appliance must not be connected to a chimney flue pipe serving a separate solid fuel burning appliance.
• Do not use this appliance if any part has been under water. Immediately call a qualified service technician to
inspect the appliance and to replace any part of the control system and any gas control which has been under
water.
• Do not operate the appliance with the glass door removed, cracked or broken. Replacement of the glass should be
done by a licensed or qualified service person.
• Do not strike or slam shut the appliance glass door.
• When equipped with pressure relief doors, they must be kept closed while the appliance is operating to prevent
exhaust fumes containing carbon monoxide, from entering into the home. Temperatures of the exhaust escaping
through these openings can also cause the surrounding combustible materials to overheat and catch fire.
• Only doors / optional fronts certified with the appliance are to be installed on the appliance.
• Keep the packaging material out of reach of children and dispose of the material in a safe manner. As with all
plastic bags, these are not toys and should be kept away from children and infants.
• As with any combustion appliance, we recommend having your appliance regularly inspected and serviced as well
as having a Carbon Monoxide Detector installed in the same area to defend you and your family against Carbon
Monoxide.
• Ensure clearances to combustibles are maintained when building a mantel or shelves above the appliance.
Elevated temperatures on the wall or in the air above the appliance can cause melting, discolouration or damage of
decorations, a T.V.or other electronic components.
• A barrier designed to reduce the risk of burns from the hot viewing glass is provided with this appliance and
shall be installed.
• If the barrier becomes damaged, the barrier shall be replaced with the manufacturer‟s barrier for this
appliance.
• Installation and repair should be done by a qualified service person. The appliance should be inspected
before use and at least annually by a professional service person. More frequent cleaning may berequired
due to excessive lint from carpeting, bedding material, etc. It is imperative that control compartments,
burners and circulating air passageways of the appliance be kept clean. 3.2C

5
W415-1283/E/ 12.21.16
BHD4P ILLUSTRATED
BHD4ST ILLUSTRATED
CBHD4ST ILLUSTRATED
DIMENSIONS
8"
203mm 5"
127mm
251/8"
EN
638mm
12 13/16"
325mm
SAFETY BARRIER
34 3/16"
868mm
38 1/4"
841mm
2 1/16"
53mm
RIGHT
SIDE
LEFT
SIDE
43 1/4" 1099mm
79/16"
192mm
GAS INLET
7 9/16"
192mm
ELECTRIC
AL INLE T
8"
203mm 5"
127mm
25 1/8"
638mm
12 13/16"
325mm
SAFETY BARRIER
34 3/16"
868mm
38 1/4"
841mm
2 1/16"
53mm
RIGHT
SIDE
LEFT
SIDE
45" 1143mm
7 9/16"
192mm
GAS INLET
7 9/16"
192mm
ELECTRIC
AL INLE T
CBHD4P
ILLUSTRATED

6
W415-1283/E/12.21.16
GENERAL INSTRUCTIONS
EN
THIS GAS APPLIANCE SHOULD BE INSTALLED AND SERVICED BY A QUALIFIED INSTALLER to
conform with local codes. Installation practices vary from region to region and it is important to know the
specifics that apply to your area, for example in Massachusetts State:
• This product must be installed by a licensed plumber or gas fitter when installed within the
commonwealth of Massachusetts.
• The appliance damper must be removed or welded in the open position prior to installation of an
appliance insert or gas log.
• The appliance off valve must be a “T” handle gas cock.
• The flexible connector must not be longer than 3 feet (0.9m).
• A Carbon Monoxide detector is required in all rooms containing gas fired appliances.
• The appliance is not approved for installation in a bedroom or bathroom unless the unit is a direct vent
sealed combustion product.
The installation must conform with local codes or, in
absence of local codes, the National Gas and Propane
Installation Code CSA B149.1 in Canada, or the National
Fuel Gas Code, ANSI Z223.1 / NFPA 54 in the United
States. Suitable for mobile home installation if installed
in accordance with the current standard CAN/CSA
Z240MH Series, for gas equipped mobile homes, in
Canada or ANSI Z223.1 and NFPA 54 in the United
States.
As long as the required clearance to combustibles is
maintained, the most desirable and beneficial location for an appliance is in the center of a building, thereby
allowing the most efficient use of the heat created. The location of windows, doors and the traffic flow in the
room where the appliance is to be located should be considered. If possible, you should choose a location
where the vent will pass through the house without cutting a floor or roof joist.
If the appliance is installed directly on carpeting, vinyl tile or other combustible material other than wood
flooring, the appliance shall be installed on a metal or wood panel extending the full width and depth.
Some appliances have optional fans or blowers. If an optional fan or blower is installed, the junction box must
be electrically connected and grounded in accordance with local codes, use the current CSA C22.1 Canadian
Electrical Code in Canada or the ANSI/NFPA 70 National Electrical code in the United States.
4.1C
www.nficertified.org
We suggest that our gas
hearth products be installed
and serviced by professionals
who are certified in the U.S.
by the National Fireplace
Institute®(NFI)asNFIGas
Specialists
! WARNING
ALWAYSLIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLYHAS RUN OUT,
WITH THE GLASS DOOR OPENED ORREMOVED.
PROVIDE ADEQUATE CLEARANCE FOR SERVICING AND OPERATING THE APPLIANCE.
PROVIDE ADEQUATE VENTILATION.
NEVER OBSTRUCT THE FRONT OPENING OF THE APPLIANCE.
OBJECTS PLACED IN FRONT OF THE APPLIANCE MUST BE KEPT A MINIMUM OF 48 INCHES
(121.9cm) FROM THE FRONT FACE OF THEAPPLIANCE.
SURFACESAROUND ANDESPECIALLYABOVETHE APPLIANCECANBECOMEHOT.AVOIDCONTACT
WHEN THE APPLIANCE ISOPERATING.
FIRE RISK. EXPLOSION HAZARD.
HIGH PRESSURE WILL DAMAGE VALVE. DISCONNECT GAS SUPPLY PIPING BEFORE PRESSURE TESTING GAS
LINE ATTEST PRESSURES ABOVE 1/2 PSIG. CLOSE THE MANUAL SHUT-OFF VALVE BEFORE PRESSURE
TESTING GAS LINE AT TEST PRESSURES EQUAL TO OR LESS THAN 1/2 PSIG (35mb).
USE ONLY WOLF STEEL APPROVED OPTIONAL ACCESSORIES AND REPLACEMENT PARTS WITH THIS APPLIANCE.
USING NON-LISTED ACCESSORIES (BLOWERS, DOORS, LOUVRES, TRIMS, GAS COMPONENTS, VENTING
COMPONENTS, ETC.) COULD RESULT IN A SAFETY HAZARD AND WILL VOID THE WARRANTY AND CERTIFICATION.
THE APPLIANCE MUST NOT BE OPERATED AT TEMPERATURES BELOW FREEZING (32°F / 0°C).
ALLOW THE APPLIANCE TO WARM TO ABOVE FREEZING PRIOR TO OPERATION.

7
W415-1283/E/ 12.21.16
GENERAL INFORMATION
FOR YOUR SATISFACTION, THIS APPLIANCE HAS BEEN TEST-FIRED TO ASSURE ITS OPERATION AND
QUALITY! EN
CBHD4
NG
P
Altitude (FT)
0-4,500
0-4500
Max. Input (BTU/HR)
30,000
30,000
Max. Output Steady State (BTU/HR)
23,000
23,000
Min. Inlet Gas Supply Pressure
4.5" (11mb)
Water Column
11" (27mb)
Water Column
Max. Inlet Gas Supply Pressure
13" (32mb)
Water Column
13" (32mb)
Water Column
Manifold Pressure (Under Flow Conditions)
3.5" (9mb)
Water Column
10" (25mb)
Water Column
MODEL DESIGNATIONS
MEDIA TYPE
FUEL TYPE
OPERATING SYSTEM
CBHD4PN
LOGS
NATURAL
ELECTRONIC IGNITION
CBHD4PP
LOGS
PROPANE
ELECTRONIC IGNITION
CBHD4STN
LOGS
NATURAL
ELECTRONIC IGNITION
CBHD4STP
LOGS
PROPANE
ELECTRONIC IGNITION
CBHD4PGN
GLASS
NATURAL
ELECTRONIC IGNITION
CBHD4PGP
GLASS
PROPANE
ELECTRONIC IGNITION
CBHD4STGN
GLASS
NATURAL
ELECTRONIC IGNITION
CBHD4STGP
GLASS
PROPANE
ELECTRONIC IGNITION
When the appliance is installed at elevations above 4,500 ft (1372m), and in the absence of specific
recommendations from the local authority having jurisdiction, the certified high altitude input rating shall be
reduced at the rate of 4% for each additional 1,000 ft (305m).
This appliance is approved for bathroom, bedroom and bed-sitting room
installations and is suitable for mobile home installation.
Expansion/contractionnoisesduringheatingupandcoolingdown
cycles are normal and are to beexpected.
Noexternalelectricity(110volts or24volts) isrequiredforthegassystem
operation. Expansion / contraction noises during heating upand cooling
down cycles are normal and are to be expected.
If utilizing one of Wolf Steel's trim or surround kits, follow the framing instructions and the finishing
instructions, for removal of the top extension.
NOTE: The protective wrap on plated parts is best removed when the assembly is at room temperature
but this can be improved if the assembly is warmed, using a hair dryer or similar heat source.
67.9%
CBHD4

8
W415-1283/E/12.21.16
RATING PLATE / LIGHTING INSTRUCTIONLOCATION
! WARNING
ALLOW THE APPLIANCE TO COOL BEFORE PERFORMING ANY MAINTENANCE OR CLEANING.
NOTE : Screen must be removed to access rating plate / lighting instructions.
Both the rating plate and lighting instructions are attached to a cable and located behind the control panel of
the appliance. Lift the access plate and control panel up and away from the appliance. With the cable at the
bulb end of the slot, wiggle the rating plate out being careful not to tear the instructions.
INSTALLER: It is your responsibility to check off the appropriate box on the rating plate according to
the model, venting and gas type of the appliance.
This illustration is for reference only. Refer to the rating plate on the appliance for accurate information.
NOTE : The rating plate must remain with the appliance at all times. It must not be removed.
A barrier designed to reduce the risk of burns from the hot viewing glass is provided with the
appliance and must be installed.
l’utilisateur pour plus de renseignements. Une REMPLACEMENT DU
trousse de conversion est fournie avec cet PANNEAU À UN
appareil.» TECHNICIEN
AGRÉÉ. W385-1936 / A
ANNEAU FRONTAL EN VERRE
N’EST PAS EN PLACE, EST CRAQUÉ
OU BRISÉ. CONFIEZ LE
UTILISER L’APPAREIL SI LE
P
FOR YOUR SAFETY:
DO NOT STORE OR USE GASOLINE
OR OTHER FLAMMABLE VAPORS
AND LIQUIDS IN VICINITY OFTHIS
OR ANY OTHER APPLIANCE.
CAUTION: DO NOT OPERATE
THE APPLIANCE WITH THE GLASS
REMOVED, CRACKED ORBROKEN.
REPLACEMENT OF THE GLASS
SHOULD BE DONE BYA LICENSED
OR QUALIFIED PERSON.
POUR VOTRE
SÉCURITÉ:
NE PAS ENTREPOSER NI UTILISER
D’ESSENCE NI D’AUTRESVAPEURS
OU LIQUIDES INFLAMMABLES
DANS LE VOISINAGE DE CET
APPAREIL OU DE TOUT AUTRE
APPAREIL.
AVERTISSEMENT: NE PAS
“This appliance is only for use with the type(s)
of gas indicated on the rating plate and may
be installed in an aftermarket, permanently
located, manufactured home (USA only) or
mobile home, where not prohibited by local
codes. See owner’s manual for details. This
appliance is supplied with a conversion kit.”
«Cet appareil doit être utilisé uniquement
avec les types de gaz indiqués sur la plaque
signalétique et peut être installé dans une
maison préfabriquée (É.-U. seulement) ou
mobile installée à demeure si les règlements
locaux le permettent. Voir la notice de
ATTENTION:
UN INSTALLATION OU UNE
MODIFICATION INAPPROPRIÉE
DU RÉGLAGE, DU SERVICE ET DE
L’ENTRETIEN POURRAIENT ÊTRE
LA CAUSE DE DOMMAGES À LA
PROPRIÉTÉ DE BLESSURES
CORPORELLES OU MÊME LA
MORT. CONSULTER LE MANUEL
D’INFORMATION, L’INSTALLATION
ET LE SERVICE DOIVENT
ÊTRE EXECUTÉS PAR UN
INSTALLATEUR QUALIFIÉ POUR
LEGAZ, UNE ENTREPRISE DE
SERVICE OU LE FOURNISSEUR
DE GAZ SEULEMENT.
CAUTION:
HOT WHILE OPERATING.DONOT TOUCH.
KEEP CHILDREN, CLOTHING, FURNITURE,
GASOLINEOR OTHERFLAMMABLEVAPORS
AWAY.
AVERTISSEMENT:
L’APPAREIL ESTCHAUD PENDANT SON
FONCTIONNEMENT. LES ENFANTS, LES
VÊTEMENTS,LESMEUBLES,L’ESSENCE ET
AUTRES LIQUIDES QUIÉMETTENT DES GAZ
VOLATILSINFLAMMABLESDOIVENT
ÊTRETENUS ÉLOIGNÉS DE L’APPAREIL.
WARNING:
IMPROPER INSTALLATION,
ADJUSTMENT, ALTERATION,
SERVICE, OR MAINTENANCE
CAN CAUSEPROPERTY DAMAGE,
PERSONAL INJURY OR LOSS OF
LIFE. REFER TO OWNER’S
MANUAL. INSTALLATION AND
SERVICE MUST BE PERFORMED
BY A QUALIFIED INSTALLER,
SERVICE AGENCY ORTHE
GAS SUPPLIER.
GARDEZ LE BRÛLEUR ET LE
COMPARTIMENT DES
CONTRÔLES PROPRES.
CONSULTEZ LE MANUEL
D’INFORMATION ET
D’INSTALLATION. PAR
MESURE DE SÉCURITÉ.
CET APPAREIL DOIT
ÊTRE ALIMENTE EN AIR
FRAIS ETAVEC SUFFISANT
D’AIR COMBURANTET
DE VENTILATION.
KEEP BURNER AND CONTROL
COMPARTMENT CLEAN. SEE
INSTALLATION AND OPERATING
INSTRUCTIONS MANUAL.
APPLIANCE NEEDS FRESH
AIR FOR SAFE OPERATION
AND MUST BE INSTALLED
WITH ADEQUATE PROVISIONS
FOR COMBUSTION
AND VENTILATION AIR.
SPÉCIFICATIONS ÉLECTRIQUES : 115 V,
W385-1936 / A
24 NAPOLEON ROAD, BARRIE, ON, L4M 0G8 CANADA SERIAL NUMBER/ NO. DE SÉRIE: BHD4 60HZ. MOINS DE 12 AMPÈRES.
WOLF STEEL LTD.
0”
0”
0”
0”
3”
2”
1”
8”*
DESSUS DU CONDUIT D‟EV ENT
CÔTÉS ET DESSOUS DU CONDUIT
D‟EVENT
CONDUIT D‟EVENT VERTICAL
TABLETTE
LAMANUEL DE PROPRIÉTAIRE POUR LES MATÉRIAUX DE
FINITION. *L’EXTENSION HORIZONTALE MAXIMALE : 2”.
RÉFÉRER AU MANUAL D’INSTRUCTION POUR DES
EXTENSIONS PLUS GRANDES. RÉFÉRER AU MANUEL
D’INSTALLATION DE PROPRIÉTAIRE.
TOP SIDES & BACK: PER STAND OFF SPACERS FOR FRAMING
MATERIALS. FOR FINISHING MATERIALS, SEE OWNER’S MANUAL
*MAXIMUM HORIZONTAL EXTENSION / L’EXTENSION HORIZONTALE
MAXIMALE: 2”. SEE INSTRUCTION MANUAL FOR GREATER EXTENSIONS.
SEE OWNER’S INSTRUCTION MANUAL FOR MINIMUM AND MAXIMUM LENGTHS.
ELECTRICAL RATING: 115V.60HZ. LESS THAN 12 AMPERES
CÔTÉS
DÉGAGEMENT POUR LES MATÉRIAUX D’OSSATURE SELON ARRIÈRE
PLANCHER
LE MAINTIEN DU SYSTÉME DE PRISE D‟AIR.
DESSUS, CÔTÉ S& ARRIÈRE : SELON LES ESPACEU RS DE
COMBUSTIBLES :
INTAKE SYSTEM. RÉINSTALLER ET RESCELLER L‟ÉVENT APRÉS AVOIR ASSURÉ
DESSUS
FOR VENTING SPECIFICS. PROPER REINSTALLATION AND AU MANUEL D’INSTALLATION DE PROPRIÉTAIRE POUR DÉGAGEMENTS MINI MAUX DES MATÉ RIAUX
RESEALING IS NECESSARY AFTER SERVICING THE VENT-AIR L‟ÉVACUATION PRÉCISE. IL EST IMPORTANT DE BIEN
THEAPPLIANCE MUSTBE VENTEDUSING THEAPPROPRIATE L‟APPAREILDOITÉVACUER SESGAZ ENUTILISANT
NAPOLEON VENT KITS. SEE OWNERS INSTALLATION MANUAL L‟ENSEMBLE D‟ÉVACUATION PROPRE À NAPOLEON. RÉFÉRER
APPAREIL DE CHAUFFAGE
0”
0”
0”
0”
3”
2”
1”
8”*
TOP
FLOOR
SIDES
BACK
VENT TOP
VEN TSIDES & BOTT OM
VERTICAL VENT
MANTEL
ÊTRÉUTILISÉAVECCETAPPAREIL.
UTILISER AVEC LES PORTE VITRÉES
HOMOLOGUÉES SEULEMENT AVEC
CETTE APPAREIL.
ADVERTISSEMENT : N‟AJOUTEZ PAS À
CET APPAREIL AUCUN MATÉRIAU DEVANT
ENTRER EN CONTACT AVEC LES FLAMMES
AUTRE QUE CELUI QUI EST FOURNI AVECT CET
APPAREIL PAR LE FABRICANT.
PRODUIT DÉCORATIF: NE PAS UTILISER COMME
MANIFOLD PRESSURE / 10” WATER COLUMN/D’UNE COLONNE D’EAU
PRESSION AU COLLECTEUR
MINIMUMSUPPLYPRESSURE/ 11” WATER COLUMN/D’UNE COLONNE D’EAU
PRESSION D’ALIMENTATION MINIMALE
MAXIMUM SUPPLY PRESSURE 13” WATER COLUMN /D‟UNE COLONNE D‟EAU
PRESSION D’ALIMENTATION MAXIMALE
P.4 67.9%
7.0“WATER COLUMN/D’UNE COLONNED’EAU
67.9%
4.5“WATER COLUMN/D’UNE COLONNE D’EAU
WITH THE APPLIANCE.
DECORATIV EPRODUCT: NOT FOR USE ASA
HEATING APPLIANCE
MINIMUM CLEARANCE TO
COMBUSTIBLE MATERIALS:
CONTACTWIT H THEFLAMES, OTHER THAN
3.5” WATER COLUMN/D‟UNE COLONNE D‟EAU
THAT SUPPLIED BY THE MANUFACTURER
23,00 0BT U/H R EDUCE DI NPUT / ALIMENTATION RÉ DUITE 23 ,000BTU/H
TO THE APPLIANCE, WHICH WILL COME IN
30,000 BTU/H
INPUT / ALIMENTATION
30,000 BTU/H
BHD4P
ALTITUDE/ÉLÉVATION 0-4500FT (0-1370M)
CETFOYERÀGAZVENTILÉN'EST
MODEL PROPANE /
PASPOURL'USAGEAVECLES
PROPANE MODÈLE FILTRESD'AIR.
UN COMBUSTIBLE SOLIDE NE PAS
CBHD4P
CBHD4N
GAZNATUREL
BHD4N
0-4500FT (0-1370M)
NOT FOR USE WITH AIR FILTERS.
NOT FOR USE WITH SOLID FUEL.
FOR USE WITH GLASS DOORS
CERTIFIED WITH THIS APPLIANCE
ONLY.
WARNING: DO NOT ADD ANY MATERIAL
THISVENTEDGASFIREPLACEIS
MODELNATURALGAS/
MESURES DE SÉCURITÉ CONTRE L’INCE NDIE P OUR LES IN STALLA TIONS DANS LES MAISO NS MAN UFACTURÉ S, LES SI TES ETLES C OMMUNAU TÉS, ANSI /NFPA 501A. THIS APPLI ANCE MUS T BE INSTALLED IN
ACCO RDANCE WITH LOCAL C ODES, IF ANY; IF NONE, FOLLO W THE CUR RENT ANSI Z223.1 OR CS A B149, INS TALLATI ON CODES. IN STALLER L’APP AREIL SELON LES CODES D’ INSTALLATIO N ANSI Z223.1 O U
CSA-B 149 EN VIGUER.
POUR CANADA / USA
REFERENCE # 161746
CERTIFIED UNDER / HOMOLOGUÉ SELON LES NORMES: ANSI Z21.50b - 2009 • CSA 2.22b - 2009 VENTED GAS FIREPLACE / FOYER À GAZ VENTILÉ
VENTED GAS FIREPLACE. APPROVED FOR BEDROOM, BATHROOM AND BED-SITTING ROOM INSTALLATION. SUITABLE FOR MOBILE HOME INSTALLATION IF IN STALLED INACCORDANCE WITH THE CURRENT
STANDARD CAN/CSA Z240MH SERIES GAS EQUIPPED MOBILE HOMES, IN CANADA OR IN THE UNITED STATES THE MANUFACTURED HOME CONSTRUCTIO N AND SAFETY STANDARD, TITLE 24 CFR, PART
3280. WHEN THIS US STANDARD IS NOT APPLICABLE USE THE STANDARD FOR FIRE SAFETY CRITERIA FOR MANUFAC TURED HOME INSTALLATIONS, SITES AND COMMUNITIES, ANSI/NFPA 501A. FOYER À
GAZ VE NTILÉ. HOMOLOG UÉ POUR I NSTALLATION DANS U NE CHAM BRE À COU CHER, UNE SALLE DE BAIN ET UN STUDIO. AP PROPRI É POUR I NSTALL ATION DA NS UNE MAISON MOBILE SI SON INSTALLATION
CON FORME A UX E XIGEN CES DE LA NORME CAN/CSA Z240MH SÉRIE DE MAI SONS M OBILES ÉQUIP ÉES AU GAZ EN VIG EUR AU CANA DA OUAUX ÉTATS-UNIS DE LA NORME DE SÉCURITÉ ETDE CONSTRUC-
CERTIFIED FOR / CERTIFIEE TION DE MAISONS MANUFACTURÉE, TITRE 24 CFR, SEC TION 3280. DANS LE CAS OU CE TTE NORME D’ÉTATS-UNIS NE PEUT ÊTRE APPLIQUÉE, SE RÉFÉRER A LA NORME RELATIVE AU CRITÈRE DE
CE R T I F I E D
EN

9
W415-1283/E/ 12.21.16
VENTING
EN
THIS APPLIANCE USES A 5” (127mm) EXHAUST / 8” (203.2mm) AIR INTAKE VENT PIPE SYSTEM.
Refer to the section applicable to your installation.
For safe and proper operation of the appliance follow the venting instruction exactly. Deviation from the
minimum vertical vent length can create difficulty in burner start-up and/or carboning. Under extreme vent
configurations, allow several minutes (5-15) for the flame to stabilize after ignition. Provide a means for
visually checking the vent connection to the appliance after the appliance is installed. Use a firestop, vent
pipe shield or attic insulation shield when penetrating interior walls, floor or ceiling.
NOTE: If for any reason the vent air intake system is disassembled; reinstall per the instructions
provided for the initial installation.
NOTE: This appliance must be installed with a continuous connection of exhaust and air intake vent
pipes. Utilizing alternate constructions such as a chimney as part of the vent system is not permitted.
7.2C
You may reduce the appliance from 5/8" venting to 4/7" venting for horizontal and vertical rise applications.
Reducing must be done right off of the appliance and a new firestop spacer (W010-3440) will be required.
! WARNING
RISK OF FIRE, MAINTAIN SPECIFIED AIR SPACE CLEARANCES TO VENT PIPE AND APPLIANCE.
IF VENTING IS INCLUDED WITH SPACERS THE VENT SYSTEM MUST BE SUPPORTED EVERY 3FT
(0.9m) FOR BOTH VERTICAL AND HORIZONTAL RUNS. USE SUPPORTS OR EQUIVALENT
NON-COMBUSTIBLE STRAPPING TO MAINTAIN THE REQUIRED CLEARANCE FROM
COMBUSTIBLES. USE WOLF STEEL LTD. SUPPORT RING ASSEMBLY W010-0067 OREQUIVALENT
NON-COMBUSTIBLE STRAPPING TO MAINTAIN THE MINIMUM CLEARANCE TO COMBUSTIBLES
FOR BOTH VERTICAL AND HORIZONTAL RUNS. SPACERS ARE ATTACHED TO THE INNER PIPEAT
PREDETERMINED INTERVALS TO MAINTAIN AN EVEN AIR GAP TO THE OUTER PIPE. THIS GAP IS
REQUIRED FOR SAFE OPERATION. A SPACER IS REQUIRED AT THE START, MIDDLE AND END OF
EACH ELBOW TO ENSURE THIS GAP IS MAINTAINED. THESE SPACERS MUST NOT BEREMOVED.

W415-1283/E/12.21.16
10
EN
VENTING LENGTHS AND COMPONENTS
Use only Wolf Steel, Simpson Dura-Vent, Selkirk Direct Temp, American Metal Amerivent or Metal-Fab venting
components. Minimum and maximum vent lengths, for both horizontal and vertical installations, clearances from
vent pipes to combustibles and air terminal locations as set out in this manual apply to all vent systems and must
be adhered to. For Simpson Dura-Vent, Selkirk Direct Temp, American Metal Amerivent and Metal-Fab follow the
installation procedure provided with the venting components.
A starter adaptor must be used with the following vent systems and may be purchased from the corresponding
supplier:
VENT
MANUFACTURER
STARTER ADAPTER PART
NUMBER
SUPPLIER
WEBSITE
Duravent
W175-0170 (4/7")
W175-0170 (5/8")
Wolf Steel
www.duravent.com
Amerivent
4DSC-N2 (4/7")
5DSC-N2 (5/8")
American Metal
www.americanmetalproducts.com
Direct Temp
4DT-AAN (4/7")
5DT-AA (5/8")
Selkirk
www.selkirkcorp.com
SuperSeal
4DNA (4/7")
5DDA (5/8")
Metal-Fab
www.mtlfab.com
For Simpson Dura-Vent, Selkirk Direct Temp, American Metal Amerivent and Metal-Fab follow the installation
procedure found on the website for your venting supplier.
For vent systems that provide seals on the inner exhaust flue, only the outer air intake joints must be sealed using a red high
temperature silicone (RTV). This same sealant may be used on both the inner exhaust and outer intake vent pipe jointsof all
other approved vent systems except for the exhaust vent pipe connection to the appliance flue collar which must be sealed
usingthe blackhightemperaturesealantMillPac.
When usingWolf Steel venting components,use only approvedWolf Steel rigid / flexible components with the following
terminationkits: wall terminal kit GD422-1, GD422R-1, or 1/12 to 7/12pitch roof terminalkit GD410, 8/12to 12/12 roof terminal
kit GD411, flat roof terminalkit GD412 or periscopekit GD401 (for wall penetration below grade).With flexible venting, in
conjunction with the various terminations,useeither the 5 foot (1.5m) vent kit GD420 or the 10 foot (3.1m) vent kit GD430.
For optimum flame appearance and appliance performance, keep the vent length and number of elbows to a
minimum.
The air terminal must remain unobstructed at all times. Examine the air terminal at least once a year to verify that it
is unobstructed and undamaged.
Rigid and flexible venting systems must not be combined. Different venting manufacturer components must not be
combined.
These vent kits allow for either horizontal or vertical venting of the appliance. When terminating horizontally,the maximum
allowable horizontal run is 20 feet (6.1m). When terminating vertically,the maximum allowable vertical vent length is 40 feet
(12.2m). The maximum number of vent connections is two horizontally or three vertically(excluding the appliance and the air
terminalconnections) when using flexible venting.
Horizontal runs may have a 0” (0mm) rise per foot/meter however for optimumperformance it is recommended that all
horizontal runs have a minimum1/4” rise per foot or 21mm per meter using flexible venting. For safe and proper operation of
the appliance, follow the venting instructions exactly.
A terminal shall not terminate directlyabove a sidewalk or paved driveway which is located between two single family dwell-
ings and serves both dwellings.Local codesor regulations may require different clearances.
Do not allow the inside liner to bunch up on horizontal or vertical runs and elbows. Keep it pulled tight. A 1¼” (31.8mm) air
gap all around between the inner liner and outer liner is requiredfor safe operation.
FOR 4” / 7” (USE REDUCER KIT A4758AK TO TRANSITION FROM 5” / 8” TO 4” /7” VENTING)
WhenusingWolfSteel4"/7" ventingcomponents,useonlyapprovedWolfSteel rigid/ flexiblecomponentswiththe following
terminationkits:wallterminalkitGD222, GD222R, or 1/12 to 7/12 pitch roofterminalkitGD110, 8/12to 12/12roofterminal kit
GD111, flat roof terminalkit GD112 or periscopekitGD201 (forwall penetration below grade). Withflexible venting,in conjunction
with the variousterminations,use eitherthe 5 foot(1.5m)ventkit GD220 or the 10 foot(3.1m)ventkit GD330.
Whenusing Wolf Steel 5"/8"venting components,use only approvedWolf Steel rigid/ flexible components with thefollowing
terminationkits: wall terminal kit GD422-1, GD422R-1, or 1/12 to 7/12pitch roof terminalkit GD410, 8/12to 12/12 roof terminal
kit GD411, flat roof terminalkit GD412 or periscopekit GD401 (for wall penetration below grade). With flexible venting, in
conjunction with the various terminations,use either the 5 foot (1.5m) vent kit GD420 or the 10 foot (3.1m) vent kit GD430.

W415-1283/E/ 12.21.16
11
16" MIN
(40.6cm)
40 FT
(12m)
MAX
36"
(91.4cm)
MIN
m)
S
38 1/4"
(97.2cm)
TYPICAL VENT INSTALLATIONS
EN
24" (61cm)
MAX
43" (109.2c
MIN PLU
RISE*
When venting, the horizontal run must be kept to a
maximum of 20 feet (6m). If a 20 foot (6m) horizontal
run is required, the appliance must have a minimum
vertical rise off the appliance of 57" (144.8cm).
When terminating vertically, the vertical rise is a
minimum 36" (91.4cm) and a maximum 40 feet
(12m) above the appliance.
On all horizontal vent runs, ensure that the vent pipe does not slope downward.
* See "VENTING" section.

W415-1283/E/12.21.16
12
SPECIAL VENT INSTALLATIONS
PERISCOPE TERMINATION
Use the periscope kit to locate the air termination above grade. The periscope must
be installed so that when final grading is completed, the bottom air slot is located a
12"
minimum of 12” (304.8mm) above grade. The maximum allowable vent length (30.5cm)
is 10’ (3.1m) for a fireplace and 8’ (2.4m) for a stove. MIN TO
GRADE
24" (61cm) MIN
REGARDLESS OF
HORIZONTAL VENT
LENGTH
38 1/4"
(97.2cm)
REDUCED VENT CLEARANCE TO
COMBUSTIBLES
9.5B
The minimum clearances around the horizontal vent pipe to the combustible material may be reduced from
3" (76.2mm) / 2" (50.8mm) to 1" (25.4mm) in installations with a minimum of 52" (132cm) vertical rise made
immediately off the appliance collar and where the vent has been reduced to a 4/7" from 5/8" at the appliance.
52"
(132cm)
90 1/4"
(229.2cm)
38 1/4"
(97.2cm)
EN

W415-1283/E/ 12.21.16
13
2
X3
USEMILLPACTOSEALADAPTERTOTHEAPPLIANCECOLLARS.
3
4
X3
USEMILLPACTOSEALADAPTERTOTHEAPPLIANCECOLLARS.
5
6
X3
USEMILLPACTOSEALADAPTERTOTHEAPPLIANCECOLLARS.
CONVERTING FROM 5/8" TO 4/7" VENTING
EN
1

W415-1283/E/12.21.16
14
VENT TERMINAL CLEARANCES
EN
COVERED BALCONY APPLICATIONS ††*
INSTALLATIONS
CANADA
U.S.A.
A
12” (30.5cm)
12” (30.5cm)
Clearance above grade, veranda porch, deck or balcony.
B
12” (30.5cm)Δ
9” (229mm)
Clearance to windows or doors that open.
C
12” (30.5cm)*
12” (30.5cm) *
Clearance to permanently closed windows.
D
18”
(45.7cm)**
18”
(45.7cm)**
Vertical clearance to ventilated soffits located above the terminal within a horizontal distance of 2’
(0.6m) from the center line of the terminal.
E
12” (30.5cm)**
12” (30.5cm)**
Clearance to unventilated soffit.
F
0” (0mm)
0” (0mm)
Clearance to an outside corner wall.
G
0” (0mm)***
0” (0mm)***
Clearance to an inside non-combustiblecornerwall or protrudingnon-combustible obstructions (chimney,etc.).
2” (51mm)***
2” (51mm)***
Clearance to an inside combustible corner wall or protruding combustible obstructions (vent chase, etc.).
H
3’(0.9m)
3’(0.9m)****
Clearance to each side of the center line extended above the meter / regulator assembly to a maxi-
mum vertical distance of 15’ (4.6m).
I
3’ (0.9m)
3’ (0.9m)****
Clearance to a service regulator vent outlet.
J
12” (30.5cm)
9” (229mm)
Clearanceto a non-mechanicalair supply inletto the buildingor a combustionair inlet to any other appliance.
K
6’ (1.8m)
3’ (0.9m) †
Clearance to a mechanical air supply inlet.
L
7’ (2.1m) ffi
7’ (2.1m) ****
Clearance above a paved sidewalk or paved driveway located on public property.
M
12” (30.5cm)††
12” (30.5cm)****
Clearance under a veranda, porch or deck.
N
16” (40.6cm)
16” (40.6cm)
Clearance above the roof.
O
2’ (0.6m)†*
2’ (0.6m) †*
Clearance from an adjacent wall including neighbouring buildings.
P
8’ (2.4m)
8’ (2.4m)
Roof must be non-combustible without openings.
Q
3’ (0.9m)
3’ (0.9m)
See chart for wider wall dimensions.
R
6’ (1.8m)
6’ (1.8m)
See chart for deeper wall dimensions. The terminal shall not be installed on any wall that has an
opening between the terminal and the open side of the structure.
S
12” (30.5cm)
12” (30.5cm)
Clearance under a covered balcony
ΔThe terminal shall not be located less than 6 feet under a window that opens on a horizontal plane in a structure with three walls and a roof.
* Recommended to prevent condensation on windows and thermal breakage
** It is recommended to use a heat shield and to maximize the distance to vinyl clad soffits.
*** The periscope requires a minimum 18 inches clearance from an inside corner.
**** This is a recommended distance. For additional requirements check localcodes.
†3 feet above if within 10 feethorizontally.
ffiA vent shall not terminate where it may cause hazardous frost or ice accumulations on adjacent property surfaces.
†† Permitted only if the veranda, porch, or deck is fully open on a minimum of two sides beneath the floor.
†* Recommended to prevent recirculation of exhaust products. For additional requirements check local codes.
††* Permitted only if the balcony is fully open on a minimum of one side.
NOTE: Clearances are in accordance with local installation codes and the requirements of the gas supplier.
12.1E
R
Q
SP
G
Q
MIN
= 3feet
(0.9m)
R MAX = 2 x
QACTUAL
R
MAX
≤ 15 feet
(4.6m)

W415-1283/E/ 12.21.16
15
VENT APPLICATION FLOW CHART
Horizontal Termination
Vertical rise is equal
to or greater than
the horizontal run
Vertical rise is less
than horizontal run
Horizontal run +
vertical rise to
maximum of 40 feet
(12m)
Horizontal run +
vertical rise to
maximum of
24.75 feet (7.5m)
4.2 times the
vertical rise equal to
or greater than the
horizontal run
DEFINITIONS
For the following symbols used in the venting calculations and examples are:
> - greater than
> - equal to or greater than
< - less than
< - equal to or less than
HT - total of both horizontal vent lengths (Hr) and offsets (Ho) in feet
HR - combined horizontal vent lengths in feet
H
O
- offset factor: .03 (total degrees of offset - 135°*) in feet
V
T
- combined vertical vent lengths in feet
ELBOW VENT LENGTH VALUES
FEET INCHES MILLIMETERS
1° 0.03 0.5 12.7
15° 0.45 6.0 152.4
30° 0.9 11.0 279.4
45°* 1.35 16.0 406.4
90°* 2.7 32.0 812.8
EN
13.1A
14.2
* The first 45° and 90°offset has a zero value and is shown in the formula as -45° and - 90° respectively or
-135° when combined. 15.2A
TOP EXIT
Vertical Termination
Vertical rise is equal
to or greater than
the horizontal run
Vertical rise is less
than horizontal run
Horizontal run +
vertical rise to
maximum of 40 feet
(12m)
Horizontal run +
vertical rise to
maximum of 40 feet
(12m)
3 times the vertical
rise equal to or
greater than the
horizontal run

W415-1283/E/12.21.16
16
HORIZONTAL TERMINATION
EN
(HT) < (VT)
Simple venting configuration (only one 45° and 90° elbow)
40 (12.2)
39 (11.9)
See graph to determine the required vertical
rise VT for the required horizontal run HT.
REQUIRED
VERTICAL
RISE IN FEET
(METERS) VT
30 (9.1)
20 (6.1)
10 (3.1)
0
2.5
(0.8)
5
(1.5)
7.5
(2.3)
10
(3.1)
12.5
(3.8)
15
(4.6)
17.5
(5.3)
20
(6.1)
HORIZONTAL VENT RUN PLUS OFFSET IN
FEET (METERS) HT
The shaded area within the lines represents
acceptable values for HT and VT
For vent configurations requiring more than one 45° elbow and 90° elbow, the following formulas
apply:
Formula 1: HT < VT
Formula 2: HT + VT < 40 feet (12.2m)
Example:
V1 = 8 FT (2.4m)
VT = V1 = 8 FT (2.4m)
H1 = 2.5 FT (0.8m)
H2 = 2 FT (0.6m)
HR = H1 + H2 = 2.5 FT (0.8m) + 2 FT (0.6m) = 4.5 FT (1.4m)
HO = .03 (one 45° elbow + two 90° elbows - 135°) = .03 (225 - 135°) = 2.7 FT (0.8m)
90°
HT = HR + HO = 4.5 FT (1.4m) + 2.7 FT (0.8m) = 7.2 FT (2.2m) 45° H
HT + VT = 7.2 FT (2.2m) + 8 FT (2.4m) = 15.2 FT (4.6m)
1
90°
Formula 1: HT < VT
7.2 FT (2.2m) < 8 FT (2.4m)
Formula 2: HT + VT < 40 FT (12.2m)
15.2 FT (4.6m) < 40 FT (12.2m)
Since both formulas are met, this vent configuration is acceptable.
16.5A
V
1
H
2

W415-1283/E/ 12.21.16
17
Simple venting configuration (only one 45°and 90°
elbow) See graph to determine the required vertical
rise VT for the required horizontal run HT.
150 (3810)
147 (3733.8)
REQUIRED
VERTICAL RISE
IN INCHES
(MILLIMETERS) VT
100 (2540)
57 (1447.8)
50 (1270)
0
5 10
15 20
(1.5)
(3.1) 12.5 (4.6)
(3.8)
(6.1)
HORIZONTAL VENT RUN PLUS
OFFSET IN FEET (METERS) HT
The shaded area within the lines represents acceptable values for HT and VT
For vent configurations requiring more than one 45° elbow and 90° elbow, the following formulas
apply:
Formula 1: HT < 4.2 VT
Formula 2: HT + VT < 24.75 feet (7.5m)
Example:
90°
90° 90 °
H H4
3
V
H
1
H
2
V1 = 4 FT (1.2m)
2
90°
V2 = 1.5FT (0.5m) V
VT = V1 + V2= 4 FT (1.2m) + 1.5 FT (0.5m) = 5.5 FT (1.7m)
H1 = 2 FT (0.6m)
H2 = 1 FT (0.3m)
H3 = 1 FT (0.3m)
H4 = 1.5 FT(0.5m)
45°
HR = H1 + H2 + H3 + H4 = 2FT (0.6m) + 1FT (0.3m) + 1FT (0.3m) + 1.5FT (0.5m) = 5.5 FT (1.7m)
HO = .03 (one 45° elbow + four 90° elbows - 135°) = .03 (405 - 135°) = 8.1 FT (2.5m)
HT = HR + HO = 5.5 FT (1.7m) + 8.1 FT (2.5m) = 13.6 FT (4.2m)
HT + VT = 13.6 FT (4.2m) + 5.5 FT (1.7m) = 19.1 FT (5.8m)
Formula 1: HT < 4.2FT (1.3m) VT
4.2FT (1.3m) VT = 4.2 FT (1.3m) x 5.5 FT (1.7m)= 23.1 FT (7m)
13.6 FT (4.2m) < 23.1 FT (7M)
Formula 2: HT + VT < 24.75 FT (7.5m)
19.1 FT (5.8m) < 24.75 FT (7.5m)
Since both formulas are met, this vent configuration is acceptable. 16.5_2A
(HT) > (VT)
EN
1

W415-1283/E/12.21.16
18
(HT) < (VT)
VERTICAL TERMINATION
EN Simple venting configurations. See graph to determine the required vertical rise V
required horizontal run HT.
for the
40(12.2)
30(9.1)
REQUIRED
VERTICAL
RISE IN FEET
(METERS) VT
20(6.1)
10(3.1)
3 (0.9)
0 5
(1.5)
10
(3.1)
15
(4.6)
20
(6.1)
HORIZONTAL VENT RUN PLUS OFFSET IN FEET (METERS) HT
The shaded area within the lines represents acceptable
values for HT and VT
For vent configurations requiring more than one 45° and one 90° elbow, the following formulas apply:
Formula 1: HT < VT
Formula 2: HT + VT < 40 feet (12.2m)
Example: V2
V1 = 5 FT (1.5m)
V2 = 10 FT (3.1m)
VT = V1 + V2 = 5 FT (1.5m) + 10 FT (3.1m) = 15 FT (4.6m)
H1 = 3 FT (0.9m)
H2 = 2.5 FT (0.8m)
HR = H1 + H2 = 3FT (0.9m) + 2.5FT (0.8m) = 5.5 FT (1.7m)
HO = .03 (one 45° + three 90° elbows - 135°)
= .03 (45 + 270 - 135°) = 5.4 FT (1.6m)
90° H2
V
90°
1
HT = HR + HO = 5.5 FT (1.7m)+ 5.4 FT (1.m) = 10.9 FT (3.3m)
HT + VT = 10.9 FT (3.3m)+ 15 FT (4.6m) = 25.9 FT (7.9m)
Formula 1: HT < VT
10.9FT (3.3m) < 15 (4.6m)
Formula 2: HT + VT < 40 FT (12.2m)
25.9FT (7.9m) < 40 (12.2m)
Since both formulas are met, this vent configuration is acceptable.
45° H1
90°
18.3A
T

W415-1283/E/ 12.21.16
19
Simple venting configurations.
See graph to determine the required vertical rise V for the
required horizontal run HT.
T
20 (6.1)
19 (5.8)
REQUIRED
VERTICAL RISE
IN FEET 10
(METERS) VT
3 (0.9)
HORIZONTAL VENT RUN PLUS OFFSET IN FEET (METERS)HT
The shaded area within the lines represents acceptable
values for HT and VT
EN
(3.1)
0
5
10
15
20
25
30
(1.5)
(3.1)
(4.6)
(6.1)
(7.6)
(9.1)
For vent configurations requiring more than one 45° and one 90° elbow, the following formulas apply:
Formula 1: HT < 3VT
Formula 2: HT + VT < 40 feet (12.2m) V2
Example:
V1 = 1 FT (0.3m)
V2 = 1.5 FT (0.5m)
VT = V1 + V2 = 1 FT (0.3m)+ 1.5 FT (0.5m)= 2.5 FT (0.8m)
H1 = 6 FT (1.8m)
45°
90° H290°
1
H2 = 2 FT (0.6m) H
1
HR = H1 + H2 = 6FT (1.8m) + 2FT (0.6m) = 8 FT (2.4m)
HO = .03 (one 45° + three 90° elbows - 135°)
= .03 (45 + 270 - 135°) = 5.4 FT (1.6m) 90°
HT = HR + HO = 8FT (2.4m) + 5.4FT (1.6m) = 13.4FT (4.1m)
HT + VT = 13.4FT (4.1m)+ 2.5FT (0.8m) = 15.9FT (4.8m)
Formula 1: HT < 3VT
3VT = 3FT (0.9m) x 2.5FT(0.8m) = 7.5FT (2.3m)
13.4 FT (4.1m) > 7.5 FT (2.3m)
Since this formula is not met, this vent configuration is unacceptable.
Formula 2: HT + VT < 40 FT (12.2m)
15.9FT (4.8m) < 40FT (12.2m)
Since only formula 2 is met, this vent configuration in unacceptable and a new fireplace location or vent
configuration will need to be established to satisfy both formulas.
Example:
V1 = 1.5 FT (0.5m)
90° 2
H2H
V2 = 8 FT (2.4m) 45° 3
V 45° 90°
VT = V1 + V2 = 1.5 FT (0.5m) + 8 FT (2.4m) = 9.5 FT (2.9m)
H1 = 1 FT (0.3m) H1
H2 = 1 FT (0.3m)
H3 = 10.75 FT (3.3m)
HR = H1 + H2 + H3 = 1FT(0.3m) + 1FT(0.3m) + 10.75FT(3.3m) = 12.75FT(3.9m)
HO = .03 (three 90° elbows + two 45° elbows - 135°)
= .03 (270 + 90 - 135°) = 6.75 FT (2.1m)
HT = HR + HO = 12.75 FT (3.9m) + 6.75 FT (2.1m) = 19.5 FT (5.9m)
HT + VT = 19.5FT (5.9m) + 9.5FT (2.9m) = 29 FT (8.8m)
Formula 1: HT < 3VT
3VT = 3 x 9.5 = 28.5 FT (8.7m)
19.5 FT (5.9m) < 28.5 (8.7m)
Formula 2: HT + VT < 40 FT (12.2m)
29 FT (8.8m) < 40 FT (12.2m)
Since both formulas are met, this vent configuration is acceptable.
1
90°
18.3_2B
(HT) > (VT)
V
V

W415-1283/E/12.21.16
20
INSTALLATION
EN
WALL AND CEILING
PROTECTION
68.2D
70.1
For optimum performance it is recommended that all horizontal runs have a minimum of 1/4” (6mm) rise
per foot/meter using flexible venting. For safe and proper operation of the appliance, follow the venting
instructions exactly.
For clearance to combustible materials from the vent pipe, see "MINIMUM CLEARANCE TO
COMBUSTIBLES" section.
NOTE: Thefirestop/ventshieldsuppliedwiththisappliancemustbeusedwhenpassingthrougha
combustible wall or floor.
DO NOT FILL THE SPACE BETWEEN THE VENT PIPE AND ENCLOSURE WITH ANY TYPE OF
MATERIAL. DO NOT PACK INSULATION OR COMBUSTIBLES BETWEEN CEILING FIRESTOPS.
ALWAYSMAINTAIN SPECIFIED CLEARANCES AROUND VENTING AND FIRESTOP SYSTEMS.
INSTALL WALL SHIELDS AND FIRESTOPS AS SPECIFIED. FAILURE TO KEEP INSULATION OR
OTHER MATERIALS AWAY FROM VENT PIPE MAY CAUSE FIRE.
! WARNING
! WARNING
ENSURE TO UNPACK ALL LOOSE MATERIALS FROM INSIDE THE FIREBOX PRIOR TO HOOKING UP
THE GAS AND ELECTRICAL SUPPLY.
IF YOUR APPLIANCE IS SUPPLIED WITH A REMOTE, ENSURE THE REMOTE RECEIVER IS IN THE
“OFF” POSITION PRIOR TO HOOKING UP THE GAS AND ELECTRICAL SUPPLY TO THE APPLIANCE.
FOR SAFE AND PROPER OPERATION OF THE APPLIANCE, FOLLOW THE VENTING INSTRUCTIONS
EXACTLY.
ALL EXHAUST AND INTAKE VENT PIPE JOINTS MUST BE SEALED USING RED RTV HIGH TEMP
SILICONE SEALANT (W573-0002) (NOT SUPPLIED) OR BLACK HIGH TEMP MILL PAC (W573-0007)
(NOT SUPPLIED) WITH THE EXCEPTION OF THE APPLIANCE EXHAUST FLUE COLLAR WHICH MUST
BE SEALED USING MILL PAC.
IF USING PIPE CLAMPS TO CONNECT VENT COMPONENTS, A MINIMUM OF 3 SCREWS MUST ALSO
BE USED TO ENSURE THE CONNECTION CANNOT SLIP OFF.
DO NOT CLAMP THE FLEXIBLE VENT PIPE.
RISK OF FIRE, EXPLOSION OR ASPHYXIATION. IMPROPER SUPPORT OF THE ENTIRE VENTING
SYSTEM MAY ALLOW VENT TO SAG AND SEPARATE. USE VENT RUN SUPPORTS AND CONNECT
VENT SECTIONS PER INSTALLATION INSTRUCTIONS.
RISK OF FIRE, DO NOT ALLOW LOOSE MATERIALS OR INSULATION TO TOUCH THE VENT PIPE.
REMOVE INSULATION TO ALLOW FOR THE INSTALLATION OF THE ATTIC SHIELD AND TO
MAINTAIN CLEARANCES TO COMBUSTIBLES.
