Continental Fireplaces CVF36N User manual

1
W415-0298 / K / 12.06.07
INSTALLER: THESE INSTRUCTIONS MUST BE CONVEYED TO AND REMAIN WITH THE HOMEOWNER.
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON L4M 4Y8 Canada • [phone] • fax[phone]
www.continentalplaces.com • [email protected]
CERTIFIED UNDER AMERICAN NATIONAL STANDARDS, ANSI Z21.11.2, VOLUME II FOR UNVENTED ROOM HEATERS.
UNVENTED MILLIVOLT SYSTEM
INSTALLATION AND OPERATION INSTRUCTIONS FOR
UNVENTED GAS FIREPLACE
NATURAL GAS MODEL
CVF36N
PROPANE GAS MODEL CVF36P
CERTIFIED FOR UNITED STATES USING ANSI METHODS
WARNING: If the information in these instructions is not followed exactly, a fire or
explosion may result causing property damage, personal injury or death.
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapours and liquids in the vicinity of
this or any other appliance.
WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Immediately call your gas supplier from
a neighbour’s phone. Follow the gas
supplier’s instructions.
• If you cannot reach your gas supplier,
call the fire department.
Installation and service must be performed
by a qualified installer, service agency or
the gas supplier.
This is an unvented gas-fired heater that uses air (oxygen) from the room in which it is
installed. Provisions for adequate combustion and ventilation air must be provided.
$10.00

2
W415-0298 / K / 12.06.07
PG 3-4 INTRODUCTION
Warranty
General Instructions
General Information
Care of Glass Door, Catalytic Tiles &
Plated Parts
5-7 INSTALLATION
Combustion and Ventilation Air Provisions
Determining Confined or Unconfined Space
Gas Installation
Optional Wall Switch Installation
Dimensions
Minimum Framing Clearances
Nailing Tab Installation
Minimum Mantel and Enclosure Clearances
8-9 FINISHING
Grate and log installation
Charcoal Embers
Glowing Embers
Hood Installation
Logo Placement
Louvre Installation
9-10 OPTIONAL BLOWER
INSTALLATION
GD65 Fan Installation
GD36 Termostatic Sensor Control
11-12 OPERATION / MAINTENANCE
Operating Instructions
Maintenance
Oxygen Depletion Sensor Pilot Cleaning
Pilot Flame Appearance
Venturi Adjustment
13-14 REPLACEMENTS
Ordering Replacement Parts
Replacement Parts
Accessories
15-16 TROUBLE SHOOTING GUIDE
17 SERVICE HISTORY
18 NOTES
TABLE OF CONTENTS
PLEASE RETAIN THIS MANUAL FOR FUTURE REFERENCE
• Under no circumstances should this heater be modified
•Provide adequate ventilation and combustion air. Provide adequate accessibility clearance for servicing and operating
the heater. Never obstruct the front opening of the heater.
• If the heater shuts off, do not re-light until you provide fresh air. If heater keeps shutting off, have it serviced. Keep
burner and control compartment clean.
• Do not burn wood or other materials in this heater.
• Adults and especially children should be alerted to the hazards of high surface temperatures and should stay away to
avoid burns or clothing ignition. Keep young children and animals away when the fireplace is hot.
• Due to high temperatures, the heater should be located out of traffic and away from furniture and draperies.
• Clothing or other flammable material should not be placed on or near the heater.
• Any safety screen or guard removed for servicing must be replaced prior to operating the heater.
• It is imperative that the control compartments, burners and circulating blower and its passageway in the fireplace
and venting system are kept clean. The fireplace and its venting system should be inspected before use and at least
annually by a qualified service person. More frequent cleaning may be required due to excessive lint from carpeting,
bedding material, etc. The fireplace area must be kept clear and free from combustible materials, gasoline and other
flammable vapours and liquids.
• Furniture or other objects must be kept a minimum of 4 feet away from the front of the fireplace.
• Do not use this fireplace if any part has been under water. Immediately call a qualified service technician to inspect the
fireplace and to replace any part of the control system and any gas control which has been under water.
• Do not allow fans to blow directly into the fireplace. Avoid any drafts that alter burner flame pattern.
• Do not use a blower insert, heat exchanger insert or other accessory not approved for use with this heater.
NOTE: CHANGES, OTHER THAN EDITORIAL, ARE DENOTED BY A VERTICAL LINE IN THE MARGIN.
!
WARNING

3
W415-0298 / K / 12.06.07
CONTINENTAL® gas fireplaces are manufactured under the strict Standard of the world recognized
ISO 9001:2000 Quality Assurance Certificate.
WOLF STEEL LTD. products are designed with superior components and materials, assembled by trained
craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fired at aquality
test station. The complete fireplace is again thoroughly inspected by a qualified technician before packagin
g
to
ensure that you, the customer, receives the quality product that you expectfrom WolfSteel Ltd.
CONTINENTAL® GAS FIREPLACE LIMITED WARRANTY
The following materials and workmanship in your new Continental® gas fireplace are warranted against defects
for a period of five years. This covers: combustion chamber, heat exchanger, burner, phazer™ logs and embe
rs,
ceramic glass (thermal breakage only), gold platedparts against tarnishing, porcelainized enamelled components
and aluminum extrusion trims.
Electrical (110V and millivolt) components and wearable parts such as catalytic tiles, blowers, gas val
ves
thermal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly are covered
and
Wolf Steel Ltd. will provide replacement parts free of charge duringthe first year of the limited warranty.
Any labour related to warranty repair is not covered.
CONDITIONS AND LIMITATIONS
Wolf Steel Ltd. warrants its products against manufacturing defects to the original purchaser only -- i.e., the individual or legal entity (registered customer) whose name appears
on the warranty registration card filed with CONTINENTAL®® -- provided that the purchase was made through an authorized CONTINENTAL®® dealer and is subject to the following
conditions and limitations:
This factory warranty is nontransferable and may not be extended whatsoever by any of our representatives.
The gas fireplace must be installed by a licenced, authorized service technician or contractor. Installation must be done in accordance with the installation instructions included
with the product and all local and national building and fire codes.
This limited warranty does not cover damages caused by misuse, lack of maintenance, accident, alterations, abuse or neglect and parts installed from other manufacturers will nullify
this warranty.
This limited warranty further does not cover any scratches, dents, corrosion or discolouring caused by excessive heat, abrasive and chemical cleaners nor chipping on porcelain
enamel parts, mechanical breakage of PHAZER™ logs and embers, nor any venting components used in the installation of the fireplace.
In the first year only, this warranty extends to the repair or replacement of warranted parts which are defective in material or workmanship provided that the product has been operated
in accordance with the operation instructions and under normal conditions.
After the first year, with respect to this limited warranty, Wolf Steel Ltd. may, at its discretion, fully discharge all obligations with respect to this warranty by refunding to the original
warranted purchaser the wholesale price of any warranted but defective part(s).
Notwithstanding any provisions contained in this limited warranty, Wolf Steel Ltd.’S responsibility under this warranty is defined as above and it shall not in any event extend to any
incidental, consequential or indirect damages.
This warranty defines the obligations and liability of Wolf Steel Ltd. with respect to the CONTINENTAL®® gas fireplace and any other warranties expressed or implied with respect
to this product, its components or accessories are excluded.
Wolf Steel Ltd. neither assumes, nor authorizes any third party to assume, on its behalf, any other liabilities with respect to the sale of this product. Wolf Steel Ltd. will not be responsible
for: over-firing, downdrafts, spillage caused by environmental conditions such as rooftops, buildings, nearby trees, hills, mountains, inadequate vents or ventilation, excessive venting
configurations, insufficient makeup air, or negative air pressures which may or may not be caused by mechanical systems such as exhaust fans, furnaces, clothes dryers, etc.
Any damages to fireplace, combustion chamber, heat exchanger, brass trim or other component due to water, weather damage, long periods of dampness, condensation, damaging
chemicals or cleaners will not be the responsibility of Wolf Steel Ltd.
The bill of sale or copy will be required together with a serial number and a model number when making any warranty claims from your authorized dealer. The warranty registration
card must be returned within fourteen days to register the warranty.
Wolf Steel Ltd. reserves the right to have its representative inspect any product or part thereof prior to honouring any warranty claim.
ALL SPECIFICATIONS AND DESIGNS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE DUE TO ON-GOING PRODUCT IMPROVEMENTS. CONTINENTAL® IS A REGISTERED
TRADEMARK OF WOLF STEEL LTD. PATENTS U.S. 5.303.693.801 - CAN. 2.073.411, 2.082.915. © WOLF STEEL LTD.

4
W415-0298 / K / 12.06.07
Use only accessories designed for and
listed with your specific fireplace.
Early signs of carbon monoxide poisoning resem-
ble the flu, with headache, dizziness and/or nau-
sea. If you have these signs, the heater may not
be working properly. Get fresh air at once! Have
heater serviced.
Some people---pregnant women, persons with heart
or lung disease, anaemia, those under the influence
of alcohol, those at high altitudes--- are more af-
fected by carbon monoxide than others.
THIS GAS FIREPLACE SHOULD BE INSTALLED AND
SERVICED BY A QUALIFIED INSTALLER to conform with
local codes. Installation practices vary from region to region
and it is important to know the specifics that apply to your
area, for example: in Massachusetts State:
•The appliance off valve must be a “T” handle gas cock.
•The flexible connector must not be longer than 36“.
•The appliance is not approved for installation in a bedroom or
bathroom unless the unit is a direct vent sealed combustion
product.
•A carbon monoxide detector is required in all rooms containing
gas fired appliacnes.
•WARNING: This product must be installed by a licensed
plumber or gas fitter when installed within the commonwealth
of Massachusetts.
•Un-vented room heater shall be installed in accordance with
527 CMR 30.00 and 248 CMR 3.00 through 7.00.
•Sellers of un-vented propane or natural gas-fired space/room
heaters shall provide to each purchaser a copy of 527 CMR
30.00 upon the sale of the unit from
http://www.Continentalfireplaces.com/Webshare/
installation_manuals/mass_requirements.pdf
In absence of local codes, install the CVF36 to the current
National Fuel Gas Code, ANSI Z223.1 Installation Code
which can be obtained from:
American Nation Standards Institute Inc.
1430 Broadway
New York, NY 10018
or
National Fire Protection Association Inc.
Batterymarch Park
Quincy, MA 02269
The fireplace and its individual shutoff valve must be discon-
nected from the gas supply piping system during any pressure
testing of that system at test pressures in excess of 1/2 psig
(3.5 kPa). The fireplace must be isolated from the gas supply
piping system by closing its individual manual shutoff valve
during any pressure testing of the gas supply piping system
at test pressures equal to or less than 1/2 psig (3.5 kPa).
When the fireplace is installed directly on carpeting, vinyl tile
or other combustible material other than wood flooring, the
fireplace shall be installed on a metal or wood panel extend-
ing the full width and depth.
If the optional fan or blower is installed, the junction box
must be electrically connected and grounded in accordance
with local codes. In the absence of local codes, use the cur-
rent ANSI/NFPA 70 NATIONAL ELECTRICAL CODE in the
United States.
FOR YOUR SATISFACTION, THIS FIREPLACE HAS BEEN
TEST-FIRED TO ASSURE ITS OPERATION AND QUAL-
ITY! Maximum input is 30,000 BTU/hr for natural gas and
propane. When the fireplace is installed at elevations above
2,000ft, and in the absence of specific recommendations
from the local authority having jurisdiction, the certified high
altitude input rating shall be reduced at the rate of 4% for
each additional 1,000ft.
Suitable for mobile home installation where the mobile
home has been permanently placed on its site. This heat-
er must not be installed in a bedroom or bathroom.
This fireplace may be installed in an aftermarket per-
manently located, manufactured (mobile) home, where
not prohibited by local codes.
This fireplace is only for use with the type of gas indi-
cated on the rating plate. This fireplace is not convertible
for use with other gases, unless a certified kit is used.
Minimum inlet gas supply pressure is 4.5“ water column for
natural gas and 11“ water column for propane. Maximum
inlet gas pressure is 7“ water column for natural gas and
13“ water column for propane. Manifold pressure under flow
conditions is 3.5“ water column for natural gas and 10“ water
column for propane.
No external electricity (110 volts or 24 volts) is required
for the gas system operation.
Expansion / contraction noises during heating up and cooling
down cycles are normal and are to be expected.
Do not use abrasive cleaners to clean plated parts. Buff lightly
with a clean dry cloth.
This heater is equipped with a pilot light safety
system referred to as an OXYGEN DEPLETION
SENSOR and is designed to turn off the heater
if not enough fresh air is available.
GENERAL INSTRUCTIONS
GENERAL INFORMATION
CARE OF PLATED PARTS
CARBON MONOXIDE POISONING MAY
LEAD TO DEATH
Ceiling fans or oscillating type floor fans can cause flame
impingement if directing air at the fireplace. Impinging
flames will cause soot or carbon that may enter into living
area. Try reversing ceiling fan or re-directing floor fans to
prevent sooting.

5
W415-0298 / K / 12.06.07
ROOM 2
ROOM 1
This heater shall not be installed in a confined space
or unusually tight construction unless provisions are
provided for adequate combustion and ventilation air.
In order to avoid the possibility of exposed insulation
or vapour barrier coming in contact with the fireplace
body, it is recommended that the walls of the fireplace
enclosure be ‘finished’, (i.e. drywall/sheetrock) as would
any other outside wall of the home. This will ensure
that clearance to combustibles is maintained within
the cavity.
The National Fuel Gas Code, ANSI Z223.1 defines a confined
space as a space whose volume is less than 50 cubic feet
per 1,000 Btu per hour (4.8 m3 per kW) of the aggregate
input rating of all appliances installed in that space and an
unconfined space as a space whose volume is not less than
50 cubic feet per 1,000 Btu per hour (4.8 m3 per kW) of the
aggregate input rating of all appliances installed in that space.
Rooms communicating directly with the space in which the
appliances are installed, through openings not furnished with
doors are considered a part of the unconfined space.
The CVF36 is rated at 30,000BTUs per hour and
therefore requires a minimum unconfined space
of 1,500 cubic feet.
To determine the volume of the room where the heater is to
be installed, multiply the width x the length x the ceiling height
of that room measured in feet. If any adjoining rooms are con-
nected by grills or openings such as kitchen pass-throughs,
etc., the volume of those rooms may be added to the total.
Multiply the room volume by 1000 and divide this amount
by 50 to determine the maximum Btu/hr that the space can
support with adequate combustion and ventilation air.
Add the Btu/hr of all fuel burning appliances located within
the space such as gas furnace, gas water heater, etc. Do not
include direct vent gas appliances which draw their input and
output air from and to the outdoors.
WARNING: If the area in which the heater may be operated
is smaller than that defined as an unconfined space or if the
building is of unusually tight construction, provide adequate
combustion and ventilation air by one of the methods de-
scribed in the National Fuel Gas Code ANSI Z223.1, Section
5.3 or the applicable local code.
FIGURE 1
Room Volume = Length x Width x Height
Max BTU/hr = Room Volume x 1000 ÷ 50
If for example,
the length of the rooms is 10 feet,
the width of Room 1 is 10 feet,
the width of Room 2 is 15 feet
the height of the rooms is 8 feet.
The volume of Room 1: 10 x 10 x 8 = 800 cubic feet.
The volume of Room 2: 10 x 15 x 8 = 1200 cubic feet.
If in this example a solid door separates Room 1 from Room
2, the volume of Room 2 could not be used. In this case the
maximum BTU/h would be:
Maximum BTU/h: 800 x 1000 = 16,000 BTU/h
This would be considered a confined space since it can not
support the 30,000BTU/h input of the heater and it would be
necessary to provide adequate combustion and ventilation
air to Room 1.
In this example, because there is no door to the adjoining
room, the volume of the adjoining room may be added to the
volume of the room with the heater to get a total unconfined
space.
The total unconfined space: 800 + 1200 = 2000 cubic feet.
Maximum BTU/h: 2000 x 1000 = 40,000 BTU/h
If there are no more fuel burning appliances within this space
then the 30,000 BTU/h input of the fireplace is suitable to
be installed. This also assumes that the construction of this
space is not unusually tight.
HEIGHT
WIDTH
LENGTH
50
50
INSTALLATION
COMBUSTION & VENTILATION
AIR PROVISIONS
DETERMINING CONFINED OR UNCON-
FINED SPACE
EXAMPLE 1 EXAMPLE 2

6
W415-0298 / K / 12.06.07
Proceed once the vent installation is complete.
NOTE: All gas connections must be contained within
the fireplace when complete.
1. Move the fireplace into position and secure to the floor
through the 1/4" holes located at either side of the base.
2. The fireplace is designed to accept 3/8" gas supply line.
The fireplace is equipped with a 3/8" manual shut-off valve.
3. Connect the gas supply in accordance to local codes.
In the absence thereof, install according to the National
Installation Code.
4. When flexing any gas line, support the gas valve so
that the lines are not bent or kinked.
5. Check for gas leaks by brushing on a soap and water
solution.
DO NOT USE OPEN FLAME.
Unusually tight construction is defined as con-
struction where:
a) Walls and ceilings exposed to the outside atmosphere
have a continuous water vapour retarder with a rating of
1 perm (6 x 10-11 kg per pa-sec-m2) or less with openings
gasketed or sealed, and
b) Weather stripping has been added on openable win-
dows and doors, and
c) Caulking or sealants are applied to areas such as
joints around window and door frames, between sole plates
and floors, between wall-ceiling joints, between wall panels,
at penetrations for plumbing, electrical, and gas lines, and
at other openings.
An unvented room heater is recommended for use as a
secondary heat source rather than as a primary source.
Gas combustion produces water vapour which could occur
at the rate of approximately one ounce of water for every
1,000 BTU/hr of gas input. During the cold weather season,
indoor humidity levels tend to be low. Consequently, this
water vapour can enhance the living space. However if a
problem should occur:
a) ensure sufficient combustion and circulation air
b) use a dehumidifier
c) do not use the unvented room heater as a primary
heat source
Without sufficient fresh air for proper operation, poor fuel
combustion can result. Carbon Monoxide is a result of poor
combustion.
If additional fresh air is required, use one of the meth-
ods described in the National Fuel Gas Code, ANSI Z223.1,
Section 5.3 or the applicable local code.
GAS INSTALLATION
FIGURE 3
For ease of accessibility, an optional remote wall switch may
be installed in a convenient location. A 20’ length of millivolt
wire is connected to the gas valve for the wall switch. How-
ever if a greater length is required route 2-strand (solid core)
millivolt wire through the electrical hole located at the bottom
left side of the unit. The recommended maximum lead length
depends on wire size:
WIRE SIZE MAX. LENGTH
14 gauge 100 feet
16 gauge 60 feet
18 gauge 40 feet
OPTIONAL WALL SWITCH
INSTALLATION
FIGURE 2

7
W415-0298 / K / 12.06.07
To install the fireplace face
flush with the finished wall,
position the framework to ac-
commodate the thickness of
the finished wall. Bend out the
four nailing tabs, attached on
either side of the fireplace and
secure to the 2x4 framing. The
tabs will facilitate the installation
of either a 3/4” or a 1” finished
wall thickness. The nailing
tabs must not be removed.
Combustible mantel clearance can vary according to the mantel
depth. Use the graph to help evaluate the clearance needed.
It is best to frame your fireplace after it is positioned. Use 2x4’s
and frame to local building codes. FIGURE 5-7.
Minimum clearance to combustible con-
struction from fireplace:
sides, back, bottom and top of the unit 0”
recessed depth 13 1/2”
FIGURE 6
FIGURE 5
FIGURE 4
Note: In order to avoid the possibility of exposed insulation
or vapour barrier coming in contact with the fireplace body,
it is recommended that the walls of the fireplace enclosure
be “finished” (ie: drywall/sheetrock), as you would finish any
other outside wall of a home. This will ensure that clearance to
combustibles is maintained within the cavity.
Combustible materials may be installed flush with the front of
the fireplace but must not cover any of the black face-areas of
the fireplace. Non-combustible material (brick, stone or ceramic
tile) may protrude in these areas.
It is not necessary to install a hearth extension with this fireplace
system.
When roughing in the fireplace, raise the fireplace to accom-
modate for the thickness of the finished floor materials, i.e. tile,
carpeting, hard wood, which if not planned for will interfere with
the opening of the lower access door and the installation of many
decorative flashing accessories.
Objects placed in front of the fireplace should be kept a minimum
of 4 feet away from the front face.
MINIMUM FRAMING CLEARANCES
NAILING TAB INSTALLATION
MINIMUM MANTEL AND ENCLOSURE
CLEARANCES
FIGURE 9a-c
The fireplace requires a minimum enclosure height of 39”. For
temperature requirements, the enclosure space around and
above the fireplace must be left unobstructed.
Combustion protrusions such as
mantels and shelves may occur
at or after a minimum distance of 2”
away from the side of the fireplace. Thereafter, the depth
of any protrusions must be of equal to or less than the
distance from the side of the fireplace up to a depth of 6”,
after which no greater clearance than 6” is required. This
can be considered a side wall with no length boundary.
FIGURE 7
NAILING
TAB
FIGURE 8

8
W415-0298 / K / 12.06.07
The curtain mesh must be kept fully closed during operation
to help prevent accidental burns from occurring.
The heater must not be used when the hood is re-
moved. Hook the hood over the lip of the curtain support
plate.
Remove the backing of
the logo supplied and
place on the screen
cover, as indicated.
FINISHING
LOGO PLACEMENT
HOOD
FIGURE 13
Randomly place the charcoal embers along the front and
sides of the log support tray in a realistic manner. Fine dust
found in the bottom of the bag should not be used.
Tear the embers into pieces and place along the front row
of ports covering all of the burner area in front of the small
logs (#2 & #3). Care should be taken to shred the embers
into thin, small irregular pieces as only the exposed edges of
the fibre hairs will glow. The ember material will only glow
when exposed to direct flame; however, care should be
taken to not block the burner ports.
Blocked burner ports can cause an incorrect flame pattern,
carbon deposits and delayed ignition. PHAZERTM logs glow
when exposed to direct flame. Use only certified “glowing
embers” and PHAZERTM logs available from your Continen-
tal® dealer.
CHARCOAL EMBERS
GLOWING EMBERS
FIGURE 12
HOOD
CURTAIN
MESH
FIGURE 11
GRATE AND LOG INSTALLATION
1. Remove curtain mesh and rod assembly
2. Remove log carton
3. Remove grate from the lower control area (stored there when
shipped)
4. Unscrew the 3 screws in the firebox, set grate in place
and secure using the 3 screws that were just removed.
See Figure 11.
5. Install the one piece logset by aligning the two holes on the
bottom of the logs, with the two locating pins in the
firebox.
NOTE: PHAZERTM logs and glowing embers exclusive to
Continental® Fireplaces, provide a unique and realistic
glowing effect that is different in every installation. Take the
time to carefully position the glowing embers for a maximum
glowing effect.
Log colours may vary. During the initial use of the fireplace,
the colours will become more uniform as colour pigments
burn in during the heat activated curing process.
6. Reinstall rod assembly and mesh curtain
FIGURE 10

9
W415-0298 / K / 12.06.07
A
C
B
FIGURE14 HOOD
Attach the hood by pressing the
top flange into the clips along
the top of the louvre opening.
Secure using a screw through
the centre slot.
ACLIPS
CENTRE
SLOT
FLANGE
UPPER LOUVRES
Insert the louvre tabs into the
slots located at the top left and
right corners of the unit.
SLOT
TAB
B
LOWER LOUVRES
Insert the hinge clips into the
slots located at the bottom left
and right corners of the unit.
To remove the louvres, pull the
back tabs of the clips forward,
while pushing the louvre assem-
bly back. Lift the clip.
C
HINGE
CLIP
SLOT
L36 LOUVRE INSTALLATION

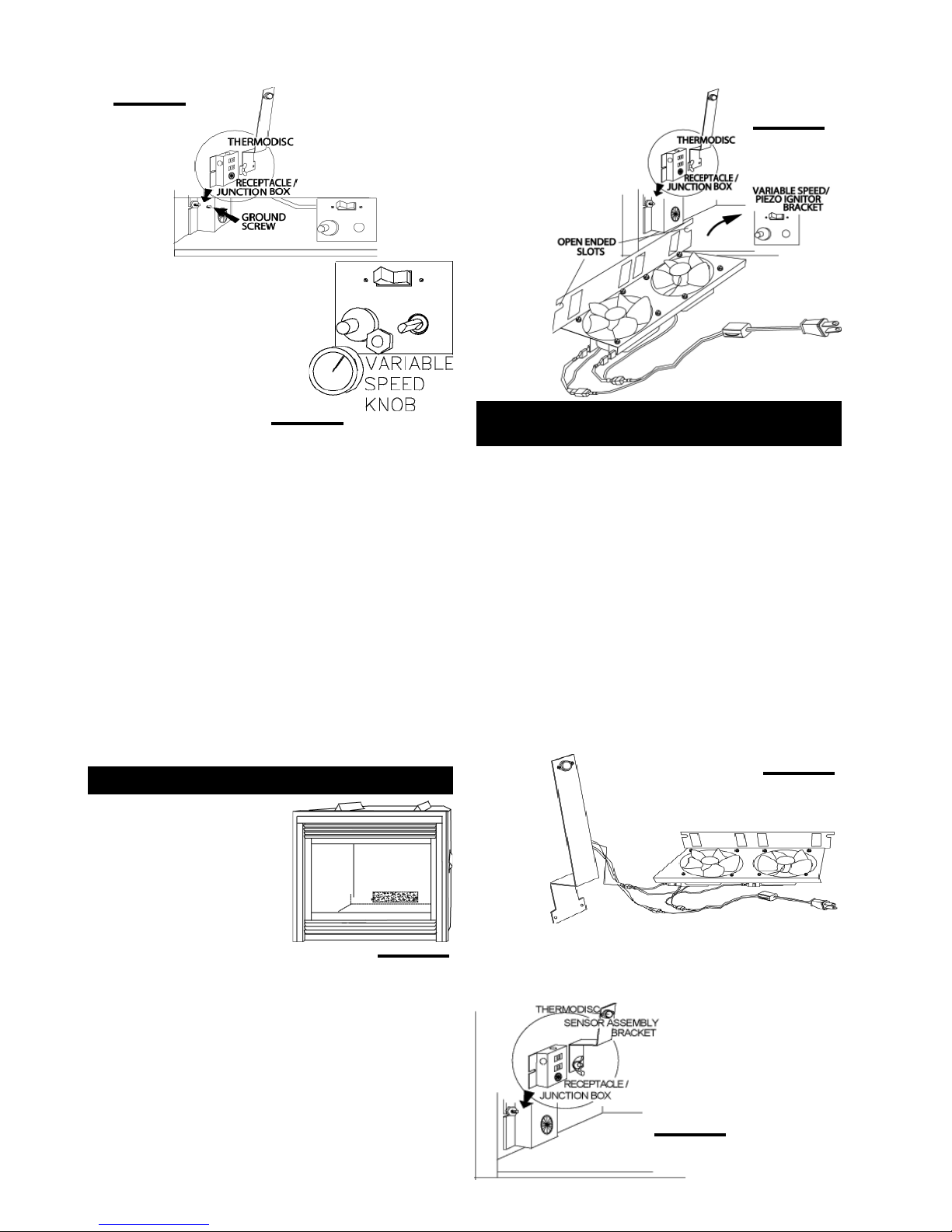

OPTIONAL BLOWER INSTALLATION
C
A
B
FIGURE 17
FIGURE 15
FIGURE 16
INSTALLATION TO BE DONE BY A QUALIFIED INSTALLER
and must be electrically connected and grounded in accord-
ance with local codes. In the absence of local codes, use the
current ANSI/NFPA 70 NATIONAL ELECTRICAL CODE.
If the fireplace was not
previously equipped
with a blower: route a
grounded 2-wire, 60hz
power cable to the junc-
tion box. At this point, it
must be strain relieved
and insulated.
The three slots on the
blower mounting bracket
allow ease of adjustment
when attaching the blow-
er. For a quiet running
blower, do not allow the
assembly to sit on the
firebox base.
the bracket before installing the blower. Attach the black and
white wires to the disc, then secure the bracket to the stud
at the bottom left on the unit using the lock washer and wing
nut. Ensure that the thermodisc touches the firebox wall.
Slide the vibration reducing pad (A) into the clip (C) and up
against the threaded stud (B) at the other end. The blower
must be able to be positioned entirely onto the pad.
Tilt the blower onto its side. Slide it past the controls and
into the clip (C). Secure to the threaded stud using the lock
washer and wing nut provided. Ensure that the blower does
not touch the fireplace base or the firebox.
If optional blower kit is to be installed, remove thermodisc
from the bracket supplied in the kit and disgard the bracket.
Install thermodisc in the bracket supplied with the fireplace. It
is recommended to attach the wires to the disc and install FIGURE 18

10
W415-0298 / K / 12.06.07
FIGURE 22
FIGURE 20
Attach the connectors from
the black and red wires to the
blower.
Attach and secure the variable
speed switch using the nut
provided. Plug the harness
cord into the receptacle.
The wire harness provided in this kit is a universal
harness. When installed, ensure that any excess
wire is contained, preventing it from making con-
tact with moving or hot objects.
Because the blower is thermally activated, when
turned on, it will automatically start approximately
10 minutes after lighting the fireplace and will
run for approximately 30-45 after the fireplace
has been turned off. Use of the fan increases the
output of heat.
Drywall dust will penetrate into the blower bear-
ings causing irreparable damage. Care must be
taken to prevent drywall dust from coming into
contact with the blower or its compartment. Any
damage resulting from this condition is not cov-
ered by the warranty policy.
FIGURE 19
This optional kit is meant to be used only in conjunction with
the GD65 Fan Kit, which may be ordered from your Wolf
Steel /Continental® dealer.
With the thermostatic sensor option, the fan, when turned
on, becomes thermally activated, and will automatically run
approximately 10 minutes after the fireplace has been lit
and for approximately 30-45 minutes after the fireplace has
been turned off.
Use of the fan increases the output of heat.
If optional thermostatic sensor kit is to be installed, remove
thermodisc from the bracket supplied in the kit and disgard
the bracket. Install thermodisc in the bracket supplied with the
fireplace. It is recommended to attach the wires to the disc
and install the bracket before installing the blower. Attach the
black and white wires to the disc, then secure the bracket to
the stud at the bottom left on the unit using the lock washer
and wing nut. Ensure that the thermodisc touches the firebox
wall.
Unplug the
power cord
from the
receptacle.
Connect
all wires as
shown.
Plug the
power cord back into the receptacle.
When installed, ensure that any excess wire is contained, pre-
venting it from making contact with moving or hot objects.
FIGURE 24
ELECTRICAL INSTALLATION
TO BE DONE BY A QUALI-
FIED INSTALLER and must
be connected and grounded in
accordance with local codes.
In the absence of local codes,
use the current ANSI/NFPA 70
NATIONAL ELECTRICAL CODE.
If the fireplace was not previ-
ously equipped with a blower,
route a grounded 2-wire, 60hz power cable to the junction
box. At this point, it must be strain relieved and insulated.
The wire harness provided in this kit is a universal harness.
When installed, ensure that any excess wire is contained, pre-
venting it from making contact with moving or hot objects.
Position the vibration reducing pad into the clip and onto the
threaded stud at the other end, piercing a hole into the pad.
The fan assembly must be able to be positioned entirely
onto the pad.
FIGURE 21
FIGURE 23
GD65 FAN INSTALLATION
GD36 THERMOSTATIC SENSOR
CONTROL
Slide the fan assembly
past the controls and into
the clip. Secure using
the lock washer and nut
provided. Plug the har-
ness cord
into the re-
ceptacle.

11
W415-0298 / K / 12.06.07
When lighting and re-lighting, the gas knob cannot be turned
from pilot to off unless the knob is depressed.
1. STOP! Read the above safety information on this la-
bel.
2. Set the thermostat to lowest setting.
3. Turn off all electric power to the fireplace.
4. Open the control door. Turn the gas knob clockwise
to off.
5. Wait five (5) minutes to clear out any gas. If you smell
gas including near the floor, STOP! Follow “B” in the
above safety information on this label. If you don’t smell
gas go to the next step.
6. Find pilot located in front of the back log.
7. Turn gas knob counter-clockwise to pilot.
B. Before operating smell all around the fireplace area for
gas and next to the floor because some gas is heavier
than air and will settle on the floor.
C. Use only your hand to push in and turn the gas control
knob. Never use tools. If the knob will not push in and
turn by hand, do not try to repair it. Call a qualified service
technician. Force or attempted repair may result in a fire
or explosion.
D. Do not use this fireplace if any part has been under water.
Immediately call a qualified service technician to inspect the
fireplace and replace any part of the control system and any
gas control which has been under water.
• Do not try to light any appliance.
• Do not touch any electric switch; do not use any phone
in your building.
• Immediately call your gas supplier from a neighbour’s
phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire depart-
ment.
WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION
MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
A. This fireplace is equipped with a pilot which must be
lit by hand while following these instructions exactly.
GAS KNOB
OXYGEN DEPLETION SENSOR
If heater shuts off, do not relight until you provide fresh
air. If heater keeps shutting off, have it serviced. Keep
burner and control compartment clean.
When lit for the first time, the fireplace will emit a slight
odour for a few hours. This is a normal temporary condi-
tion caused by the curing of the logs and the “burn-in” of
internal paints and lubricants used in the manufacturing
process and will not occur again.
After extended periods of non-operation such as follow-
ing a vacation or a warm weather season, the fireplace
may emit a slight odour for a few hours. This is caused by
dust particles burning off. In both cases, open a window
to sufficiently ventilate the room.
8. Depress and hold gas knob while lighting the pilot with
the push button igniter. Keep knob fully depressed for
one minute, then release. If pilot does not continue to
burn repeat steps 3 through 7.
9. With pilot lit, turn gas knob counter-clockwise to
on. When the pilot has been turned off, ignition of the
main burner may be delayed from 1-2 minutes.
When the pilot has been left burning, ignition of the main
burner should occur almost immediatley.
10. If equipped with remote on-off switch, main burner may
not come on when you turn the valve to on. Remote switch
must be in the on position to ignite burner.
11. Turn on all electric power to the fireplace.
1. Turn off all electric power to the fireplace if service is to
be performed.
2. Push in gas control knob slightly and turn clockwise
to off. Do not force.
GAS KNOB AT OFF
OPERATION / MAINTENANCE
FOR YOUR SAFETY READ BEFORE LIGHTING:
WHAT TO DO IF YOU SMELL GAS:
LIGHTING INSTRUCTIONS
TO TURN OFF GAS
FIGURE 25
FIGURE 26
FIGURE 27

12
W415-0298 / K / 12.06.07
This procedure must be performed by a qualified
service person!
Inspect the pilot for any visible contamination or debris
(usually lint, pet hair, spider webs, carpet fibre, etc.) and
remove.
Disconnect the pilot from the pilot tubing line. Using a
7/16
”
wrench, remove the injector from the pilot housing. Blow out
the housing in the same direction as the gas flow.
Re-install the injector and the pilot tube, turn on the gas and
check for leaks.
If this does not improve the performance, replace the pilot
with an exact replacement. The device is tamper resistant
with no field serviceable parts.

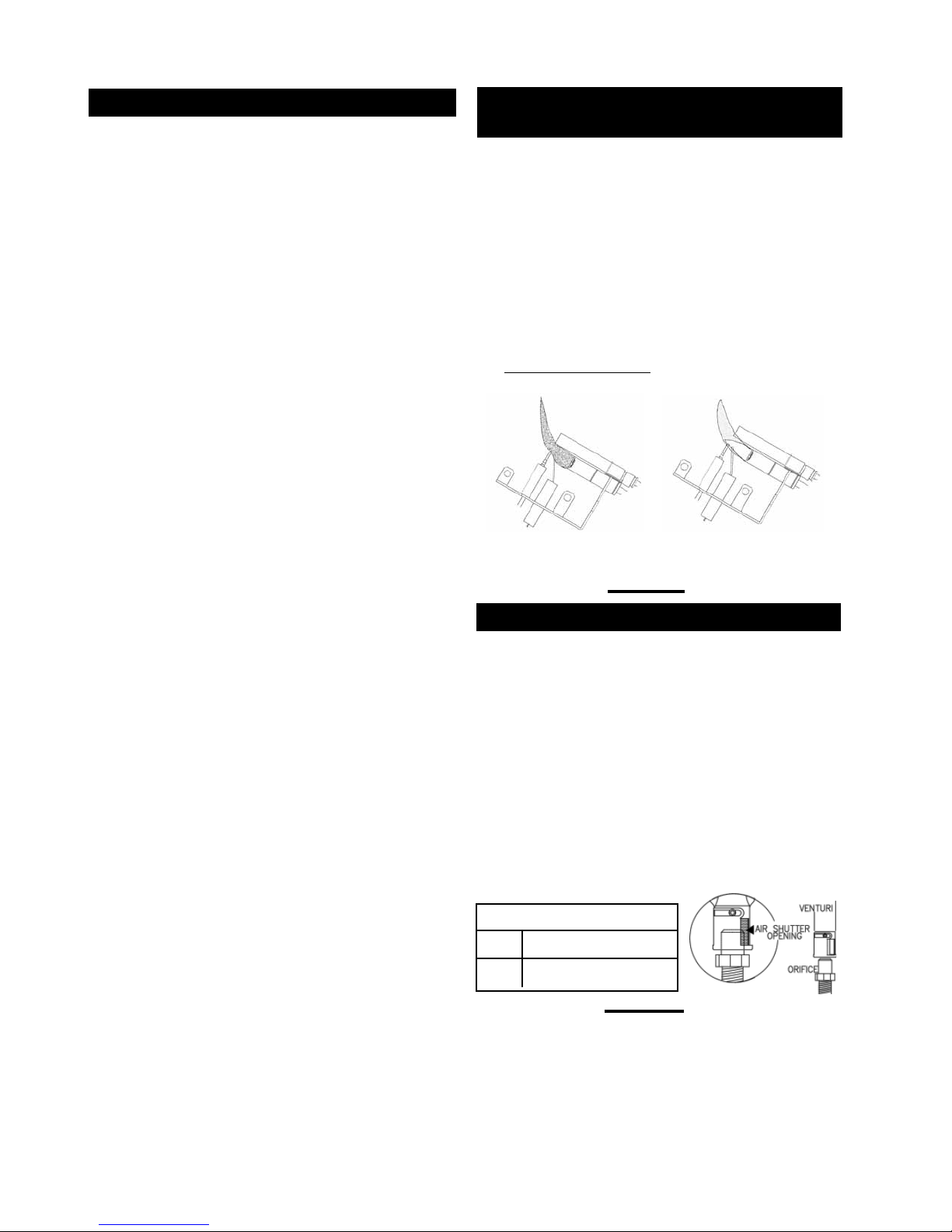

Air shutter adjustment must only be done by a quali-
fied gas installer!
Closing the air shutter will cause a more yellow flame, but
can lead to carboning.
WARNING: Carbon can be distributed in surrounding
living area if the air shutter is improperly adjusted.
Opening the air shutter will cause a more blue flame, but can
cause flame lifting from the burner ports. The flame may not
appear yellow immediately; allow 15 to 30 minutes for the
final flame colour to be established.
Opening the air shutter will also reduce exhaust odours
smelled within the room. See Trouble Shooting Guide.
CORRECT PILOT
FLAME
INCORRECT PILOT
FLAME
TURN OFF THE GAS AND ELECTRICAL POWER
BEFORE SERVICING THE FIREPLACE.
CAUTION: Label all wires prior to disconnection when servic-
ing controls. Wiring errors can cause improper and dangerous
operation. Verify proper operation after servicing. This heater
should be inspected and serviced before use and at least an-
nually by a qualified service person. The fireplace area must
be kept clear and free of combustible materials, gasoline or
other flammable vapours and liquids. The flow of combustion
and ventilation air must not be obstructed.
1. In order to properly clean the burner and oxygen deple-
tion sensor system, remove the logs to expose both as-
semblies.
2. Keep the control compartment, logs, burner, air shutter
opening and the area surrounding the logs clean by vacuum-
ing or brushing, at least once a year.
3. Check to see that all burner ports are burning. Clean out
any of the ports which may not be burning or are not burn-
ing properly.
4. Check to see that the pilot flame is large enough to engulf
the thermocouple and thermopile and promptly ignites the
main burner.
5. Replace the cleaned logs.
6. Check to see that the main burner ignites completely on
all openings when the gas knob for the burner is turned on. A
5 to 10 second total light-up period is satisfactory. If ignition
takes longer, consult your Continental® dealer / distributor. FIGURES 28
FIGURES 29
NG 3/16”
LP 1/2”
AIR SHUTTER OPENINGS
MAINTENANCE OXYGEN DEPLETION SENSOR PILOT
CLEANING
VENTURI ADJUSTMENT

13
W415-0298 / K / 12.06.07
Contact your dealer for questions concerning prices and
availability of replacement parts. Normally all parts can be
ordered through your Continental® dealer or distributor.
When ordering replacement parts always give the following
information:
1. MODEL & SERIAL NUMBER OF FIREPLACE
2. INSTALLATION DATE OF FIREPLACE
3. PART NUMBER
4. DESCRIPTION OF PART
5. FINISH
FOR WARRANTY REPLACEMENT PARTS, APHOTOCOPY OF
THE ORIGINAL INVOICE WILL BE REQUIRED TO HONOUR
THE CLAIM.
REPLACEMENTS
* IDENTIFIES ITEMS WHICH ARE NOT ILLUSTRATED. FOR FURTHER INFORMATION, CONTACT YOUR CONTINENTAL®

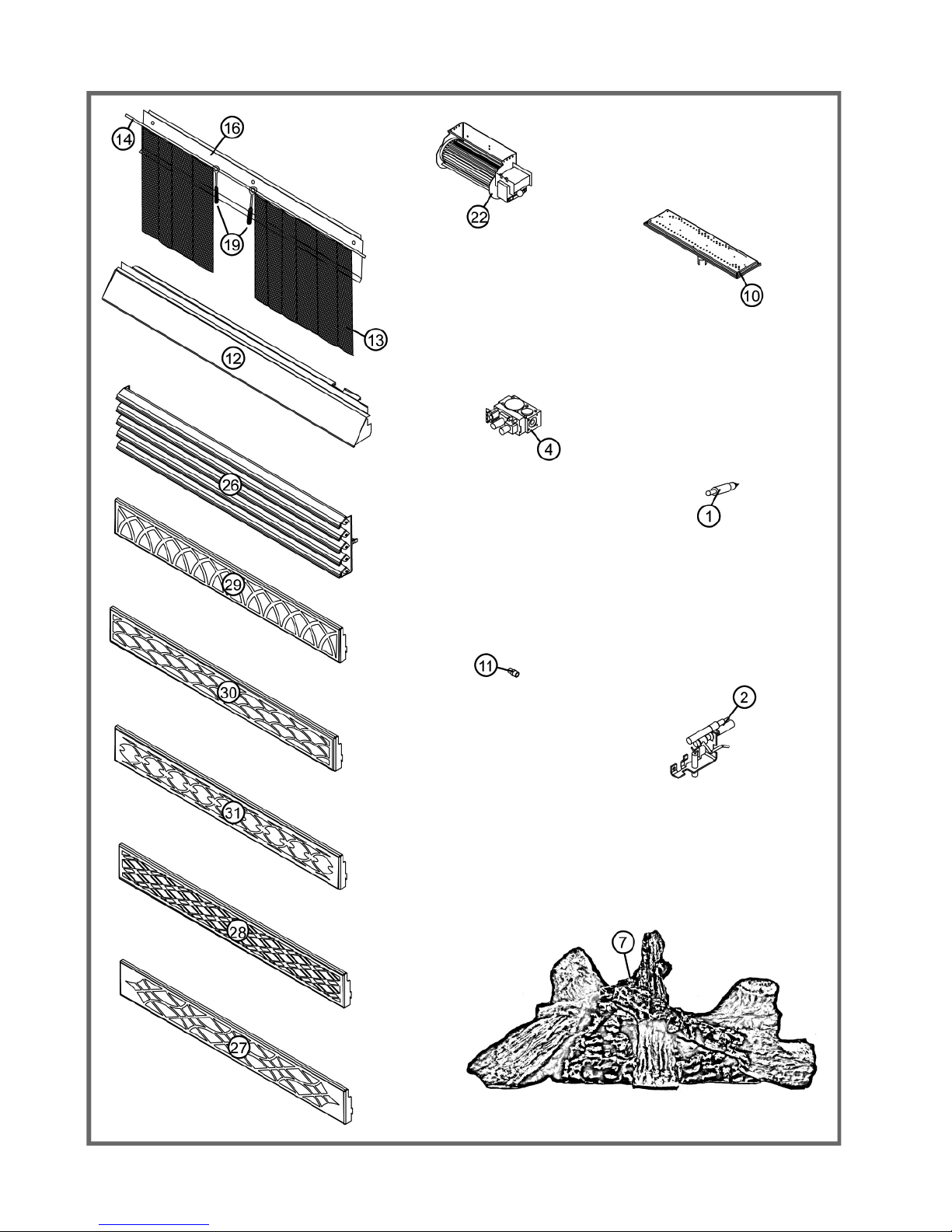

# PART NO. DESCRIPTION
1 W357-0001 PIEZO IGNITER
2 W662-0001 OXYGEN DEPLETION SENSOR SYSTEM - NG
2 W662-0002 OXYGEN DEPLETION SENSOR SYSTEM - LP
3* W680-0004 THERMOPILE
4 W725-0030 NATURAL GAS VALVE
4 W725-0031 PROPANE GAS VALVE
5* W385-0245 CONTINENTAL® LOGO
6* W750-0112 20FT OF WIRE
7 GL-664 ONE PIECE LOG SET (W135-0335)
8* W361-0016 GLOWING EMBERS
9* W550-0001 CHARCOAL EMBERS
10 W010-0764 PAN BURNER(NG)
10 W010-0987 PAN BURNER(LP)
11 W455-0026 #38 NATURAL GAS BURNER ORIFICE
11 W455-0059 #53 PROPANE GAS BURNER ORIFICE
12 W335-0050 HOOD
13 W565-0058 CURTAIN MESH
14 W555-0033 CURTAIN ROD
15* W080-0507 CURTAIN ROD BRACKET
16 W500-0184 CURTAIN SUPPORT PLATE
17 W630-0010 BLACK TASSELS
REPLACEMENT PARTS ACCESSORIES
# PART NO. DESCRIPTION
18* W690-0001 MILLIVOLT THERMOSTAT
19* W660-0011 REMOTE CONTROL - ADVANTAGE PLUS
20* W660-0013 MODULATING REMOTE
21* W500-0033 VARIABLE SPEED SWITCH WALL MOUNTING PLATE
22 GZ550-KT BLOWER KIT
23* GD65 FAN KIT
24* GD36 THERMOSTATIC SENSOR CONTROL KITUSE W/ GD65 ONLY
25* GD825-N MODULATING REGULATOR NG
25* GD825-P MODULATING REGULATOR LP
26 CDV4L LOUVRE OVERLAY
26 CDV4LSS LOUVRE OVERLAY - STAINLESS STEEL
27 HOIK-1 HERITAGE ORNAMENTAL INSETS - BLACK
27 HOIG-1 HERITAGE ORNAMENTAL INSETS - GOLD PLATED
27 HOIKG-1 HERITAGE ORNAMENTAL INSETS - BLACK GOLD PLATED
27 HOIBC-1 HERITAGE ORNAMENTAL INSETS - BRUSHED COPPER PLATED
27 HOIBG-1 HERITAGE ORNAMENTAL INSETS - BRUSHED GOLD PLATED
27 HOISS-1 HERITAGE ORNAMENTAL INSETS - BRUSHED STAINLESS STEEL
28 DOIG-1 DIAMOND ORNAMENTAL INSETS - GOLD PLATED
28 DOIKG-1 DIAMOND ORNAMENTAL INSETS- BLACK GOLD PLATED
28 DOIBC-1 DIAMOND ORNAMENTAL INSETS- BRUSHED COPPER PLATED
28 DOIBG-1 DIAMOND ORNAMENTAL INSETS- BRUSHED GOLD PLATED
28 DOISS-1 DIAMOND ORNAMENTAL INSETS - BRUSHED STAINLESS STEEL
29 GOIG-1 GOTHIC ORNAMENTAL INSETS - GOLD PLATED
29 GOIKG-1 GOTHIC ORNAMENTAL INSETS - BLACK GOLD PLATED
29 GOIBC-1 GOTHIC ORNAMENTAL INSETS - BRUSHED COPPER PLATED
29 GOIBG-1 GOTHIC ORNAMENTAL INSETS - BRUSHED GOLD PLATED
30 SOIG-1 SEASHELL ORNAMENTAL INSETS - GOLD PLATED
30 SOIKG-1 SEASHELL ORNAMENTAL INSETS - BLACK GOLD PLATED
30 SOIBC-1 SEASHELL ORNAMENTAL INSETS - BRUSHED COPPER PLATED
30 SOIBG-1 SEASHELL ORNAMENTAL INSETS - BRUSHED GOLD PLATED
31 EOIG-1 ECLIPSE ORNAMENTAL INSETS - GOLD PLATED
31 EOIKG-1 ECLIPSE ORNAMENTAL INSETS - BLACK GOLD PLATED
31 EOIBC-1 ECLIPSE ORNAMENTAL INSETS - BRUSHED COPPER PLATED
31 EOIBG-1 ECLIPSE ORNAMENTAL INSETS - BRUSHED GOLD PLATED

14
W415-0298 / K / 12.06.07

15
W415-0298 / K / 12.06.07
Main burner goes
out; pilot stays on.
Pilot flame is not large enough
or not engulfing the thermo-
pile
- service or replace Oxygen Depletion Sensor System
- correct piping and/or regulator to provide correct pressure
Thermopile shorting - clean thermopile connection to the valve. Reconnect.
- replace Oxygen Depletion Sensor System / valve.
Remote wall switch wire is too
long; too much resistance in
the system.
- shorten wire to correct length or wire gauge.
Faulty thermostat or switch. - replace.
Pilot burning; no
gas to main burner;
gas knob is on ‘HI’;
wall switch / ther-
mostat is on.
Themostat or switch is de-
fective.
- connect a jumper wire across the wall switch terminals; if main burner
lights, replace switch / thermostat.
Main burner orifice is - remove stoppage in orifice.
Faulty valve. - replace.
Wall switch wiring is defec-
tive.
- disconnect wires from valve. Connect a jumper wire across terminals
1 & 3; if the main burner lights, check the wires for defects and / or
replace wires.
Pilot goes out when
the gas knob is re-
leased.
The gas valve has
an interlock device
which will not al-
low the pilot burn-
er to be lit until
the thermocouple
has cooled. Allow
approximately 60
seconds for the
thermocouple to
cool.
System is not correctly
purged.
- purge the gas line. If a glass door has been installed, ensure that the
door is open or removed prior to purging.
Thermocouple shorting /
faulty.
- loosen and tighten thermocouple.
- clean thermocouple and valve connection.
- replace Oxygen Depletion Sensor System
- test and replace valve.
Faulty valve. - replace.
Out of propane gas. - fill the tank.
Pilot flame is not large enough.
(Supply pressure too low.)
- service or replace Oxygen Depletion Sensor System
ELECTRODE
PILOT
BURNER
THERMOCOUPLE THERMOPILE
Pilot will not light.
- check if pilot can be lit by a match
- check that the wire is connected to the push button ignitor.
- check if the push button ignitor needs tightening.
- replace the wire if the wire insulation is broken or frayed.
- replace the electrode if the ceramic insulator is cracked or broken.
- replace the push button ignitor.
No spark at pilot burner
- fill the tank.Out of propane gas
No gas at the pilot burner - check that the manual valve is turned on.
- check the pilot orifice for blockage.
- replace the valve / Oxygen Depletion Sensor System.
- call the gas distributor.
Main burner goes
out; pilot goes out.
Insufficient air supply - open window or door. (Use one of the methods described in ANSI
Z223.1 Section 5.3 or the applicable local code.)
Out of propane gas. - fill the tank.
Pilot flame is not large enough.
(Supply pressure too low.)
- service or replace Oxygen Depletion Sensor System
- correct piping and / or regulator to provide correct pressure.
TROUBLE SHOOTING GUIDE
SYMPTOM PROBLEM TEST SOLUTION
BEFORE ATTEMPTING TO TROUBLESHOOT, PURGE YOUR UNIT AND INITIALLY LIGHT THE PILOT AND THE MAIN BURNER WITH THE GLASS DOOR REMOVED.

16
W415-0298 / K / 12.06.07
Flames are consist-
ently too large or
too small. Carbon-
ing occurs.
- check pressure readings:
Inlet pressure can be checked by turning screw (A) counter-clockwise
2 or 3 turns and then placing pressure gauge tubing over the test point.
Check with burner operating on “HI”. Gauge should read 7” (minimum
4.5”) water column for natural gas or 13” (11” minimum) water column
for propane.
Outlet pressure can be checked the same as above using screw (B).
Check with burner operating on “HI”. Gauge should read 3.5” water
column for natural gas or 10” water column for propane.
AFTER TAKING PRESSURE READINGS, BE SURE TO TURN SCREWS
CLOCKWISE FIRMLY TO RESEAL. DO NOT OVERTORQUE.
Leak test with a soap and water solution.
Unit is over-fired or under-
fired.
Remote wall switch
is in “OFF” position;
main burner comes
on when gas knob
is turned to “ON”
position.
Wall switch is mounted up-
side down
- reverse.
Faulty valve. - replace.
- replace.
Remote wall switch is ground-
ing.
- check for ground (short); repair ground or replace wire.Remote wall switch wire is
grounding.
Carbon is being de-
posited on logs or
combustion cham-
ber surfaces.
Air shutter has become
blocked
- ensure air shutter opening is free of lint or other obstructions.
Flame is impinging on the
logs or combustion cham-
ber.
- check that the logs are correctly positioned.
- *open air shutter to increase the primary air. See air shutter open-
ings, page 13.
- check the input rate: check the manifold pressure and orifice size as
specified by the rating plate values.
Exhaust fumes
smelled in room,
headaches.
- increase fresh air supply. (Use one of the methods described in ANSI
Z223.1 Section 5.3 or the applicable local code.)
Not enough combustion air.
- increase fresh air supply. (Use one of the methods described in ANSI
Z223.1 Section 5.3 or the applicable local code.)
Not enough ventilation air.
Flame is impinging on the
logs or combustion cham-
ber.
- check that the logs are correctly positioned.
- open air shutter to increase the primary air. See air shutter open-
ings, page 13.
- check the input rate: check the manifold pressure and orifice size as
specified by the rating plate values.
Pilot goes out while
standing; Main
burner is in ‘OFF’
position.
Gas piping is undersized. - turn on all gas appliances and see if pilot flame flutters, diminishes or
extinguishes, especially when main burner ignites. Monitor appliance
supply working pressure.
- check if supply piping size is to code. Correct all undersized piping.
Main burner will not
light, or is slow to
light; noisy pilot.
Adjust inlet pressure to ensure maximum 7.0” W.C. at gas valve for
Natural gas and 13.0” W.C. for Propane.
Inlet pressure too high.
Pilot flame blowing off, miss-
ing thermopile.
SYMPTOM PROBLEM TEST SOLUTION
* Check for ceiling or oscillating fans that maybe influencing the flame.

17
W415-0298 / K / 12.06.07
Wolf Steel Fireplace Service History
This fireplace must be serviced annually depending on usage.
Date Service Technician
Name Service Performed Special ConcernsDealer Name

18
W415-0298 / K / 12.06.07
NOTES
