Continental Fireplaces CVF36P User manual

1
W415-0298 / N / 02.29.12
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
NEVER LEAVE CHILDREN OR OTHER AT RISK INDIVIDUALS ALONE WITH THE APPLIANCE.
INSTALLATION AND
OPERATING INSTRUCTIONS
1.29B
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada /
103 Miller Drive, Crittenden, Kentucky, USA, 41030
Phone [phone] • Fax [phone] • www.napoleonfireplaces.com • [email protected]
SAFETY INFORMATION
!WARNING
If the information in these instructions are
not followed exactly, a fire or explosion
may result causing property damage,
personal injury or loss of life.
- Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use
any phone in your building.
• Immediately call your gas supplier from a
neighbour’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call the
fire department.
- Installation and service must be performed by a
qualified installer, service agency or the supplier.
- This is an unvented gas-fired heater that
uses air (oxygen) from the room in which it is
installed. Provisions for adequate combustion
and ventilation air must be provided. Refer to
section “ COMBUSTION AND VENTILATION AIR
PROVISIONS”.
CERTIFIED FOR THE UNITED STATES USING ANSI METHODS.
$10.00
This appliance may be installed in an aftermarket,
permanently located, manufactured (mobile) home,
where not prohibited by local codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is not
convertible for use with other gases.
HOT GLASS WILL CAUSE
BURNS.
DO NOT TOUCH GLASS UNTIL
COOLED.
NEVER ALLOW CHILDREN TO
TOUCH GLASS.
!
WARNING
CVF36P
PROPANE
CVF36N
NATURAL GAS
UNVENTED MILLIVOLT SYSTEM
CERTIFIED UNDERAMERICAN NATIONAL STANDARDS, ANSI Z21.11.2, VOLUME II FOR UNVENTED ROOM HEATERS.

2
W415-0298 / N / 02.29.12
NOTE: Changes, other than editorial, are denoted by a vertical line in the margin
TABLE OF CONTENTS

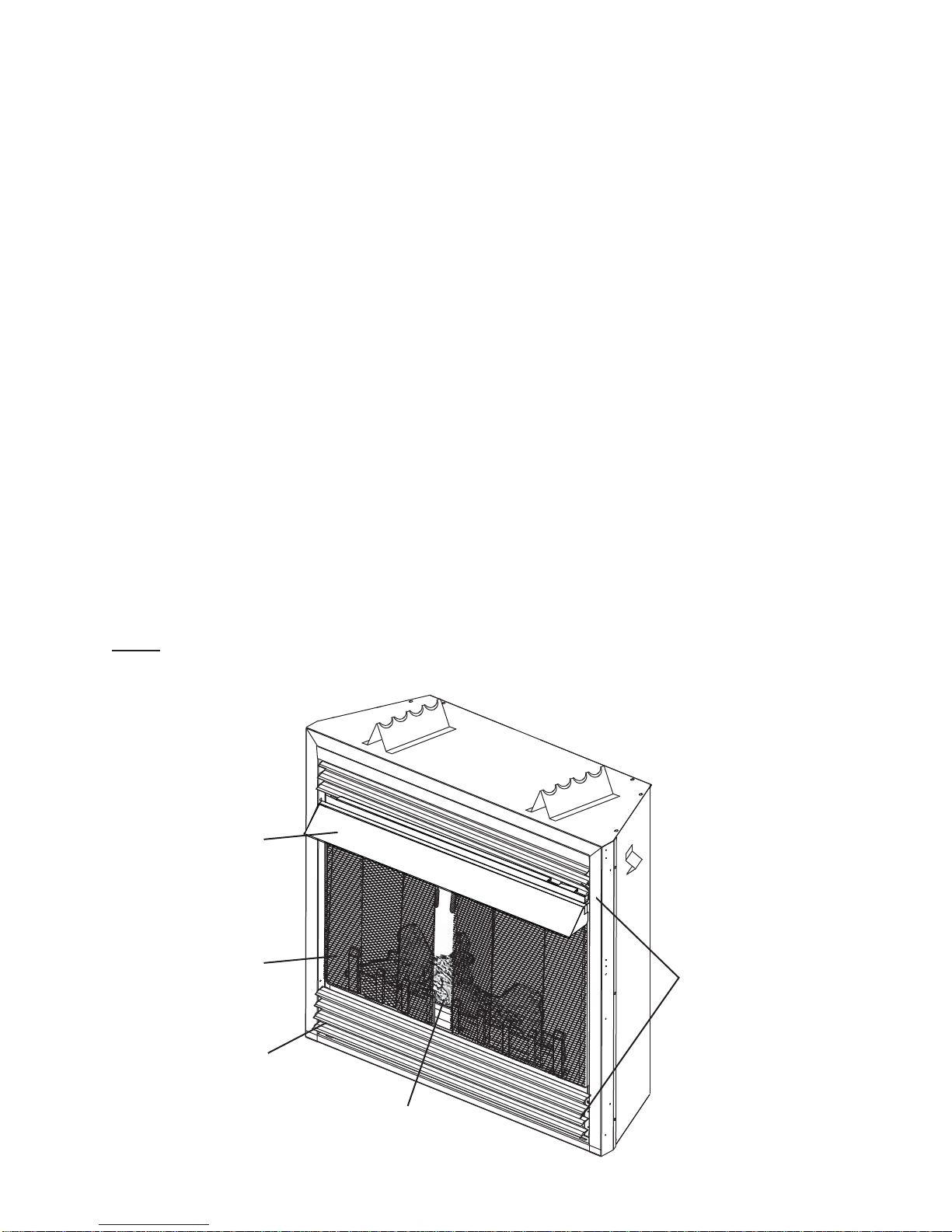

1.0 INSTALLATION OVERVIEW
Hood, see “HOOD”
section.
Louvres, see “L36
LOUVRE INSTALLATION”
section.
Curtain Mesh, see
“GRATE AND LOG
PLACEMENT” section.
Logs, see “GRATE AND LOG
PLACEMENT” section.
Rating Plate, see “RATING
PLATE INFORMATION”
section.
1.0 INSTALLATION OVERVIEW 2
2.0 INTRODUCTION 3
2.1 DIMENSIONS 4
2.2 GENERAL INSTRUCTIONS 4
2.3 GENERAL INFORMATION 5
2.4 RATING PLATE INFORMATION 6
3.0 INSTALLATION 6
3.1 COMBUSTION AND VENTILATION AIR PROVISIONS 6
3.2 DETERMINING CONFINED OR UNCONFINED SPACE 7
3.3 GAS INSTALLATION 8
3.4 OPTIONAL WALL SWITCH / THERMOSTAT 9
3.5 MOBILE HOME INSTALLATION 9

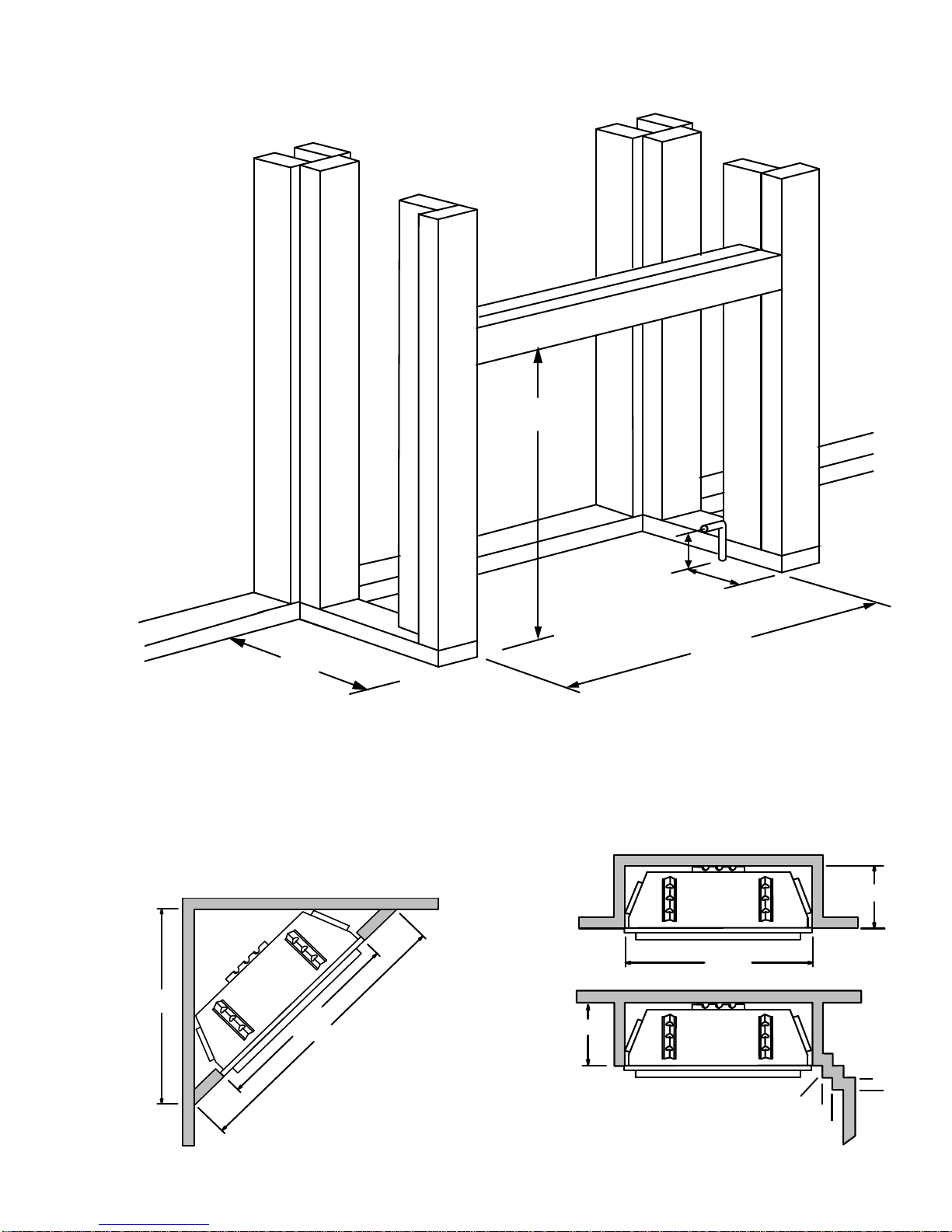

4.0 FRAMING 10
4.1 MINIMUM CLEARANCE TO COMBUSTIBLES 11
4.2 MINIMUM CLEARANCES TO COMBUSTIBLE ENCLOSURES 12

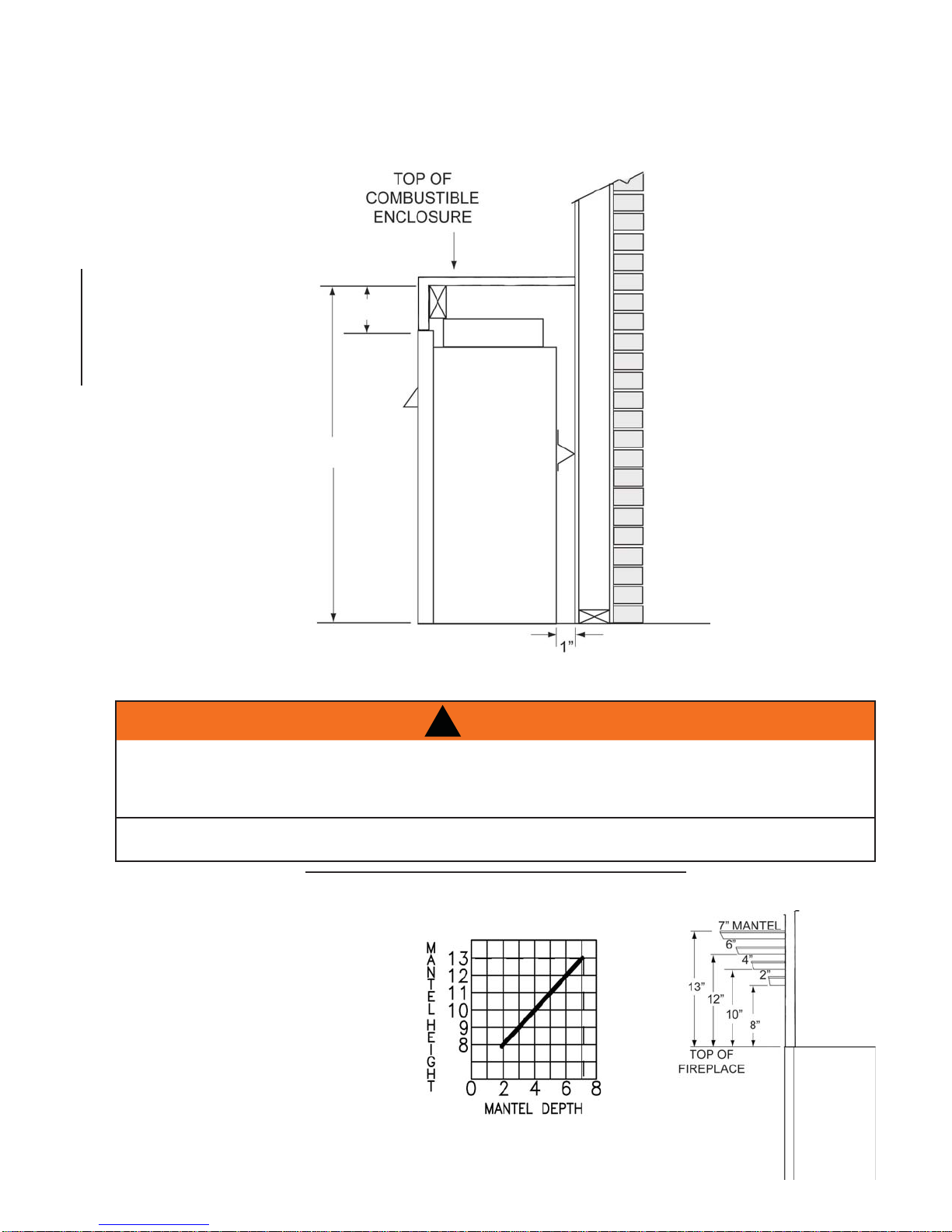

4.3 MINIMUM MANTEL CLEARANCES 12
4.4 NAILING TAB INSTALLATION 13
5.0 FINISHING 13
5.1 GRATE AND LOG PLACEMENT 13
5.2 CHARCOAL EMBERS 14
5.3 GLOWING EMBERS 14
5.4 HOOD 14
5.5 LOUVRE INSTALLATION 15
5.6 LOGO PLACEMENT 15

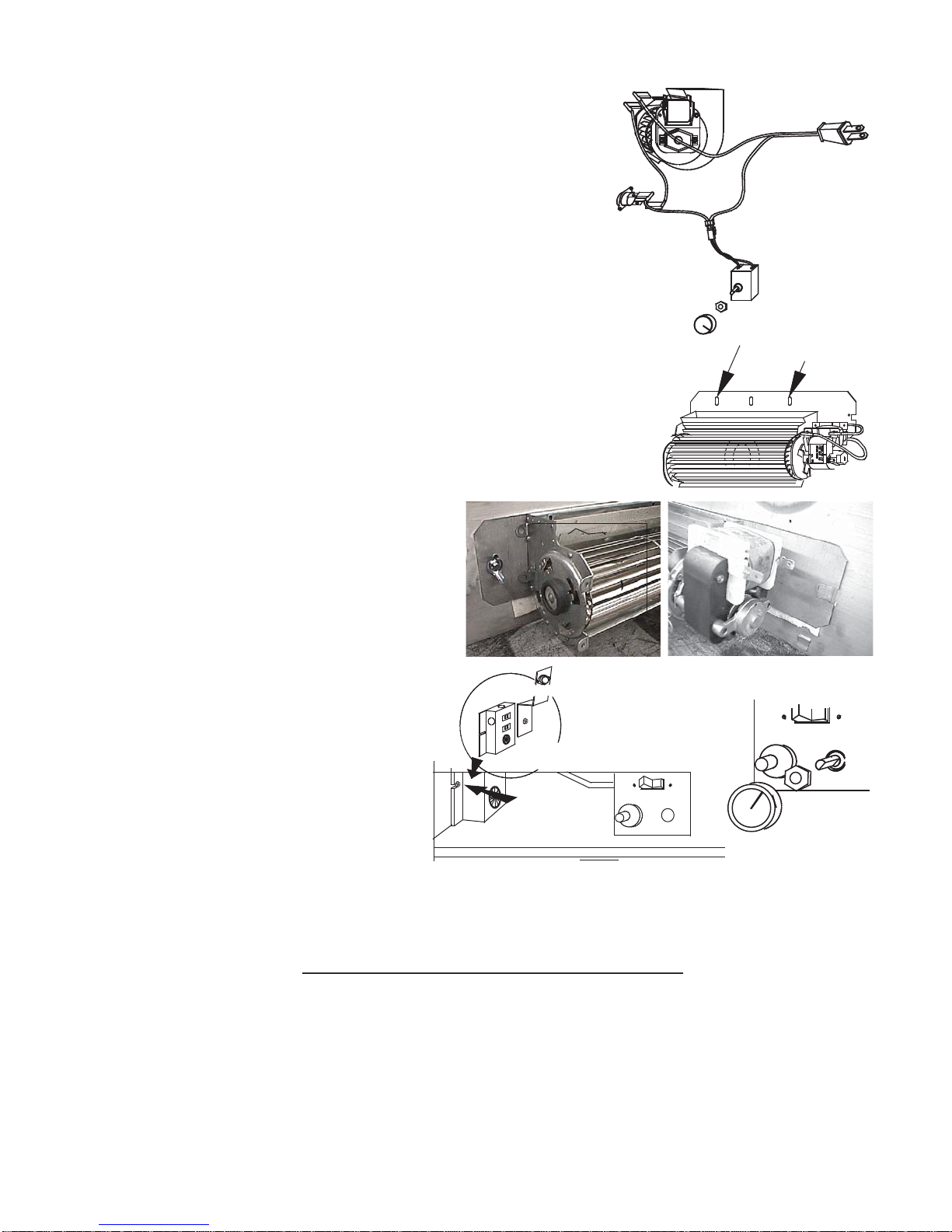

6.0 OPTIONAL BLOWER INSTALLATION 15
7.0 OPERATION 17
8.0 ADJUSTMENT 18
8.1 VENTURI ADJUSTMENT 18
8.2 FLAME CHARACTERISTICS 18
9.0 MAINTENANCE 19
9.1 OXYGEN DEPLETION SENSOR PILOT CLEANING 19
9.2 CARE OF PLATED PARTS 19
10.0 REPLACEMENTS 20
11.0 TROUBLESHOOTING GUIDE 22
12.0 WARRANTY 25
13.0 SERVICE HISTORY 26

3
W415-0298 / N / 02.29.12
2.0 INTRODUCTION
3.4B
!
WARNING
• THIS APPLIANCE IS HOT WHEN OPERATED AND CAN CAUSE SEVERE BURNS IF CONTACTED.
• ANY CHANGES TO THIS APPLIANCE OR ITS CONTROLS CAN BE DANGEROUS AND IS PROHIBITED.
• Under no circumstances should this appliance be modified.
• Do not operate appliance before reading and understanding operating instructions. Failure to operate
appliance according to operating instructions could cause fire or injury.
• Risk of burns. The appliance should be turned off and cooled before servicing.
• Do not install damaged, incomplete or substitute components.
• Risk of cuts and abrasions. Wear protective gloves and safety glasses during installation. Sheet metal edges
may be sharp.
• Provide adequate ventilation and combustion air. Provide adequate accessibility clearance for servicing and
operating the appliance. Never obstruct the front opening of the appliance.
• If the appliance shuts off, do not re-light until you provide fresh air. If appliance keeps shutting off, have it
serviced. Keep burner and control compartment clean.
• Do not burn wood or other materials in this appliance.
• Children and adults should be alerted to the hazards of high surface temperature and should stay away to
avoid burns or clothing ignition.
• Young children should be carefully supervised when they are in the same room as the appliance. Toddlers,
young children and others may be susceptible to accidental contact burns. A physical barrier is recommended
if there are at risk individuals in the house. To restrict access to an appliance, install an adjustable safety gate
to keep toddlers, young children and other at risk individuals out of the room and away from hot surfaces.
• Due to high temperatures, the appliance should be located out of traffic and away from furniture and
draperies.
• Ensure you have incorporated adequate safety measures to protect infants/toddlers from touching hot
surfaces.
• Clothing or other flammable material should not be placed on or near the appliance.
• Check with your local hearth specialty dealer for safety screens and hearth guards to protect children from
hot surfaces. These screens and guards must be fastened to the floor.
• Any safety screen or guard removed for servicing must be replaced prior to operating the appliance.
• It is imperative that the control compartments, burners and circulating blower and its passageway in the
appliance are kept clean. The appliance should be inspected before use and at least annually by a qualified
service person. More frequent cleaning may be required due to excessive lint from carpeting, bedding
material, etc. The appliance area must be kept clear and free from combustible materials, gasoline and other
flammable vapours and liquids.
• Furniture or other objects must be kept a minimum of 4 feet away from the front of the appliance.
• Do not use this appliance if any part has been under water. Immediately call a qualified service technician
to inspect the appliance and to replace any part of the control system and any gas control which has been
under water.
• Do not allow fans to blow directly into the appliance. Avoid any drafts that alter burner flame patterns.
• Do not use a blower insert, heat exchanger insert or other accessory not approved for use with this appliance.
• Carbon or soot should not occur in a vent free appliance as it can distribute into the living area of your home.
If you notice any signs of carbon or soot, immediately turn off your appliance and arrange to have it serviced
by a qualified technician before operating it again.
• Keep the packaging material out of reach of children and dispose of the material in a safe manner. As with all
plastic bags, these are not toys and should be kept away from children and infants.
• As with any combustion appliance, we recommend having your appliance regularly inspected and serviced as
well as having a Carbon Monoxide Detector installed in the same area to defend you and your family against
Carbon Monoxide.
• If equipped, the screen must be in place (closed) when the appliance is in operation.
• Ensure clearances to combustibles are maintained when building a mantel or shelves above the appliance.
Elevated temperatures on the wall or in the air above the appliance can cause melting, discolouration or
damage to decorations, a T.V. or other electronic components.

4
W415-0298 / N / 02.29.12
35 1/2"
33"
3"
51/2"GAS
INLET
ELECTRICAL INLET
LEFT SIDE
27"
13 1/4"
37 1/4"
12 1/4"
2.1 DIMENSIONS
This gas appliance should be installed and serviced by a qualified installer to conform with local codes.
Installation practices vary from region to region and it is important to know the specifics that apply to your
area, for example: in Massachusetts State:
• The appliance off valve must be a “T” handle gas cock.
• The flexible connector must not be longer than 36“.
• The appliance is not approved for installation in a bedroom or bathroom unless the appliance is a direct
vent sealed combustion product.
• Acarbon monoxide detector is required in all rooms containing gas fired appliances.
• WARNING: This product must be installed by a licensed plumber or gas fitter when installed within the
commonwealth of Massachusetts.
• Un-vented room appliance shall be installed in accordance with 527 CMR 30.00 and 248 CMR 3.00
through 7.00.
• Sellers of un-vented propane or natural gas-fired space / room appliances shall provide to each purchaser
a copy of 527 CMR 30.00 upon the sale of the appliance from http://www.napoleonfireplaces.com/
Webshare/installation_manuals/mass_requirements.pdf
In absence of local codes, install the appliance to the current National Fuel Gas Code, ANSI Z223.1
Installation Code which can be obtained from:
American National Standards Institute Inc. or National Fire Protection Association Inc.
1430 Broadway Batterymarch Park
New York, NY 10018 Quincy, MA 02269
!
WARNING
* CARBON MONOXIDE POISONING MAY LEAD TO DEATH
EARLY SIGNS OF CARBON MONOXIDE POISONING RESEMBLE THE FLU, WITH HEADACHE,
DIZZINESS AND/OR NAUSEA. IF YOU HAVE THESE SIGNS, THE HEATER MAY NOT BE WORKING
PROPERLY. GET FRESH AIR AT ONCE! HAVE HEATER SERVICED.
SOME PEOPLE---PREGNANT WOMEN, PERSONS WITH HEART OR LUNG DISEASE, ANEMIA,
THOSE UNDER THE INFLUENCE OF ALCOHOL, THOSE AT HIGH ALTITUDES--- ARE MORE
AFFECTED BY CARBON MONOXIDE THAN OTHERS.
THE APPLIANCE IS ONLY FOR USE WITH THE TYPE OF GAS INDICATED ON THE RATING PLATE.
THIS APPLIANCE IS NOT CONVERTIBLE FOR USE WITH OTHER GASES.
OBJECTS PLACED IN FRONT OF THE HEATER SHOULD BE KEPT A MINIMUM OF 48” AWAY FROM
THE FRONT FACE OF THE APPLIANCE.
USE ONLY WOLF STEEL APPROVED OPTIONAL ACCESSORIES AND REPLACEMENT PARTS WITH
THIS APPLIANCE. USING NON-LISTED ACCESSORIES AND REPLACEMENT PARTS (BLOWERS,
LOUVRES, TRIMS, GAS COMPONENTS, VENT COMPONENTS, ETC.) COULD RESULT IN A SAFETY
HAZARD AND WILL VOID THE LIMITED LIFETIME WARRANTY.
NOT DESIGNED FOR USE WITH A GLASS DOOR. SCREEN MUST BE CLOSED WHEN APPLIANCE IS
IN OPERATION.
THIS APPLIANCE MUST NOT BE INSTALLED IN A BEDROOM OR BATHROOM.
2.2 GENERAL INSTRUCTIONS

5
W415-0298 / N / 02.29.12
2.3 GENERAL INFORMATION
4.2C
The appliance and its individual shutoff valve must be disconnected from the gas supply piping system
during any pressure testing of that system at test pressures in excess of 1/2 psig (3.5 kPa). The appliance
must be isolated from the gas supply piping system by closing its individual manual shutoff valve during any
pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psig (3.5 kPa).
When installed with a blower the junction box must be electrically connected and grounded in accordance
with local codes. In the absence of local codes, use the current ANSI / NFPA 70 National Electric Code. In
the case where the blower is equipped with a power cord it must
be connected into a properly grounded receptacle. The grounding
prong must not be removed from the cord plug.
As long as the required clearance to combustibles is maintained,
the most desirable and beneficial location for the appliance is in
the center of a building, thereby allowing the most efficient use of
the heat created. The location of windows, doors and the traffic
flow in the room where the appliance is to be located should be
considered.
If the appliance is installed directly on carpeting, vinyl tile or other combustible material other than wood
flooring, the appliance shall be installed on a metal or wood panel extending the full width and depth. NOTE:
This does not apply to stoves.
* Air shortage caused by an inadequate air supply, improper log positions, the addition of foreign or
unapproved materials or the failure to properly maintain the appliance, may result in incomplete combustion of
the fuel. Incomplete combustion results in soot being deposited inside the firebox as well as surfaces outside
the appliance. If any soot deposits are observed, shut off the appliance immediately and arrange for it to be
serviced by a qualified technician.
We suggest that our gas
hearth products be installed
and serviced by professionals
who are certied in the U.S.
by the National Fireplace
Institute
® (NFI) as NFI Gas
Specialists
www.ncertied.org
CVF36
NG LP
Altitude (FT) 0-4,500 0-4,500
Max. Input (BTU/HR) 30,000 30,000
Min. Inlet Gas Supply Pressure 4.5" Water Column 11" Water Column
Max. Inlet Gas Supply Pressure 7" Water Column 13" Water Column
Manifold Pressure (Under Flow Conditions) 3.5" Water Column 10" Water Column
When the appliance is installed at elevations above 2,000ft, and in the absence of specific recommendations
from the local authority having jurisdiction, the certified high altitude input rating shall be reduced at the rate of
4% for each additional 1,000ft.
This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible
for use with other gases, unless a certified kit is used.
No external electricity (110 volts or 24 volts) is required for the gas system operation.
Expansion / contraction noises during heating up and cooling down cycles are normal and to be expected.
This appliance is equipped with a pilot light safety system referred to as an oxygen depletion sensor and is
designed to turn off the appliance if not enough fresh air is available.
Use only accessories designed for and listed with your specific appliance.
Ceiling fans or oscillating type floor fans can cause flame impingement if directing air at the appliance. Imping-
ing flames will cause soot or carbon that may enter into living area. Try reversing ceiling fan or re-directing floor
fans to prevent sooting.

6
W415-0298 / N / 02.29.12
2.4 RATING PLATE INFORMATION
CERTIFIEDUNDER:ANSIZ21.11.2a-2008 VOLUME II, UNVENTEDROOMHEATER
W385-0247 / G
SERIALNUMBER: GVF36
WOLFSTEELLTD.
24 NAPOLEON ROAD, BARRIE, ON, L4M 0G8 CANADA
THIS APPLIANCE MAY BE INSTALLED IN AN AFTERMARKET,
PERMANENTLYLOCATED, MANUFACTURED (MOBILE) HOME, WHERE
NOTPROHIBITEDBYLOCALCODES. THISAPPLIANCEISONLYFOR USE
WITH THE TYPE OF GAS INDICATED ON THE RATING PLATE. THIS
APPLIANCEIS NOT CONVERTIBLE FORUSE WITHOTHER GASES.
THIS ISA GAS-FIRED UNVENTED ROOM HEATER THAT REQUIRES
ADEQUATE COMBUSTION AND VENTILATION AIR. THIS UNIT IS NOT
APPROVEDFORBEDROOM,BATHROOMAND BED-SITTING ROOM
INSTALLATION.
GVF36N / CVF36N MODEL GVF36P / CVF36P
**0-2000FT (0-610m) ALTITUDE 0-2000FT (0-610m)**
30,000 BTU/h INPUT 30,000 BTU/h
20,000 BTU/h REDUCED INPUT 22,000 BTU/h
MANIFOLD PRESSURE: 3.5" WATER COLUMN MANIFOLD PRESSURE: 10" WATER COLUMN
MINIMUM SUPPLY PRESSURE: 4.5" WATER COLUMN MINIMUM SUPPLY PRESSURE: 11" WATER COLUMN
MAXIMUM SUPPLY PRESSURE: 7.0" WATER COLUMN MAXIMUM SUPPLY PRESSURE: 13" WATER COLUMN
SIT CONTROL: #820637 SIT CONTROL: #820636
OPERATING PILOT OXYPROTECTOR: #8214 OPERATING PILOT OXYPROTECTOR: #8404
** ABOVE 2,000FT, CONSULT LOCALAUTHORITY HAVING JURISDICTION
NOT FOR USE WITH SOLID FUEL.
WARNING: FIREPLACE SCREENS MUST BE CLOSED WHILE IN OPERATION. DO NOT ADD ANY MATERIAL TO THE APPLIANCE, WHICH
WILL COME IN CONTACT WITH THE FLAMES, OTHER THAN THAT SUPPLIED BY THE MANUFACTURER WITH THEAPPLIANCE. DONOT USE BLOWER INSERT, HEAT EXCHANGER
INSERT OR OTHER ACCESSORIES NOT APPROVED FOR USE WITH THIS HEATER. IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION, SERVICE OR MAINTAINANCE CAN
CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE. REFER TO THE OWNER'S INFORMATION MANUAL PROVIDED WITH THISAPPLIANCE. INSTALLATION AND
SERVICE MUST BE PERFORMED BYA QUALIFIED INSTALLER, SERVICE AGENCY OR THE GAS SUPPLIER.
MINIMUM CLEARANCE TO COMBUSTIBLE MATERIALS:
TOP / SIDES / BACK / FLOOR 0”
RECESSED DEPTH 13 1/2“
MANTEL 8”*
* MINIMUM CLEARANCE TO A COMBUSTIBLE MANTLE IS 12” WHEN USING A
CATALYTIC DOOR. MAXIMUM HORIZONTAL EXTENSION: 2". SEE INSTRUCTION
MANUAL FOR GREATER EXTENSIONS.
ELECTRICAL RATING: 115V 0.82AMP, 60HZ
OPTIONAL FAN KIT: GZ550-KT
9700539 (WSL) 4001657 (NGZ)
4001658 (NAC) 4001659 (WUSA)
For rating plate location, see “INSTALLATION OVERVIEW” section.
This illustration is for reference only. Refer to the rating plate on the appliance for accurate information.
The CVF36 is rated at 30,000 BTUs per hour and therefore requires a minimum unconfined space of 1,500
cubic feet.
17.1A
This appliance shall not be installed in a con
fi
ned space or unusually tight construction unless provisions are
provided for adequate combustion and ventilation air.
The National Fuel Gas Code, ANSI Z223.1 / NFPA 54 defines a confined space as a space whose volume is
less than 50 cubic feet per 1,000 Btu per hour (4.8 m3 per kw) of the aggregate input rating of all appliances
installed in that space and an unconfined space as a space whose volume is not less than 50 cubic feet per
1,000 Btu per hour (4.8 m3 per kw) of the aggregate input rating of all appliances installed in that space.
Rooms communicating directly with the space in which the appliances are installed, through openings not
furnished with doors are considered a part of the unconfined space.
S
S
EE
RR
NN, L4, L4M 0GM 0G88
S-S-FIREFIREDD
UNVUNV
COMBCOMBUSTIUSTIONON
ANAN
EE
DD
FOFO
RR
BB
RR
OOOO
MM
,,
BB
LL
AA
LL
TIOTIO
AA
NN
..
ELEL
GVFGVF36P36P
UDEUDE
0-200-2000FT00FT
NPUNPUTT
30,030,00000
UUCEDCED INPINP
2020
PL
PL
UU
MANIMANIFOLDFOLD
OLUOLUMNMN
MINIMINIMUMMUM
CCOLUMOLUMNN
MAXIMAXIMUMMUM SS
L:L:
#820#820637637
TT CONTCONTROLROL
OROR::
#821#82144
OPEROPERATINATINGG
0F0FT, CT, CONSUONSULT LLT LOCALOCALAUTAUTHORIHORITYTY
OOTT FOFORR USUSEE WIWITHTH SS
E CE CLOSLOSEDED WHIWHILL
HANHAN THATHAT SUT SUPPLIPPLIED BED BY THY THE MAE MANN
DDFORFOR USEUSE WITWITH THH THIS HIS HEATEEATER. IR. IMM
OOR LOR LOSS OSS OF LIF LIFE.FE. REFEREFER TOR TO THTH
INSINSTALLTALLER,ER, SERVSERVICEICE AGENAGENCYCY
S:S:
1313
11
//
22
““
8”*8”*
40014001657657 ((
40014001659659 (WU(WU
L
P
PL
“IN
3.0 INSTALLATION
3.1 COMBUSTION AND VENTILATION AIR PROVISIONS

7
W415-0298 / N / 02.29.12
19.1B
To determine the volume o
f
the room where the appliance is to be installed, multiply the width x the length x
the ceiling height of that room measured in feet. If any adjoining rooms are connected by grilles or openings
such as kitchen pass-throughs, etc., the volume of those rooms may be added to the total.
Multiply the room volume by 1000 and divide this amount by 50 to determine the maximum BTU/hr that the
space can support with adequate combustion and ventilation air.
A
dd the Btu/hr of all fuel burning appliances located within the space such as gas furnace, gas water
appliance, etc. Do not include direct vent gas appliances which draw their input and output air from and to the
outdoors.
Unusually tight construction is defined as construction where:
A) Walls and ceilings exposed to the outside atmosphere have a continuous water vapour retarder with a
rating of 1 perm (6 x 10-11 kg per pa-sec-m2) or less with openings gasketed or sealed, and
B) Weather stripping has been added on openable windows and doors, and
C) Caulking or sealants are applied to areas such as joints around window and door frames, between sole
plates and floors, between wall-ceiling joints, between wall panels, at penetrations for plumbing, electrical,
and gas lines, and at other openings.
A
n unvented room appliance is recommended for use as a secondary heat source rather than as a primary
source. Gas combustion produces water vapour which could occur at the rate of approximately one ounce of
water for every 1,000 BTU/hr of gas input. During the cold weather season, indoor humidity levels tend to be
low. Consequently, this water vapour can enhance the living space. However if a problem should occur:
A) Ensure sufficient combustion and circulation air
B) Use a dehumidifier
C) Do not use the unvented room appliance as a primary heat source
Without sufficient fresh air for proper operation, poor fuel combustion can result. Carbon Monoxide is a result
of poor combustion.
If additional fresh air is required, use one of the methods described in the National Fuel Gas Code, ANSI
Z223.1 / NFPA54 or the applicable local code.
Room Volume = Length x Width x Height
Max BTU/hr = Room Volume x 1000 / 50
LENGTH
HEIGHT
ROOM 2
ROOM 1
WIDTH
!
WARNING
IF THE AREA IN WHICH THEAPPLIANCE MAY BE OPERATED IS SMALLER THAN THAT DEFINED AS
AN UNCONFINED SPACE OR IF THE BUILDING IS OF UNUSUALLY TIGHT CONSTRUCTION, PROVIDE
ADEQUATE COMBUSTION AND VENTILATIONAIR BY ONE OF THE METHODS DESCRIBED IN THE
NATIONAL FUEL GAS CODE ANSI Z223.1/ NFPA 54 , AIR FOR COMBUSTIONAND VENTILATION, OR THE
APPLICABLE LOCAL CODE.
IF THE AREA IN WHICH THEAPPLIANCE MAY BE OPERATED DOES NOT MEET THE REQUIRED VOLUME
FOR INDOOR COMBUSTION AIR, COMBUSTION AND VENTILATION AIR SHALL BE PROVIDED BY ONE
OF THE METHODS DESCRIBED IN THE ANSI Z223.1 / NFPA 54, THE INTERNATIONAL FUEL GAS CODE,
OR APPLICABLE LOCAL CODES.
If for example:
The length of the rooms is 10 feet,
The width of Room 1 is 10 feet,
The width of Room 2 is 15 feet,
The height of the rooms is 8 feet.
The volume of Room 1: 10x10x8 = 800 cubic feet
The volume of Room 2: 10x15x8 = 1200 cubic feet
3.2 DETERMINING CONFINED OR UNCONFINED SPACE

8
W415-0298 / N / 02.29.12
19.2
EXAMPLE 1:
In this example, because there is no door to the adjoining room, the volume of the adjoining room may be
added to the volume of the room with the heater to get a total unconfined space.
The total unconfined space: 800 + 1200 = 2000 cubic feet.
Maximum BTU/h: 2000x1000 = 40,000 BTU/h
50
If there are no more fuel burning appliances within this space then the 30,000 BTU/h input of the appliance is
suitable to be installed. This also assumes that the construction of this space is not unusually tight.
19.3
EXAMPLE 2:
If in this example a solid door separates Room 1 from Room 2, the volume of Room 2 could not be used. In
this case the maximum BTU/h would be:
Maximum BTU/h: 800x1000 = 16,000 BTU/h
50
This would be considered a confined space since it can not support the 30,000 BTU/h input of the appliance
and it would be necessary to provide adequate combustion and ventilation air to Room 1.
3.3 GAS INSTALLATION
30.1A
Installation and servicing to be done by a qualified installer.
A. Move the appliance into position and secure.
B. If equipped with a flex connector the appliance is designed to accept a 1/2” gas supply. Without the
connector it is designed to accept a 3/8” gas supply. The appliance is equipped with a manual shut off
valve to turn off the gas supply to the appliance.
C. Connect the gas supply in accordance to local codes. In the absence of local codes, install to the
current CAN/CSA-B149.1 Installation Code in Canada or to the current National Fuel Gas Code, ANSI
Z223.1 / NFPA 54 in the United States.
D. When flexing any gas line, support the gas valve so that the lines are not bent or kinked.
E. The gas line flex-connector should be installed to provide sufficient movement for shifting the burner
assembly on it’s side to aid with servicing components.
F. Check for gas leaks by brushing on a soap and water solution. Do not use open flame.
!
WARNING
RISK OF FIRE, EXPLOSION OR ASPHYXIATION. ENSURE THERE ARE NO IGNITION SOURCES SUCH AS
SPARKS OR OPEN FLAMES.
SUPPORT GAS CONTROL WHEN ATTACHING GAS SUPPLY PIPE TO PREVENT DAMAGING GAS LINE.
ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RUN OUT
WITH THE GLASS DOOR OPENED OR REMOVED. PURGING OF THE GAS SUPPLY LINE SHOULD BE
PERFORMED BY A QUALIFIED SERVICE TECHNICIAN. ASSURE THAT A CONTINUOUS GAS FLOW IS AT
THE BURNER BEFORE CLOSING THE DOOR. ENSURE ADEQUATE VENTILATION. FOR GAS AND
ELECTRICAL LOCATIONS, SEE “DIMENSION” SECTION.
ALL GAS CONNECTIONS MUST BE CONTAINED WITHIN THE APPLIANCE WHEN COMPLETE.
HIGH PRESSURE WILL DAMAGE VALVE. DISCONNECT GAS SUPPLY PIPING BEFORE TESTING GAS
LINE AT TEST PRESSURES ABOVE 1/2 PSIG.
VALVE SETTINGS HAVE BEEN FACTORY SET, DO NOT CHANGE.

9
W415-0298 / N / 02.29.12

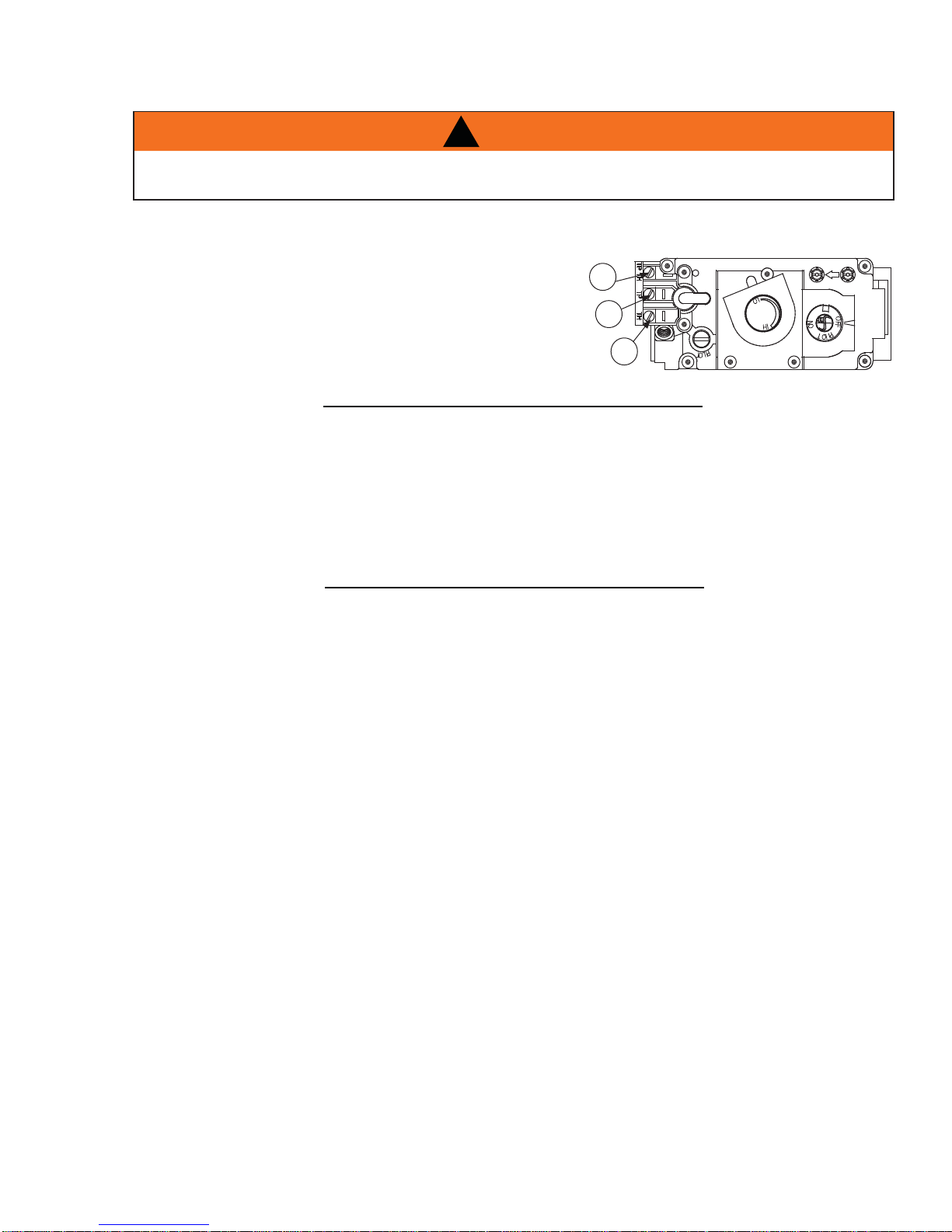

3.4 OPTIONAL WALL SWITCH / THERMOSTAT
For ease of accessibility, an optional remote wall switch or millivolt thermostat may be installed in a convenient
location. Route a 2 strand, solid core millivolt wire from the valve to the wall switch or millivolt thermostat. The
recommended maximum lead length depends on wire size:
WIRE SIZE MAX. LENGTH
14 gauge 100 feet
16 gauge 60 feet
18 gauge 40 feet
Disconnect the existing wires from terminals 1 and 3 (from the
ON/OFF switch) and replace with the leads from the wall switch / millivolt thermostat.
50.1
3
1
2
!
WARNING
DO NOT CONNECT EITHER THE WALL SWITCH, THERMOSTAT OR GAS VALVE DIRECTLY TO 110
VOLT ELECTRICITY.
29.2
S
uitable
f
or mobile home installation where the mobile home has been permanently placed on its site.
This appliance may be installed in an aftermarket permanently located, manufactured (mobile) home, where
not prohibited by local codes.
For mobile home installations, the appliance must be fastened in place. It is recommended that the appliance
be secured in all installations. See “REPLACEMENTS” section for the levelling / securing kit specific to your
appliance.
3.5 MOBILE HOME INSTALLATION

10
W415-0298 / N / 02.29.12
!
WARNING
RISK OF FIRE!
IN ORDER TO AVOID THE POSSIBILITY OF EXPOSED INSULATION OR VAPOUR BARRIER COMING
IN CONTACT WITH THE APPLIANCE BODY, IT IS RECOMMENDED THAT THE WALLS OF THE
APPLIANCE ENCLOSURE BE “FINISHED” (IE: DRYWALL / SHEETROCK), AS YOU WOULD FINISH
ANY OTHER OUTSIDE WALL OF A HOME. THIS WILL ENSURE THAT CLEARANCE TO
COMBUSTIBLES IS MAINTAINED WITHIN THE CAVITY.
DO NOT NOTCH THE FRAMING AROUND THE APPLIANCE STAND-OFFS. FAILURE TO MAINTAIN
AIR SPACE CLEARANCE MAY CAUSE OVER HEATING AND FIRE. PREVENT CONTACT WITH
SAGGING OR LOOSE INSULATION OR FRAMING AND OTHER COMBUSTIBLE MATERIALS. BLOCK
OPENING INTO THE CHASE TO PREVENT ENTRY OF BLOWN-IN INSULATION. MAKE SURE
INSULATION AND OTHER MATERIALS ARE SECURED.
WHEN CONSTRUCTING THE ENCLOSURE ALLOW FOR FINISHING MATERIAL THICKNESS TO
MAINTAIN CLEARANCES. FRAMING OR FINISHING MATERIAL CLOSER THAN THE MINIMUMS
LISTED MUST BE CONSTRUCTED ENTIRELY OF NON-COMBUSTIBLE MATERIALS. MATERIALS
CONSISTING ENTIRELY OF STEEL, IRON, BRICK, TILE, CONCRETE, SLATE, GLASS OR PLASTERS,
OR ANY COMBINATION THEREOF ARE SUITABLE. MATERIALS THAT ARE REPORTED AS PASSING
ASTM E 136, STANDARD TEST METHOD FOR BEHAVIOUR OF MATERIALS IN A VERTICAL TUBE
FURNACE AT 750°C AND UL763 SHALL BE CONSIDERED NON-COMBUSTIBLE MATERIALS.
MINIMUM CLEARANCE TO COMBUSTIBLES MUST BE MAINTAINED OR A SERIOUS FIRE HAZARD
COULD RESULT.
THE APPLIANCE REQUIRES A MINIMUM ENCLOSURE HEIGHT. MEASURE FROM THE APPLIANCE
BASE.
IF STEEL STUD FRAMING KITS WITH CEMENT BOARD ARE PROVIDED, THEY MUST BE
INSTALLED. 71.1
4.0 FRAMING
Combustible materials may be installed flush with the front of the appliance but must not cover any of the black
face-areas of the appliance. Non-combustible material (brick, stone or ceramic tile) may protrude in these
areas.
It is not necessary to install a hearth extension with this appliance system.
When roughing in the appliance, raise the appliance to accommodate for the thickness of the finished floor ma-
terials i.e. tile, carpeting, hard wood, which if not planned for will interfere with the opening of the lower access
door and the installation of many decorative flashing accessories.

11
W415-0298 / N / 02.29.12
It is best to frame your appliance after it is positioned. Use 2x4s and frame to local building codes.
5 1/2”
13 1/2”
3”
37 3/4”
35 3/4”
13
1
/ 2 "
37
7
/ 8 "
OUTSIDE
CHASE
13
1
/ 2 "
INSIDE
CHASE
2"
4"
4"6"
2"
PROTRUSION SIDE
WALL
37
3
/
4
"
52"
36 3/4"
Combustible protrusions such as mantels and shelves may occur at or after a minimum distance of 2” away
from the side of the appliance. Thereafter, the depth of any protrusions must be of equal to or less than the
distance from the side of the appliance up to a depth of 6”, after which no greater clearance than 6” is required.
This can be considered a side wall with no length boundary.
Minimum clearance to combustible construction from appliance:
sides, back, bottom and top of the unit 0 inch
recessed depth 13 1/2 inches
4.1 MINIMUM CLEARANCE TO COMBUSTIBLES

12
W415-0298 / N / 02.29.12
4.2 MINIMUM CLEARANCES TO COMBUSTIBLE ENCLOSURES
Combustible mantel clearance can vary
according to the mantel depth. Use the
graph to help evaluate the clearance
needed.
The appliance requires a minimum enclosure height of 39”. For temperature requirements, the enclosure space
around and above the appliance must be left unobstructed.
4.3 MINIMUM MANTEL CLEARANCES
!
WARNING
RISK OF FIRE, MAINTAIN ALL SPECIFIED AIR SPACE CLEARANCES TO COMBUSTIBLES. FAILURE
TO COMPLY WITH THESE INSTRUCTIONS MAY CAUSE A FIRE OR CAUSE THE APPLIANCE TO
OVERHEAT. ENSURE ALL CLEARANCES (I.E. BACK, SIDE, TOP, VENT, MANTEL, FRONT, ETC.) ARE
CLEARLY MAINTAINED.
WHEN USING PAINT OR LACQUER TO FINISH THE MANTEL, THE PAINT OR LACQUER MUST BE
HEAT RESISTANT TO PREVENT DISCOLOURATION. 73.1
6”
39”

13
W415-0298 / N / 02.29.12
4.4 NAILING TAB INSTALLATION
To install the appliance face flush with the finished wall, position the framework to
accommodate the thickness of the finished wall. Bend out the four nailing tabs,
attached on either side of the appliance and secure to the 2x4 framing. The tabs
will facilitate the installation of either a 3/4” or a 1” finished wall thickness. The
nailing tabs must not be removed.
nailing
tab
!
WARNING
RISK OF FIRE!
NEVER OBSTRUCT THE FRONT OPENING OF THE APPLIANCE.
THE FRONT OF THE APPLIANCE MUST BE FINISHED WITH ANY NON-COMBUSTIBLE MATERIALS
SUCH AS BRICK, MARBLE, GRANITE, ETC., PROVIDED THAT THESE MATERIALS DO NOT GO
BELOW THE SPECIFIED DIMENSION AS ILLUSTRATED. AS AN ALTERNATIVE, YOU CAN FINISH THE
APPLIANCE WITH DRYWALL, SEE ILLUSTRATIONS TO FOLLOW.
FACING AND/OR FINISHING MATERIAL MUST NEVER OVERHANG INTO THE APPLIANCE OPENING.
72.2
A. Remove curtain mesh and rod assembly
B. Remove log carton
C. Remove grate from the lower control area (stored there when shipped)
D. Unscrew the 3 screws in the firebox, set grate in place and secure using the 3 screws that were just
removed.
E. Install the one piece log set by aligning the two holes on the bottom of the logs, with the two locating
pins in the firebox. Reinstall rod assembly and mesh curtain.
NOTE: PHAZERTM logs and glowing embers exclusive to Continental Fireplaces, provide a unique and
realistic glowing effect that is different in every installation. Take the time to carefully position the
glowing embers for a maximum glowing effect.
!
WARNING
LOGS MUST BE PLACED IN THEIR EXACT LOCATION IN THE APPLIANCE. DO NOT MODIFY THE
PROPER LOG POSITIONS, SINCE APPLIANCE MAY NOT FUNCTION PROPERLY. DELAYED IGNITION
AND CARBON / SOOT DISTRIBUTION THROUGHOUT THE LIVING AREA MAY OCCUR.
THE LOGS ARE FRAGILE AND SHOULD BE HANDLED WITH CARE.
DO NOT PLACE CHARCOAL EMBERS, VERMICULITE OR CHARCOAL LUMPS ON THIS BURNER.
ALL PREVIOUSLY APPLIED LOOSE MATERIAL (GLOWING EMBERS) MUST BE REMOVED PRIOR TO
REAPPLICATION.
DO NOT CHANGE OR SUBSTITUTE THE GLOWING EMBER MATERIAL PROVIDED WITH THE
APPLIANCE. IF REPLACING, USE ONLY REPLACEMENT GLOWING EMBERS AVAILABLE FROM
YOUR LOCAL AUTHORIZED DEALER / DISTRIBUTOR.
FAILURE TO FOLLOW THESE INSTRUCTIONS WILL ADVERSELY EFFECT THE APPLIANCE’S
PERFORMANCE AND MAY RESULT IN CARBON / SOOT DEPOSITS INSIDE THE APPLIANCE AND ON
SURROUNDING SURFACES. 76.2B
5.0 FINISHING
5.1 GRATE AND LOG PLACEMENT

14
W415-0298 / N / 02.29.12
5.2 CHARCOAL EMBERS
32.1
Randomly place the charcoal embers along the
f
ront and sides o
f
the log support tray in a realistic manner.
Fine dust found in the bottom of the bag should not be used.
NOTE: Charcoal embers are not to be placed on the burner.
Replacement loose media must be purchased from
the original manufacturer. Application of
excess loose media may adversely affect the
performance of the appliance.
Log colours may vary. During the initial use of the
appliance, the colours will become more uniform as
colour pigments burn in during the heat activated curing
process.
5.3 GLOWING EMBERS
Tear the embers into pieces and place along the front row of ports covering all of the burner area in front of
the small logs. Care should be taken to shred the embers into thin, small irregular pieces as only the exposed
edges of the fibre hairs will glow.
NOTE: The ember material will only glow when exposed to direct flame; however, care should be taken
to not block the burner ports.
Blocked burner ports can cause an incorrect flame pattern, carbon deposits and delayed ignition. PHAZERTM
logs glow when exposed to direct flame. Use only certified “glowing embers” and PHAZERTM logs available
from your Continental dealer.
HOOD
CURTAIN
MESH
!
WARNING
APPLIANCE SCREENS MUST BE CLOSED WHILE THE APPLIANCE IS IN OPERATION.
THE APPLIANCE MUST NOT BE USED WHEN THE HOOD IS REMOVED.
Hook the hood over the lip of the curtain support plate.
5.4 HOOD

15
W415-0298 / N / 02.29.12
!
WARNING
RISK OF FIRE AND ELECTRICAL SHOCK.
TURN OFF THE GAS AND ELECTRICAL POWER BEFORE SERVICING THIS APPLIANCE.
USE ONLY WOLF STEEL APPROVED OPTIONAL ACCESSORIES AND REPLACEMENT PARTS WITH
THIS APPLIANCE. USING NON-LISTED ACCESSORIES (BLOWERS, DOORS, LOUVRES, TRIMS, GAS
COMPONENTS, VENTING COMPONENTS, ETC.) COULD RESULT IN A SAFETY HAZARD AND WILL
VOID THE WARRANTY AND CERTIFICATION.
ENSURE THAT THE FAN’S POWER CORD IS NOT IN CONTACT WITH ANY SURFACE OF THE
APPLIANCE TO PREVENT ELECTRICAL SHOCK OR FIRE DAMAGE. DO NOT RUN THE POWER
CORD BENEATH THE APPLIANCE.
THE WIRE HARNESS PROVIDED IN THE BLOWER KIT IS A UNIVERSAL HARNESS. WHEN
INSTALLED, ENSURE THAT ANY EXCESS WIRE IS CONTAINED, PREVENTING IT FROM MAKING
CONTACT WITH MOVING OR HOT OBJECTS.
51.5
Remove the backing of the logo supplied and place on the screen cover, as
indicated.
A
B
C
SLOT
ABC
CLIPS
CENTRE SLOT
TAB
SLOT
HINGE CLIP
57.3
UPPER LOUVRES
Insert the louvre tabs
into the slots located
at the top left and right
corners of the unit.
LOWER LOUVRES
Insert the hinge clips
into the slots located at
the bottom left and right
corners of the unit. To
remove the louvres, pull
the back tabs of the clips
forward, while pushing
the louvre assembly
back. Lift the clip.
HOOD
Attach the hood by
pressing the top flange
into the clips along the
top of the louvre open-
ing. Secure using a
screw through the centre
slot.
5.5 LOUVRE INSTALLATION
5.6 LOGO PLACEMENT
6.0 OPTIONAL BLOWER INSTALLATION

16
W415-0298 / N / 02.29.12
INSTALLATION TO BE DONE BY A QUALIFIED INSTALLER and must
be electrically connected and grounded in accordance with local codes.
In the absence of local codes, use the current CSA C22.1 Canadian
electrical code in Canada or the ANSI / NFPA 70 National Electrical Code
in the United States.
If the appliance was not previously equipped with a blower:
Route a grounded 2-wire, 60hz power cable to the receptacle /
junction box. At this point, it must be strain relieved and insulated.
The three slots on the blower mounting bracket allow ease of adjustment when
attaching the blower. For a quiet running blower, do not allow the assembly to
sit on the firebox base. Slide the vibration reducing pad (A) into the clip (C) and
up against the threaded stud (B) at the other end. The blower must be able to
be positioned entirely onto the pad.
To ease installation of the blower, remove the hinge screen and valve control door
(lower louvres) from the base of the appliance.
Tilt the blower onto its side. Slide it past the controls and into the clip (C).
Secure to the threaded stud using the lock washer and wing nut provided.
Ensure that the blower does not touch the appliance base or the firebox.
Attach the connectors from the black and white
wires to the thermal switch and secure the
thermal switch bracket to the bottom left of the unit
using the screws provided. Ensure that the
thermal switch touches the firebox wall.
Attach the connectors from the black and red
wires to the blower.
Attach and secure the variable speed switch
using the nut provided. Plug the harness cord
into the receptacle.The wire harness provided
in this kit is a universal harness. When installed,
ensure that any excess wire is contained,
preventing it from making contact with
moving or hot objects.
Because the blower is thermally activated,
when turned on, it will automatically start
approximately 10 minutes after lighting the appliance and will run for approximately 30-45 minutes after the
appliance has been turned off. Use of the fan increases the output of heat. Drywall dust will penetrate into the
blower bearings, causing irreparable damage. Care must be taken to prevent drywall dust from coming into
contact with the blower or its compartment. Any damage resulting from this condition is not covered by the
warranty policy.
black
white
red
VARIABLE
SPEED
SWITCH
BLOWER
THERMAL
SWITCH
SLOTS
ELONGATED
VARIABLE
SPEED
KNOB
A
B
C
51.1
RECEPTACLE /
THERMAL SWITCH
GROUND
SCREW
JUNCTION BOX

17
W415-0298 / N / 02.29.12
7.0 OPERATION
FOR YOUR SAFETY READ BEFORE LIGHTING:
Ɣ This appliance is equipped with a pilot which must be lit by hand while following these instructions exactly.
Ɣ Before operating smell all around the appliance area for gas and next to the floor because some gas is heavier than air and will settle on the floor.
ƔUse only your hand to push in and turn the gas control knob. Never use tools. If the knob will not push in and turn by hand, do not try
to repair it. Call a qualified service technician. Force or attempted repair may result in a fire or explosion.
Ɣ Do not use this appliance if any part has been under water. Immediately call a qualified service technician to inspect the appliance
and replace any part of the control system and any gas control which has been under water.
ƔDo not try to light any appliance.
ƔDo not touch any electric switch; do not use any phone in your building.
ƔImmediately call your gas supplier from a neighbour’s phone. Follow the gas supplier’s instructions.
ƔIf you cannot reach your gas supplier, call the fire department.
When lighting and re-lighting, the gas knob cannot be turned from pilot to off unless the knob is depressed.
$ STOP! Read the above safety information on this label.
% Set the thermostat to lowest setting.
& Turn off all electric power to the appliance.
' Open the control door. Turn the gas knob clockwise to off.
( Wait five (5) minutes to clear out any gas. If you smell gas including near the floor, STOP! Follow “B” in the above safety information
on this label. If you don’t smell gas go to the next step.
) Find pilot located in front of the back log.
G. Turn gas knob counter-clockwise to pilot.
H. Depress and hold gas knob while lighting the pilot with the push button ignitor. Keep knob fully depressed for one minute, then
release. If pilot does not continue to burn repeat steps 3 through 7.
, With pilot lit, turn gas knob counter-clockwise to on. When the pilot has been turned off,
ignition of the main burner may be delayed from 1-2 minutes. When the pilot has been left
burning, ignition of the main burner should occur almost immediatley.
- If equipped with remote on-off switch, main burner may not come on when you turn the valve to on. Remote switch must be in
the on position to ignite burner.
K. Turn on all electric power to the appliance.
A. Turn off all electric power to the appliance if service is to be performed.
%Push in gas control knob slightly and turn clockwise to off. Do not force.
WHAT TO DO IF YOU SMELL GAS:
LIGHTING INSTRUCTIONS:
TO TURN OFF GAS
,IDSSOLDQFHVKXWVRIIGRQRWUHOLJKWXQWLO\RXSURYLGHIUHVKDLU,IDSSOLDQFHNHHSVVKXWWLQJRIIKDYHLWVHUYLFHG.HHSEXUQHU
DQGFRQWUROFRPSDUWPHQWFOHDQ
When lit for the first time, the appliance will emit a slight odour for a few hours. This is a normal temporary condition caused by the curing
of the logs and the “burn-in” of internal paints and lubricants used in the manufacturing process and will not occur again. After extended
periods of non-operation such as following a vacation or a warm weather season, the appliance may emit a slight odour for a few hours.
This is caused by dust particles burning off. In both cases, open a window to sufficiently ventilate the room.
47.1
,)<28'2127)2//2:7+(6(,16758&7,216(;$&7/<$),5(25(;3/26,210$<5(68/7
&$86,1*3523(57<'$0$*(3(5621$/,1-85<25/2662)/,)(
,)$33/,&$%/($/:$<6/,*+77+(3,/27:+(7+(5)257+(),5677,0(25,)7+(*$66833/<+$6
581287:,7+7+(*/$66'22523(1('255(029('
!
WARNING

18
W415-0298 / N / 02.29.12
This appliance has an air shutter that has been factory set open according
to the chart below:
Regardless of venturi orientation, closing the air shutter will cause a more
yellow flame, but can lead to carboning. Opening the air shutter will cause a
more blue flame, but can cause flame lifting from the burner ports. The
flame may not appear yellow immediately; allow 15 to 30 minutes for the
final flame colour to be established.
AIR SHUTTER ADJUSTMENT MUST ONLY BE DONE BY A QUALIFIED
INSTALLER!
AIR
SHUTTER
OPENING
VENTURI
BURNER
ORIFICE
49.1
AIR SHUTTER OPENINGS
NG 3/16”
LP 1/2”
8.0 ADJUSTMENT
CARBON CAN BE DISTRIBUTED IN SURROUNDING LIVING AREA IF THE AIR SHUTTER IS
IMPROPERLY ADJUSTED.
!
WARNING
49.5
It’s important to periodically perform a visual check of the pilot and burner flames. Compare them to the illustra-
tions provided. If any flames appear abnormal call a service person.
54.5
8.1 VENTURI ADJUSTMENT
8.2 FLAME CHARACTERISTICS

19
W415-0298 / N / 02.29.12
This procedure must be performed by a
qualified service person!
Inspect the pilot for any visible
contamination or debris (usually lint, pet
hair, spider webs, carpet fibre, etc.) and remove.
Disconnect the pilot from the pilot tubing line,
using a 7/16” wrench. Blow out the housing in
the same direction as the gas flow. Re-install
the pilot tube, turn on the gas and check
for leaks.
If this does not improve the performance,
replace the ODS with an exact replacement. The
device is tamper resistant with no field serviceable
parts.
CORRECT PILOT FLAME
(Clean, stable, pronounced
blue flame).
INCORRECT PILOT FLAME
(Flame lifts upwards,
becomes unstable with more
of an orange tip).
46.1
6.1
If the appliance is equipped with plated parts, you must clean fingerprints or other marks from the plated
surfaces before operating the appliance for the first time. Use a glass cleaner or vinegar and towel to clean.
If not cleaned properly before operating for the first time, the marks can cause permanent blemishes on
the plating. After the plating is cured, the fingerprints and oils will not affect the finish and little maintenance
is required, just wipe clean as needed. Prolonged high temperature burning with the door ajar may cause
discolouration on plated parts.
NOTE: The protective wrap on plated parts is best removed when the assembly is at room
temperature but this can be improved if the assembly is warmed, using a hair dryer or similar heat
source.
9.0 MAINTENANCE
CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper
and dangerous operation. Verify proper operation after servicing. This appliance and its venting system
should be inspected before use and at least annually by a qualified service person. The appliance area must
be kept clear and free of combustible materials, gasoline or other flammable vapors and liquids. The flow of
combustion and ventilation air must not be obstructed.
1. In order to properly clean the burner and pilot assembly, remove the logs, rocks and/or glass to
expose both assemblies.
2. Keep the control compartment, media, burner, air shutter opening and the area surrounding the logs
clean by vacuuming or brushing, at least once a year.
3. Check to see that all burner ports are burning. Clean out any of the ports which may not be burning or
are not burning properly.
4. Check to see that the pilot flame is large enough to engulf the flame sensor and/or thermocouple /
thermopile as well as reaches the burner.
5. Replace the cleaned logs, rocks or glass. Failure to properly position the media may cause carboning
which can be distributed in the surrounding living area.
6. Check to see that the main burner ignites completely on all openings when turned on. A 5 to 10
second total light-up period is satisfactory. If ignition takes longer, consult your local authorized dealer /
distributor. 40.16
MAINTENANCE
MAINTENANCE
MAINTENANCE
TURN OFF THE GAS AND ELECTRICAL POWER BEFORE SERVICING THE APPLIANCE.
APPLIANCE MAY BE HOT, DO NOT SERVICE UNTIL APPLIANCE HAS COOLED.
DO NOT USE ABRASIVE CLEANERS.
!
WARNING
9.1 OXYGEN DEPLETION SENSOR PILOT CLEANING
9.2 CARE OF PLATED PARTS

20
W415-0298 / N / 02.29.12
10.0 REPLACEMENTS
Contact your dealer or the factory for questions concerning prices and policies on replacement parts. Normally
all parts can be ordered through your Authorized dealer / distributor.
FOR WARRANTY REPLACEMENT PARTS, A PHOTOCOPY OF THE ORIGINAL INVOICE WILL BE
REQUIRED TO HONOUR THE CLAIM.
When ordering replacement parts always give the following information:
• Model & Serial Number of appliance
• Installation date of appliance
• Part number
• Description of part
• Finish
* IDENTIFIES ITEMS WHICH ARE NOT ILLUSTRATED. FOR
FURTHER INFORMATION, CONTACT YOUR AUTHORIZED DEALER. 41.1
FAILURE TO POSITION THE PARTS
IN ACCORDANCE WITH THIS
MANUAL OR FAILURE TO USE ONLY
PARTS SPECIFICALLY APPROVED
WITH THIS APPLIANCE MAY
RESULT IN PROPERTY DAMAGE OR
PERSONAL INJURY.
!
WARNING
COMPONENTS
REF PART NO. DESCRIPTION
1 W357-0001 PIEZO IGNITER
2 W662-0001 OXYGEN DEPLETION SENSOR SYSTEM - NG
2 W662-0005 OXYGEN DEPLETION SENSOR SYSTEM - LP
3* W680-0004 THERMOPILE
4 W725-0030 NATURAL GAS VALVE
4 W725-0031 PROPANE GAS VALVE
5* W385-0430 CONTINENTAL LOGO
6* W750-0112 20FT OF WIRE
7 GL-664 ONE PIECE LOG SET (W135-0335)
8* W361-0016 GLOWING EMBERS
9* W550-0001 CHARCOAL EMBERS
10 W010-0764 PAN BURNER (NG)
10 W010-0987 PAN BURNER (LP)
11 W456-0039 #39 NATURAL GAS BURNER ORIFICE
11 W456-0053 #53 PROPANE GAS BURNER ORIFICE
12 W335-0050 HOOD
13 W565-0058 CURTAIN MESH
14 W555-0033 CURTAIN ROD
15* W080-0742 CURTAIN ROD BRACKET
16 W500-0194 PLATE COVER
17 W630-0010 BLACK TASSELS
18 L36K LOUVRE KIT, BLACK
ACCESSORIES
REF PART NO. DESCRIPTION
19* W660-0081 SWITCH, THERMOSTAT
20* F40 ON/OFF REMOTE
20* F50 THERMOSTATIC REMOTE
20* F50DR DESIGNER THERMOSTATIC REMOTE - RED
20* F50DY DESIGNER THERMOSTATIC REMOTE - GREY
20* F50DK DESIGNER THERMOSTATIC REMOTE - BLACK
21* W660-0013 MODULATING REMOTE
22* GD825N MODULATING REGULATOR NG
22* GD825P MODULATING REGULATOR LP
23* W660-0026 PROGRAMMABLE TIMER, BATTERY OPERATED
24 GZ550-1KT BLOWER KIT
25* W500-0033 VARIABLE SPEED SWITCH WALL MOUNTING PLATE
26* 111KT OUTSIDE AIR KIT
27* 112KT ADAPTOR PLATE FOR OUTSIDE AIR KIT
