Continental Fireplaces CEFL32FH User manual

W415-1730 / B / 07.28.17
FRENCH PG. 29
ADD MANUAL TITLE
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada / 103 Miller Drive, Crittenden, Kentucky, USA, 41030
Phone [phone] • Fax [phone] • www.continentalfireplaces.com • ask@continentalfire.com
CERTIFIED TO THE CANADIAN AND AMERICAN NATIONAL STANDARDS:
CSA 2.22 NO. 46 / UL 1278
INSTALLER:
Leave this manual with the appliance
CONSUMER:
Retain this manual for future reference
PRODUCT NAME™
ADD PRODUCT CODE
(IF MULTIPLE, _____ ILLUSTRATED)
MULTIPLE PRODUCT CODES (LEAVE BLANK IF N/A)
ADD PRODUCT IMAGE
CSA /
INTERTEK
LOGO
SAFETY INFORMATION
- Do not store or use gasoline or other
flammable vapors and liquids in the vicinity of
this or any other appliance.
FIRE OR EXPLOSION HAZARD
If the information in these instructions are
not followed exactly, a fire or explosion may
result causing property damage, personal
injury, or loss of life.
WARNING
!
ENGLISH
$10.00
FOR INDOOR USE ONLY
INSTALLATION AND
OPERATION MANUAL
WALLMOUNT ELECTRIC FIREPLACE
(CEFL50FH ILLUSTRATED)
CEFL32FH / CEFL42FH / CEFL50FH / CEFL60FH / CEFL72FH / CEFL100FH
TITLE: LABEL, BATTERY WARNING PART #: W385-2221
REVISION: DATE:06.06.17_X.L.
MAX SIZE: 9" X 3"
MATERIAL: CLASS IIIA-2 PERMANENT LEXAN ADHESIVE LABEL, MINIMUM THICKNESS 0.1MM
LETTERING: BLACK LETTERING ON WHITE BACKGROUND. FONT SIZE TO BE MIN. 8 POINT ARIAL (2mm),
BOLD FACE AND UPPER CASE.
TEMPERATURE RATING MINIMUM 79°C (175°F) RATING
WARNING! AVERTISSEMENT!
WARNING - KEEP BATTERIES OUT OF REACH OF CHILDREN
- SWALLOWING MAY LEAD TO SERIOUS INJURY IN AS LITTLE AS 2 HOURS
OR DEATH, DUE TO CHEMICAL BURNS AND POTENTIAL PERFORATION OF
THE OESOPHAGUS.
- IF YOU SUSPECT YOUR CHILD HAS SWALLOWED OR INSERTED A
BUTTON BATTERY, IMMEDIATELY SEEK URGENT MEDICAL ASSISTANCE.
- EXAMINE DEVICES AND MAKE SURE THE BATTERY COMPARTMENT IS
CORRECTLY SECURED, E.G. THAT THE SCREW OR OTHER MECHANICAL
FASTENER IS TIGHTENED. DO NOT USE IF COMPARTMENT IS NOT
SECURE.
- DISPOSE OF USED BUTTON BATTERIES IMMEDIATELY AND SAFELY. FLAT
BATTERIES CAN STILL BE DANGEROUS.
- TELL OTHERS ABOUT THE RISK ASSOCIATED WITH BUTTON BATTERIES
AND HOW TO KEEP THEIR CHILDREN SAFE.
AVERTISSEMENT - GARDER LES BATTERIES DE LA PORTÉE DES
ENFANTS
- L'INGESTION PEUT ENTRAÎNER DES BLESSURES GRAVES DANS MOINS DE 2
HEURES OU LA MORT, EN RAISON DES BRÛLURES CHIMIQUES ET DE LA PERFO-
RATION POTENTIELLE DE L'ŒSOPHAGE.
- SI VOUS PENSEZ QUE VOTRE ENFANT A AVALÉ OU INSÉRÉ UNE BATTERIE
BOUTON, CONSULTEZ IMMÉDIATEMENT UNE ASSISTANCE MÉDICALE URGENTE.
- EXAMINEZ LES APPAREILS ET ASSUREZ-VOUS QUE LE COMPARTIMENT DE LA
BATTERIE EST BIEN FIXÉ, PAR EX. QUE LA VIS OU AUTRE ATTACHE MÉCANIQUE
EST SERRÉE. NE PAS UTILISER SI LE COMPARTIMENT N'EST PAS SÉCURISÉ.
- ÉLIMINER LES PILES BOUTON UTILISÉES IMMÉDIATEMENT ET EN TOUTE
SÉCURITÉ. LES PILES PLATES PEUVENT ENCORE ÊTRE DANGEREUSES.
- RENSEIGNEZ-VOUS SUR LE RISQUE ASSOCIÉ AUX BATTERIES À BOUTON ET LA
FAÇON DE GARDER LEURS ENFANTS EN SÉCURITÉ.
W385-2221
This appliance has a remote that requires button
batteries that are hazardous to young children

W415-1730 / B / 07.28.17
EN
2
safety information
• If equipped with a heater, this appliance can be hot when operated and can cause severe
burns if contacted.
• Do not operate appliance before reading and understanding operating instructions. Failure to operate
appliance according to operating instructions could cause fire or injury.
• Do not install damaged, incomplete or substitute components.
• Do not burn wood or other materials in this appliance.
• All electric appliances have hot and arcing or sparking parts inside. Do not use it in areas where a gas
line, paint or flammable liquids are present.
• Any safety screen or guard removed for servicing must be replaced prior to operating the appliance.
• It is imperative that the control compartments, circulating blower and its passageway in the appliance
are kept clean. The appliance should be inspected before use and at least annually by a qualified service
person. More frequent cleaning may be required due to excessive lint from carpeting, bedding material,
etc. The appliance area must be kept clear and free from combustible materials, gasoline and other
flammable vapors and liquids.
• Under no circumstances should this appliance be modified.
• Do not use this appliance if any part has been under water. Immediately call a qualified service technician to
inspect the appliance and to replace any part of the control system which has been under water.
• If equipped with a glass door, do not operate the appliance with the glass door removed, cracked or
broken. Replacement of the glass should be done by a licensed or qualified service person.
• If equipped with a glass door, do not strike or slam shut the appliance glass door.
• Keep the packaging material out of reach of children and dispose of the material in a safe manner. As
with all plastic bags, these are not toys and should be kept away from children and infants.
• Servicing should be done only while the appliance is disconnected from the power supply circuit.
• Always unplug appliance when not in use.
• Do not operate this appliance with a damaged cord or plug after the appliance malfunctions, has been
dropped or damaged in any manner. Return appliance to authorized service facility for examination,
electrical or mechanical adjustment, or repair.
• Do not use outdoors.
• Never locate appliance where it may fall into a bathtub or other water container.
• Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or the like. Arrange cord
away from traffic area and where it will not be tripped over.
• Connect to properly grounded outlets only.
• Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an
electric shock or fire, or damage the appliance.
3.2B
• To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on soft surfaces, like
a carpet, where openings may become blocked.
• Always plug appliances directly into a wall outlet/receptacle. Never use an extension cord or relocatable
power tap (outlet/power strip).
• These appliances are tested and listed for use only with the optional accessories listed in these instructions.
Use of optional accessories not specifically tested for this appliance could void the warranty and/or result in
a safety hazard.
For appliances equipped with a heater:
• Risk of burns. Power to the appliance should be turned off and the appliance allowed to cool before
servicing. To disconnect power to the appliance, turn controls to off, then remove plug from outlet.
• Young children should be carefully supervised when they are in the same room as the appliance.
Toddlers, young children and others may be susceptible to accidental contact burns. A physical barrier is
recommended if there are at risk individuals in the house. To restrict access to an appliance or stove, install
an adjustable safety gate to keep toddlers, young children and other at risk individuals out of the room and
away from hot surfaces.
• Clothing or other flammable material should not be placed on or near the appliance.
• Due to high temperatures, the appliance should be located out of traffic and away from furniture and draperies.
• Ensure you have incorporated adequate safety measure to protect infants/toddlers from touching hot surfaces.
• Even after the appliance is off, the glass and/or screen will remain hot for an extended period of time.
• Check with your local hearth specialty dealer for safety screens and hearth guards to protect children from
hot surfaces. These screens and guards must be fastened to the floor.
• Ensure clearances to combustibles are maintained when building a mantel or shelves above the appliance.
Elevated temperatures on the wall or in the air above the appliance can cause melting, discolouration or
damage to decorations, a T.V. or other electronic components.
!
WARNING
!
WARNING

EN
W415-1730 / B / 07.28.17 3
safety information
• If equipped with a heater, this appliance can be hot when operated and can cause severe
burns if contacted.
• Do not operate appliance before reading and understanding operating instructions. Failure to operate
appliance according to operating instructions could cause fire or injury.
• Do not install damaged, incomplete or substitute components.
• Do not burn wood or other materials in this appliance.
• All electric appliances have hot and arcing or sparking parts inside. Do not use it in areas where a gas
line, paint or flammable liquids are present.
• Any safety screen or guard removed for servicing must be replaced prior to operating the appliance.
• It is imperative that the control compartments, circulating blower and its passageway in the appliance
are kept clean. The appliance should be inspected before use and at least annually by a qualified service
person. More frequent cleaning may be required due to excessive lint from carpeting, bedding material,
etc. The appliance area must be kept clear and free from combustible materials, gasoline and other
flammable vapors and liquids.
• Under no circumstances should this appliance be modified.
• Do not use this appliance if any part has been under water. Immediately call a qualified service technician to
inspect the appliance and to replace any part of the control system which has been under water.
• If equipped with a glass door, do not operate the appliance with the glass door removed, cracked or
broken. Replacement of the glass should be done by a licensed or qualified service person.
• If equipped with a glass door, do not strike or slam shut the appliance glass door.
• Keep the packaging material out of reach of children and dispose of the material in a safe manner. As
with all plastic bags, these are not toys and should be kept away from children and infants.
• Servicing should be done only while the appliance is disconnected from the power supply circuit.
• Always unplug appliance when not in use.
• Do not operate this appliance with a damaged cord or plug after the appliance malfunctions, has been
dropped or damaged in any manner. Return appliance to authorized service facility for examination,
electrical or mechanical adjustment, or repair.
• Do not use outdoors.
• Never locate appliance where it may fall into a bathtub or other water container.
• Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or the like. Arrange cord
away from traffic area and where it will not be tripped over.
• Connect to properly grounded outlets only.
• Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an
electric shock or fire, or damage the appliance.
3.2B
• To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on soft surfaces, like
a carpet, where openings may become blocked.
• Always plug appliances directly into a wall outlet/receptacle. Never use an extension cord or relocatable
power tap (outlet/power strip).
• These appliances are tested and listed for use only with the optional accessories listed in these instructions.
Use of optional accessories not specifically tested for this appliance could void the warranty and/or result in
a safety hazard.
For appliances equipped with a heater:
• Risk of burns. Power to the appliance should be turned off and the appliance allowed to cool before
servicing. To disconnect power to the appliance, turn controls to off, then remove plug from outlet.
• Young children should be carefully supervised when they are in the same room as the appliance.
Toddlers, young children and others may be susceptible to accidental contact burns. A physical barrier is
recommended if there are at risk individuals in the house. To restrict access to an appliance or stove, install
an adjustable safety gate to keep toddlers, young children and other at risk individuals out of the room and
away from hot surfaces.
• Clothing or other flammable material should not be placed on or near the appliance.
• Due to high temperatures, the appliance should be located out of traffic and away from furniture and draperies.
• Ensure you have incorporated adequate safety measure to protect infants/toddlers from touching hot surfaces.
• Even after the appliance is off, the glass and/or screen will remain hot for an extended period of time.
• Check with your local hearth specialty dealer for safety screens and hearth guards to protect children from
hot surfaces. These screens and guards must be fastened to the floor.
• Ensure clearances to combustibles are maintained when building a mantel or shelves above the appliance.
Elevated temperatures on the wall or in the air above the appliance can cause melting, discolouration or
damage to decorations, a T.V. or other electronic components.
!
WARNING
!
WARNING

W415-1730 / B / 07.28.17
EN
4
table of contents
1.0 general information 5
1.1 dimensions 5
1.2 product information 5
1.3 general instructions 6
1.4 unpacking and testing appliance 6
1.5 hardware parts list 7
1.6 rating plate information 8
1.7 locating appliance 8
2.1 minimum clearance to combustibles 9
2.0 installation 9
2.2 minimum mantel clearances 10
2.3 framing 11
2.4 installing the appliance 12
2.5 recessing the appliance into the wall 13
2.6 installing the appliance into a mantel 14
2.7 rubber feet installation 15
2.8 hard wiring installation 16
3.1 front glass installation 17
3.0 finishing 17
3.2 front glass removal 18
3.3 crystal ember installation 18
4.1 main power button 19
4.2 operating touch display panel and remote control 19
4.0 operating instructions 19
5.0 maintenance 20
5.1 remote battery installation 20
6.0 wiring diagram 21
7.0 replacement parts 23
8.0 troubleshooting 25
9.0 warranty 26
10.0 service warranty 27
The camera icon indicates video tutorials are available as additional reference, visit
http://mynapoleon.napoleonproducts.com/download/index/44/1
Changes, other than editorial, are denoted by a vertical line in the margin
note:

EN
W415-1730 / B / 07.28.17 5
model designation
This appliance must be electrically wired and grounded in accordance with local codes or, in the
absence of local codes, with National Electric Code ANSI/NFA 70-latest adition in the United
States or the Canadian Electric Code, CSA C22.1 in Canada.
note:
1.0 general information
1.1 dimensions
1.2 product information
This appliance has been tested in accordance with the CSA Standards for fixed and location-dedicated
electric room appliances in the United States and Canada. If you need assistance during installation, please
contact your local dealer.
Description Electric Fireplace
Type 3 Way Mounting Unit
Wall-Mount, Recess into Wall and
Assemble with mantel
Voltage 120V AC
Watts MAX 1500W
Amps 15 AMP Grounded Circuit
Net Weight Gross Weight
CEFL32FH 34.6 lbs (15.7kg) 50.3 lbs (22.8kg)
CEFL42FH 44.3 lbs (20.1kg) 60.2 lbs (27.3kg)
CEFL50FH 50.9 lbs (23.1kg) 77.4 lbs (35.1kg)
CEFL60FH 61.3 lbs (27.8kg) 88.1 (40kg)
CEFL72FH 81.8 lbs (37.1kg) 117.3 (53.2kg)
CEFL100FH 111.3 lbs (50.5kg) 159.4 (72.3kg)
A
B
G
F
E
D
C
FRONT VIEW SIDE VIEW
TOP VIEW
A B C D E F G
CEFL32FH 32"
(813mm)
21 5/8"
(550mm)
4 15/16"
(125mm)
20 1/2"
(520mm)
27 5/16"
(695mm)
12"
(304mm)
22 9/16"
(573mm)
CEFL42FH 42"
(1067mm)
21 5/8"
(550mm)
4 15/16”
(125mm)
20 1/2"
(520mm)
37 1/2"
(951mm)
12"
(304mm)
32 9/16"
(827mm)
CEFL50FH 50"
(1270mm)
21 5/8"
(550mm)
4 15/16”
(125mm)
20 1/2"
(520mm)
45 7/16"
(1154mm)
12"
(304mm)
40 9/16"
(1030mm)
CEFL60FH 60"
(1524mm)
21 5/8"
(550mm)
4 15/16”
(125mm)
20 1/2"
(520mm)
55 5/16"
(1405mm)
12"
(304mm)
50 1/2"
(1284mm)
CEFL72FH 72"
(1830mm)
21 5/8"
(550mm)
4 15/16”
(125mm)
20 1/2"
(520mm)
67 3/8"
(1711mm)
12"
(304mm)
62 9/16"
(1590mm)
CEFL100FH 100"
(2540mm)
21 5/8"
(550mm)
4 15/16”
(125mm)
20 1/2"
(520mm)
95 3/8"
(2422mm)
12"
(304mm)
90 9/16"
(2300mm)

W415-1730 / B / 07.28.17
EN
6
general information
4.6
• Prior to plugging your appliance into an electrical outlet, verify that the house circuit breakers for the outlet
are on.
• The appliance may emit a slight, harmless odour when first used. This odour is normal and it is caused by
the initial heating of internal appliance elements and will not occur again.
• If your appliance does not emit heat, consult the “operation” section of this manual for further information.
• Use with a CSA or UL certified surge protector.
• Do not route the power cord directly underneath the appliance.
This electric applaince meets the construction and safety standards of H.U.D. for application in manufactured
homes when installed according to these instructions.
1.3 general instructions
As with most electronic devices, your new electric fireplace has been designed to operate at
temperatures between 5°C (41°F) and 35° C (95°F). During the colder winter months, allow the
fireplace to reach room temperature before turning it on.
1.4 unpacking and testing appliance
Carefully remove the appliance from the box. Prior to installing the appliance, test to make sure the appliance
operates properly by plugging the power supply cord into a conveniently located 120 volt, 15 amp grounded
outlet.
The CEFL50/60/72/100FH appliances are shipped with the front glass not assembled onto the appliance. Refer
to the “front glass installation” section for assembly.
note:

EN
W415-1730 / B / 07.28.17 7
general information

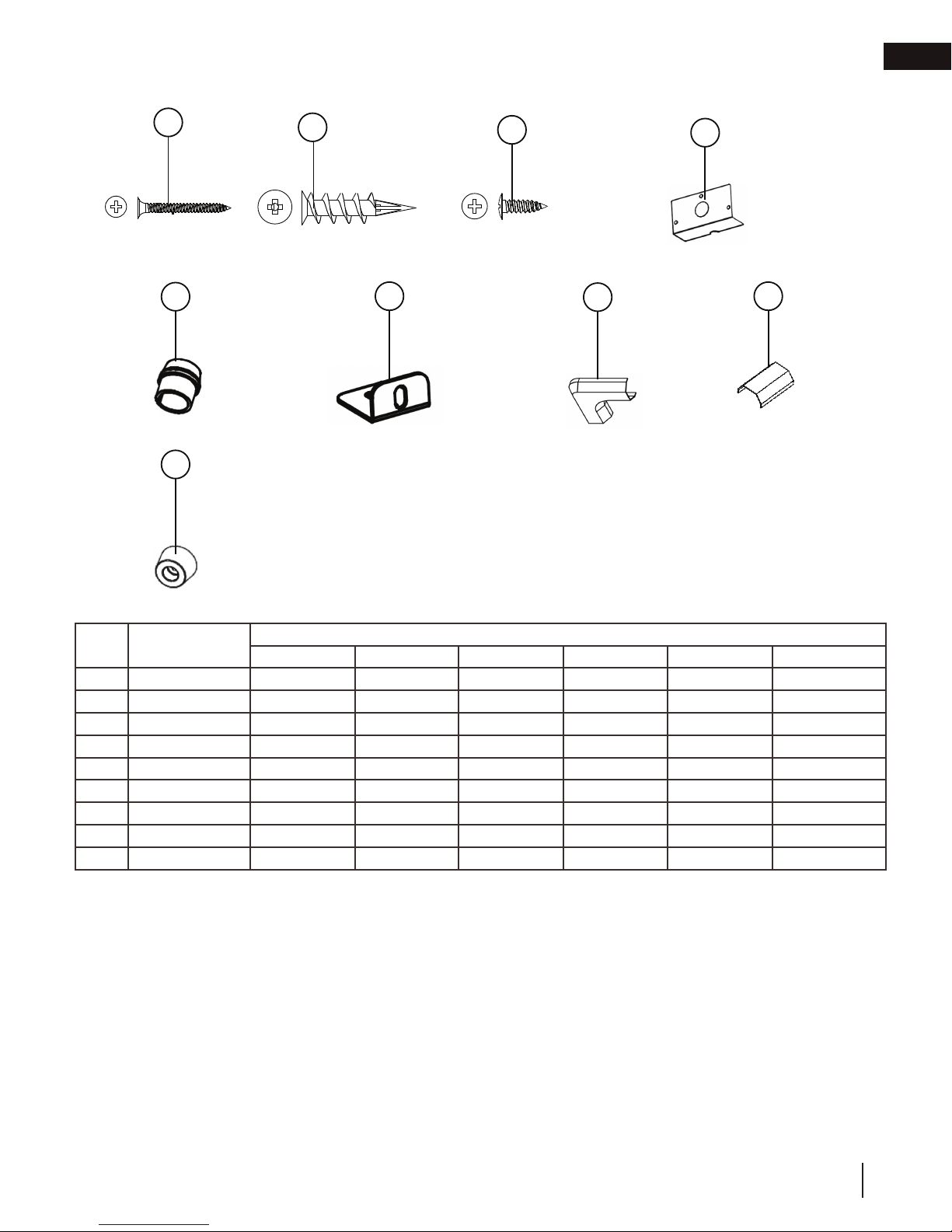

1.5 hardware list
EFGH
I J
D
AC
B
Ref. # Description Quantity
CEFL32FH CEFL42FH CEFL50FH CEFL60FH CEFL72FH CEFL100FH
A Wood Screws 6 6 6 12 12 16
B Drywall Anchors 6 6 6 12 12 16
C Metal Screws 8 8 8 8 8 8
D Cover Plate 1 1 1 1 1 1
E Strain Relief 1 1 1 1 1 1
F Metal Bracket 4 4 4 4 4 4
G Cord Corner 2 2 2 2 2 2
H Cord Corner 2 2 2 2 2 2
I Rubber Foot 4 4 4 6 6 6

W415-1730 / B / 07.28.17
EN
8
general information
The rating plate must remain with the appliance at all times. It must not be removed.
note:
1.6 rating plate information
This illustration is for reference only. Refer to the rating plate on the appliance for accurate
information.
W385-2095
CERTIFIED UNDER CANADIAN AND AMERICAN NATIONAL STANDARD: CSA 22.2 NO. 46 AND UL 2021 / HOMOLOGUÉ SELON
LES NORMES NATIONALES CANADIENNES ET AMÉRICAINES:CSA 22.2 NO. 46 UL 2021
Page 1 of 1
FOYER À ÉLECTRIQUE. HOMOLOGUE POUR
INSTALLATION DANS UNE CHAMBRE A COUCHER, UNE
SALLE DE BAIN ET UN STUDIO. APPROPRIE POUR
INSTALLATION DANS UNE MAISON MOBILE.
ELECTRIC FIREPLACE. SUITABLE FOR BEDROOM
AND BED-SITTING ROOM INSTALLATION. SUITABLE
FOR MOBILE HOME INSTALLATION.
VOLTAGE: 120 VAC TENSION: 120VCA
FREQUENCY: 60Hz FRÉQUENCE: 60Hz
POWER: 1500W PUISSANCE: 1500W
DATE CODE: XXXXX CODE DE DATE:
DESIGNED IN NORTH AMERCIA
BY WOLF STEEL LTD.
MADE IN CHINA FABRIQUE EN CHINE
WOLF STEEL LTD.
24 NAPOLEON ROAD,
BARRIE, ON, L4M 0G8 CANADA
SERIAL NUMBER/NO. DE SERIE: NEFL
MATERIAL: CLASS IIIA-2 PERMANENT LEXAN ADHESIVE LABEL, MINIMUM THICKNESS 0.1MM, 121°C (250°F) RATING
SPECIFICATION: BLACK LETTERING ON SILVER BACKGROUND. MINIMUM FONT SIZE TO BE MINIMUM OF 8.5 PT (3.2mm)
MAX OVERALL SIZE: 6" x 3"
SERIAL NUMBERS TO BE ASCENDING FROM NEFL 00211
TITLE: RATING PLATE NEFL32/42/50/60/72/100FH
REVISION:
DWG#: W385-2095
DATE: 07.30.15
MODELS / MODÈLES
CEFL32FH
DESIGN AMERIQUE DE NORD
PAR WOLF STEEL LTD.
MASTER CONTRACT: 161746 CONTRAT-CADRE: 161746
NEFL32FH
NEFL42FH CEFL42FH
NEFL50FH CEFL50FH
CEFL60FH
NEFL60FH
NEFL72FH CEFL72FH
NEFL100FH CEFL100FH
SAMPLE
1.7 locating appliance
• Due to high temperatures, this electric appliance should be located out of traffic. Keep combustible materials
such as furniture, pillows, bedding, papers, clothes, curtains, and similar items at least 36” from the front of the
appliance.
• Never located this electric appliance where it may fall into a bathtub or other water container.
• Wear safety gloves and safety glasses for protection during installation and maintenance.
• To prevent contact with sagging or loose insulation, the electric appliance must not be installed against vapor
barrier or exposed insulation. Localized overheating could occur and fire could result.
• Do not expose the electric appliance to the elements (such as rain, etc.)
!WARNING
51.1
Grounding Methods
Metal Screw
(A)
Not allowed in Canada
Grounding Means
Adapter
Grounding Pin
Cover of
grounded
outlet box (C)
(B)

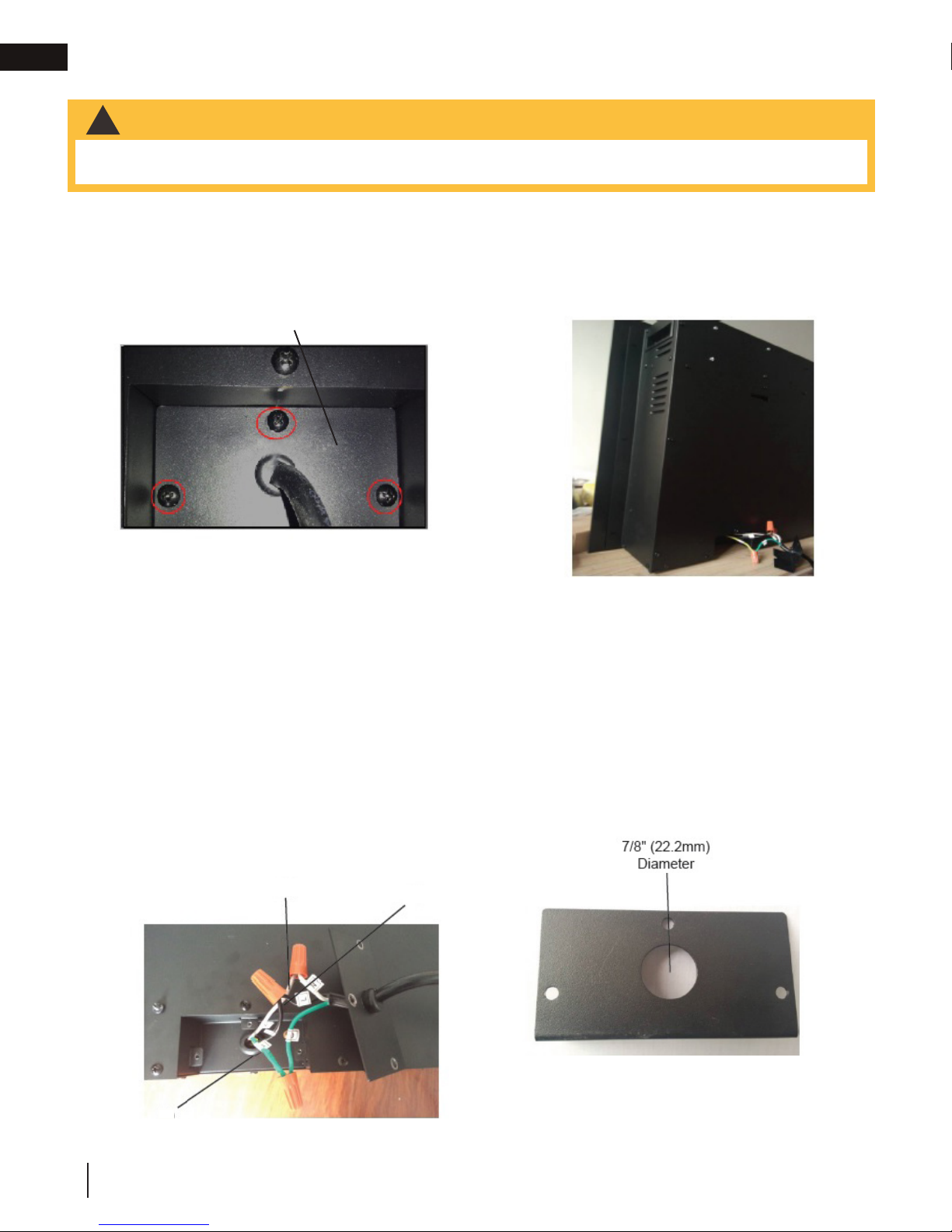

This appliance is for use on 120 volts. The cord has a plug as shown in (A). An adapter as shown in (C) is available
for connecting three-blade grounding type plugs to two-slot receptacles, as shown in (B).
The green grounding plug extending from the adapter must be connected to a permanent ground such as a
properly grounded outlet box. The adapter should not be used if a three-slot grounded receptacle is available.
To disconnect appliance, turn controls to off, then remove plug from outlet.
CEFL

EN
W415-1730 / B / 07.28.17 9
installation
2.0 installation
Your appliance is a wall-mounted, recessed and/or mantel installed appliance. Select a suitable location that is not
susceptible to moisture and is away from drapes, furniture and high traffic areas.
2.1 minimum clearance to combustibles
42.5
!
WARNING
• Risk of fire! The power cord must not be pinched against a sharp edge. Secure cord to avoid tripping or
snagging to reduce the risk of fire, electric shock, or personal injury. Do not run cord under carpeting. Do not
cover cord with throw rugs, runners, or similar items. Arrange cord away from traffic areas and where it will not
be tripped over.
• Risk of fire! To prevent a possible fire, do not block air intake or exhaust in any manner. Do not use on soft
surfaces where openings may become blocked.
• Risk of fire! Do not blow or place insulation against the appliance.
• This electric appliance is tested and listed for use only with the approved optional accessories. Use of optional
accessories not specifically tested for this electric appliance could void the warranty and/or result in a safety
hazard.
• If the information in these instructions is not followed exactly, a fire or explosion may result causing property
damage, personal injury, or death. Do not store or use gasoline or other flammable vapors in the vicinity of this
or any other appliance.
• This appliance is heavy. It is highly recommended that two people install this appliance.
• If your appliance is equipped with a heater, ensure the heater vents cannot, in any way, by covered as it may
create a fire hazard.
• Do not run the power cord horizontally, directly below the appliance.
Measurements are taken from the glass front
Bottom 0”
Sides 0”
Back 0”
Top 8” (20.3cm) to ceiling / mantel
Follow all national and local electrical codes.
note:
Measurements are taken from the body
Sides, back, and top 0”

W415-1730 / B / 07.28.17
EN
10
installation

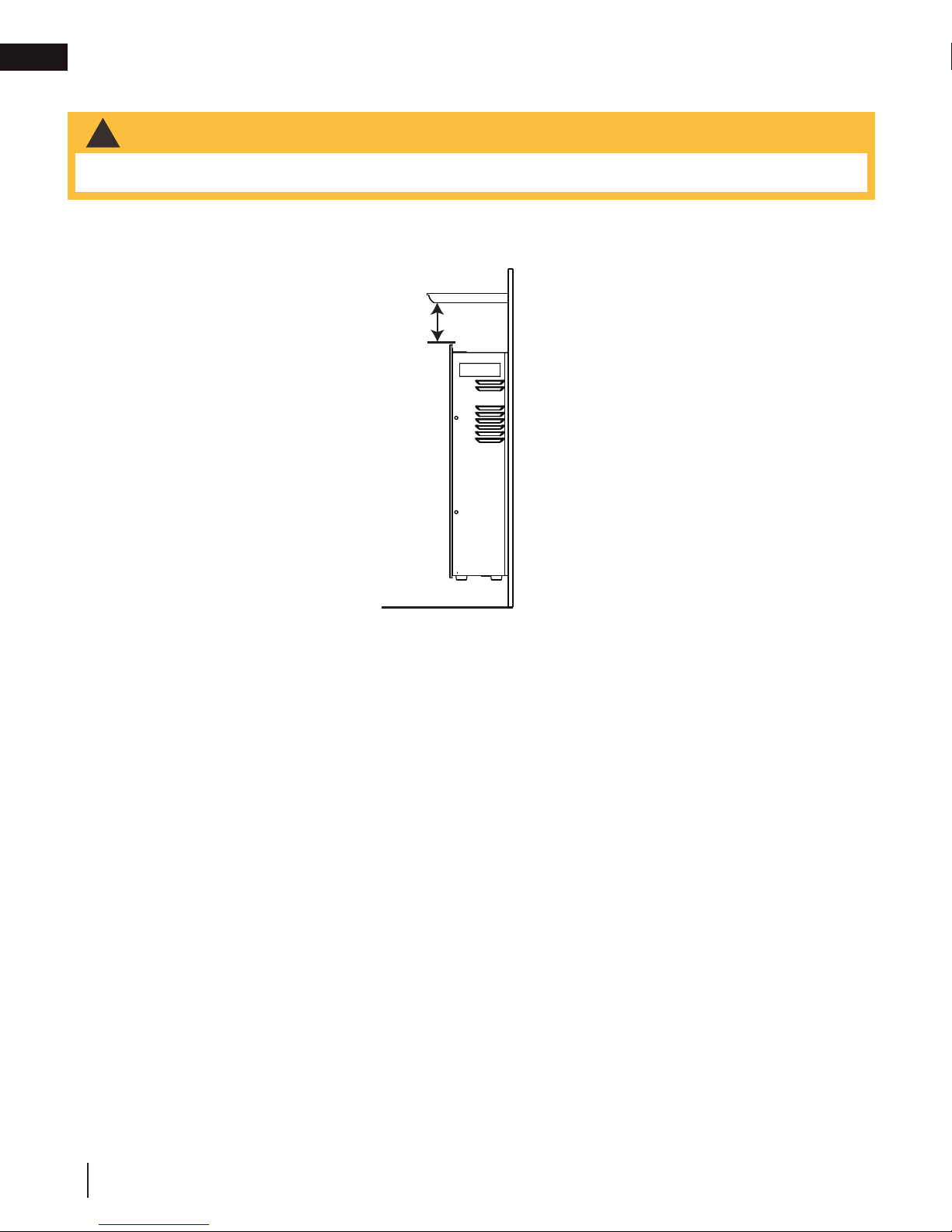

2.2 minimum mantel clearances
• When using paint or lacquer to finish the mantel, the paint or lacquer must be heat resistant to prevent
discoloration.
!WARNING
Side View
8" (203mm)
Mantel
Floor
Wall

EN
W415-1730 / B / 07.28.17 11
installation
5"
127mm
A
3 1/2"
89mm
MIN MAX
A
BB
Finishing Material

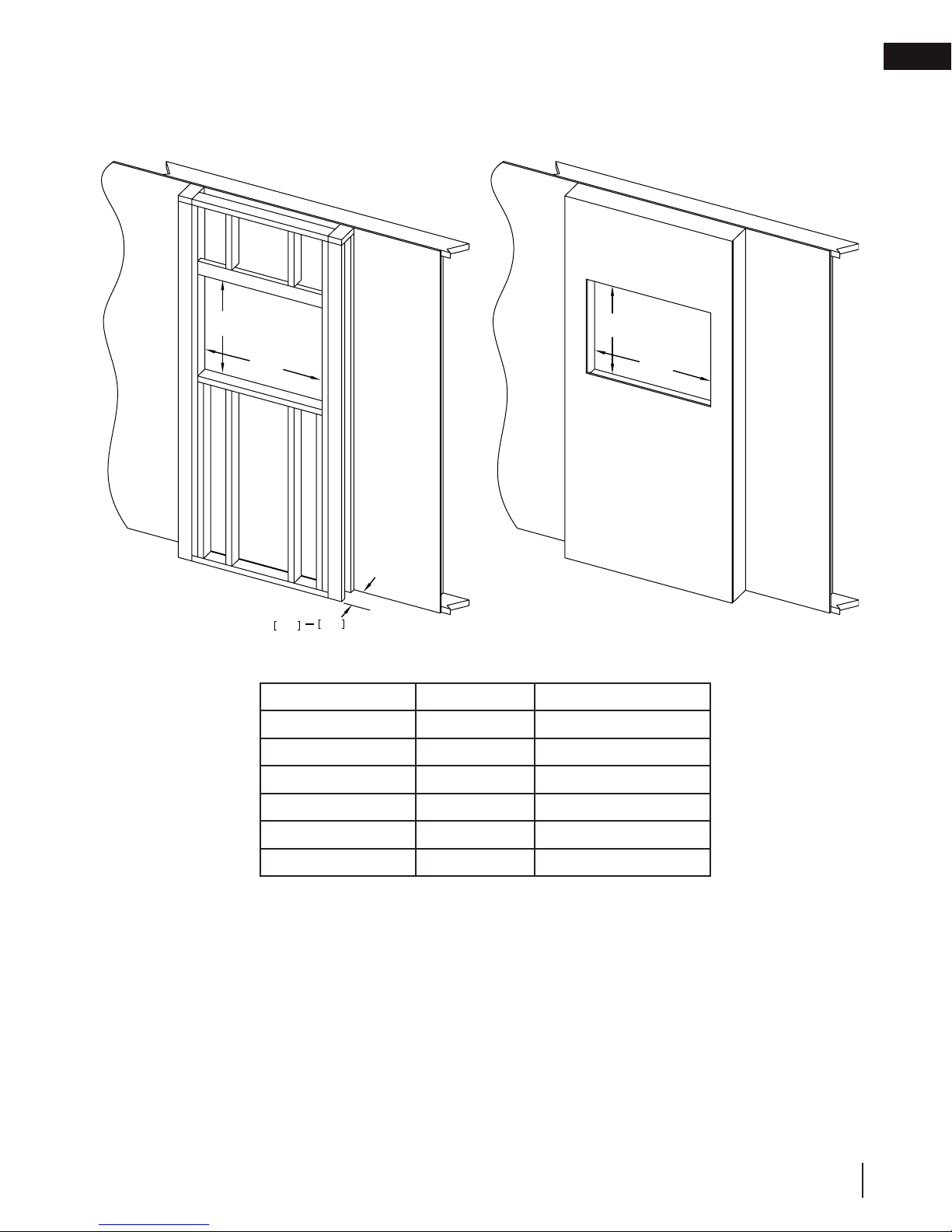

2.3 framing
(Non-load
bearing)
MODEL NO. A B
CEFL32FH 21" (53.5cm) 27 13/16" (70.7cm)
CEFL42FH 21" (53.5cm) 38" (96.5cm)
CEFL50FH 21" (53.5cm) 45 15/16" (116.6cm)
CEFL60FH 21" (53.5cm) 55 13/16" (141.8cm)
CEFL72FH 21" (53.5cm) 67 7/8" (172.5cm)
CEFL100FH 21" (53.5cm) 95 7/8" (243.5cm)

W415-1730 / B / 07.28.17
EN
12
installation

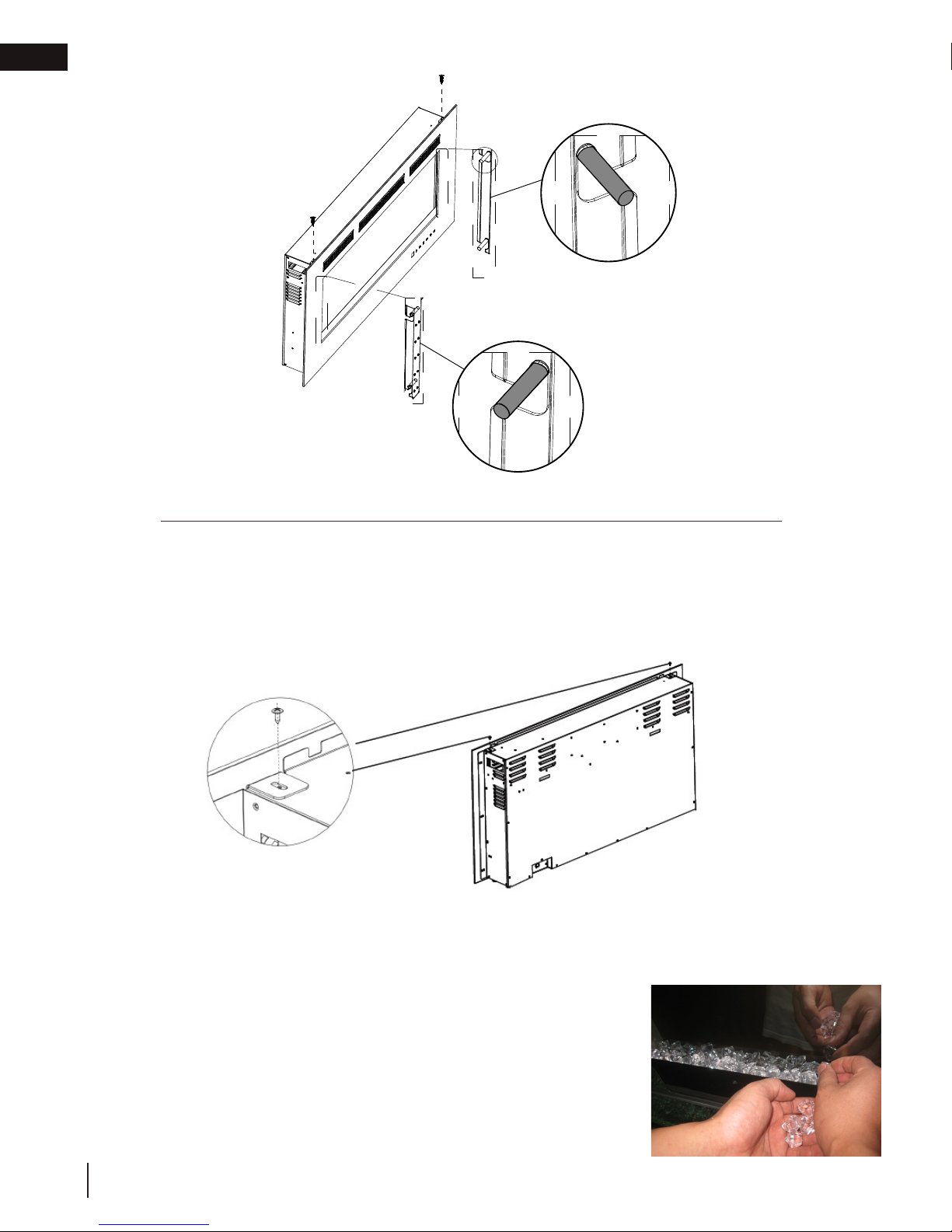

2.4 installing the appliance
Due to the many different materials used on different walls, it is highly
recommended that you consult your local builder before you install this
appliance on the wall.
A. Select a location that is not prone to moisture and is located at least
36" (91.4cm) away from combustible materials such as curtain drapes,
furniture, bedding, paper, etc.
B. Have two people hold the appliance against the wall to determine the
final location.

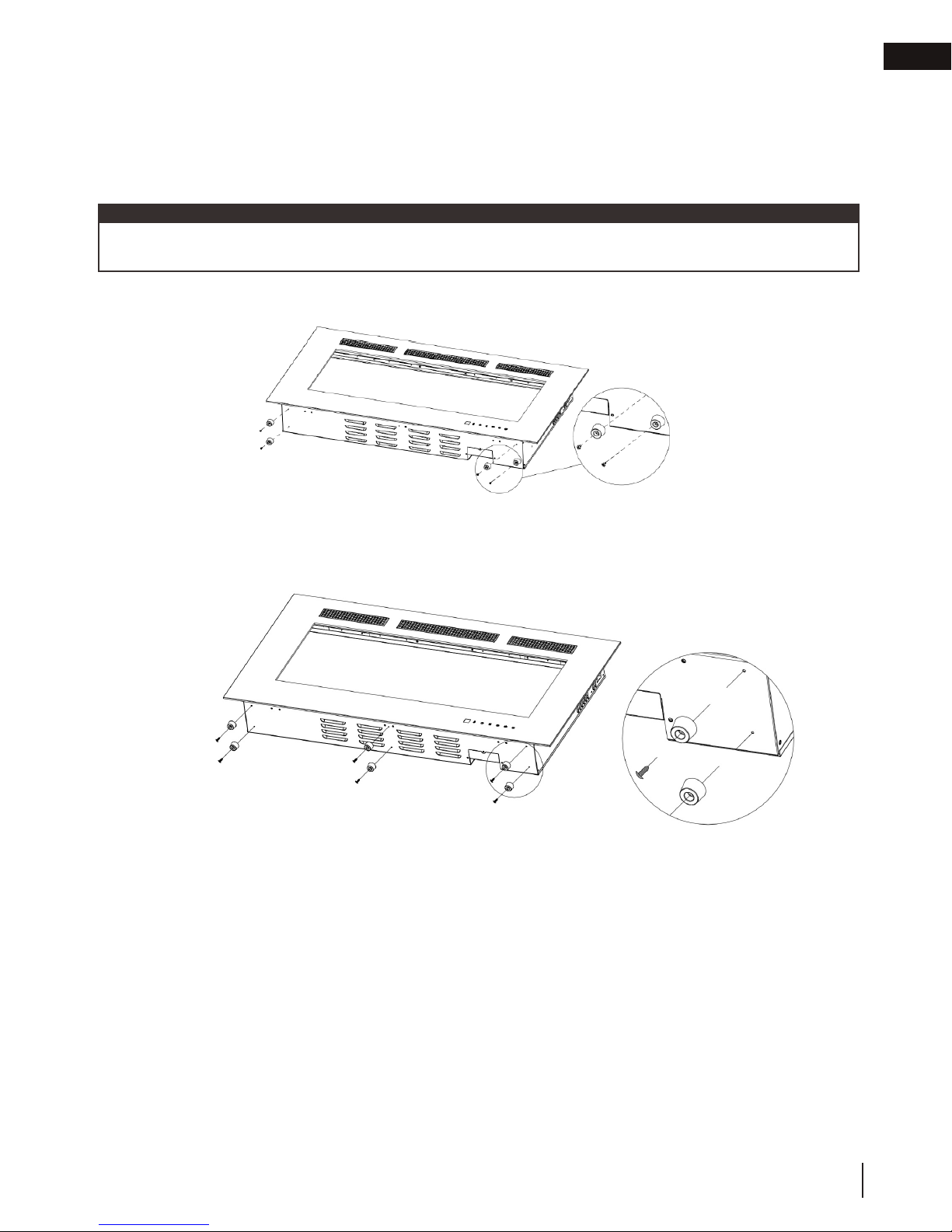

C. Place unit face down on a soft, non abrasive surface. Remove the
bracket from the back of the unit by removing the screws, refer to
Figure 1.
D. Mark out location, then mount the bracket(s) onto the wall using the supplied screws. This bracket MUST
have the hooks facing upward and be level.
E. With the wall mounting bracket
installed, have two people lift the
appliance up and insert the two
hooks on the bracket into the two
slots on the back of the appliance.
F. Check the appliance for stability
ensuring that the bracket will not
pull free from the wall.
HOOK
SCREWS
HOOK
SIDE VIEW
BODY
FLOOR
GLASS FRONT
21 5/8"
55cm
CEFL32/42/50FH Bracket Illustrated
CEFL60/72/100FH Bracket Illustrated
It is strongly recommended that the mounting bracket be screwed into the wall studs where possible. If the wall
studs cannot be used, ensure that the supplied plastic anchors are used to affix the bracket to the wall and the
bracket is adequately secured.
note:

EN
W415-1730 / B / 07.28.17 13
installation
Due to the many different finish materials used on walls, it is highly recommended that you consult your local
builder before you install this appliance in the wall.
Select a location that is not prone to moisture and is located at least 36" (91.4cm) away from combustible
materials such as curtain drapes, furniture, bedding, paper, etc.

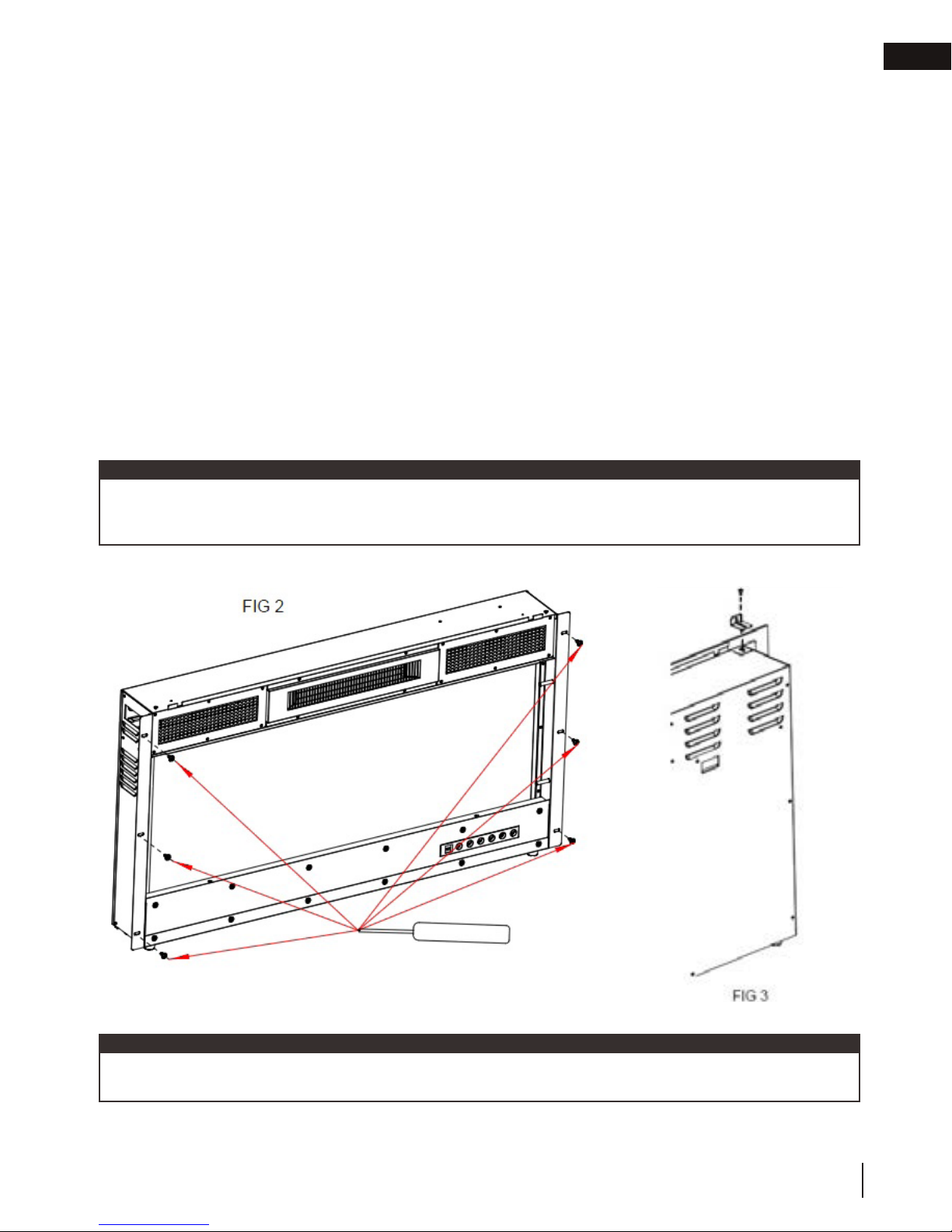

2.5 recessing the appliance into the wall
A. Measure the appliance and create a rough in with electrical.
B. Remove the front glass, refer to "front glass removal" section.
C. Hold the appliance up to ensure it will fit into the framing.
D. If the appliance is fully recessed into the wall:

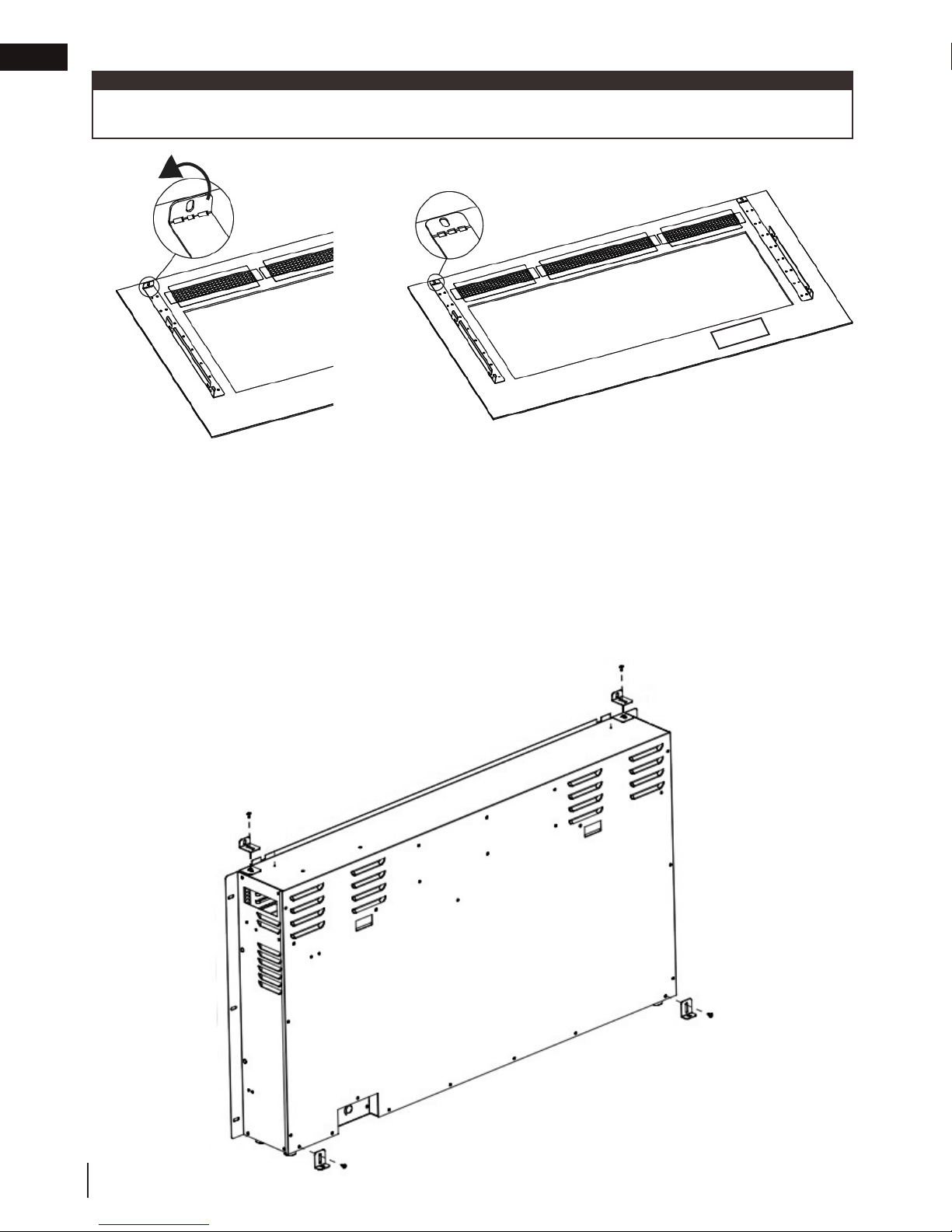

• Bend the two top tabs upward on the front glass. Refer to Figure 4.
• Use the 6 screws (provided) to lock the appliance into the wall with the existing two side
flanges. Refer to Figure 2.
• Install the media and reinstall the glass front.
E. If partial recess into the wall:
• Use the two mounting brackets (supplied) to lock the appliance to the wall, see Figure 3.
It is recommended the walls of the appliance enclosure be finished (i.e. drywall) to avoid exposed insulation or
vapour barrier coming in contact with the appliance. This will ensure clearance to combustibles is maintained.
Two sets of holes are provided for recessing into wall. The wall structure may limit how far the appliance can be
recessed. Use the appropriate set of holes when recessing to the frame. It may be necessary to use the four
holes on the top and bottom.
note:
note:

W415-1730 / B / 07.28.17
EN
14
installation
FIG. 4
2.6 installing the appliance into a mantel
A. Remove the glass front, refer to "front glass installation" section for removal instructions.
B. Install the rubber feet onto the bottom of the appliance for stability, refer to "rubber feet installation"
section for instructions.
C. Install the top and bottom brackets provided.
D. Insert the appliance into the mantel and secure it with the brackets or refer to "electric fireplace mantel"
installation manual for proper appliance installation instructions.
E. Place the crystal embers along the media tray, refer to "crystal ember installation" section.
F. Reinstall the glass front.
The appliance tabs come bent. You must bend the tab flat by hand when fully recessing the appliance into the
wall. See Figure 4.
note:

EN
W415-1730 / B / 07.28.17 15
installation
2.7 rubber feet installation
A. Place the appliance face down on a soft surface.
B. Using a screw driver, remove the screws on the bottom of the appliance.
C. Install the 4 rubber feet (6 rubber feet for CEFL60/72/100FH) onto the bottom of the appliance using the
screws from Step B, see below.
CEFL32/42/50FH Illustrated
CEFL60/72/100FH Illustrated
The screws for installing the rubber feet are secured to the appliance. Removal of the screws is necessary for
installing the rubber feet.
note:

W415-1730 / B / 07.28.17
EN
16
installation
2.8 hard wiring installation
Hard wiring connection
If it is necessary to hard wire this appliance, a qualified electrician must remove the cord connection, and wire the
appliance directly to the house hold wiring.
This appliance must be electrically connected and grounded in accordance with local codes.
A. Remove the cover plate from the right side
bottom of the appliance by removing the
three screws, as shown above.
B. Remove the wire connectors from the power cord. The power cord may be discarded.
C. Take the new cover plate, supplied in the hardware bag. Punch out the 7/8" (22.2mm) hole and
install a box connector through the junction box. Snap the box connector clamp onto the supply
wires.
D. Using the wire connectors supplied in the hardware kit, connect the ground green wires (G), the
common white wires (N)
together, and the hot black wires (L). Refer to Figure 3.
E. Reinstall the cover plate using the three screws, shown in Figure 1.
Fig. 1 Cover Plate
• Turn off the appliance completely and let it cool down before servicing. Only a qualified service person should
service and repair this electric appliance.
!WARNING
Fig. 2
G
NL
Fig. 3

EN
W415-1730 / B / 07.28.17 17

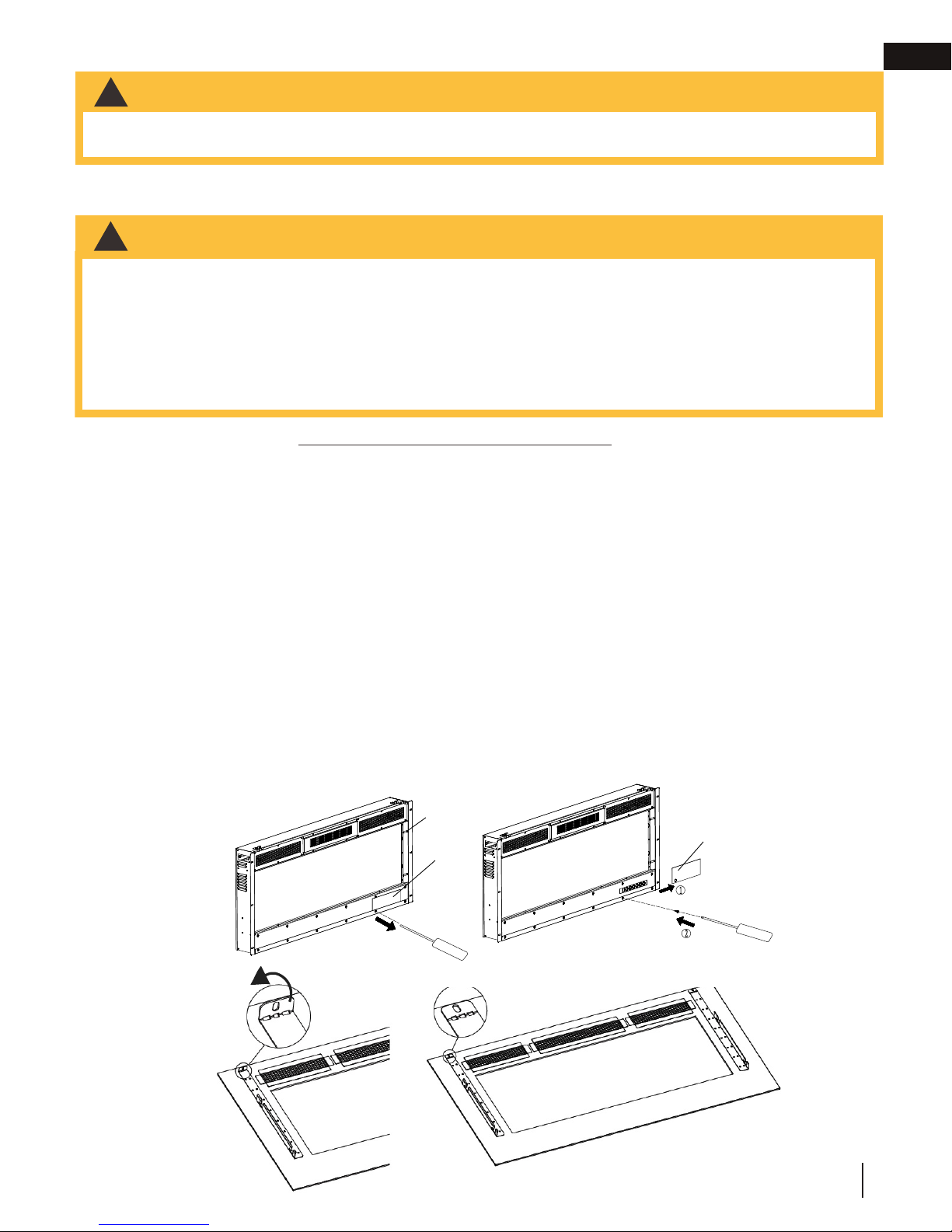

finishing
3.0 finishing
3.1 front glass installation
FOR MODELS CEFL50/60/72/100FH ONLY:
A. Before installing the front glass, remove the screws securing the paper board on the inside of the
appliance that protects the control panel. Discard the paper board.
B. Reinstall the screws,see Figure 1. (For recessed installed appliances only)
C. Remove the 2 screws from the top of the appliance.
D. Have two people, lift the glass up and away from the appliance, holding the glass vertical not flat while
carrying. Place the glass face down onto a soft, non-abrasive surface, careful not to flex the glass.
E. Bend the top tabs flat, see Figure 2
F. Install the crystal embers, refer to "crystal ember installation" section.
G. Install the front glass by aligning with the pins on the appliance. Press the glass in and down to securely
engage with the brackets. It must be fully engaged to ensure the touch display panel performs properly.
H. Secure the front glass using the screws provided to the top of the appliance, see Figure 3. (If fully
recessed this is not necessary)
Please take off the screws, move off the paper board, then fix the screws back.
Paper
For NEFL50FH, NEFL60FH, NEFL72FH, NEFL100FH
Paper
Pin
FIG. 1
FIG. 2
• Power supply service must be completed prior to finishing to avoid reconstruction.
• Heat vents and air openings cannot be covered in any circumstances.
!WARNING
!
WARNING
• Glass may be hot. Do not touch glass until cooled.
• If equipped with door latches that are part of a safety system, they must be properly engaged. Do not
operate the appliance with latches disengaged.
• Facing and/or finishing materials must not interfere with air flow through air openings, louvre openings,
operation of louvres, or doors/access for service. Observe all clearances when applying combustible
materials.
• Before door is removed, turn the appliance off and wait until appliance is cool to touch. Doors are heavy and
fragile so handle with care.
47.1

W415-1730 / B / 07.28.17
EN
18
finishing
FIG. 3
The glass front must be removed and the appliance must be secured in its final location before the crystal embers
are installed.
A. Carefully place crystal embers into the bottom media tray on the front of
the appliance as illustrated. Apply an even layer from side to side.
A. Remove the 2 screws from the top of the appliance, as shown below.
B. Have two people lift the glass up and away from the appliance, holding the glass vertical not flat while
carrying. Place the glass face down onto a soft, non-abrasive surface, careful not to flex the glass.
C. Install the crystal embers, refer to "crystal ember installation" section. Install the front glass by aligning
with the pins on the appliance. This ensures the touch display panel performs properly.
FOR WALL MOUNT, PARTIAL RECESS AND MANTEL INSTALLED APPLIANCE ONLY:
3.2 front glass removal
3.3 crystal ember installation

EN
W415-1730 / B / 07.28.17 19

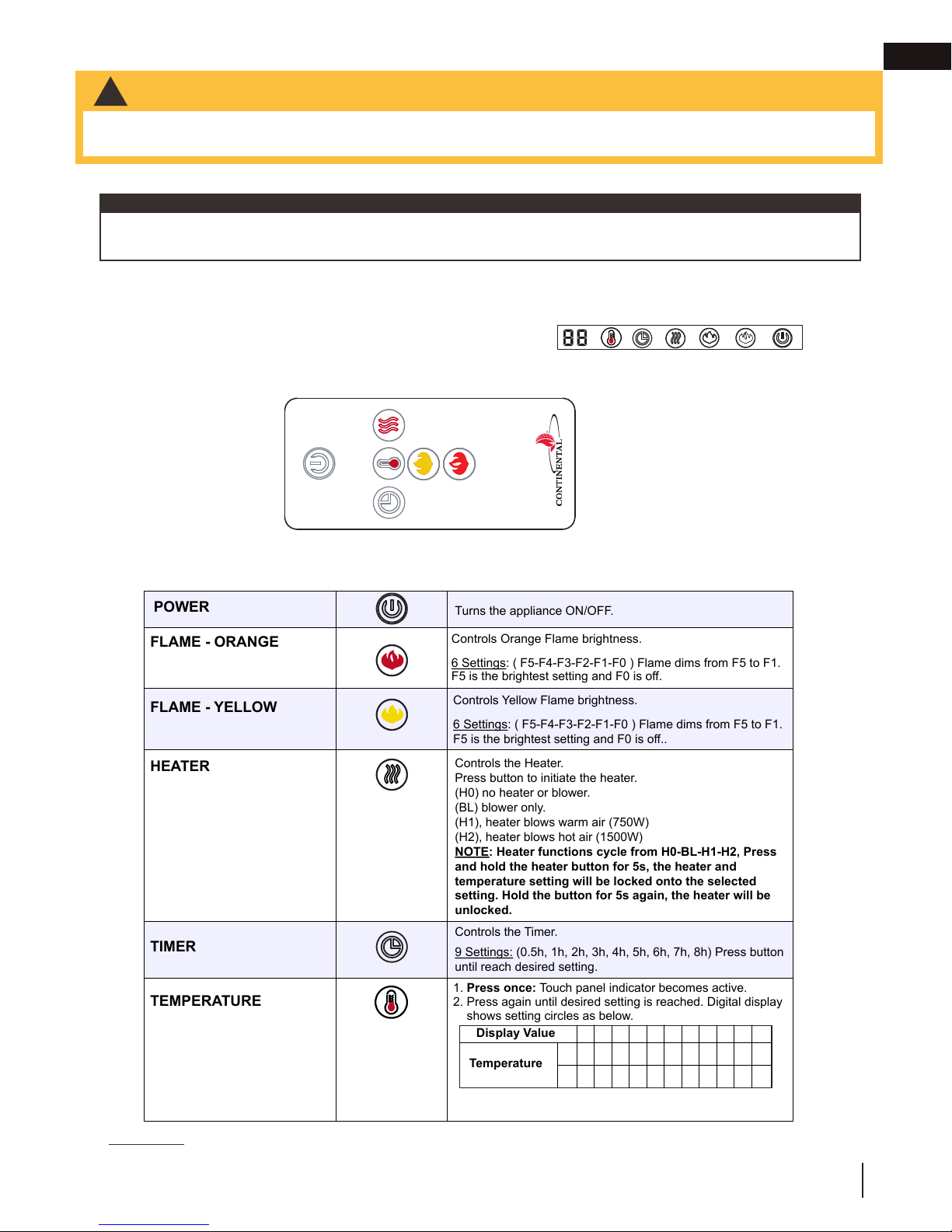

operating instructions
4.0 operating instructions
Once the appliance has been plugged into a grounded electrical outlet, it is ready to operate.
The main power button is located on the front bottom right side of the appliance.
4.1 main power button
4.2 operating touch display panel and remote control
POWER
Turns the appliance ON/OFF.
FLAME - ORANGE
FLAME - YELLOW
TIMER
TEMPERATURE
Controls Orange Flame brightness.
6 Settings: ( F5-F4-F3-F2-F1-F0 ) Flame dims from F5 to F1.
F5 is the brightest setting and F0 is off.
Controls Yellow Flame brightness.
6 Settings: ( F5-F4-F3-F2-F1-F0 ) Flame dims from F5 to F1.
F5 is the brightest setting and F0 is off..
Controls the Timer.
9 Settings: (0.5h, 1h, 2h, 3h, 4h, 5h, 6h, 7h, 8h) Press button
until reach desired setting.
Display Value
Temperature
0123456789N
18 19 20 21 22 23 24 25 26 27 ON
64 66 68 70 72 74 76 78 80 82 ON
° C
° F
HEATER
Controls the Heater.
Press button to initiate the heater.
(H0) no heater or blower.
(BL) blower only.
(H1), heater blows warm air (750W)
(H2), heater blows hot air (1500W)
NOTE:Heater functions cycle from H0-BL-H1-H2, Press
and hold the heater button for 5s, the heater and
temperature setting will be locked onto the selected
setting. Hold the button for 5s again, the heater will be
unlocked.
1. Press once: Touch panel indicator becomes active.
2. Press again until desired setting is reached. Digital display
shows setting circles as below.
NOTE: Press the button for 5 seconds, the temperature
setting will switch from °C to °F. Same way from °F to °C.
The touch display panel is shown by LED's on the front bottom right of the appliance. The LED's will
disappear after 10 seconds of no function change. The Main Power button will be dim.
WARNING: Do not move or remove the glass panel, when the appliance is plugged in and operating.
This will cause the remote control and touch panel to no longer function.
Ensure the house circuit breakers for the power supply are turned on. In the event of a power failure, the
appliance will lose its memory function and will reset to factory mode when the power returns.
note:
• While the appliance is operating do not remove the glass panel. This will cause the remote control and touch
panel to disfunction.
!WARNING

W415-1730 / B / 07.28.17
EN
20
maintenance
5.0 maintenance
5.1 remote battery installation
1. To replace the existing battery remove the battery
holder.
2. To remove the battery holder turn remote onto
rear side and press the left side lever towards the
center while pulling the battery holder out using
the slot provided.
3. Replace existing battery, type CR 2025, with a
new battery and reinstall the battery holder into
the remote by sliding it into position, as shown.
Remote
(Rear Side)
Battery Holder
Battery (CR 2025)
• Preparation for maintenance: always disconnect the power and allow the electric appliance to cool before
performing any cleaning, maintenance, or relocation of this electric appliance. Turn controls to off and remove
plug from outlet or turn of the house circuit breaker to electric appliance receptacle.
• Do not install replacement lamps that exceed specified maximum watts.
• The halogen lamps in your appliance can be extremely hot. Allow at least 10 minutes between turning off the
appliance and removing the lamps to avoid accidental burns.
• Do not handle the lamp with bare fingers, oils from your skin will damage the lamps when they heat up. use
gloves or a clean dry cloth when handling lamps.
!WARNING
The remote control has a removable plastic tab to prolong the battery life while shipping. Remove the tab for the
remote control to function.
The remote control has a removable plastic tab to prolong the battery life while shipping. Remove the tab for the
remote control to function.
The remote control must remain within 5 meters or 17 feet of the appliance to be effective, this range may be
reduced when battery power is depleted.
note:
note:
• This remote control requires button batteries that are hazardous to young children.
• WARNING - KEEP BATTERIES OUT OF REACH OF CHILDREN
• Swallowing may lead to serious injury in as little as 2 hours or death, due to chemical
burns and potential perforation of the oesophagus.
• If you suspect your child has swallowed or inserted a button battery, immediately seek
urgent medical assistance.
• Examine devices and make sure the battery compartment is correctly secured, e.g.
that the screw or other mechanical fastener is tightened. Do not use if compartment is not secure.
• Dispose of used button batteries immediately and safely. Flat batteries can still be dangerous.
• Tell others about the risk associated with button batteries and how to keep their children safe.
!WARNING
TITLE: LABEL, BATTERY WARNING PART #: W385-2221
REVISION: DATE:06.06.17_X.L.
MAX SIZE: 9" X 3"
MATERIAL: CLASS IIIA-2 PERMANENT LEXAN ADHESIVE LABEL, MINIMUM THICKNESS 0.1MM
LETTERING: BLACK LETTERING ON WHITE BACKGROUND. FONT SIZE TO BE MIN. 8 POINT ARIAL (2mm),
BOLD FACE AND UPPER CASE.
TEMPERATURE RATING MINIMUM 79°C (175°F) RATING
WARNING! AVERTISSEMENT!
WARNING - KEEP BATTERIES OUT OF REACH OF CHILDREN
- SWALLOWING MAY LEAD TO SERIOUS INJURY IN AS LITTLE AS 2 HOURS
OR DEATH, DUE TO CHEMICAL BURNS AND POTENTIAL PERFORATION OF
THE OESOPHAGUS.
- IF YOU SUSPECT YOUR CHILD HAS SWALLOWED OR INSERTED A
BUTTON BATTERY, IMMEDIATELY SEEK URGENT MEDICAL ASSISTANCE.
- EXAMINE DEVICES AND MAKE SURE THE BATTERY COMPARTMENT IS
CORRECTLY SECURED, E.G. THAT THE SCREW OR OTHER MECHANICAL
FASTENER IS TIGHTENED. DO NOT USE IF COMPARTMENT IS NOT
SECURE.
- DISPOSE OF USED BUTTON BATTERIES IMMEDIATELY AND SAFELY. FLAT
BATTERIES CAN STILL BE DANGEROUS.
- TELL OTHERS ABOUT THE RISK ASSOCIATED WITH BUTTON BATTERIES
AND HOW TO KEEP THEIR CHILDREN SAFE.
AVERTISSEMENT - GARDER LES BATTERIES DE LA PORTÉE DES
ENFANTS
- L'INGESTION PEUT ENTRAÎNER DES BLESSURES GRAVES DANS MOINS DE 2
HEURES OU LA MORT, EN RAISON DES BRÛLURES CHIMIQUES ET DE LA PERFO-
RATION POTENTIELLE DE L'ŒSOPHAGE.
- SI VOUS PENSEZ QUE VOTRE ENFANT A AVALÉ OU INSÉRÉ UNE BATTERIE
BOUTON, CONSULTEZ IMMÉDIATEMENT UNE ASSISTANCE MÉDICALE URGENTE.
- EXAMINEZ LES APPAREILS ET ASSUREZ-VOUS QUE LE COMPARTIMENT DE LA
BATTERIE EST BIEN FIXÉ, PAR EX. QUE LA VIS OU AUTRE ATTACHE MÉCANIQUE
EST SERRÉE. NE PAS UTILISER SI LE COMPARTIMENT N'EST PAS SÉCURISÉ.
- ÉLIMINER LES PILES BOUTON UTILISÉES IMMÉDIATEMENT ET EN TOUTE
SÉCURITÉ. LES PILES PLATES PEUVENT ENCORE ÊTRE DANGEREUSES.
- RENSEIGNEZ-VOUS SUR LE RISQUE ASSOCIÉ AUX BATTERIES À BOUTON ET LA
FAÇON DE GARDER LEURS ENFANTS EN SÉCURITÉ.
W385-2221
