contoure RV-500-OTR User manual

tr Tf NTE] U RE'"
ispace sAVER AppLrANtrEs
Model: RV-500-OTR
Installation
lnstructions 0ver the Range
Microwave 0ven
BEFORE YOU BEGIN
Read these instructions completely and carefully.
' IMPORTANT - Savethese
instructions for local inspector's use.
IMPORTANT - observearr
governing codes and ordinances.
Note to Installer - Be sure to leave these
instructions with the Consumer.
Note to Consumer - Keep these
instructions for future reference.
Skill level - Installation of this appliance requires
basic mechanical and electrical skills.
Proper installation is the responsibility of the installer.
Product failure due to improper installation is not
covered under the Warranty.
READ CAREFULLY.
KEEP THESE INSTRUCTIONS.

Installation Instructions

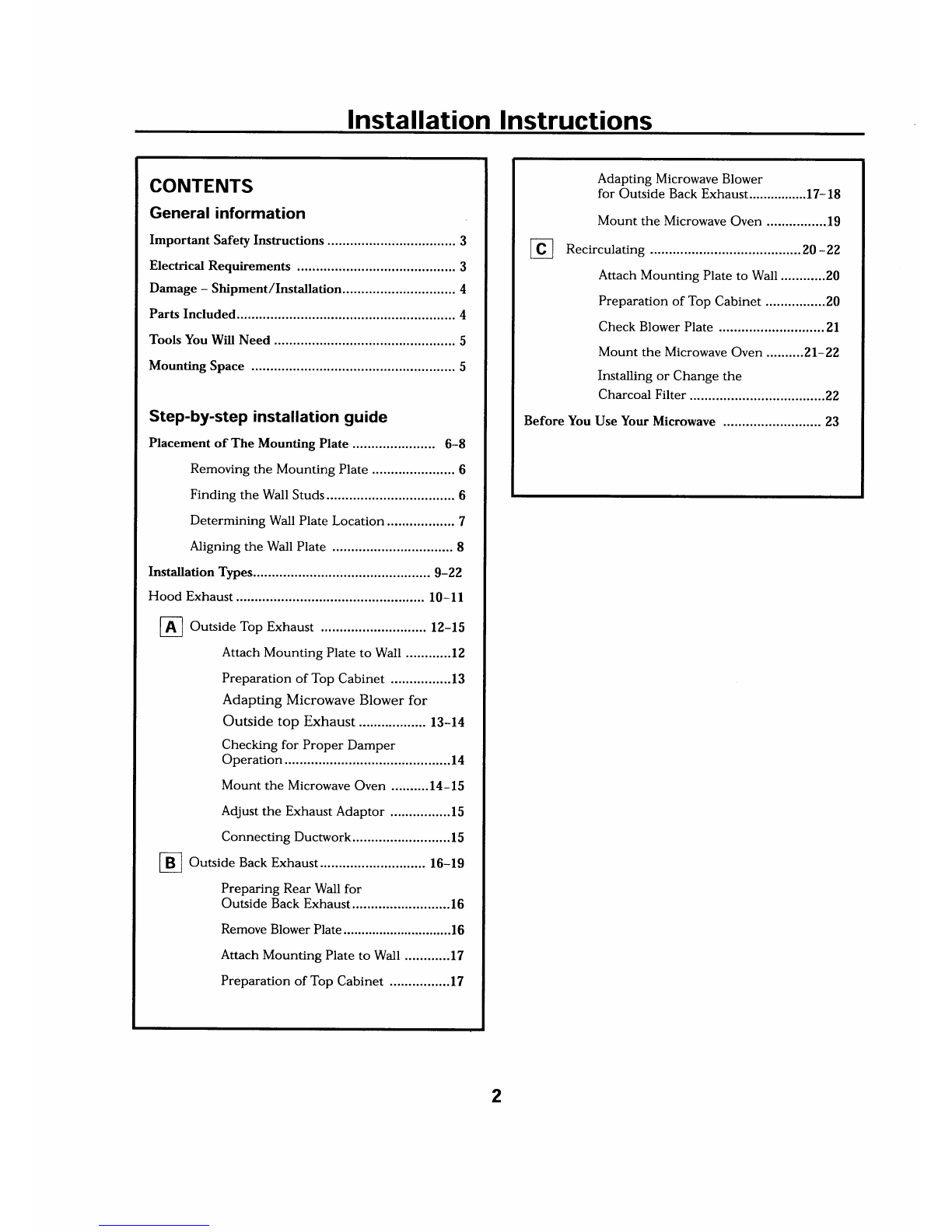

CONTENTS
General information
Important Safety Instructions ........... ....... 3
Electrical Requirements ....... ................... 3
Damage - Shipment,/Insta11ation.............................. 4
Parts Included. ......... 4
Tools You Will Need ................ 5
Mounting Space ...... 5
Step-by-step installation guide
Placement of The Mounting Plate 6-8
Removing the Mounting Plate ...... 6
Finding the Wall Studs .................. 6
Determining Wall Plate Location .................. 7
Aligning the Wall Plate ................ 8
Installation Types... ............ g-22
Hood Exhaust .. 10-f l
[A I O",.ide Top Exhaust 12-15
Attach Mounting Plate to Wall ............12
Preparation of Top Cabinet ................ I 3
Adapting Microwave Blower for
Outside top Exhaust.......... 13-14
Checking for Proper Damper
Operation ............14
Mount the Microwave Oven ..........14-15
Adjust the Exhaust Adaptor ................ I 5
Connecting Ductwork.......................... I 5
I B I Outside Back Exhaust... 16-19
Preparing Rear Wall for
Outside Back Exhaust... .......16
Remove Blower Plate........ ......16
Attach Mounting Plate to Wall ............17
Preparation of Top Cabinet ................ I 7
Adapting Microwave Blower
for Outside Back Exhaust................ 17- 18
Mount the Microwave Oven ................19
Recirculating ......... 20 -22
Attach Mounting Plate to Wall ............20
Preparation of Top Cabinet ................ 20
Check Blower Plate ............21
Mount the Microwave Oven ..........21-22
Installing or Change the
Charcoal Filter ....22
Before You Use Your Microwave ..........23
2

lnstallation Instructions
IMPORTANT SAFETY INSTRUCTIONS
This product requires a three-prong grounded outlet.
The installer must perform u g.o,r.rA .ontinuity check
on the power outlet box before beginning the
installation to insure that the outlet box ii properly
grounded. If not properly grounded, or if ine buttlt
box does not meet electrical requirements noted
(under ELECTRICAL REQUIREMENTS), a qualified
electrician should be employed to correcr any
deficiencies. CAUTION: For personal
safeff, remove house fuse
or open circuit breaker
before beginning
installation to avoid severe
or fatal shock injury.
CAUTION: For personal safety, the mounting surface
must be capable of supportingthe cabinet lold, in
addition to the adrled weight of *ris 63-95 pound
(28.5-38.5 kg) product, plus additional oven loads of
yp to !0 pounds (22.T kd or a totat weight of
113-135 pounds (51.3-01.2 kg).
CAUTION: For personal safety, this product cannot
be installed in cabinet arrangements such as an island or
ap-eninsula. It must be mounted to BOTH a top cabinet
AND a wall.
NOTE: For easier installation and personal safety, it is
recommended that two people install this produit.
IMPORTANT _ PLEASE READ CAREFULLY. FOR
PERSONAL SAFETY, THIS APPLIANCE MUST BE
PROPERLY GROUNDED TO AVOID SEVERE OR
FATAL SHOCK.
The power cord of this
appliance is equipped with a
three-prong (grounding)
plug which mates with a
standard three-prong
(grounding) wall receptacle
to minim2e the possibility
of electric shockhazard "
from this appliance.
You should have the wall receptacle and circuit checked
by a qualified electrician to make sure the receptacle is
properly grounded.
Where a standard twoprong wall receptacle is
encountered, it is very important to have it replaced
yth.q properly qolnled threeprong wall reieptacle,
installed by a qualified electrician.
DO NOT, UNDER ANY CIRCUMSTANCES, CUf,
DEFORM OR REMOVE ANY OF THE PRONGS
FROM THE POWER CORD. DO NOT USE WITH
AN EXTENSION CORD.
ELECTRICAL
REQUIREMENTS
Product rating is 120 volts AC, 60 Hertz, 15 amps and
1.6 kilowatts. This product must be connected to a
supply circuit of the proper voltage and frequency.
Wire size must conform to the requirements of the
National Electrical Code or the prevailing local
code for this kilowatt rating. The power supply
cord and plug should be brought to a separate
15- to 20- ampere branch circuit single giounded
outlet. The outlet box should be located in the
cabinet above the microwave oven. The outlet box
and supply circuit should be installed by a qualified
electrician and conform to the National Electrical
Code or the prevailing local code.
3

lnstallation Instructions
DAMAGE-SHIPMENT/
INSTALLATION
' If the unit is damaged in shipment, return the
unit to the store in which it was bought for repair
or replacement.
o If the unit is damaged by the customer, repair or
replacement is the responsibility of the customer.
' If the unit is damaged by the installer (if other
than the customer), repair or replacement must
be made by arrangement between customer
and installer.
PARTS INCLUDED (coNr)
ADDITIONAL PARTS
PART QUANTIN
Combined Top
Cabinet
Template and
Rear Wall
Template
1
Installation
Instructions 1
Separately
Packed
Grease
Filters
2
Exhaust
adaptor 1
Glass
Tray 1
Tumtable
Ring 1
HARDWARE PACKET
PART QUANTITY
cWood Screws
(1/q" x 2") L
Toggle Bolts (and
wing nuts) (3/0" x 3") 2
/
Self-Aligning Machine
Screws (%"x 3%")
Nylon Grommet
(for metal cabinets)
1I
PARTS INCLUDED
You will find the installation hardware contained in
a packet with the unit. Check to make sure vou have
all these parts.
NOTE: Some extra parts are included.
4

I nstal lation I nstructions
TOOLS YOU WILL NEED
___€1lElt
# 1 Phillips screwdriver
Iin snips (for cutting
damper, if required)
lr
ffi
Gloves
nx=fr
VJY)
Safety goggles
Pencil
ffiN
Scissors \J'l -\
(to cut template, if necessary) :I,:ifilor"' with 3/r0", %" and %"
Vl\r\ ffil
S(SF- V u
Saw (saber, hole or keyhole) Stud finder or Hammei(optional)
Filler blocks or scrap
wood pieces, if needed
for top cabinet spacing
(used on recessed bottom
cabinet installations only)
@
Duct and masking tape
Level
MOUNTING SPACE
Bottom Edge of
Cabinet Needs to
be 30" (76.2 cm)
or More from the
Cooking Surface
NOTES:
' The space between the cabinets must be
30" (76.2 cm)wide and free of obstructions.
' If you are going to vent your microwave oven
to the outside, see Hood Exhaust Section for
exhaust duct preparation.
' When installing the microwave oven beneath
smooth, flat cabinets, be careful to follow the
instructions on the top cabinet template for
power cord clearance.
30
(76.2 cm)
min.
66" ('167.6 cm)
or More from
the Floor to the
Top of the
Microwave As a guide to installation, see page 24 for Mounting
Template Information.
5

I nstal lation I nstructions

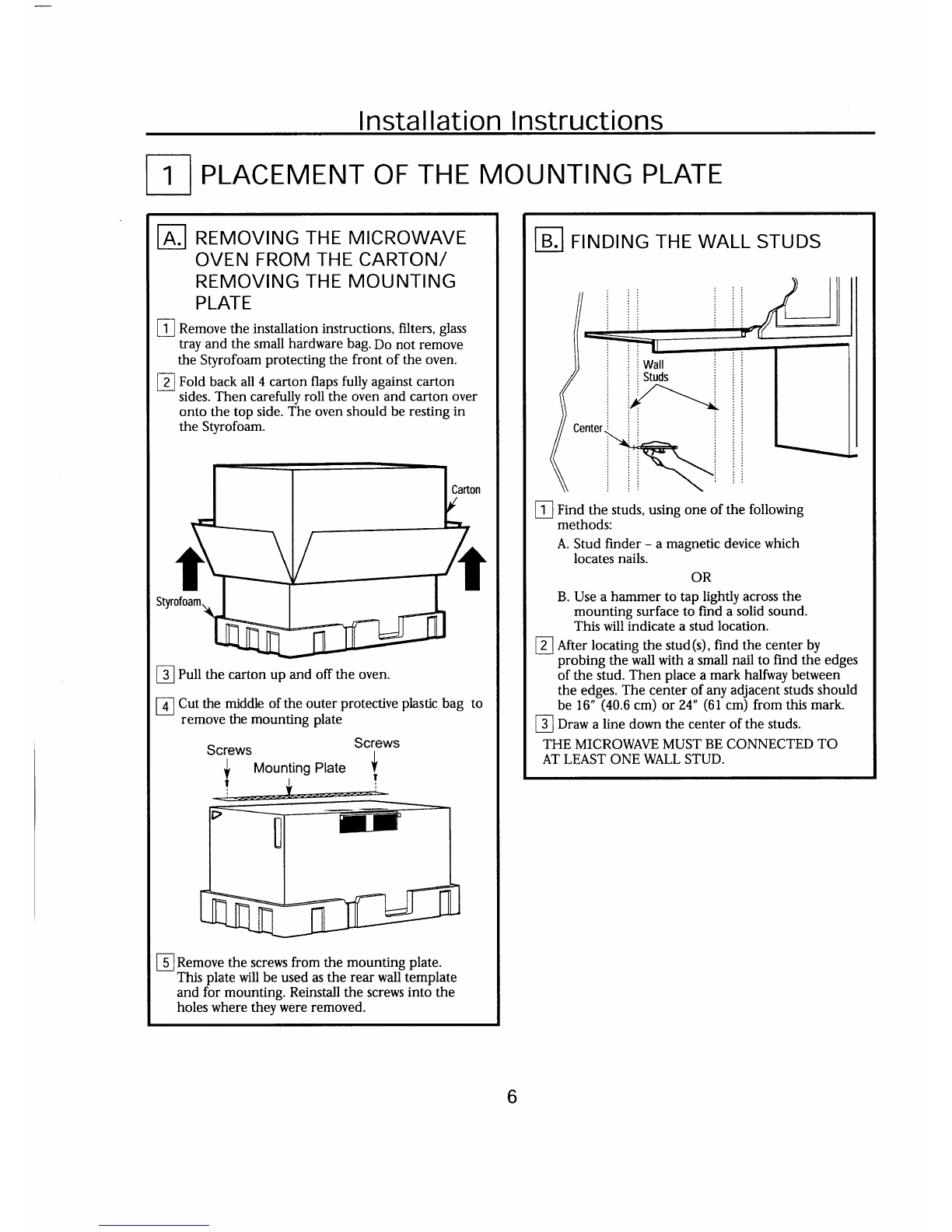

lj_l PLACEMENT OF THE MOUNTING PLATE
tr REMovTNG THE MrcRowAVE
OVEN FROM THE CARTON/
REMOVING THE MOUNTING
PLATE
I R"rnove the installation instructions, filters, glass
tray and the small hardware bag. Do not remove
the Styrofoam protecting the front of the oven.
pl fota back all 4 carton flaps fully against carton
- sides. Then carefully roll the oven and carton over
onto the top side. The oven should be resting in
the Styrofoam.
l]_j Pull the carton up and off the oven.
Mounting Plate
[Jl Cut the middle of the outer protective plastic bag to
- remove the mounting plate
Screws
Y
!
| 5 lRemove the screws from the mounting plate.
This plate will be used as the rear wall template
and for mounting. Reinstall the screws into the
holes where they were removed.
6
tr FINDING THE WALL STUDS
l_l Find the studs, using one of the following
methods:
A. Stud finder - a magnetic device which
locates nails. OR
B. Use a hammer to tap lightly across the
mounting surface to find a solid sound.
This will indicate a stud location.
@ Rt"r locating the stud(s), find the center by
probing the wall with a small nail to find the edges
of the stud. Then place a mark halfiray between
the edges. The center of any adjacent studs should
be 16" (40.6 cm) or 24' (61cm) from this mark.
@ O..* a line down the center of the studs.
THE MICROWAVE MUST BE CONNECTED TO
AT LEAST ONE WALL STUD.

Instal lat ion Inst ruct ions
tr DETERM IN IN G WALL PLATE LOcATIoN U N DER YoU R CABIN ET
Plate position-beneath flat bottom
cabinet
Draw a vertical line on
the wall at the center of
the 30" wide space.
Tape the Rear Wall
Template onto the wall
matchino the centerline
and touclrino the
bottom of thE cabinet.
Plate position-beneath recessed bottom
cabinet with front overhang
Draw a line on the
back wall equal to the
depth of the front
, overhang.
Your cabinets may have decorative trim that
interferes with the microwave installation. Remove
the decorative trim to install the microwave properly
and to make it level.
THE MICROWAVE MUST BE LEVEL.
Use a level to make sure the cabinet bottom is level.
lf the cabinets have a front overhang only, with no
back or side frame, install the mounting plate down
the same distance as the front overhang depth. This
will keep the microwave level.
1 . Measure the inside depth of the front overhang.
Z.Draw a horizontal line on the back watl an equal
distance below the cabinet bottom as the inside
depth of the front overhang.
3. For this type of installation with front overhang
only, align the mounting tabs with this horizontal
line, not touching the cabinet bottom as described
in Step D.
Plate position-beneath framed recessed
cabinet bottom
v
Draw a vertical line on the wall at the center of the
30" space.
Tape the Rear Wall Template onto the wall
matching the centerline dnd touching the bottom
caDrnet Trame.
33" to Cooktop
7

I nstal lation I nstructions

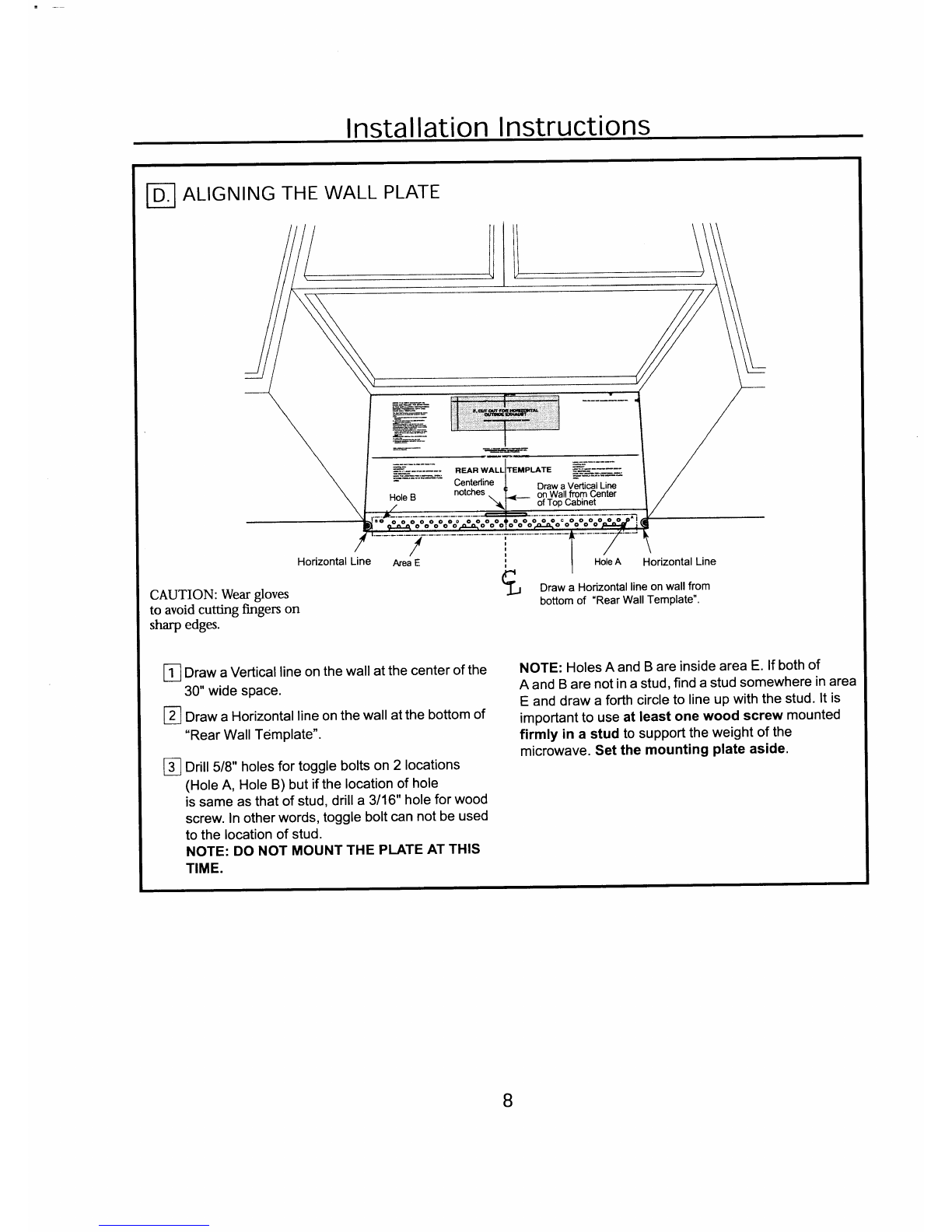

tr ALIGNING THE WALL PLATE
CAUTION: Wear gloves
to avoid cutting fingers on
sharp edges.
Draw a Horizontal line on wallfrom
bottom of "Rear Wall TemPlate".
lil Draw a Vertical line on the wall at the center of the NOTE: Holes A and B are inside area E' lf both of
A and B are not in a stud, find a stud somewhere in area
E and draw a forth circle to line up with the stud' lt is
important to use at least one wood screw mounted
firmly in a stud to support the weight of the
microwave. Set the mounting plate aside'
30" wide space.
l7l Or"* a Horizontal line on the wall atthe bottom of
"Rear Wall Tdmplate"
lsl oritt 5/8" holes for toggle bolts on 2 locations
(Hole A, Hole B) but if the location of hole
is same as that of stud, drill a 3/16" hole for wood
screw. In other words, toggle bolt can not be used
to the location of stud.
NOTE: DO NOT MOUNT THE PLATE AT THIS
TIME.
#i.]== nern wru{TEMPLATE k
Centerline | ^'.,., - 'i*,-,, ,^^uerrterrrrtt I Draw a Vertical Line
Hole B notches .. l.- opflal!.f,rm c'enter
ffi".r;,"+;;;;t'41
o ^o^ooooooooooo-oLooo oo
8

Instal lation Instructions
ll INSTALLATION TYPES (choose A, B or c)
This microwave oven is designed for adaptation to NOTE: This microwave is shipped assembled for
the following three types of ventilation: Recirculating. Select tne typebf ventilation required
A. Outside Top Exhaust (Vertical Duct) for your installation and proceed to that section.
B. Outside Back Exhaust (Horizontal Duct)
C. Recirculating (Non-Vented Ductless)
OUTSIDE TOP EXHAUST
(VERT|CAL DUCT)
Adaptor in Place for
Outside Top Exhaust
See page 12
OUTSIDE BACK EXHAUST
(HORTZONTAL DUCT)
Adaptor Must Be
Moved to the Back for
0utside Back Exhaust
See page 16
RECIRCULATING
(NON-VENTED DUCTLESS)
Seepage"zO
On models shipped for
recirculating exhaust, a
disposable charcoal filter
is factory installed to help
remove smoke and odors.
I

I nstal lation I nstructions

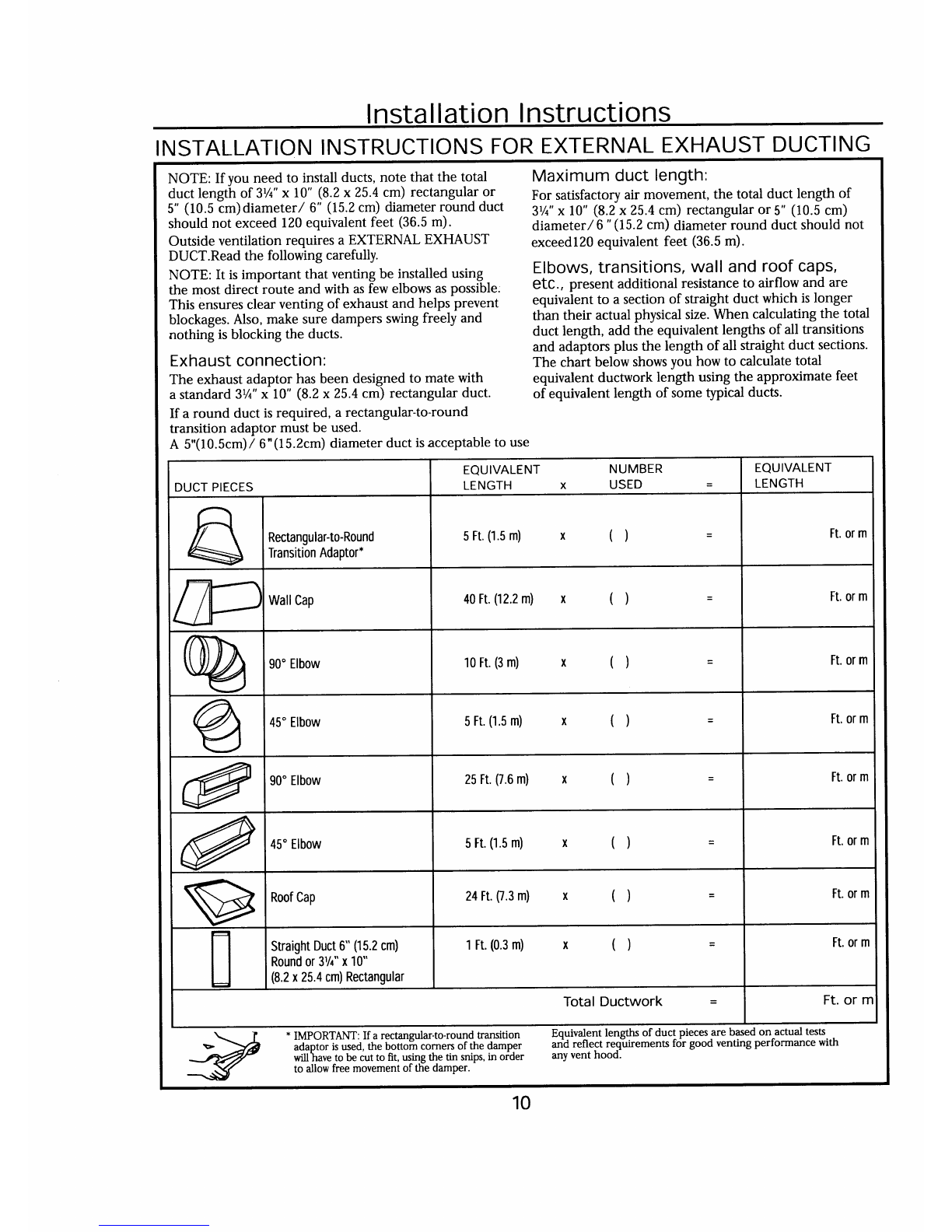

INSTALLATION INSTRUCTIONS FOR EXTERNAL EXHAUST DUCTING
Maximum duct length:
For satisfactory air movement, the total duct length of
3Vs" x 10" (8.2 x25.4 cm) rectangular or 5" (10.5 cm)
diameter,/ 6" (15.2 cm) diameter round duct should not
exceedl20 equivalent feet (36.5 m).
Elbows, transitions, wall and roof caps,
gtc., present additional resistance to airflow and are
equivalent to a section of straight duct which is longer
than their actual physical size. When calculating the total
duct length, add the equivalent lengths of all transitions
and adaptors plus the length of all straight duct sections'
The chart below shows you how to calculate total
equivalent ductwork length using the approximate feet
of equivalent length of some typical ducts.
NOTE: If vou need to install ducts, note that the total
duct length of 3t/+" x 10" (8.2 x 25.4 cm) rectangulal 9r
5" (10.5 cm)diameter/ 6" (15.2cm) diameterroundduct
should not exceed L20 equivalent feet (36.5 m).
Outside ventilation requires a EXTERNAL EXHAUST
DUCT.Read the following carefully.
NOTE: It is important that venting be installed using
the most direct route and with as few elbows as possible'
This ensures clear venting of exhaust and helps prevent
blockages. Also, make sure dampers swing freely and
nothing is blocking the ducts.
Exhaust connection:
The exhaust adaptor has been designed to mate with
a standard 3Vl' x 10" (8.2 x25.4 cm) rectangular duct.
If a round duct is required, a rectangular-to-round
transition adaptor must be used.
A 5"(l0.5cm)/ 6"(15.2cm) diameter duct is acceptable to use
DUCT PIECES EQUIVALENT NUMBER
LENGTH X USED =
EQUIVALENT
LENGTH
Rectangular-to-Round
Transition Adaptor* 5Ft.(1,5m) x ( )Ft. or m
MWall Cap 40 Ft. (12.2 m) x ( ) =Ft. or m
90" Elbow 10Ft.(3m) x ()Ft. or m
45'Elbow 5Ft.(1.5m) x ( ) =Ft, or m
90" Elbow 25Ft.(7.6m) x ( ) =Ft. or m
45" Elbow 5 Ft. (1.5 m) x ()Ft. or m
Roof Cap 24 Ft. 0.3 m) x ()Ft. or m
IStraight Duct 6" (15.2 cm)
Round or 3%" x 10"
(8.2 x 25.4 cm) Rectangular
1Ft,(0,3m) x ( ) =Ft, or m
Total Ductwork Ft. or m
* IMPORTANT: If a rectangular-to-round transition
adaptor is used, the bottom corners of the damper
willhave to be cut to fit, using the tin snips, in order
to allow free movement of the damper.
Eouivalent lenetf$ of duct pieces are based on actual tests
an'd reflect req-uirements fcir good venting performance with
any vent hood.
10

I nstal lation I nstructions

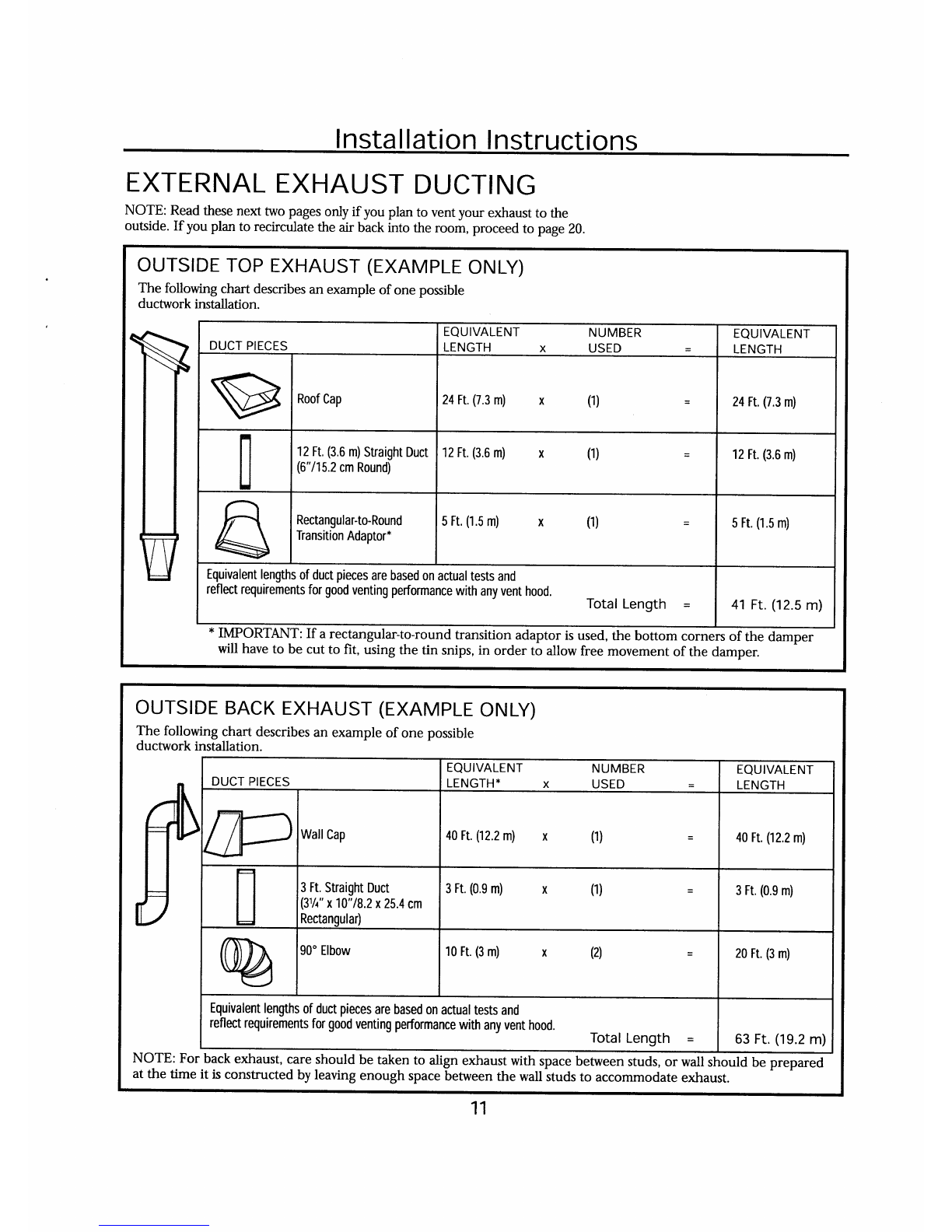

EXTERNAL EXHAUST DUCTING
NoTE: Read these next two pages only if you plan to vent your exhaust to the
outside. If you plan to recirculate the air back into the room, proceed to page 20.
OUTSIDE TOP EXHAUST (EXAMPLE ONLY)
The following chart describes an example of one posible
ductwork instal lation.
* IMPORTANT: If a rec^tangular-to-round transition adaptor is used, the bottom co-e.r of ttte *ornp"t
will have to be cut to fit, using the tin snips, in order to allow free movement of the damper.
DUCT PIECES EQUIVALENT NUMBER
LENGTH X USED =EQUIVALENT
LENGTH
Roof Cap 24 Ft. (7,3 m) x (1) =24 Ft. (7.3 m)
12 Ft, (3,6 m) Straight Duct
(6" /15.2 cm Round) 12 Ft. (3,6 m) x (1) =12 Ft. (3.6 m)
Rectangular-to-Round
Transition Adaptor* 5 Ft. (1,5 m) x (1) =5 Ft, (1.5 m)
Equivalent lengths of duct pieces are based on actual tests and
reflect requirements for good venting performance with any vent hood, Total Length =41 Ft. (12.5 m)
OUTSIDE BACK EXHAUST (EXAMPLE ONLY)
The following chart describes an example of one possible
ductwork installation.
DUCT PIECES EQUIVALENT NUMBER
LENGTH* X USED =EQUIVALENT
LENGTH
Wall Cap 40 Ft. (12.2 m) 40 Ft. (12.2 m)
3 Ft, Straight Duct
(31/e" x10" 18.2 x 25.4 cm 3 Ft. (0,e m) x (1) 3 Ft. (0.9 m)
10 Ft. (3 m)
Equivalent lengths of duct pieces are based on actual tests and
reflect requirements for good venting performance with any vent hood. Total Length 63 Ft. (19,2 m)
NOTE: For back exhaust, care should be taken to align exhaust with space between studs, or wall should d prepared
at the time it is constructed by leaving enough space between the wallituds to accommodate exhaust.
11

lnstallation Ins@
tr OUTSIDE ToP EXHAUST (Verricar Ducr)
INSTALLATION OVERVIEW
A1. Attach Mounting Plate to Wall
A2. Prepare Top Cabinet
A3. Adapting Microwave Blower for
Outside Top Exhaust
A4. Check Damper OPeration
A5. Mount Microwave Oven
A6. Adjust Exhaust AdaPtor
A7. Connect Ductwork
IMPORTANT NOTES:
' Make sure the screws for the
blower motor and blower Plate
are securely tightened when
they are reinstalled. This will
help to prevent excessive &.
vibration. iil---'--
' Make sure the motor wiring has
been properly routed and secured,
and that the wires are not Pinched.
r ATTACH THE MOUNTING
PLATE TO THE WALL
Attach the plate to the wall using toggle bolts.
At least one wood screw must be used to attach
the plate to a wall stud.
f Remove the toggle wings from the bolts.
[7] Insert the bolts into the mounting plate
" thror-rgh the holes designated to go into drywall
and reattach the toggle wings to 3/s" (19 mm) onto
each bolt.
To use toggle bolts:
Bolt End
[Tl Phce the mounting plate against the wall and
" insert the toggle wings into the holes in the wall
to mount the Plate.
NOTE: Before tightening toggle bolts and wood
screw make sure the tabs on the mounting plate
touch the bottom of the cabinet when pushed
flush against the wall and that the plate is properly
centered under the cabinet.
CAUTION: Be careful to avoid pinching fingers
between the back of the mounting plate and the wall'
[-l fignten all bolts. Pull the plate away from the wall
- to help tighten the bolts.
12

I nstal lation I nstructions
r USE TOP CABINET TEMPLATE
FOR PREPARATION OF TOP
CABINET
You need to drill holes for the top support screws, a
hole large enough for the power cord to fit through,
and a cutout large enough for the exhaust adaptor.
' Read the instructions on the TOP CABINET
TEMPLATE.
' Tape it underneath the top cabinet.
' Drill the holes, following the instructions on the
TOP CABINET TEMPLATE.
CAUTION: Wear safety goggles when drilling holes
in the cabinet bottom.
|| Carefully pull out the blower unit. The wires
- will extend far enough to allow you to adjust
the blower unit.
/-t'
tEnd B
EndA4
[J-.l Roll the blower unit 90' so that fan blade
- openings are facing out the top of the
mlcrowave.
Before Rotation After Rotation
I a I elace the blower unit back into the opening.
CAUTION: Do not pull or stretch the blower
unit wiring. Make sure the wires are not
pinched, and that they are properly secured.
Microwave Microwave
AFTER: Fan Blade
Openings Facing Top
ADAPTING MICROWAVE
BLOWER FOR OUTSIDE
TOP EXHAUST
tr Place the microwave in its upright position,
with the top of the unit facing up.
Blower Plate
Back of
-Microwave
Blower Motor
%=- Screw
Remove the screw that holds the blower plate
to the microwave. Remove and save the screw
holding the blower motor to the microwave.
13

Insta I lation Instructions
[5] Secure blower unit to microwave with the screw
removed in Step 1. Make sure the screw is tight.
E ADAPTING MICROWAVE
BLOWER FOR OUTSIDE
TOP EXHAUST
Replace blower plate with the screw removed in
Step 1. Make sure the screw is tight.
Attach the exhaust adaptor to the top of the
blower plate by sliding it into the guides of the
blower plate.
Locking Tab
Push in securely until it is in the locking tabs.
Take care to assure that the damper hinge is
installed so that the damper swings freely.
Adaptor
@ cHEcK FoR PRoPER
DAMPER OPERATION
Blower Plate Exhaust Adaptor
Make sure tape securing damper is removed and
damper pivots easily before mounting microwave.
You will need to make adjustments to assure proper
alignment with your house exhaust duct after the
microwave is installed.
E MOUNT THE MICROWAVE
OVEN
FOR EASIER INSTALLATION AND PERSONAL
SAFETY, WE RECOMMEND THAT TWO PEOPLE
INSTALL THIS MICROWAVE OVEN.
IMPORTANT: Do not grip or use handle
during installation.
NOTE: If your cabinet is metal, use the nylon
grommet around the power cord hole to prevent
cutting of the cord.
NOTE: We recommend using filler blocks if the
cabinet front hangs below the cabinet bottom shelf.
IMPORTANT: If filler blocks are
not used, case damage may occur from
overtightening screws.
NOTE: When mounting the
microwave oven, thread
power cord through hole in
bottom of top cabinet. Keep
it tight throughout Steps
1-3. Do not pinch cord or Fl lift microwave, tilt it
lift oven by pulling cord. " for*ard. and hook
pl Insert a self-aligning screw through top center
cabinet hole. Temporarily secure the oven by
turning the screw at least two full turns after the
threads have engaged. (It will be completely
tightened later.) Be sure to keep power cord
tight. Be careful not to pinch the cord, especially
when mounting flush to bottom of cabinet.
slots at back bottom
edge onto four lower
tabs of mounting
Rotate front of oven
14

I nsta I lation Instructions
E MOUNT THE MICROWAVE
OVEN (cont.)
Cabinet Front
Filler Block
Equivalent
to Depth
of Cabinet
Recess
\-E*r^isningScrew
Microwave Oven Top
!!_lAttach the microwave oven to the top cabinet.
ll Insert 2 self-aligning screws
through outer top cabinet
holes. Turn two full turns on
each screw.
I L Tighten the outer two screws to the top of the
microwave oven. (While tightening screws, hold
the microwave oven in place against the wall and
the top cabinet.)
Install grease filten. See the Owner's Manual
packed with the microwave.
Cabinet Bottom Shelf
screw completely.
ADJUST THE EXHAUST
ADAPTOR
Open the top cabinet and adjust the exhaust adaptor
to connect to the house duct.
Blower Plate Back of
Microwave
For Front-to-Back or
Side-to-Side Adjustment,
Slide the Exhaust Adaptor
as Needed
f coNNECTtNG DUCTWoRK
Extend the house duct down to connect to
the exhaust adaptor.
@ Sea exhaust duct joints using furnance duct tape
fo. high temperaflre applications.
House Duct
15

Insta I lation Instructions
Lq_l OUTSIDE BACK EXHAUST (Horizonrar Ducr)
INSTALLATION OVERVIEW
81. Prepare Rear Wall
82. Remove Blower Plate
83. Attach Mounting Plate to Wall
84. Prepare Top Cabinet
85. Adjust Blower
86. Mount the Microwave Oven
IMPORTANT NOTES:
' Make sure the screws for the
blower motor and blower plate
are securely tightened when
they are reinstalled. This will
help to prevent excessive
vibiation. tr
' Make sure the motor wiring has I
been properly routed and secured,
and that the wires are not pinched.
E PREPARING THE REAR WALL
FOR OUTSIDE
You need to cut an opening in
outside exhaust.
BACK EXHAUST
the rear wall for
Read the instructions on the REAR
WALL TEMPLATE.
Thpe it to the rear wall, lining up with the
holes previously drilled for holes A and B
in the wall plate.
Cut the opening, following the instructions of the
REAR WALL TEMPLATE.
fI REMovE BLowER PLArE
Remove and save the screw that holds the blower
plate to the microwave. Lift off the blower plate.
Blower Plate
16

Instal lation I nstructions
E ATTACH THE MoUNTING
PLATE TO THE WALL
Attach the plate to the wall using toggle bolts.
At least one wood screw must be used to attach
the plate to a wall stud.
f] Remove the toggle wings from the bolts.
pl Insert the bolts into the mounting plate through
- the holes designated to go into drywall and reattach
the toggle wings to 3/+" (19 mm) onto each bolt.
\o
@ USE TOP CABINET TEMPLATE
FOR PREPARATION OF TOP
CABINET
You need to drill holes for the top support screws and
a hole large enotrgh for the power cord to fit through.
' Read the instructions on the TOP CABINET
TEMPLATE.
' Tape it underneath the top cabinet.
' Drill the holes, following the instructions on the
TOP CABINET TEMPLATE.
CAUTION: Wear safety goggles when drilling holes
in the cabinet bottom.
To use toggle bolts:
, Spacing for Toggles More
!*i--Than Wall Thickness
iroggte Wings
i / logsre
t)
Place the mounting plate against the wall and
insert the toggle wings into the holes in the wall
to mount the plate.
NOTE: Before tightening toggle bolts and wood
screw make sure the tabs on the mounting plate
touch the bottom of the cabinet when pushed flush
against the wall and that the plate is properly
centered under the cabinet.
CAUTION: Be careful to avoid pinching fingers
between the back of the mounting plate and the wall.
[al fignten all bols. Pull the plate away from the wall
- to help tighten the bolts.
E ADAPTING MICRoWAVE
BLOWER FOR OUTSIDE
BACK EXHAUST
| 1 lRemove and save screw that holds blower motor
- to microwave. Blower Motor Back of
Microwave
t.€-_Slower Motor
Carefirlly pull out the blower unit. The wires
will extend far enough to allow you to adjust
the blower unit.
:aerorer,iarl .['1sdt'' ''
openirlgi f.aclrqg
F,OfWard,..,,..', ',',,,, //
t
17

Instal lation Instructions
E ADAPTTNG MtcRowAVE
BLOWER FOR OUTSIDE
BACK EXHAUST (cont.)
p Roll the blower unit 90'
Before Rotation
| 4 I Rotate blower unit counterclockwise 180'.
After Rotation
tr Gently remove the wires from the grooves.
Reroute the wires through grooves on other side
of the blower unit.
Before Rerouting After Rerouting
[O-l Roll the blower unit 90'
- openings are facing out
microwave.
Before Rolling
Wires Routed Through Left Side
so that fan blade
the back of the
/
Microwave
After Rotation
Microwave
Before Rotation
Microwave Microwave
Wires Routed Through Right Side
After Rolling
Microwave
Microwave
AFTER: Fan Blade
Openings Facing Back
CAUTION: Do not pull or stretch the blower
unit wiring. Make sure the wires are not
pinched, and that they are properly secured.
NOTE: The blower unit exhaust
openings should match exhaust
openings on rear of microwave oven.
Secure the blower unit to the microwave with
the original screw.
Blower Plate
/Back of
Microwave
l- tt/
I Blower Motor
IQJ Replace the blower plate in the same position
as before with the screw. Make sure the screw
is tight.
pJ Place the blower unit back into the opening.
Push in securely until it is in the lower locking
tabs. Tlake care to assure that the damper hinge
is installed so that it is at the top and that the
damper swings freely.
o
I
I
@ Rttactr the exhaust adaptor to the rear of the
oven by sliding it into the guides at the top
center of the back of the oven.
Back of
Microwave
/.t/
Guide
4
t\
Locking Tabs
v\= Guide
Adaptor
1B

I nstal lation Instructions
@ MoUNT THE MtcRowAVE
OVEN
FOR EASIER INSTALLATION AND PERSONAL
SAFETY, WE RECOMMEND THAT TWO PEOPLE
INSTALL THIS MICROWAVE OVEN.
IMPORTANT: Do not grip or use handle
during installation.
NOTE: If your cabinet is metal, use the nylon
grommet around the power cord hole to prevent
cutting of the cord.
NOTE: We recommend using filler blocks if the
cabinet front hangs below the cabinet bottom shelf.
IMPORTANT: If filler blocks are not
used, case damage may occur from
overtightening screws.
NOTE: When mounting the
microwave oven, thread
power cord through hole in
bottom of top cabinet. Keep
it tight throughout Steps
l-3. Do not pinch cord or til
lift oven by pulling cord. I :Lift microwave, tilt it
forward, and hook
slots at back bottom
edge onto four lower
tabs of mounting
plate.
Rotate front of oven
up against cabinet
bottom.
[lJlnsert a self-aligning screw through top center
cabinet hole. Temporarily secure the oven by
turning the screw at least two full turns after the
threads have engaged. (It will be completely
tightened later.) Be sure to keep power cord
tight. Be careful not to pinch the cord, especially
when mounting flush to bottom of cabinet.
Cabinet Front
Filler Block
Equivalent
to Depth
of Cabinet
Recess
\E
Microwave
Self-Aligning Screw
Oven Top
@ Rttactr the microwave oven to the top cabinet.
plnsert 2 self-aligning screws
through outer top cabinet
holes. Turn two full turns on
each screw.
ll_.jTighten the outer two screws to the top of the
microwave oven. (While tightening screws, hold
the microwave oven in place against the wall and
the top cabinet.)
Install grease filters. See the Owner's Manual
packed with the microwave.
screw completely.
19

Instal lation Instructions
|.9_j RECI RCU LATI NG (Non-Venred Ducrtess)
INSTALLATION OVERVIEW
Cl. Attach Mounting Plate to Wall
C2. Prepare Top Cabinet
C3. Check Blower Plate
C4. Mount the Microwave Oven
C5. Install or change Charcoal Filter
IMPORTANT NOTES:
' Make sure the screws for the blower motor and blower tr,_-.--.-=
Pluluaresecurelytightenedwhentheyarereinstalled#=ffi
This will help to prevent excessive vibration.
' Make sure the motor wiring has been properly routed
and secured, and that the wires are not pinched.
E ATTAcH THE MoUNTING
PLATE TO THE WALL
Attach the plate to the wall using toggle bolts.
At least one wood screw must be used to attach
the plate to a wall stud.
I nemove the toggle wings from the bolts.
pl Insert the bolts into the mounting plate through
- the holes designated to go into drywall and
reattach the toggle wings to3/s" (19 mm) onto
each bolt.
To use toggle bolts:
Spacing for Toggles
More Than Wall
Bolt End
Place the mounting plate against the wall and
insert the toggle wings into the holes in the wall
to mount the plate.
NOTE: Before tightening toggle bolts and wood
screq make sure the tabs on the mounting plate
touch the bottom of the cabinet when pushed flush
against the wall and that the plate is properly
centered under the cabinet.
CAUTION: Be careful to avoid pinching fingers
between the back of the mounting plate and the wall.
[+l tigfrten all bolts. Pull the plate away from the wall
- to help tighten the bolts.
E USE TOP CABINET TEMPLATE
FOR PREPARATION OF TOP
CABINET
You need to drill holes for the top support screws and
a hole large enough for the power cord to fit through.
' Read the instructions on the TOP CABINET
TEMPLATE.
' Tape it underneath the top cabinet.
' Drill the holes, following the instructions on the
TOP CABINET TEMPLATE.
CAUTION: Wear safety goggles when drilling holes
in the cabinet bottom.
20
