Convaid Carrot 3 User manual

If you have any questions concerning the Carrot 3 Chest Support, please call your Convaid
Representative at 888 CONVAID (266-8243) or [phone].
888-Convaid (266-8243)
www.convaid.com
Replace Chest Support
• Carrot3
Chairs
Fig. 1
Fig. 3
Fig. 5
1. Remove standard chest support by
unzipping the back to remove cover.
(Fig. 1)
2. With a razor blade, cut the right and left
side of white tape to separate standard
chest support from attached buckle.
(Fig. 2)
3. Remove the large chest support.
4. To attach the small chest support, align
the small chest support with the attached
car seat buckle. (Fig. 3)
5. To secure chest support with car seat
buckle – wrap provided white tape
around chest support and belt buckle.
(Fig. 4)
6. Take provided chest support cover for
small chest support and wrap it around
the chest support until completely
covered. (Fig. 5)
7. Secure the closure by zipping the back
side of the chest support cover. (Fig. 6)
Chest Support Kit
Fig. 2
Fig. 4
Fig. 6
White
Tape
Small
Chest
Support
Chest
Support
Cover

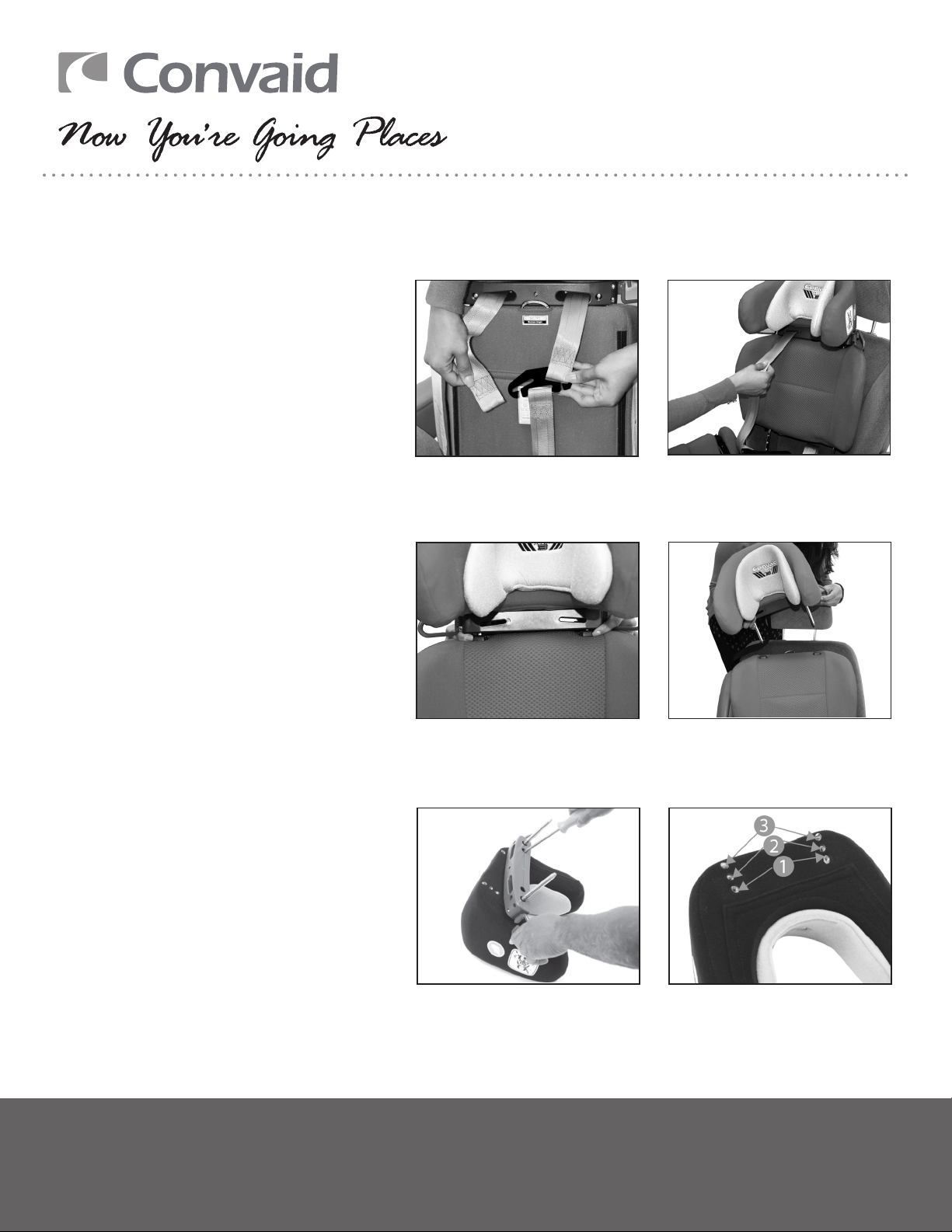

Fig. 1
1. Detach straps from shoulder
harness bracket located on the
back. (Fig. 1)
2. Pull shoulder straps through the
front side of the shoulder harness
holder. (Fig. 2)
3. Remove the standard head
support by simultaneously
pushing the two gray buttons
(Fig. 3) and pull head support
up. (Fig. 4)
4. Remove screws on each side
of the head support with a
Phillips screwdriver (Fig. 5)
5. Use hole 1,2, or three to attach
small head support to desirable
position, and reinsert screws.
(Fig. 6)
6. Reverse steps 1 through 3 to
attach small head support.
Fig. 2
Fig. 3 Fig. 4
Fig. 5 Fig. 6
888-Convaid (266-8243)
www.convaid.com
Carrot 3 Head Support Replacement
• Carrot3
Chairs
If you have any questions concerning the Carrot 3 Head Support, please call your Convaid
Representative at 888 CONVAID (266-8243) or [phone].
IN0044-ENG-07292014 Printed in U.S.A.
