Cooke & Lewis BI50FFCL User manual

Integrated Fridge Freezer
BI50FFCL-BI70FFCL - Version: 01
GB IE Integrated Fridge Freezer - Barcode: 5052931258512, 5052931258529
WARNING: Read the instructions before using the appliance.
BI50FFCL-BI70FFCL-C&L-A5 GB-IM-10.indd 1 10/14/13 11:50 AM

BI50FFCL-BI70FFCL Integrated Fridge Freezer
[01] x 2 [02] x 2 [03] x 4
(pre-tted on appliance)
[04] x 2 [05] x 1 [06] x 2
(pre-tted on appliance)
[07] x 2 [08] x 4 [09] x 1
(pre-tted on appliance) (pre-tted on appliance)
[10] x 4 [11] x 1 [12] x 1
BI50FFCL-BI70FFCL-C&L-A5 GB-IM-10.indd 2 10/14/13 11:50 AM

BI50FFCL-BI70FFCL Integrated Fridge Freezer
[17] x 40 (3 x 12mm)
(5 for spare use)
[18] x 4 (5 x 16mm)
[19] x 2 (5 x 15mm)
[20] x 4 (4 x 10mm)
1 : 1
[13] x 1 [14] x 2 [15] x 8
(pre-tted on appliance)
[16] x 4
BI50FFCL-BI70FFCL-C&L-A5 GB-IM-10.indd 3 10/14/13 11:50 AM

4
Let's
get started...
These instructions are for your safety. Please read through them
thoroughly before use and retain them for future reference.
Getting started… 05
Your product 05
Before you start 06
Safety 07
In more detail… 12
Operation 12
Care and maintenance 18
Troubleshooting 21
Technical and legal information 23
Recycling and disposal 23
Guarantee 24
CE Declaration of Conformity 26
Appendix...
27
Installation
GB
IE
BI50FFCL-BI70FFCL-C&L-A5 GB-IM-10.indd 4 10/14/13 11:50 AM

5
Getting started...
BI50FFCL-BI70FFCL Integrated Fridge Freezer GB
IE
Your product

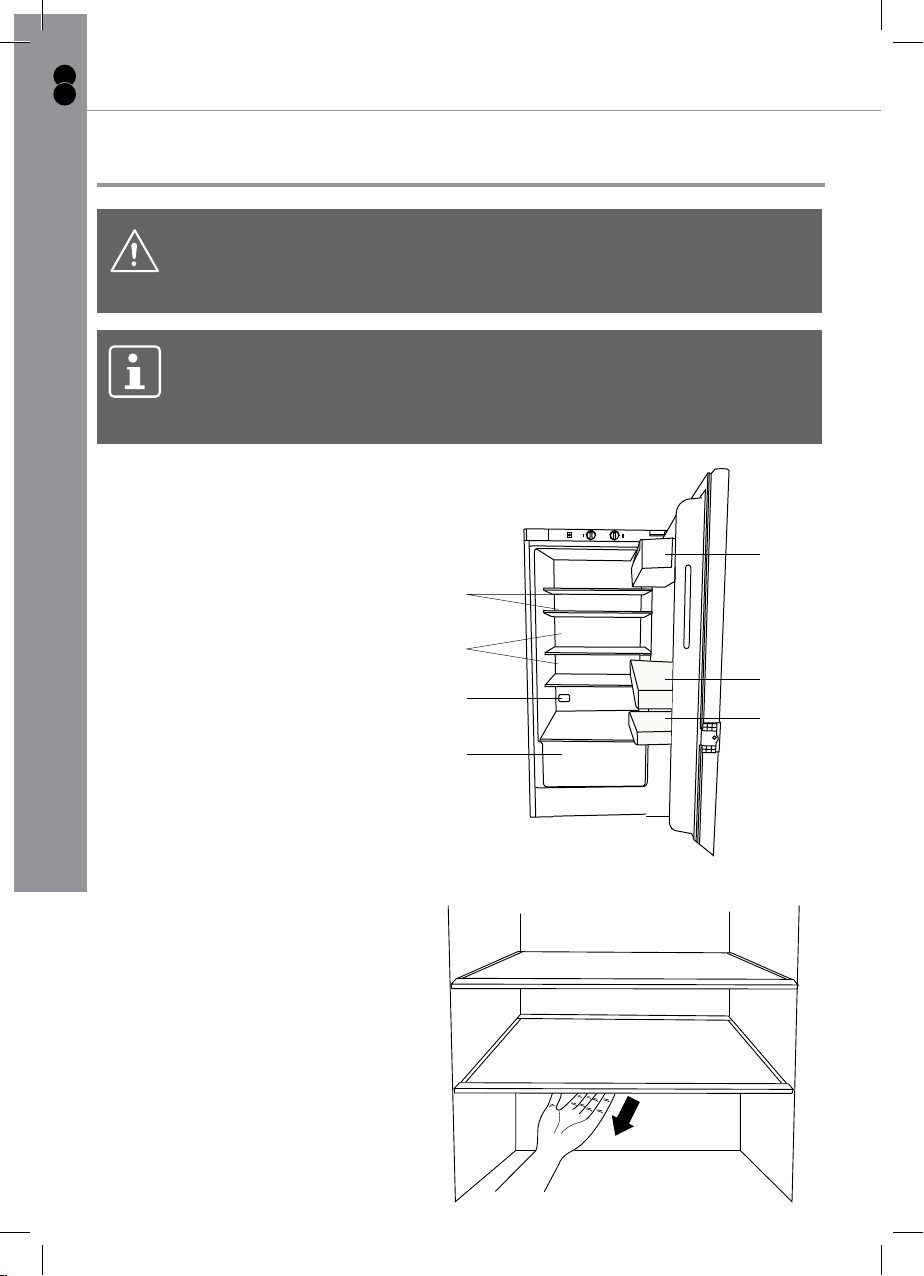

01. Main control panel
02. Upper bottle seat
03. Shelf
04. Middle bottle seat
05. Lower bottle seat
06. Crisper
07. Drawer
Your product
Installation guide
located at the end of
the guidebook
[01]
[03]
[06]
[07]
[02]
[04]
[05]
BI50FFCL-BI70FFCL-C&L-A5 GB-IM-10.indd 5 10/14/13 11:50 AM

6
BI50FFCL-BI70FFCL Integrated Fridge Freezer
Getting started...
GB
IE
Before you start
Things to check before you start
To avoid the risks that are always present when you use an electrical
appliance it is important that this appliance is installed correctly and that
you read the safety instructions carefully to avoid misuse and hazards.
Please keep this instruction booklet for future reference and pass it on to
any future owners. After unpacking the appliance please check that it is
not damaged. If in doubt, do not use the appliance but contact Customer
Services on 0844 800 1128 (UK) and 01 4475261 (Ireland).
Check the package and make sure you have all of the parts listed.
Remove all packing material. This includes the foam base and all
adhesive tapes holding the refrigerator accessories inside and outside.
Decide on the appropriate location for your product.
If this product contains glass please take care when tting or handling to
prevent personal injury or damage to the product.
The specications plate is available on this appliance. This plate displays
all the necessary identication information for ordering replacement parts.
If you sell the appliance, give it away, or leave it behind when you move
house, make sure you also pass on this manual so that the new owner
can become familiar with the appliance and its safety warnings.
Clean the refrigerator before use (refer to Care and Maintenance section).
After levelling and cleaning the refrigerator, leave the refrigerator stand for
30 minutes or above before power it on, and then power it on in order to
ensure its normal operation.
You will need
BI50FFCL-BI70FFCL-C&L-A5 GB-IM-10.indd 6 10/14/13 11:50 AM

7
Getting started...
BI50FFCL-BI70FFCL Integrated Fridge Freezer GB
IE
Safety
These instructions are for your safety. Please
read through them thoroughly prior to
installation and retain them for future reference.
• All installation work must be carried
out by a competent person or qualied
electrician.
• This appliance must be installed correctly
by a suitably qualied person, strictly
following the manufacturer’s instructions.
Connect the product to a suitable electrical outlet
(220V~, 50Hz). Various failures or faults such as
failure in startup, burnout of temperature controller
or compressor, abnormal operating sound of
compressor may be caused, in case of larger
voltage uctuation range (exceeding 187-242V~),
and in such case, a 750W or above automatic
voltage regulator must be installed.
A separate, special power socket is mandatory
and reliable grounding is required. Power cord
of the refrigerator is provided with a three-pin
(grounding) plug, conforming to the standard
three-pin (grounding) plug. In no event, the third
pin (grounding) of the power cord shall be cut or
removed. If the refrigerator is arranged in place, the
plug shall be touchable for use. Warning! The plug
of power cord shall be securely connected with the
socket; otherwise, a re may occur.
BI50FFCL-BI70FFCL-C&L-A5 GB-IM-10.indd 7 10/14/13 11:50 AM

8
BI50FFCL-BI70FFCL Integrated Fridge Freezer
Getting started...
GB
IE
Safety
Do not damage the power cord
• Never unplug the refrigerator by pulling on the
power cord; Always grasp the plug rmly and
pull straight out from the socket;
• Do not place the refrigerator on the power
cord or tramp on the power cord;
• Move the refrigerator away from the wall with
care; do not roll on or damage the power cord.
Regularly check the power plug and power
cord for damage. If the supply cord is
damaged, it must be replaced by a special
cord or assembly available from the
manufacturer or its service agent.
In the event of a mains gas leak,
• Isolate the gas supply at the main isolation
valve;
• Open the door and window;
• Do not plug or unplug the refrigerator and
other appliances.
Unplug your refrigerator under any of the
following circumstances:
• Unplug your refrigerator before cleaning or
making any repair.
• Unplug your refrigerator before replacing
damaged bulb in order to protect from an
electric shock.
BI50FFCL-BI70FFCL-C&L-A5 GB-IM-10.indd 8 10/14/13 11:50 AM

9
Getting started...
BI50FFCL-BI70FFCL Integrated Fridge Freezer GB
IE
Safety
It is prohibited to put inammable, explosive,
hazardous materials, and high-corrosion acid,
alkali, etc. into the refrigerator.
This product is household refrigerator. According
to national standard, household refrigerator is
only applicable to storage of food, and can not
be used to store blood, medicine, biological
products or for other purposes.
Do not store or use gasoline or other
inammable articles around the refrigerator in
order to avoid a re hazard.
After your refrigerator is in operation, do
not touch the cold surfaces in the freezer
compartment, particularly when hands are
damp or wet. Otherwise, skin may adhere to
these extremely cold surfaces.
Do not put bottle beer, drinks, etc. into the
freezer in order to prevent from cracking.
Do not place unstable articles (e.g. heavy objects,
vessels containing water) on the top of the
refrigerator. So such items could fall and injure
people or could overow and spill on to electrical
components and cause an electrical shock.
It is prohibited to privately dismantle or alter
the refrigerator and also to tamper with the
refrigerating pipeline. Refrigerator maintenance
and servicing must be performed by qualied
refrigeration technicians.
BI50FFCL-BI70FFCL-C&L-A5 GB-IM-10.indd 9 10/14/13 11:50 AM

10
BI50FFCL-BI70FFCL Integrated Fridge Freezer
Getting started...
GB
IE
Safety
Do not use water to wash your refrigerator,
or install it in a damp place, in order to avoid
affecting electrical insulation properties of the
refrigerator.
Unplug your refrigerator in the event of a
power failure or before cleaning. Wait at least
ve minutes before reconnecting the power, in
order to avoid damage to the compressor.
Do not play with the cabinet door in order to
avoid personal injury.
Do not install any electrical appliance above
the refrigerator. Doing so could cause
electromagnetic interference that could affect
the performance of the refrigerator.
Do not store explosive substances such as
aerosol cans with a ammable propellant in
this appliance.
If your old refrigerator is not being used, we
recommend that you remove the doors and
door gaskets. This will reduce the possibility of
danger to children.
The refrigerator should be installed away from
heat sources and from direct sunlight, in order
to avoid affecting working performance of the
refrigerator.
BI50FFCL-BI70FFCL-C&L-A5 GB-IM-10.indd 10 10/14/13 11:50 AM

11
Getting started...
BI50FFCL-BI70FFCL Integrated Fridge Freezer GB
IE
Safety
This refrigerator should be installed in an
enclosed cabinet. Refer to overall dimensions
of the product as indicated in the Instructions
for the specications of the cabinet.
Do not expose the refrigerator into a cold or
frozen environment, open air or rain.
This appliance can be used by children
aged from 8 years and above and persons
with reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given supervision
or instruction concerning use of the appliance
in a safe way and understand the hazards
involved. Children shall not play with the
appliance. Cleaning and user maintenance
shall not be made by children without
supervision.
This appliance is not intended for use by
persons (including children) with reduced
physical,sensory or mental capabilities, or lack
of experience and knowledge, unless they
have been given supervision or instruction
concerning use of the appliance by a person
responsible for their safety.
Children should be supervised to ensure that
they do not play with the appliance.
BI50FFCL-BI70FFCL-C&L-A5 GB-IM-10.indd 11 10/14/13 11:50 AM

12
In more detail...
BI50FFCL-BI70FFCL Integrated Fridge Freezer
GB
IE
Operation

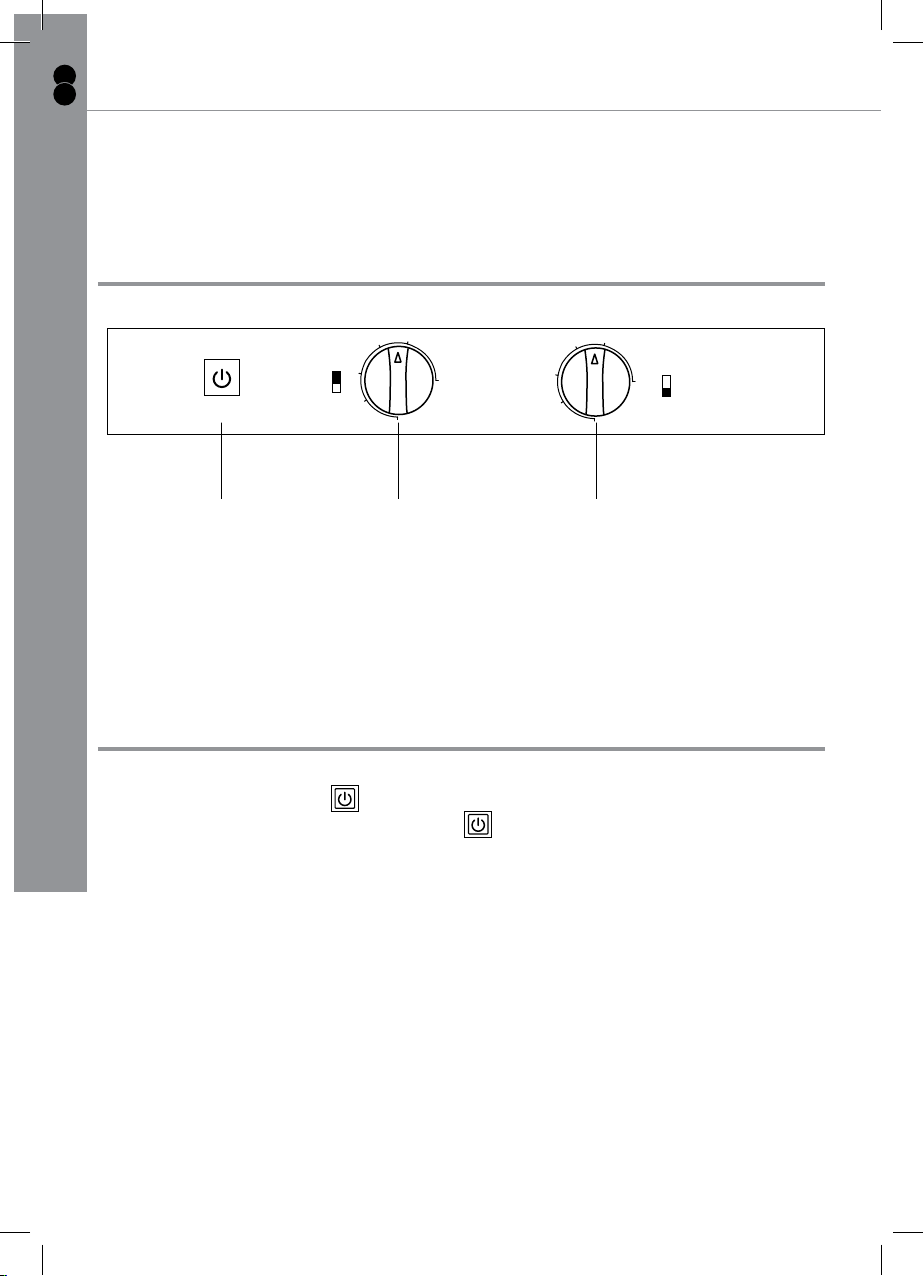

Control panel
High
Mid
Low
REF.
S.cool
3 Sec.
High
Mid
Low
S.Frz
FRZ.
A B C
A - Power switch: switches the power supply to the refrigerator on or off.
B - Refrigerator temperature adjustment: adjusts the temperature in the
refrigerator and sets the quick cooling function.
C - Freezer temperature adjustment: adjust the temperature in the freezer and
sets the quick freezing function.
Adjustments
Power switch
• Push “Power Switch” button for 3 seconds, and the refrigerator will start
operation. Press the “Power Switch” button again for 3 seconds, the
refrigerator will be switched off.
Temperature adjustment of the refrigerator chamber
• Turn refrigerator adjustment dial to “Low”, “Medium” or “High”.
Temperature adjustment of the freezer
• Turn freezing adjustment dial to “Low”, “Medium” or “High”.
Quick cooling function arrangement
• To select "Quick Cooling" function rotate dial in anti-clockwise direction.
Quick freezing function arrangement
• To select "Quick Freezing" function rotate dial in anti-clockwise direction.
Remark: Alarm will be on if the refrigerator door is not closed for long time.
After delivery, wait for eight hours before connecting the appliance
to your mains supply. This will allow any refrigerant gasses that may
have been disturbed during the transportation process to settle.
BI50FFCL-BI70FFCL-C&L-A5 GB-IM-10.indd 12 10/14/13 11:50 AM

13
In more detail...
BI50FFCL-BI70FFCL Integrated Fridge Freezer GB
IE
Operation
Adjustments
Door open alarm
• If the refrigerator door has been open for over 60 seconds, the alarm will
emit 3 beeps at an interval of 0.5s. This will repeat every 30 seconds until the
refrigerator door is closed.
Switching on/off
1. Switch the appliance on using the “Power Switch”.
Note!
Never put too much food in the freezer. In the refrigerator, it’s
suggested not to cross the load line in the crisper drawer.
Note!
The total weight of the food stored on each shelf of the refrigerator
chamber shall not exceed 10kg.
Operation of refrigerator
• It takes the refrigerator several hours to reach temperature after it is been
switched on for the rst time.
• Food can be put into the refrigeration chamber after approximately 2-3 hours.
• Food should not be put into the freezer chamber until the appliance has been
switched on for 24 hours.
• Let the refrigerator stabilize for 24 hours after food has been placed inside
the refrigerator chamber. Afterwards, the temperature can be changed.
• The temperature of the refrigerator and freezer chambers is factory preset to
5°C and -18°C respectively.
Caution!
It takes time for the temperature in the refrigerator to balance in the
event of changes in temperature. The duration depends upon the
ambient temperature, door opening frequency and the quantity of food
stored in the refrigerator.
BI50FFCL-BI70FFCL-C&L-A5 GB-IM-10.indd 13 10/14/13 11:50 AM

14
In more detail...
BI50FFCL-BI70FFCL Integrated Fridge Freezer
GB
IE
Operation
Refrigerator chamber
Warning!
Do not use electrical appliances inside the food storage compartments
of the appliance, unless they are of the type recommended by the
manufacturer.
Note!
The refrigeration chamber is designed to operate at a temperature
between 2-7°C. Therefore, the refrigeration chamber can only be used
for short term food storage
Storage areas suggested for
various food
The temperature of different areas
of the refrigeration chamber varies
due to cool air circulation. Area 06 is
the coolest area in the refrigeration
chamber. Therefore, different types
of food should be stored in different
areas.
01 Eggs, butter, etc.;
02 Cans, seasonings, etc.
03 Drinks, various bottled food, etc.;
04 Pickling food, cans, etc.;
05 Cooked wheaten food, cans,
milk, etc.;
06 Cooked meat, sausage, etc.;
07 Fruits, vegetables, salad, etc.
High
Mid
Low
REF.
S.cool
3Sec.
High
Mid
Low
S.Frz
FRZ.
02
04
06
07
05
03
01
Use of the shelf
• The shelves can be installed at
different heights according to
the size and height of the food.
• When taking out a shelf, please
pull it out by holding its front
edge as shown in the diagram.
BI50FFCL-BI70FFCL-C&L-A5 GB-IM-10.indd 14 10/14/13 11:50 AM

15
In more detail...
BI50FFCL-BI70FFCL Integrated Fridge Freezer GB
IE
Operation
Refrigerator chamber

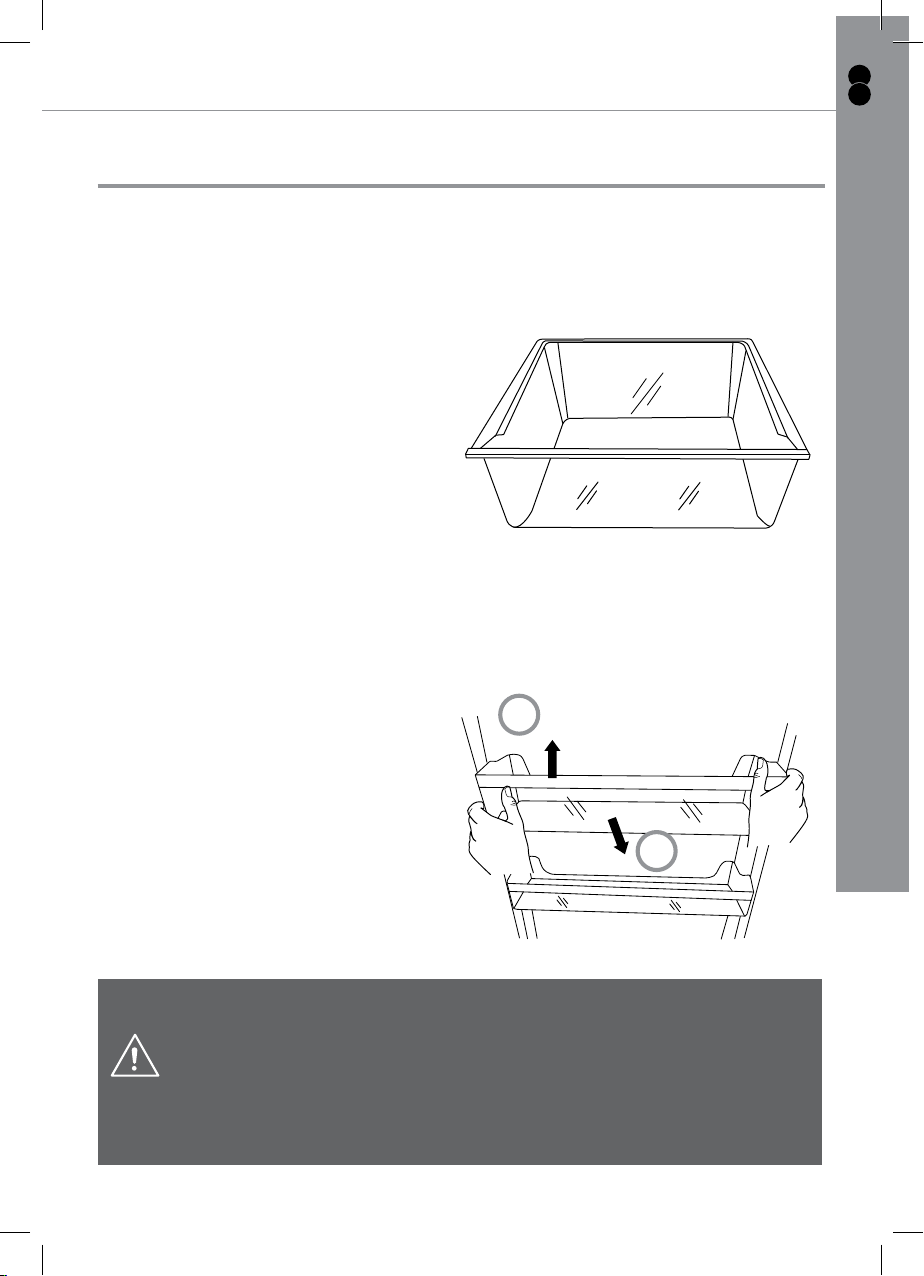

Use of the crisper drawer
• Fruits and vegetables should be
stored in the crisper drawer. Fruit
and vegetables stored under
normal refrigerator chamber
environment will lose its moisture
quite soon in the dry cold air.
That is to say, the epidermis of
fruits and vegetables will become
wrinkled, and the taste will go
bad. Fruits and vegetables
can maintain more moisture by
controlling the humidity of the
crisper drawer and making the
air wet. Therefore, the quality
of fruits and vegetables can
be maintained for a long time,
making them much fresher and
healthier.
Use of bottle seat
• The bottle seat located in the
door can be moved as per food
storage requirements. The bottle
seat can be taken out by lifting it
up (1), then pulling it towards you
(2).
• When installing the bottle seat,
please install it at the required
bottle seat xing position within
the refrigerator door, and then
push it into place.
1
2
Caution!
The refrigerator can work for several years without maintenance and
inspection.
However, in the event of a fault arising please contact Customer
Services on 0844 800 1128 (UK) and 01 4475261 (Ireland). All repairs
and maintenance must be conducted by the manufacturers authorised
service engineers.
BI50FFCL-BI70FFCL-C&L-A5 GB-IM-10.indd 15 10/14/13 11:50 AM

16
In more detail...
BI50FFCL-BI70FFCL Integrated Fridge Freezer
GB
IE
Operation
Precautions for refrigerating food
Hot food should be allowed to cool to ambient temperature before being
placed into the refrigerator.
Wipe any moisture droplets from food prior to storing in the refrigerator..
Food should be sealed before putting it into the refrigerator. Sealing the
food prevents it drying out and odours being transferred to other food stuff
(odour tainting).
Store food separately as per their types. Food consumed frequently can
be put at the front of the shelf, as can food with shortest shelf life. This is
helpful to prevent the occurrence of out-of-date food.
Caution!
The inner liner will become stained/soiled if food stuffs (oils especially)
are stored in contact with it for a long time. Therefore, please avoid
direct contact between food and the inner liner. If oils do come into
contact with the inner liner, please clean it off immediately.
Proper use of the refrigeration chamber
Store eggs in the egg tray supplied to prolong the storage period.
Thaw frozen food in the refrigeration chamber. This helps to reduce the
temperature in the chamber and results in lower running costs.
Some foods such as onions, garlic, ginger, potatoes, etc can be stored for
a long time at normal room temperatures, so there is no need to put them
into the refrigeration chamber.
Food stuffs such as melon, pawpaw, banana, pineapple; etc should not
be stored in the refrigeration chamber. Green fruits can be put in the
refrigeration chamber for storage.
Caution!
When the ambient temperature is 0 – 10°C in winter, the refrigerator
chamber temperature is low and the temperature of lower part of
refrigerator chamber is about 0°C, while vegetables, fruit, etc. shall be
put into the upper part of refrigerator chamber to avoid frost damage.
BI50FFCL-BI70FFCL-C&L-A5 GB-IM-10.indd 16 10/14/13 11:50 AM

17
In more detail...
BI50FFCL-BI70FFCL Integrated Fridge Freezer GB
IE
Operation
Precautions for refrigerating food
The freezer is used to store food for a long time
• The freezer compartment achieves low temperatures and can keep food
in fresh state for a long time. You must adhere to the storage instruction
indicated on the food packaging.
• The table below gives an indication of the period that foods can be stored in
the freezer compartment:
Food varieties Freshness
period (month)
Max storage
period (month)
Chicken, beef, lamb, shrimps 4 9
Dumpling, frozen stuffed-bun, steak,
ice cream bar 4 6
Cake, bread, meat slice, cheese 2 6
Crabs, seafood, sausage, ice cream 1 3
Refer to the freezing instructions on the manufacturers packaging. Specic
storage time depends on the food quality, preprocessing before refrigeration and
different food quality requirements of individuals.
Note!
Do not exceed the freezing capacity of the refrigerator.
Do not put too many fresh foods into the freezer at one time. Do not exceed the
freezing capacity of refrigerator (as indicated on the data plate).
• Cool hot food to room temperature before putting it into the freezer.
• Divide food into small lots. Food will freeze and thaw more quickly thus
ensuring better quality; it's recommended that each lot shall not exceed
2.5kg.
Precautions for refrigerating food
• Pack the food and keep the exterior surface of package dry prior to freezing.
This will prevent packaging from sticking together. Packaging material shall
be free from odour, air leakage, water permeation, non-poisonous and
non-contaminating to prevent tainting of other food and decreasing its quality.
• Mark the freezing date, period and type of food on the packaging. This helps
to store food according to guidelines.
• In principle, take out the food from the freezer to thaw. DO NOT refreeze food
that has been thawed. Thawed foods that has been processed into a cooked
nished dish can be frozen once it has cooled.
BI50FFCL-BI70FFCL-C&L-A5 GB-IM-10.indd 17 10/14/13 11:50 AM

18
In more detail...
BI50FFCL-BI70FFCL Integrated Fridge Freezer
GB
IE
Operation
Care and maintenance
Tips for energy conservation
Many simple and feasible methods can be used for energy conservation.
During the installation
Please install the refrigerator in the room where the temperature is the lowest. If
it is placed in direct sunlight or next to an oven or other heat source, the energy
consumption can increase substantially.
Make sure the refrigerator is well ventilated as per the Installation Instructions.
During use
• Avoid putting too much food in the refrigerator to ensure adequate air circulation.
• Please don’t use anything (for example, aluminium foil, wax paper, or facial
tissue) on the shelves as pads; otherwise, air circulation will be affected.
• Avoid putting too much warm food in at any one time. Ensure food stuffs do
not block air inlet/outlet vents in the refrigerator.
• The cooling efciency of the refrigerator will reach its peak when two thirds of
the refrigerator is full.
• Only open the door for short periods when loading or rearanging food in the
refrigerator.
Cleaning
Before putting food into the refrigerator
• Please remove all the packing materials.
• Clean the internal refrigerator with warm water with cleanser essences to
remove dust left during the manufacture and transportation.
• There is peculiar smell in the refrigerator at the very beginning. However, the smell
will disappear automatically when the temperature of the refrigerator is low enough.
• Let the refrigerator run without load for 2-3 hours to make sure each chamber
is cooled to a proper temperature.
Since residual food in the refrigerator produces bad odor, the refrigerator must be
regularly cleaned.
• For safety, unplug the appliance from the power supply before cleaning.
• Dip soft towel or sponge in warm water (neutral detergent can be added) to
clean refrigerator.
Warning!
Do not use mechanical devices or other means to accelerate the
defrosting process, other than those recommended by the manufacturer.
Prohibition!
Do not clean refrigerator with scrubbing brush, wire brush, abrasive
powder, gasoline, lacquer thinner, acetone and other organic solvents,
boiling water, acid, alkali, etc.
BI50FFCL-BI70FFCL-C&L-A5 GB-IM-10.indd 18 10/14/13 11:50 AM

19
In more detail...
BI50FFCL-BI70FFCL Integrated Fridge Freezer GB
IE
Care and maintenance
Cleaning
• Dry the inside of the refrigerator with dry cloth.
Warning!
Do not clean by spraying water onto the appliance to prevent impact on
electrical insulation.
Use a dry rag to clean control panel, internal lamp and other electrical
components.
• Always pay attention to keeping door seals clean as they get dirty easily.
Power cuts
Treatment in case of a power cut
Food can be stored for several hours, even in summer, during a power cut.
• Do not put in more food or open the refrigerator doors during a power cut.
• If a power cut is known in advance, prepare ice in watertight containers. Put the
ice into the upper part of refrigerator chambers to preserve the temperature.
Caution!
Freezer temperature rise resulting from power cut or other fault may
shorten the storage period and edible quality of food.
Extended loss of power
• In case of an extended power loss, unplug the appliance and clean the
refrigerator according to the cleaning section.
• During the power loss period, keep the refrigerator door open to prevent a
build up of bad bacteria and bad odours.
Caution!
Generally, power loss does not impact on the service life of refrigerator.
Caution!
When power is restored, wait ve minutes before plugging the
refrigerator back in.
In case of being on holiday
• If on a short holiday, take out the food that easily spoils, DO NOT adjust the
temperature switch position, make sure the refrigerator doors are closed.
• In case of being on a long holiday and turning the power off at home, remove
all food, clean the interior after frost thaws; keep the refrigerator doors open
after drying to prevent a build up of bad bacteria and bad odours.
BI50FFCL-BI70FFCL-C&L-A5 GB-IM-10.indd 19 10/14/13 11:50 AM

20
In more detail...
BI50FFCL-BI70FFCL Integrated Fridge Freezer
GB
IE
Care and maintenance
Relocating appliance
During relocation
• Press the power button for 3 seconds to cut off power, unplug the power plug
from the wall socket.
• Remove all food from the refrigerator.
• Fix the drawers, shelves, crisper and other moving components with tape.
• Close the refrigerator door tightly and x with tape to prevent opening during transit.
• The maximum inclination during relocating the refrigerator should not exceed
45° (the included angle with vertical direction) to prevent refrigeration system
fault and impact on normal use.
Prohibition!
Never lay down the refrigerator.
Frequently asked questions
When the refrigerator is working, the evaporator and pipes can make a
cracking sound due to thermal expansion and contraction resulting from
changes in temperature.
It is normal that the compressor works for a long time when large quantities
of food has been placed in the appliance or when the ambient temperature
is high.
When the refrigerator switches on or off, the electrical components such
as the thermostat, starting relay and thermal protector will give out click
sound. This is normal operation.
Tiny drops of moisture can appear on the back of external surface of the
refrigerator and can be dried with soft cloth.
It is normal that the temperature of rear condenser is high due to heat
dissipation.
During start up (rst use) the refrigerator will hum more loudly. This noise
will decrease after short period of time.
Vibration sound is related to location of the refrigerator. Slight vibration will
result in much more noise if the appliance is not level. Level the refrigerator
to reduce vibration sound.
During rst use the refrigerator operates for a long time. The temperature
of refrigerator body and compressor is higher than normal.
BI50FFCL-BI70FFCL-C&L-A5 GB-IM-10.indd 20 10/14/13 11:50 AM
