Cooke & Lewis CLBUF-60 User manual
Built under freezer
BFZ60CL - Version: 01
GB IE Built under freezer - Barcode: 5052931258505
WARNING: Read the instructions before using the appliance.
BFZ60CL-C&L-A5-GB-IM-12.indd 1 10/8/13 2:20 PM
2
[01] x 1 [02] x 1
[03] x 2 [04] x 2
[05] x 1 [06] x 2
BFZ60CL Built under freezer
1 : 1
[08] x 4 (4 x 18mm)
[07] x 27 (3 x 12mm)
(2 for spare use)
[09] x 2 (5 x 16mm)
BFZ60CL-C&L-A5-GB-IM-12.indd 2 10/8/13 2:20 PM
3
Let's
get started...
These instructions are for your safety. Please read through them
thoroughly before use and retain them for future reference.
Getting started… 04
Your product 04
Before you start 05
Safety 06
In more detail… 09
Operation 09
Care and maintenance 15
Troubleshooting 16
Recycling and disposal 18
Technical and legal information 18
Guarantee 19
CE Declaration of conformity 21
Appendix...
22
Installation
GB
IE
BFZ60CL-C&L-A5-GB-IM-12.indd 3 10/8/13 2:20 PM
4
BFZ60CL Built under freezer
Getting started...
GB
IE

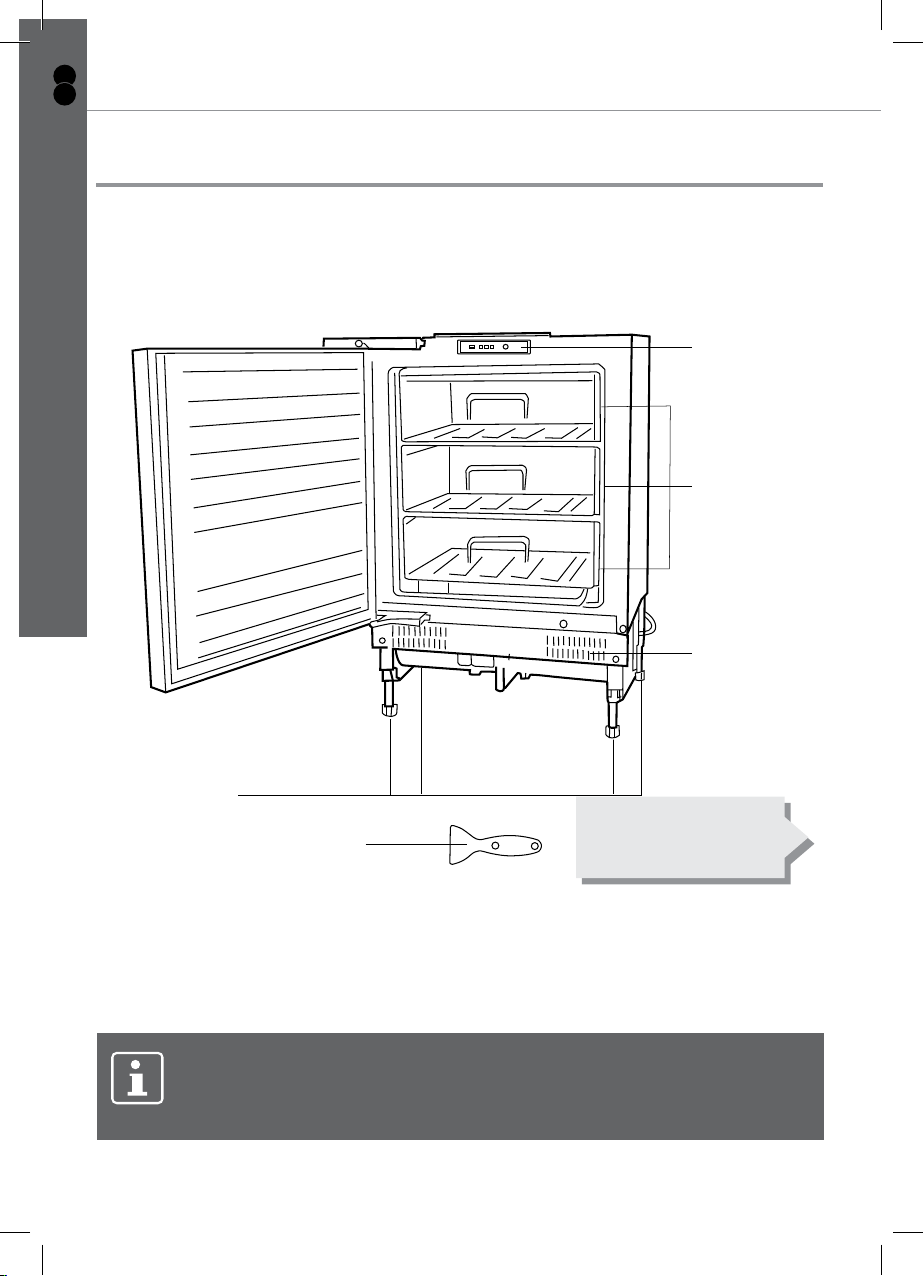

Your product
01. Thermostat control dial
02. Frozen food drawers
03. Ventilation grills
04. Leveling feet
05. Ice scraper
Your product
Installation guide
located at the end of
the guidebook
[01]
[02]
[03]
[05]
[04]
Thermostat control dial
• Allows you to adjust the internal temperature of the appliance.
Frozen food drawers
• Pull out drawers for storage and easy access to frozen food.
Note
It is important that none of the drawers are over loaded. Over loading
can break the drawers and reduce the appliances performance due to
poor air circulation
BFZ60CL-C&L-A5-GB-IM-12.indd 4 10/8/13 2:20 PM
5
Getting started...
BFZ60CL Built under freezer GB
IE
Things to check before you start
To avoid the risks that are always present when you use an electrical
appliance it is important that this appliance is installed correctly and that
you read the safety instructions carefully to avoid misuse and hazards.
Please keep this instruction booklet for future reference and pass it on to
any future owners. After unpacking the appliance please check that it is
not damaged. If in doubt, do not use the appliance but contact Customer
Services on 0844 800 1128 (UK) and 01 4475261 (Ireland).
Check the package and make sure you have all of the parts listed.
Decide on the appropriate location for your product.
Ifthisproductcontainsglasspleasetakecarewhenttingorhandlingto
prevent personal injury or damage to the product.
Thespecicationplatelocatedontheappliancedisplaysallthenecessary
identicationinformationfororderingreplacementparts.
If you sell the appliance, give it away, or leave it behind when you move
house, make sure you pass on this manual so that the new owner can
become familiar with the appliance and its safety warnings
You will need
Before you start
BFZ60CL-C&L-A5-GB-IM-12.indd 5 10/8/13 2:20 PM
6
BFZ60CL Built under freezer
Getting started...
GB
IE
Safety
These instructions are for your safety. Please
read through them thoroughly prior to
installation and retain them for future reference.
•All installation work must be carried
outbyacompetentpersonorqualied
electrician.
•This appliance must be installed correctly
byasuitablyqualiedperson,strictly
following the manufacturer’s instructions.
Your appliance is only designed to be used in the
home. It is suitable for freezing and storing frozen
food. If it is used for any other purpose or it is not
used correctly, then manufacturer will accept no
liability for any damage that might be caused.
Alteringthespecicationoftheappliancemust
not be attempted for reasons of safety.
Check the appliance for any signs of transport
damage. If you notice any damage, then you
should not connect your appliance to your
mains supply and should contact your supplier.
Your appliance contains R600a refrigerant,
which is a natural gas that does not contain
CFCs that can damage the environment.
Howeveritisaammablesubstance,therefore
care should be taken:
BFZ60CL-C&L-A5-GB-IM-12.indd 6 10/8/13 2:20 PM
7
Getting started...
BFZ60CL Built under freezer GB
IE
Safety
• During the transportation and installation of
the appliance, make sure that the refrigeration
pipework does not get damaged.
• If it does become damaged then sources of
ignitionandopenamesshouldbeavoided.
Also the room that the appliance is situated in
should be thoroughly ventilated.
Do not place any objects on top of the
appliance, as this may damage the table top.
Packaging material should be kept away from
children.
This appliance can be used by children
aged from 8 years and above and persons
with reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given supervision
or instruction concerning use of the appliance
in a safe way and understand the hazards
involved. Children shall not play with the
appliance. Cleaning and user maintenance
shall not be made by children without
supervision.
Do not pull on the power supply cable to
remove the plug from your mains supply
socket.
Do not pull out or insert the plug with wet hands.
BFZ60CL-C&L-A5-GB-IM-12.indd 7 10/8/13 2:20 PM
8
BFZ60CL Built under freezer
Getting started...
GB
IE
Safety
Do not attempt to use your appliance outdoors
or any place where it is likely to come into
contact with the elements.
Before cleaning the appliance or performing
maintenance work, ensure that the appliance
has been disconnected from your mains supply.
Never allow the back coils of the appliance to
come into contact with the wall surface.
Always ensure that the location where you are
installing your appliance is free of stored items
suchaspapersandotherammablematerials.
Never block the ventilation openings of the
appliance, either on the inside or its exterior.
It is vital to keep your appliance well ventilated,
sothatthereisproperairowbetweenthe
bottom of the unit and the plinth/kick plate
which it is sitting on.
Do not place electrical devices inside of the
appliance, such as mixers and electric ice
cream makers.
Service
You should not attempt to repair the appliance
yourself, as this could cause injury or a more
serious malfunction. If you require a service call
then please contact Customer Services on
0844 800 1128 (UK), 014475261 (Ireland).
BFZ60CL-C&L-A5-GB-IM-12.indd 8 10/8/13 2:20 PM
9
In more detail...
BFZ60CL Built under freezer GB
IE
Operation
Product functions
Before switching on
• Makesurethatithasbeeninstalledbyasuitablyqualiedperson,asper
the information contained in installation instructions.
• After delivery, wait for eight hours before connecting the appliance to your
mains supply. This will allow any refrigerant gasses that may have been
disturbed during the transportation process to settle.
• The outside of the appliance and the removable accessories contained
within it, should be cleaned with a solution of liquid detergent and water.
• The interior of the appliance should be cleaned with a solution of sodium
bicarbonate dissolved in lukewarm water. The interior and accessories
should be thoroughly dried, after the cleaning process has been completed.
• Therecanbeanodourwhenyourstswitchontheappliance.Itwilllessen
as the appliance starts to cool.
Before rst use
• You should set the thermostat dial to its maximum setting for 24 hours after
switchingontheapplianceforthersttime.
• Whenyourstswitchontheappliance,thecompressorwillrun
continuously until the freezer reaches a cool enough temperature.
• During this period of time, you should try not to open the door frequently or
place a large amount of food within the appliance.
• You should then adjust the thermostat dial down to its normal operating
position.
• If the unit is switched off or unplugged, you must allow at least 5 minutes
before restarting the appliance..
Switching on the appliance and setting the thermostat
12
3
4
0
You switch on your appliance by connecting it to your mains supply and
setting the thermostat. The thermostat control knob is located at the top of the
appliance.
BFZ60CL-C&L-A5-GB-IM-12.indd 9 10/8/13 2:20 PM
10
In more detail...
BFZ60CL Built under freezer
GB
IE
Operation
Product functions
• The thermostat automatically regulates the temperature inside the freezer,
depending on what number you have turned the thermostat control knob to:
Position <0> means that the appliance is off and all indicator lights are off.
Position <1> provides highest temperature inside the freezer.
Position <4> provides lowest temperature inside the freezer.
Ideally the thermostat should be set to a position between <2> to <3>.
The freezer can cool down to -18°C and lower.
Note
The ambient temperature of the room, the temperature of food
and the amount of food that has been placed in the appliance and
how often the door is opened, will all affect the temperature being
maintained by the appliance.
• On the maximum setting (position <4>), your freezer will work harder to
maintain a lower temperature. There is no need to run your appliance on
this setting for prolonged periods and you should return the thermostat
knob to between <2> to <3>.
BFZ60CL-C&L-A5-GB-IM-12.indd 10 10/8/13 2:20 PM
11
In more detail...
BFZ60CL Built under freezer GB
IE
Operation

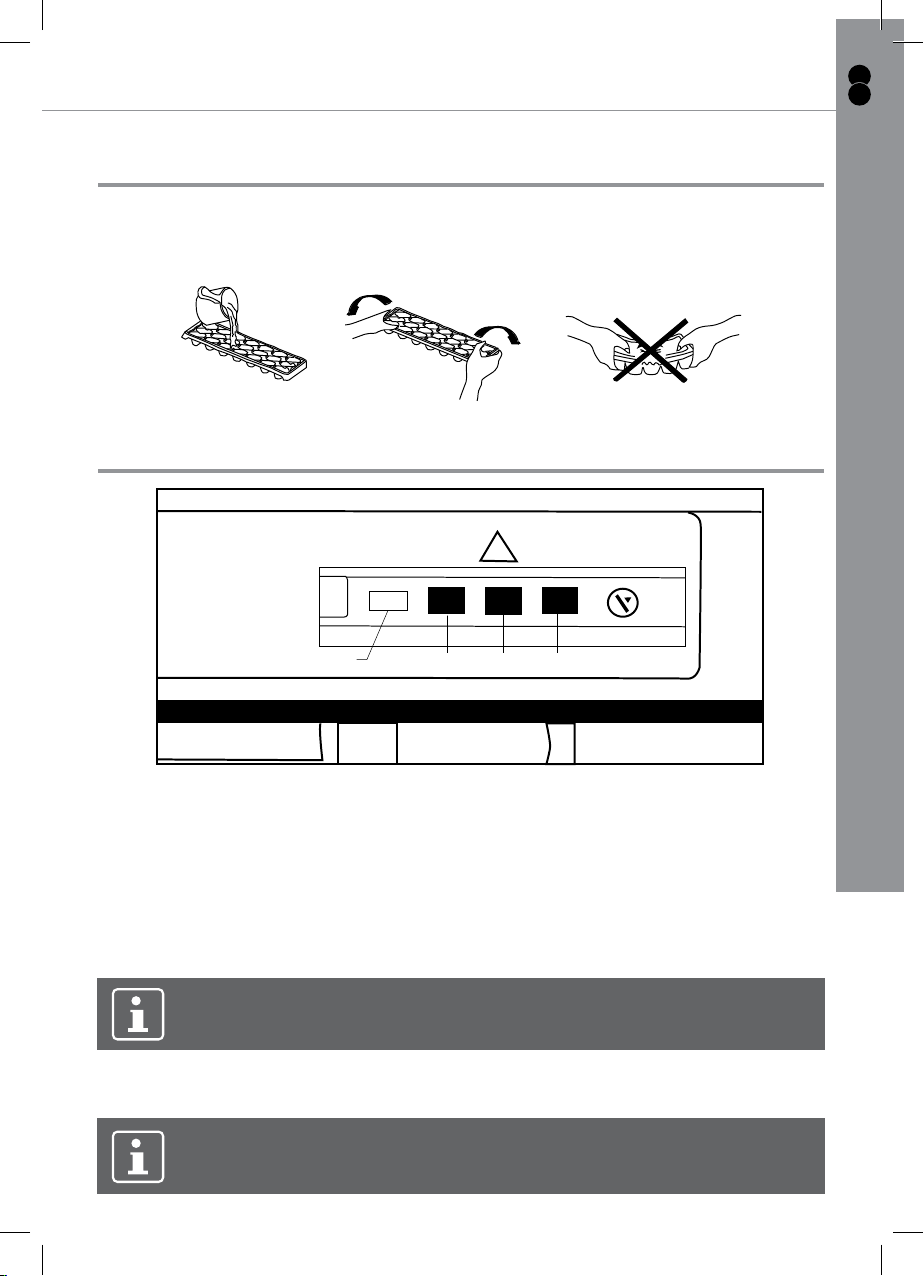

Control panel
Fast freeze switch Orange Red Green
12
3
4
0
• Fast freeze light (Orange) - will light up when the fast freeze switch has
been activated.
• Temperature rise warning light (Red) - will light up when the appliance
detects a rise in temperature that could affect the contents of your freezer.
• Power light (Green) - will light up as soon as the appliance is connected to
your mains supply.
The freezer compartment
Note
The freezer compartment is suitable for storing and freezing food.
• The freezer compartment temperature must have already reached -18°C
(or lower) before you attempt to store food that is already frozen or freezing
fresh food.
• The freezer compartment is only able to freeze a certain quantity of food at
one time. You should not attempt to freeze more than 9 kilograms of fresh
food within a 24 hour period.
• Warm food should be allowed to cool down before you attempt to freeze it.
If you place warm food in the freezer, then the increased humidity will cause
quicker ice formation and increase the amount of power that the appliance
uses.
• The guidance of the food manufacturer should be followed, in regard to the
maximum storage time.
• Thawed foods must not be frozen for a second time.
BFZ60CL-C&L-A5-GB-IM-12.indd 11 10/8/13 2:20 PM
12
In more detail...
BFZ60CL Built under freezer
GB
IE
Operation
The freezer compartment
Freezing fresh food
• Tofreezethemaximumquantityoffreshfoodspeciedonpreviouspage,
you should turn the thermostat knob to position <4>, 24 hours prior to
attempting freezing.
• For smaller quantities of fresh food, you should turn the thermostat knob to
position <4>, approximately 6 hours prior to attempting freezing.
• Alternatively you can use the fast freeze option (See Freezing with fast
freeze section).
• Fresh food should be packed into airtight containers or packaging. This will
helptomakesurethatthefooddoesn’tdryoutorloseitsavour.Itwillalso
ensurethatavourdoesnottransferto/fromotherfoods.
• Do not allow fresh food to touch items that are already frozen.
• After 24 hours you should check that the fresh food is satisfactorily frozen.
If it is then the thermostat should be turned down to its normal setting
(between <3> and <4>).
Tips on freezing
• Freezer bags, polythene wraps, aluminium foil (extra thick) and special cans
for frozen foods are suitable packaging for storing frozen goods in.
• Tape, rubber bands or plastic clips are suitable for sealing bags and
wrappings.
• Before sealing a suitable bag, you should compress the air out of it, as this
will help the food to freeze more easily.
• Flat packages freeze more easily.
• Ifyouarefreezingliquid,thendonotllthecontainertothebrim.Liquidswill
expand when being frozen.
Note
Do not place bottles (glass or tin) containing liquids (especially
sparkling liquids) into the freezer as they could cause the bottle to
burst during freezing.
BFZ60CL-C&L-A5-GB-IM-12.indd 12 10/8/13 2:20 PM
13
In more detail...
BFZ60CL Built under freezer GB
IE
Operation
Making ice cubes
• Fill an ice cube tray with water and place it in the freezer compartment.
• After the water is completely frozen and turned to ice, you can twist the ice
cube tray (as shown in the drawing below) to dispense the ice.
Freezing with fast freeze
Fast freeze switch Orange Red Green
12
3
4
0
• Press the fast freeze switch and the freezer will start to run continuously at its
maximum setting.
• The orange fast freeze light will come on when the fast freeze setting has
been switched on. There is no need to adjust the thermostat knob.
• The freezer temperature will decrease and the appliance will get to its lowest
temperature.
• Place the food that is to be frozen inside the freezer.
• Once the food is frozen, you should switch off the fast freeze setting.
Note
Do not switch off the fast freeze setting until the food is fully frozen.
• The orange fast freeze light is off and your appliance will return to normal
operation when the fast freeze function is off.
Note
Do not leave the appliance running in fast freeze mode for longer than
24 hours at a time.
BFZ60CL-C&L-A5-GB-IM-12.indd 13 10/8/13 2:20 PM
14
In more detail...
BFZ60CL Built under freezer
GB
IE
Operation
Saving energy when using your freezer
Installing
• Install the appliance in a cool position. If it is placed in direct sunlight or
next to an oven or other heat source, the energy consumption can increase
substantially.
• Ensure the appliance is installed with the correct ventilation requirements.
Restricting ventilation can increase the energy consumption by 15%.
Cleaning and maintenance
• Defrost the appliance regularly. A build up of thick ice decreases the
efciencyoftheappliance.Youshoulddefrostwheneverthefrostreaches
5mm thickness.
• Clean the door gasket with warm water or a neutral detergent that leaves
noresidue.Atight-sealingdoorgasketiscriticaltotheefciencyofyour
appliance.
Usage
• Do not open the door repeatedly or more frequently than you have to.
• Do not set the thermostat too low. A change of just one degree can effect the
energy consumption by 5%. Use a thermometer to check the temperature.
• The freezer should operate at -15 to -18°C.
• Allowfoodtosufcientlycoolbeforeputtingitintheappliance(butdon’tletit
sit at room temperature for too long).
• In the freezer, food packages should be scattered and never grouped or
stacked together until they are completely frozen.
• If you are going away for a long period of time, turn off the appliance, empty
and clean it and leave the door ajar.
• If you have a second appliance that is not used, make sure that it is stored
with the power off and the door left ajar until it is actually required.
Disposal
• If you're going to throw out your old freezer, see if there's a
chlorouorocarbons(CFCs)recyclerinyourarea.Thegovernment
department which looks after the environment in your area may be able to
help you.
BFZ60CL-C&L-A5-GB-IM-12.indd 14 10/8/13 2:20 PM
15
In more detail...
BFZ60CL Built under freezer GB
IE
Care and maintenance
Care and maintenance
Warning:
Please ensure that your appliance is disconnected from your mains
supply before attempting to clean it.
• Do not clean the appliance by pouring water onto it or spraying water over it.
• The freezer compartment should be cleaned periodically, using a solution of
bicarbonate of soda and lukewarm water.
• Clean the accessories separately with soap and water. Do not clean them in
a dishwasher.
• Do not use abrasive products, detergents or soaps.
• After washing the appliance, wipe over the area that you have cleaned with a
damp cloth and then dry it thoroughly.
• When cleaning is complete, dry your hands and then reconnect the plug to
your mains supply.
• Do not use mechanical devices or other means to accelerate the defrosting
process, other than those recommended by the manufacturer.
Defrosting the freezer compartment
The frost in the freezer compartment should be removed periodically. You can use
a plastic scraper to keep down the amount of frost that builds.
Note
The freezer should be defrosted at least twice a year. The number
of times that you need to defrost it, will depend on the setting of your
thermostat and how much food you freeze and store in the freezer.
• The day before you defrost, turn the thermostat dial to position <4>, this will
make sure that the food contained in the freezer is frozen properly.
• Whilst defrosting the appliance, the food should be removed from the freezer
and wrapped in several layers of paper and stored in a cool place. The foods
rise in temperature will shorten its storage life and therefore the food should
be used within a relatively short period of time.
Note
Do not place food back in the freezer once it has started to thaw.
• Set the thermostat knob to position <0> and disconnect the appliance from
your mains supply.
• Leave the door to the freezer open. You can place a bowl of warm water
inside the freezer to speed up the defrost process.
• You can use a sponge to mop up the defrost water that will run into the
bottom of the freezer.
BFZ60CL-C&L-A5-GB-IM-12.indd 15 10/8/13 2:20 PM
16
In more detail...
BFZ60CL Built under freezer
GB
IE
Care and maintenance
Care and maintenance
Note
Youshouldplacesomeoldtowelsontheooringthatisimmediately
in front of the appliance. In case any defrost water comes out of the
freezerandontotheoor.
Once all the ice that has built up has melted, then the inside of the freezer should
be dried thoroughly. Failure to do this will result in immediate ice build when the
appliance is switched back on.
• With dry hands, reconnect your appliance to your mains supply. Set the
thermostat knob to position <4> for a 24 hour period, before returning it to
the normal setting of between <2> and <3>.
Note
Do not defrost the appliance with other electrical devices (e.g. hair
dryer). Do not use sharp metal objects to remove the ice on the
freezer, as this could cause damage to the refrigerant system.
Troubleshooting
Note
If your freezer appears not to be operating properly, before
contacting the Customer Services, please refer to the checklist
below.
My freezer does not appear to be working/there is no power to my appliance
• Check that the plug is fully inserted into the power socket.
• Check that there is power to your mains supply (e.g. that there hasn’t been a
power cut or that the fuse hasn’t blown).
• Check that the thermostat inside the appliance has not been turned to the
<0> position.
• Check that your mains supply voltage, corresponds to the voltage stated on
the rating plate of your appliance.
My freezer appears to be performing poorly
• Check that the appliance isn’t overloaded and that food hasn’t been packed
too tightly into it.
• The thermostat setting is too low; you should turn the thermostat up higher.
• Ensure that the door is closing properly and that the door has not been
opened for a prolonged period in error.
• Ensure that there is adequate ventilation for your appliance.
Troubleshooting
BFZ60CL-C&L-A5-GB-IM-12.indd 16 10/8/13 2:20 PM
17
In more detail...
BFZ60CL Built under freezer GB
IE
Troubleshooting
Troubleshooting
Ice is forming quickly inside my freezer
• Check that the door is closing properly and that the door seal is not crushed,
twisted or torn.
Note
If your appliance appears not to be operating correctly, then you
should disconnect it from your mains supply and then contact
Customer Services on 0844 800 1128 (UK), 014475261 (Ireland).
Warning:
Do not attempt to repair the appliance yourself.
Please note that if an engineer is asked to attend whilst the product is under
guaranteeandndsthattheproblemisnottheresultofanappliancefault,then
you may be liable for the cost of the call out charge.
The appliance must be accessible for the engineer to perform any
necessary repair. If your appliance is installed in such a way that an
engineer is concerned that damage will be caused to the appliance or your
kitchen, then he will not complete a repair.
This includes situations where appliances have been tiled in, sealed in with
sealant, have wooden obstructions placed in front of the appliance, like
plinths. Or any installation other than the one specied by manufacturer
has been completed.
Please refer to the conditions of guarantee that appear on the warranty card that
you receive with the appliance.
BFZ60CL-C&L-A5-GB-IM-12.indd 17 10/8/13 2:20 PM
18
In more detail...
BFZ60CL Built under freezer
GB
IE
Recycling and disposal
Environmental protection
Waste electrical products should not be disposed of with household waste.
Please recycle where facilities exist. Check with your Local Authority or retailer for
recycling advice.
The symbol on the product or its packaging indicates that this
product cannot be treated as normal household waste. This
product must be handed over to an electric and electronic
equipment collection point for recycling.
On ensuring that this product is disposed of correctly, you will help to avoid
possible negative consequences for the environment and public health, which
could occur if this product is not handled correctly. To receive more detailed
information about recycling this product, contact your local government, domestic
waste disposal services or the outlet where the product was bought.
Technical specications
Supply voltage 220-240V~, 50Hz
Rated current 0.5A
Dimensions (W x D x H) 596x550x818-868mm
Max. power consumption 100W
Net weight 32kg
Gross capacity 108 litres
Net capacity 97 litres
Energy class A+
Recycling and disposal
Technical and legal information
BFZ60CL-C&L-A5-GB-IM-12.indd 18 10/8/13 2:20 PM
19
In more detail...
BFZ60CL Built under freezer GB
IE
Guarantee
Guarantee
This appliance is covered by a full manufacturer’s 24 month parts and labour
guarantee and covers all parts and labour costs associated with the repair of the
appliance in a domestic environment. We will repair any defect that arises due to
faulty materials or workmanship and use genuine manufacturers parts.
All claims must be supported with the original receipt or other reasonable proof of
purchase.
If, during the guarantee period, the appliance becomes irreparable as agreed
by the engineer approved by GAA then we reserve the right, at our discretion, to
exchange the defective product with a replacement appliance at GAA’s sole cost.
If the same product is no longer available an alternative will be offered with the
same functions as the faulty item.
After an appliance has been repaired or replaced any remaining balance of the
GAA guarantee will be valid and any further call outs during this prescribed period
will be covered by GAA on the replacement appliance.
Should any person other than an authorized engineer modify or attempt to repair
the appliance then the warranty will be invalid.
The guarantee applies to the UK mainland, Scotland, Ireland, ROI and France but
is not transferable between EU countries.
This guarantee is non-transferable to any other person or product.
The guarantee is covered by UK law and is in addition to and does not diminish
your legal rights.
Exclusions to the guarantee
This guarantee does NOT cover:
Appliances that have been damaged or neglected as a result of failure to
store, assemble, install , use or care of the products in accordance with the
manufacturer’s instructions - GAA will not accept responsibility under this
guarantee if a product is damaged or becomes defective due to, misuse, neglect,
wilful or accidental damage or act of god.
Normal wear and tear.
Consumableitemssuchascarbonltersandbulbs.
BFZ60CL-C&L-A5-GB-IM-12.indd 19 10/8/13 2:20 PM
20
In more detail...
BFZ60CL Built under freezer
GB
IE
Guarantee
Guarantee
Exclusions to the guarantee (continued)
Claims arising from non-domestic use or commercial environment.
Anygasappliancenotttedbyagassafequaliedinstaller.
If no fault is found then GAA reserves the right to charge for the call out at the going
rate of £55.00 plus VAT.
In the course of the service work carried out it may be necessary to remove the built
inappliancefromitsttedposition.Iftheapplianceisglued,groutedortiledinsuch
a manner that it cannot be removed, it is the responsibility of the customer/installer
to remove and reinstall the appliance to facilitate the repair.
This Guarantee does not affect your statutory rights.
The guarantee is offered by GAA Ltd, 1301-1303 Lu Plaza,
2 Wing Yip St, Kwun Tong, Kowloon, Hong Kong.
Customer Service
To arrange an in guarantee service call, please contact customer services on the
following numbers.
UK & Northern Ireland
Phone: 0844 800 1128
Email: [email protected]
Web: www.myspareparts.co.uk
Republic of Ireland (Eire)
Phone: 014475261
BFZ60CL-C&L-A5-GB-IM-12.indd 20 10/8/13 2:20 PM
Table of contents
Other Cooke & Lewis Freezer manuals
