Cool-Living CL-RAC08EWIES User manual

CL-RAC08EWIES
CL-RAC08EWIES-6A
WWW.COOLLIVINGPRODUCTS.COM OR EMAIL [email protected]

INTRODUCTION TO REFRIGERANTS R32..........................................................................................2
...............................................................................................1
...........................................................................................................3
...................................................................................................................................5
....................................................................................6
....................................................................................................13
....................................................................................................................16
......................................................................................................................17
....................................................................................................................................18
.....................................................................................................................19
INSTALLATION & ASSEMBLY INSTRUCTIONS

FCC Caution.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
PAGE 1 OF 19

INTRODUCTION TO REFRIGERANTS R32
9K
12K
18K
24K
PAGE 2 OF 19
Introduction to Refrigerants R32
The refrigerants used for air conditioners are environmentally friendly hydrocarbons R32. This kind of erant is combustible
and odorless. Moreover, it can burn and explode under certain condition. However, there will be no risk of burning and
explosion if you comply with the following table to install your air conditioner in a room with an appropriate area and use
it correctly.
Compared with ordinary refrigerants, Refrigerant R32 is environmentally friendly and do not destroy the ozone
sphere and that its value of greenhouse effect is also very low.
Room area requests for air conditioner with Refrigerant R32
Warnings
Please read the manual before installation, using, maintenance.
Do not use means to accelerate the defrosting process or to clean, other than those recommended by the
manufacturer.
Do not pierce or burn the appliance.
The appliance shall be stored in a room without continuously operating sources (for example: open flames, an
operating ignition gas appliance or an operating electric heater.)
Please contact the nearest after-sale service center when maintenance is necessary. At the time of maintenance, the
maintenance personnel must strictly comply with the Operation Manual provided by the corresponding manufacturer
and any non-professional is prohibited to maintain the air conditioner.
It is necessary to comply with the provisions of gas-related national laws and regulations.
It is necessary to clear away the refrigerant in the system when maintaining or scrapping an air conditioner.
Be aware that refrigerants may not contain an odour.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Unit operation limits: Outdoor side 61~109 , 80%RH; indoor side 61~89 , 80%RH.
R32
Refrigerant Capacity(Btu) Room Area
2
Above 4m
2
Above 4m
2
Above 15m
2
Above 25m

PAGE 3 OF 19

PAGE 4 OF 19

PAGE 5 OF 19

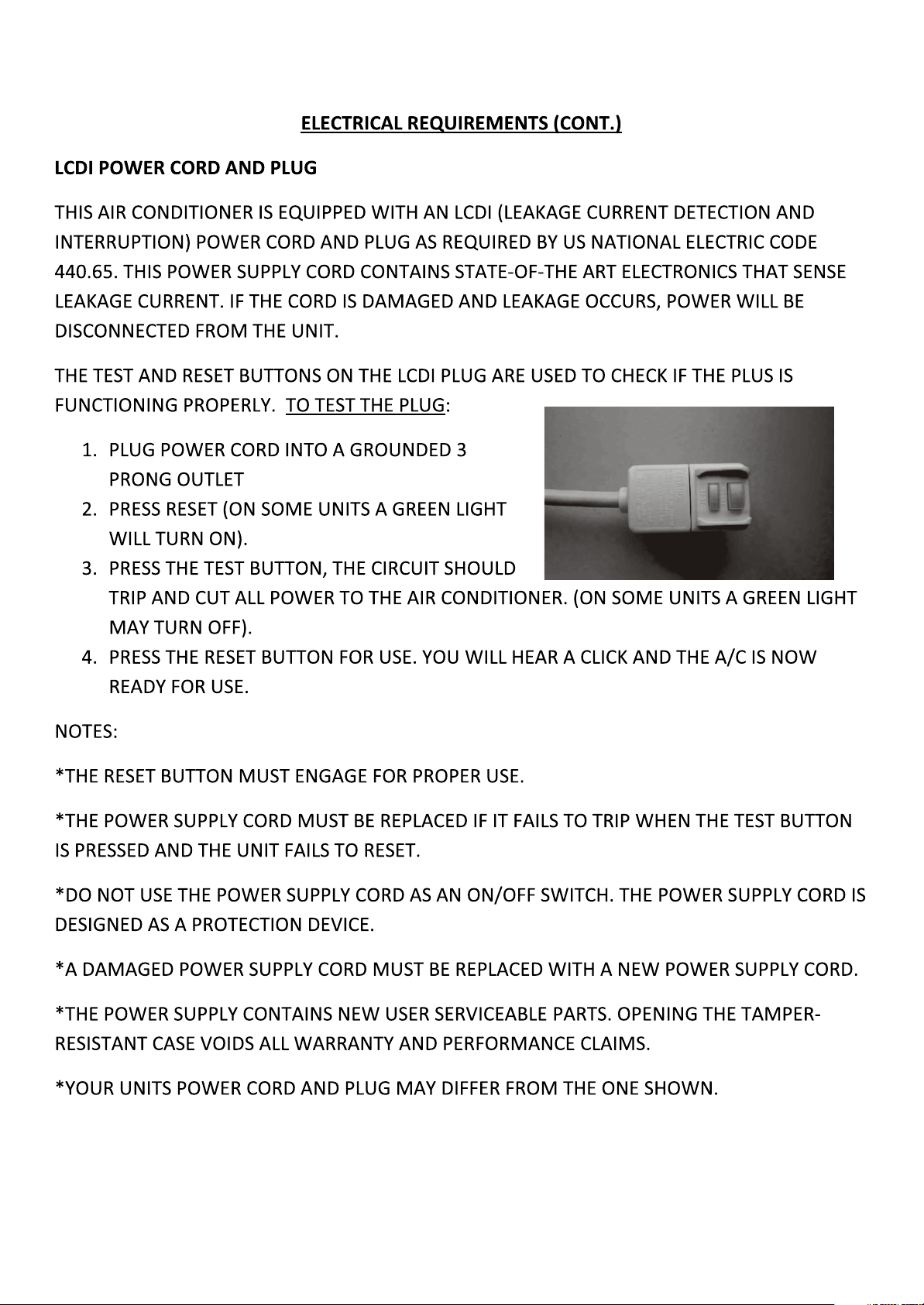

FIG. 1
FIG. 2
OFFSET
STOOL
SILL
INTERIOR
WALL
EXTERIOR
WALL
OFFSET
STOOL
SILL
INTERIOR
WALL
EXTERIOR
WALL
PAGE 6 OF 19

PAGE 7 OF 19

FIG. 3
FIG. 4
FIG. 5
PAGE 8 OF 19

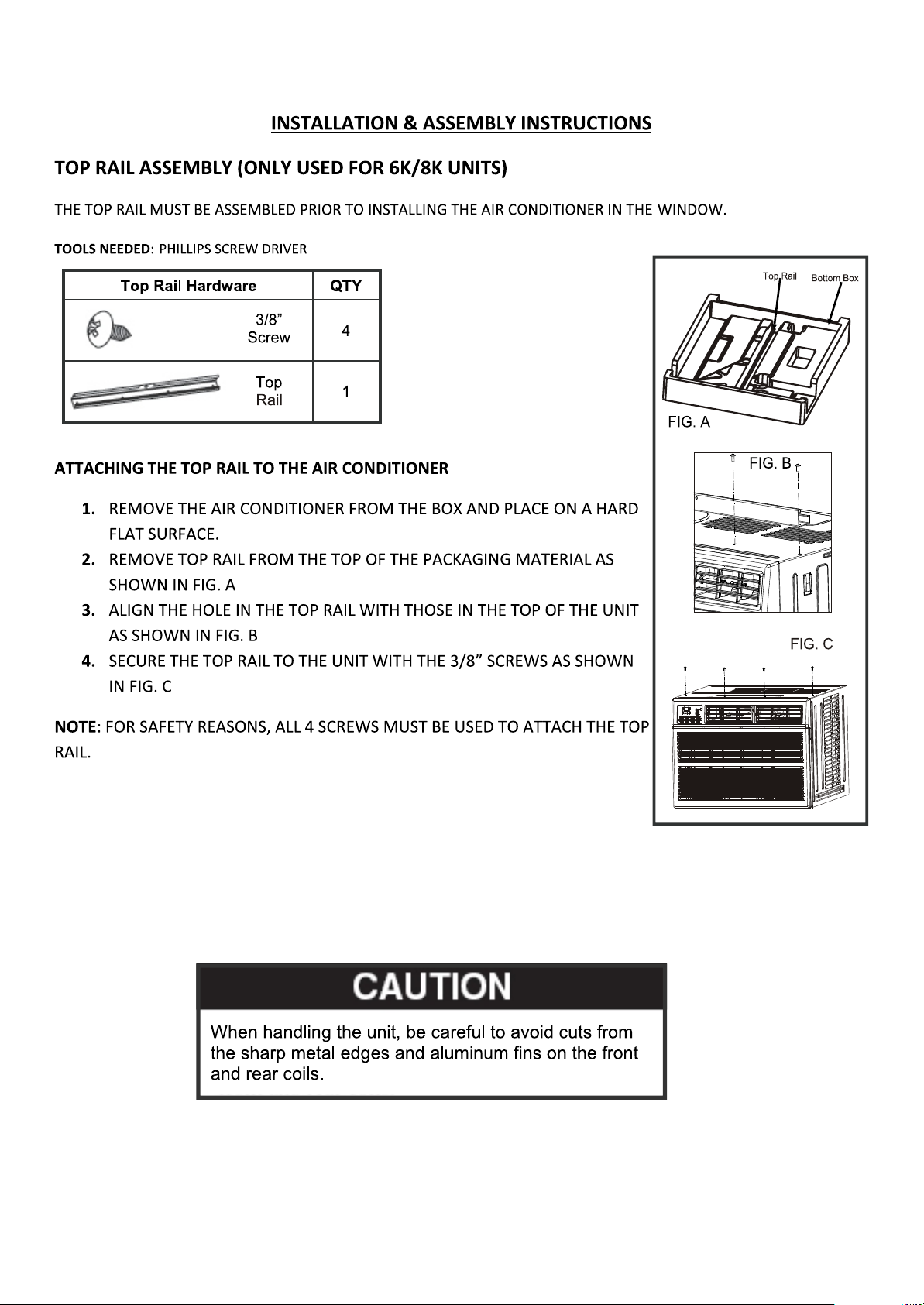

FIG. 6
FIG. 7
FIG. 8
FIG. 9
FIG. 10 FIG. 11
FIG. 13
PAGE 9 OF 19

FIG. 14
PAGE 10 OF 19

The maximum charge and the requiredminimum floor area
33 3
m= (4 m) x LFL , m = (26 m)) x LFL, m = (130 m)x LFL
12 3
33
Where LFL is the lower flammable limit in kg/ mR32 LFL is0.306 kg/ m.
For the appliances with acharge amountm< M m :
12
(5/4) 1/2
The maximum charge in a room shall be inaccordance with the following:m= 2.5 x ( LFL) xhx (A)
max
The requiredminimum floor area Amin to install an appliance with refrigerant charge M (kg)
(5/4) 2
shall be inaccordance withfollowing: A= (M/ (2. 5 x (LFL)xh))
min
Where:
mis the allowable maximum charge in a room, in kg;
max
M is the refrigerant charge amount in appliance, inkg;
Amin is therequired minimumroom area,in m2;
2
A is the room area, in m ;
3
LFL is the lower flammable limit, in kg/m ;
his the installation height of the appliance,in metersfor calculatingmor A, 1.8 mfor wallmounted;
max min
Table GG.1 Maximum charge (kg)
Category LFL
3
(kg/m )
h
(m)
2
Floor area(m )
Category LFL
3
(kg/m )
h
(m)
Charge amount(M) ( kg)
2
Minimum room area(m )
2
TableGG.2 Minimum room area (m )
INSTALLATION & ASSEMBLY INSTRUCTIONS
PAGE 11 OF 19
Important Considerations
Before installing the appliance, you must read the manual carefully to get the safety information
and notes.
When filling the combustible refrigerant, any of your rude operations may cause serious injury or
injuries to human body or bodies and object or objects.
A leak test must be done after the installation is completed.
It is a must to do the safety inspection before maintaining or repairing an air conditioner using
combustible refrigerant in order to ensure that the fire risk is reduced to minimum.
It is necessary to operate the machine under a controlled procedure in order to ensure that any risk
arising from the combustible gas or vapor during the operation is reduced to minimum.
Requirements for the total weight of filled refrigerant and the area of a room to be equipped with
an air conditioner (are shown as in the following Tables GG.1 and GG.2)

INSTALLATION & ASSEMBLY INSTRUCTIONS
Introduction to Refrigerants R32
1. Site Safety
2. Operation Safety
Open Flames Prohibited Ventilation Necessary
Open Flames Prohibited
Mind Static Electricity Must Wear Protective Clothing and anti-static gloves Don't use mobile phone
3. Installation Safety
Refrigerant Leak Detector
Appropriate Installation Location
The left picture is the schematic diagram of a refrigerant leak detector.
Please note that:
1. The installation site should be in a well-ventilated condition.
2. The sites for installing and maintaining an air conditioner using Refrigerant R32 should be free from open fire or welding,
smoking, drying oven or any other heat source higher than 548 which easily produces open fire.
3. When installing an air conditioner, it is necessary to take appropriate anti-static measures such as wear anti-static clothing
and/or gloves.
4. It is necessary to choose the site convenient for installation or maintenance wherein the air inlets and outlets of the indoor
and outdoor units should be not surrounded by obstacles or close to any heat source or combustible and/or explosive
environment.
5. If the indoor unit suffers refrigerant leak during the installation, all the personnel should go out till the refrigerant leaks
completely for 15 minutes. If the product is damaged, it is a must to carry such damaged product back to the maintenance
station and it is prohibited to weld the refrigerant pipe or conduct other operations on the user's site.
6. It is necessary to choose the place where the inlet and outlet air of the indoor unit is even.
7. It is necessary to avoid the places where there are other electrical products, power switch plugs and sockets, kitchen
cabinet, bed, sofa and other valuables right under the lines on two sides of the indoor unit.
PAGE 12 OF 19

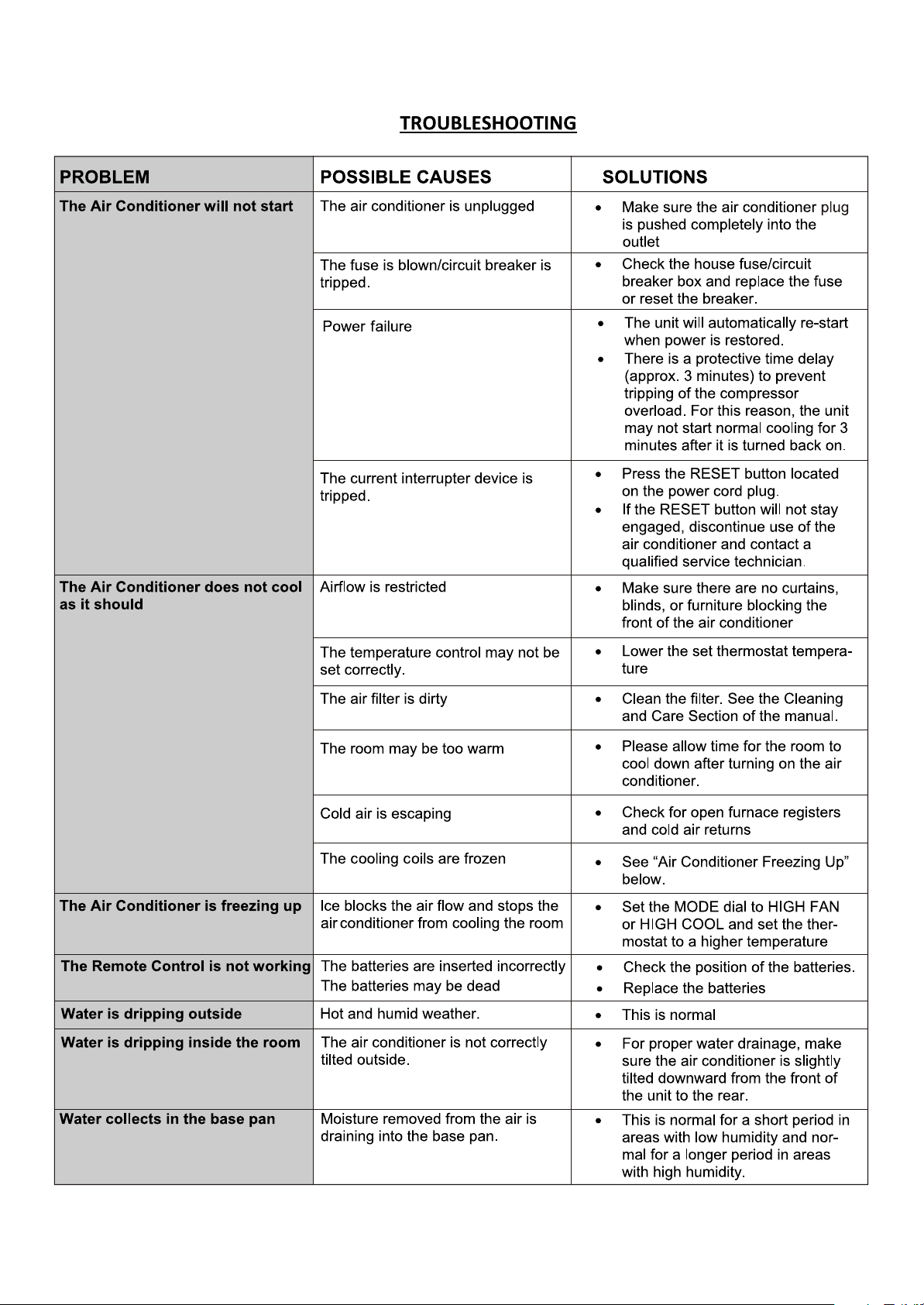

1
2
3
4
5
6
7
8
9
AUTO
SPEED
AUTO
MODE
PAGE 13 OF 19

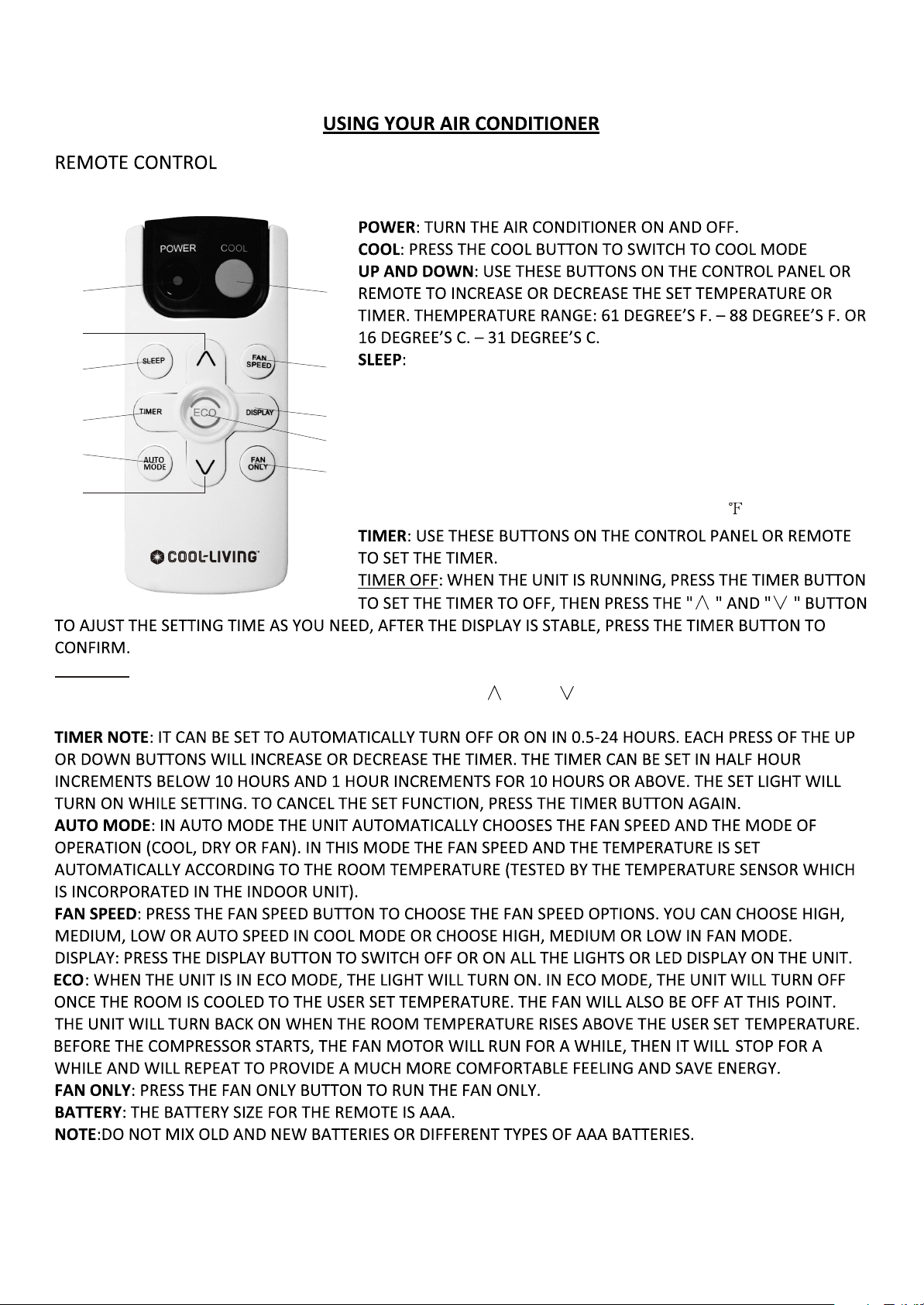

TIMER ON: WHEN THE UNIT IS IN STANDBY, PRESS THE TIMER BUTTON TO SET THE TEMPERATURE, THEN PRESS
THE TIMER BUTTON TO SET THE TIMER TO ON, AND PRESS " " AND " " BUTTON TO ADJUST THE SETTING TIME
AS YOU NEED, AFTER THE DISPLAY IS STABLE, PRESS THE TIMER BUTTON TO CONFIRM.

horizontal wheelair deflector air deflector
PRESS THE SLEEP BUTTON, ALL OF THE DISPLAY LIGHTS WILL TURN OFF AFTER A WHILE, BUT
THE SLEEP LIGHT IS ALWAYS ON. IN SLEEP MODE, THE AIR CONDITIONER WILL AUTOMATICALLY ADJUST THE
TEMPERATURE AND FAN SPEED TO MAKE THE ROOM MORE COMFORTABLE DURING THE NIGHT. THE SET
TEMPERATURE WILL AUTOMATICALLY RAISE EVERY 30-60 MINUTES, AND AT MOST CHANGE SIXTIMES UNTIL THE
SET TEMPERATURE IS 81 OR 82 .
PAGE 14 OF 19

1
4
5
6
3
3
7
8
10
9
2
PRESS THE SLEEP BUTTON, ALL OF THE DISPLAY LIGHTS WILL
TURN OFF AFTER A WHILE, BUT THE SLEEP LIGHT IS ALWAYS ON. IN
SLEEP MODE, THE AIR CONDITIONER WILL AUTOMATICALLY ADJUST
THE TEMPERATURE AND FAN SPEED TO MAKE THE ROOM MORE
COMFORTABLE DURING THE NIGHT. THE SET TEMPERATURE WILL
AUTOMATICALLY RAISE EVERY 30-60 MINUTES, AND AT MOST CHANGE
SIXTIMES UNTIL THE SET TEMPERATURE IS 81 OR 82 .
PAGE 15 OF 19
TIMER ON: WHEN THE UNIT IS IN STANDBY, PRESS THE TIMER BUTTON TO SET THE TEMPERATURE, THEN PRESS
THE TIMER BUTTON TO SET THE TIMER TO ON, AND PRESS " " AND " " BUTTON TO ADJUST THE SETTING TIME
AS YOU NEED, AFTER THE DISPLAY IS STABLE, PRESS THE TIMER BUTTON TO CONFIRM.

FIG. 15
