coolbreeze B-C02 User manual

Smart air purifier
Health series · Commercial Use
B-C02
Thank you for use this product which protected by intellectual property.
Please read this instruction manual carefully
before use and keep it for future use.
This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid a hazard.
Attention:
If the parameter, specification and other information maybe changed, we will not notice specially, please refer to the actual machine.
The “optional” are optional functions, please kindly check with the retailer if your machine with these functions.

●UV light can efficiently kill bacteria and inhibit its activation
Environment self cicatrization
●It can generate 8,000,000 "air vitamin" every second which can improve the home environment.
produces "air vitamin"
Anti bacteria
Restrain the breeding and activity of viruses
Healthy air
Healthy air is the basis of health and life
●A child needs 400KG of air everyday, equal to 100 times of an adult needs water per day.
So it is very important to the health to improve the air environment of live.
Make an ecotypic home
to avoid viruses
Make an ecotypic home
to avoid viruses
DIRECTORY
INDEX
Health series · Commercial Use
Smart air purifier
3
2
1-3
CAUTIONS
WARNING
ATTENTION
4
4
4
PRODUCT PERFORMANCE
AND TECHNICAL FEATURES
Product performance
Technical features
5-6
6
5
5
COMPONENT INTRODUCTION
Diagram of the outlook
Diagram of unit
Operating parts
7-8
CAUTIONS BEFORE OPERATING
7
How to touch the control panel
8
Placement
7
Disassembling front cover
8
Installation of the filters
8
Power supply
9
9
10
10
12
9-12
OPERATING INSTRUCTION
Power setting
Function setting
Timer setting
Fan speed setting
Reset setting
Smart setting
Refresh setting
11
12
MAINTENANCE AND
CLEANING INSTRUCTION 13-14
13
13
14
Maintenance and cleaning instruction
Methods for replacing UV lamp
Disassembly and installation for UV lamp
16
16
16
16
TECHNICAL PARAMETERS
Parameters of the unit
Filter parameters
UV parameters
15
FAQ

1 2
CAUTIONS
Please supervise your
children and avoid
them from touching
or using machine.

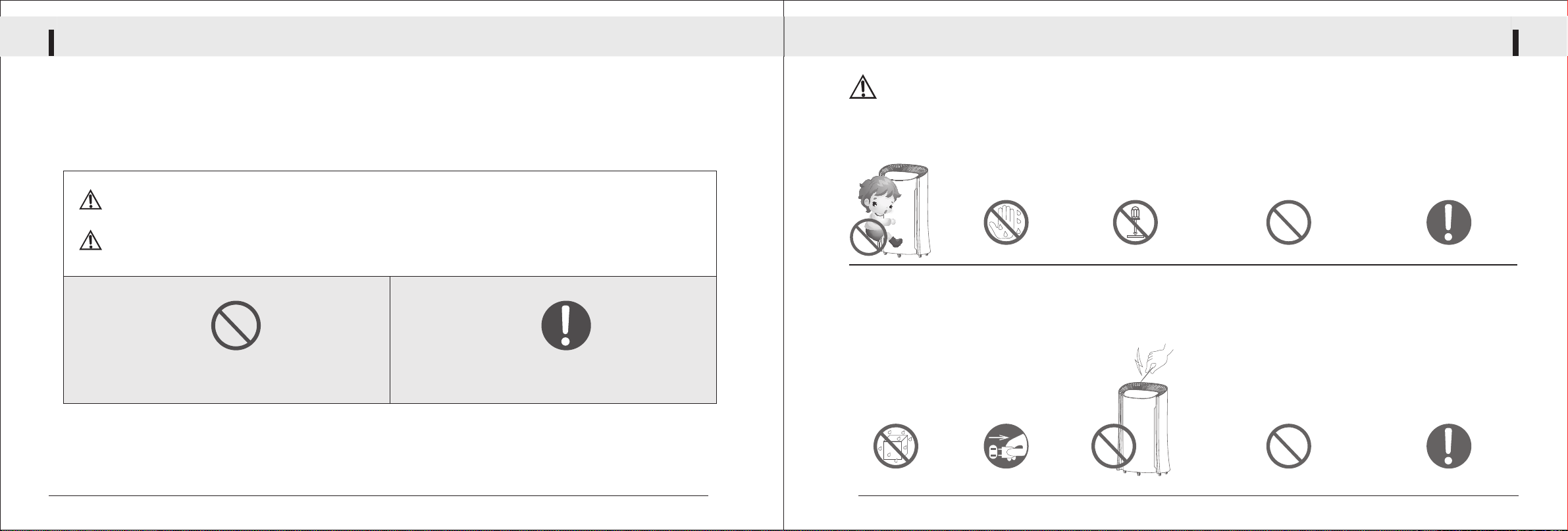

In order to prevent harm or damage happened to users or others, be sure to comply with the requirement as below:
It reminds that misusing or mishandling may cause death.
It reminds that misusing or mishandling may cause hurt.
Warning/Attention
Warning
Attention

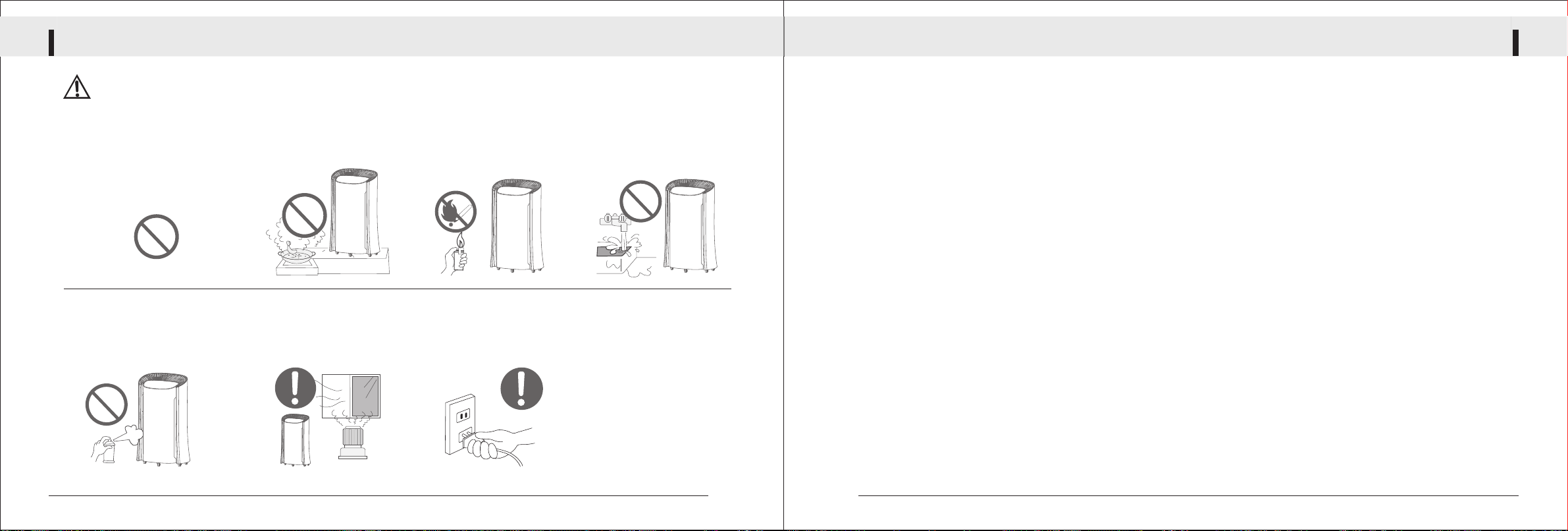

FORBID FORCE
AVOID WET
It may cause electrical
shocking.
Do not connect or
disconnect the power
with wet hand
NO DISASSEMBLE
No disassembly,repair and
reconstruction.
It may cause fire or damage.
Please send it to the retailer
for repair.
Do plug the power into the socket
completely.
It may cause fire because of heating or
electrical shocking.
Do not use the damaged plug or loose
socket
Do clean the plug termly
If there is dust on the plug, it
may weaken the insulation,
even cause fire
Take out the plug and clean it with
dry cloth.
Please remove the plug from the
socket if not using for a long period.
AVOID WET
Avoid any water on
the surface of the
unit.
It may cause short
circuit or electrical
shocking.
DISCONNECT POWER
Do not insert any metal
objects into the unit.
It may cause hurt or electric
shocking
WARNING
FORBID
Do not use the over run socket or
wiring connector.Do use the rated
voltage.
It may cause fire
FORBID
Do not repair it when the cord
or plug is damaged.
It may cause short circuit, electric
shocking or fire.
Please send it to the retailer for
repair.
Kindly attention: If the power wire is broken,to prevent danger happend,
please send it to agent,after-sales service or technical person for repair.
Kindly attention:
CAUTIONS
Smart air purifier User manual
The appliance must be
disconnected from the
supply mains before
cleaning or other
maintenance
Otherwise the unit may
start working in a sudden
which may cause
electrical shocking or
hurt.
FORBID

● Washable Pre-Filter: Effectively remove cotton flocculation, hair, mosquito or other slightly bigger particulate, improve HEPA lifetime.
● HEPA: Effectively remove PM2.5 by using new generation of composite material.
● Activated carbon: adopting the porous coconut made by modern biological carbonization synthesis technology,adsorption
capacity is bigger,and can effectively remove smoke, formaldehyde.
● Photo catalyst: using titanium dioxide (TiO2) material,its oxidation function can damage the filter captured the cell membrane
of bacteria, inhibit virus activity.
● UV lamp: air is the main path leading to the spread of the virus,using UV air sterilization technology,the environment of
natural bacteria killing rate can reach more than 96%.
● Anion: negative ion is praised as Air Vitamin.People live in the high negative ionic environment,can promote human new
and old superseded, improve immunity.
● Air quality intelligent detection: built-in PM2.5 particle sensor .
● IMD control panel: using a new generation of IMD technology, more convenient control.
● Digital display: PM2.5,temperature,humidity,timer indicator,more intuitive and easy to understand.
● Automatic alarm: set filter,UV lamp replacement warning indicator.
● ERP design: standby power≤0.5W.
● Japan DC motor: more quiet and more environmental.
Product performance
Technical features
PRODUCT PERFORMANCE AND TECHNICAL FEATURES
FORBID
Do not use in the room with
lampblack such as kitchen.
It may cause hurt because the
machine is not a ventilator
Please ventilate timely when
used with fire in the room
Otherwise it may cause poisoning
of Co as the machine is not a
1
ventilator
Do not power the unit on when using
insecticide in the room
Otherwise the insecticide may be stored in
the unit and will blow out during the normal
working time.It is harmful to the health.
Please ventilate completely after having
used the insecticide before turn on the unit.
Do not use in the watery or high
temperature room such as the
bathroom etc.
Otherwise it may cause creepage,
electric shocking or fire.
● If all switches do not work
● If the power cord or plug hot
singularly
● If any peculiar smell, exceptional
noise or vibration
● Any other abnormality or failure
Please remove the plug from the
socket if any conditions as below:
If the power cord is damaged, please send it to the retailer or service center or technician for repairing. Do not change or repair it by yourself.
ATTENTION
Please hold the plug instead of
the cord when unplug the power.
Otherwise it may cause short circuit,
breaking of the cord,electric shocking
or fire.
Keep away from alcohol,organic
impregnant or insecticide
It may cause cracking,short circuit, electric
shocking, hurt or fire
Do not blow in any combustible
or fired cigarette into the unit.
It may cause fire
ATTENTION
3 4
Smart air purifier User manual

COMPONENT INTRODUCTION
Operating parts
● Digital indicator
Humidity
Temperature Timer PM2.5
● Screen diagram
COMPONENT INTRODUCTION
Diagram of the outlook
Diagram of unit
5 6
User manual
Front View
Air outlet
Front Cover
Air In Air In
IMD Control Panel
PM2.5 Sensor
Back Cover
Cable hole
Back View
%%% %
UV lamp
Anion
d
e
e
p
s
t
s
e
h
g
i
H
S
l
e
e
p
m
o
d
e
Timer
Smart
Speed
Function
Reset
%
Filter replacement indicator
Function Display Power on/off
Activated Carbon+Photo Catalyst Main Body
UV lamp
HEPA
Front cover Washable Pre-filter
Smart air purifier

Timer
Smar t
Spee d
Func tion
Rese t
%
Timer
Smar t
Spee d
Func tion
Rese t
%
CAUTIONS BEFORE OPERATING
Power supply
● Please don't connect this machine with wrong voltage of
power supply, inserting the plug firmly into the power socket.
Installation of the filters

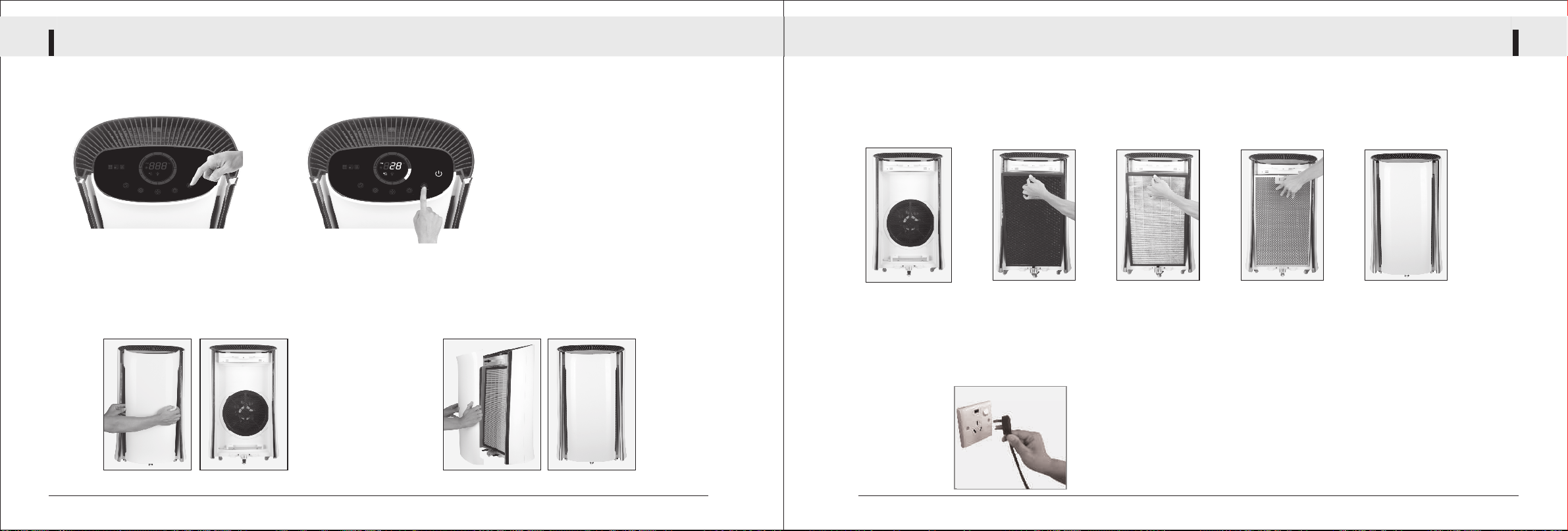

1. Take off the front cover 3. Install HEPA 4. Install pre-filter 5. Install front cover
● Take off front cover
● Take out the Pre-filter, HEPA, activated carbon + photo catalyst, tear off filters transparent bags and put them back into
device accordingly.
CAUTIONS BEFORE OPERATING
● Please keep the machine air inlet and outlet 30cm
or more away from the wall and home furniture.
● Do not use the machine in front of heat source outlet.
Disassembling front cover
Disassembling diagram
● Disassembling diagram ● Installation diagram
Insert two pins of bottom side into two slot of main body.
Hold on the front cover with two hands,and pull it out.
7 8
User manual
2. Install activated carbon
+photo catalyst

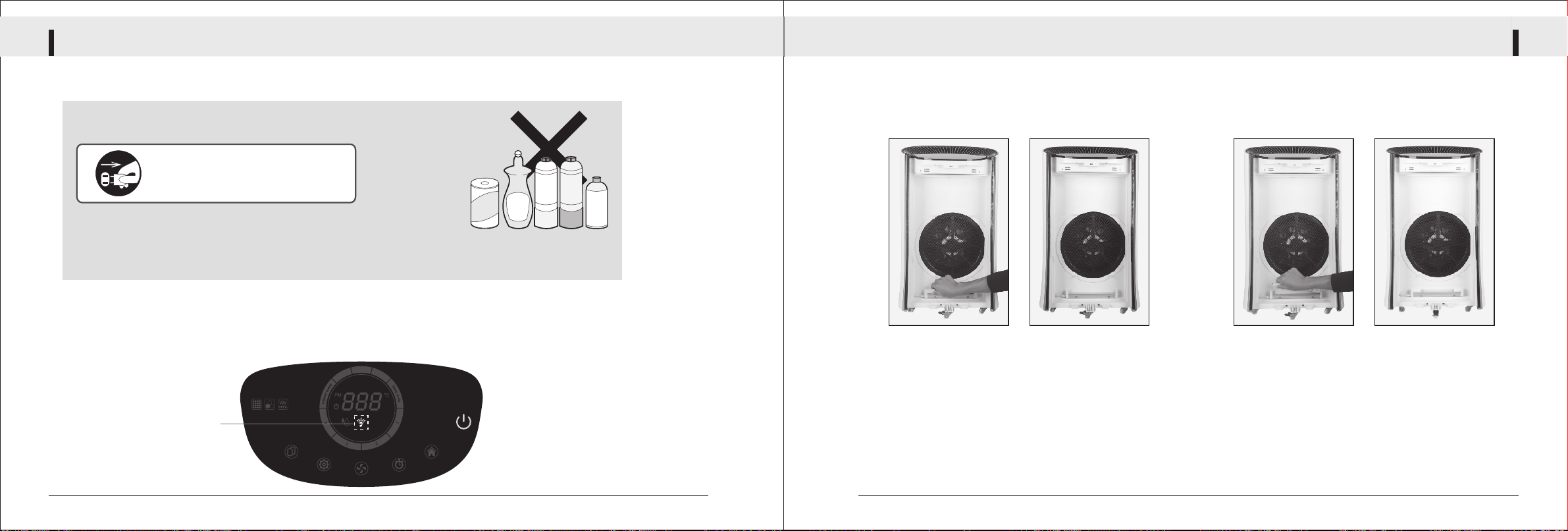

● Please touch the button with whole finger as following:
How to touch the control panel?
Placement
Wrong Correct
Installation diagram
Smart air purifier

Power setting

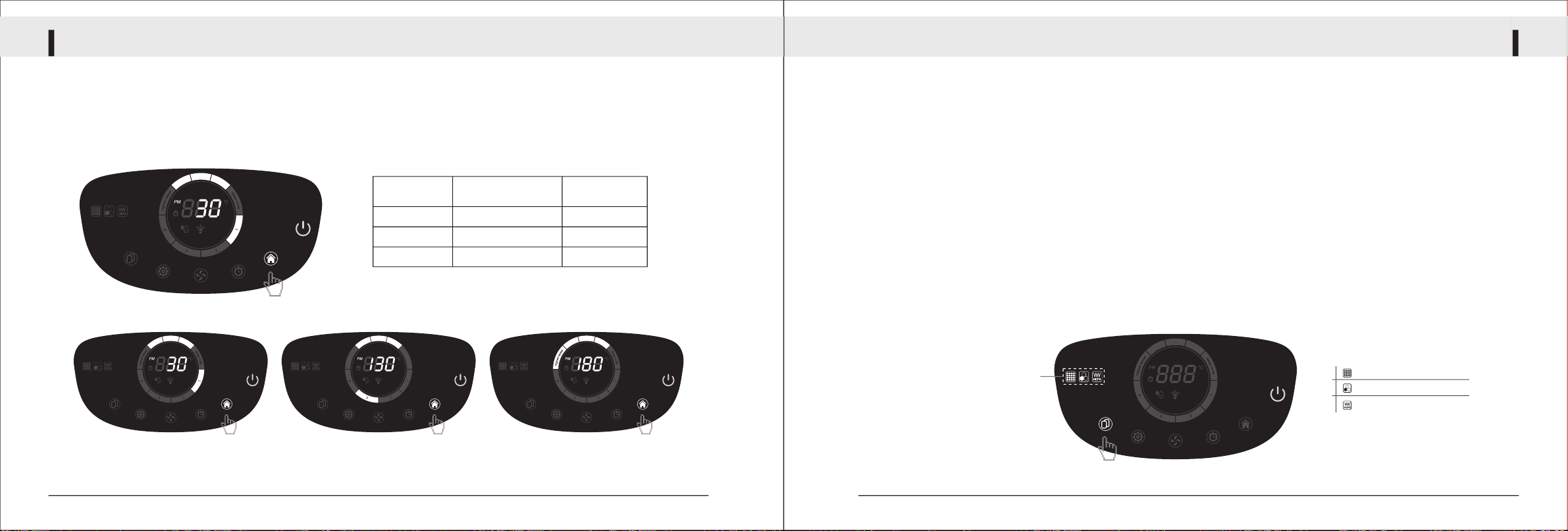

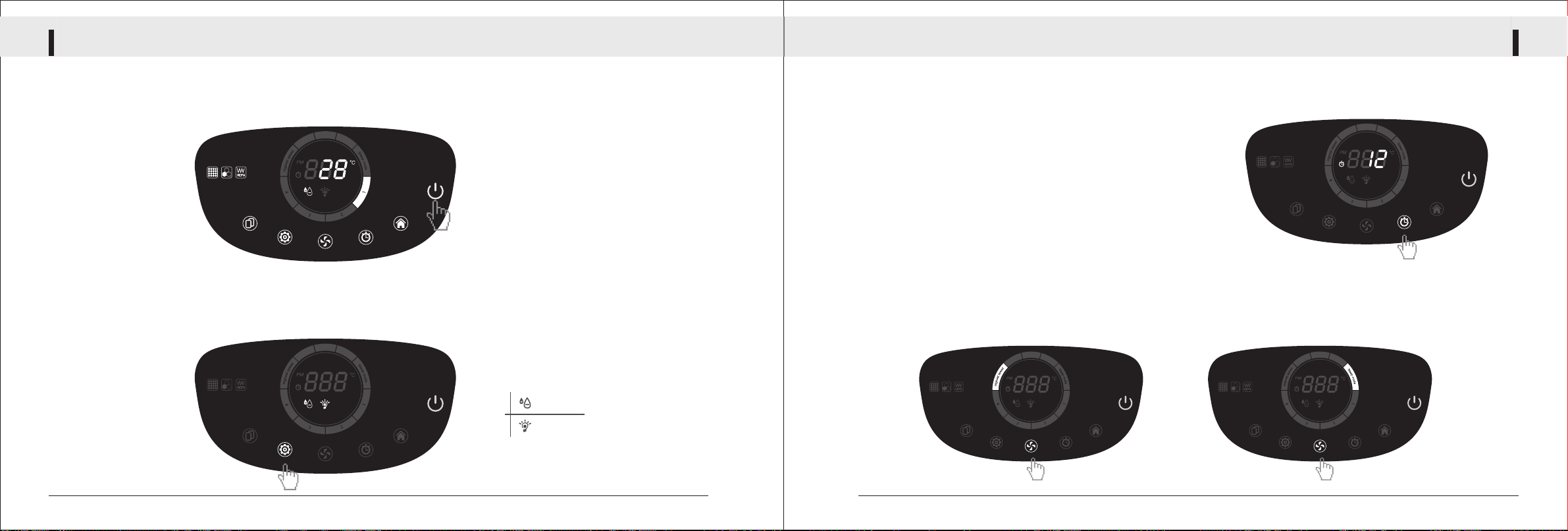

● To press the “power”icon on the product operating panel , machine is entered the initial working status.
The diagram as following:
● Press the "function" icon, Anion, and UV lamp can be chosen individually or multiply or close these two functions.
The diagram as following:
Timer setting
Fan speed setting
● Fan Speed " 1, 2, 3, 4 and Highest speed" can be selected afer pressing the "speed" icon on the operation panel.
● Sleep mode: pressing “speed” icon and hold on for 3 seconds, the sleep mode will be on, if pressing any icons,
the sleep mode will be cancelled.
Remark 1: If machine is set as smart mode, the “speed” icon can't be adjusted.
Remark 2: Sleep mode is night mode,fan speed and noise are very low,all indicators are not lighted.
OPERATING INSTRUCTIONOPERATING INSTRUCTION
9
Anion
UV lamp
● Long press "Timer" icon,the displayed digit is flashing,then the timer mode is started.
● Press"Timer"icon continuously, the time can be chosen from 0 to 12 hours,
the device memory function will be started after waiting for 5 seconds.
The diagram as following:
Remark 1: Press time button on operation panel to preview how long time setting.
Remark 2: Hold on time button if you want to cancel time setting.
Remark 3: When time setting is finished/power off,machine turn to normal working mode.
10
User manual
Function setting
Timer
Smart
Speed
Function
Reset
%
Timer
Smart
Speed
Function
Reset
%
Tim er
Smart
Speed
Funct ion
Reset
%
P1:speed adjustment diagram
Tim er
Smar t
Speed
Func tio n
Rese t
%
P2:Sleep mode diagram
Tim er
Smar t
Speed
Func tio n
Rese t
%
Smart air purifier

● The number of PM2.5 particles, air quality status, and machine intelligently running status as below.
Smart setting
● PM2.5 Sensor built-in.
● Air quality indicator will be lighted after pressing the “Smart” icon on the product operating panel , the machine will check
the air quality and control its working status automatically.
● PM2.5 sensor: it's to check the dust or particles and display it by data.The diagram as following:
OPERATING INSTRUCTION
11 12
User manual
OPERATING INSTRUCTION
● PM2.5 abnormal correcting：
After used the PM2.5 sensor for a long time, trace amounts of particulate will adhere to the sensor inductive head, it may cause the PM2.5
numerical display abnormal.When you find PM2.5 numerical severly deviated from the normal range, here we advise you collect it as follow
steps based on the weather forecast's PM2.5 numerical in your city.
1.Open the window ventilated for 5 minutes(PM2.5 sensor will re-collection current environmental data).
2.Long press "function" icon, after heard a "click", showing it antomatic switch to PM2.5 display window, then enter PM2.5 correcting mode.
3
3.Each time you press "function" icon, the machine's PM2.5 numerical will increase 2ug/m , each time you press "smart" icon,
3
PM2.5 numerical will decrease 2ug/m .
4.When the PM2.5 numerical adjust to the PM2.5 numerical of your city's weather forecast,waiting 5 seconds，PM2.5 sensor collection finished.
Reset setting
● If the filter icons are always flashing, it means the filters life time comes to the end, please clean or replace new filters.
● After cleaning or replacing new filters, please press “Reset”icon, then filter icons will stop flashing, the machine starts
to record the filters using time.
Remark :”Reset” icon has refresh function,PM2.5 data can be refreshed after pressing the “ Reset” icon on the product operating panel .
Refresh setting
● Press " refresh" button to refresh PM2.5 value.
Remarks 1:The three smart light on the top is stand for air quality.
Remarks 2:when you choose"Smart" mode, the device will take 3 minutes to warm up, "function" icon can not use in this mode.
Remarks 3: when air humidity is above 80%, it will affect the sensitivity of sensor, the PM2.5 data is just for your reference.
Tim er
Smart
Speed
Funct ion
Reset
%
Tim er
Smar t
Spee d
Func ti on
Rese t
%
Excellent （Green light ）Slight, medium pollution （Orange）Serious pollution（Red light ）
Tim er
Smar t
Speed
Func ti on
Rese t
%
Tim er
Smar t
Speed
Func ti on
Rese t
%
Tim er
Smart
Speed
Funct ion
Reset
%
Filter replacement indicator
HEPA
Activated Carbon+Photo Catalyst
Washable Pre-filter
Smart air purifier
Air quality
indicator color PM2.5
Green light
Level 13
≤35ug/m
Orange light
Level 33
36-150ug/m
Level 53
≥151ug/m
Red light
Speed

MAINTENANCE AND CLEANING INSTRUCTION
Methods for replacing UV lamp
● Photo sensor is built-in the device, if the UV light is very weak or not lighted, the UV icon on the product operating
panel will be flashing; it means UV lamp should be replaced. The diagram as following:
Maintenance and cleaning instruction
● Cleaning the body for this device by damp cloth, then wipe it dry.
If machine is too dirty, neutral detergent can be used for cleaning, but please dilute the detergent before use.●
Do not clean the unit with the solvent listed on the right which may cause distortion or discolour.●
Please remove plug from the socket before
cleaning and maintenance .
Decon taminat ion
power
Alkalescen ce
Benzene Acoh ol
Scour
Maintenance and cleaning instruction
Hold the UV lamp and rotate it for 90 clockwise or anticlockwise,
then take it out.
Hold the UV lamp and rotate it for 90 clockwise or anticlockwise,
then install it well.
● Take off the front cover, and take out all filters, then UV lamp can be replaced.The diagram as following:
Disassembly and installation for UV lamp
MAINTENANCE AND CLEANING INSTRUCTION
13 14
User manual
UV lamp replacement indicator
Tim er
Smart
Speed
Funct ion
Reset
%
Smart air purifier

● If the machine can't work properly,please kindly check as below before you send it out for repair.
If the problem is still existed after above inspections, please disconnect the power and send it for repair.
● Is the PE bag for filter removed?
● Does the using life time for HEPA come to the end?
Solution
Please take out filters and tear off PE bag.
Please replace new HEPA .
Abnormal occurrence Checking methods
PM 2.5 Value keep too
big or indicator stay red
Odor can not be removed.
● Please check if the plug is disconnected from the socket. Power plug should be plugged properly
● Please check if the front cover is installed completely Recover the front cover correctly
● Is there a very strong odor in the using environment?
(Notes:air should be purified continuously)
Suggesting to ventilate,then start up the
machine.
● Does the using life time for activated carbon filter
come to the end? Please replace new filters.
High noise
Small changes for
humidity or temperature
data
● Is the machine using area too big? Please use this machine in applicable room.
Air quality indicator can
not work properly
● Is the air humidity very high?
● Is the machine affected by kitchen oil fume or sprays?
Please move the machine to another
room to test again.
FAQ
15
TECHNICAL PARAMETERS
16
User manual
Filter parameters
Parameters of the unit
Model No.:
Voltage Supply:
3
Air flow volume(m /h):
Noise level dB(A):
Length of power cord:
Product size:
Net weight:
Power rating (W):
Applicable area:
220V-240V,50Hz
3
≥660m /h
≤66dB(A)
≥1.4M
460×286×760(mm)
9.8kg
107W
2
70-80m
B-C02 Description Size Life time
HEPA About 12 months
About 6 months
554×329×29(mm)
Washable
Pre-filter 554×329×6(mm)
Activated Carbon
+Photo Catalyst 554×329×11(mm)
UV parameters
Description
UV lamp 254nm
Wave length
T5
Model
6W
Power rating
8000h
Life time
Voltage Supply
220V-240V
Smart air purifier
