ASSEMBLY INSTRUCTIONS FOR
Plug in Plus Air Purification System by RGFTM (#17879)
© Health Care Logistics, Inc. 2009
Plug In Plus by RGF
®
Thank you for purchasing the
Plug In Plus by RGF®
Advanced Oxidation System
NOTE: Please take time to read the attached assembly instructions. All instructions and
precautions should be adhered to while operating this system.
RGF Environmental Group
Copyright 2005

Call Free 1.800.848.1633 or 1.888.HCL-INTL Fax Free 1.800.447.2923
Website: www.HealthCareLogistics.com • Email: [email protected]
ASSEMBLY INSTRUCTIONS FOR
Plug in Plus Air Purification System by RGFTM (#17879)
© Health Care Logistics, Inc. 2009
INSTALLATION INSTRUCTIONS
DANGER: For outlet installation only,
never connect to an extension cord or other
type of power source. Improper installation could result in electrical shock or short.
1. Find a convenient wall outlet. Plug the unit into the outlet. Note: It is not
recommended to place the PIP unit into an outlet equipped with a GFCI (Ground
Fault Circuit Interrupter) device. If the GFCI is tripped, it will not be possible to reset
the outlet GFCI device (unless the PIP is physically removed from the outlet). In
installations requiring a GFCI circuit, it is recommended that the breaker box be
equipped with a GFCI breaker to protect the outlet circuit.
2. Turn off power at the breaker panel for the outlet (restore when installation is
complete).
3. Remove the PIP cover and install anti-theft screws (Note: as the wall material will
vary from installation to installation, the wall mounting security screws are not
provided). Please use the appropriate type of fasteners for the substrate
encountered in each installation location (2-1/2” long fasteners are recommended).
4. Fasten the security screws into the provided holes going through the back of the
unit. In wall installations with wood or metal studs you will need to locate which side
the stud is positioned on, and then use the corresponding holes in the unit (two
holes located to the left of center, or two holes located to the right of center).
5. Note: A light duty mounting option is included with the unit. This is for low traffic
areas such as storage rooms and similar areas that do not require an anti-theft type
of mounting.
•Locate the appropriate outlet and disconnect power to it at the breaker box.
•Remove the center screw from the outlet plate cover.
•Plug unit into the outlet (be sure outlet cover is still in place), and secure unit and
outlet plate to outlet using provided 6-32 X2” machine screw.

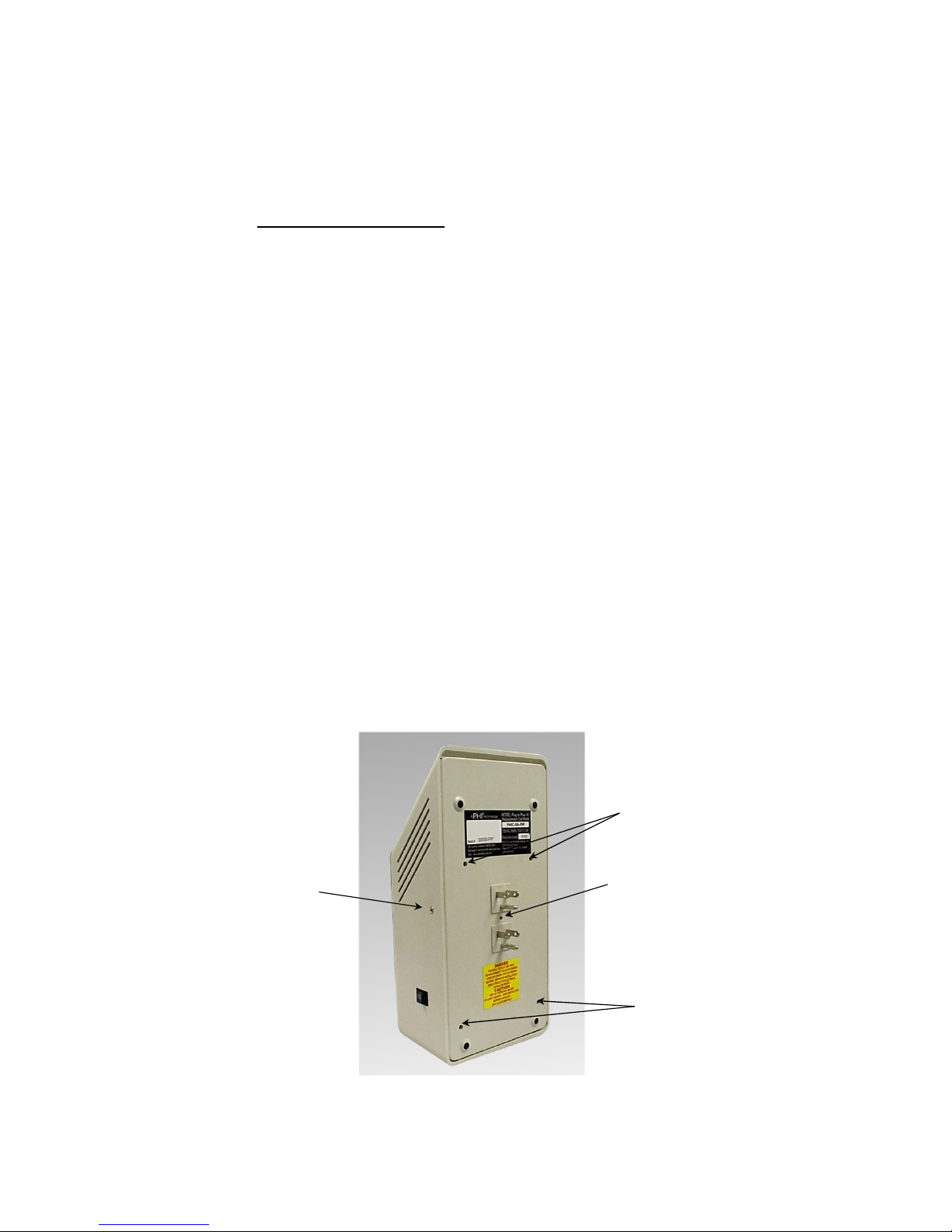

Mountin
g
Holes
(
2
)
Remove Cover Screws
(
2
)
Center Mountin
g
Holes
(
1
)
Mounting holes (2)

Call Free 1.800.848.1633 or 1.888.HCL-INTL Fax Free 1.800.447.2923
Website: www.HealthCareLogistics.com • Email: [email protected]
ASSEMBLY INSTRUCTIONS FOR
Plug in Plus Air Purification System by RGFTM (#17879)
© Health Care Logistics, Inc. 2009
OPERATION
After completing the installation, you can now operate the unit. Operation is controlled
via a switch, located on the side of the unit.
Low-Off-High Switch

Call Free 1.800.848.1633 or 1.888.HCL-INTL Fax Free 1.800.447.2923
Website: www.HealthCareLogistics.com • Email: [email protected]
ASSEMBLY INSTRUCTIONS FOR
Plug in Plus Air Purification System by RGFTM (#17879)
© Health Care Logistics, Inc. 2009
LAMP REPLACEMENT PROCEDURE
Caution: Before attempting to service the Plug In Plus, remove unit from outlet.
DANGER: MAKE SURE UNIT IS DISCONNECTED BEFORE SERVICING. NEVER
LOOK DIRECTLY AT UV LIGHT. UV LIGHT WILL DAMAGE YOUR EYES.

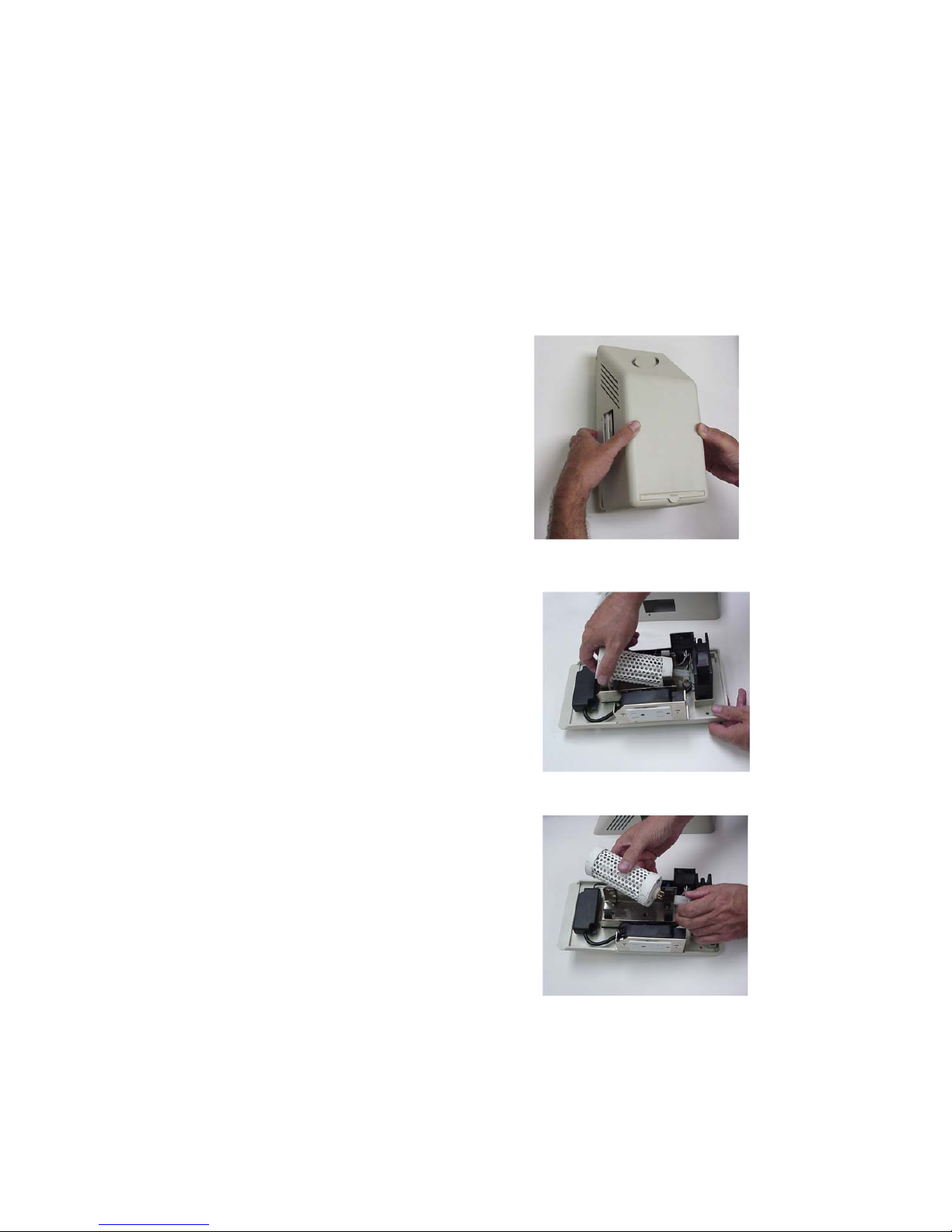

Figure 1
Figure 2
Figure 3
1. Remove cover by first
removing two (2) screws
from each side of cover.
Next gently pull out on
both sides of cover and
pull cover away from
chassis
2. Pull PHI Cell out from
clips.
3. Remove plug from PHI
Cell. Replace PHI Cell.
Replace cover.
Plug back into outlet.

Call Free 1.800.848.1633 or 1.888.HCL-INTL Fax Free 1.800.447.2923
Website: www.HealthCareLogistics.com • Email: [email protected]
ASSEMBLY INSTRUCTIONS FOR
Plug in Plus Air Purification System by RGFTM (#17879)
© Health Care Logistics, Inc. 2009
FILTER CLEANING PROCEDURE
REPLACEMENT PART NUMBERS
Component Cell
PHI Cell PHIC-5A-PIP
Slide filter out from front of unit.
Wash with warm soapy water and
allow to air dry before replacing
into unit.

Call Free 1.800.848.1633 or 1.888.HCL-INTL Fax Free 1.800.447.2923
Website: www.HealthCareLogistics.com • Email: [email protected]
ASSEMBLY INSTRUCTIONS FOR
Plug in Plus Air Purification System by RGFTM (#17879)
© Health Care Logistics, Inc. 2009
RGF Environmental Group, Inc.
3875 Fiscal Court West Palm Beach Florida 33404 800 842-7771 • 561 848-1826 • Fax [phone] • www.rgf.com
Dimensions: 6.25” w x 3.75” d x 10” h
Electrical: 110 VAC 50 watts
Controls: On / Off /Low /High
Weight: 2 lbs.
Material: Aluminum/ Polymers
Advanced Oxidation: Less than .04 ppm
Replacement PHI Cell: (1) PHIC-5A-PIP
BEFORE AFTER
Actual lab tests showing up to
96% reductions of airborne
bacteria and mold
100
90
80
70
60
50
40
30
20
10
0
1 2 3 4
HOURS
% ODOR REDUCTION
SPECIFICATIONS
Note: Not recommended for installation on external GFCI outlets (if required, a panel box type GFCI breaker must be used).
RGF’s PHI CellTM
The RGF Pure Air™ Advantage
While UV systems are designed
to kill mold on the HVAC coil, the
RGF PHI Cell™ does this, plus it
adds advanced oxidants through-
out the room to kill microbials at
the source. The Sneeze Test
Simulated Sneeze Lab Test at
three feet in a 250 cu ft Bio Test
Chamber. 78% reduction
3’
78% Reduction
•The proprietary Guardian Plasma SystemTM
provides a pro-active atmosphere of Advanced Oxidation Plasma for continuos protection from microbials and odors. Your air will have the smell
of purity.
•The RGF proprietary Mold Intervention SystemTM has the ability to kill airborne mold spores and mold odors
•The RGF proprietary Virus Interceptor SystemTM has the ability to kill virus even the stubborn Norwalk Virus (Independent lab test 99.99% kill
in 15 minutes).
•The RGF proprietary PhotohydoionizationTM PHI Cell has a 25,000 hour or 3 year life.
Bacteria 99% Reduction Gases and Odors 85% Reduction
Viruses 99.99% Reduction Mold 97% Reduction
Hydro-peroxides Super oxide ions
Germicidal UV light
Passive Negative Ions
You don’t lose your outlet!
Plugs directly into
existing wall outlets
Outlets
Low/Off/High
Air Inlet
Removable
Electrostatic Filter
Air Outlet
Air Outlet
Night Light
Optional anti-theft mounting screws
Optional anti-theft mounting screws
