PORTABLE AIR CONDITIONER
INSTALLATION MANUAL
Model: CH-M09K6S
Designed by Cooper&Hunter International Corporation, Oregon, USA
www.cooperandhunter.com
For proper operation,please read and keep this manual carefully.

Content
Operation Notices
The Refrigerant.........................................................................................................1
Operation Environment............................................................................................2
Safety Warning. ........................................................................................................3
Part's Name. .............................................................................................................4
Installation Notice
Installation Precaution .............................................................................................5
Preparation before Installation.................................................................................6
Installation
Removing Collected Water ......................................................................................8
Install Wire Hook .....................................................................................................7
Operation Test.......................................................................................................14

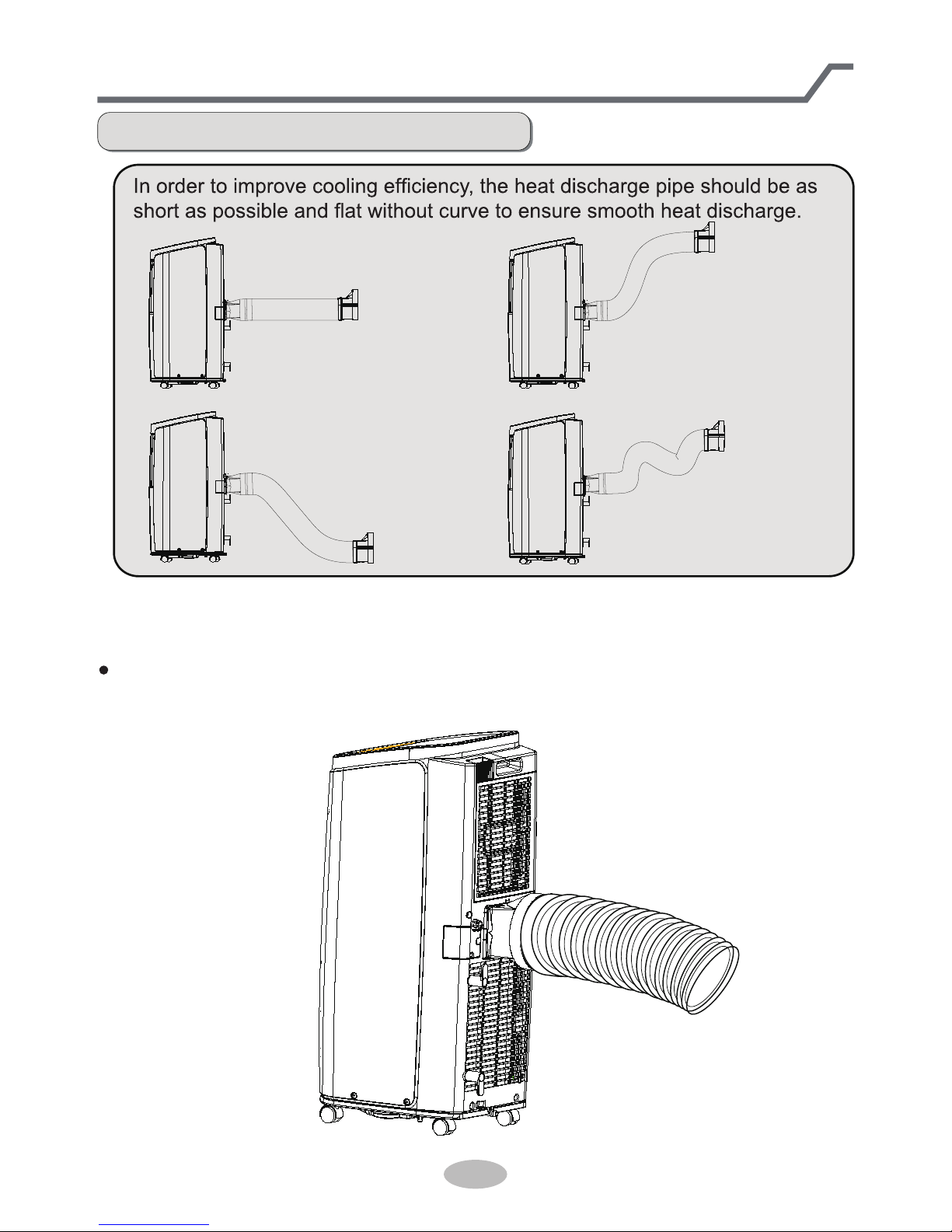

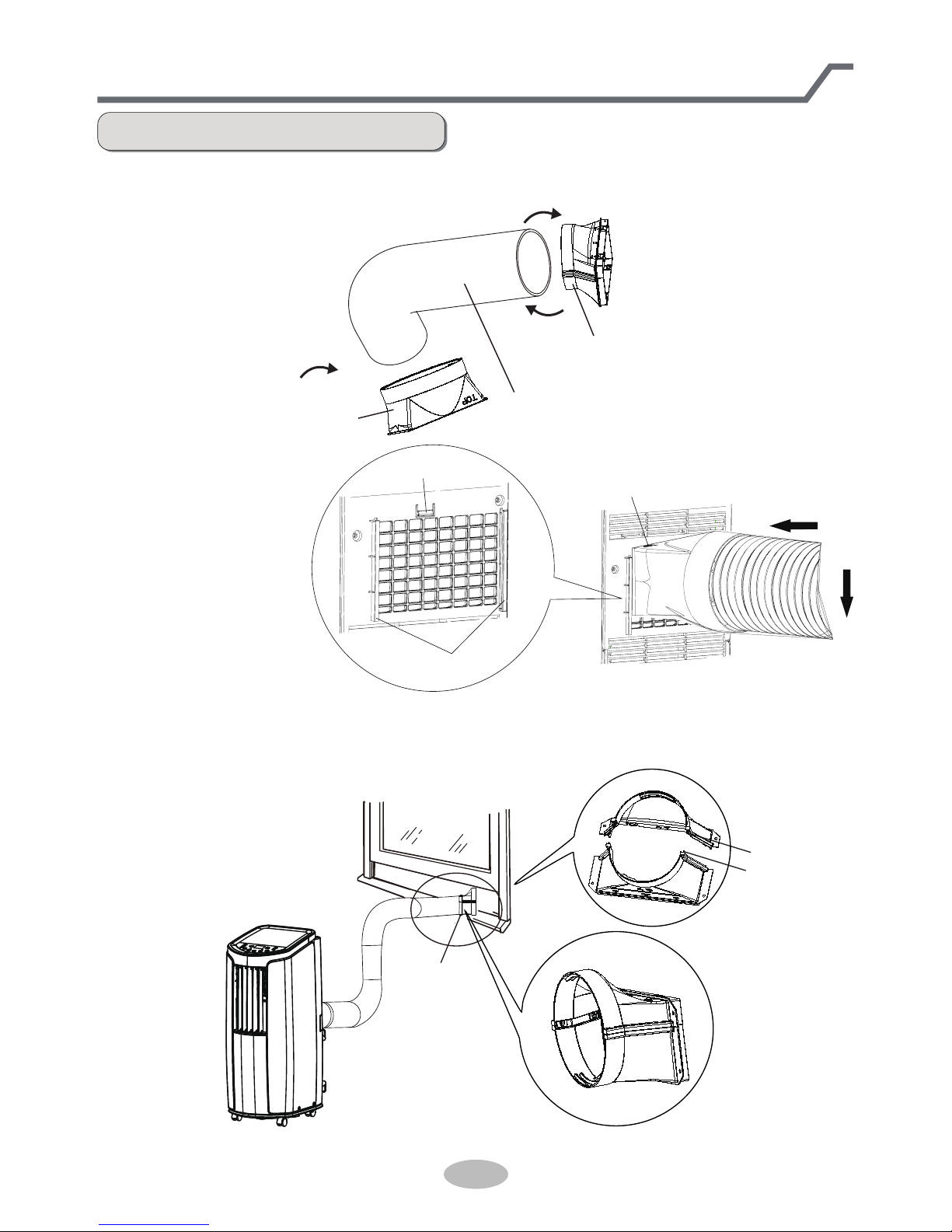

Installation and Disassembly of Heat Discharge Pipe ...........................................11
Attached Sheet

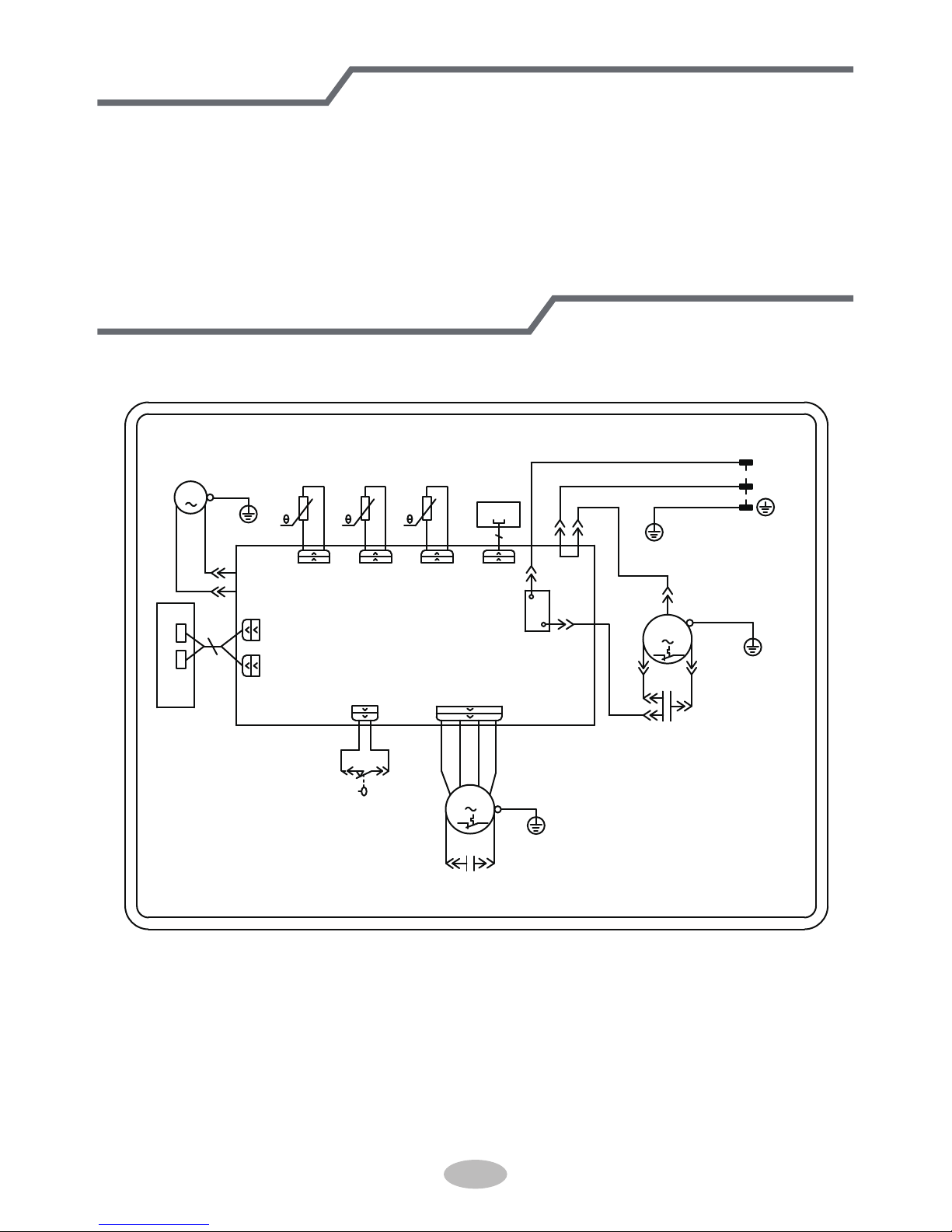

Electric Schematic Diagram...................................................................................14
This marking indicates that this product should not be disposed with other household wastes
throughout the EU. To prevent possible harm to the environment or human health from un-
controlled waste disposal, recycle it responsibly to promote the sustainable reuse of mate-
rial resources. To return your used device, please use the return and collection systems or
contact the retailer where the product was purchased. They can take this product for envi-
ronmental safe recycling.
R32: 675
This appliance is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.

Explanation of Symbols
Indicates a hazardous situation that, if not avoided, will
result in death or serious injury.
Indicates a hazardous situation that, if not avoided, could
result in death or serious injury.
Indicates a hazardous situation that, if not avoided, may
result in minor or moderate injury.
Indicates important but not hazard-related information,
used to indicate risk of property damage.
Indicates a hazard that would be assigned a signal word
WARNING or CAUTION.
WARNING
CAUTION
DANGER
N OTIC E

1
The Refrigerant
WARNING
To realize the function of the air conditioner unit, a special refrigerant circulates in
the system. The used refrigerant is the fluoride R32, which is specially cleaned.
The refrigerant is flammable and inodorous. Furthermore, it can leads to explosion
under certain conditions. But the flammability of the refrigerant is very low. It can
be ignited only by fire.
Compared to common refrigerants, R32 is a nonpolluting refrigerant with no harm
to the ozonosphere. The influence upon the greenhouse effect is also lower. R32
has got very good thermodynamic features which lead to a really high energy
efficiency. The units therefore need a less filling.
Do not use means to accelerate the defrosting process or to clean, other than those
recommended by the manufacture. Should repair be necessary, contact your nea-
rest authorized Service Centre. Any repairs carried out by unqualified personnel
may be dangerous. The appliance shall be stored in a room without continuously
operating ignition sources. (for example: open flames, an operating gas appliance
or an operating electric heater.) Do not pierce or burn.
Appliance shall be installed, operated and stored in a room with a floor area larger
than 4m .
Appliance filled with flammable gas R32. For repairs, strictly follow manufacturer’s
instructions only. Be aware that refrigrants not contain odour. Read specialist’s
manual.
2
Appliance filled with flammable gas R32.
Before install and use the appliance, read the owner’s manual first.
Before repair the appliance, read the service manual first.

2
Operation Environment
● This air conditioner can only be used for family, not for
commercial industry.
● The appliance is for indoor use only.
● The air conditioner must be operated within the temperature range:
16°C ~ 35°C.
● The appliance must be positioned so that the plug is accessible.
● Reserved space around the air conditioner should be 30cm(12″)
at least.
● Do not operate the air conditioner at humid environment.
● During operation, close doors and windows to improve cooling effect.
● Please keep air inlet and air outlet clean, no obstacles.
to avoid noise and vibration.
● Please put the air conditioner at smooth and flat ground for operation
● This air conditioner is equipped with castors. Castors should slide
at smooth and flat ground.
● Prohibit inclining or turning over the air conditioner. If there’s abnor-
mity,please disconnect power immediately and contact dealer.
● Avoid direct sunshine.
30cm 30cm
30cm

3
Safety Warning
● Before operation, please confirm whether power specification
● Before cleaning or maintaining the air conditioner, please turn off
air conditioner and pull out the power plug.
in order to avoid a hazard.
manufacturer or professional person.
complies with that on nameplate.
● Please use the grounded power. Make sure the gounding is reliable.
● If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified person
● Do not insert or pull out the power plug with wet hands.
disconnect power at once and then contact local dealer.
● If abnormal condition occurs (e.g. burned smell), please
● If the power cord is damaged, it must be replaced by
● When nobody is taking care of the unit, please turn it off and
remove the power plug or disconnect power.
● Do not splash or pour water on air conditioner. Otherwise, it may
cause short circuit or damage to air conditioner.
portable room air conditioner without supervision.
●
If drainage hose is used, ambient temperature can't be lower than
0℃．Otherwise, it will cause water leakage to air conditioner.
● Prohibit inserting any objects into the air conditioner.
● Do not use an extension cord.
● Do not repair or disassemble the air conditioner by yourself.
● Do not put or hang dripping objects above the air conditioner.
● Keep children from playing or climbing on the air conditioner.
● Children and disabled people are not allowed to use the
● Far away from fire source, inflammable and explosive objects.
● Prohibit operating heating equipment around the air conditioner.
● Make sure the power cord hasn’t been pressed by hard objects.
● Do not pull or drag the power cord to pull out the power plug or
move the air conditioner.
● This appliance can be used by children aged from 8 years and
● Children shall not play with the appliance.
● Cleaning and user maintenance shall not be made by children
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
without supervision.

4
1Controller panel
2
Swing louver
3
Guide louver
4Castor
Wire-fixing hook
5
Plug of power cord
7Gastor
8Air inlet
9Joint A
10 Heat discharge pipe
11 Joint B+C
6
Part's Name
11 10 9
6
7
8
Heat discharge pipe and other installation accessories can't be discarded.
NOTICE:
1
2
3
4
Remote controller
5
FAN
AUTO
OPER
HEALTH
AIR
FILTER
TURBO
ON/OFF
X-FAN
HOUR
HUMIDITY
ON/OFF
MODE
FAN
X-FAN
TURBO
TEMP TIMER
SLEEP LIGHT

Installation Precaution
● Observe all governing codes and ordinances.
● Do not use damaged or non-standard power cord.
● Be caution during installation and maintenance. Prohibit incorrect operation
to prevent electric shock, casualty and other accidents.
WARNING
Selection of installation location
Requirements for electric connection
Basic requirement
Installing the unit in the following places may cause malfunction. If it is unavoidable,
please
consult the local dealer:
objects spread in the air.
2. The place with high-frequency devices (such as welding machine, medical equipment).
3. The place near coast area.
4. The place with oil or fumes in the air.
5. The place with sulfureted gas.
6. Other places with special circumstances.
Requirement of air conditioner
1. Air inlet should be far away from obstacles and do not put any objects near air outlet.
Otherwise, it will affect the radiation of heat discharge pipe.
2. Select a location where the noise and outflow air emitted by the outddor unit will not affect
neighborood.
3. Please try your best to keep far away from fluorescent lamp.
4.The appliance shall not be installed in the laundry.
Safety precaution
1. Must follow the electric safety regulations when installing the unit.
2. According to the local safety regulations, use qualified power supply circuit.
3. For appliances with type Y attachment,the instructions shall contain the substance of
the following.If the supply cord is damaged,it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
4. Properly connect the live wire, neutral wire and grounding wire of power socket.
5. Be sure to cut off the power supply before proceeding any work related to electricity and
safety.
6. Do not put through the power before finishing installation.
7. The air conditioner is first class electric appliance. It must be properly grounding with
specialized grounding device by a professional. Please make sure it is always grounded
effectively, otherwise it may cause electric shock.
8. The yellow-green wire or green wire in air conditioner is grounding wire, which can't be
used for other purposes.
9. The grounding resistance should comply with national electric safety regulations.
10. The appliance shall be installed in accordance with national wiring regulations.
5
WARNING:

6
Preparation before Installation
Note: check if the accessories are available before installation.

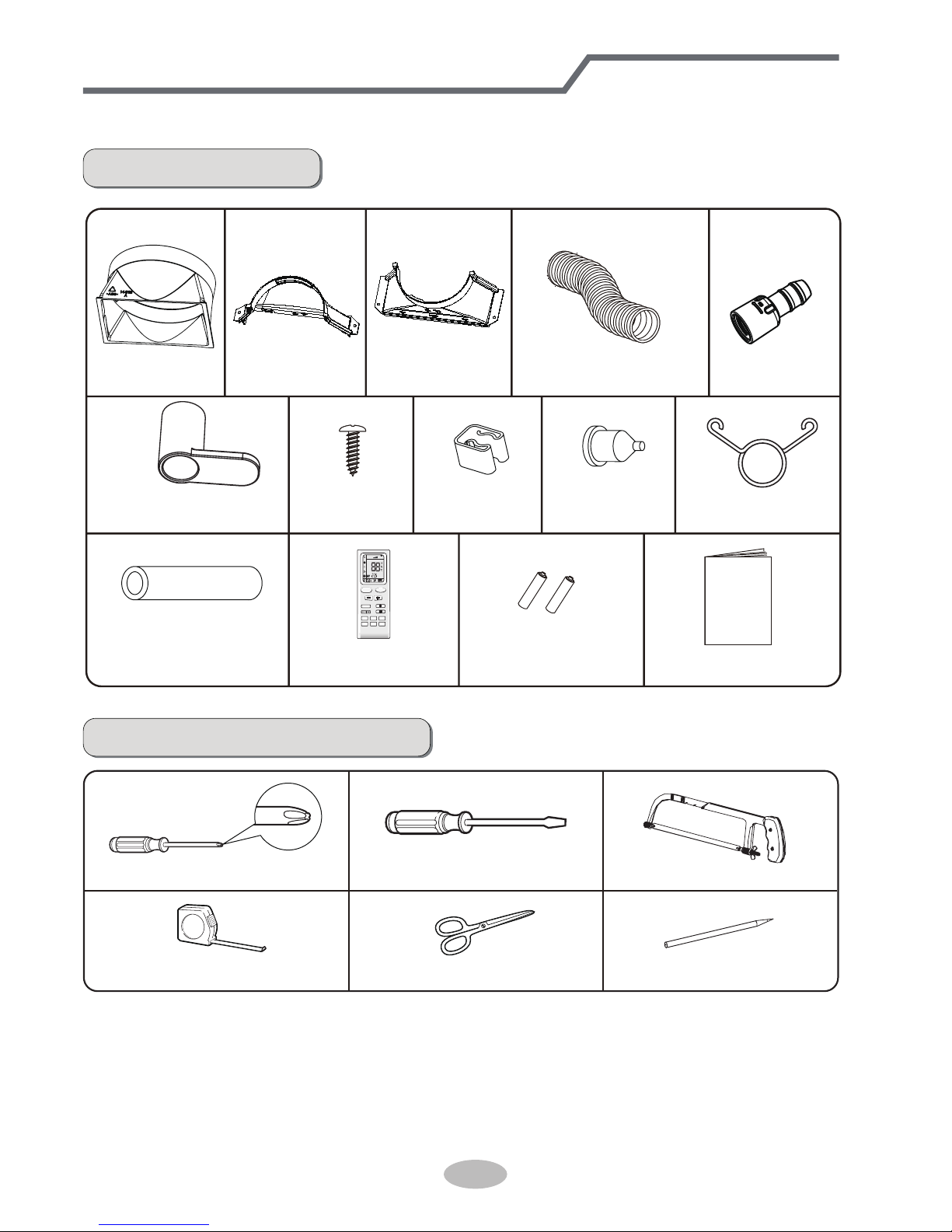

Accessory list
Tools needed for installation
cross screwdriver
gauge
straight screwdriver
scissors
saw
pencil
joint A joint B joint C heat discharge pipe
drainage pipe remote controller user's manual
battery (2)
(AAA 1.5V)
screw(3) pipe clip rubber plug pipe hoop (2)
wire hook (2)
Adapter (1)
FAN
AUTO
OPER
HEALTH
AIR
FILTER
TURBO
ON/OFF
X-FAN
HOUR
HUMIDITY
ON/OFF
MODE
FAN
X-FAN
TURBO
TEMP TIMER
SLEEP LIGHT

7
Install Wire Hook
●Assemble the wire hook at the back of the unit with screws (the direction of wire
● Wind the power cord around the wire hook.
direction of wire hook is upward
direction of wire hook is downward
screw
wire hook

8

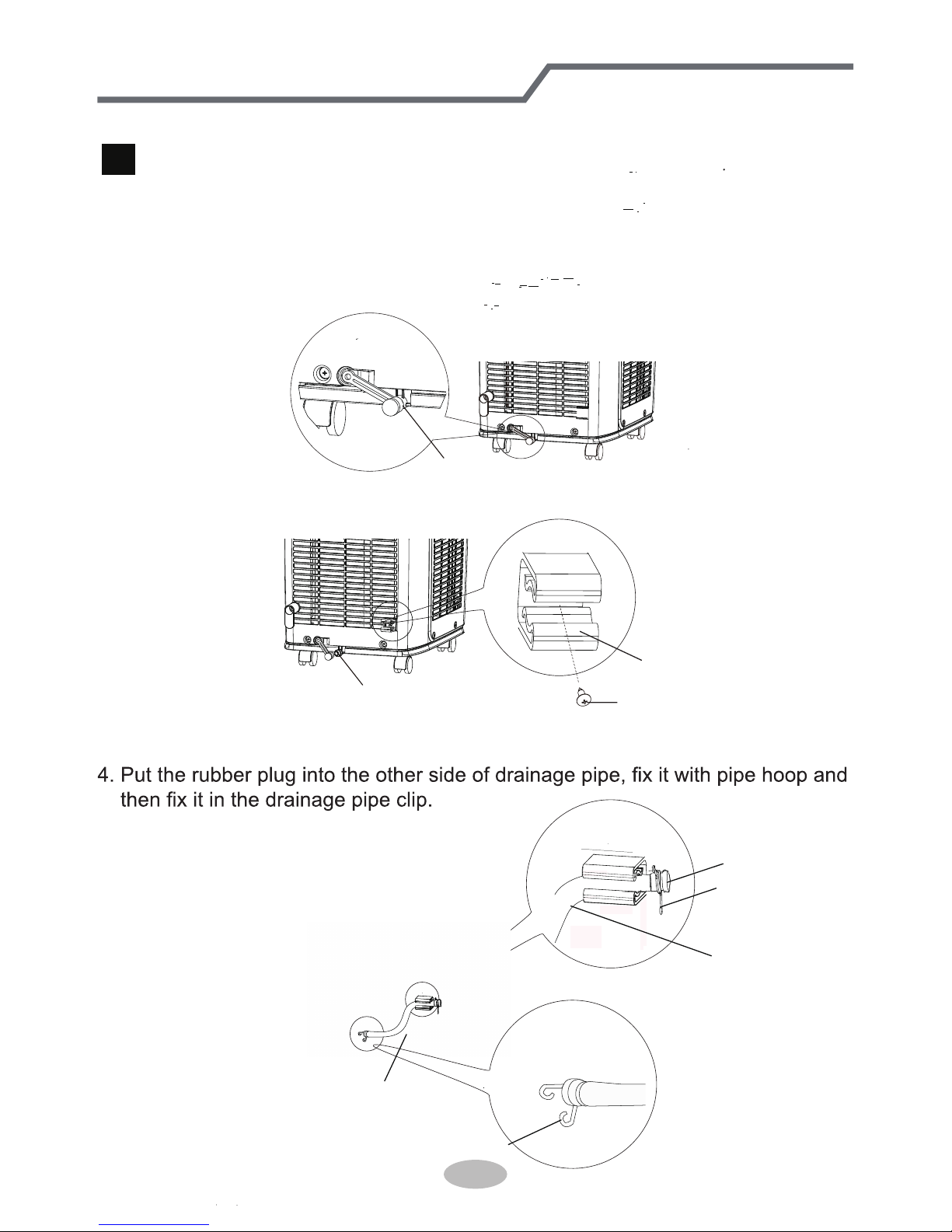

1. Remove the rubber plug at drainage port.
2. Fix the drainage pipe clip on the right of rear side plate near drainage port with
a screw.
3. Put the drainage pipe into drainage port and screw it up, and then bind it with
pipe hoop.
drainage port
drainage port drainage pipe clip
screw
Note:When using the continuous drainage option from the bottom hole, install
drainage pipe before using, otherwise poor drainage will affect normal
operation of the unit.
There are 2 ways to remove collected water:
■ Instructions for drainage pipe installation as follows.
Use the continuous drainage option from the bottom hole
1
Removing Collected Water
pipe hoop
drainage pipe
drainage
pipe clip
pipe hoop
rubber plug

Removing Collected Water
1. In cooling or drying operation, the condensation water will be drained to the
■ Drainage way as follows.
chassis and spattered by water-striking motor. As the temperature of condenser
is high, most of the condensation water will be evaporated and drained to
outdoor. So usually, only a little condensation water will be accumulated inside
the chassis and you do not need to discharge the water frequently.
2. When the chassis is full with water, the buzzer will give out 8 sounds and "H8" is
displayed to remind user to discharge water:
● Move the unit to a suitable place for discharging water; do not tilt the unit and
keep it horizontal during moving;
●Take the drainage pipe from the clip and pull out the rubber plug on the
drainage pipe to discharge water;
●After full water protection is eliminated and the compressor has been stopped
for 3 minutes, the unit will resume operation.
9

1. Remove the continuous drain cap 1 by turning it counter clockwise then remove
the rubber stopper 2 from the spout.
2. Screw the drain connector to(included
in the package) the spout by turning
clockwise.
3. Insert the drainage hose into
drain connector.
ATTENTION:
Removing Collected Water
When using continuous drainage option from the middle hole, place portable
on a level surface and make sure garden hose is clear of any obstructions
and is directed downward. Placing portable on an uneven surface or
improper hose installation may result in water filling up the chassis and
causing the unit to shut off. Empty water in the chassis if shut off occurs,
then check portable location and hose for proper setup.
Note:Water can be automatically emptied into a floor drain by attaching 14mm inner
diameter hose (not included).
Use the continuous drainage option from the middle hole
10
2

Installation and Disassembly of Heat Discharge Pipe
Install heat discharge pipe
1. Rotate joint A and joint B clockwise into the two ends of heat discharge pipe.
clockwise
clockwise
joint A
joint B+C
joint B+C
heat discharge pipe
2. Insert joint A of heat
discharge pipe (the
side with "TOP" is
upwards) into the
groove until you
hear a sound.
3. Aim the locating pole of joint B of heat discharge pipe at the opening of joint C;
rotate it slightly to make joint B and joint C connect tightly.
groove
clasp the side with "TOP" is upwards
locating pole
opening
tightened status
11

Installation and Disassembly of Heat Discharge Pipe
Note of Installingheat discharge pipe
correct correct
correct
wrong

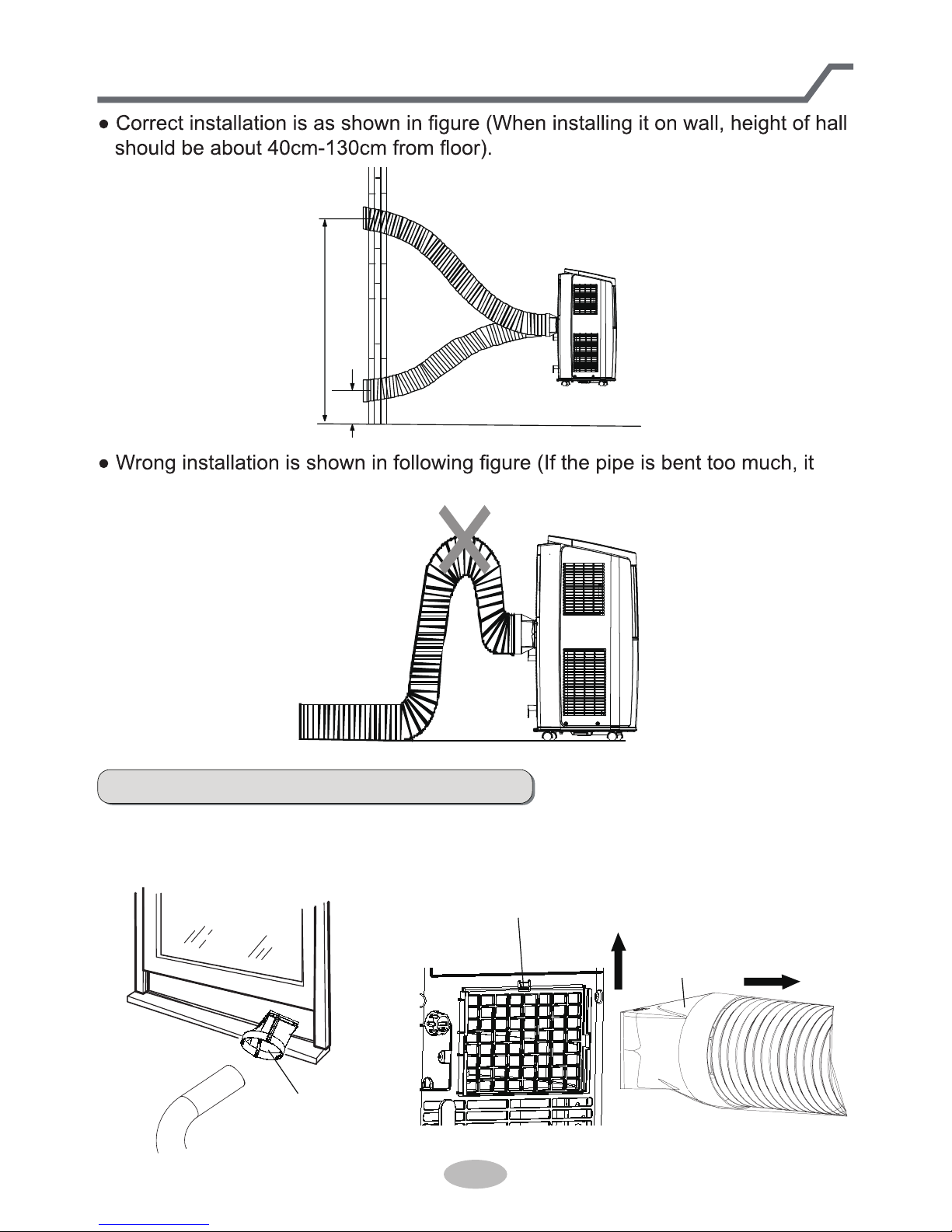

●The length of the heat discharge pipe is less than 1m. It is recommended to
use it with shortest length.
the pipe or connect it with other
When installing,heat discharge pipe should be as flat as possible. Don’t prolong
heat discharge pipe.
12

Disassemble heat discharge pipe
1. Remove joint B:
remove joint B from joint C. 2. Remove joint A: Press the clasp and lift joint A upwards to
remove it.
joint B+C
upwards
clasp
disassemble
joint A
would easily cause malfunction.)
Installation and Disassembly of Heat Discharge Pipe
130cm
40cm
13

Electric Schematic Diagram
14
CH-M09K6S
Operation Test
● Put through the power supply and then press ON/OFF button on remote contro-
ller to start the unit.
● Press mode button to select auto, cooling, drying, fan or heating function, and
then check if the unit operates normally.
● If ambient temperature is below 16°C, the unit can't operate in cooling mode.
WATER MOTOR
ROOM
POWER
L
BN(BK)
N
YEGN(GN)
BU(WH)
BU
N3
S
COMP
CYEGN
YE
CAP.
K201
AC-L
COMP
AP1
N1
WATER
DISP2
RD
FAN RD
BU
SACOM
WH
HIGH-WP
RD
DISP2
ROOM TEMP.
DISP1
AP2
M2
M1
BN
MOTOR
FAN
RD
CAP.
SENSOR
PE
PE
YEGN
AP3
BK
NC
PE
YEGN
DISP1
COMP.
SWITCH
WATER LEVEL
BOARD
DISPLAY
MAIN BOARD
OUTTUBE
OUTTUBE TEMP.
RT3
SENSOR
SENSOR
TUBE TEMP.
TUBE REC
RECEIVER
RT2RT1
PE
R(M)
BOARD

66160000470
Add: West Jinji Rd, Qianshan, Zhuhai, Guangdong, China, 519070
MANUFACTURER: GREE ELECTRIC APPLIANCES, INC. OF ZHUHAI
www.cooperandhunter.com
