Cooper & Hunter SOPHIA CH-HYP19MSPH-230VO User manual

SOPHIA HYPER
MULTI-ZONE
INVERTER
SPLIT AIR CONDITIONER
WITH HEAT PUMP
INSTALLATION MANUAL
OUTDOOR UNIT
Models:
CH-HYP19MSPH-230VO
CH-HYP28MSPH-230VO
CH-HYP36MSPH-230VO
CH-HYP48MSPH-230VO
IMPORTANT NOTE:
• Read this manual carefully before installing or operating your new air
conditioning unit. Make sure to save this manual for future reference.
• This manual only describes the installation of the outdoor unit. When installing
the indoor unit, refer to the installation manual of the indoor unit.

Table of Contents
INSTALLATION MANUAL
Accessories....................................................................................................................................... 3
Safety Precautions........................................................................................................................... 4
Installation Summary...................................................................................................................... 5
Installation Diagram ....................................................................................................................... 6
Specications................................................................................................................................... 7
Outdoor Unit Installation ............................................................................................................... 8
1. Select installation location ...................................................................................................................................8
2. Install drain joint ......................................................................................................................................................9
3. Anchor outdoor unit...............................................................................................................................................9
Refrigerant Piping Connection..................................................................................................... 11

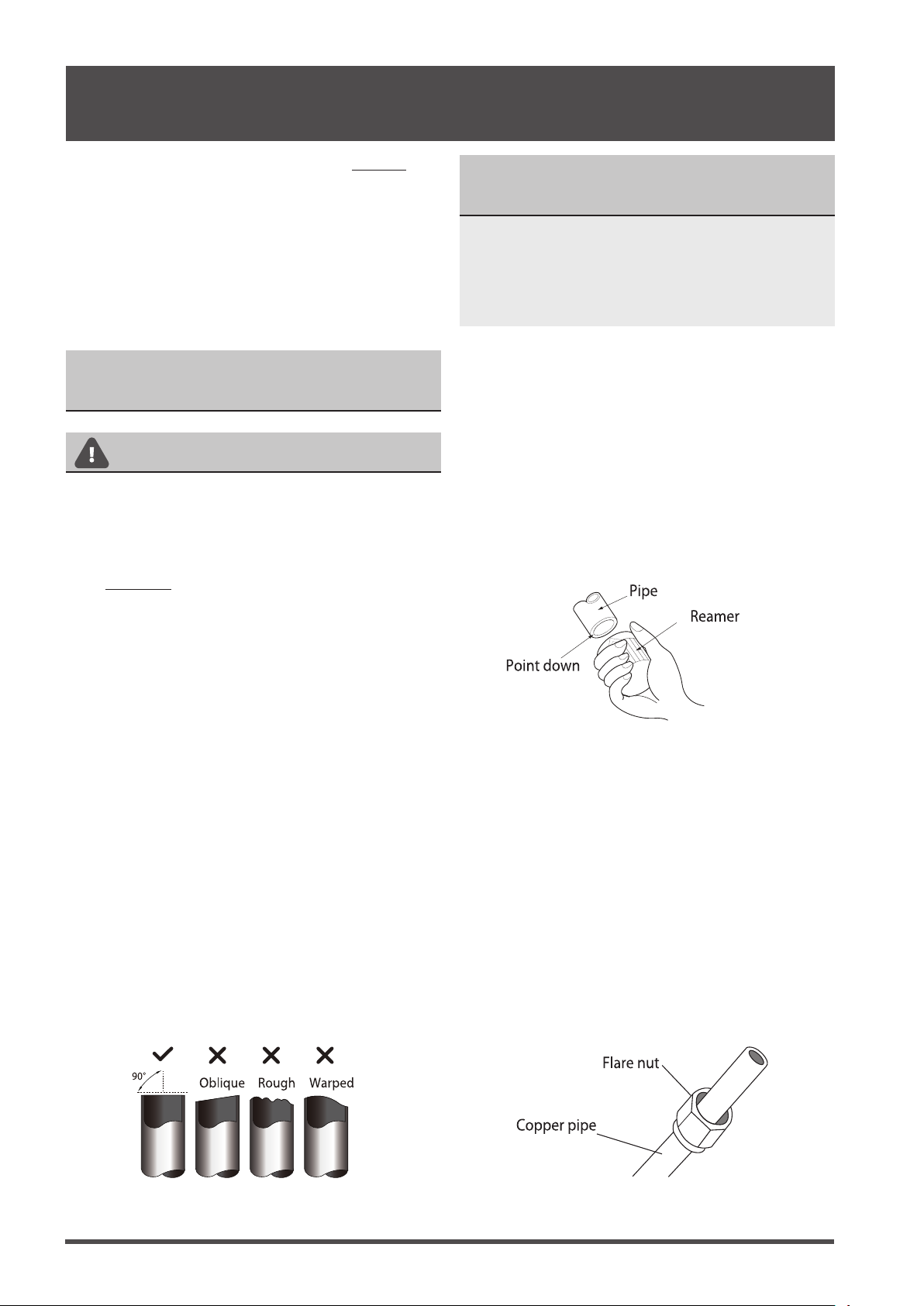

1. Cut pipe....................................................................................................................................................................11
2. Remove burrs .........................................................................................................................................................11

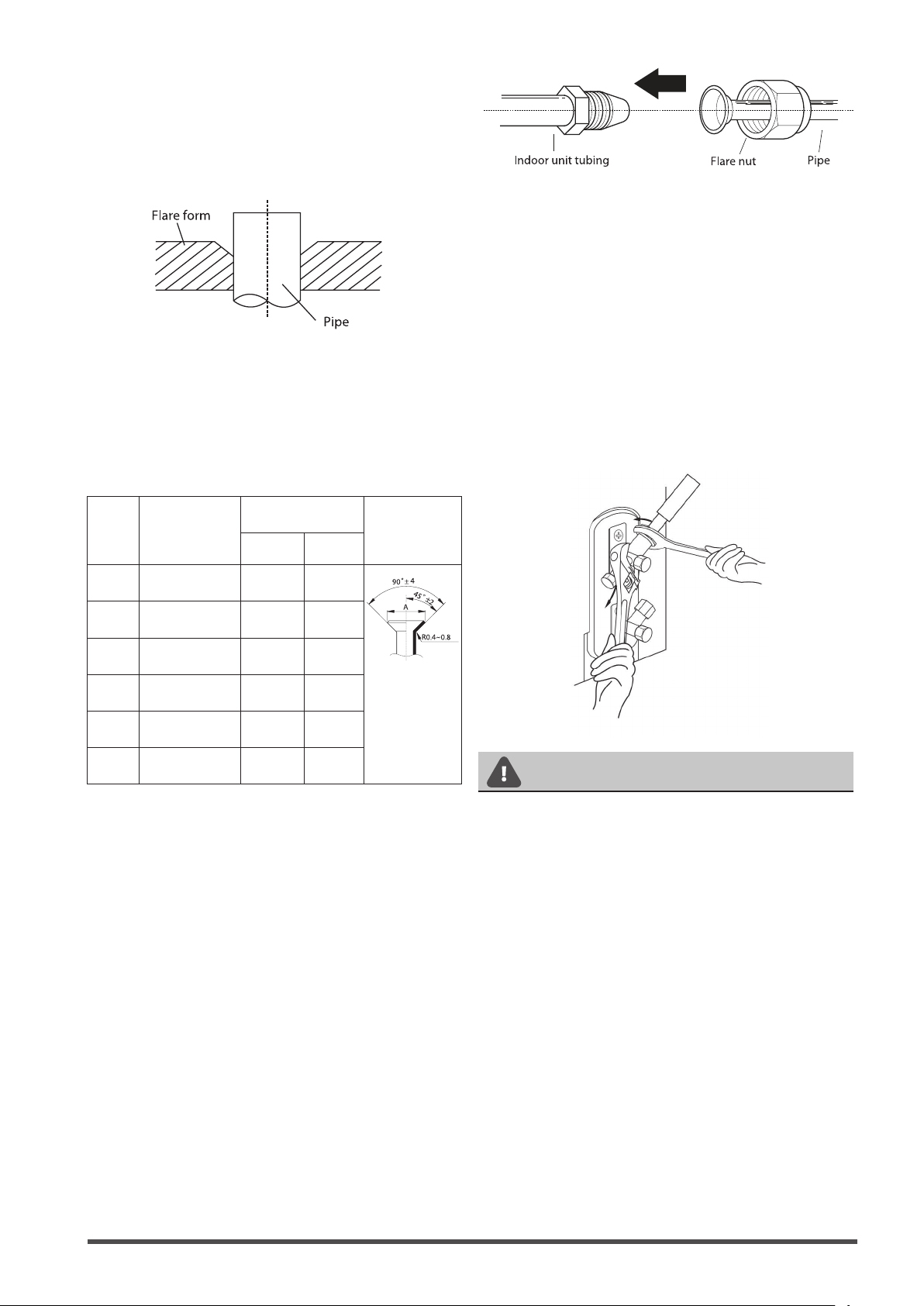

3. Flare pipe ends.......................................................................................................................................................11
4. Connect pipes ........................................................................................................................................................12

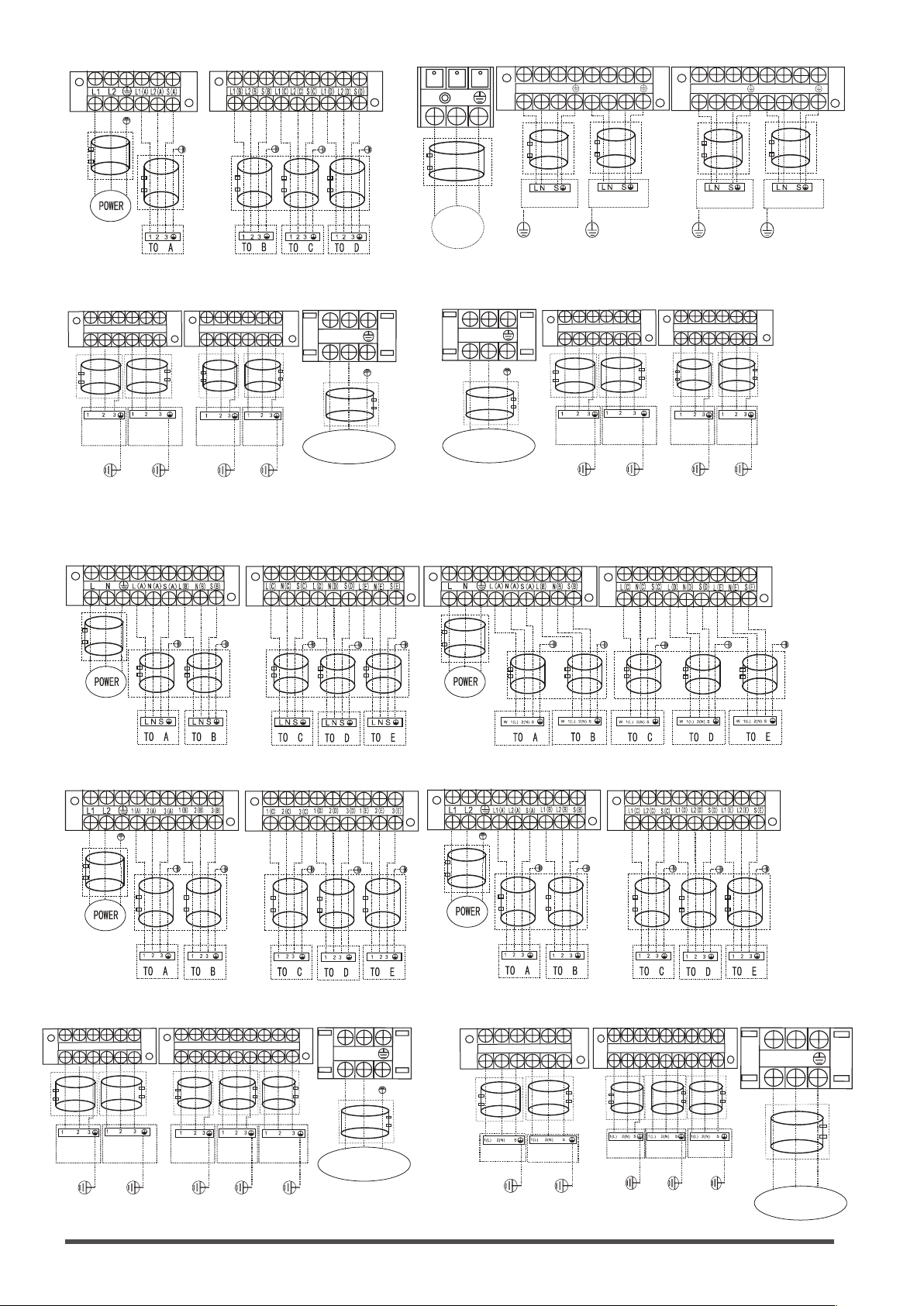

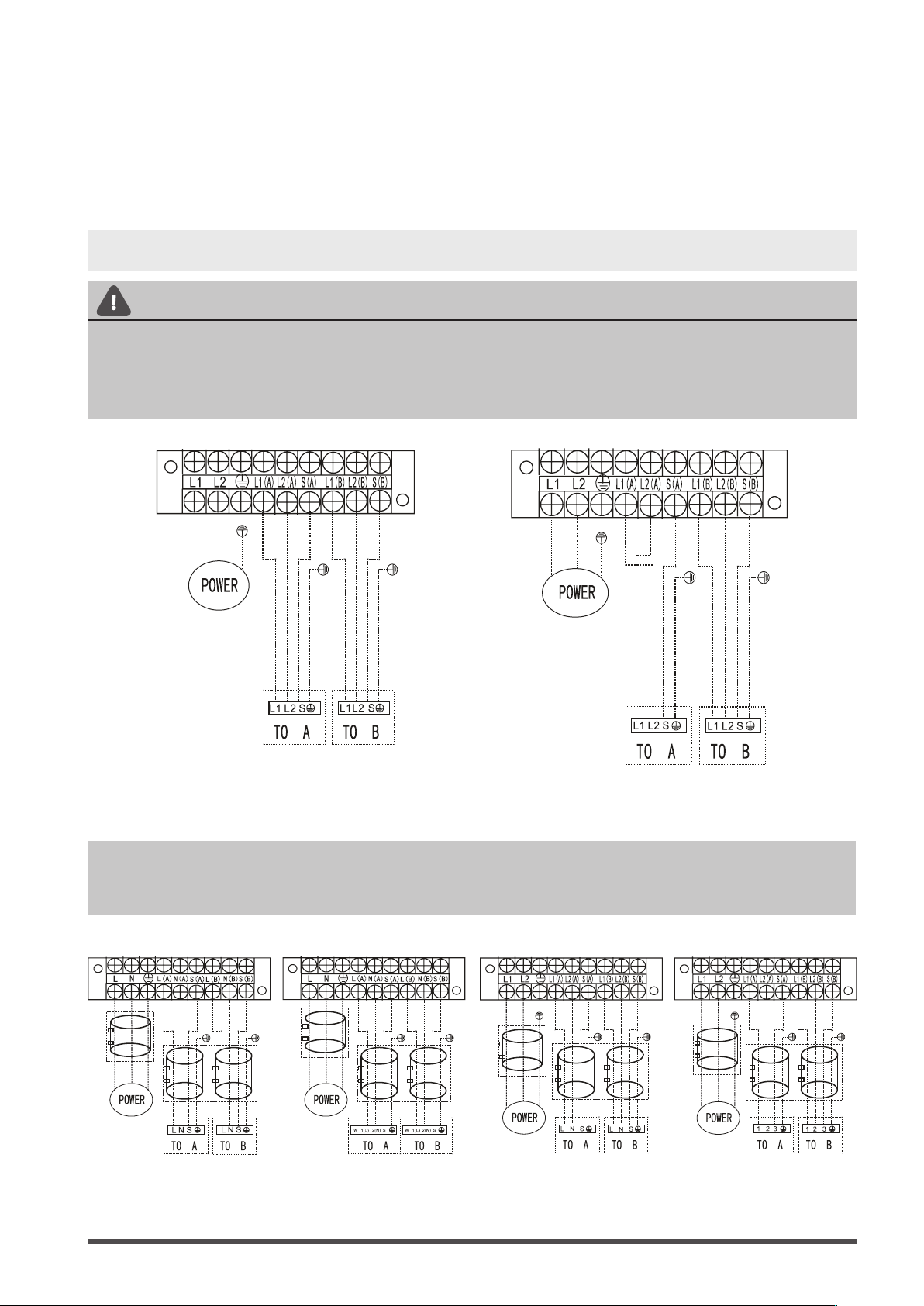

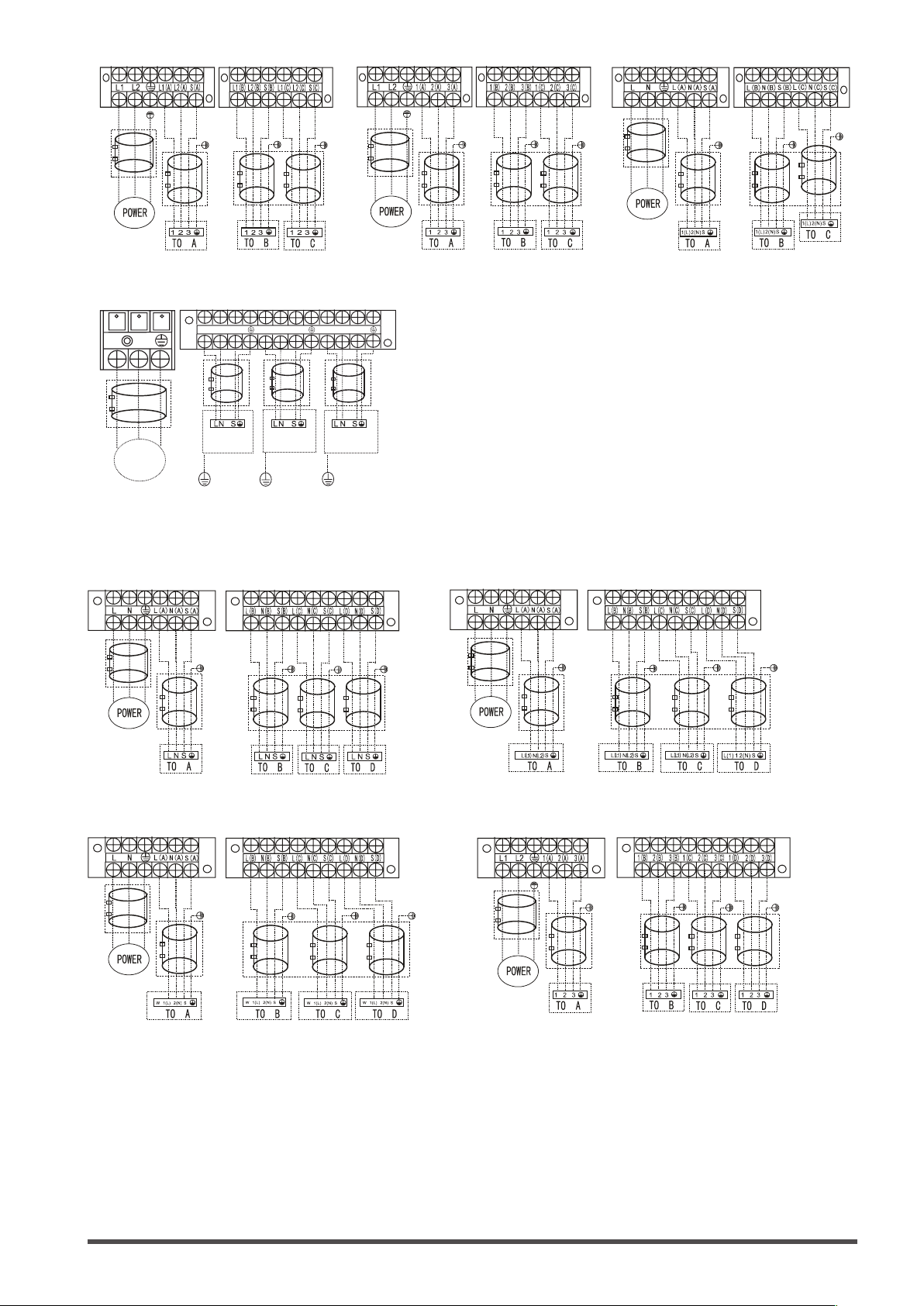

Wiring ............................................................................................................................................. 14
1. Outdoor Uint Wiring ............................................................................................................................................15
2. Wiring Figure ..........................................................................................................................................................16
Air Evacuation................................................................................................................................ 21
1. Note On Adding Refrigerant.............................................................................................................................22
2. Safety And Leakage Check ................................................................................................................................22
Test Run .......................................................................................................................................... 24
Function of Automatic Wiring/Piping Correction ....................................................................... 25

Page 3
The air conditioning system comes with the following accessories. Use all of the installation parts
and accessories to install the air conditioner. Improper installation may result in water leakage,
electrical shock and re, or cause the equipment to fail. The items not included with the air
conditioner must be purchased separately.
Name of Accessories Q‘ty(pc) Shape
Installation plate 1
Plastic expansion sheath 5-8
(depending on the models)
Self-Tapping Screw A 5-8
(depending on the models)
Transfer connector (packed with the indoor unit
or outdoor unit, depending on the model)
(NOTE: Pipe size diers from appliance
to appliance. To meet dierent pipe size
requirements, sometimes a transfer connector
must be installed on the outdoor unit) .
Optional part
(one piece/ one indoor unit)
Optional part
(1-5 pieces for outdoor unit,
depending on models)
Drain joint
(some models) 1
Seal ring
(some models) 1
Magnetic ring (After installation, hitch this on the
connective cable between the indoor unit and
outdoor units) (some models)
Varies by model
Cord protection rubber ring (If the cord clamp
can’t fasten the cord because the cord is too small,
wrap the cord protection rubber ring (supplied
with the accessories) around the cord. Then x it
with the cord clamp). (some models)
1
(on some
models)
Name Shape Quantity
Connecting pipe
assembly
Liquid side Φ 1/4in (6.35 mm) Parts you must purchase
separately. Consult your
technician for the proper
size.
Φ 3/8in (9.52 mm)
Gas side
Φ 3/8in (9.52 mm)
Φ 1/2in (12.7 mm)
Φ 5/8in (15.9 mm)
Accessories 1

Page 4
Read safety precautions before installation
Incorrect installation due to ignoring instructions can cause serious damage or injury.
The seriousness of potential damage or injuries is classied as either a WARNING or CAUTION.
Failure to observe a warning may result in death. The appliance must be installed in
accordance with national regulations.
Failure to observe a caution may result in injury or equipment damage.
• Carefully read the safety precautions before installation.
• In certain functional environments, such as kitchens, server rooms, etc., the use of specially
designed air-conditioning units is highly recommended.
• Only trained and certied technicians should install, repair, and service this air conditioning
unit.
• Improper installation may result in electrical shock, short circuit, leaks, re, or other damage
to equipment and personal property.
• Strictly follow the installation instructions set forth in this manual.
• Before you install the unit, consider strong winds, typhoons, and earthquakes that might
aect your unit and locate it accordingly. Failure to do so could cause damage to the unit.
• After installation, ensure there are no refrigerant leaks and that the unit is operating properly.
• Refrigerant is toxic and ammable and poses a serious health and safety risk.
Note about Fluorinated Gasses
1. This air conditioning unit contains uorinated gasses. For specic information on the type of
gas and the amount, please refer to the relevant label on the unit itself.
2. Installation, service, maintenance, and repair of this unit must be performed by a certied
technician.
3. Product uninstallation and recycling must be performed by a certied technician.
4. If the system has a leak-detection system installed, it must be checked for leaks at least every
12 months.
5. When the unit is checked for leaks, proper record-keeping of all checks is strongly
recommended.
Safety Precautions 2
WARNING
WARNING
CAUTION

Page 5
LN
MC MC

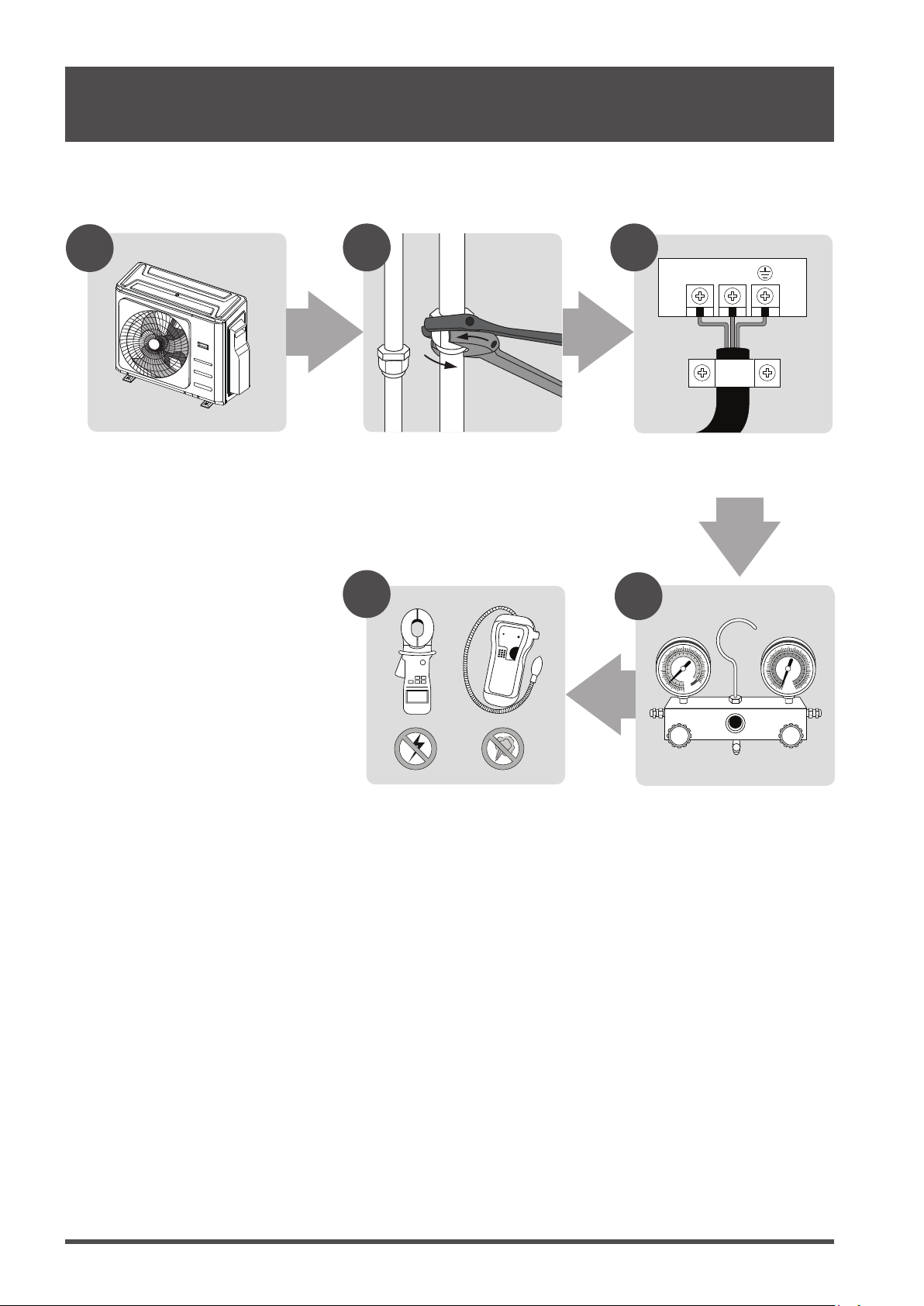

Installation Order
Install the outdoor unit
(Page 8)
Connect the refrigerant pipes
(Page 11)
Perform a test run
(Page 24)
Evacuate the refrigeration
system
(Page 21)
Connect the wires
(Page 14)
Installation Summary 3
1 2 3
4 5

Page 6
Installation Diagram 3
Installation
plate
Mounting screw
ST3.9 25-C-H
Refrigerant
pipe
Remote
controller
holder
Clip anchor
(2)
One - Two
One - Three
One - Four
One - Five
1
2
3
5
4
1
Installation plate
More than 5,9 in (15 cm)
More than 5,9 in
(15 cm)
More than
4,7in (12cm)
More than
4,7in (12cm)
More than 4,7in (12cm)
More than
4,7in (12cm)
More than
11.8in (30 cm)
More than
11.8in (30 cm)
More than
11.8in (30 cm)
More than
11.8in (30 cm)
More than
11.8in (30 cm)
More than
78.8in (200 cm)
More than �
23.6in (60 cm)
More than �
23.6in (60 cm)
More than 23.6in�
(60 cm)
More than 23.6in�
(60 cm)
Mounting screw
ST3.9 x 25-C-H
Clip anchor
(1)
Remote
controller
holder
5 4 3
2
The maximum
amount of the
connection cables is 5.
This section is for
reference only.
Air-break Switch
Drainage
Pipe
Air-break
Switch
Outdoor Unit
Power Cable
More than
78.8in (200 cm)
Installation Diagram
• To prevent wall damage, use a stud nder to
locate studs.
• A minimum pipe run of 9,8 ft (3 m) is required
to minimize vibration & excessive noise.
• Two of the A, B, and C air circulation pathways
must be free from obstructions at all times.
• This illustration is for demonstration purposes
only.
• The actual shape of your air condtioner may be
slightly dierent.
• Copper lines must be independently insulated.
NOTE: The installation must be performed in
accordance with local and national standards.
The installation may be slightly dierent in
dierent areas.
CAUTION
Safety Precautions

Page 7
Specications 4
Indoor units that can be used in
combination
Number of connected
units 1-5 units
Compressor stop/start frequency Stop time 3 minutes or more
Power source voltage
Voltage uctuation within ±10% of rated voltage
Voltage drop during start within ±15% of rated voltage
Interval unbalance within ±3% of rated voltage
Unit: ft/m
1 drive 2 1 drive 3 1 drive 4 1 drive 5
Max. length for all rooms 131/40 197/60 262/80 262/80
Max. length for one indoor unit 82/25 98/30 115/35 115/35
Max. height dierent between indoor and outdoor unit 49/15 49/15 49/15 49/15
Max. height dierent between indoor units 33/10 33/10 33/10 33/10
When installing multiple indoor units with a single outdoor unit, ensure that the length of the
refrigerant pipe and the drop height between the indoor and outdoor units meet the requirements
illustrated in the following diagram:
Outdoor unit Indoor unit
32.8ft (10m)
Indoor unit
Indoor unit
49ft (15m)
49ft (15m)

Page 8

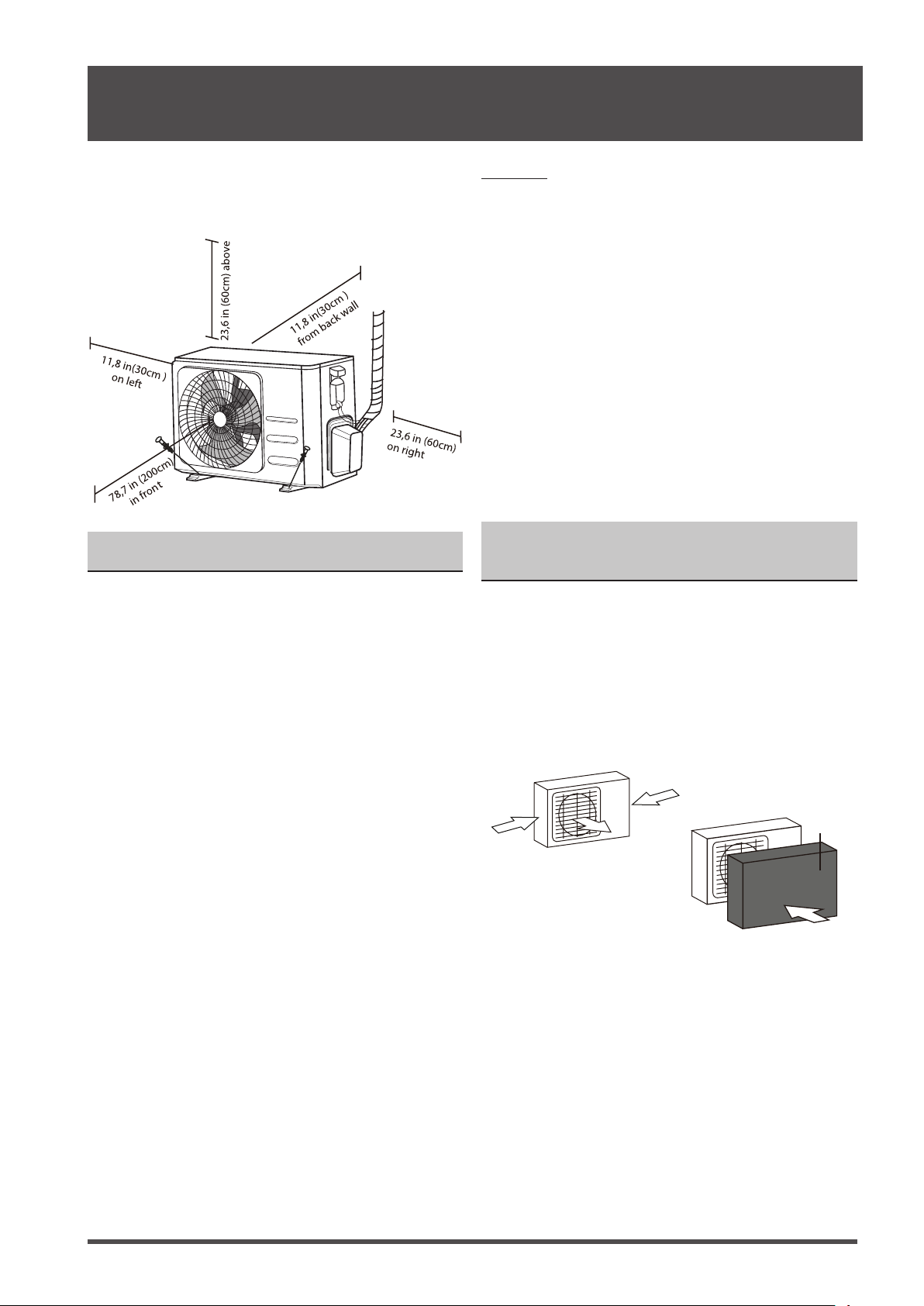

Install the unit by following local codes and
regulations, which may dier slightly from
region to region.
Step 1: Select installation location
Before installing the outdoor unit, you must
choose an appropriate location. The following
are standards that will help you choose an
appropriate location for the unit.
Proper installation locations meet the
following standards:
Meets all spatial requirements shown in
Installation Space Requirements above.
Good air circulation and ventilation
Firm and solid—the location can support the
unit and will not vibrate
Noise from the unit will not disturb others
Protected from prolonged periods of direct
sunlight or rain
Where snowfall is anticipated, raise the unit
above the base pad to prevent ice buildup and
coil damage. Mount the unit high enough to be
above the average accumulated area snowfall.
The minimum height must be 18 inches
DO NOT install unit in the following locations:
Near an obstacle that will block air inlets and
outlets
Near a public street, crowded areas, or where
noise from the unit will disturb others
Near animals or plants that will be harmed
by hot air discharge
Near any source of combustible gas
In a location that is exposed to large amounts
of dust
In a location exposed to excessive amounts
of salty air
If the unit is exposed to heavy wind:
Install unit so that air outlet fan is at a 90° angle
to the direction of the wind. If needed, build
a barrier in front of the unit to protect it from
extremely heavy winds.
See Figures below.
If the unit is frequently exposed to heavy rain
or snow:
Build a shelter above the unit to protect it from
the rain or snow. Be careful not to obstruct air
ow around the unit.
If the unit is frequently exposed to salty air
(seaside):
Use outdoor unit that is specially designed to
resist corrosion.
Outdoor Unit Installation 5
Installation Instructions – Outdoor unit Special Considerations
For Extreme Weather
Strong
wind
Strong wind
Strong wind
Wind Baffle

Page 9

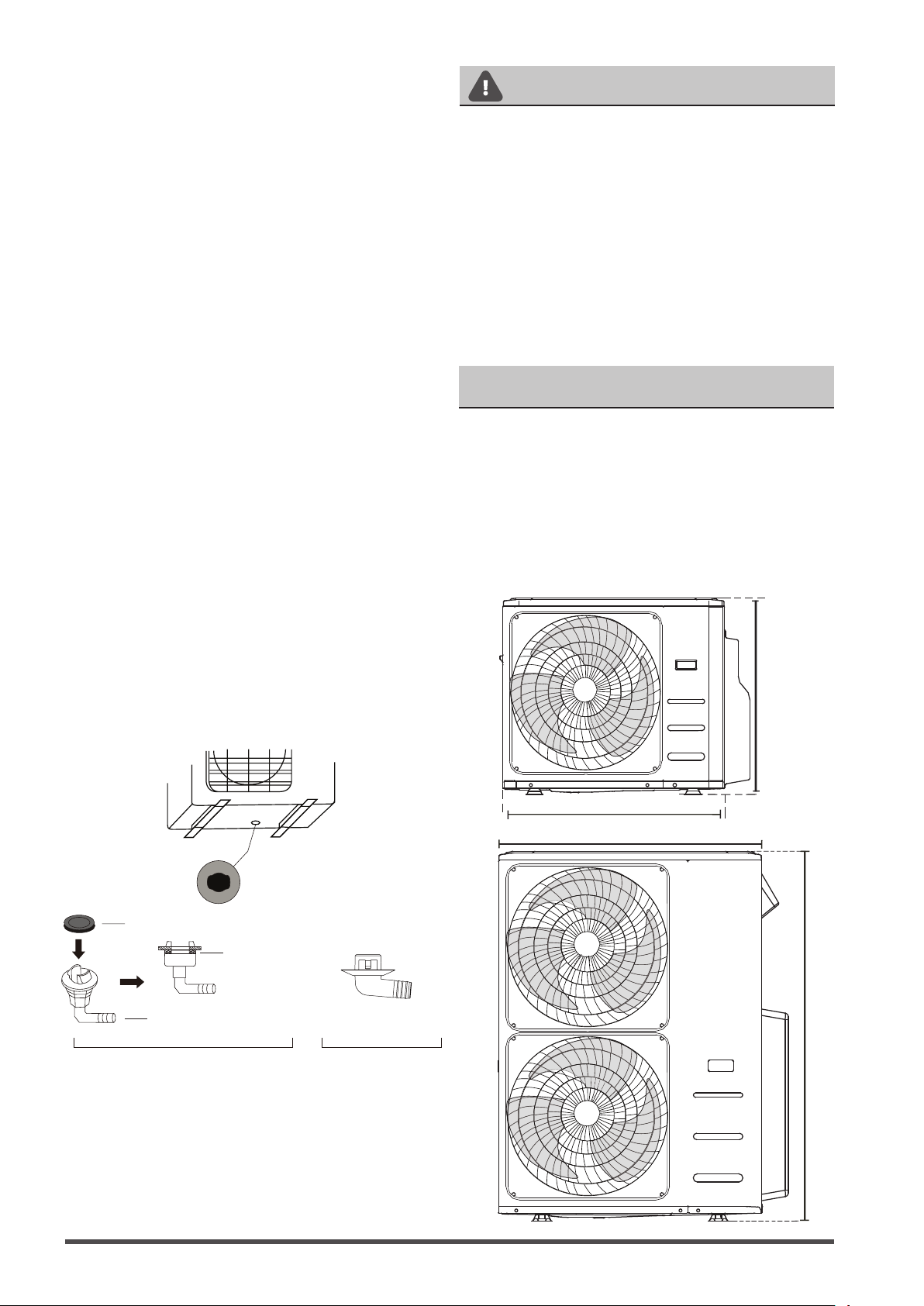

Step 2: Install drain joint
(Heat pump unit only)
Before bolting the outdoor unit in place, you
must install the drain joint at the bottom of the
unit. Note that there are two dierent types of
drain joints depending on the type of outdoor
unit.
If the drain joint comes with a rubber seal
(see Fig. A), do the following:
1. Fit the rubber seal on the end of the drain
joint that will connect to the outdoor unit.
2. Insert the drain joint into the hole in the
base pan of the unit.
3. Rotate the drain joint 90° until it clicks in
place facing the front of the unit.
4. Connect a drain hose extension (not
included) to the drain joint to redirect water
from the unit during heating mode.
If the drain joint doesn’t come with a rubber
seal (see Fig. B), do the following:
1. Insert the drain joint into the hole in the base
pan of the unit. The drain joint will click in place.
2. Connect a drain hose extension (not included)
to the drain joint to redirect water from the unit
during heating mode.
In cold climates, make sure that the drain hose
is as vertical as possible to ensure swift water
drainage. If water drains too slowly, it can freeze
in the hose and ood the unit.
Step 3: Anchor outdoor unit
The outdoor unit can be anchored to the
ground or to a wall-mounted bracket with bolt
(M10). Prepare the installation base of the unit
according to the dimensions below.
The following is a list of dierent outdoor unit
sizes and the distance between their mounting
feet. Prepare the installation base of the unit
according to the dimensions below.
Outdoor Unit Types and Specications
SPLIT TYPE OUTDOOR UNIT
Unit Mounting Dimensions
Seal
Drain joint
(A) (B)
Base pan hole of
outdoor unit
Seal
IN COLD CLIMATES
W
H
W
H

Page 10
Unit: in/mm

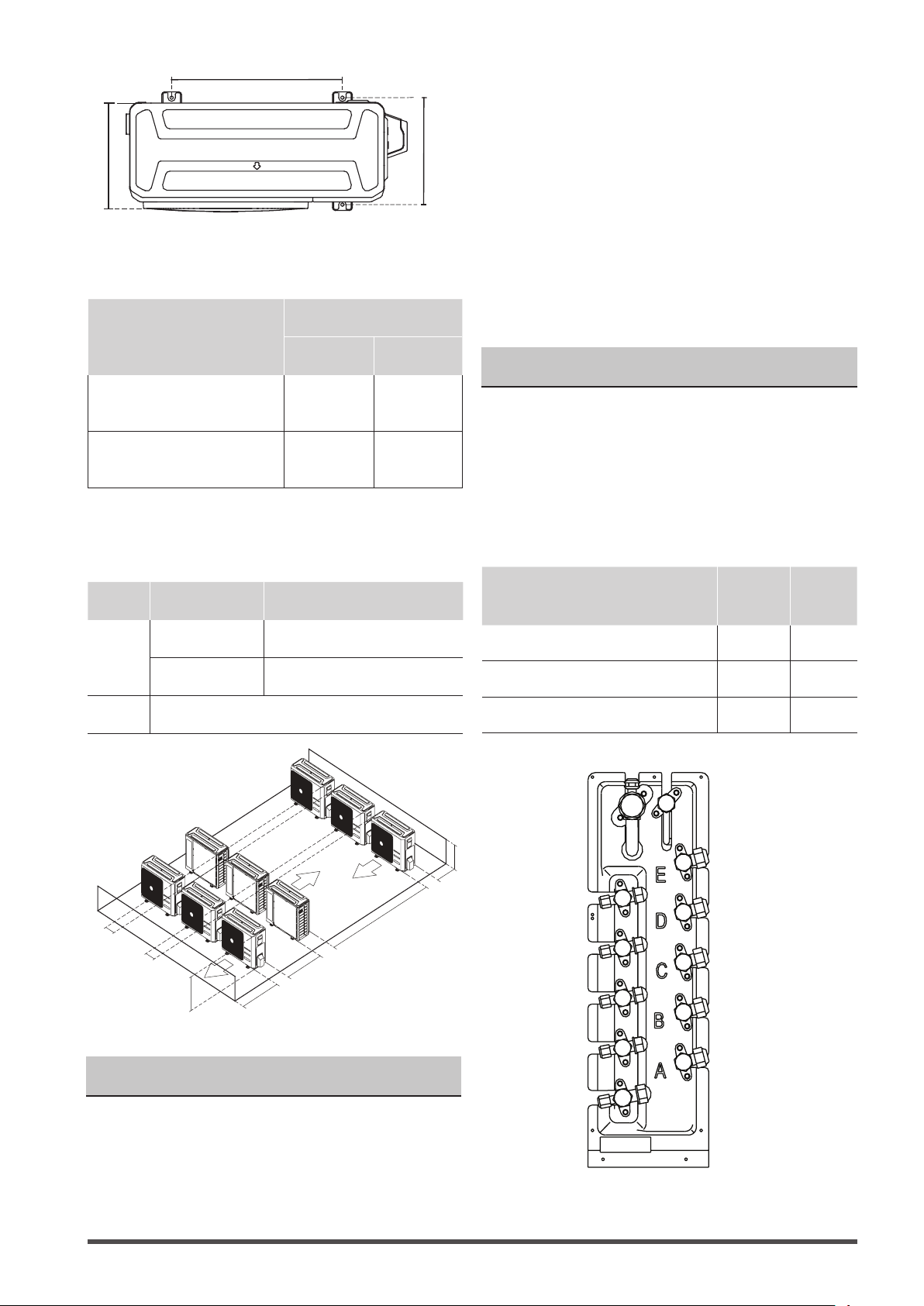

Outdoor Unit Dimensions,
W x H x D
Mounting Dimensions
Distance A Distance B
37.24x16.14x31.89
(946x410x810) 26.5 (673) 15.87 (403)
37.48x16.34x52.48
(952x415x1333) 24.96 (634) 15.9 (404)
Rows of series installation.
The relations between H, L and A are as
follows.
L A
L ≤H
L ≤1/2H 9.8 in/25 cm or more
1/2H<L≤H 11.8 in/30 cm or more
L>H Can’t be instelled
You must drill a hole in the wall for the
refrigerant piping, and the signal cable that will
connect the indoor and outdoor units.
1. Determine the location of the wall hole
based on the location of the outdoor unit.
2. Using a 2.5 in (65 mm) core drill, drill a hole
in the wall.
3. Place the protective wall cu in the hole. This
protects the edges of the hole and helps seal
it when you nish the installation process.
When Selecting a 24k Indoor Unit
The 24k indoor unit can only be connected with
an A system. If there are two 24k indoor units,
they can be connected with A and B systems.
Connective pipe size an A and B systems.
Unit: in
Indoor Unit capacity
(Btu/h) Liquid Gas
9k / 12k 1/4 3/8
12k / 18k 1/4 1/2
24k 3/8 5/8
A
B
D
Notes On Drilling Hole In Wall
Notes On Drilling Hole In Wall
NOTE: When drilling the wall hole, make sure
to avoid wires, plumbing, and other sensitive
components.
L
H
A
118 in (300 cm) or more
23.6 in (60 cm)
or more
59 in (150 cm)
or more
9.8 in (25 cm)
or more
9.8 in (25 cm)
or more

Page 11
When connecting refrigerant piping, do not let
substances or gasses other than the specied
refrigerant enter the unit. The presence of
other gasses or substances will lower the
unit’s capacity, and can cause abnormally high
pressure in the refrigeration cycle. This can
cause explosion and injury.
Connection Instructions – Refrigerant Piping
• The branching pipe must be installed
horizontally. An angle of more than 10°
may cause malfunction.
• DO NOT install the connecting pipe until
both indoor and outdoor units have been
installed.
• Insulate both the gas and liquid piping to
prevent water leakage.
Step 1: Cut pipes
When preparing refrigerant pipes, take extra
care to cut and are them properly. This will
ensure ecient operation and minimize the
need for future maintenance.
1. Measure the distance between the indoor
and outdoor units.
2. Using a pipe cutter, cut the pipe a little
longer than the measured distance.
3. Make sure that the pipe is cut at a perfect
90° angle.
Be extra careful not to damage, dent, or
deform the pipe while cutting. This will
drastically reduce the heating eciency of
the unit.
Step 2: Remove burrs.
Burrs can aect the air-tight seal of refrigerant
piping connection. They must be completely
removed.
1. Hold the pipe at a downward angle to
prevent burrs from falling into the pipe.
2. Using a reamer or deburring tool, remove all
burrs from the cut section of the pipe.
Step 3: Flare pipe ends
Proper aring is essential to achieve an airtight
seal.
1. After removing burrs from cut pipe, seal
the ends with PVC tape to prevent foreign
materials from entering the pipe.
2. Sheath the pipe with insulating material.
3. Place are nuts on both ends of pipe. Make
sure they are facing in the right direction,
because you can’t put them on or change
their direction after aring
Refrigerant Piping Connection 6
Refrigerant Piping
Connection Instructions
CAUTION
DO NOT DEFORM PIPE
WHILE CUTTING


Page 12
4. Remove PVC tape from ends of pipe when
ready to perform aring work.
5. Clamp are form on the end of the pipe. The
end of the pipe must extend beyond the
are form.
6. Place aring tool onto the form.
7. Turn the handle of the aring tool clockwise
until the pipe is fully ared. Flare the pipe in
accordance with the dimensions .
PIPING EXTENSION BEYOND FLARE FORM
Pipe
gauge
(Unit:
In/mm)
Tightening
torque
Flare dimension (A)
(Unit: Inch /mm) Flare shape
Min Max
Ø1/4
(6.4)
18-20 N.m
(183-204 kgf.cm) 0.33 /8.4 0.34 /8.7
Ø3/8
(9.5)
25-26 N.m
(255-265 kgf.cm) 0.52 /13.2 0.53/13.5
Ø1/2
(12.7)
35-36 N.m
(357-367 kgf.cm) 0.64/16.2 0.65/16.5
Ø5/8
(15.9)
45-47 N.m
(459-480 kgf.cm) 0.76/19.2 0.78/19.7
Ø3/4
(19.1)
65-67 N.m
(663-683 kgf.cm) 0.91/23.2 0.93/23.7
Ø7/8
(22)
75-85N.m
(765-867 kgf.cm) 1.04/26.4 1.06/26.9
8. Remove the aring tool and are form, then
inspect the end of the pipe for cracks and
even aring.
Step 4: Connect pipes
Connect the copper pipes to the indoor unit
rst, then connect them to the outdoor unit.
You should rst connect the low-pressure pipe,
then the high-pressure pipe.
1. When connecting the are nuts, apply a thin
coat of refrigeration oil to the ared ends of
the pipes.
2. Align the center of the two pipes that you
will connect.
3. Tighten the are nut as tightly as possible by
hand.
4. Using a spanner, grip the nut on the unit
tubing.
5. While rmly gripping the nut, use a torque
wrench to tighten the are nut according to
the torque values in above table.
CAUTION
NOTE: Use both a spanner and a torque wrench
when connecting or disconnecting pipes to/
from the unit.
• Be sure to wrap insulation around the
piping. Direct contact with the bare piping
may result in burns or frostbite.
• Make sure the pipe is properly connected.
Over tightening may damage the bell mouth
and under tightening may lead to leakage.

Page 13
6. After connecting the copper pipes to the
indoor unit, wrap the power cable, signal
cable and the piping together with binding
tape.
7. Thread this pipeline through the wall and
connect it to the outdoor unit.
8. Insulate all the piping, including the valves
of the outdoor unit.
9. Open the stop valves of the outdoor unit to
start the ow of the refrigerant between the
indoor and outdoor unit.
After completing the installation work, make
sure there is no refrigerant leak. If there is,
ventilate the area immediately and evacuate the
system (refer to the Air Evacuation section of
this manual).

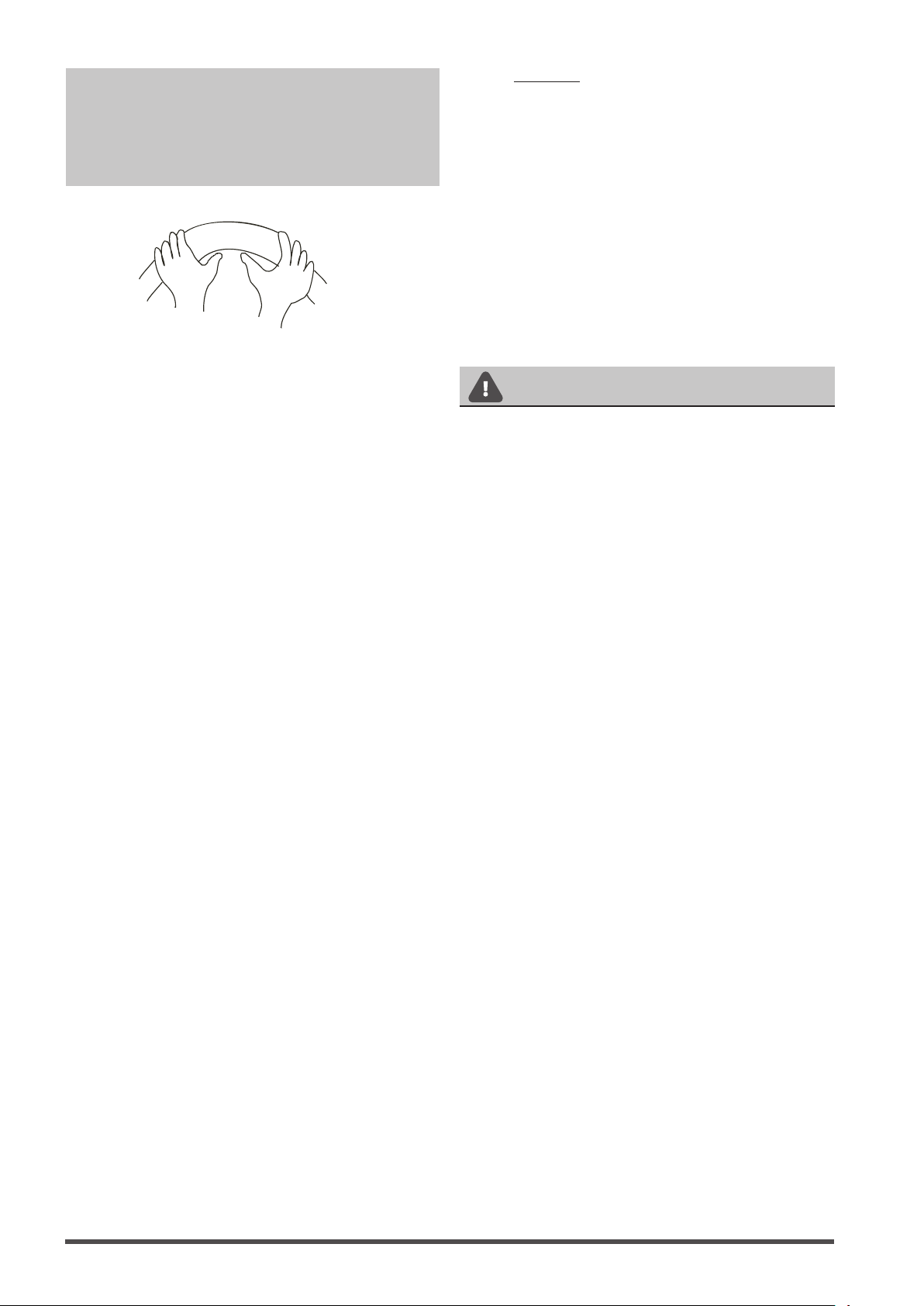

NOTE On Minimum Bend Radius
Carefully bend the tubing in the middle
according to the diagram below. DO NOT bend
the tubing more than 90° or more than 3 times.
NOTE: DO NOT intertwine signal cable with
other wires. While bundling these items togeth-
er, do not intertwine or cross the signal cable
with any other wiring.
CAUTION
Bend the pipe with thumb
min-radius 3.93 in (10cm )

Page 14
1. All wiring must comply with local and
national electrical codes and regulations and
must be installed by a licensed electrician.
2. All electrical connections must be made
according to the Electrical Connection
Diagram located on the panels of the indoor
and outdoor units.
3. If there is a serious safety issue with the
power supply, stop work immediately.
Explain your reasoning to the client, and
refuse to install the unit until the safety issue
is properly resolved.
4. Power voltage should be within 90-110% of
rated voltage. Insucient power supply can
cause malfunction, electrical shock, or re.
5. If connecting power to xed wiring, install a
surge protector and main power switch with
a capacity of 1.5 times the maximum current
of the unit.
6. If connecting power to xed wiring, a switch
or circuit breaker that disconnects all poles
and has a contact separation of at least 1/8in
(3mm) must be incorporated in the xed
wiring. The qualied technician must use an
approved circuit breaker or switch.
7. Only connect the unit to an individual
branch circuit outlet. Do not connect
another appliance to that outlet.
8. Make sure to properly ground the air
conditioner.
9. Every wire must be rmly connected. Loose
wiring can cause the terminal to overheat,
resulting in product malfunction and
possible re.
10. Do not let wires touch or rest against
refrigerant tubing, the compressor, or any
moving parts within the unit.
11. If the unit has an auxiliary electric heater,
it must be installed at least 1 meter (40in)
away from any combustible materials.
12. To avoid getting an electric shock, never
touch the electrical components soon
after the power supply has been turned
o. After turning o the power, always wait
10 minutes or more before you touch the
electrical components.
13. Make sure that you do not cross your
electrical wiring with your signal wiring. This
may cause distortion and interference.
14. The unit must be connected to the main
outlet. Normally, the power supply must
have a impedance of 32 ohms.
15. No other equipment should be connected to
the same power circuit.
16. Connect the outdoor wires before
connecting the indoor wires.
NOTE ON AIR SWITCH
When the maximum current of the air
conditioner is more than 16A, an air switch
or leakage protection switch with protective
device shall be used (purchased seperately) .
When the maximum current of the air
conditioner is less than 16A, the power cord
of air conditioner shall be equipped with plug
(purchased seperately) .
Wiring 7
BEFORE PERFORMING
ANY ELECTRICAL WORK,
READ THESE REGULATIONS
WARNING
BEFORE PERFORMING ANY ELECTRICAL
OR WIRING WORK, TURN OFF THE MAIN
POWER TO THE SYSTEM.

Page 15
NOTE: The cographs are for explanation
purpose only. Your machine may be slightly
dierent. The actual shape shall prevail.
1. Prepare the cable for connection
2. Remove the electric cover of the outdoor
unit. If there is no cover on the outdoor unit,
take o the bolts from the maintenance
board and remove the protection board.
WARNING
BEFORE PERFORMING ANY ELECTRICAL
OR WIRING WORK, TURN OFF THE MAIN
POWER TO THE SYSTEM.
Indoor unit
Outdoor unit
Air switch
(purchased seperately)
Air switch
(purchased seperately)
(purchased seperately)
Indoor unit power wires
Indoor & Outdoor
connective wires
Indoor unit
Outdoor unit
Air switch
(purchased seperately)
(purchased seperately)
Outdoor unit power wires
Outdoor unit power wires
Indoor unit
Outdoor unit
Air switch
(purchased seperately)
(purchased seperately)
Indoor unit power wires
Indoor & Outdoor
connective wires
Indoor & Outdoor
connective wires
(A)
(B)
(C)
Outdoor Unit Wiring
A. First choose the right cable size. Be sure to use
H07RN-F cables.
Minimum Cross-Sectional Area of Power and
Signal Cables North America
Rated Current
of Appliance (A)
Nominal Cross-Sectional
Area (mm²)
> 3 and ≤ 6 0.75
> 6 and ≤10 1
> 10 and ≤16 1.5
> 16 and ≤25 2.5
> 25 and ≤32 4
> 32 and ≤40 6
B. Using wire strippers, strip the rubber jacket
from both ends of the signal cable to reveal
approximately 5.9 in (15cm) of wire.
C. Strip the insulation from the ends.
D. Using a wire crimper, crimp u-lugs on the
ends.
NOTE: When connecting the wires, strictly follow
the wiring diagram found inside the electrical
box cover.
Cover
Screw

Page 16
3. Connect the u-lugs to the terminals Match the wire colors/labels with the labels on the terminal
block, and rmly screw the u-lug of each wire to its corresponding terminal.
4. Clamp down the cable with designated cable clamp.
5. Insulate unused wires with electrical tape. Keep them away from any electrical or metal parts.
6. Reinstall the cover of the electric control box.
NOTE: If the client wants to perform the wiring himself, refer to the following gures. Run the
main power cord through the lower line-outlet of the cord clamp.
One-two models:
CAUTION
Wiring Figure
Connect the connective cables to the terminals as identied with their respective matched
numbers on the terminal block of the indoor and outdoor units. For example, see the following
US models: Terminal L1(A) on the outdoor unit must connect with terminal L1 on the indoor
unit.

Model A Model B Model C Model D
OPTIONAL
OPTIONAL
OPTIONAL OPTIONAL
OPTIONAL OPTIONAL OPTIONAL OPTIONAL OPTIONAL OPTIONAL OPTIONAL OPTIONAL
 

Page 17
One-three models:
Model A
Model B
Model C
OPTIONAL
OPTIONAL OPTIONAL OPTIONAL
OPTIONAL
OPTIONAL OPTIONAL OPTIONAL
OPTIONAL OPTIONAL OPTIONAL
OPTIONAL
NOTE:
Model IModel H Model J
NOTE: Use the magnetic ring (not supplied, optional part) to hitch the connective cable of
indoor and outdoor units after installation. One magnetic ring is used for one cable.
S(B)
N(A)
N(B) L(B) L
L(A) N
S(A)
POWER
SUPPLY
TOB
TO A
S(2)
S(1)
POWER
SUPPLY
L(A)
S(A)
N(A) L(B) N(B)
S(B)
Y/G
WLN
L( 1)
Y/G
TO B
L(A) N(A) S(A) L(B) N(B) S(B)
POWER
SUPPLY
N
L
Y/G
TO A
S(B)
N(A)
N(B) L(B) L
L(A) N
S(A)
POWER
SUPPL Y
TO B TO A
S(2)
S(1)
Model E Model F Model G
OPTIONAL OPTIONAL
OPTIONAL
POWER
SUPPLY
L(A)
S(A)
N(A) L(B) N(B)
S(B)
WLN
L( 1)
Model L
OPTIONAL
OPTIONAL
OPTIONAL
POWER
SUPPLY
L(A)
S(A)
N(A) L(B) N(B)
S(B)
WLN
L( 1)
OPTIONAL
OPTIONAL
OPTIONAL
Model M
OPTIONAL
OPTIONAL
OPTIONAL OPTIONAL OPTIONAL OPTIONAL
OPTIONAL
OPTIONAL OPTIONAL
OPTIONAL
OPTIONAL OPTIONAL OPTIONAL OPTIONAL OPTIONAL
WW
Model K
S(B)
N(A)
N(B) L(B) L
L(A) N
S(A)
POWER
SUPPL Y
TO B TO A
S(2)
S(1)
OPTIONAL OPTIONAL OPTIONAL

Page 18
One-four models:
Y/G
TO B TO C
Y/G
L(A) N(A) S(A) L(B) N(B) S(B) L(C) N(C) S(C)
POWER
SUPPLY
N
L
Y/G
TO A
Model D Model E
Model G
Model F
OPTIONAL
OPTIONAL OPTIONAL OPTIONAL
OPTIONAL OPTIONAL
OPTIONAL OPTIONAL OPTIONAL OPTIONAL OPTIONAL OPTIONAL
OPTIONAL
OPTIONAL OPTIONAL OPTIONAL
Model A Model B
OPTIONAL
OPTIONAL OPTIONAL OPTIONAL OPTIONAL OPTIONAL OPTIONAL OPTIONAL OPTIONAL
OPTIONAL
Model C Model D
OPTIONAL
OPTIONAL OPTIONAL OPTIONAL OPTIONAL OPTIONAL OPTIONAL OPTIONAL OPTIONAL
OPTIONAL

Page 19
One-ve models:
Y/G
TO B
L(A) N(A) S(A) L(B) N(B) S(B)
POWER
SUPPLY
N
L
Y/G
TO A
Y/G
TO B
L(C) N(C) S(C) L(D) N(D) S(D)
Y/G
TO A
Model E Model F
OPTIONAL
OPTIONAL
OPTIONAL OPTIONAL OPTIONAL OPTIONAL
OPTIONAL OPTIONAL OPTIONAL OPTIONAL
Model G
L2
L1
LPPUSREWOP Y
1(A) 2(A) 3(A) 1(B) 2(B) 3(B) 1(C) 2(C) 3(C) 1(D) 2(D) 3(D)
TO A TO B TO D TO C
OPTIONAL
OPTIONAL OPTIONAL
OPTIONAL
OPTIONAL
Model H
L2
L1
LPPUSREWOP Y
L1(A) L2(A) S(A) L1(B) L2(B) S(B) 1(C) 2(C) 3(C) 1(D) 2(D) 3(D)
TO A TO B TO D TO C
OPTIONAL OPTIONAL OPTIONAL OPTIONAL
OPTIONAL
Model A Model B
OPTIONAL OPTIONAL OPTIONAL OPTIONAL OPTIONAL
OPTIONAL OPTIONAL OPTIONAL
OPTIONAL
OPTIONAL
OPTIONAL
OPTIONAL
Model E
Model C Model D
OPTIONAL
OPTIONAL
OPTIONAL OPTIONAL OPTIONAL OPTIONAL
OPTIONAL
OPTIONAL
OPTIONAL OPTIONAL OPTIONAL OPTIONAL
L2
L1
LPPUSREWOP Y
1(A) 2(A) 3(A) 1(B) 2(B) 3(B) 1(C) 2(C) 3(C) 1(D) 2(D) 3(D) 1(E) 2(E) 3(E)
TO A TO B TO D TO E
TO C
OPTIONAL
OPTIONAL OPTIONAL
OPTIONAL
OPTIONAL
OPTIONAL
OPTIONAL
Model F
L(C) N(C) S(C) L(D) N(D) S(D) L(E) N(E) S(E)
TO D TO E TO C
L(A) N(A) S(A) L(B) N(B) S(B)
TO A TO B
OPTIONAL OPTIONAL OPTIONAL OPTIONAL
N
L
LPPUSREWOP Y
OPTIONAL

Page 20
After the conrmation of the above conditions, prepare the wiring as follows:
• Never fail to delegate an individual power circuit specically for the air conditioner. For the
method of wiring, use the circuit diagram posted on the inside of the control cover as a guide.
• The screws which fasten the wiring in the casing of electrical ttings are liable to come loose from
vibrations to which the unit will be subjected during the course of transportation. Check to make
sure they are all tightly fastened. (If they are loose, the wires could burn out.)
• Specication of power source.
• Conrm that the electrical capacity is sucient.
• See that the starting voltage is maintained at more than 90 percent of the rated voltage marked
on the name plate.
• Conrm that the cable thickness is as specied in the power source specication.
• Always install an earth leakage circuit breaker in a wet or moist area.
• The following could be caused by a voltage drop: The vibration of a magnetic switch (which will
damage the contact point), the breakage of a fuse, or the disturbance of the normal function of the
overload.
• The means for disconnection from a power supply must be incorporated in the xed wiring and
have an air gap contact separation of at least 0.12 in (3 mm) in each active (phase) conductor
• Before terminals are accessed, all supply circuits must be disconnected.
CAUTION
