Cooper & Hunter Victoria CH09VCT115VO User manual

HIGH-WALL DUCTLESS
AIR CONDITIONING &
HEATINGSYSTEM
OWNER'S MANUAL
Models:
CH09VCT115VI/CH09VCT115VO
CH12VCT115VI/CH12VCT115VO
CH09VCT230VI/CH09VCT230VO
CH12VCT230VI/CH12VCT230VO
CH18VCT230VI/CH18VCT230VO
CH24VCT230VI/CH24VCT230VO
VICTORIA

CH09VCT115VI/CH09VCT115VO (115V)
System Includes: CH09VCT115VI, CH09VCT115VO
CH12VCT115VI/CH12VCT115VO (115V)
System Includes: CH12VCT115VI, CH12VCT115VO
CH09VCT230VI/CH09VCT230VO (230V)
System Includes: CH09VCT230VI, CH09VCT230VO
CH12VCT230VI/CH12VCT230VO (230V)
System Includes: CH12VCT230VI, CH12VCT230VO
CH18VCT230VI/CH18VCT230VO (230V)
System Includes: CH18VCT230VI, CH18VCT230VO
CH24VCT230VI/CH24VCT230VO (230V)
System Includes: CH24VCT230VI, CH24VCT230VO

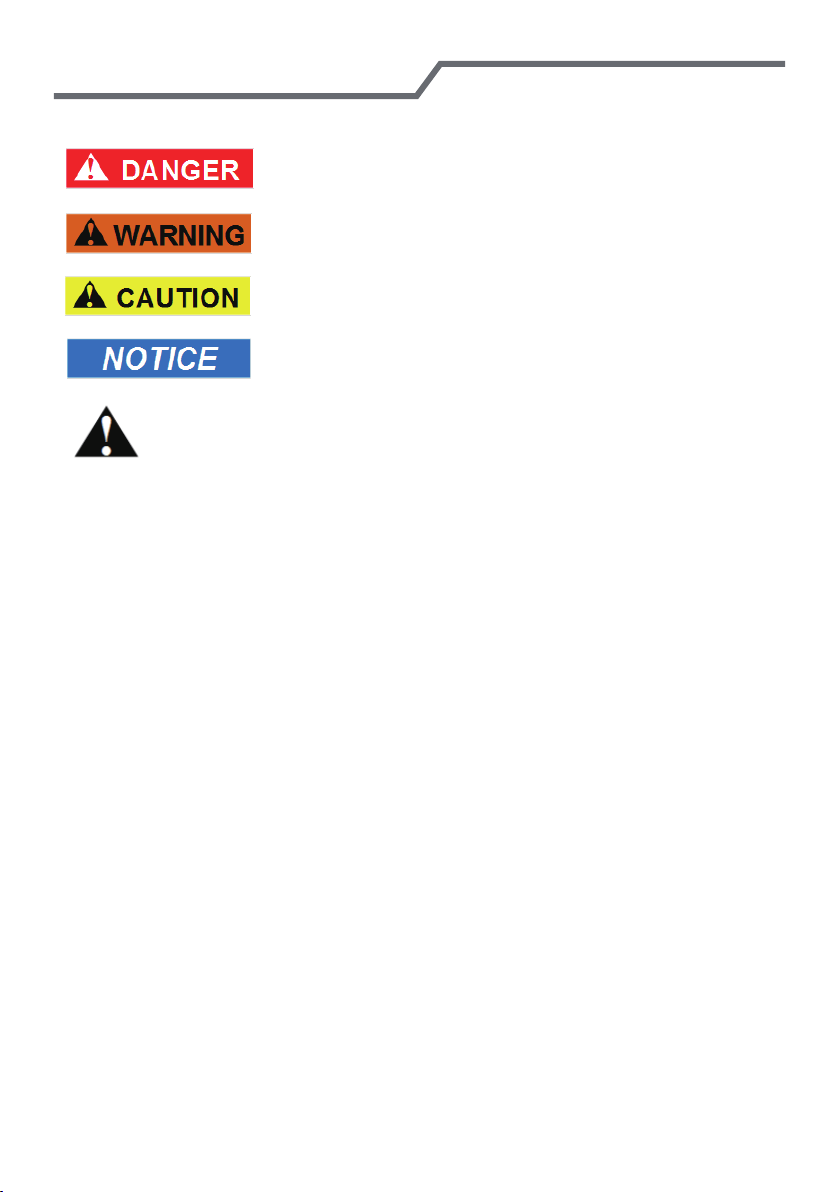

Explanation of Symbols
Indicates a hazardous situation that, if not avoided, will
result in death or serious injury.
Indicates a hazardous situation that, if not avoided, could
result in death or serious injury.
Indicates a hazardous situation that, if not avoided, may
result in minor or moderate injury.
Indicates important but not hazard-related information,
used to indicate risk of property damage.
Indicates a hazard that would be assigned a signal word
WARNING or CAUTION.

Content
Operation Notices
Precautions. ...........................................................................................................1
Parts name . ...........................................................................................................6
Screen Operation Guide
Buttons on remote controller .................................................................................8
Introduction for icons on display screen ................................................................8
Introduction for buttons on remote controller.........................................................9
Function introduction for combination buttons.....................................................13
Operation guide...................................................................................................15
Replacement of batteries in remote controller.....................................................15

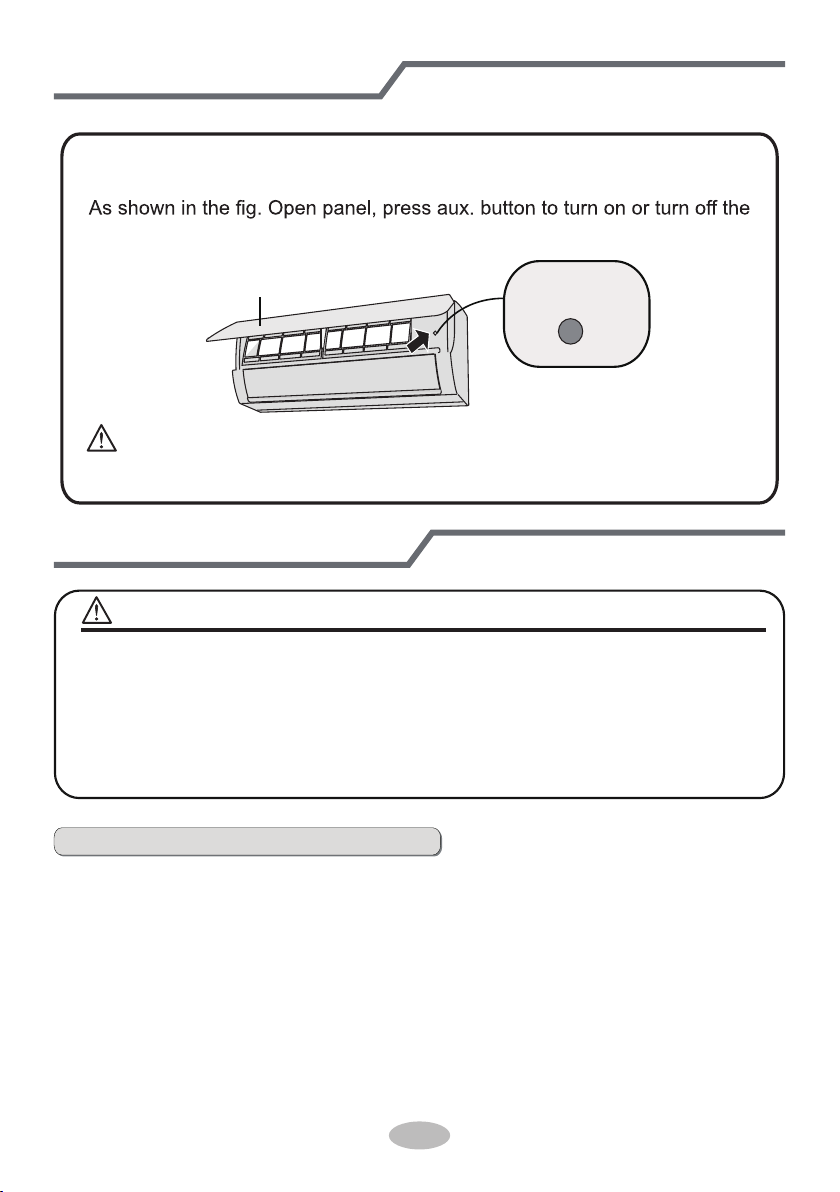

Emergency operation . ........................................................................................16
Maintenance
Clean and maintenance . .....................................................................................16
Malfunction
Malfunction analysis ............................................................................................19
System operation ...............................................................................................23
Energy saving tips ..............................................................................................24

1
Precautions
WARNING
Do not connect air conditioner to multi-purpose socket.
This appliance is not intended for use by persons (incl-
Operation and Maintenance
If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
Do not spray water on indoor unit. It may cause electric
shock or malfunction.
Otherwise, it may cause fire hazard.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
uding children) with reduced physical, sensory or men-
tal capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person respon-
sible for their safety. Children should be supervised to
ensure that they do not play with the appliance.
Do not wash the air conditioner with water to avoid
electric shock.
After removing the filter, do not touch fins to avoid injury.
Do not use fire or hair dryer to dry the filter to avoid
deformation or fire hazard.
Do disconnect power supply when cleaning air
conditioner. Otherwise, it may cause electric shock.

Do not block air outlet or air inlet. It may cause
malfunction.
remote controller may be broken.
●Power cord is overheating or damaged.
●There’s abnormal sound during operation.
●Circuit break trips off frequently.
●Air conditioner gives off burning smell.
●Indoor unit is leaking.
contact the dealer or qualified professionals for service.
When turning on or turning off the unit by emergency
operation switch, please press this switch with an insulating
object other than metal.
outlet. It may cause personal injury or damage.
2
Precautions
conditioner and disconnect power immediately, and then
If the air conditioner operates under abnormal conditions,
it may cause malfunction, electric shock or fire hazard.
Do not spill water on the remote controller, otherwise the
electric shock or damage. Please contact dealer when
you need to repair air conditioner.
Do not repair air conditioner by yourself. It may cause
objects. It may cause damage or personal injury.
Do not step on top panel of outdoor unit, or put heavy
When below phenomenon occurs, please turn off air
Do not extend fingers or objects into air inlet or air
Maintenance must be performed by qualified
professionals. Otherwise, it may cause personal injury
or damage.
WARNING

Do install the circuit break. If not, it may cause malfunction.
of at least 1/8in (3mm) in all poles should be connected
in fixed wiring.
magnet buckle and heating buckle function, it can protect
the circuit-short and overload.
power supply circuit and circuit break.
3
Precautions
note the following table.Air switch should be included
Make sure the power supply matches with the
requirement of air conditioner.Unstable power supply or
incorrect wiring or malfunction. Please install proper power
supply cables before using the air conditioner.
An all-pole disconnection switch having a contact separation
Must follow the electric safety regulations when installing
the unit.
grounding wire of power socket.
Properly connect the live wire, neutral wire and
any work related to electricity and safety.
Be sure to cut off the power supply before proceeding
Including an circuit break with suitable capacity, please
Air Conditioner should be properly grounded. Incorrect
Don't use unqualified power cord.
grounding may cause electric shock.
According to the local safety regulations, use qualified
Installation must be performed by qualified professionals.
Otherwise, it may cause personal injury or damage.
Attachment
WARNING

Installation must be performed in accordance with the
persons in order to avoid a hazard.
must be properly grounding with specialized grounding
device by a professional. Please make sure it is always
grounded effectively, otherwise it may cause electric shock.
The appliance must be positioned so that the plug is
accessible.
If the length of power connection wire is insufficient, please
contact the supplier for a new one. Avoid extending the
wire by yourself.
All wires of indoor unit and outdoor unit should be
connected by a professional.
national wiring regulations.
requirement of National Electrical Codes(NEC)and
local electrical codes by authorized personnel only.
4
Precautions
wire, which can't be used for other purposes.
The grounding resistance should comply with national
electric safety regulations.
The air conditioner is the first class electric appliance. It
keep the interconnection cable away from the copper
tube.
The temperature of refrigerant circuit will be high, please
the manufacturer, its service agent or similarly qualified
If the supply cord is damaged, it must be replaced by
The yellow-green wire in air conditioner is grounding
The appliance shall be installed in accordance with
Do not put through the power before finishing installation.
WARNING

The indoor unit should be installed close to the wall.
reachable after finishing installation.
far away from animals or plants.If it is unavoidable,
please add the fence for safety purpose.
Precautions
place, only the qualified person can perform the work.
Otherwise, it may cause personal injury or damage.
If you need to relocate the air conditioner to another
must be installed in the line.
For the air conditioner without plug, an circuit break
Select a location which is out of reach for children and
For the air conditioner with plug, the plug should be
Working temperature range
Indoor side DB/WB(°C/°F) Outdoor side DB/WB(°C/°F)
Maximum cooling 26.7/19.4(80/66.9) 46.1/23.9(115/75)
Maximum heating 26.7/-(80/-) 23.9/18.3(75/64.9)
󱕰 The operating temperature range (outdoor temperature) for cooling only unit is
-0.4°F(-18°C)~115°F(46.1°C); for heat pump unit is -4°F(-20°C)~115°F(46.1°C).
NOTICE:
5
WARNING

6
(Display content or position may be different from above
graphics, please refer to actual products)

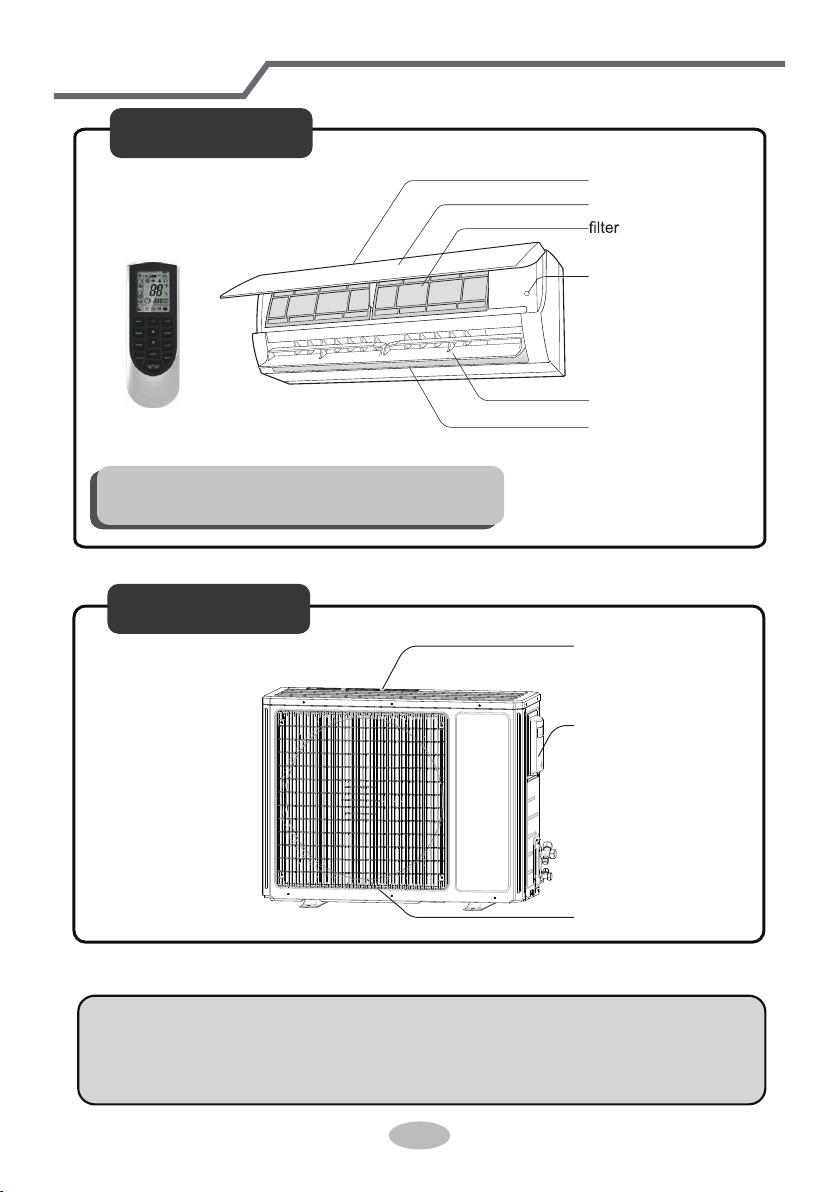

Parts Name
Indoor Unit
air inlet
panel
aux.button
horizontal louver
air outlet
remote control
Actual product may be different from above graphics, please refer to actual
products.
NOTICE:
Outdoor Unit
air inlet
handle
air outlet

Parts Name
Display content or position may be different from above graphics, please refer to actual
products.
Display
W R G
temp.
indicator
display
receiver
window
W R O
temp.
indicator
display
receiver
window
heating
indicator temp. indicator
cooling
indicator power indicator receiver window
drying
indicator display
For some model:
For some model:
For some model:
For some model:
heating
indicator
temp.
indicator
cooling
indicator
power
indicator
receiver
window
drying
indicator
display
G
W
R
Power LED color indicator:
Green-status-ON.
Red -status-OFF.
Mode LED color indicator:
White-W-Cool Mode-
Red-R-Heat Mode-
Green-G-Dry Mode-
O
W
R
Power LED color indicator:
Green-status-ON.
Red -status-OFF.
Mode LED color indicator:
White-W-Cool Mode-
Red-R-Heat Mode-
Orange-O-Dry Mode-
(only for heating model)
(only for heating model)
7

8
Introduction for icons on display screen
Send signal
Turbo mode
46°F(8°C) heating
function
Set temperature
Set time
TIMER ON/
TIMER OFF
Child lock
Up&down swing
Set fan speed
Light
Temp. display type
:Set temp.
:Outdoor ambient temp. :Indoor ambient temp.
Sleep mode
Clock
Heat mode
Fan mode
Dry mode
Cool mode
Auto mode
Operation mode
I feel
health function
Buttons on remote controller
1
5
3
6
8
10
12
11
9
7
4
2
1
2
3
4
5
6
7
8
9
10
11
12
ON/OFF button
MODE button
FAN button
SWING button
TURBO button
TEMP button
I FEEL button
LIGHT button
CLOCK button
TIMER ON/TIMER OFF
button
SLEEP button
▲/ button
▲

9
● When selecting auto mode, air conditioner will operate automatically according
to ex-factory setting. Set temperature can’t be adjusted and will not be displayed
as well. Press "FAN" button can adjust fan speed. Press "SWING" button can
adjust fan blowing angle.
● After selecting cool mode, air conditioner will operate under cool mode. Cool
indicator " "on indoor unit is ON. Press "▲" or " " button to adjust set tempe-
rature. Press "FAN" button to adjust fan speed. Press "SWING" button to adjust
fan blowing angle.
● When selecting dry mode, the air conditioner operates at low speed under dry
mode. Dry indicator " " on indoor unit is ON. Under dry mode, fan speed can’t
be adjusted. Press "SWING" button to adjust fan blowing angle.
● When selecting fan mode, the air conditioner will only blow fan, no cooling and
no heating. All indicators are OFF. Press "FAN" button to adjust fan speed. Press
"SWING" button to adjust fan blowing angle.
● When selecting heating mode, the air conditioner operates under heat mode.
Heat indicator " " on indoor unit is ON. Press "▲" or " " button to adjust set
Introduction for buttons on remote controller
Note:
● After putting through the power, the air conditioner will give out a sound.
Operation indictor " " is ON (red indicator). After that, you can operate the air
conditioner by using remote controller.
● Under ON status, pressing the button on the remote controller, the signal icon " "
on the display of remote controller will blink once and the air conditioner will give
out a “de” sound, which means the signal has been sent to the air conditioner.
● Under OFF status, set temperature and clock icon will be displayed on the display
of remote controller (If timer on, timer off and light functions are set, the corre-
sponding icons will be displayed on the display of remote controller at the same
time); Under on status, the display will show the corresponding set function icons.
ON/OFF button
MODE button
▲
▲
1
2
Press this button can turn on or turn off the air conditioner. After turning on the air
conditioner, operation indicator " "on indoor unit’s display is ON (green indicator.
The colour is different for different models), and indoor unit will give out a sound.
Press this button to select your required operation mode.
AUTO COOL FANDRY HEAT
● This is a general use remote controller, it could be used for the air conditioners
with multifunction; For some function, which the model doesn't have, if press
the corresponding button on the remote controller that the unit will keep the
original running status.

10
Introduction for buttons on remote controller
FAN button
SWING button
3
4
Pressing this button can set fan speed circularly as: auto (AUTO), low( ), medium
( ), high( ).
Auto
Note:
● Under AUTO speed, air conditioner will select proper fan speed automatically
according to ex-factory setting.
● Fan speed under dry mode is low speed.
Press this button can select up&down swing angle. Fan blow angle can be selected
circularly as below:
● When selecting " ", air conditioner is blowing fan automatically. Horizontal
louver will automatically swing up&down at maximum angle.
● When selecting " 、、、、
● When selecting " 、、
● Hold " "button above 2s to set your required swing angle. When reaching your
required angle, release the button.
Note:
" 、、 " may not be available. When air conditioner receives this signal, the
air conditioner will blow fan automatically.
no display
(horizontal louvers stops
at current position)
temperature. Press "FAN" button to adjust fan speed. Press "SWING" button to
adjust fan blowing angle. (Cooling only unit won’t receive heating mode signal. If
setting heat mode with remote controller, press ON/OFF button can’t start up the
unit).
Note:
● For preventing cold air, after starting up heating mode, indoor unit will delay 1~5
minutes to blow air (actual delay time is depend on indoor ambient temperature).
● Set temperature range from remote controller: 60.8~86°F (16~30°C); Fan
speed: auto, low speed, medium speed, high speed.

11
SLEEP button
TEMP button
7
8
Introduction for buttons on remote controller
▲
▲
Under COOL, HEAT or DRY mode, press this button to start up sleep function.
" " icon is displayed on remote controller. Press this button again to cancel sleep
function and " " icon will disappear.
By pressing this button, you can see indoor set temperature, indoor ambient temp-
erature or outdoor ambient temperature on indoor unit’s display. The setting on
remote controlleris selected circularly as below:
no display
● When selecting " " or no display with remote controller, temperature indicator
on indoor unit displays set temperature.
● When selecting " " with remote controller, temperature indicator on indoor unit
displays indoor ambient temperature.
● When selecting " " with remote controller, temperature indicator on indoor unit
displays outdoor ambient temperature.
Note:
● Outdoor temperature display is not available for some models. At that time, indoor
unit receives " " signal, while it displays indoor set temperature.
TURBO button
5
Under COOL or HEAT mode, press this button to turn to quick COOL or quick
HEAT mode. " " icon is displayed on remote controller. Press this button again
to exit turbo function and " " icon will disappear.
▲
▲/ button
6
● Press "▲" or " " button once increase or decrease set temperature 33.8°F(1°C).
Holding "▲" or " " button, 2s later, set temperature on remote controller will
change quickly. On releasing button after setting is nished, temperature indica-
tor on indoor unit will change accordingly. (Temperature can’t be adjusted under
auto mode)
● When setting TIMER ON, TIMER OFF or CLOCK, press "▲" or " " button to
adjust time. (Refer to CLOCK, TIMER ON, TIMER OFF buttons) When setting
TIMER ON, TIMER OFF or CLOCK, press "▲" or " " button to adjust time. (Refer
to CLOCK, TIMER ON, TIMER OFF buttons)
▲
▲

12
● It’s defaulted to display set temperature when turning on the unit. There is no
display in the remote controller.
● Only for the models whose indoor unit has dual-8 display.
● When selecting displaying of indoor or outdoor ambient temperature, indoor
temperature indicator displays corresponding temperature and automatically turn
to display set temperature after three or ve seconds.
Press this button to set clock time. " " icon on remote controller will blink. Press
"▲" or " " button within 5s to set clock time. Each pressing of "▲" or " " button,
clock time will increase or decrease 1 minute. If hold "▲" or " " button, 2s later,
time will change quickly. Release this button when reaching your required time.
Note:
● Clock time adopts 24-hour mode.
●The interval between two operation can’t exceeds 5s. Otherwise, remote contro-
ller will quit setting status. Operation for TIMER ON/TIMER OFF is the same.
CLOCK button
11
▲
▲▲
TIMER ON / TIMER OFF button
12
●TIMER ON button
"TIMER ON" button can set the time for timer on. After pressing this button, " "
icon disappears and the word "ON" on remote controller blinks. Press "▲" or
" "button to adjust TIMER ON setting. After each pressing "▲" or " " button,
▲
▲
Introduction for buttons on remote controller
I FEEL button
9
Press this button to start I FEEL function and " " will be displayed on the remote
controller. After this function is set, the remote controller will send the detected
ambient temperature to the controller and the unit will automatically adjust the
indoor temperature according to the detected temperature. Press this button again
to close I FEEL function and " " will disappear.
● Please put the remote controller near user when this function is set. Do not put
the remote controller near the object of high temperature or low temperature in
order to avoid detecting inaccurate ambient temperature.
LIGHT button
10
Press this button to turn off display light on indoor unit. " " icon on remote
controller disappears. Press this button again to turn on display light. " " icon is
displayed.

13
Function introduction for combination buttons
Energy-saving function
Under cooling mode, press "TEMP" and " CLOCK" buttons simultaneously to
start up or turn off energy-saving function. When energy-saving function is started
up, "SE" will be shown on remote controller, and air conditioner will adjust the set
temperature automatically according to ex-factory setting to reach to the best
energy-saving effect. Press "TEMP" and "CLOCK" buttons simultaneously again to
exit energy-saving function.
Note:
● Under energy-saving function, fan speed is defaulted at auto speed and it can’t
be adjusted.
● Under energy-saving function, set temperature can’t be adjusted. Press "TURBO"
button and the remote controller won’t send signal.
● Sleep function and energy-saving function can’t operate at the same time. If
energy-saving function has been set under cooling mode, press sleep button will
cancel energy-saving function. If sleep function has been set under cooling
mode, start up the energy-saving function will cancel sleep function.
▲
▲
▲
▲
TIMER ON setting will increase or decrease 1min. Hold "▲" or " " button, 2s
later, the time will change quickly until reaching your required time.
Press "TIMER ON" to conrm it. The word "ON" will stop blinking. " " icon
resumes displaying. Cancel TIMER ON: Under the condition that TIMER ON is
started up, press "TIMER ON" button to cancel it.
● TIMER OFF button
"TIMER OFF" button can set the time for timer off. After pressing this button, " "
icon disappears and the word "OFF" on remote controller blinks. Press "▲" or
" " button to adjust TIMER OFF setting. After each pressing "▲" or " " button,
TIMER OFF setting will increase or decrease 1min. Hold "▲" or " " button, 2s
later, the time will change quickly until reaching your required time.
Press "TIMER OFF" word "OFF" will stop blinking. " " icon resumes displaying.
Cancel TIMER OFF. Under the condition that TIMER OFF is started up, press
"TIMER OFF" button to cancel it.
Note:
● Under on and off status, you can set TIMER OFF or TIMER ON simultaneously.
● Before setting TIMER ON or TIMER OFF, please adjust the clock time.
●After starting up TIMER ON or TIMER OFF, set the constant circulating valid.
After that, air conditioner will be turned on or turned off according to setting time.
ON/OFF button has no effect on setting. If you don’t need this function, please
use remote controller to cancel it.
Introduction for buttons on remote controller

14
Child lock function
Press "▲" and " " simultaneously to turn on or turn off child lock function. When
child lock function is on, " " icon is displayed on remote controller. If you operate
the remote controller, the " " icon will blink three times without sending signal to
the unit.
▲
8℃heating function
Note:
● Under 46°F(8°C) heating function, fan speed is defaulted at auto speed and it
can’t be adjusted.
● Under 46°F(8°C) heating function, set temperature can’t be adjusted. Press
" TURBO " button and the remote controller won’t send signal.
● Sleep function and 46°F(8°C) heating function can’t operate at the same time. If
46°F(8°C) heating function has been set under cooling mode, press sleep button
will cancel 46°F(8°C) heating function. If sleep function has been set under cooling
mode, start up the 46°F(8°C) heating function will cancel sleep function.
● Under °F temperature display, the remote controller will display 46°F(8°C)
heating.
Function introduction for combination buttons
Temperature display switchover function
Under OFF status, press " " and "MODE" buttons simultaneously to switch temp-
erature display between ℃and ℉.
▲
Under heating mode, press “TEMP” and “CLOCK” buttons simultaneously to start
up or turn off 46°F(8°C) heating function. When this function is started up, “ ” and
“46°F(8°C)” will be shown on remote controller, and the air conditioner keep the
heating status at 46°F(8°C). Press “TEMP” and “CLOCK” buttons simultaneously
again to exit 46°F(8°C) heating function.

15
1. After putting through the power, press "ON/OFF" button on remote controller to
turn on the air conditioner.
2. Press "MODE" button to select your required mode: AUTO, COOL, DRY, FAN,
HEAT.
3. Press "▲" or " " button to set your required temperature. (Temperature can’t
be adjusted under auto mode).
4. Press "FAN" button to set your required fan speed: auto, low, medium and high
speed.
5. Press "SWING" button to select fan blowing angle.
Operation guide
▲
Replacement of batteries in remote controller
1. Press the back side of remote controller marked
with " ", as shown in the g, and then push out
the cover of battery box along the arrow direction.
2. Replace two 7# (AAA 1.5V) dry batteries, and
make sure the position of "+" polar and "-" polar
are correct.
3. Reinstall the cover of battery box.
signal sender battery
Cover of battery box
remove
reinstall
● During operation, point the remote control signal sender at the receiving
window on indoor unit.
● The distance between signal sender and receiving window should be no
more than 8m, and there should be no obstacles between them.
● Signal may be interfered easily in the room where there is uorescent lamp
or wireless telephone; remote controller should be close to indoor unit during
operation.
● Replace new batteries of the same model when replacement is required.
● When you don’t use remote controller for a long time, please take out the
batteries.
● If the display on remote controller is fuzzy or there’s no display, please
replace batteries.
NOTICE

16
Emergency operation
If remote controller is lost or damaged, please use auxiliary button to turn
on or turn off the air conditioner. The operation in details are as below:
air conditioner. When the air conditioner is turned on, it will operate under
auto mode.
aux. button
panel
Clean and maintenance
■Turn off the air conditioner and disconnect the power before cleaning the air
conditioner to avoid electric shock.
■ Do not wash the air conditioner with water to avoid electric shock.
■ Do not use volatile liquid to clean the air conditioner.
Clean surface of indoor unit
When the surface of indoor unit is dirty, it is recommended to use a soft dry cloth
or wet cloth to wipe it.
● Do not remove the panel when cleaning it.
WARNING
NOTICE:
WARNING:
Use insulated object to press the auto button
