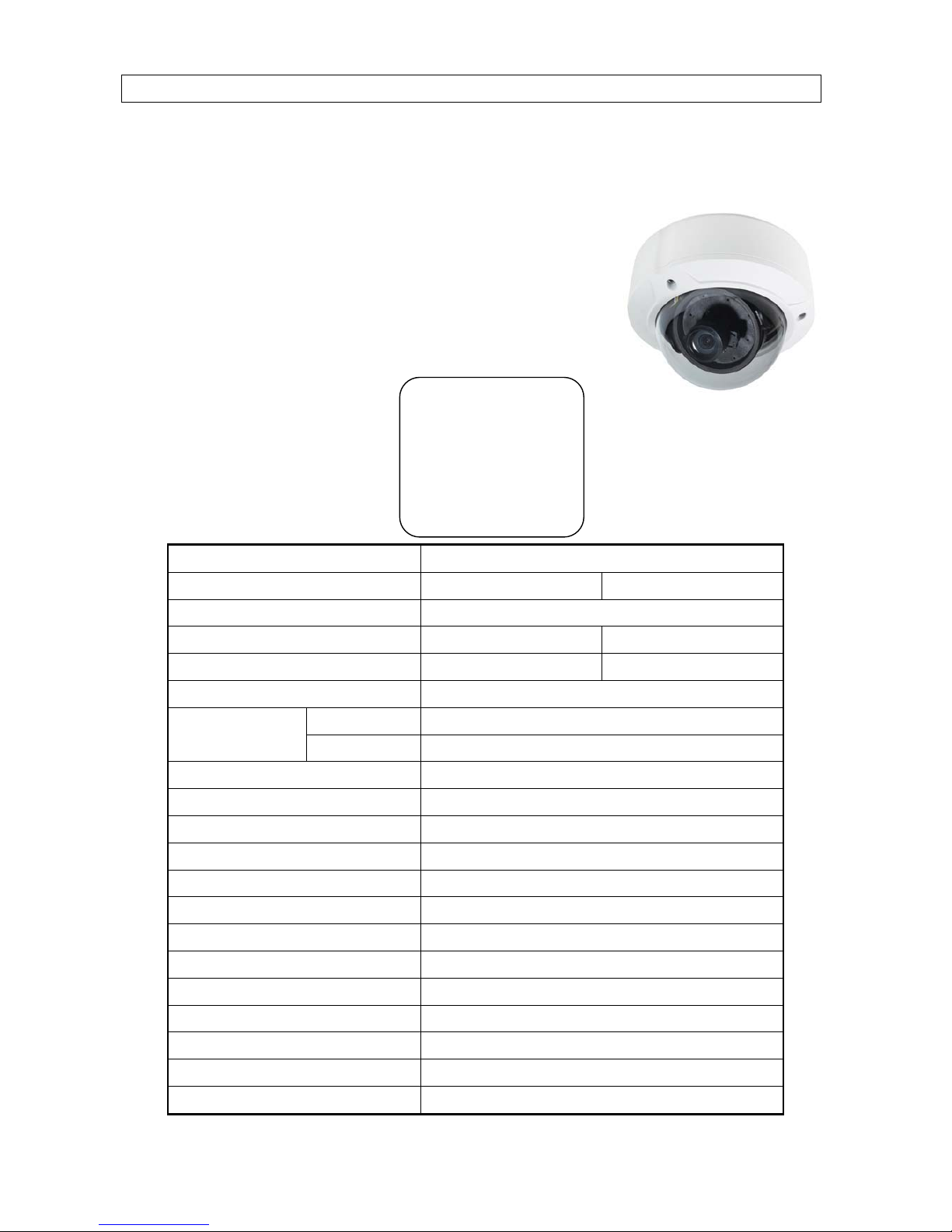

COP-USA CD260X-WDR User manual

COLOR CCD Wide Dynamic High Resolution Color Camera
ITEM NO.: CD260X-WDR
Menu and Operation
Press the “menu” button, then press “enter” for menu control options
Under main menu mode, select ĀХ” or ĀЦ”.for sub-menu options.
Select ĀЧ” or ĀШ” for submenu mode selection.
The blinking cursor will indicate that this category has been selected.
In the submenu, press “EXIT MENU” to return to the main menu.
ˆQuick Wide Dynamic Camera Setup
ˆ1. Under the OSD (On Screen Display), Select Lens to ManualΖ
ˆ2. Adjust Brightnessμ80ν(00 to FF)
ˆ3. Set Exposure-Wide Dynamic Range (WDR) ON
ˆ4. Adjust back view exposure Lμ80ν(Long Exposure) (00 to FF)
ˆ5. Adjust front view exposure Sμ80ν(Short Exposure) (00 to FF)
ˆ6. Set Exposure-AGC(WDR) ON
OSD
LENS DC-IRIS[80]
EXPOSURE SET
IMAGE SET
AWB SET
DAY&NIGHT SET
MOTION SET
PRIVATE SET
SPECIAL SET
EXIT
Manual
SAVE/CANCEL
SPECIFICATION:
MODE NO. CD260X-WDR
TV SYSTEM NTSC PAL
IMAGE SENSOR COLOR 1/3-inch Dual Scan CCD Sensor
CCD TOTAL PIXELS 811(H) X 508(V) 795(H) X 596(V)
SCANNING SYSTEM 525 lines, 60 fields/sec 625 lines, 50 fields/sec
SYNC SYSTEM Internal / Line-Lock
Legacy mode 0. 5 Lux ( F1.2 , 5600ºK )MINIMUM
ILLUMINATION Star light Mode 0.08 Lux ( F 1.2 , 5600ºK )
LENS 2.5mm~ 9mm Lens
RESOLUTION 560 TVL
WHITE BALANCE PUST/INDOOR/OUTDOOR/FLUO/USET/ATW
GAIN CONTROL SELECTABLE BY OSD MANUAL
S / N RATIO 52dB ( MIN) / 60dB ( TYP ) (AGC OFF)
AUTO IRIS A.E.S. / DC
OSD DISPLAY ON SCREEN DISPLAY FOR ALL CONTROL
WIDE DYNAMIC 52dB ( MAX) (Required DC-IRIS lens)
VIDEO OUTPUT Composite output 1.0V p-p at 75 ohm
GAMMA CORRECTION 0.45 / 1.0 (SELECTABLE BY OSD MANUAL)
OPERATION TEMPERATURE -20 º C TO 50 º C
OPERATIONAL HUMIDITY within 85 % RH
POWER SUPPLY Dual Power: AC 24V / DC12V 250mA
*SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE
