CORBERO CLAV22914VP User manual

Washing Machine / User Manual
EN
CLAV22914VP

Icon Type Meaning
WARNING Serious injury or death risk
RISK OF ELECTRIC SHOCK Dangerous voltage risk
FIRE Warning; Risk of fire / flammable materials
CAUTION Injury or property damage risk
IMPORTANT / NOTE Operating the system correctly
Thank you for choosing this product.
This User Manual contains important safety information and instructions on the operation
and maintenance of your appliance.
Please take the time to read this User Manual before using your appliance and keep this
book for future reference.

CONTENTS
1.SAFETY INSTRUCTIONS ............................................................................................... .1
1.1 General Safety Warnings ...............................................................................................2
1.2 During Use ....................................................................................................................6
1.3 Packaging and Environment...........................................................................................7
1.4 Savings Information........................................................................................................8
2.TECHNICAL SPECIFICATIONS...................................................................................... .9
2.1 Technical Specifications .................................................................................................9
3.INSTALLATION.............................................................................................................. .10
3.1 Removing the Transit Bolts...........................................................................................10
3.2 Adjusting the Feet / Adjusting Adjustable Stays............................................................10
3.3 Electrical Connection....................................................................................................10
3.4 Water Inlet Hose Connection....................................................................................... .11
3.5 Water Discharge Connection........................................................................................12
4.CONTROL PANEL OVERVIEW..................................................................................... .12
4.1 Detergent Drawer (*) ....................................................................................................12
4.2 Sections ...................................................................................................................13
4.3 Program Dial.................................................................................................................13
4.4 Electronic Display.........................................................................................................13
5.USING YOUR WASHING MACHINE............................................................................. .14
5.1 Preparing Your Laundry................................................................................................14
5.2 Putting Laundry in the Machine....................................................................................14
5.3 Adding Detergent to the Machine .................................................................................15
5.4 Operating Your Machine...............................................................................................15
5.5 Selecting a Programme................................................................................................15
5.6 Half-Load Detection System.........................................................................................15
5.7 Additional Functions ....................................................................................................16
5.8 Child Lock ...................................................................................................................18
5.9 Cancelling the Programme ..........................................................................................19
5.10 Programme End .........................................................................................................19
6.PROGRAMME TABLE................................................................................................... .20
6.1 Important Informations..................................................................................................23
7.CLEANING AND MAINTENANCE ................................................................................ .24
7.1 Warning ...................................................................................................................24
7.2 Water Inlet Filters .........................................................................................................24
7.3 Pump Filter ...................................................................................................................25
7.4 Detergent Drawer .........................................................................................................25
8.Body / Drum .................................................................................................................. .26
9.TROUBLESHOOTING................................................................................................... .27
10.AUTOMATIC FAULT WARNINGS AND WHAT TO DO .............................................. .28

1.SAFETY INSTRUCTIONS
Operating voltage / frequency (220-240) V~/50Hz
Total current (A) 10
Water pressure (Mpa) Maximum 1 Mpa
/ Minimum 0.
1Mpa
Total power (W) 2200
Maximum washing capacity
(dry laundry) (kg) 9
• Do not install your machine on a carpet or such
grounds that would prevent the ventilation of its
base.
• The appliance is not intended for use by people
(including children) with reduced physical,
sensory or mental capabilities, or lack of
experience and knowledge unless they have been
given supervision or instruction concerning use
of the appliance by a person responsible for their
safety.
• Children of less than 3 years should be kept away
unless continuously supervised.
• Call the nearest authorized service centre for a
replacement if the power cord malfunctions.
• Use only the new water inlet hose coming
with your machine when making water inlet
connections to your machine. Never use old, used
or damaged water inlet hoses.
• Children should not play with the appliance.
Cleaning and user maintenance should not be
made by children without supervision.
EN - 1

NOTE: For a softcopy of this user
manual, please contact the following address:
“washingmachine@standardtest. info”. In your
e-mail, please provide the model name and serial
number (20 digits) which you can find on the
appliance door.
Read this user manual carefully.
Your machine is for domestic use only.
Using it for commercial purposes will cause
your warranty to be cancelled.
This manual has been prepared for more than
one model therefore your appliance may not
have some of the features described within.
For this reason, it is important to pay particular
attention to any figures whilst reading the
operating manual.
1.1 General Safety Warnings
• The necessary ambient temperature for operation
of your Washing Machine is 15-25 °C.
• Where the temperature is below 0 °C, hoses
may split or the electronic card may not operate
correctly.
• Please ensure that garments loaded into your
Washing Machine are free from foreign objects
such as nails, needles, lighters and coins.
• It is recommended that for your first wash,
you select the 90˚ Cotton programme without
laundry and half fill compartment II of the
detergent drawer with a suitable detergent.
• Residue may build up on detergent and softeners
EN - 2

exposed to air for a long period of time. Only
put softener or detergent in the drawer at the
beginning of each wash.
• Unplug your Washing Machine and switch off
the water supply if the Washing Machine is left
unused for a long time. We also recommend that
you leave the door open to prevent build up of
humidity inside the Washing Machine.
• Some water may be left in your Washing Machine
as a result of quality checks during production.
This will not affect the operation of your Washing
Machine.
• The packaging of the machine could be
hazardous to children. Do not allow children to
play with the packaging or small parts from the
Washing Machine.
• Keep the packaging materials in a place where
children cannot reach them, or dispose of them
appropriately.
• Use pre-wash programs only for very dirty
laundry.
Never open the detergent drawer while the
machine is running.
• In the event of a breakdown, unplug the machine
from the mains supply and turn the water supply
off. Do not attempt to carry out any repairs.
Always contact an authorised service agent.
• Do not exceed the maximum load for the washing
programme you have chosen.
Never force the door open when your Washing
Machine is running.
• Washing laundry containing flour may damage
EN - 3

your machine.
• Please follow the manufacturers’ instructions
regarding the use of fabric conditioner or any
similar products that you intend to use in your
Washing Machine.
• Make sure that the door of your Washing Machine
is not restricted and can be opened fully.
Install your machine in a location that can be
fully ventilated and preferably has constant air
circulation.
Read these warnings. Follow the advice given
to protect yourself and others from risks and
fatal injuries.
RISK OF BURNS
Do not touch the drain hose or any discharged
water while your Washing Machine is running. The
high temperatures involved pose a burn risk.

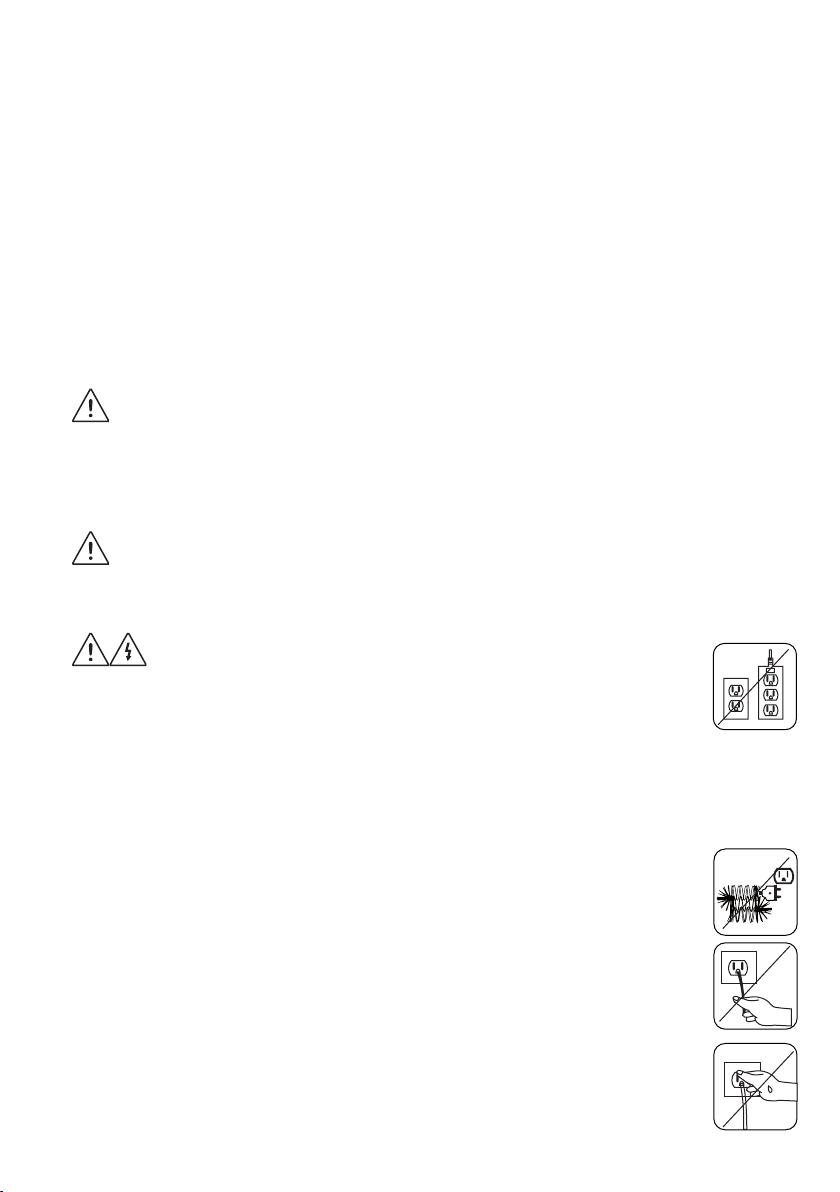

RISK OF DEATH FROM ELECTRICAL
CURRENT
• Do not connect your Washing Machine to the
mains electricity supply using an extension lead.
• Do not insert a damaged plug into a socket.
• Never remove the plug from the socket by pulling
the cord. Always hold the plug.
• Never touch the power cord/plug with wet
hands as this could cause a short circuit or
electric shock.
• Do not touch your Washing Machine if your
hands or feet are wet.
• A damaged power cord/plug can cause fire or
give you an electric shock. When damaged
EN - 4

it must be replaced, this should only be done by
qualified personnel.
Risk of flooding
• Check the speed of water flow before placing the
drain hose in a sink.
• Take necessary measures to prevent the hose
from slipping.
• Water flow may dislodge the hose if it is not
properly secured. Make sure the plug in your sink
does not block the plug hole.
Danger of Fire
• Do not store inflammable liquids near your
machine.
• The sulphur content of paint removers may cause
corrosion. Never use paint removing materials in
your machine.
• Never use products that contain solvents in your
machine.
• Please ensure that garments loaded into your
Washing Machine are free from foreign objects
such as nails, needles, lighters and coins.
Risk of fire and explosion
Risk of falling and injury
• Do not climb on your Washing Machine.
• Make sure hoses and cables do not cause a trip
hazard.
• Do not turn your Washing Machine upside down
or on its side.
• Do not lift your Washing Machine using the door
or detergent drawer.
EN - 5

The machine must be carried by at least 2
people.
Child safety
• Do not leave children unattended near the
machine. Children might lock themselves in the
machine resulting in risk of death.
• Do not allow children to touch the glass door
during operation. The surface becomes extremely
hot and may cause damage to skin.
• Keep packaging material away from children.
• Poisoning and irritation may occur if detergent
and cleaning materials are consumed or
come into contact with the skin and eyes. Keep
cleaning materials out of the reach of children.
1.2 During Use
• Keep pets away from your machine.
• Please check the packaging of your machine
before installation and the outer surface of the
machine once the packaging has been removed.
Do not operate the machine if it appears damaged
or if the packaging has been opened.
• Your machine must only be installed by an
authorised service agent. Installation by anyone
other than an authorised agent may cause your
warranty to be void.
• This appliance can be used by children aged
8 years and above and persons with reduced
physical, sensory or mental capabilities or lack
of experience and knowledge if they have been
given supervision or instruction concerning use of
the appliance in a safe way and understand the
EN - 6

hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall
not be done by children without supervision.
• Only use your machine for laundry that is labelled
as suitable for washing by the manufacturer.
• Before operating the washing machine,
remove the 4 transit bolts and rubber spacers
from the rear of the machine. If the bolts are
not removed they may cause heavy vibration,
noise and malfunction of the machine and
cause the guarantee to be void.
• Your warranty does not cover damage caused by
external factors such as fire, flooding and other
sources of damage.
• Please do not throw away this user manual; keep
it for future reference and pass it onto the next
owner.
NOTE: Specifications for the machine may vary
depending on the product purchased.
1.3 Packaging and Environment
Removal of packaging materials
Packaging materials protect your machine from any
damage that might occur during transportation. The
packaging materials are environmentally friendly
as they are recyclable. Use of recycled material
reduces raw material consumption and decreases
waste production.
EN - 7

1.4 Savings Information
Some important information to get the most efficient
use out of your machine:
• Do not exceed the maximum load for the washing
programme you have chosen. This will allow your
machine to run in energy saving mode.
• Do not use the pre-wash feature for lightly soiled
laundry. This will help you save on the amount of
electricity and water consumed.
CE Declaration of conformity
We declare that our products meet the applicable European Directives, Decisions and
Regulations and the requirements listed in the standards referenced.
Disposal of your old machine
The symbol of the crossed-out wheeled bin shown on the product or its
packaging means that the device must not be disposed of with other
household waste but requires separate collection. You can dispose of the
device free of charge at your local waste return and collection system.
The addresses can be obtained from your responsible city council or
local government. Alternatively, you can return small waste electrical and
electronic equipment (WEEE) with an edge length of up to 25 cm free of
charge to any retailer with a sales area relating to electrical and electronic equipment
(EEE) of at least 400 m2 or to a food retailer that offers EEE at least several times a
year with a total sales area of 800 m2. Larger WEEE can be returned to a respective
retailer free of charge when buying a new product of the same type. Regarding the
modalities of the collection of WEEE in case of shipment of the newly bought product,
please contact your retailer.
If possible, please remove all batteries and accumulators as well as all removable
lamps before disposing of the device.
Please note that you are responsible for deleting all personal data on the device to be
disposed of.
EN - 8

EN - 9
2. TECHNICAL SPECIFICATIONS
123
4
5
6
7
8
9
10
General Appearance
1. Electronic Display
2. Programme Dial
3. Upper Tray
4. Detergent Drawer
5. Drum
6. Pump Filter Cover
7. Water Inlet Valve
8. Power Cable
9. Discharging Hose
10. Transit Bolts
2.1 Technical Specifications
Operating
voltage /
frequency
(V/Hz)
(220-240)
V~/50Hz
Total current
(A) 10
Water
pressure
(Mpa)
Maximum:
1 Mpa
Minimum :
0.1 Mpa
Total power
(W)
Maximum
dry laundry
capacity (kg)
9
Spinning
revolution
(rev / min)
Programme
number 15
Dimensions
(mm)
Height
Width
Depth
845
597
2200
582
1400

EN - 10
3. INSTALLATION
3.1 Removing the Transit Bolts
X X4 4
X4
1
3
2
4
1. Before operating the washing machine,
remove the 4 transit bolts and rubber
spacers from the rear of the machine.
If the bolts are not removed, they
may cause heavy vibration, noise and
malfunction of the machine and void the
warranty.
2. Loosen the transit bolts by turning
them anticlockwise with an appropriate
spanner.
3. Remove the transit bolts with a straight
pull.
4. Fit the plastic blanking caps supplied in
the accessories bag into the gaps left
by the removal of the transit bolts. The
transit bolts should be stored for future
use.
NOTE: Remove the transit bolts
before using the machine for the first time.
Faults occurring due to the machine being
operated with transit bolts fitted are out of
the scope of the warranty.
3.2 Adjusting the Feet /
Adjusting Adjustable Stays
1
1. Do not install your machine on a surface
(such as carpet) that would prevent
ventilation at the base.
• To ensure silent and vibration-free
operation of your machine, install it on a
firm surface.
• You can level your machine using the
adjustable feet.
• Loosen the plastic locking nut.
X4
2 3
2. To increase the height of the machine,
turn the feet clockwise. To decrease
the height of the machine, turn the feet
anticlockwise.
• Once the machine is level, tighten the
locking nuts by turning them clockwise.
3. Never insert cardboard, wood or other
similar materials under the machine to
level it.
• When cleaning the ground on which
the machine is located, take care not to
disturb the level of the machine.
3.3 Electrical Connection
• Your Washing Machine requires a 220-
240V, 50 mains supply.

EN - 11
• The mains cord of your washing
machine is equipped with an earthed
plug. This plug should always be
inserted to an earthed socket of 10
amps.
• If you do not have a suitable socket and
fuse conforming with this, please ensure
the work is carried out by a qualified
electrician.
• We do not take responsibility for
damage that occurs due to the use of
ungrounded equipment.
NOTE: Operating your machine
with low voltage will cause the life cycle
of your machine to be reduced and its
performance to be restricted.
3.4 Water Inlet Hose Connection
3/4”
10 mm
1
3
2
4
1. Your machine may have either a
single water inlet connection (cold)
or double water inlet connection (hot
and cold) depending on the machine
specifications. The white capped hose
should be connected to cold water inlet
and red capped hose to the hot water
inlet (if applicable).
• To prevent water leaks at the joints,
either 1 or 2 nuts (depending on your
machine’s specifications) are supplied
in the packaging with the hose. Fit these
nuts to the end(s) of the water inlet hose
that connect to the water supply.
2. Connect new water inlet hoses to a ¾ ˝,
threaded tap.
• Connect the white capped end of the
water inlet hose to the white water inlet
valve on the rear side of the machine
and the red capped end of the hose to
the red water inlet valve (if applicable).
• Hand tighten the connections. If in any
doubt, consult a qualified plumber.
• Water flow with pressure of 0. 1-1 Mpa
will allow your machine to operate at
optimum efficiency (pressure of 0. 1
Mpa means that more than 8 litres of
water per minute will flow through a fully
opened tap).
3. Once you have made all of the
connections, carefully turn the water
supply on and check for leaks.
4. Ensure that the new water inlet hoses
are not trapped, kinked, twisted, folded
or crushed.
• If your machine has a hot water inlet
connection, the temperature of the hot
water supply should not be higher than
70°C.
NOTE: Your Washing Machine
must only be connected to your water
supply using the supplied new fill hose. Old
hoses must not be reused.
~ 95 cm ~ 140 cm
~ 145 cm ~ 95 cm
0 – max. 100 cm
˜˜
95 cm 150 cm

EN - 12

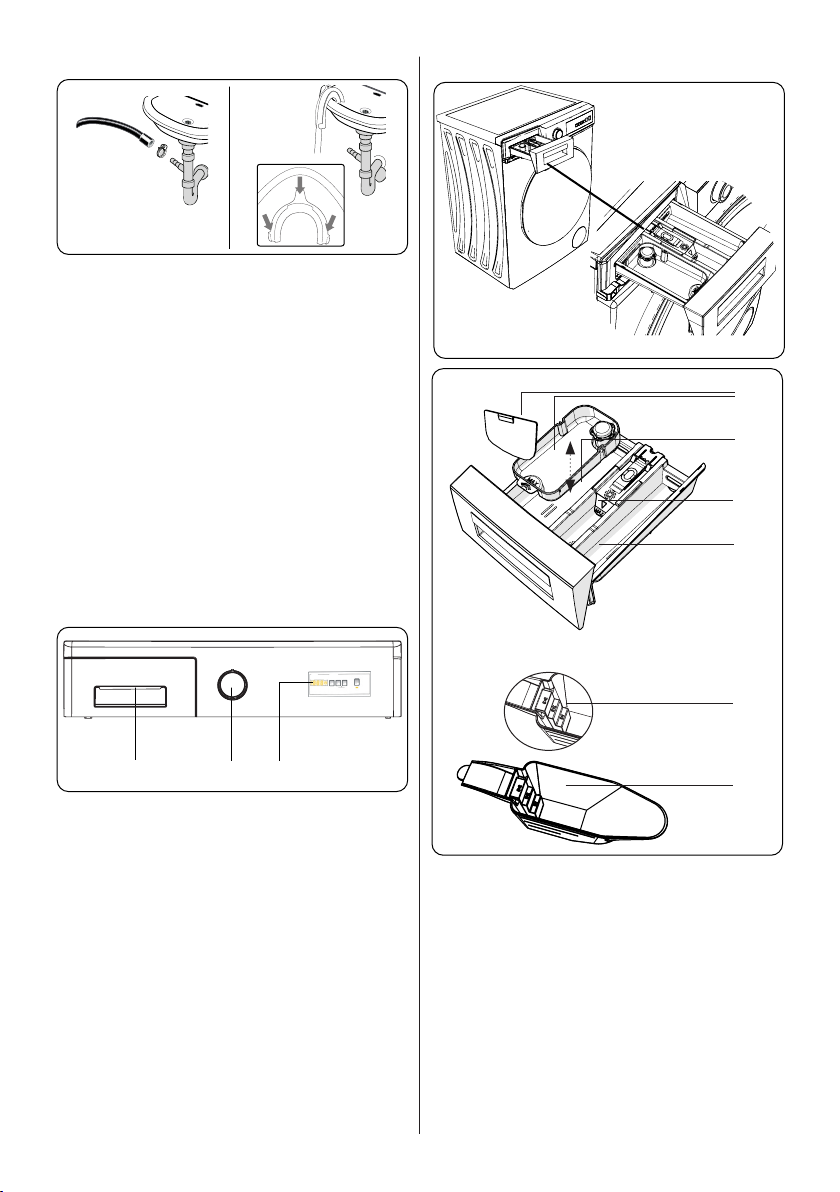

3.5 Water Discharge Connection
• Connect the water drain hose to a
standpipe or to the outlet elbow of
a household sink, using additional
equipment.
• Never attempt to extend the water drain
hose.
• Do not put the water drain hose from
your machine into a container, bucket or
bathtub.
• Make sure that the water drain hose is
not bent, buckled, crushed or extended.
• The water drain hose must be installed
at a maximum height of 100 cm from the
ground.
4. CONTROL PANEL OVERVIEW
1 2 3
1. Detergent Drawer
2. Programme Dial
3. Electronic Display
4.1 Detergent Drawer (*)
1
2
3
4
5
6
1. Liquid Detergent Attachments (*)
2. Main Wash Detergent Compartment
3. Softener Compartment
4. Pre-Wash Detergent Compartment
5. Powder Detergent Levels (*)
6. Powder Detergent Scoop (*)
(*) Specifications may vary depending on
the machine purchased.

EN - 13
4.2 Sections
Main wash detergent compartment:
This compartment is for liquid or powder
detergents or limescale remover. The fluid
detergent level plate will be supplied inside
your machine. (*)
Fabric conditioner, starch, detergent
compartment:
This compartment is for softeners,
conditioners or starch. Follow the
instructions on the packaging. If softeners
leave residue after use, try diluting them or
using a liquid softener.
Pre-wash detergent compartment:
This compartment should be used only
when the pre-wash feature is selected. We
recommend that the pre-wash feature is
used only for very dirty laundry.
(*) Specifications may vary depending on
the machine purchased.
4.3 Program Dial
• To select the desired programme, turn
the programme dial either clockwise or
anti-clockwise until the marker on the
programme dial points to the chosen
programme.
• Make sure that the programme dial is
set exactly to the programme you want.
4.4 Electronic Display
1
6
7
23 4 5
1. Electronic Display
2. Digital Display
3. Water Temperature Adjustment Button
4. RPM Speed Adjustment Button
5. Additional Function Button 1
6. Start/Pause Button
7. Start/Pause Button Lamp
The display panel shows the washing delay
timer (if set), temperature selection, spin
speed, any additional functions selected.
The display panel shows “End” when the
selected programme is complete. The
display panel also indicates if a fault has
occurred with your machine.

EN - 14
5. USING YOUR
WASHING MACHINE
5.1 Preparing Your Laundry
1
3
5
7
2
4
6
DGVDSH
DGVDS
1. Follow the instructions given in the care
labels on the clothing.
• Separate your laundry according to type
(cotton, synthetic, sensitive, wool etc.
), washing temperature (cold, 30°, 40°,
60°, 90°) and the degree of dirtiness
(slightly stained, stained, highly stained).
2. Never wash coloured and white laundry
together.
• Dark textiles may contain excess dye
and should be washed separately
several times.
3. Ensure that there are no metallic
materials on your laundry or in the
pockets; if so, remove them.
CAUTION: Any malfunctions
which occur due to foreign materials
damaging your machine are not covered by
the warranty.
4. Close zips and fasten any hooks and
eyes.
5. Remove the metallic or plastic hooks of
curtains or place them in a washing net
or bag.
6. Reverse textiles such as pants,
knitwear, t-shirts and sweat shirts.
7. Wash socks, handkerchiefs and other
small items in a washing net.
Maximum
ironing
temperature
150°C
Can be dry
cleaned
Drip dry
Dry cleaning
in gas oil,
pure alcohol
and R113 is
allowed
Maximum
ironing
temperature
200°C
No dry
cleaning
Hang to dry
Perchloroethylene
R11, R13,
Petroleum
Normal
washing
Do not iron
Dry flat
Do not tumble
dry
Perchlorinetyhlene
R11, R113, Gas
oil
Can be
bleached Do not bleach
F P A
5.2 Putting Laundry in the Machine
• Open the door of your machine.
• Spread your laundry evenly in the
machine.
NOTE: Take care not to exceed
the maximum load of the drum as this will
give poor wash results and cause creasing.
Refer to the washing programme tables for
information on load capacities.

EN - 15

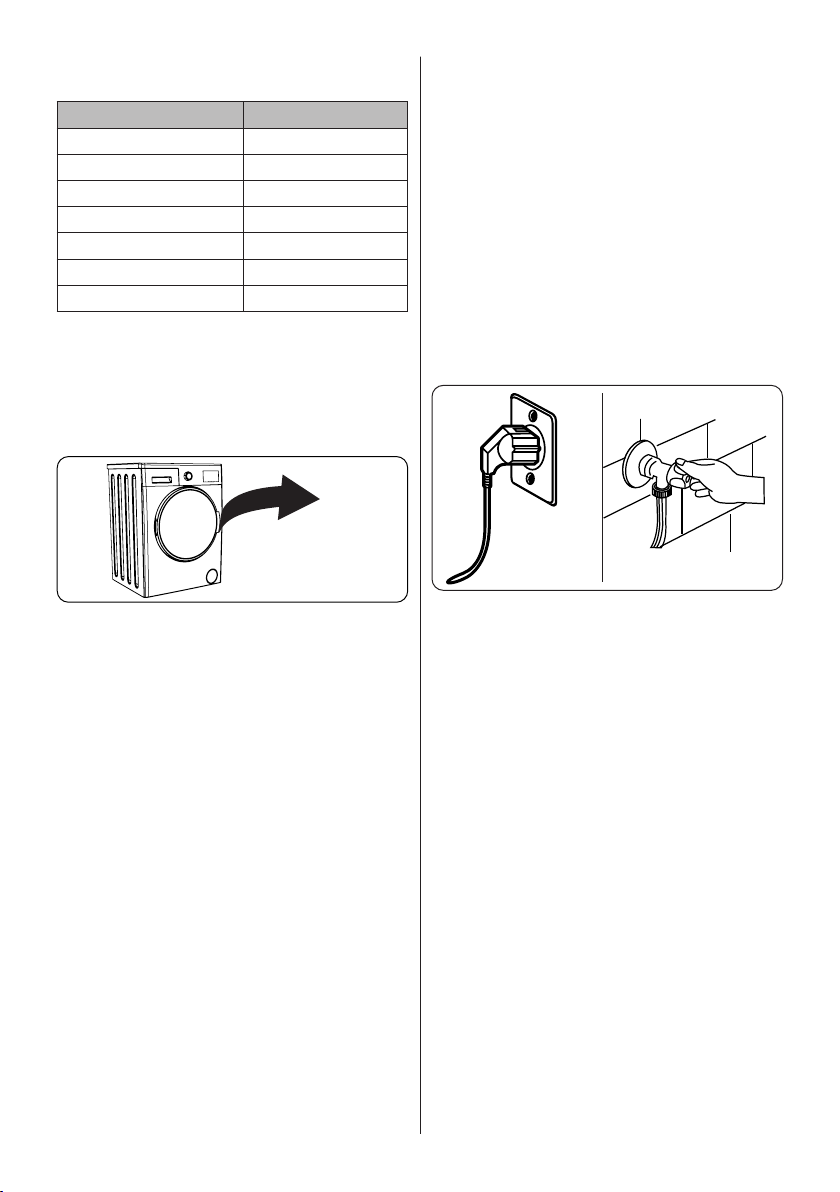

The following table shows approximate
weights of typical laundry items:
LAUNDRY TYPE WEIGHT (gr)
Towel 200
Linen 500
Bathrobe 1200
Quilt cover 700
Pillow slip 200
Underwear 100
Tablecloth 250
• Load each item of laundry separately.
• Check that no items of laundry are
trapped between the rubber seal and
the door.
• Gently push the door until it clicks shut.
click
• Make sure the door is fully closed,
otherwise the programme will not start.
5.3 Adding Detergent to the Machine
The amount of detergent you will need to
put in your machine will depend on the
following criteria:
• If your clothes are only slightly soiled,
do not pre-wash. Put a small amount
of detergent (as specified by the
manufacturer) into compartment II of the
detergent drawer.
• If your clothes are excessively soiled,
select a programme with pre-wash and
put ¼ of the detergent to be used into
compartment I of the detergent drawer
and the rest in compartment II.
• Use detergents produced for automatic
washing machines. Follow the
manufacturer’s instructions on the
amount of detergent to use.
• In areas of hard water, more detergent
will be required.
• The amount of the detergent required
will increase with higher washing loads.
• Put softener in the middle compartment
of the detergent drawer. Do not exceed
the MAX level.
• Thick softeners may cause clogging of
the drawer and should be diluted.
• It is possible to use fluid detergents in
all programmes without a pre-wash. To
do this, slide the fluid detergent level
plate (*) into the guides in compartment
II of the detergent drawer. Use the lines
on the plate as a guide to fill the drawer
to the required level.
(*) Specifications may vary depending on
the machine purchased.
5.4 Operating Your Machine
1 2
1. Plug your machine in to the mains
supply.
2. Turn on the water supply.
• Open the machine door.
• Evenly spread your laundry in the
machine.
• Gently push the door until it clicks shut.
5.5 Selecting a Programme
Use the programme tables to select the
most appropriate programme for your
laundry.
5.6 Half-Load Detection System
Your machine features a half-load detection
system.
If you put less than half the maximum
load of laundry into your machine it will
automatically set the half-load function,
regardless of the programme you selected.
This means that the selected programme
will take less time to complete and will use
less water and energy.

EN - 16
(*)Machinery specifications may vary
depending on the product purchased.

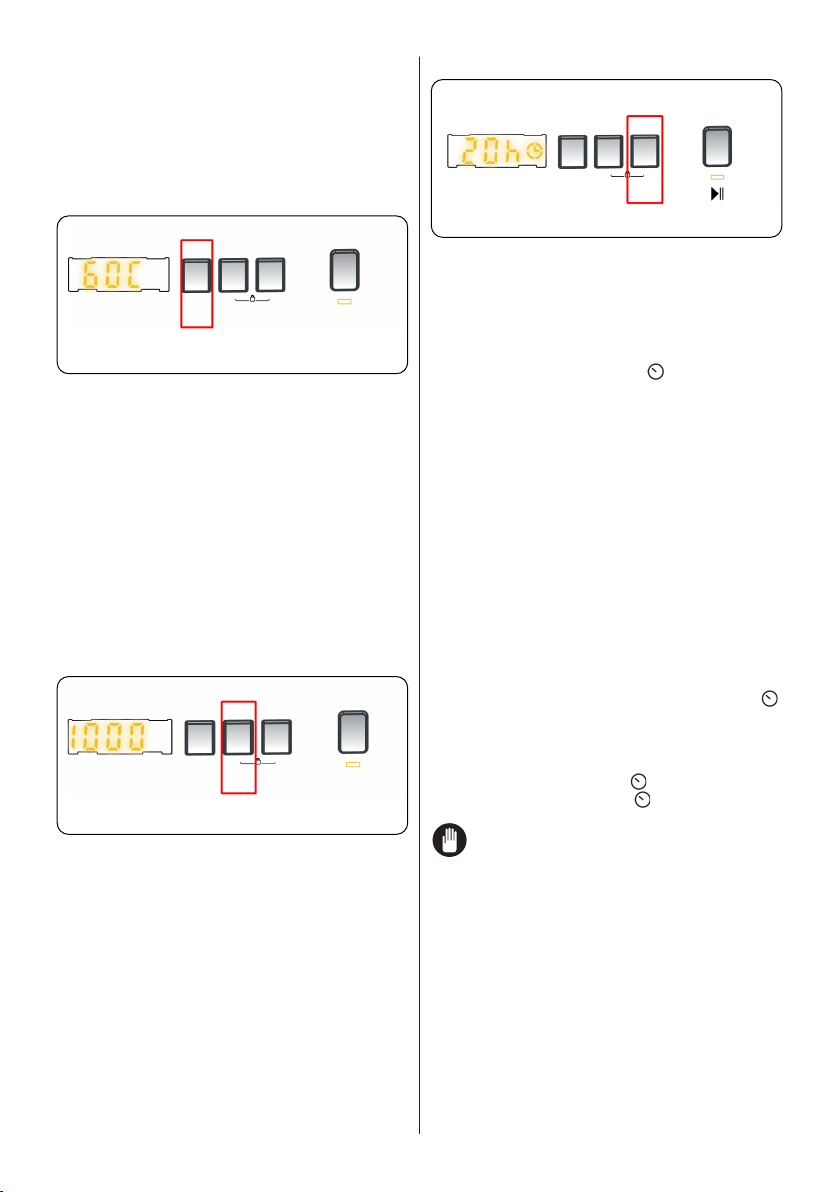

5.7 Additional Functions
1. Temperature Selection
Use the washing water temperature
adjustment button to alter the automatically
programmed washing water temperature.
When you select a programme the
maximum temperature for that programme
is automatically selected. To adjust the
temperature, press the water temperature
adjustment button until the desired
temperature is displayed on the digital
display.
You can gradually decrease the washing
water temperature between the maximum
washing water temperature of the selected
programme and cold washing (- - C)
selections by pressing the temperature
adjustment button.
2. Spin Speed Selection
When you select a programme, the
maximum spin speed is automatically
selected.
To adjust the spin speed between the
maximum spin speed and the cancel
spinning option (- - -), press the Spin speed
button until the desired speed is displayed.
If you have skipped the spin speed you
want to set, keep pressing the spin speed
adjustment button until the desired spin
speed is displayed again.
3. Delay Timer (*)
Auxiliary function button 3 Delay Timer
You can use this auxiliary function to delay
the start time of the washing cycle for 1 to
23 hours .
To use the delay function:
• Press the delay key once.
• “01h” will be displayed. will light up on
the electronic display.
• Press the delay key until you reach the
time after which you want the machine
to start the washing cycle.
• If you have skipped the delay time you
would like to set, you can keep pressing
the delay key until you reach that time
again.
• To use the time delay function, you need
to press the Start/Pause key to start the
machine.
• If you want to cancel the delay:
- If you have pressed the Start/Pause
key to start the machine, you just
need to press the delay key once.
will go off on the electronic display.
- If you have not pressed the Start/
Pause key, press the delay key
continuously until goes off on the
electronic display. will go off on
the electronic display.
NOTE: In the case that you want
to select the auxiliary function feature, if the
auxiliary function LED is not on, this means
that this feature is not being used in the
washing programme you have selected.

EN - 17

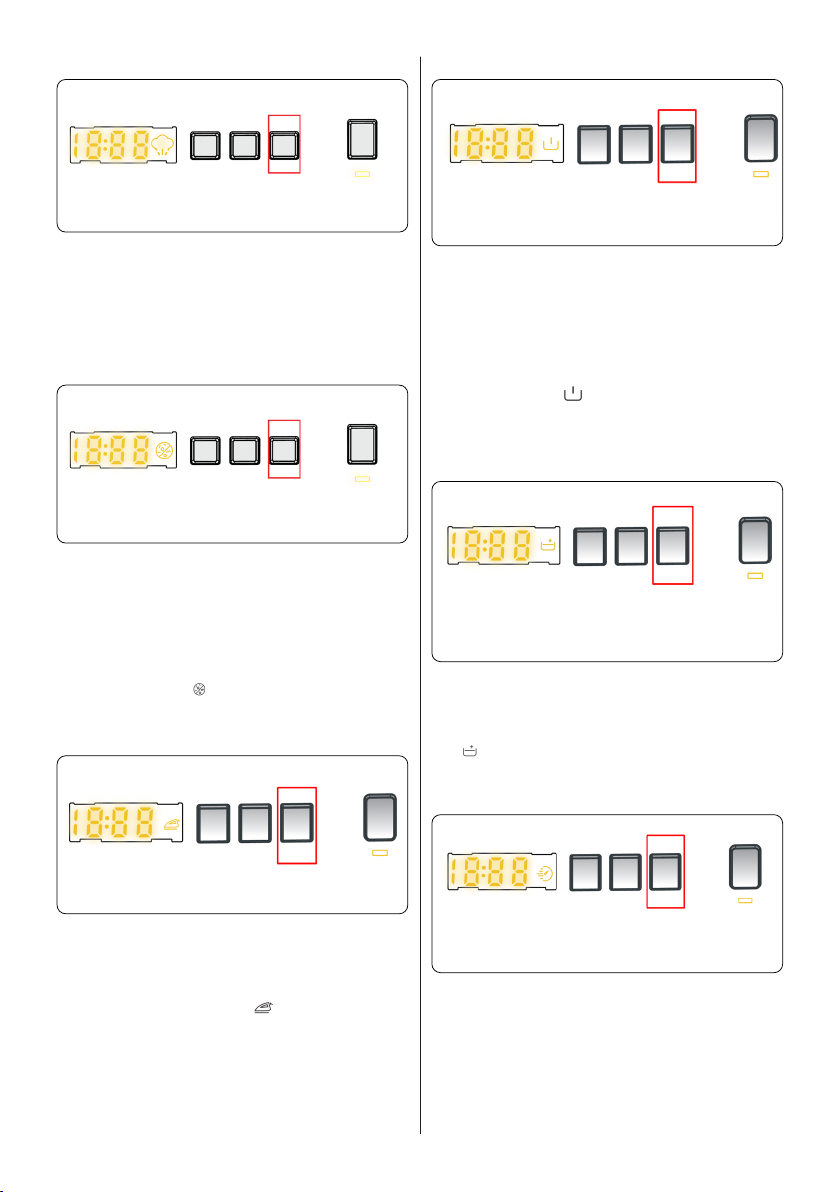

4. Steam Assist(*)
Auxiliary function button 3 Steam Assist
Owing to the steam system ironing has
become quick and as easy. The steam used
dream washing penetrates and loosens the
fibres, eliminates creases and leaves our
clothes soft and delicate.
5. Anti- Allergic(*)
Auxiliary function button 3 Anti- Allergic
You can add an additional rinse operation to
your laundry using this additional function.
Your machine will carry out all rinsing steps
with hot water. We recommend this setting
for laundry worn on delicate skin, baby
clothes and underwear.
To select this function, press the Antiallergic
button when the symbol is displayed.
6. Easy Ironing(*)
Auxiliary function button 3 Easy Ironing
Using this function will result in your laundry
being less wrinkled at the end of the
selected washing programme.
To select this function, press the Easy
ironing button when the symbol is
displayed.
7. Pre-Wash(*)
Auxiliary function button 3 Pre-Wash
This additional function allows you to give
heavily soiled laundry a pre-wash before
the main washing programme takes place.
When using this function, put detergent in
front washing compartment of the detergent
drawer.
To select this function, press the Pre-wash
button when the symbol is displayed.
8. Extra Rinse(*)
Auxiliary function button 3 Extra Rinse
You can add an additional rinse operation
to the end of the selected wash programme
using this additional function. To select this
function, press the Extra rinse button when
the symbol is displayed.
9. Rapid Wash(*)
Auxiliary function button 3 Rapid Wash
You can wash your laundry in a shorter
time, using less energy and water by
selecting this additional function.
We recommend that you only use this
option if you are washing less than half
the maximum dry load for the selected
programme.
