CORE ENERGY FITNESS Hammer Head User manual

CoreenergyFitness.Com
Hammer Head Anchor Gym
Owner’s Manual

Table of ConTenTs
Hammer Head anCHor Gym....................................................................................................................................... 2
Simple. Versatile. Effective. The Ultimate Anchoring System!....................................................................................... 2
The Hammer Head Anchor Gym’s Four Key Congurations ........................................................................................ 2
The Hammer Head Anchor Gym Difference..................................................................................................................... 4
Simplicity..................................................................................................................................................................................... 4
Installation .................................................................................................................................................................................. 4
Lifetime Guarantee................................................................................................................................................................... 5
Hammer Head Safety Hook................................................................................................................................................... 5
H2 speCifiCaTions ............................................................................................................................................................... 6
H2 (Single Unit) ........................................................................................................................................................................ 6
imporTanT safeTy insTruCTions.......................................................................................................................... 7
insTallaTion............................................................................................................................................................................ 8
Tools ............................................................................................................................................................................................ 8
Installation – Wood Studs ...................................................................................................................................................... 9
Installation – Concrete or Block Walls................................................................................................................................ 9
Hammer Head Anchor Gym CORE – Mounting Conguration ................................................................................. 10
Installing Your System............................................................................................................................................................. 11
Hammer Head Anchor Gym PLUS – Mounting Conguration ................................................................................... 14
Hammer Head Anchor Gym PRO – Mounting Conguration..................................................................................... 15
anCHorinG & THreadinG............................................................................................................................................ 16
Threading – Bands.................................................................................................................................................................. 16
Threading – Straps ................................................................................................................................................................. 16
Stretch Strap as a Pulley........................................................................................................................................................ 17
Basic Loop................................................................................................................................................................................ 17
Wrapping ................................................................................................................................................................................. 17
Bow String Conguration..................................................................................................................................................... 18
Sample Threading & Anchoring Techniques....................................................................................................................... 19
CusTomer serviCe ............................................................................................................................................................ 20
WarranTies ............................................................................................................................................................................ 20
GuaranTee............................................................................................................................................................................... 20
1

Hammer Head anCHor Gym
Simple. Versatile. Effective.
The Ultimate Anchoring System!
The Hammer Head Anchor Gym is a modular
functional training station designed to anchor
resistance bands, large loop bands, suspension (body weight) straps, stretch straps
and more. It’s easy to use, delivers hundreds of exercises, takes up zero oor space
and is very affordable.
Made of all steel components, the Hammer Head Anchor Gym is a space-saving powerhouse capable of
supporting up to 300 pounds of resistance.
And, there are no moving parts. That means there is nothing to break or adjust. The Hammer Head
Anchor Gym is rock solid!
The Hammer Head Anchor Gym’s Four Key Congurations
2 3
PLUS Conguration: The PLUS Conguration adds
a fourth H2 unit mounted at waist height. This is a great
angle for exercises using stability balls or large loop bands.
2
CORE Conguration: Our most popular
conguration comes with three H2 Units mounted
at ankle height, chest height and at seven feet.
The CORE Conguration delivers six key anchoring
angles for hundreds of exercise options.
1
3
PRO Conguration: Designed for professional studios,
the PRO Conguration is the pinnacle of Anchor Gym
training. With twelve hooking angles spread over six H2
units, the PRO delivers maximum anchoring options and
threading capabilities. It makes a great personal training
station or the ultimate home gym.
4
H2 Conguration: A single H2 unit mounted with the
top hook at seven feet makes a great exercise station.
Using resistance bands, suspension straps, large loop bands
and stretch straps; a single H2 unit delivers numerous
exercise options and makes a great home gym.
4
2
31
available in four Key ConfiGuraTions
Large Loop BandsStretch StrapsResistance BandsSuspension Straps

Lifetime Guarantee
Each Hammer Head Anchor Gym
comes with a Lifetime Guarantee.
See Guarantee on Page 20.
Hammer Head Safety Hook
The Hammer Head Anchor Gym features the
Hammer Head Safety Hook. With its T-bar tip and
curved shape, the hook allows for bands and straps
to be pulled from every angle without the possibility
of disengaging. Users can exercise with condence
that their bands and straps are securely anchored.
The open-faced design of the Hammer Head Safety
Hook is designed for fast, easy and smooth transitions.
4 5
no oTHer pieCe of fiTness equipmenT
offers THe versaTiliTy of THe Hammer Head anCHor Gym
The Hammer Head Anchor Gym Difference
• Anchors all types of resistance bands, suspension straps, large loop bands and stretch straps.
• Provides the platform for four major training protocols:
Resistance Band Training
Suspension Strap Training
Large Loop Band Training
Dynamic Stretching
• Delivers hundreds of exercise options
• Easy-to-use
• Fast and easy transitions
• Wall-mounted space saving design. Takes up zero oor space.
• Heavy-duty construction; no moving parts.
4
3
2
1
Simplicity
The Hammer Head Anchor Gym is an amazingly
simple product made possible by the unique
design of its Hammer Head Safety Hook.
Installation
The Hammer Head Anchor Gym is mounted to
load bearing wall-studs using lag screws (supplied);
or is mounted to concrete or block walls using
anchor sleeve bolts (supplied).

H2 speCifiCaTions
All congurations of the Hammer Head Anchor Gym consist of
the H2 anchoring platform.The H2 is the product of extensive
testing for strength, ease-of-use and safety.The result is an
amazing exercise tool that delivers unmatched versatility
and strength.
H2 (Single Unit)
• The H2 is 11.5-inches tall and 2.5-inches wide.
• Each H2 weighs two pounds.
• The Hammer Head Safety Hooks
extend 3-inches from the wall.
• Each H2 is rated to 300 pounds of resistance.
• Each H2 is mounted to load-bearing wood studs using three
5/16 x 21/2hex lag screws (supplied); and to concrete or block
walls using three 5/16 x 21/2hex sleeve anchors (supplied).
6 7
imporTanT safeTy insTruCTions
WARNING: The Hammer Head Anchor Gym was designed for use with rubber or latex resistance
bands; and straps made from cotton, nylon or polypropylene. Do not fasten resistance bands or
straps to the Hammer Head Safety Hooks with metal clip hooks or other hooks made of hard
materials. This has the potential to damage the coating on the hooks and cause premature wear.
• Read all instructions before using your Hammer Head Anchor Gym.
• Consult your doctor before embarking on a tness program.
• Do not allow children or persons unfamiliar with tness equipment or exercise in general
near the equipment. Do not leave children unsupervised around the equipment.
• Use the equipment only for its intended purpose as described in this manual.
Failure to do so has the potential to void the Lifetime Guarantee.
• Always inspect the equipment for damage before each use. Do not use the equipment
if it is damaged. If damaged, contact Core Energy Fitness.
The design, testing and labeling of the Hammer Head Anchor Gym were based on standards provided
by: ASTM F 1749-09 Standard Specication for Fitness Equipment and Fitness Safety Signage and
Labels; F2276-09 Standard Specication for Fitness Equipment; and F2571-09 StandardTest Methods
for Evaluating Design and Performance Characteristics of Fitness Equipment.
Height: 11.5-inches
Width: 2.5-inches
Extends: 3-inches
Rated to:
300 lbs. of
Resistance
Weight: 2 lbs.

insTallaTion
The Hammer Head Anchor Gym is very easy to install. First, nd a location that provides plenty of room
to exercise and wall studs that are load-bearing (i.e., they support the structure of your home or building).
You can also mount your Hammer Head Anchor Gym to concrete or block walls (see Page 9).
You will need a few tools and about 30-minutes for the installation.
Tools
To install your Hammer Head Anchor Gym you will need the tools listed in the above photo. They include:
Level
Stud Finder (Magnet or Electronic)
Drill
3/16 -inch Drill Bit
Pencil
Lag Screws or Anchor Sleeve Bolts (Supplied) –Three per H2 unit
Socket Wrench with
1/2-inch (13 mm) Socket and 5-inch Extender
8 9
Installation – Wood Studs
Each H2 unit is mounted to load-bearing wood studs using 21/2-inch
lag screws (supplied). Each component is mounted with three lag
screws accessed through mounting holes in the H2’s base plate.
The lag screws penetrate the wood studs two-inches.
With three lag screws the H2 is rock solid and will not disengage.
4
3
2
1
7
6
5
354
6
7
1Level
2Stud Finder
(Two options)
Magnet
Electronic
Drill Pencil
3/16 -inch
Drill Bit
Three 5/16 x 21/2-inch
Lag Screws and Washers
or Anchor Sleeve Bolts
(Supplied) per H2 unit
Socket Wrench
with 1/2-inch
(13 mm) Socket
and 5-inch Extender
Installation – Concrete or Block Walls
Installation into concrete and block walls requires the use of a
hammer drill. We recommend that you use a skilled professional
experienced with concrete or block structures to install your
Hammer Head Anchor Gym.
For concrete or block walls use 5/16 (diameter) x 21/2-inch (length)
sleeve anchors (supplied).
OR

10 11
InstallingYour System
To install your system, please follow these instructions.
Hammer Head Anchor Gym CORE – Mounting Conguration
Mount your Hammer Head Anchor Gym CORE Conguration with the H2 units mounted at seven feet,
chest height and ankle height.
Top H2 Unit:
Mount the top unit with
the top hook at seven feet.
This is the ideal height for the
Hammer Head Suspension
Strap and downward pulling
or pressing exercises.
1
Middle H2 Unit:
Mount the middle unit with
the top hook at chest height
(in line with your sternum).
2
Bottom H2 Unit:
Mount the bottom unit with the
bottom hook at ankle height
or about three to six-inches
from the oor.
3

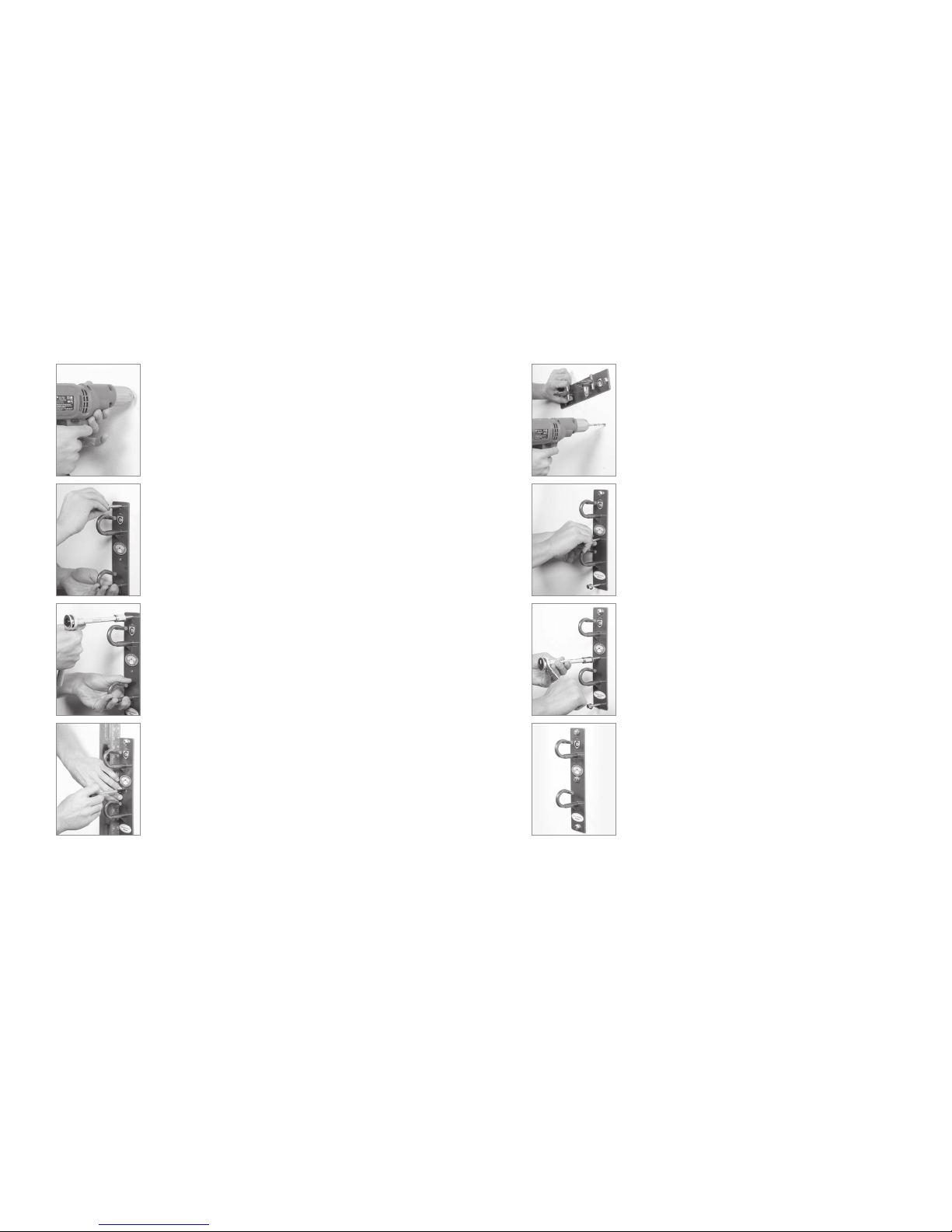

1. Studs. Locate a load-bearing wall stud using a stud nder.
Mark the centerline (middle) of the stud.
NOTE: In any wood frame structure, load-bearing wood studs are
always 16-inches apart. This is to accommodate the installation
of the drywall. A magnetic stud nder (the small stud nder in the
photo at left) use magnets to locate the nails used to install the
drywall. For this reason, they are very accurate. An electronic stud
nder use changes in capacitance to locate the stud.
2. Mark Hole. Hold the unit in the desired position against the wall
with the mounting hole directly on top of the centerline of the stud.
Mark the top mounting hole.
3. Drill Bit. Using a standard 3/16 -inch drill bit, measure the drill bit against
the length of the lag screw. The drill bit in the photo happens to be
the same length of the lag screw (about 21/2-inches).
Drill a hole equal to length of the lag screw. If the drill bit is longer
than the lag screw, place a piece of tape around the drill bit marking
21/2-inches of the bit.
4. Starter Hole. Drill a starter hole the entire length of the drill bit
(or to the tape marking 21/2-inches).

12 13
5. Drill Bit & Lag Screw. It is important to use a 3/16 -inch drill bit.
Since the lag screw’s diameter is 5/16 -inches, the threads of the lag
screw will rmly grip the wood stud.
6. Secure Lag Screw. After the hole has been drilled into the stud,
insert and tighten a lag screw until it is secure.
7. Socket Wrench. Tighten the lag screw with the socket wrench.
8. Level. Level the H2 unit and mark the middle and lower
mounting holes.
9. Drill Other Holes. Hold the H2 to the side and drill the other
two mounting holes.
10. Secure Lag Screws. Tighten the lag screws until they are secure.
11. Socket Wrench. Tighten both lag screws with the socket wrench.
12. Finish and Repeat. Repeat this process for each of the other
two H2 units.

14 15
Hammer Head Anchor Gym PLUS – Mounting Conguration
The PLUS Conguration adds a fourth H2 unit mounted at waist height.
Hammer Head Anchor Gym PRO – Mounting Conguration
The PRO Conguration delivers maximum anchoring options and threading capabilities with twelve
hooking angles spread over six H2 units.
Top H2 Unit:
Mount the top unit with
the top hook at seven feet.
This is the ideal height for the
Hammer Head Suspension Strap
and downward pulling or
pressing exercises.
1
Top Middle H2 Unit:
Mount the top middle unit with
the top hook at chest height
(in line with your sternum).
2
Bottom H2 Unit:
Mount the bottom unit with the
bottom hook at ankle height
or about three to six-inches
from the oor.
4
Lower Middle H2 Unit:
Mount the lower middle H2 unit
at waist height or one-inch below
the top middle unit.
3
Top H2 Unit:
Mount the top unit with
the top hook at seven feet.
This is the ideal height for the
Hammer Head Suspension Strap
and downward pulling or
pressing exercises.
1
Top Middle H2 Unit:
Mount the top middle unit with
the top hook at chest height
(in line with your sternum).
3
Lower Bottom H2 Unit:
Mount the lower bottom unit
with the bottom hook at ankle
height or about three to
six-inches from the oor.
6
Lower Middle H2 Unit:
Mount the lower middle H2 unit
at waist height or one-inch below
the top middle unit.
4
Lower Top H2 Unit:
Mount the second H2 one-inch
below the top H2 unit.
2
Top Bottom H2 Unit:
Mount top bottom H2 one-inch
above the lower bottom H2 unit.
5

16 17
Threading – Bands
To reduce the length or increase the tension of a resistance
band, simply anchor the band on one hook and thread it
through a second hook.
Threading – Straps
The same applies to suspension or stretch straps.
To reduce the length of a strap, simply anchor a strap
to one hook and thread it through a second hook.

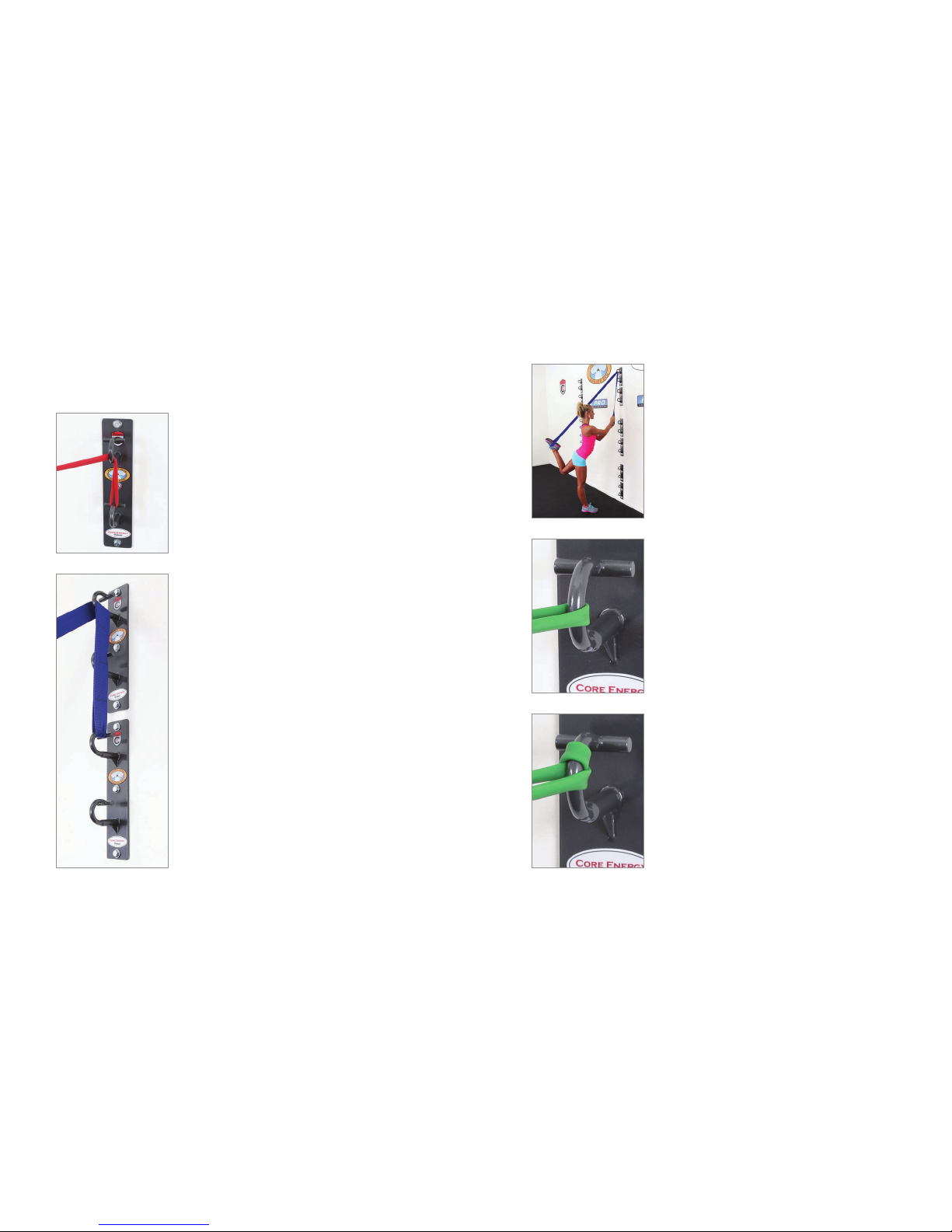

anCHorinG & THreadinG
The Hammer Head Anchor Gym provides numerous options for anchoring bands and straps.
Wrapping
To increase the safety of anchoring bands, the user
has the option of wrapping the band around the hook.
This will form a closed loop around the hook providing
an extra layer of safety.
This technique will also eliminate bands from slipping
while preforming exercises with alternating motions.
Basic Loop
For most exercises, especially those without vigorous
dynamic movements, it is sufcient to simply loop
the band over the hook.
Stretch Strap as a Pulley
The hooks can also be used to create a pulley using
a Hammer Head eight-foot stretch strap. In the photo,
Amanda has threaded the strap on an upper hook
and placed her foot in one of the strap’s loops.
To increase the tension of the stretch, Amanda simply
pulls on the strap to produce the desired stretch.
