Hammer Head Anchor Gym
Owner’s Manual – Plus & Pro
TABLE OF CONTENTS
HAMMER HEAD ANCHOR GYM .................................................................................................................. 2
The Ultimate Anchoring System!.......................................................................................................................................... 2
The Hammer Head Anchor Gym Difference..................................................................................................................... 3
Lifetime Guarantee................................................................................................................................................................... 5
Hammer Head Safety Hook................................................................................................................................................... 5
CONFIGURATIONS..................................................................................................................................................... 6
Hammer Head Anchor Gym PLUS Conguration............................................................................................................ 6
Hammer Head Anchor Gym PRO Conguration ............................................................................................................. 8
INDIVIDUAL COMPONENTS – SPECIFICATIONS................................................................ 10
H2 (Single Unit) ...................................................................................................................................................................... 10
Arc (Single Unit) ..................................................................................................................................................................... 10
IMPORTANT SAFETY INSTRUCTIONS............................................................................................. 11
TOOLS ...................................................................................................................................................................................... 12
Concrete or Block Walls ...................................................................................................................................................... 12
INSTALLATION .............................................................................................................................................................. 13
Hammer Head Anchor Gym – Mounting.......................................................................................................................... 13
Installing Your System............................................................................................................................................................. 14
Installing the Arc ..................................................................................................................................................................... 17
Hammer Head Anchor Gym PLUS – Mounting .............................................................................................................. 17
Hammer Head Anchor Gym PRO – Mounting................................................................................................................ 18
ANCHORING & THREADING........................................................................................................................ 19
Bow String Conguration..................................................................................................................................................... 21
Sample Anchoring & Threading Techniques....................................................................................................................... 22
CUSTOMER SERVICE .............................................................................................................................................. 23
GUARANTEE & WARRANTY ......................................................................................................................... 23
1
HAMMER HEAD ANCHOR GYM
The Hammer Head Anchor Gym Difference
Anchors all types of resistance bands, suspension straps, large loop bands and stretch straps. Platform for
four major training protocols:
• Resistance Band Training
• Suspension Strap Training
• Large Loop Band Training
• Dynamic Stretching
2 3
Simple Versatile Effective
The Ultimate Anchoring System!
The Hammer Head Anchor Gym is a wall-mounted exercise system
designed to anchor all types of resistance bands; all brands of suspension
straps; large loop bands; and stretch straps.
With six different anchoring points, from ankle height to above the head,
the Hammer Head Anchor Gym allows users to perform hundreds of
exercises in a single location.
Made of all steel components, the Anchor Gym is a space-saving
powerhouse capable of supporting up to 300 lbs. of resistance.
And, there are no moving parts.That means there is nothing to break
or adjust.The Hammer Head Anchor Gym is rock solid!
Simplicity
The Hammer Head Anchor Gym
is an amazingly simple product
made possible by the unique design
of its Hammer Head Safety Hook.
Lifetime Guarantee
Each Hammer Head Anchor Gym comes with a
Lifetime Guarantee. See Guarantee on Page 23.
Hammer Head Safety Hook
The Hammer Head Anchor Gym features the
Hammer Head Safety Hook.With its T-bar tip and
curved shape, the hook allows for bands and straps
to be pulled from every angle without the possibility
of disengaging. Users can exercise with condence
that their bands and straps are securely anchored.
The hooks rounded shape was designed for fast,
easy and smooth transitions.
4 5
• Delivers hundreds of exercise options
• Easy-to-use
• Fast and easy transitions
• Wall-mounted space saving design.
Takes up zero oor space.
• Heavy-duty construction; no moving parts.
No other piece of tness equipment offers
the versatility of the Hammer Head Anchor Gym
Installation
The Hammer Head Anchor Gym
is mounted to load bearing wall-studs
using lag screws (supplied); or is mounted
to concrete or block walls using anchor
sleeve bolts (supplied).
The Hammer Head Anchor Gym and stability
balls make a great combination. Here is Shawn
performing a single arm y while seated
on a stability ball.
CONFIGURATIONS
The Hammer Head Anchor Gym comes in three congurations:
Hammer Head Anchor Gym
PLUS Conguration
The Hammer Head Anchor Gym PLUS
conguration adds a fourth H2 unit
mounted at waist height. These are great
anchoring angles when performing exercises
using stability balls and large loop bands.
Rachel is performing a lateral slide step and touch
using a large loop band anchored to an H2 unit
mounted at waist height.
6 7
Hammer Head
Anchor Gym
1Hammer Head
Anchor Gym PLUS
2Hammer Head
Anchor Gym PRO
3
Hammer Head Anchor Gym
PRO Conguration
The Hammer Head Anchor Gym PRO
conguration consists of three H2 units
and one Arc; and delivers hundreds of
exercise options in a single location making
it the ideal system for personal training
and group exercise.
8 9
For those of you who enjoy suspension training and need wall clearance, the Arc delivers three hooks
mounted at seven feet and delivers 12.75-inches of wall clearance at the middle hook.
Shawn performing a pike using a Hammer Head
Suspension Strap anchored to a Hammer Head
Anchor Gym PRO Arc.
The Hammer Head Anchor Gym is the ideal platform for anchoring large loop bands. Shawn has anchored
three large loop bands horizontally across two PRO systems to create three exercise planes. This opens the
door to a wide range of training options that heretofore were not possible with large loop bands.
The Hammer Head Anchor Gym PRO
Delivers Unmatched Versatility
H2 (Single Unit)
• The H2 is 11.5-inches tall and 2.5-inches wide.
• Each H2 weighs two pounds.
• The Hammer Head Safety Hooks extend 3-inches
from the wall.
• The H2 is rated to 300 lbs. of resistance.
• Each H2 is mounted to load-bearing wood studs
using three 5/16 x 2-1/2 hex lag screws (supplied);
and to concrete or block walls using three
5/16 x 2-1/2 hex sleeve anchors (supplied).
Arc (Single Unit)
• The Arc is 17.25-inches wide with
a faceplate that measures 4-inches
in height and weighs seven pounds.
• At the center hook, the upper unit
extends 12.75-inches from the wall.
• The mounting plates are 1.5-inches wide
and 6.5-inches tall.
• The mounting holes are 16-inches apart
for mounting into wood studs.
• For added strength, the Hammer Head
Safety Hooks are welded to a gusset made
of one-inch steel tubing.
• The Arc is rated to 300 lbs. of resistance.
• The Arc is mounted to load-bearing wood
studs using four 5/16 x 2-1/2 hex lag screws
(supplied); and to concrete or block
walls using four 5/16 x 2-1/2 hex sleeve
anchors (supplied).
10 11
IMPORTANT SAFETY INSTRUCTIONS
WARNING: The Hammer Head Anchor Gym was designed for use with rubber or latex resistance
bands; and straps made from cotton, nylon or polypropylene. Do not fasten resistance bands or
straps to the Hammer Head Safety Hooks with metal clip hooks or other hooks made of hard
materials. This has the potential to damage the coating on the hooks and cause premature wear.
• Read all instructions before using your Hammer Head Anchor Gym.
• Consult your doctor before embarking on a tness program.
• Do not allow children or persons unfamiliar with tness equipment or exercise in general
near the equipment. Do not leave children unsupervised around the equipment.
• Use the equipment only for its intended purpose as described in this manual.
Failure to do so has the potential to void the Lifetime Guarantee.
• Always inspect the equipment for damage before each use. Do not use the equipment
if it is damaged. If damaged, contact Core Energy Fitness.
The design, testing and labeling of the Hammer Head Anchor Gym were based on standards
provided by: ASTM F 1749-09 Standard Specication for Fitness Equipment and Fitness
Safety Signage and Labels; F2276-09 Standard Specication for Fitness Equipment;
and F2571-09 Standard Test Methods for Evaluating Design and Performance
Characteristics of Fitness Equipment.
INDIVIDUAL COMPONENTS – SPECIFICATIONS
The Hammer Head Anchor Gym in all of its congurations consists of two components: H2 and Arc.
12 13
TOOLS
To install your Hammer Head Anchor Gym you will need the tools
listed in the above photo.
Each H2 unit is mounted to drywall and wood studs (2x4)
using three 2-1/2-inch lag screws.
The lag screws penetrate the wood studs two-inches.
With three lag screws the H2 is rock solid and will not disengage.
Concrete or Block Walls
Installation into concrete and block walls requires the use of a
hammer drill. We recommend that you use a skilled professional
experienced with concrete or block structures to install your
Hammer Head Anchor Gym.
For concrete or block
walls use 5/16 (diameter)
x 2-1/2-inch (length)
sleeve anchors (supplied).
INSTALLATION
Each H2 is mounted to load-bearing wood studs using 2-1/2 inch lag screws (supplied). Each component
is mounted with three lag screws accessed through mounting holes in the H2’s base plate.
Hammer Head Anchor Gym – Mounting
Install your Hammer Head Anchor Gym with the H2 units mounted at seven feet, chest height
and ankle height.
Bottom H2 Unit:
Mount the bottom unit with
the bottom hook at ankle height
or about six-inches from the oor.
Middle H2 Unit:
Mount the middle unit with
the top hook at chest height
(in line with your sternum).
Top H2 Unit:
Mount the top unit with the top hook
at seven feet. This is the ideal height for
the Hammer Head Suspension Strap
and top-down exercises.
1. Studs. Locate a load-bearing wall stud using a stud nder.
Mark the centerline (middle) of the studs.
NOTE: In any wood frame structure, load-bearing wood studs are
always 16-inches apart. This is to accommodate the installation
of the drywall. A magnetic stud nder (the small stud nder in the
photo at left) use magnets to locate the nails used to install the
drywall. For this reason, they are very accurate. An electronic stud
nder use changes in capacitance to locate the stud.
2. Mark Hole. Hold the unit in the desired position against the wall
with the mounting hole directly on top of the centerline of the stud.
Mark the top mounting hole.
3. Drill Bit. Using a standard 3/16-inch drill bit, measure the drill bit
against the length of the lag screw. The drill bit in the photo happens
to be the same length of the lag screw (about 2-1/2-inches).
Drill a hole equal to length of the lag screw. If the drill bit is longer
than the lag screw, place a piece of tape around the drill bit marking
2-1/2-inches of the bit.
4. Starter Hole. Drill a starter hole the entire length of the drill bit
(or to the tape marking 2-1/2-inches).
14 15

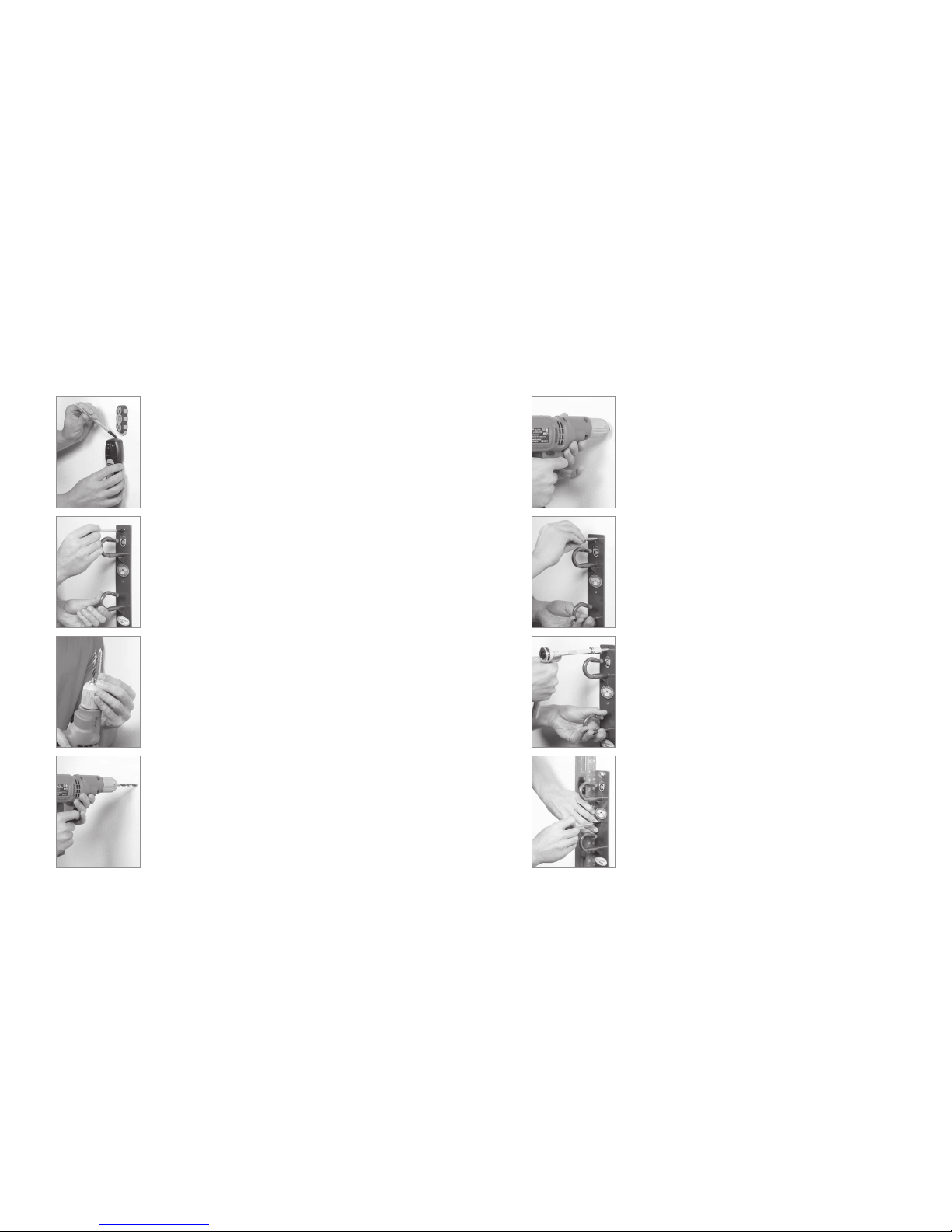

InstallingYour System
To install your system, please follow these instructions.
5. Drill Bit & Lag Screw. It is important to use a 3/16-inch drill bit.
Since the lag screw’s diameter is 5/16-inches, the threads of the lag
screw will rmly grip the wood stud.
6. Secure Lag Screw. After the hole has been drilled into the stud,
insert and tighten a lag screw until it is secure.
7. Socket Wrench. Tighten the lag screw with the socket wrench.
8. Level. Level the H2 unit and mark the middle and lower
mounting holes.
16 17
Installing the Arc
Install the Arc in exactly the same manner as the
H2. The mounting holes (on the Arc’s mounting
plates) are 16-inches apart to accommodate the
distance between wood studs.
The Arc is mounted with the hooks at seven-feet.
If you are very tall, it is perfectly acceptable to
mount the Arc at any height that allows you to
perform top-down exercises comfortably.
Hammer Head Anchor Gym PLUS – Mounting
9. Drill Other Holes. Hold the H2 to the side and drill the other
two mounting holes.
10. Secure Lag Screws. Tighten the lag screws until they are secure.
11. Socket Wrench. Tighten both lag screws with the socket wrench.
12. Finish and Repeat. Repeat this process for each of the other
two H2 units.
Top H2 Unit:
Mount the top unit with the top hook at seven
feet. This is the ideal height for the Hammer Head
Suspension Strap and top-down exercises.
Bottom H2 Unit:
Mount the bottom unit with the bottom hook
at ankle height or about six-inches from the oor.
Top Middle H2 Unit:
Mount the middle unit with the top hook at chest
height (in line with your sternum).
Lower Middle H2 Unit:
Mount the lower middle H2 unit at waist height.
Threading – Bands
To reduce the length or increase the tension of a resistance
band, simply anchor the band on one hook and thread it
through a second hook.
Threading – Straps
The same applies to suspension or stretch straps.
To reduce the length of a strap, simply anchor a strap
to one hook and thread it through a second hook.
18 19
Hammer Head Anchor Gym PRO – Mounting ANCHORING AND THREADING
With a total of six Hammer Head Safety Hooks spread over three components (eight for a PLUS;
and nine for a PRO), the Hammer Head Anchor Gym provides numerous options for anchoring
bands and straps.
Arc:
Mount the Arc with the hooks at seven-feet.
This is the ideal height for the Hammer Head
Suspension Strap and top-down exercises.
Bottom H2 Unit:
Mount the bottom unit with the bottom hook
at ankle height or about six-inches from the oor.
Top Middle H2 Unit:
Mount the middle unit with the top hook at chest
height (in line with your sternum).
Lower Middle H2 Unit:
Mount the lower middle H2 unit at waist height.
Bow String Conguration
The Bow String threading technique is used for abduction
and adduction exercises. Anchor each of the band’s handles
on the H2 mounted at chest height. Thread the band through
a lower hook to create a large loop.
20 21
Basic Loop
For most exercises, especially those without vigorous
dynamic movements, it is sufcient to simply loop
the band over the hook.
Wrapping
To increase the safety of anchoring bands, the user
has the option of wrapping the band around the hook.
This will form a closed loop around the hook providing
an extra layer of safety.
This technique will also eliminate bands from slipping
while preforming exercises with alternating motions.
Stretch Strap as a Pulley
The hooks can also be used to create a pulley using
a Hammer Head eight-foot stretch strap. In the photo,
Rachel has threaded the strap on an upper hook
and placed her foot in one of the strap’s loops.
To increase the tension of the stretch, Rachel simply
pulls on the strap to produce the desired stretch.
Sample Threading and Anchoring Techniques CUSTOMER SERVICE
If you have any questions regarding use of the equipment, installation or other products, please e-mail us
GUARANTEE & WARRANTY
Hammer Head Anchor Gym – Limited Lifetime Guarantee
Free from Defects. Core Energy Fitness Systems, LLC (hereinafter Core Energy Fitness), guarantees
the Hammer Head Anchor Gym (i.e., H2 and Arc) to be free from defects in workmanship and material
under normal use and service conditions for as long as you own the equipment. The guarantee
commences on the receipt or invoice date of the original purchase.
GUARANTEE CLAIMS. All claims require the original receipt or registration of your guarantee;
and any information supporting the existence of the alleged defect.
Original Purchaser. This guarantee extends only to the original purchaser of the product and will be
terminated if you sell or transfer your Hammer Head Anchor Gym to any other person.
Limitations. Core Energy’s obligation under this guarantee is limited to replacing or repairing at Core
Energy Fitness’ option the product through one of its authorized service centers or representatives. All
repairs or replacement components for which guarantee claims are made must be pre-authorized by
Core Energy Fitness. To make a claim under this guarantee, the buyer must notify Core Energy Fitness
within 30-days after the date of discovery of any defect and make the affected product available for
inspection by a Core Energy Fitness service representative. If the product is shipped to Core Energy
Fitness or one of its authorized service centers or representatives, freight charges to and from the
service center will be the customer’s responsibility.
Damage Not Covered. This guarantee does not extend to any damage to a product caused by or
attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by
Core Energy Fitness or an authorized service center.
Limited Liability. Core Energy Fitness is not responsible or liable for indirect, special or consequential
damages arising out of or in connection with the use or performance of the product; damages with
respect to any economic loss, loss of property, loss of revenues or prots, loss of enjoyment or use, or
costs of removal or installation; or other consequential damages of whatsoever nature. Some states
do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above
limitation may not apply to you.
The guarantee extended hereunder is in lieu of any and all other guarantees.
Exclusive Remedies
For any product described above that fails to conform to its guarantee, Core Energy Fitness Systems,
LLC will provide, at its option, one of the following: (1) repair; or (2) replacement. THESE SHALL BE
THE SOLE AND EXCLUSIVE REMEDIES OF THE BUYER FOR ANY BREACH OF GUARANTEE.
22 23
Limited Warranty – Hammer Head Resistance Bands, Hammer
Head L-Bands (Large Loop Bands), Hammer Head Suspension Strap,
Hammer Head Stretch Straps and Hammer Head D-ring
Core Energy Fitness warrants its Hammer Head Resistance Bands, Hammer Head L-Bands (Large Loop
Bands), Hammer Head Suspension Strap, Hammer Head Stretch Straps and Hammer Head D-ring to be
free from defects in workmanship and material under normal use and service conditions for a period
of one year from the date of purchase. The warranty commences on the receipt or invoice date of
the original purchase.
WARRANTY CLAIMS. All claims require the original receipt and any information supporting
existence of the alleged defect.
This warranty applies only against defects discovered within the warranty period and extends only
to the original purchaser of the product. Core Energy’s obligation under this warranty is limited to
replacing or repairing at Core Energy Fitness’ option the product through one of its authorized service
centers or representatives. All repairs or replacement components for which warranty claims are made
must be pre-authorized by Core Energy Fitness. To make a claim under this warranty, the buyer must
notify Core Energy Fitness within 30-days after the date of discovery of any defect and make the affected
product available for inspection by a Core Energy Fitness service representative. If the product is shipped
to Core Energy Fitness or one of its authorized service centers or representatives, freight charges
to and from the service center will be the customer’s responsibility.
This warranty does not extend to any damage to a product caused by or attributable to freight damage,
abuse, misuse, improper or abnormal usage or repairs not provided by Core Energy Fitness or an
authorized service center. Parts repaired or replaced under terms of this warranty will be warranted
for the remainder of the original warranty period only.
Core Energy Fitness is not responsible or liable for indirect, special or consequential damages arising
out of or in connection with the use or performance of the product; damages with respect to any
economic loss, loss of property, loss of revenues or prots, loss of enjoyment or use, or costs of removal
or installation; or other consequential damages of whatsoever nature. Some states do not allow the
exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not
apply to you. The warranty extended hereunder is in lieu of any and all other warranties, and any implied
warranties of merchantability or tness for a particular purpose are limited in their scope and duration
to the terms set forth herein. Some states do not allow limitations on how long an implied warranty
lasts. Accordingly, the above limitation may not apply to you.
Exclusive Remedies
For any product described above that fails to conform to its warranty, Core Energy Fitness Systems, LLC
will provide, at its option, one of the following: (1) repair; or (2) replacement. THESE SHALL BE THE
SOLE AND EXCLUSIVE REMEDIES OF THE BUYER FOR ANY BREACH OF WARRANTY.
24
Product Line:
Hammer Head Anchor Gym
Hammer Head Anchor Gym PLUS
Hammer Head Anchor Gym PRO
Hammer Head Resistance Bands
Hammer Head L-Bands (Large Loop Bands)
Hammer Head Suspension Strap
Hammer Head Stretch Straps
Hammer Head D-ring
CORE ENERGY FITNESS SYSTEMS, LLC
18720 OXNARD STREET, UNIT 113
TARZANA, CA 91356
818-514-6789 COREENERGYFITNESS.COM
© 2013 CORE ENERGY FITNESS SYSTEMS, LLC. ALL RIGHTS RESERVED. CORE ENERGY FITNESS AND HAMMER HEAD ARE REGISTERED TRADEMARKS OF CORE ENERGY FITNESS SYSTEMS, LLC.
THE HAMMER HEAD ANCHOR GYM IS PATENT PENDING. NO PART OF THIS POSTER MAY BE REPRODUCED OR UTILIZED IN ANY FORM OR BY ANY MEANS WITHOUT THE EXPRESS WRITTEN
CONSENT OF CORE ENERGY FITNESS SYSTEMS, LLC. MANUAL.08.2013.V1
CoreenergyFitness.Com
This manual suits for next models
4
Table of contents
Other CORE ENERGY FITNESS Home Gym manuals
