CorroVenta H4 ES User manual

H4 ES
HEAT TREATMENT
SYSTEM
USER MANUAL

© Corroventa Ltd.
2017.10
1 (22)
Table of Contents
Intended use........................................................................................................................................ 2
Manufacturing Directive ..................................................................................................................... 3
Delivery inspection.............................................................................................................................. 5
Product Overview................................................................................................................................ 5
Bedbug Decontamination – Standard Operating Procedure .............................................................. 6
Installation........................................................................................................................................... 7
To Use H4 ES, menus and operation ................................................................................................... 8
Alarms................................................................................................................................................ 15
Service Reminder............................................................................................................................... 16
Maintenance and service .................................................................................................................. 16
Filter inspection and cleaning........................................................................................................ 16
Accessories and consumables ....................................................................................................... 16
Fault finding........................................................................................................................................... 17
Technical data ....................................................................................................................................... 18
Illustrated installation description .................................................................................................... 19

© Corroventa Ltd.
2017.10
2 (22)
User Manual Heat Treatment System H4ES
Intended use
The Heat Treatment System H4ES, containing an insulated tent with floor insulation and collapsible
frame and the intelligent H4 ES heater is developed and intended for indoor heat treatment of insect
infested material such as beds, sofas and clothing.
The H4 ES machine has a graphical display that presents the user with all required information
including the temperatures measured inside the tent. It offers both a manual mode and an automatic
mode of operation where it switches off as soon as the process is finished. This, in combination with
the remote monitoring and control features of the SuperVision®, provides all the means necessary to
ensure quality with a documented process and also to maintain a very high throughput.
•
High capacity
•
Energy efficient
•Low noise •Digital interface with remote control capabilities

© Corroventa Ltd.
2017.10
3 (22)
Manufacturing Directive
The H4ES system is CE approved.
Waiver of Liability
•Faulty, incorrect installations and/or incorrect use can cause damage to property and human
injury.
•The manufacturer assumes no responsibility or liability for damages or injuries caused by
non-compliance with the instructions herein, use for other purposes than the intended, or
failure to observe its warnings. Such damage, injuries or liabilities are not covered by the
product warranty.
•The product warranty does not cover consumables or normal wear and tear.
•It is the responsibility of the buyer to inspect the product at time of delivery and before use
to ensure its good function. The product warranty does not cover damage resulting from use
of faulty products.
•Changes or modifications to the equipment must not be made without written consent by
Corroventa Avfuktning AB.
•The product, technical data and/or installation and operation instructions can be changed
without prior notice.
•This manual contains information that is protected by the Intellectual Property laws. No part
of this manual may be copied, stored in an information system or transferred in any form or
in any way without the written consent of Corroventa Avfuktning AB.
Any comments on the contents of this document shall be sent or addressed to:
Corroventa Avfuktning AB Tel +46 (0) 36-37 12 00
Mekanikervägen 3 Fax +46 (0) 36-37 18 30

© Corroventa Ltd.
2017.10
4 (22)
Safety information
This equipment can be used by children aged eight (8) years or above and people with reduced
physical, sensory or mental capabilities or with lack of experience and knowledge provided they have
been given instructions and information on how it is safely used and that they understand the
hazards involved.
Children must not be allowed to play with the equipment. Cleaning and maintenance must not be
performed by children without supervision.
Electrical installations made in connection with the installation of the H4 ES shall be made by
authorized personnel in accordance with local and national regulations.
Furthermore, the following warnings and instructions shall be read and observed:
1. The machine is intended for indoor use only.
2. The machine must not be powered until the installation is finished in accordance with this
manual.
3. The powered machine must not be covered as this can lead to overheating and fire hazard.
4. The machine must not be used to step or stand on or used as table, trestle pallet or stool.
5. Never use the machine without the filter installed as this can cause damage to it. Ensure that
the filter is clean. A cluttered filter can cause the machine to overheat.
6. The machine must not be used in spaces where explosive gases can be present.
7. Do not stick objects into the air outlets or intakes as this can cause damage to the machinery
as well as human injury.
8. Install the machine steadily and leveled so that it cannot fall over.
9. If the machine is broken, if the power connector or the cable is damaged, contact the
retailer. Do not repair the equipment if you have not received specific training by the
manufacturer.
10. Be careful not to damage the power cable. The cable must not go through water or pass
sharp edges.
11. Never carry or tow the machine by its cable.
12. To use electrical equipment in humid or wet environment can be dangerous. Never power
the machine if it is standing in water.
13. The machine must only be connected to grounded power outlet with voltage and frequency
in accordance with machine nameplate.
14. A residual-current device / ground fault circuit interrupter should be used to minimize the
risk of electric shocks.
15. Water must not come in contact with the electrical components of the equipment. If this has
happened, ensure that the equipment is dry before it is used again.
16. The power must always be disconnected before the machine is opened.
17. Repairs and maintenance of the electronics and the electrical system of the machine must
only be made by qualified electrician.
18. Air hose/pipe that is used and connected to the dehumidifier must be able to withstand 80°C
heat.
19. The machine must never be used with any other accessories than those listed in this manual
or those specifically approved by Corroventa Avfuktning AB.
For further advice on product safety and use, please contact the supplier.

© Corroventa Ltd.
2017.10
5 (22)
Delivery inspection
Heat Treatment System H4 ES is delivered with the following items included:
H4 ES
1 pc
Tent temperature sensor assembly
1 pc
Tent
1 pcs
Collapsible tent frame
1 pc
Floor insulation mats
2 pcs
Product Overview
Below pictures present H4ES ES with all its external features and controls.
SuperVision® connector
Foldable carrying
handle with integrated
cable parking
Power switch, on/off
Control panel
Air inlet with
process air filter
Air outlet
Durable poly-urethane
feet
Temperature sensor
connector (marked blue)

© Corroventa Ltd.
2017.10
6 (22)
Bedbug Decontamination – Standard Operating Procedure
The use of the H4ES system is one important step in decontamination process that, in its entirety,
can be summarized as depicted below.
Inspection
Inspection is carried out according to best
practice and conducted by:
•Certified Pest Control Technician and/or
•Certified Bedbug Detection Dog Team
Bedbugs
found
No evidence
of bedbugs
Monitoring system
put in place
No further
action
Treatment
Treatment option/s is decided and agreed* upon
with customer depending on extent of
infestation.
Small infestation:
Vacuuming
Application of steam
Mattress cover (optional)
Climb Up traps (optional)
Application of pesticide (optional)
Heavy infestation:
Vacuuming
Application of heat using H4ES
Mattress covers (recommended)
Climb Up Traps (recommended)
Application of pesticide (recommended)
*Terms and conditions according to specified
service should be granted.
Follow up
Inspection and/or contact with
customer by other media

© Corroventa Ltd.
2017.10
7 (22)
Installation
The Heat Treatment system is installed as follows (for a more thorough description please refer to
section “Illustrated installation description” in the end of the manual):
•Erect the tent:
1. Ensure an area of at least 2.5 m by 2.5 m is available for the tent. Use the insulated
floor mats as a template if necessary
2. Extend the tent frame fully, so that it forms a 2.5m by 2.5 meter square. Leave the
telescopic legs in their lowest position.
3. Unfold the tent and place it on the insulated floor mats. Take care to place the door
in the intended direction.
4. Use the straps at the respective top corners of the tent to secure them to the tops of
the telescopic frame legs.
5. One by one, extend the legs of the frame to bring the tent to its full height.
6. Use the straps at the lower corners of the tent to the fix the corners to the frame.
•Open the tent up and bring in all of the material to be treated, noting/observing that:
7. No material is placed beyond the red indicators on the floor, leaving 20 cm free so
that the air can circulate. Leave space also by the ceiling.
8. Ensure that air can move freely also over the floor, preferably 100 mm of free space
beneath all material and pieces of furniture etc.
9. To the extent possible, separate all the items from each other. Put clothes on
hangers. Do not leave bags and suitcases packed and closed.
10. For heat sensitive material and to avoid discoloring etc, put very heat sensitive
material at a distance from the machine. The outlet from the machine is the hottest
spot in the tent. If in doubt regarding heat resistance of an object, select an
alternative treatment method.
•Install the machine as follows:
11. Check the filter and clean it if necessary.
12. With the tent still open, place the machine by the tent inlets. Push the tent over the
inlet and the outlet stub of the machine and secure it with the straps so that it does
not come off.
13. Place the four sensors in positions where the temperature will rise slowly so that
they will serve as indicators of when all the material in the tent has the correct
temperature.
14. Open the sensor cable gland in the tent, insert the blue marked sensor cable and
connect it to the blue marked connector on the machine. Close the gland.
15. If remote control is to be used, connect the SuperVision® Gateway to the machine
with the system cable.
16. Connect both power cables to the machine to two separately fused power outlets of
230 VAC 50Hz, max 16A.
17. Flip the power switch to the left of the control panel to start the machine.

© Corroventa Ltd.
2017.10
8 (22)
18. When the machine has powered up, push Start button to start the machine with
factory default settings or push Resume to start with previous settings. Verify the
target temperature setting and, for Auto mode, the process time setting.
19. Verify that the SuperVision symbol is visible at the top of the screen and that the
Gateway has reception.
To Use H4 ES, menus and operation
The H4 ES has an easily understood user interface with a display and five push buttons. The two
larger buttons on the respective sides of the display are used to select between the different menus
– no changes to the setup can ever be made with these buttons as they are for navigation only.
The three smaller buttons below the display are used for selection and editing and their respective
functions are always presented in text and the bottom of the screen. At the top level menus, the left
of these buttons is named Home and a push on this button will immediately lead back to the default
view. In many of the views there is an Info button which presents information that may be of use to
the inexperienced user.
If the backlight of the display has timed out, the first button push serves only to light up the display.
After 10 minutes, if no button is pushed, a key pad lock is activated. The machine is then unlocked by
simultaneous push of the two upper buttons, something that is presented in text as well as picture
on the display. The keypad lock function is selectable on and off under Setup and Maintenance.
Top left and right buttons – Menu navigation only. Never changes any settings.
Home button Return to the default view
Info button Presents information. On-board manual

© Corroventa Ltd.
2017.10
9 (22)
Operation mode
MAN – Manual means that
the machine will operate until
manually switched off.
Auto – In auto mode, the
machine maintains target
temperature for a selected
duration, process time,
whereafter it automatically
switches off the heaters.
SuperVision
Visible when the machine is connected to
SuperVision for remote monitoring and control.
The machine needs to be set to Master, have a
network created, in order to communicate with
the Gateway.
Timer
Visible when
machine is set to
operate on Timer.
Slaved – indicates
that the machine
is controlled by
other machine.
Alarm
Machine has
detected an error.
Heater indicator
Animated, moving,
when both heaters
are active. First
level heater is
always active.
Stop
Center button in the default
view, stops the process. If After
cooling is selected, the fan will
continue operating in which
case a second push of the same
button will stop that too.
A.C – Aftercooling
Indicates that After
cooling function is
active. The fan will
continue to run for a
while after the
heaters are switched
off.
Fan indicator
Moving when fan
is running.

© Corroventa Ltd.
2017.10
10 (22)
The H4 ES will, when started, go into Heat Up and remain there until target temperature is reached
with all four temperature sensors inside the tent. When target temperature is reached, the machine
enters the Processsing phase where it will strive to maintain target temperature. If set to Manual
mode, the machine will continue this operation until manually switched off. If the machine is set to
Auto mode, the machine will maintain target temperature for the duration of the selected processing
time and thereafter it will switch off the heaters and, if After cooling is selected, continue to run the
fan for another 60 minutes before switching off completely.
When the machine in Auto mode enters the Processing phase, in the default view, it will present how
many minutes remain until the processing is finished.
Regardless of selected mode, Man or Auto, in the tent temperature sensor screen the machine, in
addition to the current temperatures, the machine also presents the status of each temperature
sensor, LOW or OK, and if OK, also for how many minutes the temperature have been at or above the
target temperature.
Start up view
When the H4ES ES starts up, the display presents the
user with two options:
Start: Starts the machine with default settings,
continuous operation with maximum capacity. Previous
settings made such as the use of sensor control, Timer
etc..
Resume: The machine resumes operation with the
settings it had last time it was used.
If, last time it was used, the user never pushed stop
before the power was cut, the machine will
automatically resume operation when the countdown
has reached zero.
A push of Pause button will stop the countdown and
the machine will remain in standby until manually
started.
Normal start
Start after power out –
automatic resume of operation
Control Mode
The Control Mode determines how the machine
operates.
In Manual mode, the machine will maintain target
temperature until manually switched off by the user.
In Auto mode, the machine will maintain target

© Corroventa Ltd.
2017.10
11 (22)
temperature for selected duration, process time, and
thereafter it will automatically switch off the heaters.
After cooling
The After cooling function allows the fan to continue
operating for a while after the heaters have been
switched off. The air circulation makes the temperature
drop even
Tent temperature sensor screen
In this screen, all four temperatures measured inside
the tent are displayed along with their corresponding
status.
Each temperature is presented as “Low” until the
machine’s target temperature has been reached. When
this temperature is reached, the status switches to
“OK”. In the far right column, the machine presents
how many minutes have passed since the
corresponding sensor passed the target temperature
level.
Internal Relative Humidity and Temperature sensor
screen
This screen presents the values measured by the
internal RHT sensor placed in the machine’s inlet. The
temperature is a good indication of the air temperature
inside the tent.
SuperVision®
This menu is only presented when a SuperVision®
Gateway is connected to the machine.
When used with the H4ES, as external sensor nodes are
not used with the SuperVision, only the first row, the
signal quality, is of interest.

© Corroventa Ltd.
2017.10
12 (22)
Timer
If the start of the process needs to be delayed for some
reason, the best way to do that is to use the
SuperVision® Gateway and start the machine from
remote when appropriate.
The second option is to use the built-in timer function.
When setting the time for operation, be sure to set the
interval so that the process will have time to finish
before the Timer switches it off. Remember also that
unless manually switched off or disconnected, the
machine will start the following day as well.
Remember that the machine must be started before
leaving the site in order for the Timer to take effect, the
screen showing the text TIMER STANDBY.

© Corroventa Ltd.
2017.10
13 (22)
Network
Note: Connect the SuperVision® Gateway to the
machine before powering up.
To use the SuperVision® Gateway with the H4ES, enter
the Network menu and select to created network by
pushing the lower center button. When creation is
finished, with some delay, at the bottom of the screen
the text “SuperVision connected“ will appear.
At the top of the default view, there will also be the
word Master presented.
Setup and Maintenance Menus
Under Setup and Maintenance, functions that are not
required for normal operation are found.
Date and Time: Setting of system date and time.
Language: Selection of language for the interface.
Menu System: The menu system is by default set to
Advanced with all functions visible and accessible. If set
to Basic, the more advanced functions are removed
from the menu system.
Key Pad lock: Possibility to activate/deactivate the key
pad lock.
Run built-in test: A built-in self test that is available for
service technicians.
Reset Service Time: The machine is set to give a service
reminder once every 12 months. When service has
been performed, this service reminder can be reset
using this function.
View sensor data: Functionality intended for service
technicians.

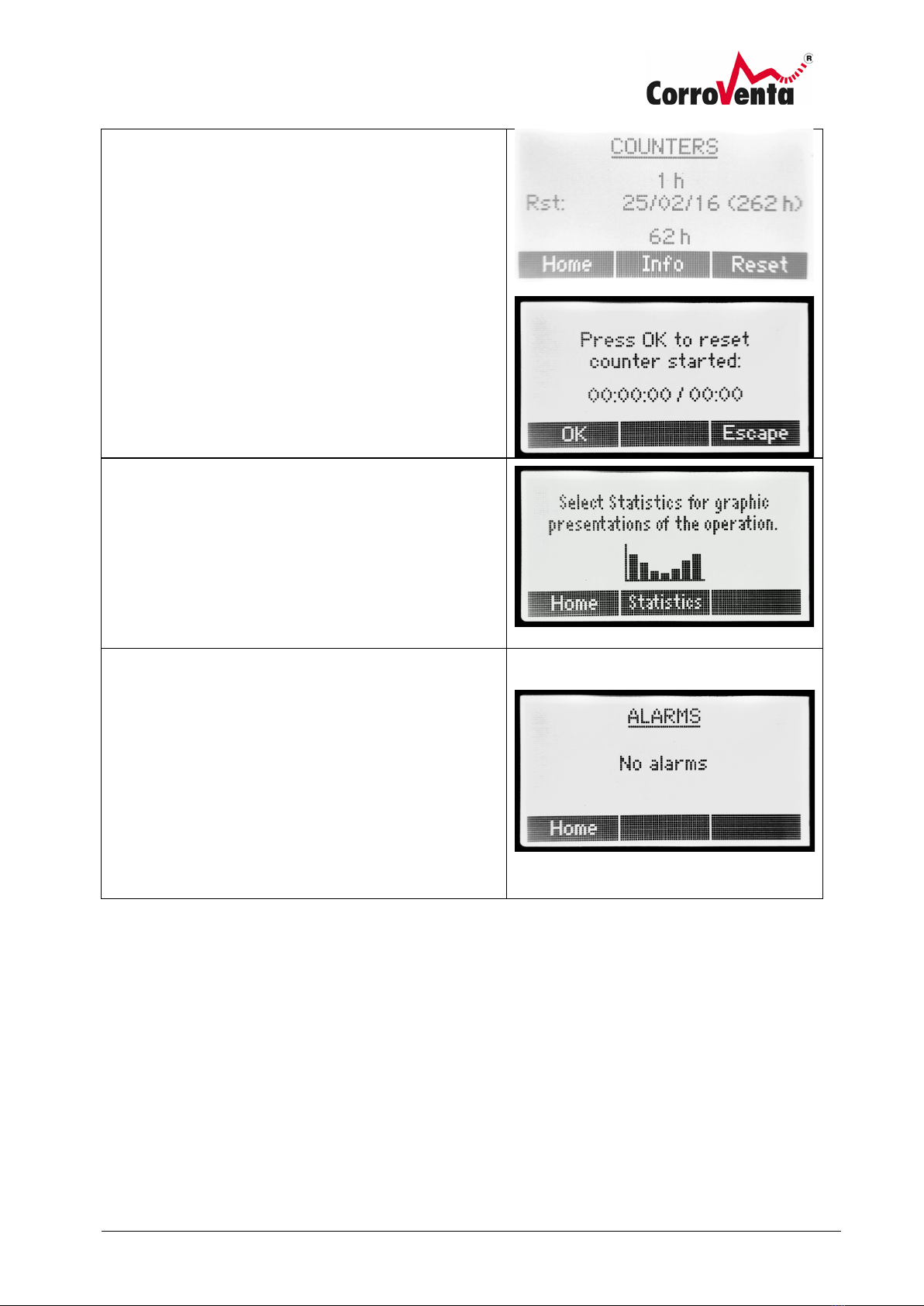

Counters
This screen presents the hour counters.
At the top, the resettable work counter is presented,
followed by the date at which the counter was reset.
After the date, the number of hours elapsed since this

© Corroventa Ltd.
2017.10
14 (22)
reset is presented so as to allow for a quick
comparison.
To reset the work counter, push Reset. Acknowledge
the intent to reset the counters by push of OK in the
following confirmation screen.
At the bottom, the machine life time counter is
presented. This counter is not resettable.
Statistics
Under statistics, the machine presents how many hours
per day it has been in use for the last 14 days. The value
to the far right is that of the current day.
Alarms
In this screen, the machine presents identified alarms.
As soon as an alarm is identified, this is also presented
as a pop-up screen. Furthermore, as long as the error
condition remains, in the top right corner of the default
view there is a warning symbol.
The alarms presented need not be erased by the user.
Instead, as soon as the machine detects that the
functionality is again in place, the alarm will disappear
automatically.

© Corroventa Ltd.
2017.10
15 (22)
Alarms
If the machine detects an error, this information is presented in a pop-up screen and for as long as
one or more problems exist, there is a warning symbol in the top right corner of the default view.
The alarms that can be displayed are the following, each presented with recommendation on what to
do.
Alarm
Action / Advice
Temperature sensor failure
Check the sensor assembly for damage.
For as long as this error remains, as the
temperature of the material is not known, the
machine will continue its operation until
manually switched off.
All temperature sensors have
failed.
Check if the temperature sensor assembly is
properly connected to the machine.
For as long as this error remains, as the
temperature of the material is not known, the
machine will continue its operation until
manually switched off.
Power Supply Failure
Check that power cable two is connected to the
outlet and, if necessary, check the fuse to see
that there is power available.
Loss of power to this second power cable means
that the heater capacity is reduced to approx.
50%.
Mainboard connection failure
Internal error. If it remains, please contact service
technician.
Internal RHT sensor failure
Internal error. If it appears after the machine has
been disassembled it might be so that the sensor
connector to the lid has not been correctly
mounted. If not and if it remains, please contact
service technician.
Failed to save the statistics
Internal error. If it remains, please contact service
technician.
Failed to save the event log
Internal error. If it remains, please contact service
technician.

© Corroventa Ltd.
2017.10
16 (22)
Service Reminder
The machine is set to provide a service reminder every twelve months. The reminder is presented as
an alarm but it does not affect the operation of the machine. The service reminder function is reset
under Setup and Maintenance.
Maintenance and service
Filter inspection and cleaning
The process air filter shall be inspected and, if necessary, cleaned before each new cycle.
Accessories and consumables
The following articles are available as accessories and consumables to the H4 ES machines:
Article number
Name
1003493
Process air filter
1003383
Heat treatment tent
1003489
Collapsible Tent frame
1003429
External temp. sensor assembly
6000631
Tent floor insulation
1003544
Gateway incl. system cable 0.5 m

© Corroventa Ltd.
2017.10
17 (22)
Fault finding
Symptom
Probable cause
Action
The machine is
showing “Power
Supply Failure” alarm.
There is no power in the
outlet used with power
cable no. 2.
Check that power cable no. 2 is connected.
Check the fuse to see that power is available
through the outlet.
The machine is
showing “All
temperature sensors
have failed” alarm.
The temperature sensor
assembly is not properly
connected.
The sensor assembly is
damaged.
Connect temperature sensor assembly to the
machine.
Replace or repair sensor assembly.
Note: If one or several of the temperature
sensors have failed, the machine will
continue to operate until manually switched
off, regardless of whether it is in Auto or
Man (Manual) mode.

© Corroventa Ltd.
2017.10
18 (22)
Technical data
H4 ES
Typ LAF 50 LAF 50E LAF 50E2 LAF 100 LAF 100E LAF 150 LAF 150E
Voltage
230 VAC / 50 Hz
Rated power (W)
Power cable 1: 2100W
Power cable 2: 2200W
Air volume m3/h
950
Height x width x length (mm)
533 x 320 x 497
Operating sound level (dBA)
< 70
Weight, kg
22 kg
Tent
Height x width x length (mm)
2100x2400x2400
Weight, kg
17 kg
Frame
Height x width x length (mm)
2100x2500x2500
Weight, kg
12 kg

© Corroventa Ltd.
2017.10
19 (22)
Illustrated installation description
1. Ensure an area of at least 2.5 m by 2.5 m is available for the tent. Use the insulated
floor mats as a template if necessary
2. Extend the tent frame fully, so that it forms a 2.5m by 2.5 meter square. Leave the
telescopic legs in their lowest position.
3. Unfold the tent and place it on the insulated floor mats. Take care to place the door
in the intended direction.
4. Use the straps at the respective top corners of the tent to secure them to the tops of
the telescopic frame legs.
Table of contents
Popular Lawn And Garden Equipment manuals by other brands

Double K Industries
Double K Industries 401 Power Clipper instruction manual

Gepaval
Gepaval GUARDIAN-2 Instructions on the maintenance

Forest
Forest SBP43M instructions

Power Craft
Power Craft 65650 instruction manual

PowerG
PowerG N0E-10ET-10.8 Translation of the original instructions

Cub Cadet
Cub Cadet ST428 brochure

Creekvine Designs
Creekvine Designs Treated Pine 4x8 Cedar Inline Pergola manual

Ariens
Ariens Lawn Edger manual

Green-Qube
Green-Qube GQ1224 instruction manual

Mercia Garden Products
Mercia Garden Products 01GRODB0808-V1 Assembly instructions

Watex
Watex 6738 Operation manuals

Jenlis
Jenlis Weed Raker 580111 product manual
