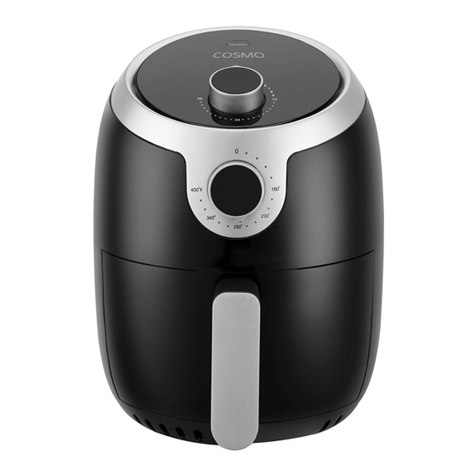

Cosmo COS-23AFAKB User manual
COS-23AFAKB USERMANUAL
COS-23AFAKB
I N S P I R I N G T H E W O R L D ’ S K I T C H E N
IMPORTANT SAFETY INSTRUCTIONS
Carefully read the following Important information redarding installation
safety and maintenance. Keep these instruction for future reference.
2.3QTAIRFRYER(OILFREEFRYER)
USER MANUAL
2 3
THANK YOU FOR YOUR PURCHASE.
Thank you for your purchase. We know that you have many brands and
products to choose from and we are honored to know that you have decided
to take one of our products into your home and hope that you enjoy it.
COSMO appliances are designed according to the strictest safety and performance
standard for the North American market. We follow the most advanced
manufacturing philosophy. Each appliance leaves the factory after thorough
quality inspection and testing. Our distributors and our service partners are
ready to answer any questions you may have regarding how to install, use and
care for your products. We hope that this manual will help you learn to use the
product in the safest and most effective manner .
If you have any questions or concerns, please contact the dealer from whom you
purchased it, or contact our Customer Support at:
1-888-784-3108.
Please read the important safety instructions before using the Air Fryer for
your own safety and to reduce the risk of fire or electrical shock, etc.
Please keep this manual for future use.
THANK YOU
IMPORTANT SAFETY INSTRUCTIONS
BEFORE YOU BEGIN:
Please Read all instructions completely and carefully.
Save these instructions for future references.
IMPORTANT: NEVER FILL THE POT
WITH OIL, OR IT MAY CAUSE A FIRE
HAZARD. This item is designed to cook
using AIR.
The appliance contains electronic and
heating elements. Do not put it in wa-
ter or wash with direct water.
Use CAUTION when operating this Air
Fryer, it will be HOT. Only open with
the handle and use extreme care when
moving the unit while in operation or
after cooking. Use only insulated Pot
Holder gloves to pick up the unit if
needed.
Do not cover the air intake or
outlet during operation. Do not touch
the inside of the appliance to avoid
burns and scalding. keep all ingredi-
ents in the basket.
High temperature air will flow from
the outlet while the appliance is in use.
Please keep a safe distance.
When pulling out the Fry Pot,
please be careful of high
temperature air. Use only the
prescribed method of operation to
avoid injury. Please read the
section on removing and replacing the
Fry Pot to be safe.
FOR YOUR SAFETY:
If the information in this manual is not
followed exactly, a fire, burn, electric
shock or short circuit may result, causing
property damage, personal injury or
death.
Do not store or use gasoline or
other flammable vapors and liquids
in the vicinity of this or any other
appliance.
FOR YOUR SAFETY:
Please keep the plug clean to avoid
injury.
Do not damage, strongly pull or twist
the power cord, use it to carry heavy
loads, or alter it in any way.
Do not let cord hang over edge of
table or counter, or touch hot
surfaces, to avoid electric shock, fire
and other accidents. Damaged pow-
er cord must be repaired by a trained
technician or electrician.
Please do not plug and unplug with
wet hands, otherwise it may cause
electric shock.
Plug tightly, otherwise, it may cause
electric shock, short circuit, smoking,
sparking and other dangers.
CAUTION WARNING
4 5
WARNING
Read this instruction booklet before
installing and using the appliance.
•Do not immerse the appliance, body, cord or plug in water or other
liquid, to protect against electrical shock and damaging the unit.
• Do not allow children to play with the socket and plug to avoid
electric shock.
• Do not place the appliance in the presence of explosive and /or
flammable fumes.
•Do not place the appliance on or near the flammable material, such
as tablecloths, curtains and others, to avoid fire hazard.
•Be sure to use on a heat resistant and even surface, keep the
appliance at least 10 inchs away the wall, furniture or other flammables.
• Do not use the appliance for other than intended use.
Any persons that lack in knowledge of this appliance must be guided
by persons who have experience, and who will be responsible for their
safety.
• Keep the appliance away from children to avoid scalding, electric
shock and/or other injuries. close supervision is necessary when the
appliance is used by or near children.
• This appliance is intended for Household Use Only.
• Before beginning installation, please read these instructions com-
pletely and carefully.
• Do not remove permanently affixed labels, warnings, or plates from
the product. This may void the warranty. Please observe all local and
national codes and ordinances.
CAUTION
When moving the airfryer, make sure that you hold it
securely and support the base—do not rely on the food basket
handle when moving the fryer!
TABLE OF CONTENTS
SAFETY INSTRUCTIONS 3-4
PRODUCT DIAGRAM 6
COSMO AIR FRYER QUICK FACTS 7
BEFORE FIRST USE 8
OPERATING INSTRUCTIONS 9
CARE & MAINTENANCE 10
TROUBLESHOOTING 11
WARRANTY & SERVICE 12-13
6 7
1.Handle bar
2.Food basket / drawer
3.Air inlet
4.Heating indicator lamps
5.Temperature controller (0-400℉; 0 = OFF)
6.Timer (0-30 Minutes)
7.Air outlet
8.Power cable
COSMO AIR FRYER QUICK FACTS
With the combination of High Speed Air circulation and heat, you
can be excited to prepare your favorite foods and snacks in a quick,
healthy, and easy way with your new Cosmo Air Fryer! This Smart Air
Fryer houses a top grill to cook your ingredients from all sides simultane-
ously. It also allows you to prepare a variety of tasty dishes without the
addition of excess oils or fats to most ingredients.
Some key features:
• Timer and temperature adjustments with knob control.
• A temperature control range of 180°F – 400°F
• Adjustable timer range from 0 to 30 minutes, and a convenient auto
shut-off feature.
• Fast cooking, with little to no preheating required.
• Quick and easy clean-up: the non-stick coated parts are conveniently
sized to fit in the dishwasher.
• Hassle-free frying—no splatters, no mess, and no oil smell!
• Versatility—with its frying, baking, grilling, and roasting capabilities,
this unit serves as a great cooking tool for a busy kitchen.
• No assembly required—very easy and safe to use!
Model:
Rated Voltage:
Rated Frequency:
Rated Output Power:
Fry Basket Capacity:
External Dimensions:
Net Weight:
COS-23AFAKB
120V
60Hz
1000W
2.3 Quarts
10.5 x 8.2 x 11 in. /268x 210x281 mm.
Approx. 5.5 lbs. /2.7 kg
PRODUCT DIAGRAM
6 7
1.Handle bar
2.Food basket / drawer
3.Air inlet
4.Heating indicator lamps
5.Temperature controller (0-400℉; 0 = OFF)
6.Timer (0-30 Minutes)
7.Air outlet
8.Power cable
COSMO AIR FRYER QUICK FACTS
With the combination of High Speed Air circulation and heat, you
can be excited to prepare your favorite foods and snacks in a quick,
healthy, and easy way with your new Cosmo Air Fryer! This Smart Air
Fryer houses a top grill to cook your ingredients from all sides simultane-
ously. It also allows you to prepare a variety of tasty dishes without the
addition of excess oils or fats to most ingredients.
Some key features:
• Timer and temperature adjustments with knob control.
• A temperature control range of 180°F – 400°F
• Adjustable timer range from 0 to 30 minutes, and a convenient auto
shut-off feature.
• Fast cooking, with little to no preheating required.
• Quick and easy clean-up: the non-stick coated parts are conveniently
sized to fit in the dishwasher.
• Hassle-free frying—no splatters, no mess, and no oil smell!
• Versatility—with its frying, baking, grilling, and roasting capabilities,
this unit serves as a great cooking tool for a busy kitchen.
• No assembly required—very easy and safe to use!
Model:
Rated Voltage:
Rated Frequency:
Rated Output Power:
Fry Basket Capacity:
External Dimensions:
Net Weight:
COS-23AFAKB
120V
60Hz
1000W
2.3 Quarts
10.5 x 8.2 x 11 in. /268x 210x281 mm.
Approx. 5.5 lbs. /2.7 kg
PRODUCT DIAGRAM
8 9
BEFORE THE FIRST USE
• Unpack the appliance and its accessories (fry basket, basket pot).
• Remove any packaging or labels from the appliance.
• Wash the accessories in hot, soapy water and then wipe them dry.
Wipe the interior of the frying cavity with a damp cloth or sponge,
and then dry with a paper towel. Make sure the cavity is dry before
operating the unit.
• Wipe the inside and outside of the appliance with a moist cloth.
• Place the appliance on a stable, horizontal and level heat-resistant
surface at least 6 inches away from surrounding objects.
• Place the appliance in an area with good air circulation and away
from hot surfaces and any combustible materials.
• Place the basket in the pan properly until it clicks into place. Slide
the pan back into the appliance.
• Insert the power plug into a wall socket. Your Air Fryer is now ready
for use!
THIS APPLIANCE WORKS ON HOT AIR. DO NOT FILL THE PAN
WITH OIL OR FRYING FAT.
DO NOT PUT ANYTHING ON TOP OF THE APPLIANCE. THIS
DISRUPTS THE AIRFLOW AND AFFECTS THE HOT AIR FRYING OPERATION.
DO NOT ATTEMPT TO OPEN THE UNIT FROM THE TOP, THIS IS THE FAN AND
HEATING COIL HOUSING AND DOES NOT OPEN.
WARNING
OPERATION INSTRUCTIONS
1.) Plug in power cable into the grounded power outlet.
2.) Turn the Temperature Controller to desired temperature.
3.) Turn the Timer to 3 minutes for preheating.
4.) When the green light turns off, carefully pull the fry drawer out from
the appliance, place the food material inside the fry basket (Attention:
do not exceed the maximum line); put drawer back into main unit.
5.) Set the timer to the desired cooking time.
6.) The main unit will sound off with a signal indicating cooking time is
done. Please pull the drawer out, place on heat resistant material,
move food to dishes.
NOTE: For better cooking results, rotate/move food by shaking the fry
basket in the middle of cooking process.
CAUTION
• Do not pull the drawer out during the cooking process. If the drawer
must be moved, set the timer to 0 before pulling the drawer out.
• Do not cover the air inlet and outlet during the cooking process.
• Hot air will flow from the outlet during the cooking process, so keep a
safe distance. Do not put hands and/or face near the outlet. Use
caution when removing the drawer after cooking, as basket and con-
tents will be very hot.
8 9
BEFORE THE FIRST USE
• Unpack the appliance and its accessories (fry basket, basket pot).
• Remove any packaging or labels from the appliance.
• Wash the accessories in hot, soapy water and then wipe them dry.
Wipe the interior of the frying cavity with a damp cloth or sponge,
and then dry with a paper towel. Make sure the cavity is dry before
operating the unit.
• Wipe the inside and outside of the appliance with a moist cloth.
• Place the appliance on a stable, horizontal and level heat-resistant
surface at least 6 inches away from surrounding objects.
• Place the appliance in an area with good air circulation and away
from hot surfaces and any combustible materials.
• Place the basket in the pan properly until it clicks into place. Slide
the pan back into the appliance.
• Insert the power plug into a wall socket. Your Air Fryer is now ready
for use!
THIS APPLIANCE WORKS ON HOT AIR. DO NOT FILL THE PAN
WITH OIL OR FRYING FAT.
DO NOT PUT ANYTHING ON TOP OF THE APPLIANCE. THIS
DISRUPTS THE AIRFLOW AND AFFECTS THE HOT AIR FRYING OPERATION.
DO NOT ATTEMPT TO OPEN THE UNIT FROM THE TOP, THIS IS THE FAN AND
HEATING COIL HOUSING AND DOES NOT OPEN.
WARNING
OPERATION INSTRUCTIONS
1.) Plug in power cable into the grounded power outlet.
2.) Turn the Temperature Controller to desired temperature.
3.) Turn the Timer to 3 minutes for preheating.
4.) When the green light turns off, carefully pull the fry drawer out from
the appliance, place the food material inside the fry basket (Attention:
do not exceed the maximum line); put drawer back into main unit.
5.) Set the timer to the desired cooking time.
6.) The main unit will sound off with a signal indicating cooking time is
done. Please pull the drawer out, place on heat resistant material,
move food to dishes.
NOTE: For better cooking results, rotate/move food by shaking the fry
basket in the middle of cooking process.
CAUTION
• Do not pull the drawer out during the cooking process. If the drawer
must be moved, set the timer to 0 before pulling the drawer out.
• Do not cover the air inlet and outlet during the cooking process.
• Hot air will flow from the outlet during the cooking process, so keep a
safe distance. Do not put hands and/or face near the outlet. Use
caution when removing the drawer after cooking, as basket and con-
tents will be very hot.
10 11
concerning use of the appliance in a safe way and if they un-
derstand the hazards involved. Cleaning and user mainte-
nance shall not be made by children unless they are older than
8 and supervised. Keep the appliance and its cord out of reach
of children aged less than 8 years.
CARE & MAINTENANCE
•Please unplug the power cord and let it cool before
cleaning the unit.
•Fryer drawer, fry basket and fryer cook surface can be
cleaned with a sponge and mild detergent/soap. Do not
clean with a wire sponge to avoid scratching/damaging
the unit.
•Use a wet towel to wipe the surface of the fryer. Do not
use corrosive or abrasive cleaning agents or soaps. Clean
cook surface after cooking, once it has completely cooled.
•DO NOT immerse the unit or the power cord in water to
prevent water damage. Any water inside the unit may
cause a hazard.
•If you do not use air fryer for a long period of time, clean
the unit, pack it into a box, and store it in a cool, dry place.
TROUBLESHOOTING
TROUBLE
Air fryer is not
operational
POSSIBLE CAUSE SOLUTION
a.) Make sure power cord is
securely plugged into power
outlet
Food is not fried
evenly
Some types of food need to be
turned in the middle of cooking
In the middle of the cooking
process, pull the drawer out and
--using caution--shake the
drawer to evenly distribute any
overlapping food -OR- rotate food
with tongs, and push drawer back
in to continue cooking
Fried food is not
crisp
Some types of food must be
fried with oil
Apply a thin layer of oil on the
surface of the food before cook-
ing, then fry
Drawer does not
push back into
fryer smoothly
a.) Drawer is overfilled with
too much food and is heavy
b.) The basket is not placed
correctly in the drawer
c.) Handle bar is stuck
a.) Food in the fry basket cannot
exceed the maximum line
b.) When the basket is fulled
cooled down, press the
basket securely into the
drawer
c.) Place the handle bar into the
horizontal position
Fryer is smoking
a.) Oily food is being fried
b.) Fryer contains oil from
previous cooking
a.) Situation is normal
b.) Clean the drawer and
basket after each use
a.) Power cord not plugged into
power outlet
10 11
concerning use of the appliance in a safe way and if they un-
derstand the hazards involved. Cleaning and user mainte-
nance shall not be made by children unless they are older than
8 and supervised. Keep the appliance and its cord out of reach
of children aged less than 8 years.
CARE & MAINTENANCE
•Please unplug the power cord and let it cool before
cleaning the unit.
•Fryer drawer, fry basket and fryer cook surface can be
cleaned with a sponge and mild detergent/soap. Do not
clean with a wire sponge to avoid scratching/damaging
the unit.
•Use a wet towel to wipe the surface of the fryer. Do not
use corrosive or abrasive cleaning agents or soaps. Clean
cook surface after cooking, once it has completely cooled.
•DO NOT immerse the unit or the power cord in water to
prevent water damage. Any water inside the unit may
cause a hazard.
•If you do not use air fryer for a long period of time, clean
the unit, pack it into a box, and store it in a cool, dry place.
TROUBLESHOOTING
TROUBLE
Air fryer is not
operational
POSSIBLE CAUSE SOLUTION
a.) Make sure power cord is
securely plugged into power
outlet
Food is not fried
evenly
Some types of food need to be
turned in the middle of cooking
In the middle of the cooking
process, pull the drawer out and
--using caution--shake the
drawer to evenly distribute any
overlapping food -OR- rotate food
with tongs, and push drawer back
in to continue cooking
Fried food is not
crisp
Some types of food must be
fried with oil
Apply a thin layer of oil on the
surface of the food before cook-
ing, then fry
Drawer does not
push back into
fryer smoothly
a.) Drawer is overfilled with
too much food and is heavy
b.) The basket is not placed
correctly in the drawer
c.) Handle bar is stuck
a.) Food in the fry basket cannot
exceed the maximum line
b.) When the basket is fulled
cooled down, press the
basket securely into the
drawer
c.) Place the handle bar into the
horizontal position
Fryer is smoking
a.) Oily food is being fried
b.) Fryer contains oil from
previous cooking
a.) Situation is normal
b.) Clean the drawer and
basket after each use
a.) Power cord not plugged into
power outlet
12 13
WARRANTY AND SERVICE
For full warranty details on this product please visit:
http://www.cosmoappliances.com/warranty
TO RECEIVE WARRANTY SERVICE, YOUR
PRODUCT MUST BE REGISTERED. TO REGISTER, VISIT:
WWW.COSMOAPPLIANCES.COM/WARRANTY
Correct Disposal of this product:
This marking indicates that this appliance should not
be disposed with other household wastes. To prevent
possible harm to the environment or human health
from uncontrolled waste disposal, recycle it responsibly to
promote the sustainable reuse of material resources.
IMPORTANT
Do Not Return This Product To The Store If
you have a problem with this product, please contact
Cosmo Customer Support at
+1(888)784-3108
DATED PROOF OF PURCHASE, MODEL #, AND SERIAL #
REQUIRED FOR WARRANTY SERVICE
IMPORTANT
Ne pas Réexpédier ce Produit au Magasin
Pour tout problème concernant ce produit, veuillez contacter
le service des consommateurs Cosmo Customer Support au
+1(888) 784-3108
UNE PREUVE D’ACHAT DATEE EST REQUISE POUR BENEFICIER DE
LA GARANTIE.
IMPORTANTE
No regrese este producto a la tienda
Si tiene algún problema con este producto, por favor contacte el
AYUDA AL CLIENTE COSMO al
+1(888)784-3108
(Válido solo en E.U.A).
NECESITA UNA PRUEBA DE DE COMPRA FECHADA, NÚMERO DE
MODELO Y DE SERIE PARA EL SERVICIO DE LA GARANTÍA
SCAN TO REGISTER
12 13
WARRANTY AND SERVICE
For full warranty details on this product please visit:
http://www.cosmoappliances.com/warranty
TO RECEIVE WARRANTY SERVICE, YOUR
PRODUCT MUST BE REGISTERED. TO REGISTER, VISIT:
WWW.COSMOAPPLIANCES.COM/WARRANTY
Correct Disposal of this product:
This marking indicates that this appliance should not
be disposed with other household wastes. To prevent
possible harm to the environment or human health
from uncontrolled waste disposal, recycle it responsibly to
promote the sustainable reuse of material resources.
IMPORTANT
Do Not Return This Product To The Store If
you have a problem with this product, please contact
Cosmo Customer Support at
+1(888)784-3108
DATED PROOF OF PURCHASE, MODEL #, AND SERIAL #
REQUIRED FOR WARRANTY SERVICE
IMPORTANT
Ne pas Réexpédier ce Produit au Magasin
Pour tout problème concernant ce produit, veuillez contacter
le service des consommateurs Cosmo Customer Support au
+1(888) 784-3108
UNE PREUVE D’ACHAT DATEE EST REQUISE POUR BENEFICIER DE
LA GARANTIE.
IMPORTANTE
No regrese este producto a la tienda
Si tiene algún problema con este producto, por favor contacte el
AYUDA AL CLIENTE COSMO al
+1(888)784-3108
(Válido solo en E.U.A).
NECESITA UNA PRUEBA DE DE COMPRA FECHADA, NÚMERO DE
MODELO Y DE SERIE PARA EL SERVICIO DE LA GARANTÍA
SCAN TO REGISTER
Other manuals for COS-23AFAKB
1
Table of contents
Other Cosmo Fryer manuals
