GENERAL
Carefully read the following important information regarding
installation,safety,and maintenance. Keep this manual accessible for
further consultations.
This appliance has been designed to be ducted (air exhaust to the outside –
Fig.1B), filtering version (air re-circulation –Fig.1A) or with an external
motor (Fig.1C).
SAFETY PRECAUTION
1. Take care when the cooker hood is operating simultaneously with an
open fireplace or burner that depend on the air in the environment and are
supplied by other than electrical energy, as the cooker hood removes the
air from the environment,which a burner or fireplace needsfor
combustion. The negative pressure in the environment must not exceed
4Pa (4x10-5 bar). Provide adequate ventilation in the environment for a
safe operation of the cooker hood. Follow local laws applicable for
external air evacuation.
Before connecting the model to the electricity network:
-Control the data plate (positioned inside the appliance) to ensure that the

voltage and power corresponding to the network and the socket is suitable.
When in doubt, ask a qualified electrician.
2. WARNING !
Electrical appliances can be a dangerous hazard.
A) Do not check the status of the filters while the cooker hood is operating.
B) Do not touch bulbs or adjacent areas, during or immediately after
prolonged use of the lighting installation.
C) Flambècooking is prohibited underneath the cooker hood
D) Avoid free flame, as it is damaging for the filters and a fire hazard
E) Constantly check food frying to avoid that the overheated oil may
become a fire hazard.
F) Disconnect the electrical plug prior to any maintenance.
G)This appliance is not intended for use by children.
H) Children should be supervised to ensure that they do not play with the
appliance.
I) There shall be adequate ventilation of the room when the range hood is
used at the same time as appliances burning gas or other fuels
J) There is a risk of fire if cleaning is not carried out in accordance with the
instructions laid out in this manual.
INSTALLATION INSTRUCTIONS
Assembly and electrical connections must be carried out by qualified
personnel.
• Electric Connection

The appliance has been manufactured as a class I appliance, therefore
earth cable is necessary.
The connection to the mains is carried out as follows:
•The minimum distance between the support surfaces of the cooking pots on
the stove top and the bottom of the cooker hood must be at least 26 inches. If
a connection tube composed of two parts is used, the
upper part must be placed outside the lower part. Do not connect the cooker
hood exhaust to the same conductor used to circulate hot air or for
evacuating fumes from other appliances generated by other than an electrical
source. Before proceeding with the assembly operations, remove the
anti-grease filter(s) (Fig.12) so that the unit is easier to handle. If the
cooker hood will vent the air to the outside of the building, prepare
the hole for evacuation of the air.
•Hood assembly
Remove the structure from the packaging and separate the upper and lower parts.
IEC227 North America
L=live Brown Black
N=neutral Blue White
E=earth Green/Yellow Green
If not provided, connect a plug for the electrical load indicated on the
description label. Where a plug is provided,
the cooker hood must be installed in order for the plug to be easily
accessible. An omni-polar switch with a minimum opening of 3mm
between contacts, in line with the electrical load and local standards, must
be placed between the appliance and the network in the case of
direct connection to the electrical network.

-Please make sure that the arrow is positioned on the same side as
the appliance controls. Make 4, Ø8holes in the ceiling and drive in 3
screws without completely tightening them(Fig2). Pay attention not to
insert the screw into the hole marked with an X on the hole template (the
screws and expansion plugs must be suitable for the type of wall).
-Take the upper part of the structure B and insert the 3 slots onto the 3
screws that are not completely tightened. (Fig3)
Rotate slightly to fit.
Drive in the fourth screw X and tighten the remaining 3 to allow definitive
blocking of the upper part of structure B.
- Take the lower part of the telescopic structure C and insert it into
the upper structure B.
- Adjust the height (Fig.5) by referring to the amounts calculated in
the mathematical formula and fix the position using the 8 unit screws G
that are supplied (Fig.4)

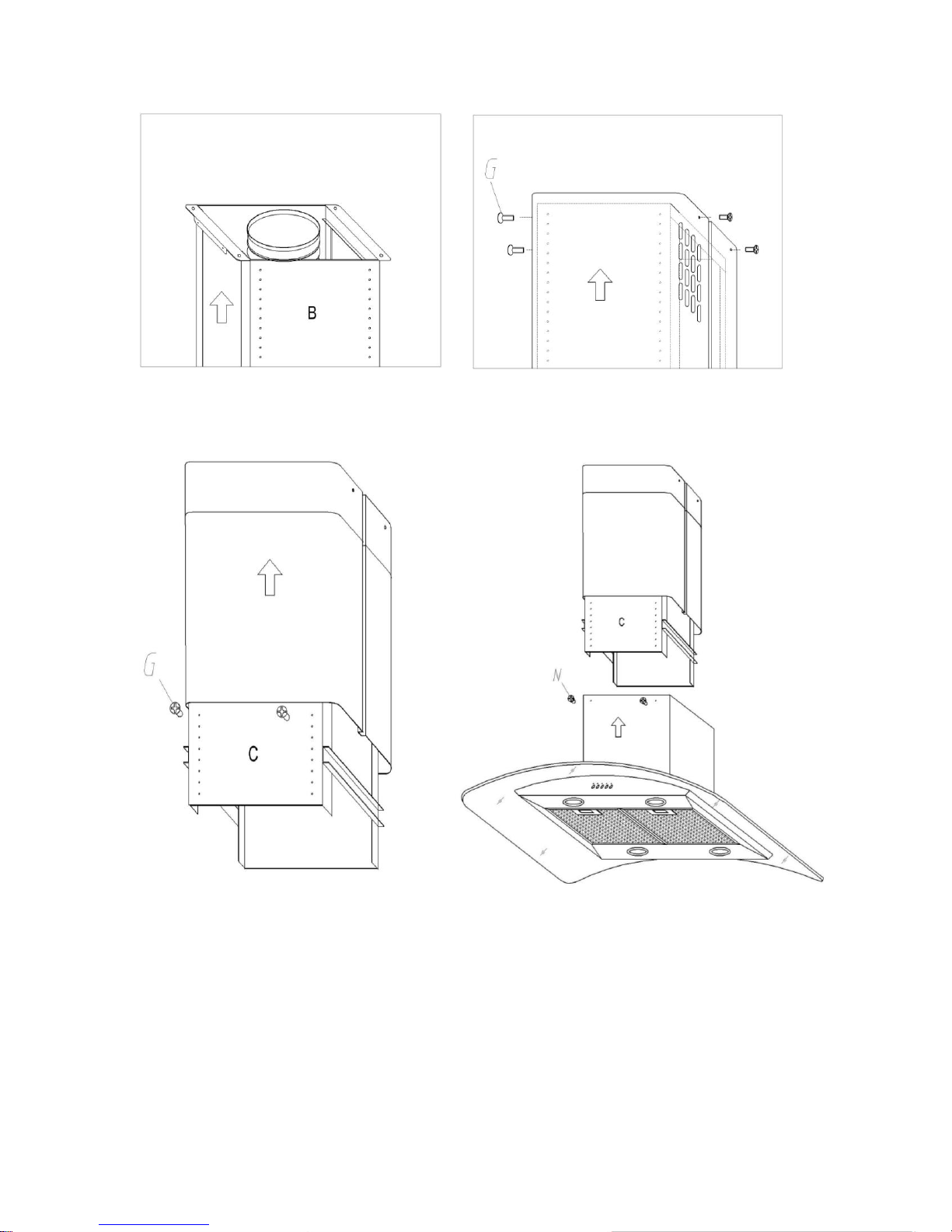

-Ducted option: fix the flexible duct to the air evacuation hole that you
have prepared. (Fig.6).
- Take the upper chimney piece and fix it with 4 unit screws G. （Fig.7）
- Take the lower chimney and fix it with 2 unit screws G to hold its
position.（Fig.8）
- Insert the suction unit inside the structure and set in 4 mounting
holes, drive in 4 unit screwsN. (Fig.9).

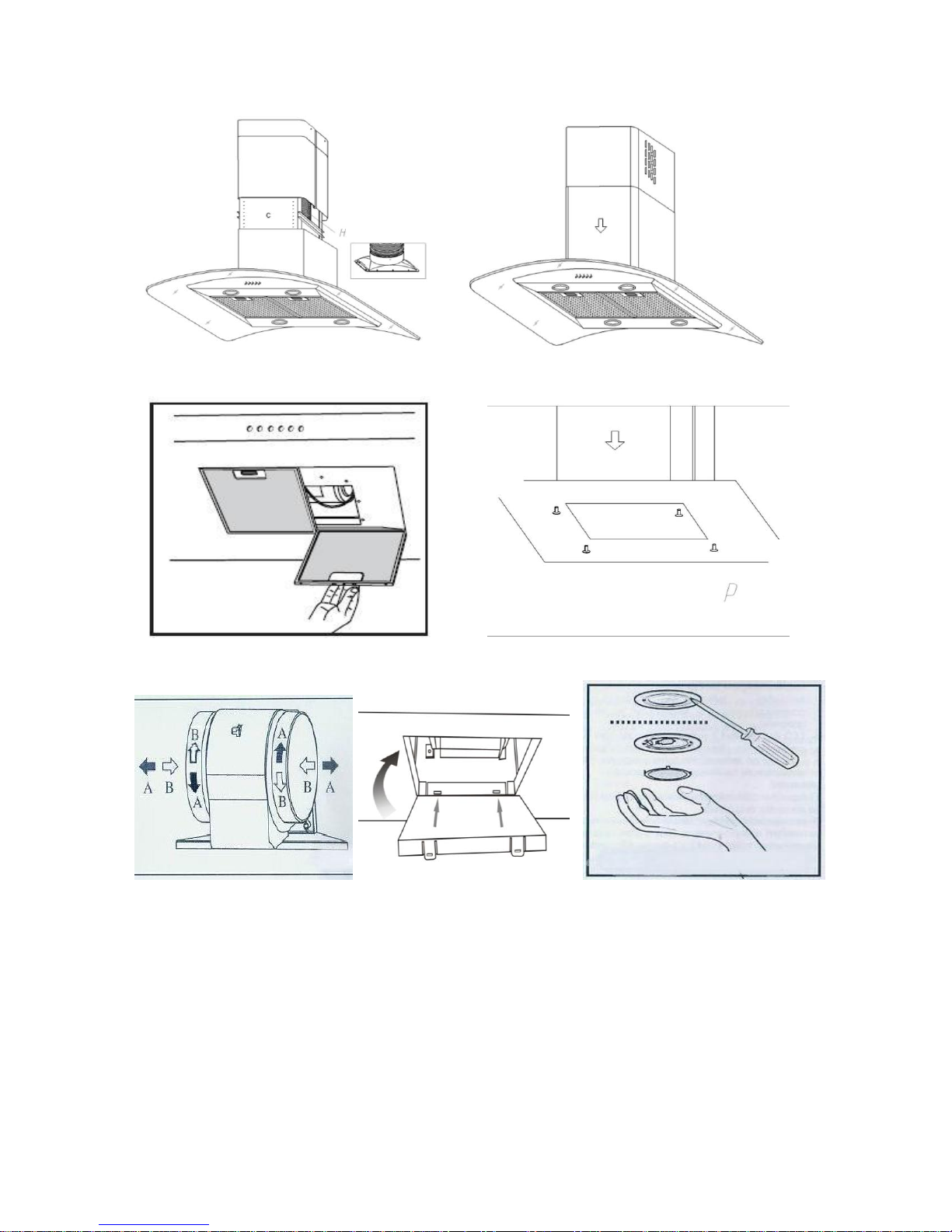

- Fix the air evacuation pipe H (not supplied) onto the connection
flange (Fig.10)
- Unscrew the 2 screws G and rest the lower chimney piece above
the cooker hood (Fig.11).

- If the cooker hood is supplied with a lower chimney piece that must be
fixed to the hood body with screws, remove the anti-grease filters from
the hood by releasing the filter latches (Fig.12). Then screw the lower
chimney piece pipe to the inside of the hood, using screws P
(Fig.13). Put the grease filters back in place.
USE AND MAINTENANCE
•It is recommended to operate the appliance prior to cooking.
It is recommended to leave the appliance in operation for 15 minutes after
cooking is terminated in order to completely eliminate cooking vapours and
odours.
Proper functioning of the cooker hood relies on regular maintenance, and
cleaning the grease filters, in particular.
•The anti-grease filters capture the grease particles suspended in the air, and
are therefore subject to clogging based on the amount of use of the
appliance.
In order to prevent fire hazard, it is recommendable to clean the filter at a
maximum of every 2 months by carrying out the following instructions:
-Remove the filters from the cooker hood and wash them in a solution of
water and neutral liquid detergent, and leaving them to soak.
- Rinse thoroughly with warm water and leave them
to dry. The filters may also be washed in the
dishwasher.
The aluminum panels may alter in color after several washes. This is
expected, and will not be a valid reason for replacements or returns.
•The active carbon filters purify the air and send them back into the environment.
The filters are not washable nor re-useable and must be replaced at a maximum

of every four months. The saturation of the active carbon filter depends on
the frequency of use of the appliance, by the type of cooking,and the
regularity of cleaning the grease filters. (Fig.14) To remove the charcoal
filters, remove the baffle filters, reach hand inside the unit to grasp one
carbon filter at a time and rotate them toward the front of the appliance.
The charcoal filterscan now be removed. Always ensure to replace both
filters at the same time.
•Clean the fan and other surfaces of the cooker hood regularly using a cloth
moistened with denatured alcohol or non abrasive liquid detergent.
• The lights are designed for use during cooking and not for prolonged
general illumination of the environment. Prolonged use of the lighting
installment notably reduces the duration of the bulb. Use a one-edged
screwdriver or any other appropriate tool to lift and remove the overhead
light fixture. Replace the damaged lamp. Use only halogen lamps per the
original specification, avoiding contact with hands. Return the light fixture
to its position where they can be snap-fastened. (Fig. 15)

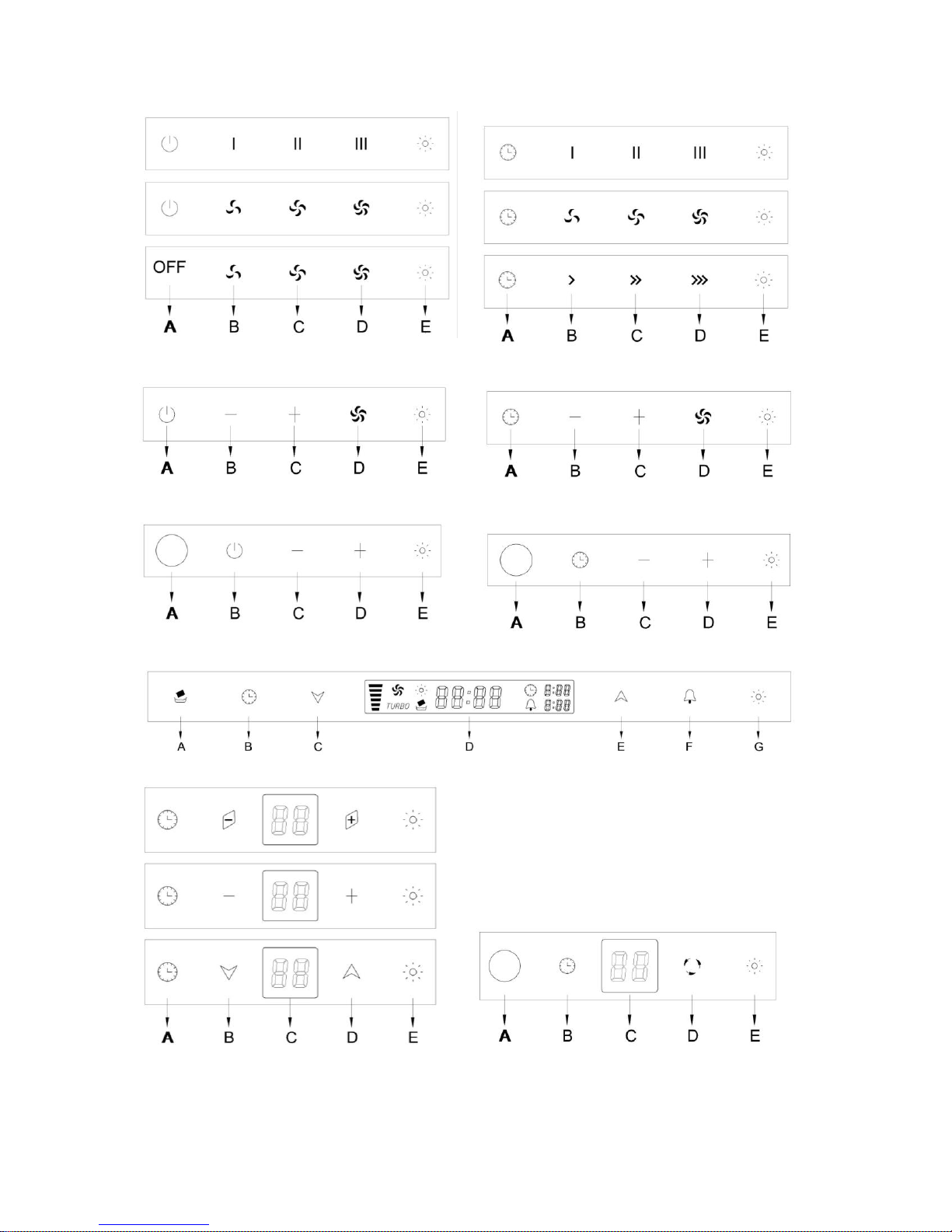

• COMMANDS: (Fig.16)
A = OFF
B = SPEED I ON / OFF
C = SPEED II ON / OFF
D = SPEED III ON / OFF
E = LIGHT
•If your appliance does not have the INTENSIVE speed function, press key
A for two seconds and it will be activated for 15 minutes after which it will
return to the previously set speed. When the function is active the LED
flashes.
By pressing any key for the exclusion of the hood light the hood will return
immediately to its normal functioning.
By pressing the "automatic timer", the cooker hood will continue
functioning for another 15 minutes at the operating speed set at the
time this function is activated. It will then shut off automatically after
15 minutes.
•COMMANDS: (Fig.17)
A= TIMER –15 MINUTES
B= SPEED I
C= SPEED II
D= SPEED III
E =LIGHT

nFUNCTION KEYS: (Fig.18)
A == OFF
B == SPEED 1/―－‖Control
C == SPEED 2/―＋‖Control
D == SPEED 4
E == LIGHT
By pressing key B, C,or D, individually, the speed for each key will be the
same as above table. At the same time, each corresponding button's light
will flash. To stop the speed function press key A.
If Speed 3 is required，press key C adjust ―＋‖. At Speed 3, both key Band
C indication light will flash on each button.
To turn on the light press key E. To off the light press key Eagain.
nFUNCTION KEYS: (Fig.19)
A == Automatic Stop Timer —15 minutes
B == Speed 1/―－‖Control
C == Speed 2/―＋‖Control
D == Speed 4
E == Light
By pressing key B, Cor D, individually, the speed for each key will be the
same as above table. At the same time indicated light will flash on each of
the buttons. To stop the speed function press key A.
If Speed 3 is required，press key C adjust ―＋‖. At Speed 3 both key B and
key C indication light will flash on each button.
To on the light press key E. To off the light press key E again.
When the appliance and light are ON together or separately, press key A the
Automatic Stop Timer will start the 15 minutes count down. Indication light
on the key A button will flash for the duration. To stop the "Automatic
Stop Timer Function"before the 15 minutes time frame has ended, press key
A again.

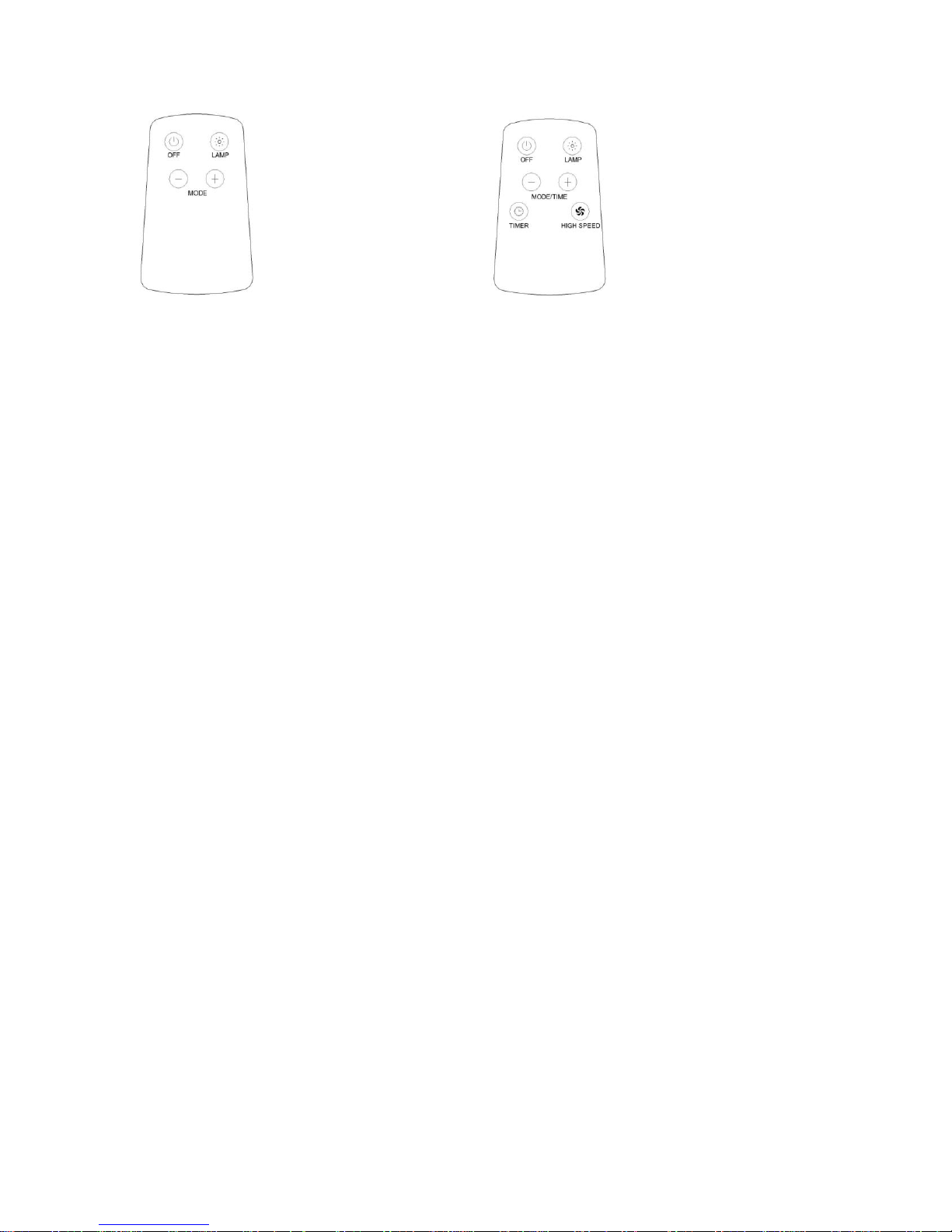

nFUNCTION KEYS: (Fig.20, Fig.25)
A == Infrared Remote Control
B == Off
C == Speed 1/―－‖Control
D == Speed 2/―＋‖Control
E == Light
By pressing key C or D individually, the speed for each key will be the same
as above table. At the same time indication light will flash on each of

the function key buttons. To stop the speed function press key B.
If Speed 3 is required，press key D and adjust ―＋‖. At Speed 3, both key C
and key D indication lightswill flash on each of the function key button.
To turn on the light press key E. To turn off the light press key E again.
nFUNCTION KEYS: (Fig.21, Fig.26)
A == Infrared Remote Control
B == Automatic Stop Timer —15minutes
C == Speed 1/―－‖Control
D == Speed 2/―＋‖Control
E == Ligh
By pressing key C or D individually, the speed for each key will be the same
as above table. At the same time the indication light will flash on
each of the function key buttons. To stop the speed function, press key
B. If using Remote Control just press the ―OFF‖ button. If Speed 3 is
required，press key D and adjust―＋‖. At Speed 3 program both key C and
key D indication light will flash on each function key button. If Speed 4
function is available, and when Speed 4 function is ON,key C and D
indication light will flash. If using Remote Control press the ― ‖key.
To on the light press key E. To off the light press key E again.
When the appliance and light are ON together or separately, press key A and
the Automatic Stop Timer will start the 15 minute count down. Indication
light on the key A button will flash for the duration. To stop the Automatic
Stop Timer Function before the 15 minutes time frame ends, press key A
again.
•COMANDS PATTERN :( Fig.22)
A= Filtering system / Set clock
B= Delay Timer
C= Speed 1/ ―-‖ adjust / off
D= Digital display
E= Speed 1/ ―+‖ adjust / off
F= Alarm
G= Light
When the Key A is flashing, at the same time " ‖is flashing on the
digital display, it reminds the user to clean the filters. After it’s cleaned and
then assemble back, push the key A till the light is off to set the function
again.
When pushing key A for 3 seconds, the clock ― ‖on the digital

will flash, push key A to switch to set hours and minutes, and then push C
or E to set the correct time. The Clock’s system is 24 hours.
When the motor is on, push the key B, the light is on, at the same time it
shows " " is flashing as well on the digital display，and to push
key B to switch hours and minutes. To set the time to
automatically shut off the motor, push key C or E. Push key B for 3 seconds
to stop the delay timer.
Push key C or E, when the first speed is on, and it shows ― ‖ on the digital
display，and push key C once again to turn it off；To run the 2nd, 3rd
and ―Turbo‖ speed, then push Key E. If it’s ―Turbo‖speed is on, then
push E once again to turn it off; and push key C down to 3rd, 2nd
and 1st speed.
Push the key F, the light is flashing, and it shows― ‖ flashing on
the digital display，to push key F to switch hours and minutes，and to set
the alarm time by pushing the key C or E. To stop the alarm, push the
key F. And to cancel the alarm set, then push the key F for 3 seconds.
‖ on the digital display, Push the key G to on the light, and it shows ―
and push the G again to turn off the light.
•COMMANDS: (Fig.23)
A= Timer (automatic shut off)
B= Speed 1 / adjust / switch off
C= digital display screen (showing timer and speed)
D= Speed 3 / adjust / switch off
E= Light
When pushing A, digital display screen shows "15 minutes" for the timer,
and the minutes can be adjusted by pushing "+" or "-" on B and D. When the
first speed is activated, pushing A once will switch it off, and the digital
display will show "00". When pushing B, the display shows "F1" on the ,
and the first speed is on. Pushing B once to switch it off, and the digital
display will show "00".
When pushing D, it shows "F3" on the digital display screen, and the third
speed is on. Pushing D twice to switch it off, and it shows "00" on the
screen. The second speed F2 and Turbo speed F4 can be adjusted by pushing
B or D.
When pushing E, the buttons light is on and the light is on, only push E once
again to switch off the light.

If the motor and light or only motor are on, pushing A turn on the automatic
timer and it will count down 15 minutes before turning off the motor and
light/ motor. Push B or D to adjust the time, and push A again to stop the
timer.
nFUNCTION KEYS: (Fig.24, Fig.26)
A == Infrared Remote Control
B == Timer (Automatic Shut Off)
C == Digital Display（Timer/Speed)
D == Speed F1/Cycle Control Adjustment/Off
E == Light
When key B is pressed, digital display screen will display 15 minutes. For
cycle control adjustment and Speed F1,press key D. To stop the
operation press key B again and the digital display screen will show "00".
If using remote control press the ―OFF‖ button.
When key D is pressed, the digital display screen will show F1 and speed
1 will turn on. To stop F1 function press key D until the digital display
screen shows"00".
The F2, F3 or F4 (Turbo) function can be adjusted via key D.
To ON/OFF the light press key E.
When the appliance and light are ON together or separately, press key B and
the Automatic Stop Timer will start the 15 minutes count down. Key D can
also be used to extend the time of the Automatic Stop Timer. To stop the
Automatic Stop Timer Function before the 15 minutes time frame is over,
press key B again.

too near the cooking
stove stove
Strong cooking smell Charcoal filters not
installed In re-circulating mode, charcoal filters must be installed
Oil dripping onto
stove Oil cup missing or not installed Remove aluminum filter and replace oil cup
Aluminum grease filter
saturated Wash the aluminum grease filters
Whirring sound Something in contact
with fan blade Contact with technician
THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR
EVENTUAL DAMAGES CAUSED BY BREACHING THE ABOVE
WARNINGS.
Troubleshooting
ProblemsPossible reasonsSolutions
Hood doesn’t work No electric supply Check the plug is connected
Check the main switch is turned on
Poor airflow greaseAluminum
filters clogged Clean the filters and replace when dry
Charcoal filters
clogged Replace the charcoal filters
Motor running but no
air flow Butterfly valve jammed Contact technician
Motor cuts off after
a few minutes
High temperature
safety device activated The kitchen is not sufficiently
ventilated
The hood is installed The hood must be least 26" from

Correct Disposal of this product
This marking indicates that this product should not be disposed with
other household wastes throughout the EU. To prevent possible harm to
the environment or human health from uncontrolled waste
disposal, recycle it responsibly to promote the sustainable reuse of
its materials. To return your used device, please use the return
and collection systems or contact the retailer where the product
was purchased. They can take this product for environmental safe
recycling.
Warranty Information
The manufacturer provides warranty in accordance with the legislation
of the customer's own country of residence, with a minimum of 1
year, starting from the date on which the appliance is sold to the end
user.
The warranty only covers defects in material or workmanship.
The repairs under warranty may only be carried out by an
authorized service personnel. When making a claim under the
warranty, the original bill of purchase (with purchase date) must be
submitted.
The warranty will not apply in cases of:
- Normal wear and tear
-Mis-use of the product, e.g. overloading of the appliance, use of non-
approved accessories
- Use of force, damage caused by external influences
- Damage caused by failure to follow the user manual's instructions, e.g.
connection to an unsuitable mains supply or non-compliance with the
installation instructions
- Partially or completely dismantled appliances
