Gunter & Hauer MARGARETTE User manual

Gunter & Hauer
Instruction Manual
Cooker Hood
MARGARETTE
..

Content
Safety information
2
Installation
4
Start using your cooker hood
7
Troubleshooting
9
Maintenance and cleaning
9
Environmental note
12

2

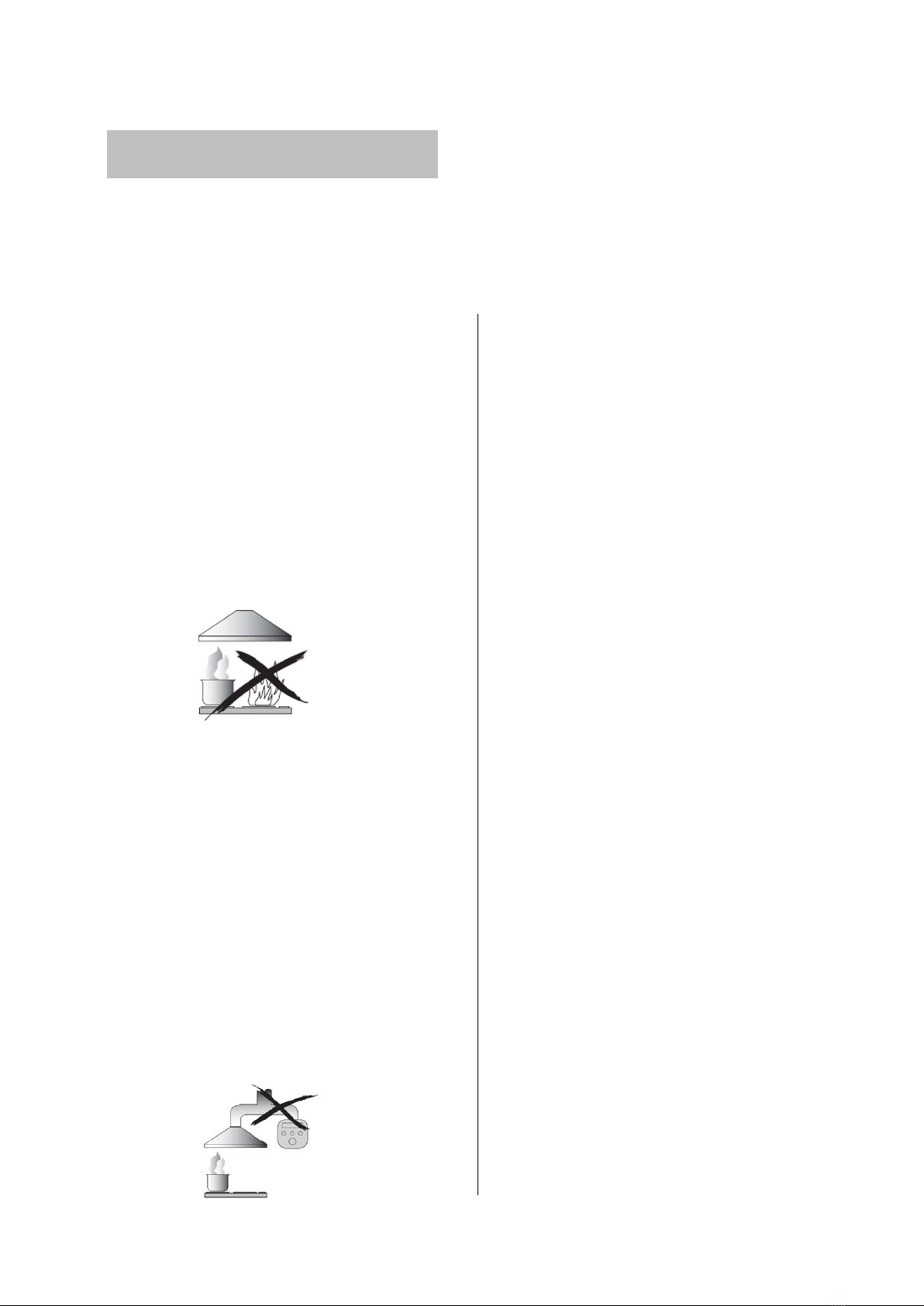

SAFETY INSTRUCTIONS
This manual explains the proper installation and use of your cooker hood,
please read it carefully before using even if you are familiar with the product.
The manual should be kept in a safe place for future reference.
Never to do:
●Do not try to use the cooker hood
without the grease filters or if the filters
are excessively greasy!
●Do not install above a cooker with a
high level grill.
●Do not leave frying pans unattended
during use because overheated fats or
oils might catch fire.
●Never leave naked flames under the
cooker hood.
●If the cooker hood is damaged, do not
attempt to use.
●Do not flambé under the cooker hood.
●CAUTION: Accessible parts may
become hot when used with cooking
appliances.
●The minimum distance between the
supporting surface for the cooking
vessels on the hob and the lowest part
of the cooker hood. (When the cooker
hood is located above a gas appliance,
this distance shall be at least 65 cm)
●The air must not be discharged into a
flue that is used for exhausting fumes
from appliances burning gas or other
fuels.
Always to do:
●Important! Always switch off the
electricity supply at the mains during
installation and maintenance such as
light bulb replacement.
●The cooker hood must be installed in
accordance with the installation
instructions and all measurements
followed.
●All installation work must be carried
out by a competent person or qualified
electrician.
●Please dispose of the packing material
carefully. Children are vulnerable to it.
●Pay attention to the sharp edges
inside the cooker hood especially
during installation and cleaning.
●Make sure the ducting has no bends
sharper than 90 degrees as this will
reduce the efficiency of the cooker
hood.
●Warning: Failure to install the screws
or fixing device in accordance with
these instructions may result in
electrical hazards
●Warning: Before obtaining access to
terminals, all supply circuits must be
disconnected.

3
Always to do:
●Always put lids on pots and pans
when cooking on a gas cooker.
●When in extraction mode, air in the
room is being removed by the cooker
hood. Please make sure that proper
ventilation measures are being
observed. The cooker hood removes
odours from room but not steam.
●Cooker hood is for domestic use only.
●If the supply cord is damaged, it must
be replaced by the manufacturer, its
service agent or similarly qualified
persons in order to avoid a hazard.
●This appliance can be used by
children aged from 8 years and above
and persons with reduced physical,
sensory or mental capabilities or lack
of experience and knowledge if they
have been given supervision or
instruction concerning use of the
appliance in a safe way and
understand the hazards involved.
Children shall not play with the
appliance. Cleaning and user
maintenance shall not be made by
children without supervision.
Always to do:
●Caution: The appliance and its
accessible parts can become hot
during operation. Be careful to avoid
touching the heating elements.
Children younger than 8 years old
should stay away unless they are
under permanent supervision.
●There shall be adequate ventilation of
the room when the cooker hood is
used at the same time as appliances
burning gas or other fuels.
●There is a fire risk if cleaning is not
carried out in accordance with the
instructions
●Regulations concerning the discharge
of air have to be fulfilled.
●Clean your appliance periodically by
following the method given in the
chapter MAINTENANCE.
●For safety reason, please use only the
same size of fixing or mounting screw
which are recommended in this
instruction manual.
●Regarding the details about the
method and frequency of cleaning,
please refer to maintenance and
cleaning section in the instruction
manual.
●Cleaning and user maintenance shall
not be made by children without
supervision.
●When the cooker hood and
appliances supplied with energy other
than electricity are simultaneously in
operation, the negative pressure in the
room must not exceed 4 Pa (4 x 10-5
bar).
●WARNING: Danger of fire: do not
store items on the cooking surfaces.
●Asteam cleaner is not to be used.
●NEVER try to extinguish a fire with
water, but switch off the appliance and
then cover flame e.g. with a lid or a
fire blanket.

4
INSTALLATION (VENT OUTSIDE)
MOUNTING OF THE V-FLAP
If the cooker hood does not have an assembled V-flap 1, you should mount the half-
parts to its body.The images only show an example of how to mount the V-flap,the
outlet may be various according to different models and configuration.
To mount the V-flap 1 you should:
• Mount two half-parts 2 into the body 6
• a pin 3 should be top oriented;
• the axis 4 should be inserted in the holes 5 on body;
• repeat all the operations for the 2nd half-part
INSTALLATION
If you have an outlet to the outside, your cooker hood can be connected as below
picture by means of an extraction duct. (enamel, aluminum, flexible pipe or non-
flammable material with an interior diameter of 150mm)
1. Before installation, turn the unit off and unplug it from the outlet.

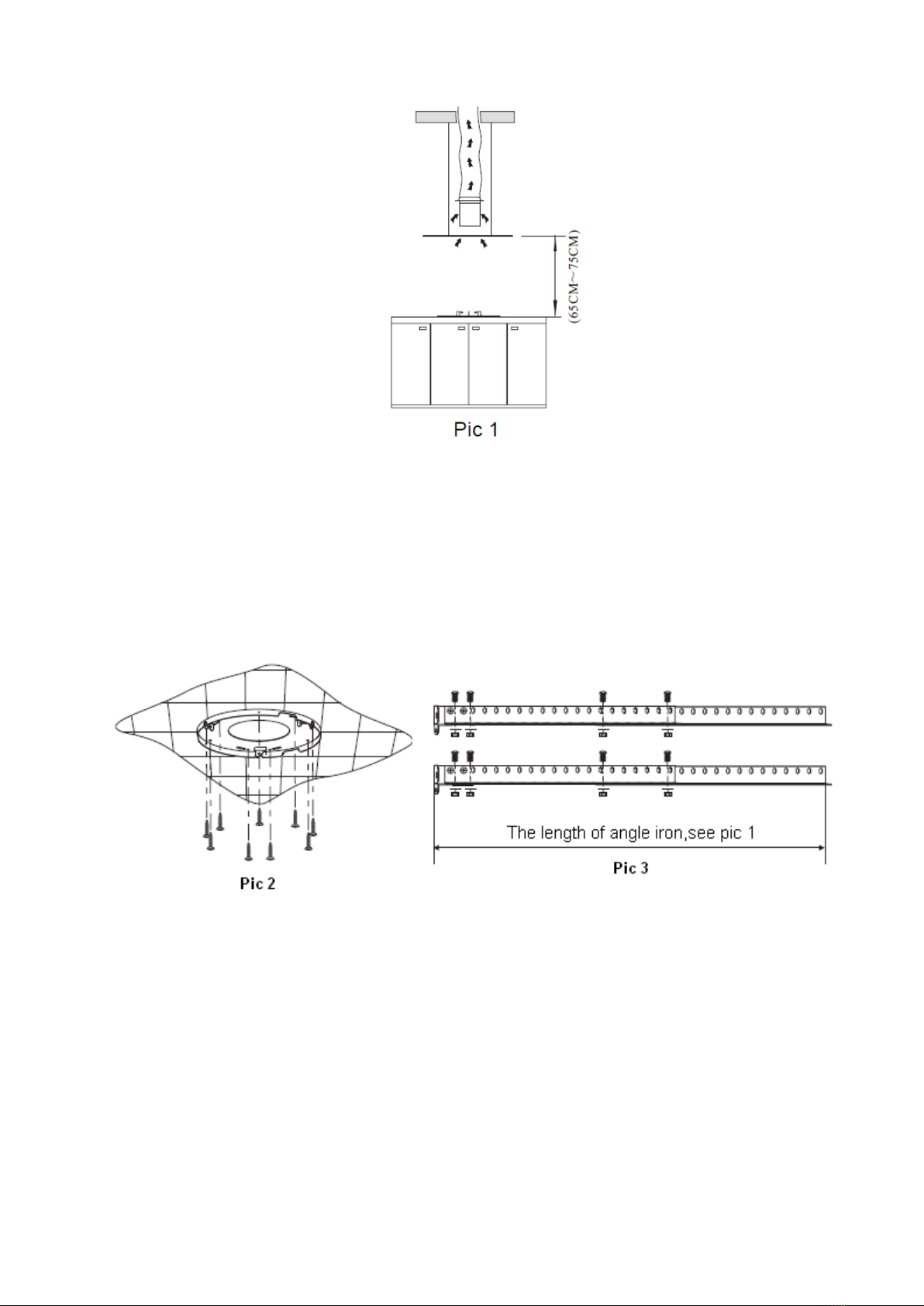

2. The cooker hoods should be placed at a distance of 65-75cm from the cooking
surface for best effect. See Pic 1

5
3. For safety, the ceiling should be bear at least 120kgs, and the thickness should be
more than 30mm. Drill a hole on the position for cooker hood with Φ170mm on the
ceiling.
4. According to the hanging board, drill 9 holes on the ceiling. Use 9 pcs ST6X40mm
screws to fix the hanging board on the wooden ceiling or use 6 pcs concrete anchor to
fix the hanging board on .concrete ceiling. See Pic 2.
5. Calculate the length of angle iron according to Pic 1.To connect the angle iron and
bracket with 18 pcs M4X10 screws ,M4 nut and washer. (the overlap between angle
iron should more than 100mm) See pic 3.
6. Using 6 pcs M4X10 screws to fix the angle iron on the cooker hood housing, and
install the expansion pipe. See pic 4/5. Set the inside chimney.
7. Put fixation of angle iron on the three installed angle iron. And then using 6 pcs
M4X10 screws, M4 nut and washer to fix. See Pic 6
8. See Pic 7, put the inside chimney on the cooker hood housing.
9. See Pic 8, put up the unit, and take the expansion pipe out of ceiling. And then
using 6 pcs M4X10 screws, M4 nut and washer fix the angle iron of unit to the hanging
board.
10. see Pic 9. Undrawn the inside chimney and use 3 pcs ST4X8 screws to fix the
inside chimney on hanging board.

6
HINTS FOR EXHAUST DUCT INSTALLATION
The following rules must be strictly followed to obtain optimal air extraction:
• Keep expansion pipe short and straight.
• Do not reduce the size or restrict expansion pipe.
• When using expansion pipe always install the pipe pulled taut to minimize pressure
loss.
• Failure to observe these basic instructions will reduce the performance and increase
noise levels of the cooker hood.

7
• Any installation work must be carried out by a qualified electrician or competent
person.
•Do not connect the ducting system of the hood to any existing ventilation system
which is being used for any other appliance ,such as warmer tube, gas tube , hot wind
tube.
•The angle of the bend of the expansion pipe should not be less than 120º; you must
direct the pipe horizontally, or, alternatively, the pipe should go up from the initial point
and should be led to an outer wall.
•After the installation ,make sure that the cooker hood is level to avoid grease
collection at on end.
•Ensure the expansion pipe selected for installation complies with relevant standards
and is fire retardant.
WARNING:
For safety reason, please use only the same
size of fixing or mount
ing screw which are
recommended in this instruction manual.

Failure to install the screws or fixing device in
accordance with these instructions may result
in electrical hazards.
Start Using Your Cooker Hood
Electronic button
There are five buttons: (Low), (Mid), (High), (Light),(Power).See
Pic above.

8
1. After connecting to power, indicator light will lit on, all the output close and the hood
will enter standby mode. The indicator light will be off automatically after reminding
if no operation.
2. Power on: Press power button once, its indicator light will lit on, the hood works
at low speed. Indicator light of low speed will be bright. Press power button
again to close it, and its indicator light will be off. All the function operation of the
hood will be closed, the hood enters into standby mode, and run by circle.
The speed buttons and lamp button can work separately and not controlled by the
power button. When a certain function button is pressed, the hood operates at that
function status. Press (Power) button under any status, the cooker hood will be
switched off without any functions.
3. Press lamp button once; lights will be turn on. Indicator light of lamp
button and power button will lit on. Press lamp button again to turn off the
lights. Indicator light of lamp button and power button will be off. And recycle
like this.
4. Press the (High) button once, motor runs on high speed, the indicator light of
high button and power button will beam. Press high button again and the
motor will stop. Indicator light of high button and power button will be off,and run by
circle.
5. Press the (Mid) button once, motor runs on middle speed, the indicator light of
middle button and power button will beam. Press middle button again and
the motor will stop. Indicator light of middle button and power button will be off,and
run by circle.
6. Press the (low) button once, motor runs on low speed, the indicator light of low
button and power button will beam. Press low button again and the
motor will stop. Indicator light of low button and power button will be off,and run by
circle.
7. Low speed, mid speed and high speed cannot work at the same time. When hood
is on high speed, press low speed, it will turn to low speed at once; when it is in
low speed, press middle speed, it will turn to middle speed immediately, and so on.

9

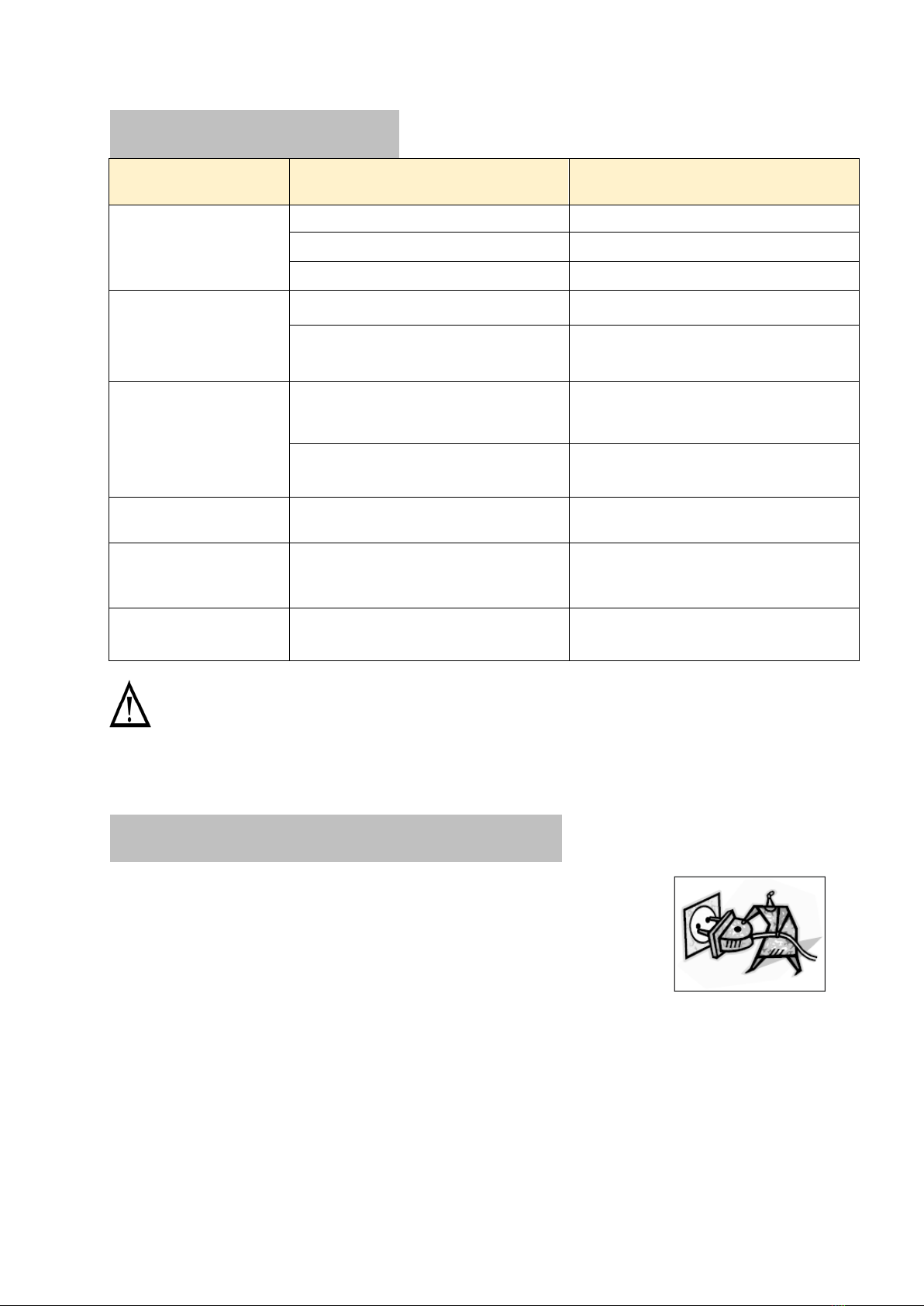

TROUBLESHOOTING
Fault Possible Cause Solution
Light on, but motor
does not work
Fan switch turned off
Select a fan switch position.
Fan switch failed Contact service center.
Motor failed
Contact service center.
Light does not
work, motor does
not work
House fuses blown Reset/Replace fuses.
Power cord loose or
disconnected Refit cord to power outlet. Switch power outlet on.
Oil leakage
One way valve and the outlet
are not tightly sealed Take down the one way valve and seal with sealant.
Leakage from the connection of
chimney and cover Take the chimney down and seal.
Lights not working Broken/Faulty globes
Replace globes as per this
instruction.
Insufficient suction
The distance between the
cooker hood and the gas top is
too far
Refit the cooker hood to the
correct distance.
The Cooker hood
inclines The fixing screw not tight enough Tighten the hanging screw and make it horizontal.
NOTE:
Any electrical repairs to this appliance must conform to your local, state and
federal laws.Please contact the service centre if in any doubt before
undertaking any of the above.Always disconnect the unit from the power source when
opening the unit.
MAINTENANCE AND CLEANING
Caution:
• Before maintenance or cleaning is carried out, thecooker hood
should be disconnected from the mainpower supply. Ensure that
the cooker hood is switchedoff at the wall socket and the plug
removed.
• External surfaces are susceptible to scratches andabrasions, so please follow the
cleaning instructionsto ensure the best possible result is achieved withoutdamage.
GENERAL
Cleaning and maintenance should be carried out withthe appliance cold especially
when cleaning.Avoid leaving alkaline or acid substances (lemonjuice, vinegar etc.) on
the surfaces.

10
STAINLESS STEEL
The stainless steel must be cleaned regularly (e.g.weekly) to ensure long life
expectancy.Dry with a clean soft cloth. A specialized stainlesssteel cleaning fluid may
be used.
NOTE:
Ensure that wiping is done along with thegrain of the stainless steel to prevent
anyunsightly crisscross scratching patterns fromappearing.
CONTROL PANEL SURFACE
The inlay control panel can be cleaned using warmsoapy water. Ensure the cloth is
clean and well wrungbefore cleaning. Use a dry soft cloth to remove anyexcess
moisture left after cleaning.
Important
Using neutral detergents and avoid using harsh cleaning chemicals, stronghousehold
detergents or products containingabrasives,as this will affect the applianceappearance
and potentially remove any printingof artwork on the control panel and will
voidmanufactures warrantee.
GREASE MESH FILTERS
The mesh filters can be cleaned by hand.Soak them for about 3 minute in water with a
grease-loosening detergent then brush it gently with a soft brush. Please do not apply
too much pressure, avoid to damage it . (Leave to dry naturally out of direct sun light)
Filters should be washed separately to crockery andkitchen utensils. it is advisable not
to use rinse aid.

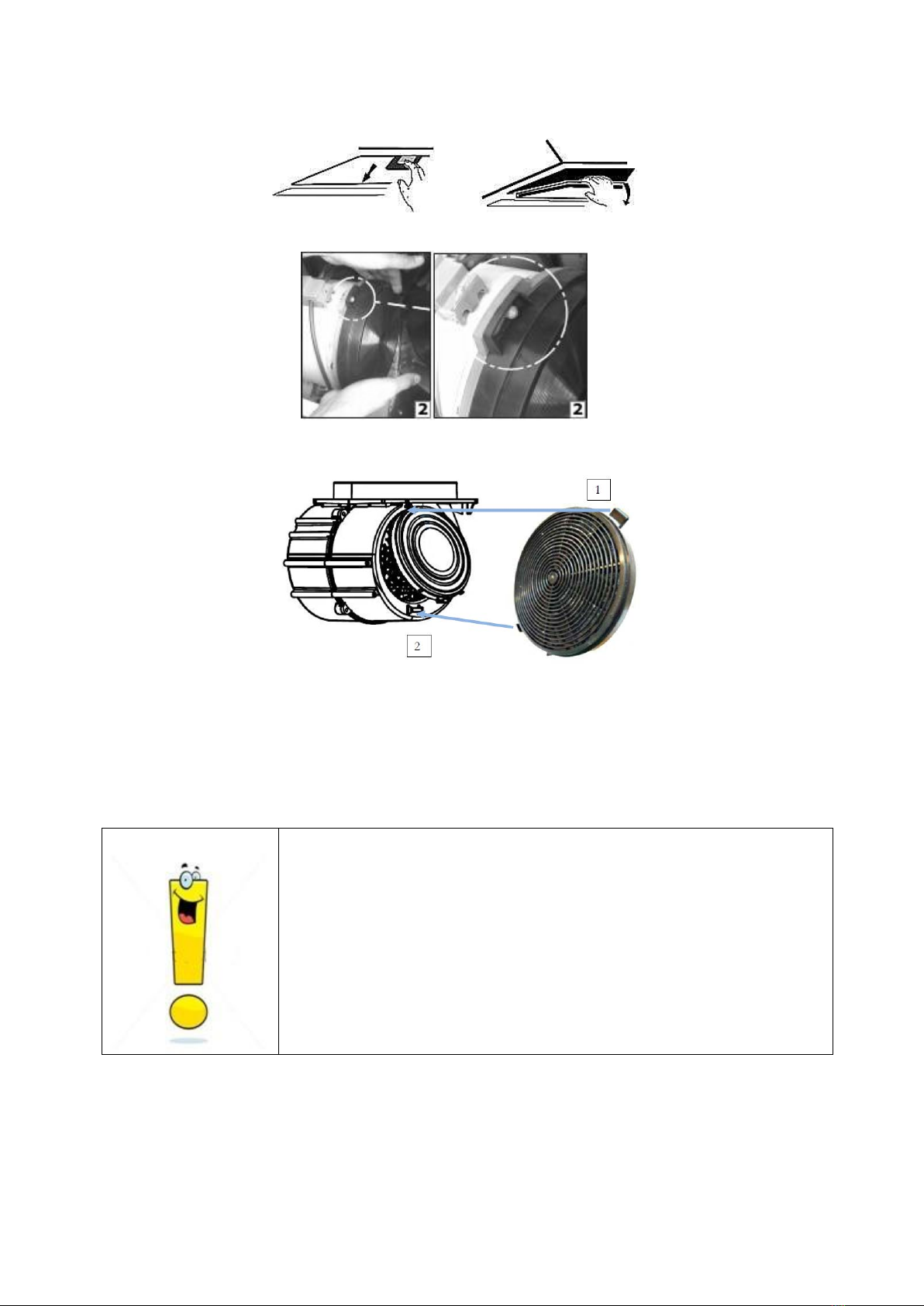

INSTALLING GREASE MESH FILTERS
• To install filters for the following four steps
- Angle the filter into slots at the back of the hood.
- Push the button on handle of the filter.
- Release the handle once the filter fits into a resting position.
- Repeat to install all filters.
CARBON FILTER-not supplied
Activated carbon filter can be used to trap odors. Normally the activated carbon filter
should be changed at three or six months according to your cooking habit. The
installation procedure of activated carbon filter is as below.

11
1. Remove the grease filter(s).
2. Hook the carbon filter over the pins that are located at the end of the motor.
3. Turn the carbon filter anticlockwise, until you feel it click into place.
NOTE:
•Make sure the filter is securely locked. Otherwise, it would loosen and cause
dangerous.
•When activated carbon filter attached, the suction power will be lowered.
BULB REPLACEMENT
Important :

The bulb must be replaced by the manufacturer, its
service agent or similarly qualified persons.

Always switch off the electricity supply before
carrying out any operations on the appliance. When
handling bulb, make sure it is completely cooldown
before any direct contact to hands.
When handling globes hold with a cloth or gloves
toensure perspiration does not come in contact with
theglobe as this can reduce the life of the globe.
Note:
Before changing the lights, make sure that the appliance is plugged off.
Protect against danger when changing lights, such as wearing gloves.
Changing the lights:
• Insert a straight screwdriver into slots around the edge of the lighting fixture, apply a

12
pressure to prize off the fixture and take it out, pull off the lighting wire to change the
bulb.

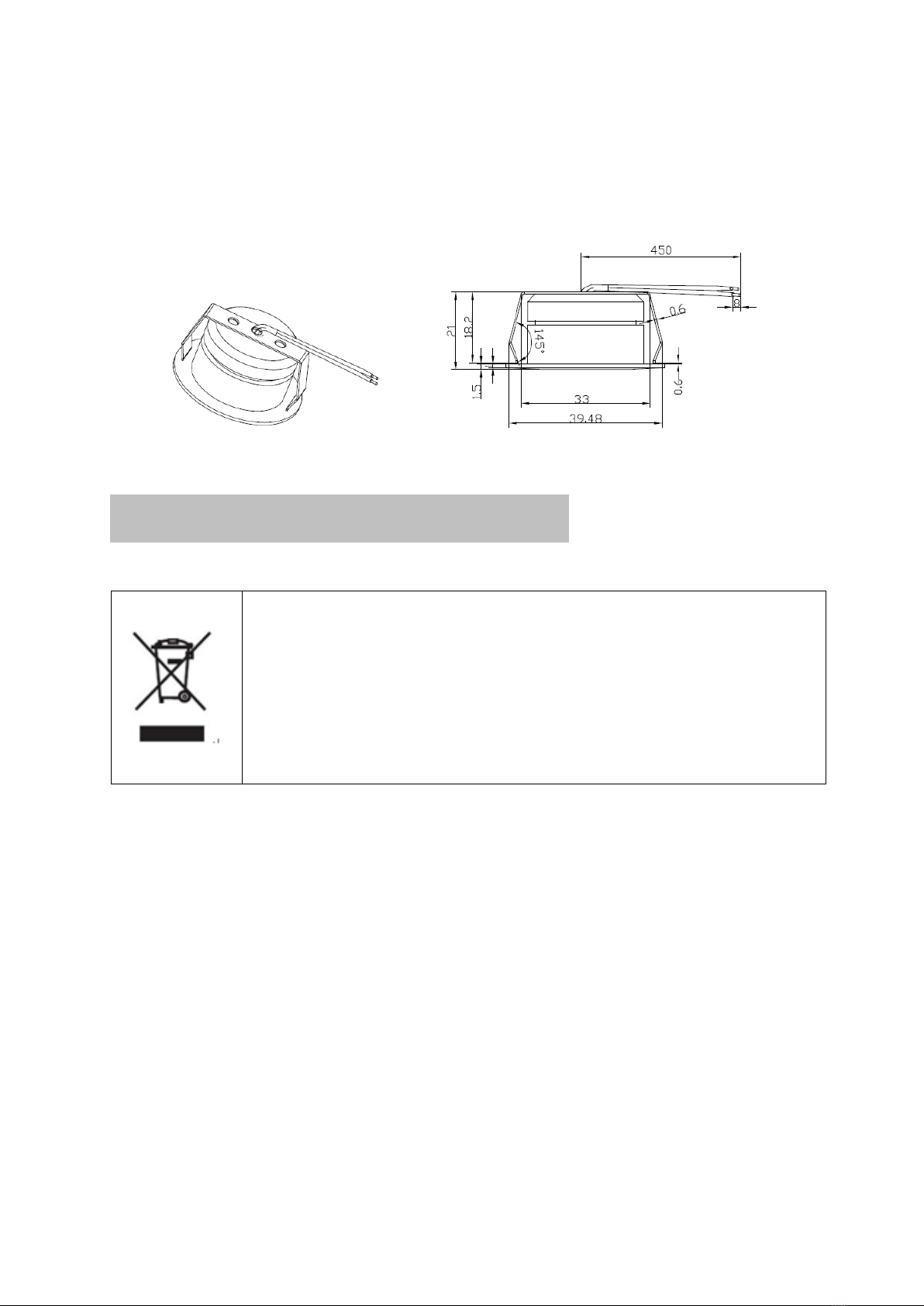

• ILCOS D code for this lamp is: DSR-1-S-41.
– Max wattage: 3×1 W
– Voltage range: DC 4V
– Dimensions:
ENVIRONMENTAL PROTECTION:
This product is marked with the symbol on the selective sorting of
waste electronic equipment. This means that this product must not
be disposed of with household waste but must be supported by a
system of selective collection in accordance with Directive
2012/19/EU. It will then be recycled or dismantled to minimize
impacts on the environment, electrical and electronic products are
potentially dangerous for the environment and human health due to
the presence of hazardous substances.For more information, please
contact your local or regional authorities.
NOTE:
The following shows how to reduce total environmental impact (e.g. energy use) of the
cooking process).
(1) Install the cooker hood in a proper place where there is efficient ventilation.
(2) Clean the cooker hood regularly so as not to block the airway.
(3) Remember to switch off the cooker hood light after cooking.
(4) Remember to switch off the cooker hood after cooking.
INFORMATION FOR DISMANTLING
Do not dismantle the appliance in a way which is not shown in the user manual. The
appliance could not be dismantled by user. At the end of life, the appliance should
not be disposed of with household waste. Check with you Local Authority or retainer
for recycling advice.

Mühlenstrasse 8a, Berlin,14167, Germany
www.gunter-hauer.eu
e-mail: [e-mail]
