nedis VEXT3470AT User manual

ned.is/vext3470at
HDMI Audio Extractor
HDMI input HDMI output + 3.5 mm
+ TosLink
VE X T3470AT

aQuick start guide 4
cKurzanleitung 6
bGuide de démarrage rapide 8
dVerkorte handleiding 11
jGuida rapida all’avvio 13
hGuía de inicio rápido 15
iGuia de iniciação rápida 18
eSnabbstartsguide 20
gPika-aloitusopas 22
fHurtigguide 25
2Vejledning til hurtig start 27
kGyors beüzemelési útmutató 29
nPrzewodnik Szybki start 32
xΟδηγό γρήγορη εκκίνηση 34
1Rýchly návod 36
lRychlý návod 39
yGhid rapid de iniiere 41

1 2 3
45 6 7
8
A

4
aQuick start guide
HDMI Audio Extractor VEXT3470AT
For more information see the extended manual online:
ned.is/vext3470at
Intended use
The product extracts audio signal from any HDMI compliant source and sends
the audio to a digital optical or analog stereo L/R audio output.
Any modication of the product may have consequences for safety, warranty
and proper functioning.

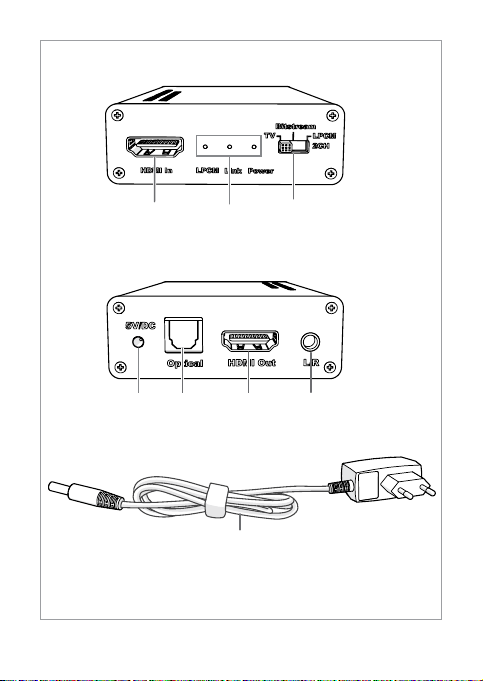

Main parts (image A)
HDMI input
Indicator LED
EDID
Power supply port
Optical output
HDMI output
L/R output
Power cable
Safety instructions
-
WARNING
• Only use the product as described in this manual.
• Do not use a damaged product.
• Do not expose the product to direct sunlight, naked ames or heat.
• Do not expose the product to water or moisture.
• Place the product on a stable and at surface.
• Do not drop the product and avoid bumping.
• Do not open the product.
• Keep the product out of reach from children.
Installation of the product
1. Plug A8into A4.
2. Plug the other end of A8into a power outlet.
3. Plug an HDMI cable (not included) from a DVD or Blu-ray Player into A1.
4. Plug an optical cable (not included) from an amplier or sound system into A5.
5. Plug the other end of a HDMI cable from a display into A6.
6. Plug the speakers into A7.

5
7. Select the output with A3.
A2light up the selected output.
Specications
Product HDMI Audio Extractor
Article number VEXT3470AT
Dimensions (l x w x h) 77 x 64 x 23 mm
HDMI Compliance HDMI 2.0b
HDCP Compliance HDCP 2.2 and HDCP 1.4
Video Bandwidth 18 Gbps
Video Resolutions 4K2K @ 60 Hz (YUV4:4:4)
4K2K @ 30 Hz
1080p @ 120 Hz
1080p 3D @ 60 Hz
Colour space RGB
YCbCr 4:4:4
YCbCr 4:2:2
Colour depth 10 bit
12 bit
HDMI Audio Formats (pass-through) LPCM 2/5.1/7.1CH
Dolby Digital 2~5.1CH
DTS 2~5.1CH
Dolby Digital Plus
Dolby TrueHD
DTS-HD Master Audio
Optical Audio Formats LPCM 2CH
Dolby Digital 2~5.1CH
DTS 2~5.1CH
L/R Audio Formats Analog stereo 2CH
ESD Protection Human body model - ±8kV (air-gap
discharge)
±4kV (contact discharge)
Input 1 x HDMI 19 pin female

6
Outputs 1 x HDMI 19 pin female
1 x R/L audio 3.5 mm stereo mini-jack
1 x Optical S/PDIF
Power supply Input 100– 240 VAC 50/60 Hz
Power supply Output 5 VDC / 2 A
Operating temperature 0 °C - 40 °C
Storage temperature -20°C - 60°C
Relative humidity 20 - 90% RH (no condensation)
cKurzanleitung
HDMI Audio Extractor VEXT3470AT
Weitere Informationen nden Sie in der erweiterten
Anleitung online: ned.is/vext3470at
Bestimmungsgemäße Verwendung
Das Produkt erfasst das Audiosignal einer HDMI-Quelle und sendet es an einen
digitalen optischen oder analogen Stereo L/R-Audioausgang.
Jegliche Modikation des Produkts kann Folgen für die Sicherheit, Garantie und
ordnungsgemäße Funktionalität haben.
Hauptbestandteile (Abbildung A)
HDMI-Eingang
Anzeige-LED
EDID
Stromversorgungs-
anschluss
Optischer Ausgang
HDMI-Ausgang
L/R-Ausgang
Stromkabel
Sicherheitshinweise
-
WARNUNG
• Verwenden Sie das Produkt nur wie in dieser Anleitung beschrieben.
• Verwenden Sie keinesfalls ein beschädigtes Produkt.
• Setzen Sie das Produkte keiner direkten Sonneneinstrahlung, oenen
Flammen oder Hitze aus.

7
• Setzen Sie das Produkt keinem Wasser oder Feuchtigkeit aus.
• Stellen Sie das Produkt auf eine stabile, ebene Oberäche.
• Lassen Sie das Produkt nicht herunterfallen und vermeiden Sie Kollisionen.
• Önen Sie das Produkt nicht.
• Halten Sie das Produkt stets von Kindern fern.
Installation des Produkts
1. Schließen Sie A8an A4an.
2. Verbinden Sie das andere Ende von A8mit einer Steckdose.
3. Schließen Sie ein HDMI-Kabel (nicht mitgeliefert) von einem DVD- oder Blu-
ray-Player an A1an.
4. Schließen Sie ein optisches Kabel (nicht mitgeliefert) von einem Verstärker
oder Soundsystem an A5an.
5. Schließen Sie das andere Ende des HDMI-Kabels von einer Anzeige an A6an.
6. Schließen Sie die Lautsprecher an A7an.
7. Wählen Sie den Ausgang mit A3.
A2leuchtet am gewählten Ausgang.
Spezikationen
Produkt HDMI Audio Extractor
Artikelnummer VEXT3470AT
Größe (L x B x H) 77 x 64 x 23 mm
HDMI-konform HDMI 2.0b
HDCP-konform HDCP 2.2 und HDCP 1.4
Videobandbreite 18 Gbps
Videoauösungen 4K2K @ 60 Hz (YUV4:4:4)
4K2K @ 30 Hz
1080p @ 120 Hz
1080p 3D @ 60 Hz
Farbraum RGB
YCbCr 4:4:4
YCbCr 4:2:2
Farbtiefe 10 bit
12 bit

8
HDMI-Audioformate (Durchleitung) LPCM 2/5.1/7.1CH
Dolby Digital 2~5.1CH
DTS 2~5.1CH
Dolby Digital Plus
Dolby TrueHD
DTS-HD Master Audio
Optische Audioformate LPCM 2CH
Dolby Digital 2~5.1CH
DTS 2~5.1CH
L/R Audioformate Analog Stereo 2CH
ESD-Schutz Körpermodell - ±8kV
(Luftspaltentladung)
±4kV (Kontaktentladung)
Eingang 1 x HDMI 19-Pin-Buchse
Ausgänge 1 x HDMI 19-Pin-Buchse
1 x R/L Audio 3,5mm Stereo
Mini-Stecker
1 x Optisch S/PDIF
Stromversorgungseingang 100– 240 VAC 50/60 Hz
Stromversorgungsausgang 5 VDC / 2 A
Betriebstemperatur 0 °C - 40 °C
Lagertemperatur -20°C - 60°C
Relative Luftfeuchtigkeit 20 - 90% rel. Feuchte (keine
Kondensation)
bGuide de démarrage rapide
Extracteur audio HDMI VEXT3470AT
Pour plus d'informations, consultez le manuel détaillé en
ligne: ned.is/vext3470at
Utilisation prévue
Le produit extrait le signal audio de n’importe quelle source HDMI compatible et
l'envoie à une sortie audio numérique optique ou analogique stéréo G/D.

9
Toute modication du produit peut avoir des conséquences sur la sécurité, la
garantie et le bon fonctionnement.
Pièces principales (image A)
Entrée HDMI
LED d'indication
EDID
Port d'alimentation
Sortie optique
Sortie HDMI
Sortie G/D
Câble d'alimentation
Consignes de sécurité
-
AVERTISSEMENT
• Utilisez le produit uniquement comme décrit dans le présent manuel.
• Ne pas installer ou utiliser un appareil endommagé.
• N'exposez pas le produit aux rayons directs du soleil, aux ammes ou à la chaleur.
• Ne pas exposer le produit à l'eau ou à l'humidité.
• Placez le produit sur une surface stable et plane.
• Ne pas laisser tomber le produit et éviter de le cogner.
• Ne pas ouvrir le produit.
• Gardez le produit hors de portée des enfants.
Installation du produit
1. Branchez A8dans A4.
2. Branchez l'autre extrémité de A8sur une prise de courant.
3. Branchez un câble HDMI (non inclus) d'un lecteur DVD ou Blu-ray sur A1.
4. Branchez un câble optique (non inclus) d'un amplicateur ou d'un système
audio sur A5.
5. Branchez l’autre extrémité d’un câble HDMI d’un écran sur A6.
6. Branchez les haut-parleurs sur A7.
7. Sélectionnez la sortie avec A3.
A2allume la sortie sélectionnée.
Spécications
Produit Extracteur audio HDMI
Article numéro VEXT3470AT
Dimensions (L x l x H) 77 x 64 x 23 mm
Compatibilité HDMI HDMI 2.0b

10
Compatibilité HDCP HDCP 2.2 et HDCP 1.4
Bande passante vidéo 18 Go/s
Résolutions vidéo 4K2K à 60 Hz (YUV4:4:4)
4K2K à 30 Hz
1080p à 120 Hz
1080p 3D à 60 Hz
Espace de couleurs RVB
YCbCr 4:4:4
YCbCr 4:2:2
Profondeur de couleur 10 bits
12 bits
Formats audio HDMI
(interconnexion)
LPCM 2/5.1/7.1CH
Dolby Digital 2~5.1CH
DTS 2~5.1CH
Dolby Digital Plus
Dolby TrueHD
DTS-HD Master Audio
Formats audio optiques LPCM 2CH
Dolby Digital 2~5.1CH
DTS 2~5.1CH
Formats audio G/D Stéréo analogique 2CH
Protection ESD Modèle du corps humain - ±8kV
(décharge de lame d'air)
±4kV (décharge de contact)
Entrée 1 x HDMI 19 broches femelle
Sorties 1 x HDMI 19 broches femelle
1 x mini-prise stéréo audio 3,5 mm
audio D/G
1 x Optique S/PDIF
Entrée d'alimentation 100– 240 VCA 50/60 Hz
Sortie d'alimentation 5 VDC / 2 A
Température fonctionnement 0 °C - 40 °C
Température de stockage -20°C - 60°C
Humidité relative 20 - 90 % HR (sans condensation)

11
dVerkorte handleiding
HDMI-audio-extractor VEXT3470AT
Zie voor meer informatie de uitgebreide handleiding
online: ned.is/vext3470at
Bedoeld gebruik
Het product extraheert het audiosignaal uit een HDMI-conforme bron en stuurt
het geluid naar een digitale optische of analoge stereo L/R-audio-uitgang.
Elke wijziging van het product kan gevolgen hebben voor veiligheid, garantie en
correcte werking.
Belangrijkste onderdelen (afbeelding A)
HDMI ingang
LED-controlelampje
EDID
Voedingspoort
Optische uitgang
HDMI uitgang
L/R uitgang
Stroomkabel
Veiligheidsvoorschriften
-
WAARSCHUWING
• Gebruik het product alleen zoals beschreven in deze handleiding.
• Neem een beschadigd product niet in gebruik.
• Stel het product niet bloot aan direct zonlicht, open vuur of hitte.
• Stel het product niet bloot aan water of vocht.
• Plaats het product op een stabiele en vlakke ondergrond.
• Laat het product niet vallen en voorkom stoten.
• Open het product niet.
• Houd het product buiten bereik van kinderen.
Het product installeren
1. Steek A8in A4.
2. Steek het andere uiteinde van A8in een stopcontact.
3. Sluit een HDMI-kabel (niet meegeleverd) van een DVD- of Blu-ray-speler aan op A1.
4. Sluit een optische kabel (niet meegeleverd) van een versterker of
geluidssysteem aan op A5.
5. Steek het andere uiteinde van een HDMI-kabel van een display in A6.

12
6. Sluit de luidsprekers aan op A7.
7. Selecteer de uitvoer met A3.
A2zorgt ervoor dat de geselecteerde uitgang gaat branden.
Specicaties
Product HDMI-audio-extractor
Artikelnummer VEXT3470AT
Afmetingen (l x b x h) 77 x 64 x 23 mm
HDMI-conformiteit HDMI 2.0b
HDCP-conformiteit HDCP 2.2 en HDCP 1.4
Videobandbreedte 18 Gbps
Videoresoluties 4K2K @ 60 Hz (YUV4:4:4)
4K2K @ 30 Hz
1080p @ 120 Hz
1080p 3D @ 60 Hz
Kleurruimte RGB
YCbCr 4:4:4
YCbCr 4:2:2
Kleurdiepte 10 bit
12 bit
HDMI-audioformaten (doorvoer) LPCM 2/5.1/7.1CH
Dolby Digitaal 2~5.1CH
DTS 2~5.1CH
Dolby Digitaal Plus
Dolby TrueHD
DTS-HD Master Audio
Optische audioformaten LPCM 2CH
Dolby Digitaal 2~5.1CH
DTS 2~5.1CH
L/R audioformaten Analoge stereo 2CH
ESD bescherming Menselijk lichaamsmodel - ±8kV
(luchtgatontlading)
±4kV (contactontlading)
Ingang 1 x HDMI 19-pins vrouwelijk

13
Uitgangen 1 x HDMI 19-pins vrouwelijk
1 x R/L audio 3.5 mm stereo mini-jack
1 x Optische S/PDIF
Voedingspoort ingang 100– 240 VAC 50/60 Hz
Voedingspoort uitgang 5 VDC / 2 A
Bedrijfstemperatuur 0 °C - 40 °C
Opslagtemperatuur -20°C - 60°C
Relatieve luchtvochtigheid 20 - 90% RH (geen condensatie)
jGuida rapida all’avvio
Estrattore audio HDMI VEXT3470AT
Per maggiori informazioni vedere il manuale esteso
online: ned.is/vext3470at
Uso previsto
Il prodotto estrae il segnale audio da qualsiasi sorgente conforme a HDMI e invia
l’audio a un’uscita audio Sx/Dx stereo digitale ottica o analogica.
Eventuali modiche al prodotto possono comportare conseguenze per la
sicurezza, la garanzia e il corretto funzionamento.
Parti principali (immagine A)
Ingresso HDMI
Spia LED
EDID
Porta di alimentazione
Uscita ottica
Uscita HDMI
Uscita Dx/Sx
Cavo di alimentazione
Istruzioni di sicurezza
-
ATTENZIONE
• Utilizzare il prodotto solo come descritto nel presente manuale.
• Non utilizzare un prodotto danneggiato.
• Non esporre il prodotto alla luce diretta del sole, a amme libere o al calore.
• Non esporre il prodotto all’acqua o all’umidità.

14
• Posizionare il prodotto su una supercie piana e stabile.
• Non far cadere il prodotto ed evitare impatti.
• Non aprire il prodotto.
• Tenere il prodotto lontano dalla portata dei bambini.
Installazione del prodotto
1. Collegare A8a A4.
2. Collegare l’altra estremità di A8a una presa elettrica.
3. Inserire un cavo HDMI (non incluso) da un lettore DVD o Blu-ray in A1.
4. Inserire un cavo ottico (non incluso) da un amplicatore o impianto stereo in A5.
5. Inserire l’altra estremità di un cavo HDMI da un display in A6.
6. Collegare gli altoparlanti a A7.
7. Selezionare l’uscita con A3.
A2accende l’uscita selezionata.
Speciche
Prodotto Estrattore audio HDMI
Numero articolo VEXT3470AT
Dimensioni (p x l x a) 77 x 64 x 23 mm
Conformità HDMI HDMI 2.0b
Conformità HDCP HDCP 2.2 e HDCP 1.4
Larghezza di banda video 18 Gbps
Risoluzioni video 4K2K a 60 Hz (YUV4:4:4)
4K2K a 30 Hz
1080p a 120 Hz
1080p 3D a 60 Hz
Spazio di colore RGB
YCbCr 4:4:4
YCbCr 4:2:2
Profondità di colore 10 bit
12 bit

15
Formati audio HDMI (passanti) LPCM 2/5.1/7.1 canali
Dolby Digital 2~5.1 canali
DTS 2~5.1 canali
Dolby Digital Plus
Dolby TrueHD
DTS-HD Master Audio
Formati audio ottici LPCM 2 canali
Dolby Digital 2~5.1 canali
DTS 2~5.1 canali
Formati audio Sx/Dx Stereo analogico 2 canali
Protezione ESD Modello del corpo umano - ±8 kV
(scarica in aria)
±4kV (scarica a contatto)
Ingresso 1 x HDMI femmina 19 poli
Uscite 1 x HDMI femmina 19 poli
1 x mini-jack stereo 3,5 mm per audio
Sx/Dx
1 x S/PDIF ottica
Alimentazione Ingresso 100– 240 VCA 50/60 Hz
Alimentazione Uscita 5 VDC / 2 A
Temperatura di funzionamento 0 °C - 40 °C
Temperatura di conservazione -20°C - 60°C
Umidità relativa 20 - 90% RH (senza condensa)
hGuía de inicio rápido
Extractor de audio HDMI VEXT3470AT
Para más información, consulte el manual ampliado en
línea: ned.is/vext3470at
Uso previsto por el fabricante
El producto extrae la señal de audio de cualquier fuente compatible con HDMI y
envía el audio a una salida de audio L/R digital óptica o analógica estéreo.

16
Cualquier modicación del producto puede tener consecuencias para la
seguridad, la garantía y el funcionamiento adecuado.
Partes principales (imagen A)
Entrada HDMI
Indicador LED
EDID
Puerto del suminis-
tro de corriente
Salida óptica
Salida HDMI
Salida L/R
Cable de alimen-
tación
Instrucciones de seguridad
-
ADVERTENCIA
• Utilice el producto únicamente tal como se describe en este manual.
• Nunca utilice un producto dañado.
• No exponga el producto a la luz solar directa, a llamas abiertas ni al calor.
• No exponga el producto al agua o a la humedad.
• Coloque el producto en una supercie estable y plana.
• No deje caer el producto y evite que sufra golpes.
• No abra el producto.
• Mantenga el producto fuera del alcance de los niños.
Instalación del producto
1. Enchufe A8en A4.
2. Enchufe el otro extremo de A8a una toma de corriente.
3. Enchufe un cable HDMI (no incluido) desde un reproductor de DVD o Blu-ray a A1.
4. Enchufe un cable óptico (no incluido) desde un amplicador o sistema de
sonido a A5.
5. Enchufe el otro extremo de un cable HDMI desde una pantalla a A6.
6. Enchufe los altavoces en A7.
7. Seleccione la salida con A3.
A2ilumina la potencia seleccionada.
Especicaciones
Producto Extractor de audio HDMI
Número de artículo VEXT3470AT
Dimensiones (L x An x Al) 77 x 64 x 23 mm

17
Cumplimiento de HDMI HDMI 2.0b
Cumplimiento de HDCP HDCP 2.2 y HDCP 1.4
Ancho de banda de vídeo 18 Gbps
Resoluciones de vídeo 4K2K a 60 Hz (YUV4:4:4)
4K2K a 30 Hz
1080p a 120 Hz
1080p 3D a 60 Hz
Espacio de color RGB
YCbCr 4:4:4
YCbCr 4:2:2
Profundidad de color 10 bit
12 bit
Formatos de audio HDMI
(pass-through)
LPCM 2/5.1/7.1CH
Dolby Digital 2~5.1CH
DTS 2~5.1CH
Dolby Digital Plus
Dolby TrueHD
DTS-HD Master Audio
Formatos de audio ópticos LPCM 2CH
Dolby Digital 2~5.1CH
DTS 2~5.1CH
Formatos de audio L/R Analógico estéreo 2CH
Protección ESD Modelo del cuerpo humano - ±8kV
(descarga de espacio de aire)
±4kV (descarga de contacto)
Entrada 1 x HDMI de 19 pines hembra
Salidas 1 x HDMI de 19 pines hembra
1 x clavija mini estéreo R/L audio de
3,5 mm
1 x S/PDIF óptico
Entrada del suministro de corriente 100– 240 VCA 50/60 Hz
Salida del suministro de corriente 5 VDC / 2 A
Temperatura de funcionamiento 0 °C - 40 °C
Temperatura de almacenaje -20 °C - 60 °C
Humedad relativa 20 - 90% HR (sin condensación)

18
iGuia de iniciação rápida
Extrator de áudio HDMI VEXT3470AT
Para mais informações, consulte a versão alargada do
manual on-line: ned.is/vext3470at
Utilização prevista
O produto extrai o sinal de áudio de qualquer fonte compatível com HDMI e
envia o áudio para uma saída de áudio L/R estéreo digital ou analógica.
Qualquer alteração do produto pode ter consequências em termos de
segurança, garantia e funcionamento adequado.
Peças principais (imagem A)
Entrada HDMI
LED indicador
EDID
Porta de alimentação
Saída ótica
Saída HDMI
Saída L/R
Cabo de alimentação
Instruções de segurança
-
AVISO
• Utilize o produto apenas conforme descrito neste manual.
• Não utilize um produto danicado.
• Não exponha o produto à luz solar direta, chamas expostas ou calor.
• Não exponha o produto à água ou humidade.
• Coloque o produto sobre uma superfície estável e plana.
• Não deixe cair o produto e evite impactos.
• Não abra o produto.
• Mantenha o produto fora do alcance das crianças.
Instalação do produto
1. Insira A8no A4.
2. Ligue a outra extremidade de A8a uma tomada elétrica.
3. Ligue um cabo HDMI (não incluído) de um leitor de DVD ou Blu-ray a A1.
4. Ligue um cabo ótico (não incluído) de um amplicador ou sistema de som
a A5.
5. Ligue a outra extremidade de um cabo HDMI de um ecrã a A6.

19
6. Ligue os altifalantes a A7.
7. Selecione a saída com A3.
A2acende a saída selecionada.
Especicações
Produto Extrator de áudio HDMI
Número de artigo VEXT3470AT
Dimensões (c x l x a) 77 x 64 x 23 mm
Conformidade HDMI HDMI 2.0b
Conformidade HDCP HDCP 2.2 e HDCP 1.4
Largura de banda do vídeo 18 Gbps
Resoluções de vídeo 4K2K @ 60 Hz (YUV4:4:4)
4K2K @ 30 Hz
1080p @ 120 Hz
1080p 3D @ 60 Hz
Espaço de cores RGB
YCbCr 4:4:4
YCbCr 4:2:2
Profundidade de cor 10 bit
12 bit
Formatos de áudio HDMI
(passagem)
LPCM 2/5.1/7.1 canais
Dolby Digital 2~5.1 canais
DTS 2~5.1 canais
Dolby Digital Plus
Dolby TrueHD
DTS-HD Master Audio
Formatos de áudio ótico LPCM 2 canais
Dolby Digital 2~5.1 canais
DTS 2~5.1 canais
Formatos de áudio L/R Estéreo analógico 2 canais
Proteção ESD Modelo do corpo humano - ±8kV
(descarga de folga de ar)
±4kV (descarga por contacto)
Entrada 1 x HDMI 19 pinos fêmea
Saída L/R
Cabo de alimentação

20
Saídas 1 x HDMI 19 pinos fêmea
1 x mini-conetor R/L áudio 3,5 mm
estéreo
1 x S/PDIF ótico
Entrada de alimentação 100– 240 VAC 50/60 Hz
Saída de alimentação 5 VDC / 2 A
Temperatura de funcionamento 0 °C - 40 °C
Temperatura de armazenamento -20°C - 60°C
Humidade relativa 20 - 90% HR (sem condensação)
eSnabbstartsguide
HDMI audio extractor VEXT3470AT
För ytterligare information, se den utökade manualen
online: ned.is/vext3470at
Avsedd användning
Produkten extraherar audiosignalen från en HDMI-kompatibel källa och skickar
audio till en digital optisk eller analog stereoljudutgång.
Modiering av produkten kan medföra konsekvenser för säkerhet, garanti och
korrekt funktion.
Huvuddelar (bild A)
HDMI-ingång
Indikerings-LED
EDID
Strömförsörjningsuttag
Optisk utgång
HDMI-utgång
V/H utgång
Strömkabel
Säkerhetsanvisningar
-
VARNING
• Använd produkten endast enligt anvisningarna i denna bruksanvisning.
• Använd inte en skadad produkt.
• Utsätt inte produkten för direkt solljus, öppen eld eller värme.
• Exponera inte produkten till vatten eller fukt.
Table of contents
Languages:
