Costar CR16PVM User manual

Quick Guide
4K Decoder
Please read this manual thoroughly before use and keep it handy for future reference.

WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EX- POSE
THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC
OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS ON
THE EQUIPMENT.
CAUTION
EXPLANATION OF GRAPHICAL SYMBOLS
The lightning flash with arrowhead symbol, within an equilateral triangle, is in- tended
to alert the user to the presence of dangerous voltage within the products enclosure
that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the
literature accompanying the product.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING: TO REDUCE THE RISK OF ELECTRICSHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICABLE PARTSINSIDE.
REFER SERVICINGTO QUALIFIED SERVICE PERSONNEL

FCC COMPLIANCE STATEMENT
CE COMPLIANCE STATEMENT
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful inter-
ference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC INFORMATION: This equipment has been tested and found to
comply with the limits for a Class A digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commer-
cial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the in-
struction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful in-
terference in which case the user will be required to correct the interference
at his own expense.
CAUTION: Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil nume
`
rique de la classe A est conforme a
´
la norme NMB-003 du
Canada.
WARNING
This is a Class A product. In a domestic environment this product may cause
radio interference in which case the user may be required to take adequate
measures.
CAUTION
RISK OF EXPLOSION IF BATTERYIS REPLACED BYAN INCORRECT TYPE.
DISPOSE OF USED BATTERIESACCORDING TO THE INSTRUCTIONS.

IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the third prong is provided for
your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by
the manufacturer, or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for
long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.
15. CAUTION –THESE SERVICING INSTRUCTIONS ARE FOR USE BY QUALIFIED
SERVICE PERSONNEL ONLY. TO REDUCE THE RISK OF ELECTRIC SHOCK DO
NOT PERFORM ANY SERVICING OTHER THAN THAT CONTAINED IN THE
OPERATING INSTRUCTIONS UNLESS YOU ARE QUALIFIED TO DO SO.
16. Use satisfy clause 2.5 of IEC60950-1/UL60950-1 or Certified/Listed Class 2
power source only.
17. ITE is to be connected only to PoE networks without routing to the outside plant.

Quick Guide
Overview
1
Table of Contents
Table of Contents ......................................................................................................................................1
1. Overview..................................................................................................................................................3
1.1 Package Contents ...........................................................................................................................4
1.2 Decoder Description........................................................................................................................4
2. Installation ...............................................................................................................................................6
2.1 Starting System ..............................................................................................................................6
2.2 Quick Setup ...................................................................................................................................7
2.2.1 Account ..............................................................................................................................7
2.2.2 System ...............................................................................................................................8
2.2.3 Network..............................................................................................................................9
2.2.4 Time/Date...........................................................................................................................9

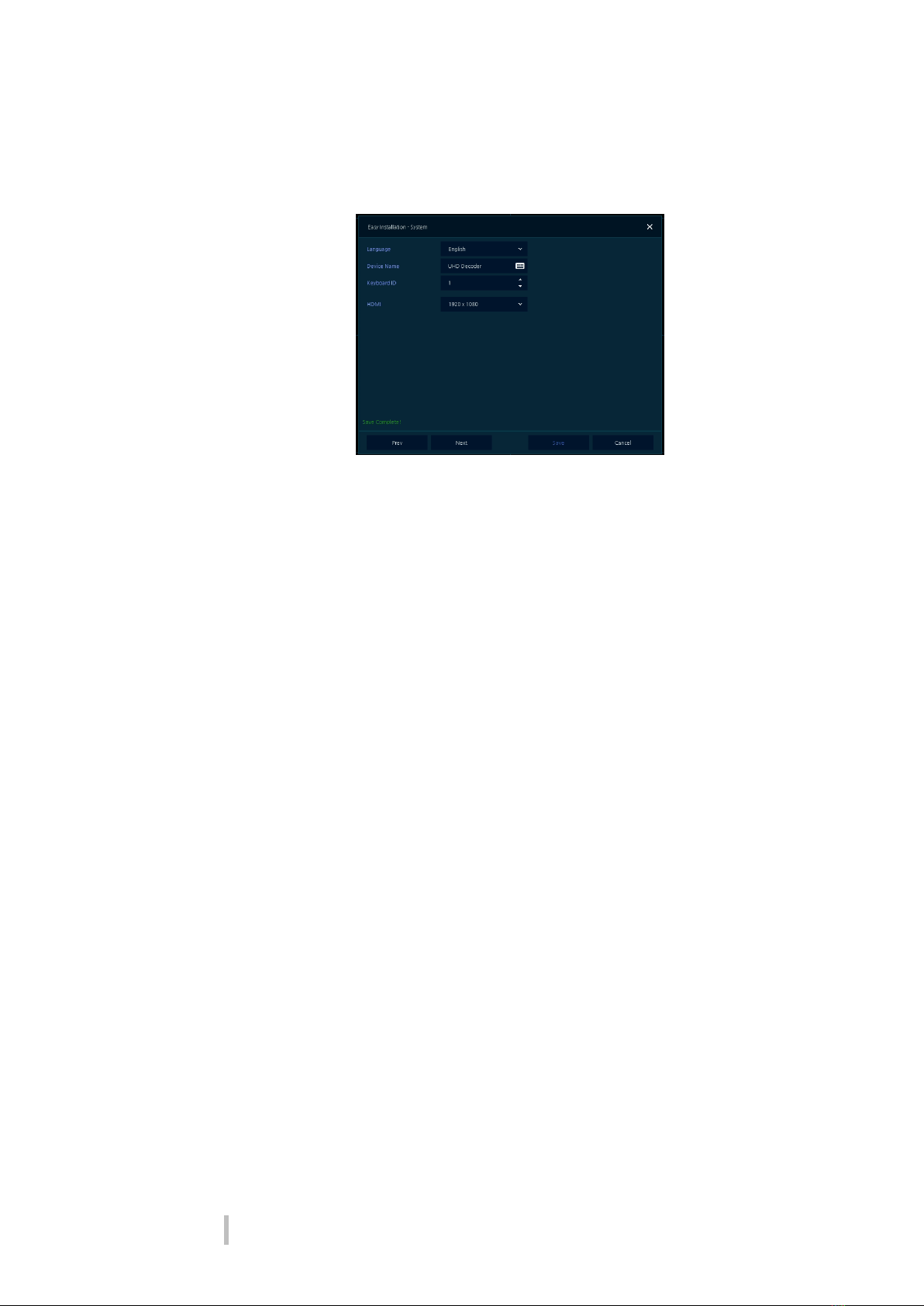

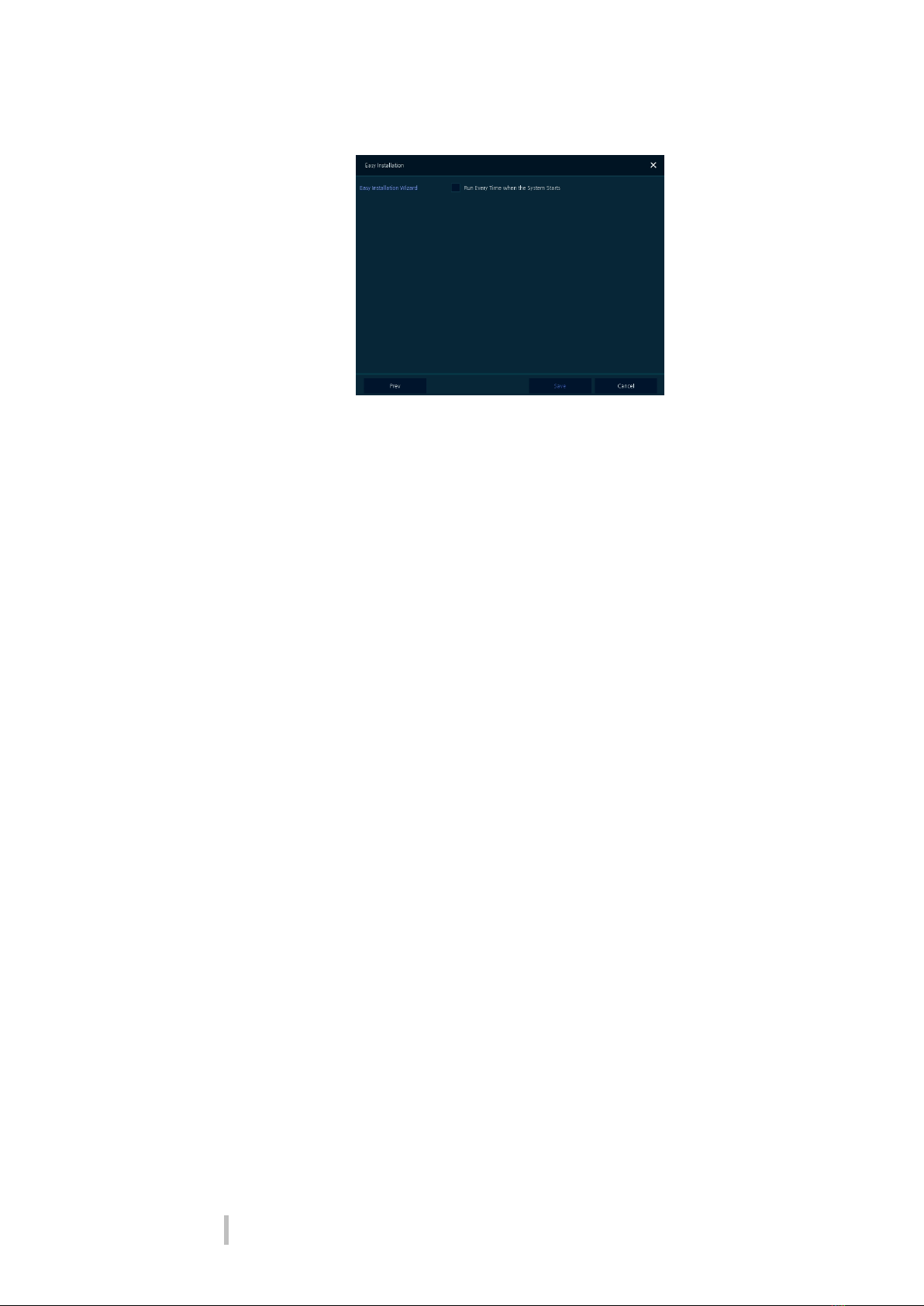

2.2.5 Easy Installation Wizard .....................................................................................................10
3. Live Screen Configuration ........................................................................................................................11

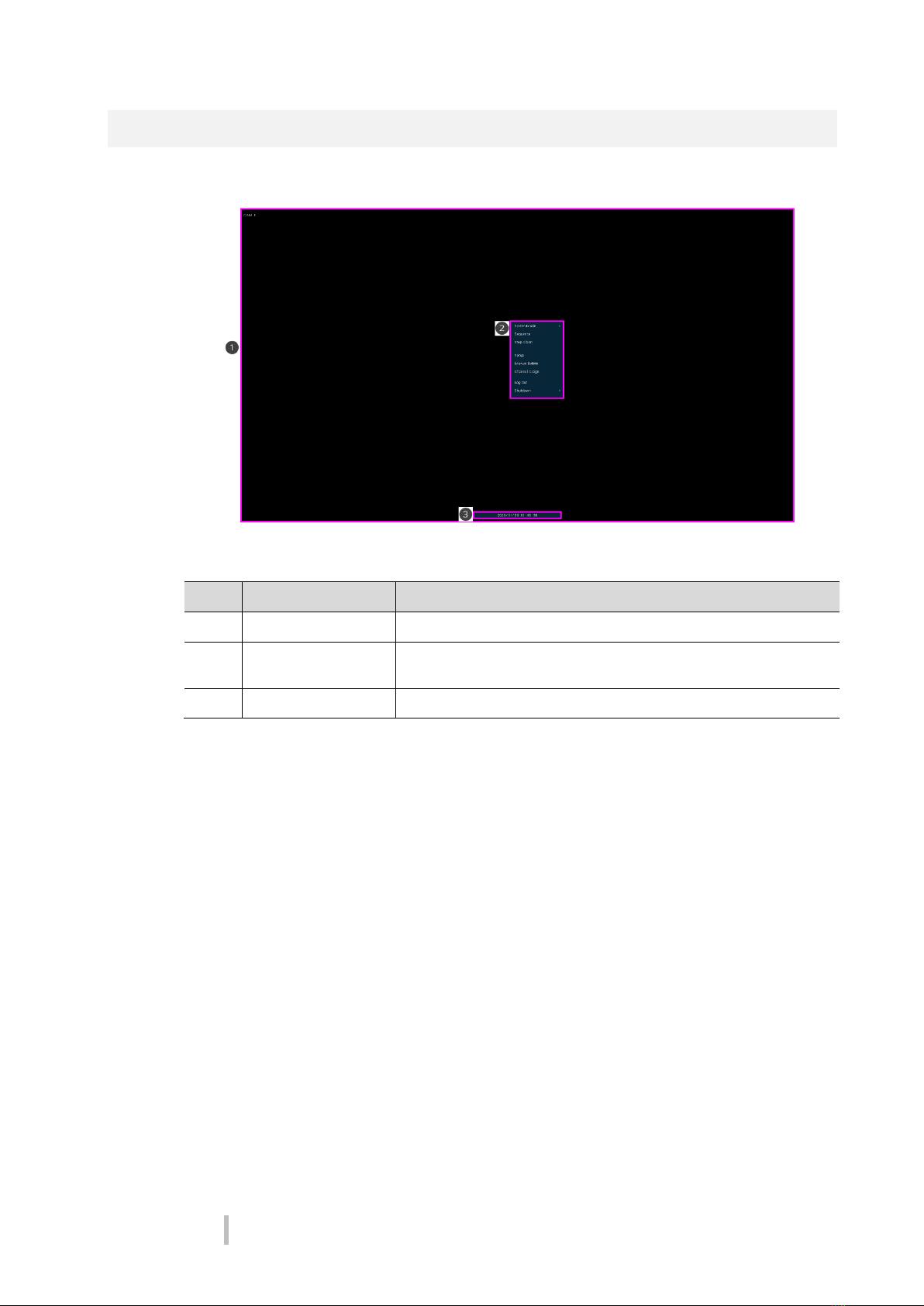

3.1 Icons in Live screen ...................................................................................................................... 12

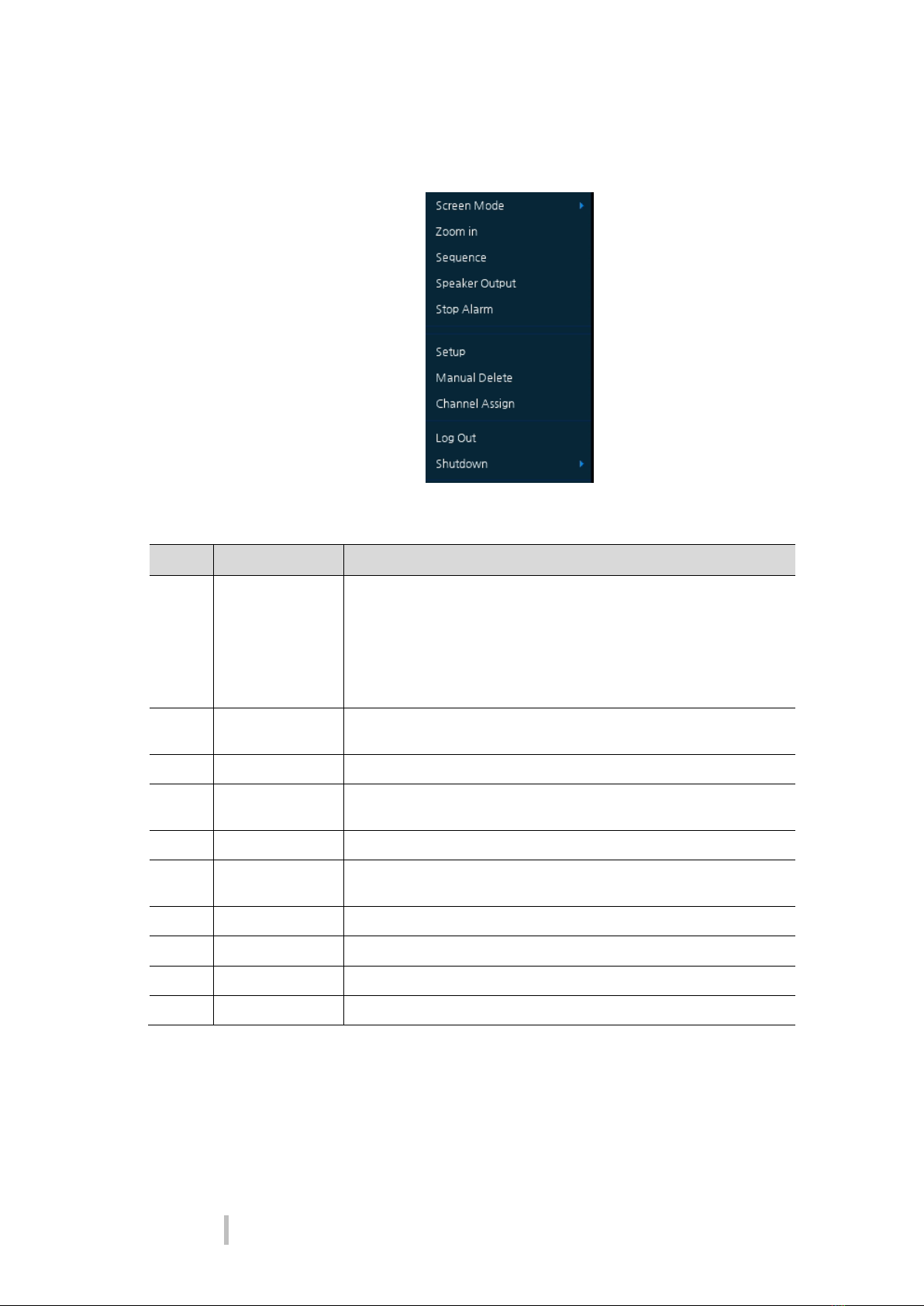

3.2 Quick menu.................................................................................................................................. 13
3.2.1 Channel Assign .................................................................................................................. 14
4. Setup menu............................................................................................................................................ 15
4.1 General buttons in Setup menu................................................
4.2 SYSTEM.................................................................................

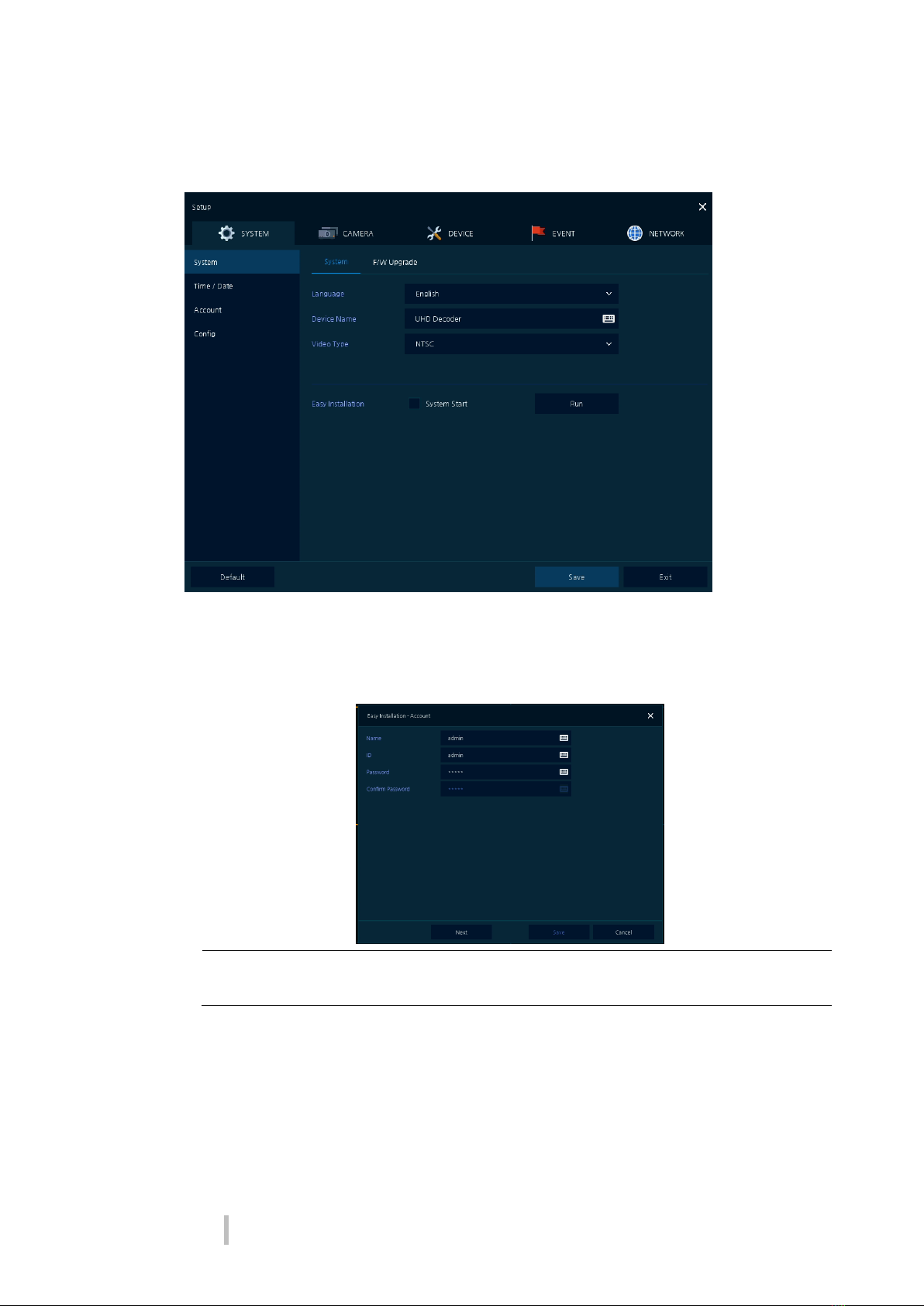

4.2.1 System ....................................................................
4.2.2 Time/Date................................................................
4.2.3 Account > User ........................................................
4.2.4 Configuration (Config) ...............................................
4.3 CAMERA ................................................................................
4.3.1 Channel ...................................................................
4.4 DEVICE .................................................................................
4.4.1 Display.....................................................................
4.4.2 Serial Device ............................................................
4.5 EVENT...................................................................................
4.5.1 Alarm In ..................................................................
4.5.2 Motion .....................................................................
4.5.3 Video Loss................................................................
4.6 NETWORK .............................................................................
4.6.1 Basic .......................................................................
5. Web Setup.............................................................................................................................................. 16
5.1 Log In ......................................................................................................................................... 16

Quick Guide
Overview
2
5.2 General buttons in Setup menu ...................................................................................................... 17
5.3 SYSTEM ..............................................................................
5.3.1 System ....................................................................
5.3.2 Time/Date................................................................
5.4 CAMERA .............................................................................
5.4.1 Channel Assign .........................................................
5.5 DEVICE...............................................................................
5.5.1 Display.....................................................................
5.5.2 External ...................................................................
5.6 EVENT ................................................................................
5.6.1 Alarm In ..................................................................
5.6.2 Motion .....................................................................
5.6.3 Video Loss................................................................
5.7 NETWORK .............................................................................
5.7.1 Basic ...........................................................................
6. Product Specification ......................................................................

Quick Guide
Overview
3
1. Overview
This chapter describes device overview, components and their terms and features.
This product is a device that displays images transmitted from an IP camera on monitor.
The device features include the following:
Convenient UI from user’s viewpoint
16 IP camera input
Providing H.264, H.265 compression
Support dashboard display
4K resolution support
Remote control through a network or local monitor

Quick Guide
Overview
4
1.1 Package Contents
The device package contents consist of the following:
Note
Please check all components involved.
Table 1-1 Package contents
No
Name
No
Name
1
Decoder
2
Mounting Bracket
3
DC 12V Adaptor
4
Bracket fixing screw
5
Quick guide
6
Program CD
1.2 Decoder Description
Each part is listed in the below:
Figure 1-1 Name and Connection of each front section
Table 1-2 Name and Function of each front section
No.
Name
Function
1
USB port
USB port is connected for USB mouse or firmware upgrade.
2
Micro SD
Store media file.
3
LAN LED
Pointing out network in connection.
4
Power status LED
Pointing out device on/off.
5
USB port
USB port is connected for USB mouse or firmware upgrade, and data
back-up.

Quick Guide
Overview
5
Figure 1-2 Name and Connection of rear section
Table 1-3 Name and Function of rear section
No.
Name
Function
1
NETWORK
Network connector for IP Camera and CMS.
2
AUDIO OUT
Audio output port.
3
CVBS
CVBS(Spot Video) output port.
4
HDMI
HDMI output port.
5
ALARM OUT
Alarm output connector.
6
DC12V
Power supply connector.

Quick Guide
Installation
6
2. Installation
You can fix the product on the wall using the supplied bracket.
Refer to the drawing below for the hole position of the bracket.

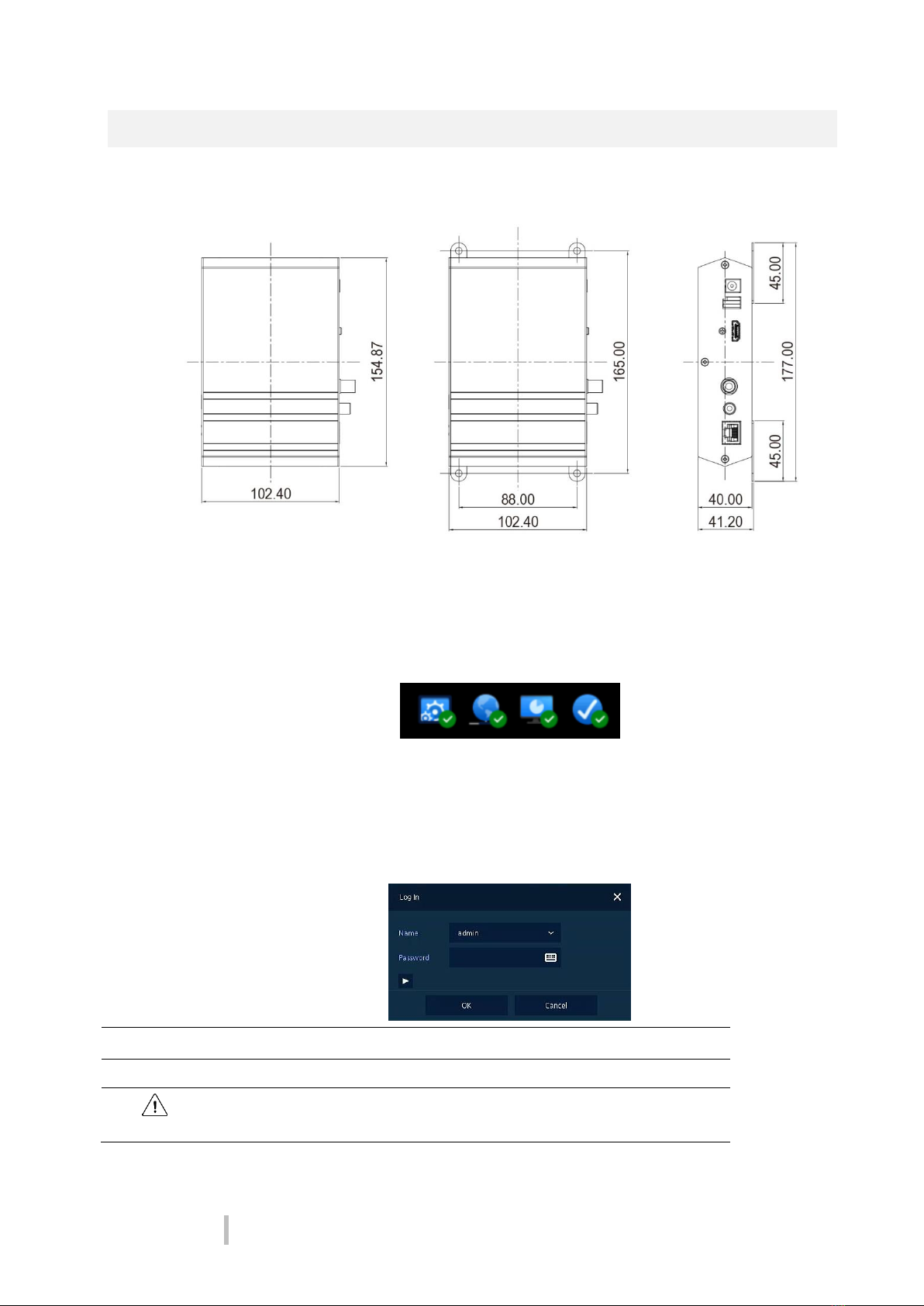

Figure 2-1 Dimension
2.1 Starting System
Power supply begins with system operation as follows:
1 Switching on initialize with below icons in order.
2 With buzzer sounds, the start screen is presented.
3 In Log in screen, enter the ID, Password and press OK.
Note
Default ID & Password is admin/admin.
Attention
Please change password after login due to security.
