Country Flame Corn & Pellet User manual

Little Rascal Harvester Crossfire
A. Stove body height 22.75" 22.75" 19.50"/ 22.75"
B. Height on legs 31.25" 31.25" N/A
C. Width at rear 26" 25.50" 24"
D. Widest point 26" 30.75" 29"
E. Stove depth 19.75" 24.50" 24.20"
F. Insert extension on hearth N/A N/A 10"
G. Extension into fireplace N/A N/A 14.20"
Stove Clearances Little Rascal Harvester
J. Side to combustible 1" 2"
K. Back to combustible 1" 2"
L. Corner to combustible 1" 2"
NOTE: Combustible flooring within 6"(P) of the front and within
8"(Q) of each side of the ash removal door must be covered with
non-combustible material per manufacturer’s specifications. The
floor protection on the sides of the stove only has to extend to the
vertical side wall(s) if the clearance is less than 8 inches.
Alcove: Side and back clearances are the same as stove
clearances. Minimum alcove height 7ft. Maximum alcove depth 4ft.
Features Little Rascal Harvester Crossfire Pellet Crossfire Corn
Fuel type Pellet Corn and/or Pellet Pellet Corn and/or Pellet
Up to BTU/hr 40,500 50,000 Corn 40,500 54,000 Corn
Hopper capacity 45 lbs. 75 lbs. 55 lbs. 75 lbs.
Igniter Yes No Yes No
Firepot agitator No Yes Yes Yes
Heating capacity 1,200-2,000 sq. ft. Up to 2,500 sq. ft. Up to 2,000 sq. ft. Up to 2,500 sq. ft.
Combustion efficiency 99% 97% 99% 97%
Weight 275 lbs. 404 lbs. 230 lbs. 230 lbs.
Venting size - direct exhaust 3" 3" 4" 4"
Heavy duty heat exchanger 14 tube 15 tube 14 tube 14 tube
Room air blower 160 cfm 160 cfm 160 cfm* 160 cfm
Intelli-Choice™ control board Standard Standard Standard Standard
Heat level settings 5 5 5 5
Thermostat ready Yes Yes Yes Yes
Mobile home approved Yes Yes Yes Yes
Clean glass air wash equipped Yes Yes Yes Yes
Zero-clearance box approved N/A N/A Yes Yes
*Blower on the Crossfire Pellet insert is controlled by a manual rheostat.
Special Notes: Crossfire must be installed on non-combustible surface (see installation manual).
Insert Clearances Crossfire*
M. Side to combustible 7"
N. Mantel (combustible) to top of unit 9.25"
O. Hearth extension in front of door** 6"
* Must be installed on non-combustible surface
(see installation manual).
** See owner’s manual for fireplace size requirements.
Crossfire Shroud Dimensions Standard Oversized
H. Height 29.50" 32.50"
I. Width 42" 48"
Mantel / Fascia / Top Trim
V1001A
Side Wall
E
AB
Stove
H
I
Crossfire Insert
A
A
Crossfire Insert
FG
front
rear
Shroud
C
D
Top View
150 Michigan St. S.E., Hutchinson, MN 55350
Phone: [phone] Fax: [phone]
[email protected]
www.countryflame.com

The Little Rascal Pellet Stove is designed with the
same Country Flame technology that has made our
pellet stoves some of the most popular in the industry.
Smaller in size, yet it heats like the big boys.
Designed for warmth, efficiency, and versatility, the Harvester
offers you the option of burning corn or wood pellets.
Innovative Country Flame combustion technology combines
a large heating capacity with easy maintenance and elegant
looks, making the Harvester a uniquely attractive source of
home comfort.
Little Rascal
• 99% Efficiency
• Max Heating Capacity: 40,500 BTU
• Heavy Gauge Steel Construction
• 275 Pounds
• Hopper Size: 45 Pounds
• Black, Gold, or Nickel Door & Leg Options
• Electronic /Automatic Ignition
• Intelli-Choice™ Touch Pad Control
• 5 Heating Level Settings
• Air Wash Equipped for Cleaner Glass
• Room Air Blower Standard 160 CFM
• Mobile Home and Alcove Approved
• Thermostat Ready
• 97% Efficiency
• Max Heating Capacity: 50,000 BTU
• Heavy Gauge Steel Construction
• 404 Pounds
• Hopper Size: 75 Pounds
• Black, Gold, or Nickel* Door & Leg Options
• Anti-Clinker Stainless Steel Stir Rod
• Intelli-Choice™ Touch Pad Control
• 5 Heating Level Settings
• Air Wash Equipped for Cleaner Glass
• Room Air Blower Standard 160 CFM
• Mobile Home and Alcove Approved
• Thermostat Ready
*Nickel trim by special order only
• Efficiency: 97% (Corn), 99% (Pellet)
• Max Heating Capacity: 54,000 BTU (Corn)
40,500 BTU (Pellet)
• Heavy Gauge Steel Construction
• 230 Pounds
• Hopper Size: 75 lbs. (Corn), 55 lbs. (Pellet)
• Black, Gold, or Nickel* Door & Trim Options
*Nickel trim by special order only
Crossfire-P

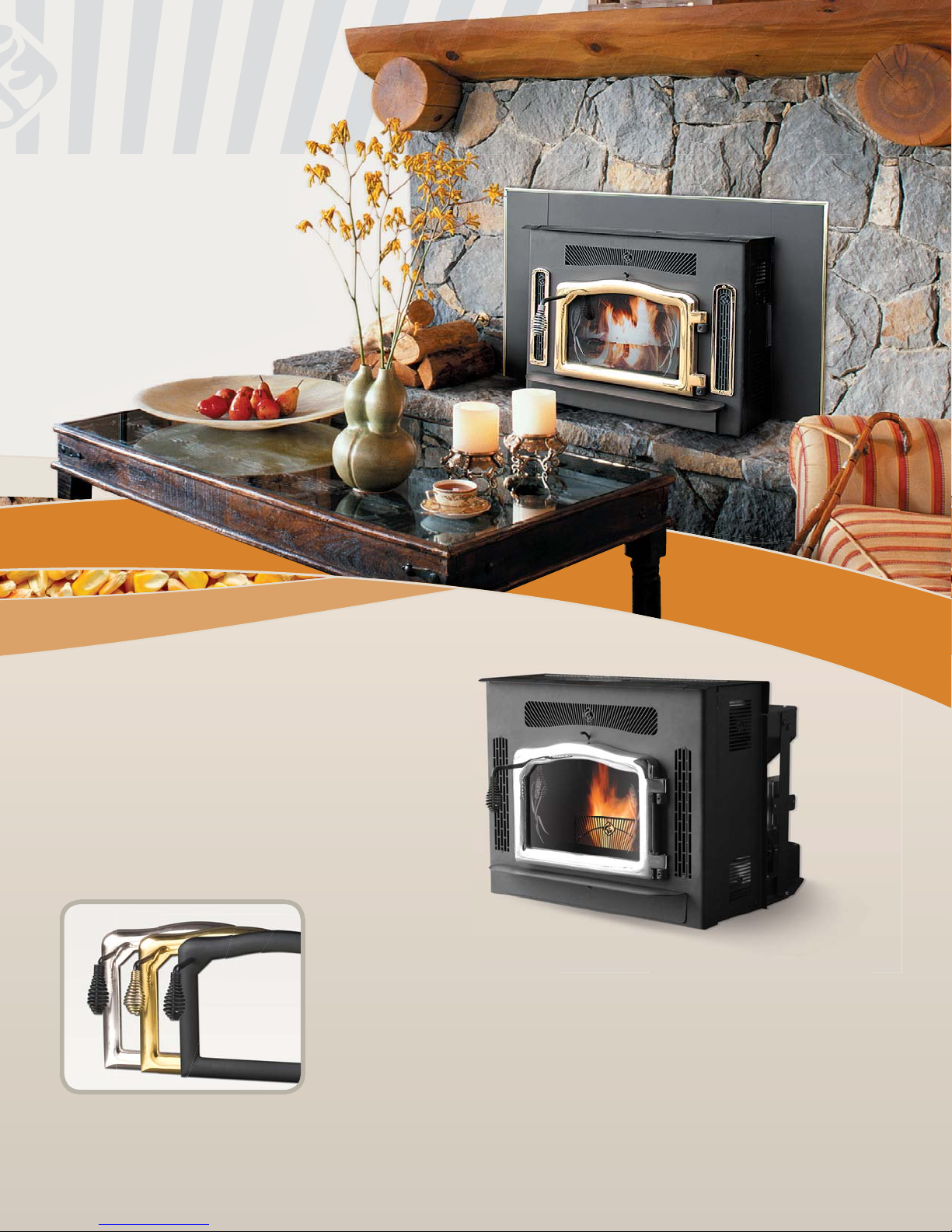

The Crossfire Fireplace Insert
can be configured to burn corn
or wood pellets (choose your
preferred fuel when ordering).
This efficient, safe heat source
will add beauty and comfort to
your home.
Crossfire Fireplace Inserts come with five heating
level settings, and offer the option of being
thermostatically controlled. Both models are
approved for use with zero-clearance fireplaces.
CORN burning
PELLET burning
Harvester
Country Flame
stoves and inserts
come thermostat
ready, allowing
you to choose yet
another efficient
option. Install
a thermostat
along with the
stove or insert for
convenience and
savings.
Crossfire-C
Three door options: Black, Gold, or Nickel
• Anti-Clinker Stainless Steel Stir Rod
• Intelli-Choice™ Touch Pad Control
• Air Wash Equipped for Cleaner Glass
• Room Air Blower Standard 160 CFM
• Mobile Home Approved
• Approved for Installation into Zero-
Clearance Fireplaces
• Thermostat Ready
) 99% (P ll t)
A ti Cli k St i l St l Sti R d
