INSTRUCTIONS FOR INSTALLATION USE AND MAINTENANCE
GB

2
1 INSTALLATION
(SECTION DEDICATED TO THE INSTALLER)
1.1 RULESAND REGULATIONS
1.2 PRELIMINARY OPERATIONS
1.3 POSITIONING THE APPLIANCE
1.4 PROTECTION OF THE FLOOR
1.5 SAFETY DISTANCE
1.6 CONNECTIONS
1.7 CHIMNEY OR CHIMNEY FLUE
1.8 CONNECTION OF THEAPPLIANCE TO THE CHIMNEY FLUEAND EVACUATION OF COMBUSTION PRODUCTS
1.9 CHIMNEY COWL
1.10 MAKING THE CONNECTION TO THE CHIMNEY FLUE
1.11 TAKING COMBUSTION AIR FROM THE INSTALLATION ROOM
2 USE (SECTION DEDICATED TO THE USER)
2.1 IMPORTANTWARNINGS
2.2 FUEL
2.3 INFORMATION ON FIREWOOD
2.4 STARTING UP
2.5 LOADING THE FUEL
2.6 LIGHTINGAND USE
2.7 LIGHTING UP
2.8 LOADING AND RE-LIGHTING WITH EMBERS
2.9 SHAKING THE FIREBOX GRATE
2.10 ASH BOX

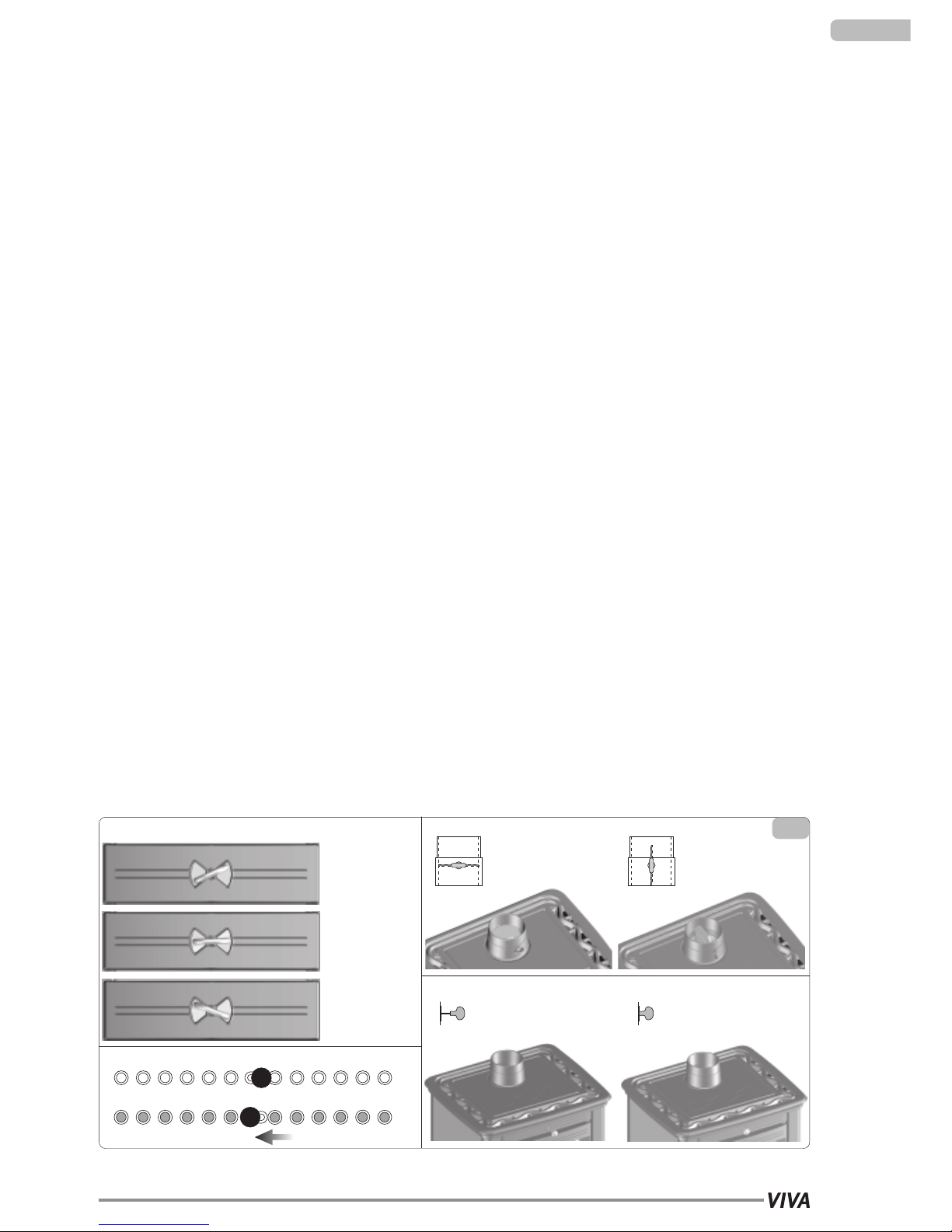

2.11 ADJUSTMENTS
3 MAINTENANCE (SECTION DEDICATED TO THE USER)
3.1 FUNDAMENTAL PRECAUTIONS
3.2 ORDINARY MAINTENANCE
3.3 EXTRAORDINARY MAINTENANCE (TO BE PERFORMED BY QUALIFIED PERSONNEL)
3.4 ACCESSORIES
3.5 CLEANING INSIDE HEAT RETENTION SYSTEM
TROUBLESHOOTING
TECHNICAL CHARACTERISTICS
3
3
3
3
3
4
4
4
5
5
5
6
7
7
7
7
8
8
8
9
9
9
9
9
10
10
10
10
10
10
11
11
APPLIANCE MANUFACTURED IN COMPLIANCE WITH THE EUROPEAN COMMUNITY DIRECTIVES APPLICABLE FOR THE CE
MARK. APPLIANCE FOR SOLID FUEL: FIREWOOD

3
INSTALLATION
(SECTION DEDICATED TO THE INSTALLER)
RULES AND REGULATIONS
· Read this manual carefully as it contains important indications and instructions concerning the installation, use, maintenance and
safety of the product.
· This appliance must only be installed and used in a room deemed suitable by the specific authorities and in compliance with the
relevant rules and regulations.
·The technological systems and the installation of the appliance must be done by professional qualified personnel authorised to
release the certificate of conformity and compliance with the regulation in force.
· All the laws, rules and regulations in force concerning civil and industrial buildings must be respected, always using PPE and other
means foreseen by law.
· All laws, rules and regulations concerning the systems, chimney flues, electricity, water, ventilation and aspiration must be respected.
· The manufacturer declines all responsibility arising from incorrect installation, tampering, incorrect use of the
appliance, improper use, poor maintenance, and failure to respect regulations in force.
PRELIMINARY OPERATIONS
· Carefully remove the packing.
· The packing material must be recycled by disposing in the special containers or in the local municipal waste disposal site.
· Before installation, make sure that the appliance is intact, in case of doubt, do not use it and contact the vendor.
· Take the containment grill inside the firebox and position it in the special seats as illustrated in figure 1A.
· Take the smoke discharge collar inside the firebox and place it in the special seat in the upper plate as shown in figure 1B.
POSITIONING THE APPLIANCE
· The place where the appliance is installed must have:
- A floor suitable for supporting a weight greater than that of the appliance. If the existing building is not suitable, appropriate
measures must be taken (e.g. a load distribution plate);
- Flooring suitable for heat dispersion which protects the building against fire risks;
- The installation of the appliance must guarantee easy access for its cleaning, the cleaning of the exhaust gas ducts and the
chimney flue;
- The appliance must be positioned on a horizontal surface;
- A minimum distance from adjacent inflammable material;
- A permanently ventilated room in accordance with the regulations in force.
PROTECTION OF THE FLOOR
· The appliance must rest on a refractory surface. In the case of inflammable flooring (wood, carpet, etc.) prearrange a refractory
base (steel sheet, tiles or similar) with the following size:
- Frontal protrusion ≥≥
≥≥
≥500 mm;
- Side protrusion ≥≥
≥≥
≥300 mm;
- Rear protrusion ≥≥
≥≥
≥100 mm.
1
1.1
1.2
1.3
1.4
1
1
A B

4
1.5
1.6
1.7
1

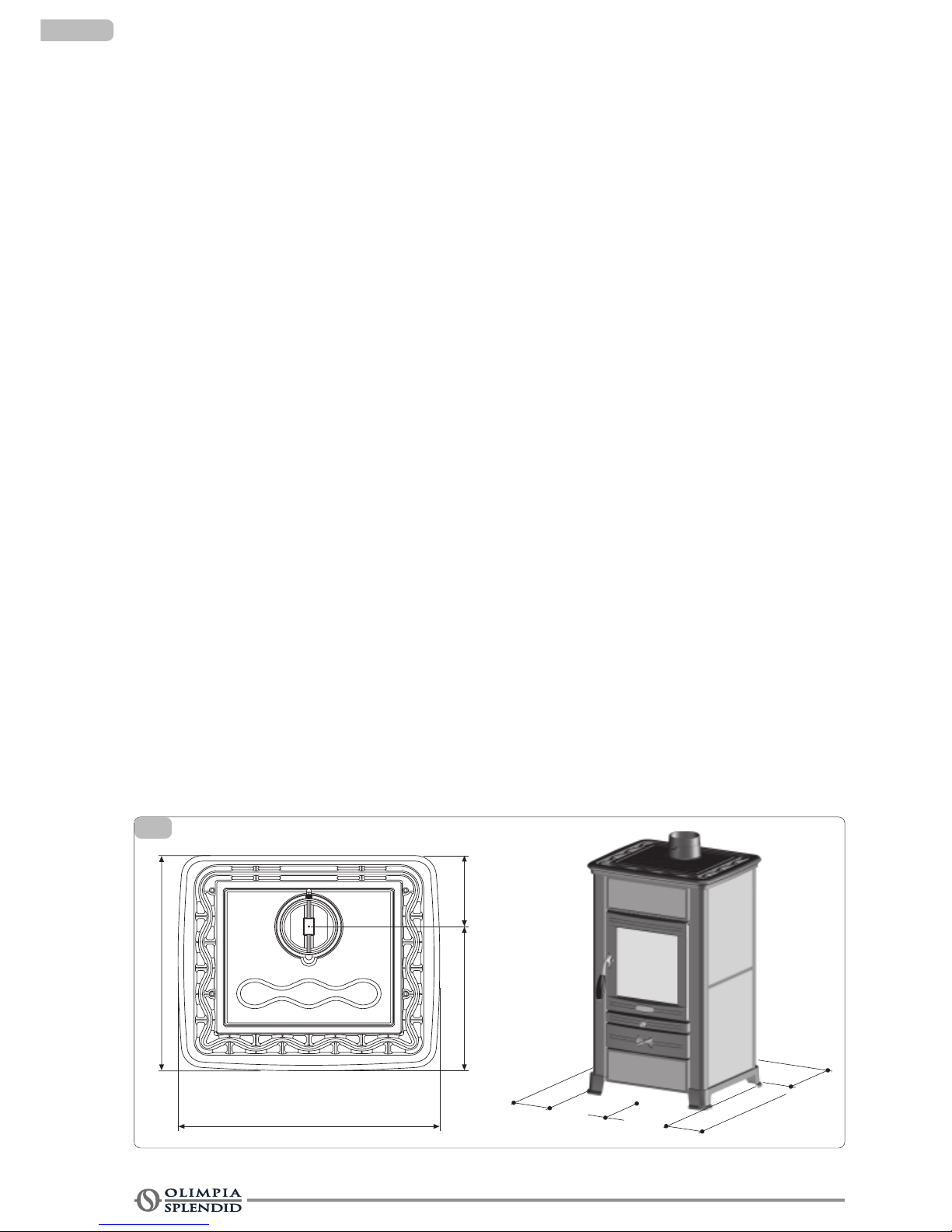

SAFETY DISTANCE
· From inflammable objects and support walls in armed concrete:
- A > 1000 mm B > 550 mm C > 500 mm
· Any inflammable objects placed above the appliance must be kept at a safe distance: at least 2 metres.
Always take measurements from the outside surface of the appliance (fig. 2).
CONNECTIONS
· Before connecting the appliance, make sure that the data indicated on the data plate meets the needs of the purchase.
· All the biomass heating appliances, in this case, wood stoves, by law must have a chimney flue, built in compliance with regulations on
force, for the evacuation of exhaust fumes.
· The points described below are norms of good construction and installation. They refer to regulations in force (at the time of printing of
this manual) but are not exhaustive in matters of systems and installation.
CHIMNEY OR CHIMNEY FLUE
· The chimney or chimney flue must respect the following requirements:
- It must seal in the exhaust fumes, be water-tight and suitably insulated and isolated in accordance with the conditions of use (UNI
9615);
- It must be made in materials that can resist normal mechanical tress, heat and the action of the products of the combustion and
possible condensation;
- Must be prevalently vertical with deviations of not more than 45° from the axis;
- It must be adequately distanced from combustible or inflammable materials with a cavity or else suitable insulation
- The internal section must preferably be circular; squared or rectangular sections must have rounded corners with a radius not less
than 20 mm;
- It must have a constant internal section that is free and independent;
- Rectangular sections must have a maximum ratio between sides of 1:5;
- The indications given by the manufacturer on the section and construction characteristics of the chimney/flue must be followed. For
particular sections, section or routing variations, check the working efficiency of the exhaust fumes system using the fluidodynamic
calculation (UNI 9615).
- It is recommended that the smoke duct be fitted with a chamber for the collection of solid material and any condensation, located under
the opening of the smoke duct so that it can easily be opened and inspected through the airtight inspection door.
- In case of a fire in the chimney flue, use suitable systems to suffocate the flames (e.g. use a powder or carbon dioxide extinguisher)
and request an intervention of the Fire Brigade.
2
1232
1039
343
696
A
B
C
B

5
1
CONNECTION OF THE APPLIANCE TO THE CHIMNEY FLUE AND EVACUATION OF COMBUSTION PRODUCTS (see legislation UNI
10683)
· The connection between the appliance being used and the chimney flue must receive exhaust fumes from one heat source only.
· An appliance can consist of a fireplace and cooking oven with a single exhaust point to the chimney for which the manufacturer must
provide the construction characteristics of the connections to the smoke ducts.
· It is forbidden to convey exhaust from hoods above cooking appliances in the same smoke duct.
· The discharge towards closed spaces is forbidden, even if they have an open ceiling.
· The direct discharge of exhaust products must be envisaged on the roof and the chimney flue must have the previously mentioned
features.

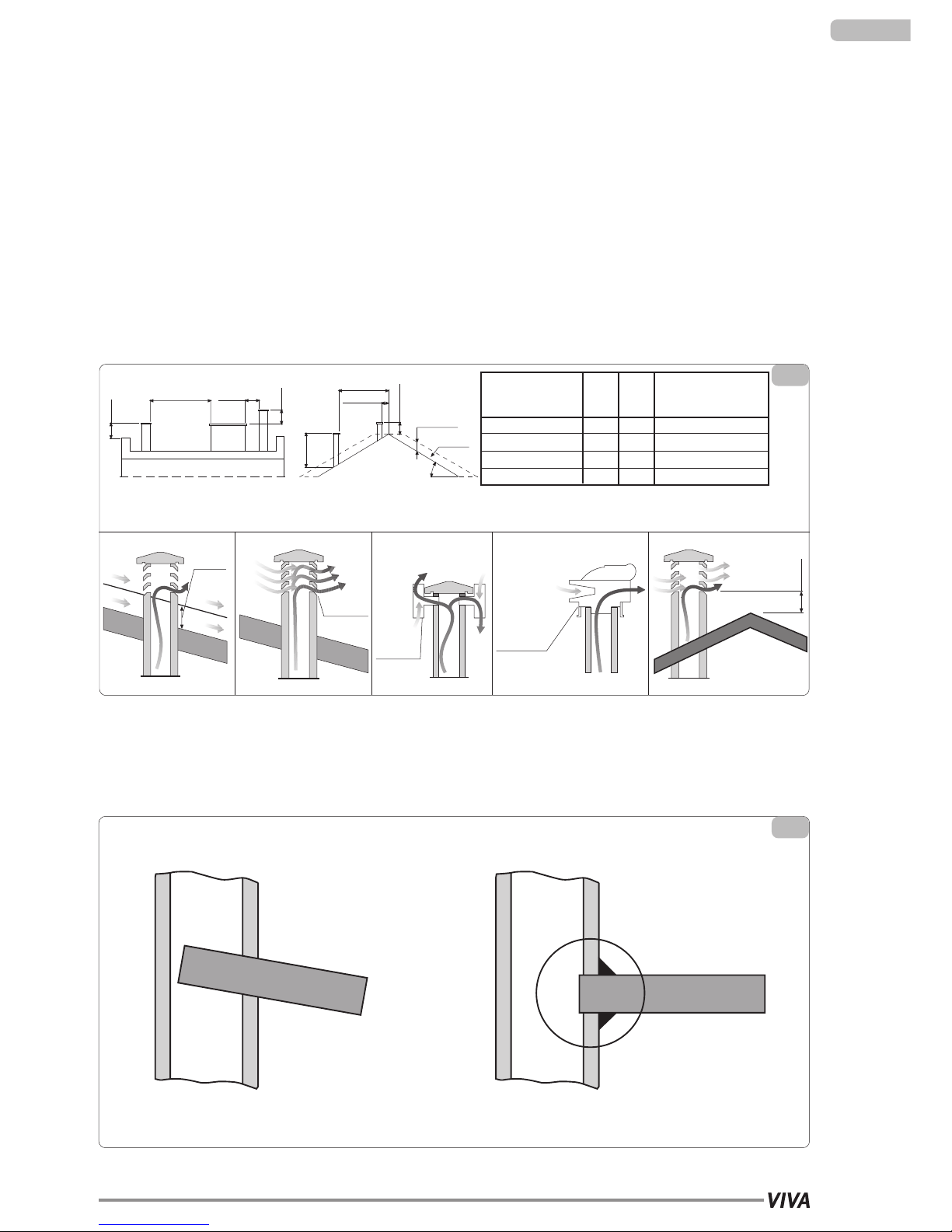

CHIMNEY COWL
· The chimney cowl must have the following features:
- It must have an internal section equal to that of the chimney flue;
- The useful outlet section must not be less than twice that of the chimney flue;
- It must be built so that it prevents the entry into the chimney of rain, snow and foreign bodies and in such a way that even in the case
of winds blowing from all sides or angles the discharge of the combustion products is ensured;
- It must be positioned so that it guarantees an adequate dispersion and dilution of the combustion products and in any case, outside
the backflow zone where the formation of counter pressure can occur. This zone has different size and formation depending on the
inclination angle of the roof and therefore it is essential that the minimum heights indicated in the designs (fig. 2) are respected.
MAKING THE CONNECTION TO THE CHIMNEY FLUE
· Connect the appliance to the chimney flue of the existing chimney, making sure that the smoke outlet pipe does not take up the free
space of the chimney flue (fig. 3)
· Only use pipes suitable for the dispersal of combustion fumes
Limit the horizontal sections of the duct joints to the chimney flue (max.1 metre) and the use of curves.
1.8
1.9
1.10
3
NO YES
Do not push the pipe too deeply into the chimney flue.
The inlet hole of the pipe
in the flue must be sealed
0,50 m
d ³ 5 m
0,50 m
d £ 5 m
H min.
distanza > A
distanza £ A
0,50 m oltre il colmo
Altezza zona
di refl sso Z
Zona
di refl sso
C
2
Backflow
area
Windproof
chimney
cowl
Windproof
chimney
cowl
Rotating
chimney
cowl (wind
vane type)
for areas
s bject to
strong winds
³ 0,50 m
Roof inclination
C (°)
Height of backflow
Z (m)
A
15 1,85 1,00 0,50
30 1,50 1,30 0,80
45 1,30 2,00 1,50
60 1,20 2,50 2,10
H
For chimney cowls and the backflow zone, see UNI 7129

6
1
TAKING COMBUSTION AIR FROM THE INSTALLATION ROOM
· The appliance must be able to obtain the air necessary to guarantee regular operation through an external air vent.
· The air vents must respect the following requirements:
a) Minimum total free section of 200 cm²;
b) Direct connection with the installation room
c) Must be protected with a grill, a metallic net or a similar protection guard so long as it does not reduce the minimum section
mentioned in point a) and is so positioned that they cannot be obstructed.
· The airflow can also be obtained from an adjacent room to that of the installation as long as this flow happens freely through
permanent outlets communicating with the outdoors. No negative pressure must be caused in the room next to that of the installation
as a result of the air sucked out together with similar activity from another appliance or aspiration device.
· The permanent openings in the adjacent room must comply with the requirements in points a) and c).
· The adjacent room must not be used as a garage, warehouse for combustible material or for any type of activity with risk of fire.
N.B: When air extraction fans are used in the same room or in areas close to the appliance, this could affect the
functioning.
N.B: The room where the appliance is installed must not be put in negative air pressure due to (for example): suction
hoods, chimneys, flues etc. present in the same room or adjacent connecting rooms.
1.11

7
2
USE
(SECTION DEDICATED TO THE USER)
IMPORTANT WARNINGS
· Read this manual carefully as it contains important indication and instructions concerning the use, maintenance and safety of the
product.
· All parts of this manual must be read and fully understood. Failure to do so shall be considered as improper use of the appliance
which is tantamount to incorrect use of the appliance.
· Keep this manual in a safe place so that it is always available for future reference.
· The appliance must only be used for the purposes for which it has been specifically designed, all other uses are improper and
therefore dangerous.
· The appliance must not be used as an incinerator.
· When operating, this appliance generates very high temperatures on some surfaces, both outside and inside, so always pay
attention as these surfaces can be touched by the user.
· The entire appliance should be considered as an active thermal exchange zone with hot surfaces so adequate precautions need to
be taken to avoid direct contact with children, disabled persons, animals etc.
· When opening the firebox door, the ash box door and moving the various adjusters, use the tools supplied with the appliance.
· For correct functioning of the heater the firebox door and the ash box door should be kept closed and the rings on the head mounted
correctly. If the glass on the firebox door is broken or cracked, or if it is not working correctly, the appliance cannot be used until the
fault is corrected.
· Do not block the openings or aspiration and heat dispersion slats.
· All repairs or replacements of worn components must only be carried out by a qualified service centre. Only use original pare parts.
· All unauthorised tampering or modifications are forbidden.
· When installing the application, all local legislation, including that mentioned in the European and National Regulations, must be
respected.
· All the safe distances from inflammable material and all instructions contained in installation chapter 1 must be respected.
FUEL
· The appliance is only designed to use:
FIREWOOD
· N.B. The use of liquid fuel or coal is not allowed.
Also forbidden is the use of solid fuel other than wood such as straw, corn, nuts, and pinecones. The use of pallets,
wood chips or types of wood, such as: acacia, conifer, fruit trees (including olive) can prejudice not only the working
efficiency but it can also damage parts of the appliance.
INFORMATION ON FIREWOOD
· wood intended for use as fuel is classified in accordance with UNI 9016 based on: PIECE SIZE - MATERIAL - HUMIDITY (see table)
· the wood that we have used for testing and that we recommend is: SEASONED BEECH in pieces 25-30 cm with N.C.V. (net calorific
value) 4.3 kWh/kg.
· To ensure perfect combustion the fuel must be kept in a dry place protected from dirt.
The thermal performance of wood is influenced by its relative humidity as a % (see graph in fig.4).
2
2.1
2.2
2.3
IDENTIFICATION
PIECE SIZE:
Discs - sticks
Chips-flakes
Sawdust-powder
MATERIAL:
Fir-Larch
Oak-beech
HUMIDITY %:
> 35
14÷35
< 14
WITH NUMBERS
1
2
3
1
2
1
2
3
WITH LETTERS
GROSS
FLAKES
FINE
CONIFER
BROADLEAF TREES
FRESH
PARTIALLY
SEASONED
SEASONED

8
2
STARTING UP
· The appliance must only be started up after the mounting and the connection of the smoke evacuation ducts has been completed. On
a new stove, the paintwork finish needs to be completely dried out, therefore we recommend that you carefully follow the instructions
below when first using the stove:
- When first using, the appliance could emit odours which might be unpleasant; we recommend that you ventilate the room to eliminate
these odours;
- The paint on the stove is only completely hardened after it has been used several times.
LOADING THE FUEL
· The appliance functions intermittently and therefore it needs to be fuelled up manually while it is operating;
· Perform the refuelling when the flame is low to avoid any unpleasant spillage of burnt product from the firebox door.

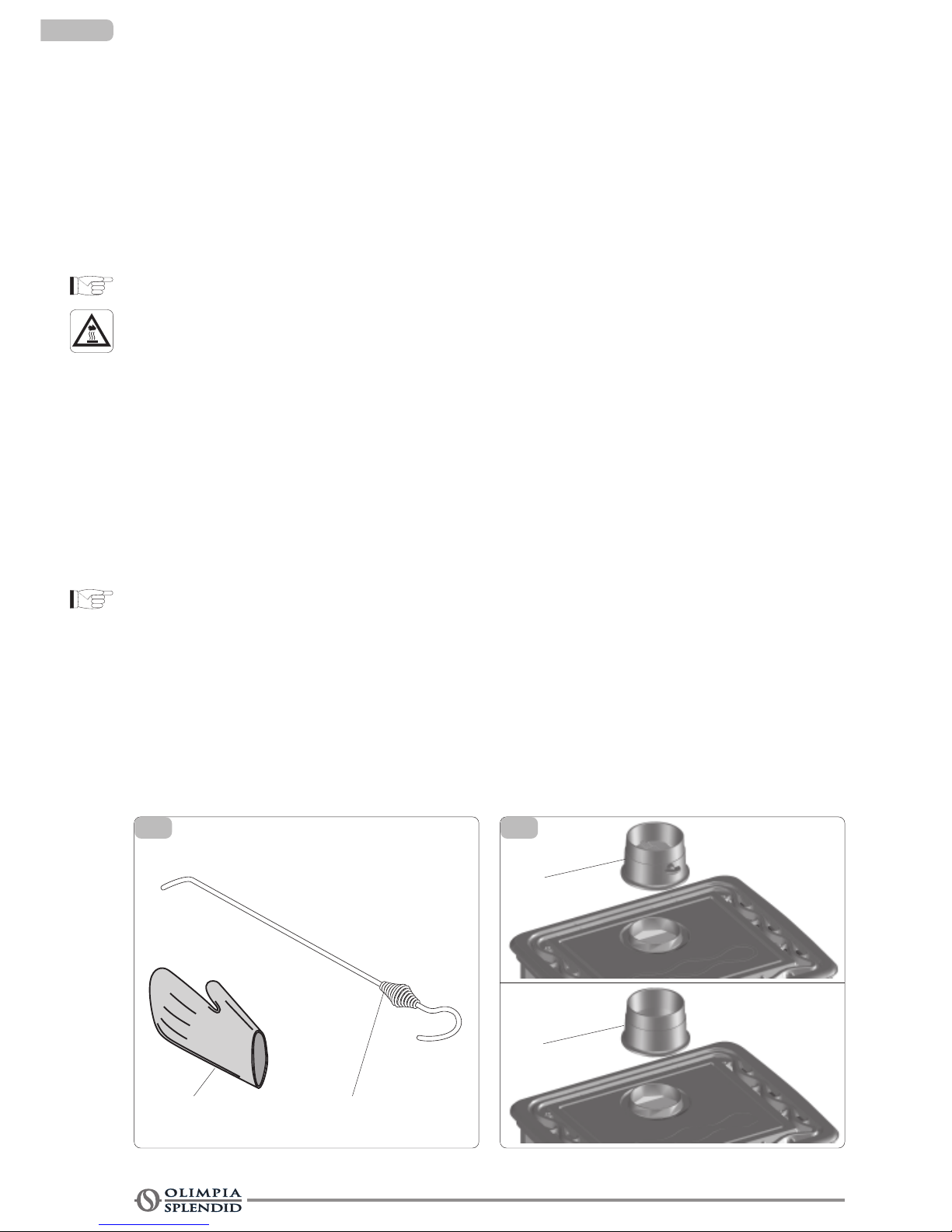

· To open the firebox door, use the tool supplied with the appliance.
LIGHTING AND USE
N.B. To light the stove, never use: alcohol, petrol or other inflammable liquids.
· When lighting up on a very cold day or with low pressure it is advisable to heat the flue by burning some newspaper in the stove.
· When adding fuel with the stove burning, always keep to the quantities indicated in the "Technical data" table.
4
METHANE
2,5 kg 1 kg 1 m3
2.4
2.5
2.6
==
5
4
3
2
1
0
0 10 20 30 40 50 60 70 80 90 100
WOOD ENERGY DEPENDING ON
HUMIDITY
R lativ humidity %
H at pow r (kWh/kg)
5
C
B
A
E
D

9
2
2.7
2.8
2.9
2.10
2.11
LIGHTING UP
· Put a firelighter cube or a small ball of newspaper on the brazier, then on top of this, place 0.5 kg of twigs or small split logs and 3 small
logs of wood. Using the accessories supplied, open completely the primary air inlet (fig. 5 ref. D) and the secondary air inlet (fig. 5 ref.
E) and the smoke valve (fig. 5 ref. A), then light the paper or firelighter with a match and close the firebox door.
· When the fire has caught and starts to grow add some slightly larger logs and gradually repeat this operation until reaching the hourly
load indicated in the "technical data" table; when the normal functioning is reached, set the adjustments of the primary and secondary
air inlets as indicated in the ADJUSTMENTS chapter.
· Remember that the loading must be done with a moderate flame to avoid any spillage of burnt product into the room.
· During prolonged operation, it is advisable to activate the grate-shaker to shake the ash from the brazier down into the ash collection
box.
LOADING AND RE-LIGHTING WITH EMBERS (Without a moderate fire)
When loading fuel without a moderate fire, but only some embers, proceed as described below:
· Use the poker to move the embers to the centre of the firebox
· Completely open the primary air inlet.
· Wait for a few minutes until in the firebox there is sufficient fire to restart
· Load some pieces of wood and wait until they are completely alight.
· Return the primary air control to the normal use position as indicated in the ADJUSTMENTS chapter
SHAKING THE FIREBOX GRATE
· By acting on the grate-shaking pole (fig. 5 ref. B) the residual ashes from the combustion will fall into the ashes box (fig. 5 ref. C) so that
the firebox is always "ready" for new loads of wood and that the primary air is introduced correctly into the firebox.
ASH BOX
· When the stove is cold and using the special glove, empty the ash from the ash box.
· The ash box is located under the firebox and can be accessed by opening the front door.
· The ash box must be emptied when the stove is cold. Take care a there could be hot ashes or embers present
· Always return the ash box into its space: using the stove without the box in place could be dangerous.
· If it is necessary to empty the ash box when the stove is still hot, although never with a flame present, always use the special glove.
ADJUSTMENTS
· To obtain a good compromise between thermal efficiency and fuel consumption the following positions are recommended: During normal
use, the fire intensity adjustment must be made using the primary air control and the secondary air control.
· The adjustment positions shown below refer to the appliance when it is already functioning normally and are purely indicative.
· The adjustments for an optimum efficiency of our appliance are:
- PRIMARY AIR INLET: closed
- UPPER SECONDARY AIR INLET: 1/2 open
- LOWER SECONDARY AIR INLET: 1/2 open
- SMOKE VALVE (VIVA): closed
- SMOKE VALVE (VIVA OVEN): 1/3 open
OPEN
HALF OPEN
CLOSED
PRIMARY AIR
SECONDARY AIR
CLOSED
OPEN
VIVA SMOKE VALVE
CLOSED OPEN
6
CLOSED OPEN
VIVA OVEN SMOKE VALVE

10
3
CLEANINGAND MAINTENANCE
(SECTION DEDICATED TO THE USER)
FUNDAMENTAL PRECAUTIONS
· The stove must be turned off and allowed to cool down to room temperature before performing any cleaning or maintenance operations.
· The checks on the state of the device must only be carried out by qualified personnel.
ORDINARY MAINTENANCE
· The frequency of cleaning and maintenance interventions depends on the type and quantity of fuel used.
- If the fuel contains high levels of humidity, ash, dust, scraps or chemical additives this could increase considerably the number of
interventions required, so once more we would like to underline the need to use good quality firewood for fuel.
·Cleaning the firebox. To ensure the best functioning of the appliance, EVERY DAY, carefully clean the grate in the firebox, empty all
the ash and residue (taking care for the possible presence of hot ash) clean the holes/slots in the base of the grate.
·Cleaning the outside. This must be done with the appliance cold.
- Steel/cast iron parts: use a cloth soaked in a substance suited for these materials
- Glass/tiled parts: use a sponge soaked in product suitable for cleaning stove/fireplace glass and then wipe with a dry cloth
- Painted parts: use a cloth dampened with neutral detergent then wipe with a dry cloth.
EXTRAORDINARY MAINTENANCE (TO BE PERFORMED BY QUALIFIED PERSONNEL)
· At least once per year a general check of the appliance must be performed by a specialised technician.
· Preferably, every year it is advisable to have an authorised service centre perform the following operations:
- Cleaning of the exhaust gas ducts;
- Check the gaskets and replace if necessary;
- Check the flue.
ACCESSORIES
The following service tools are supplied with the stove:
·Glove (fig. 7 ref. A) for handling the ash box and other hot parts;
·Poker (fig. 7 ref. B) to remove ash etc in the firebox.
CLEANING INSIDE HEAT RETENTION SYSTEM
· At least once a year or when necessary.
· The cleaning of the inside must be done when the stove is cold, after first preparing the tools and spares necessary.
· Remove the smoke discharge collar from the plate (fig. 8 ref. A).
· Remove the residue deposits with a vacuum cleaner
· Once the cleaning is completed, remount the smoke discharge collar.
7
AB
3
3.1
3.2
3.3
3.4
3.5
A
A
VIVA FORNO
VIVA
8

11
3
TROUBLESHOOTING
In case of malfunctioning, check the following table.
If, after the checks and controls suggested, the problem persists, contact the authorised technical service.
DEFECT
• The glass on the firebox door is
covered with soot or the firebox
chamber is dirty with black smoke.
• Irregular air draught
• Exhaust outside with too much black
smoke.
• Smoke coming out of the appliance
CAUSE
• Draught too low < 10 Pa
• Incorrect adjustments.
• Too much fuel introduced.
• Firewood with too much relative humidity.
• Unsuitable fuel.
• Unsuitable or dirty flue
• Appliance dirty inside
• Appliance lit with green wood
• Smoke outlet partially blocked.
• The door on the firebox is open while the
fire is alight.
• Insufficient draught.
• Incorrect adjustment when lighting.
REMEDY
• Check that the smoke outlet pipe duct
is not blocked.
Modify the flue: chimney too high or
terminal hood not suitable, or improve
insulation.
• Check the indications in the
"Adjustments" and "Fuel to be used"
chapters.
• Reduce the quantity.
• Dry the damp wood before using.
• Check the indications in the "Fuel"
paragraph
• Call in a chimney sweep
• Clean
• Use suitable fuel to light the
appliance; check the indications in the
"Fuel" paragraph
• Call in a qualified technician
• Close the door
• Call in a qualified technician for an
inspection.
• Check the indications in the
"Adjustments" and "Fuel to be used"
chapters.
540
460
920
150
120
12
8,9
0,28
74
210
290
300
7,4
>10
<20
2
1,65
2,2
45
-
-
540
460
1330
180
120
12
8,9
0,28
74
210
290
300
7,4
>10
<20
2
1,65
2,2
45
245x255x355
22
Width
Depth
Height
Weight of complete appliance
Diameter of smoke exhaust
Burnt power
Total nominal power
CO emissions (with13% of oxygen)
Efficiency
Heatable area
Average smoke temperature
Smoke temperature
Mass flow of smoke
Minimum draught to chimney
Maximum draught to chimney
Recommended fuel; pieces of beech firewood
Nominal fuel load
Hourly consumption
Refuelling interval
Dimensions of food-warming oven
Volume of food-warming oven
TECHNICAL CHARACTERISTICS
mm
mm
mm
Kg
mm
Kw
Kw
%
%
m3
°C
°C
g/sec
Pa
Pa
n°
Kg
Kg/h
Min
mm
lt
VIVA VIVA FORNO

12
