CR Laser FIT-D RG User manual

RG
NON-INTERLOCKED HOUSING WARNING
This unit contains high power laser devices internally. Do not open the
laser housing, due to potential exposure to unsafe levels of laser radiation.
The laser power levels accessible if the unit is opened can cause instant
blindness, skin burns and fires.
LASER EMISSION DATA
As measured under IEC measurement conditions for classification.
Version: 1.0
This manual contains important laser operation information. Read and
understand all instructions prior to powering on laser unit the first time, to
avoid laser eye injury and to avoid breaking the law. Keep this manual in a
safe place for future reference.
Laser Classification Class 3B
Green Laser Medium DPSS Nd:YVO4, 532nm
Red Laser Medium LD GaAlAs 650nm, typical
Beam Diameter <5mm at aperture
Pulse Data All pulses < 4Hz (>0.25sec)
Divergence (each beam) <2 mrad
Divergence (total light) <160 degrees
Laser Power Red>100mW, Green>40mW

USER MANUAL
2
PRODUCT OVERVIEW
zThis device has left out premises in absolutely perfect condition. In order to
maintain this condition and to ensure a safe operation, it is necessary for the
user to follow the safety instructions and warning notes written in this
manual.
zThe manufacturer will not accept liability for any resulting damages caused
by the non-observance of this manual or any unauthorized modification to
the device.

USER MANUAL
3
CONTROL & FUNCTION
zRegular breaks during operation are essential to maximize the life of this
device as it is not designed for continual use.
zDo not switch the unit on and off in short time intervals
zAlways unplug the unit when it is not used for a longer time. Or before
replacing the bulb or start servicing.
zIn the event of serious operation problems, stop using the fixture and
contact your dealer immediately.
NO. NAME DESCRIPTION
1 Power LED Indicates the fixture is switched on
2 Music LED Synchronize to detected music signal
3 Laser Aperture
The laser effect output aperture. NEVER LOOK
INSIDE THE FIXTURE THROUGH THIS
APERTURE WHILE FIXTURE IS OPERATING.
4 Power Switch Switch ON and OFF the fixture
5 Fuse Holder The replaced fuse is hold here
6 Main Power Input With IEC socket and integrated fuse holder.
7 DMX
Input/Output 3 pins male/female XLR connector
8 Control panel To control the fixture with digital LED display, check
more information on CONTROL & FUNCTION
9 Microphone To detect the music/sound signal
ATTENTION: Laser will be output from laser aperture in 5 seconds
after the unit is powered on.

USER MANUAL
4
Operation
AUTO SHOW Stand Alone Mode
zPress FUNC to enter MODE OPTION.
zTill to LED panel showsAUt.
zPress ENTER to confirm the setting.
The laser is working in standalone mode –AUTO SHOW. Each time when you
turn on your laser, you will have this confirmed laser show.
SOUND AVTIVATED SHOW (MUSIC SHOW) Stand Alone Mode
zPress FUNC to enter MODE OPTION.
zTill to LED panel shows SoU.
zPress ENTER to confirm the setting.
The laser is working in standalone mode –SOUND ACTIVATED SHOW. Each
time when you turn on your laser, you will have this confirmed laser show.

USER MANUAL
5
SOUND ACTIVATED MODE sensitivity setting
zPress FUNC till to see S 6
zPress UP/DOWN to set microphone sensitivity. S 0 is no sound activated,
from S 1 to S 9, the sensitivity level is going more sensitive.
zPress ENTER to confirm and save the setting.
DMX MODE
zPress FUNC to enter MODE OPTION
zTill to LED panel shows 001.
zPress ENTER to confirm the setting.
The laser is working in “DMX MODE”. With help of UP/DOWN button, it could be
easily change the DMX address of the laser.
MASTER/SLAVE MODE
zPress FUNC to enter MODE OPTION
zTill to LED panel shows SLA
zPress ENTER to confirm the setting.
The laser is working in “SLAVE MODE”. Connect MASTER laser and SLAVE
lasers with DMX cable, the SLAVE lasers do what exactly MASTER laser does.
Check “5.2 DMX connection”to have more details about laser connection.

USER MANUAL
6

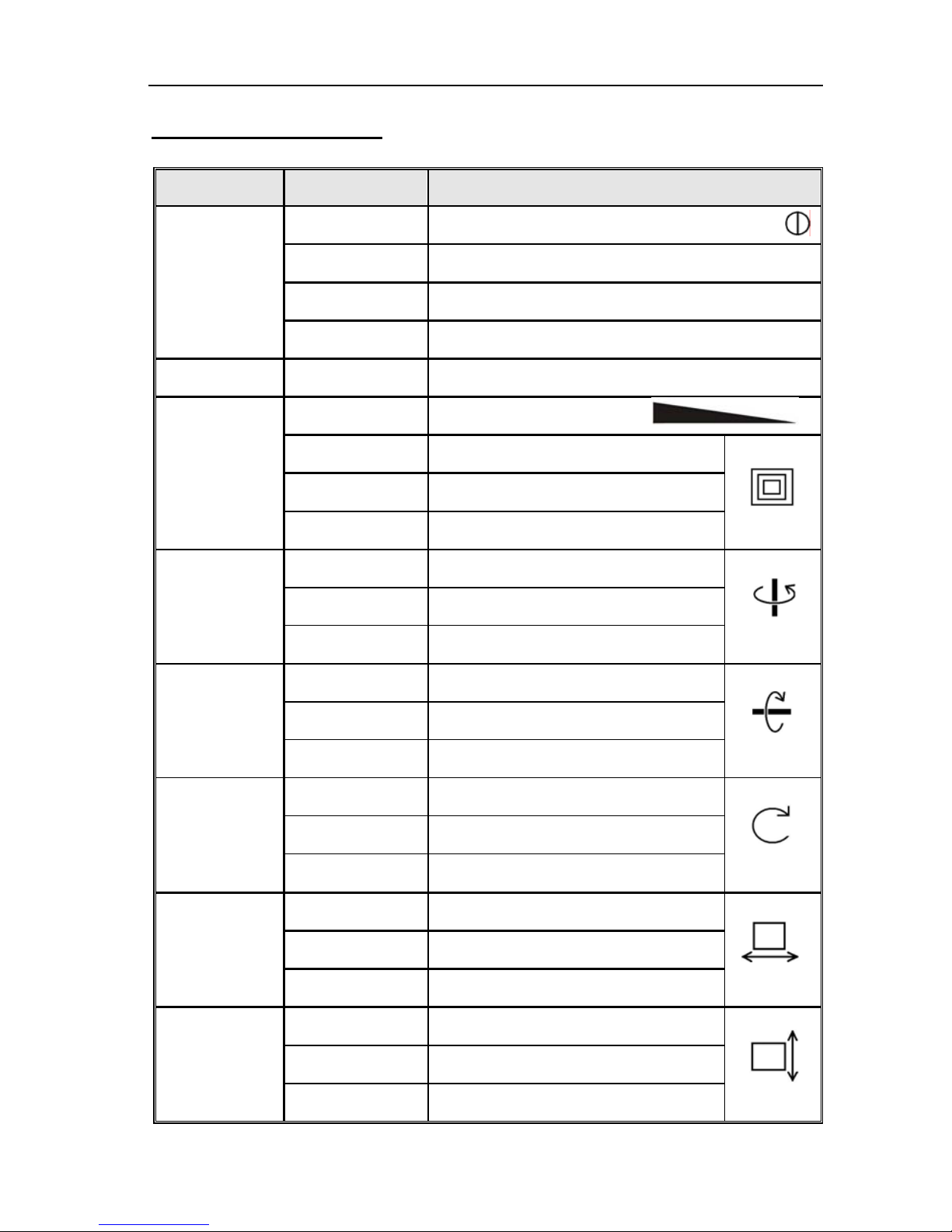

DMX PROTOCOL
CHANNEL VALUE FUNCTION
CH 1
MODE
000-063 LaserBlockOut
064-127 AUTO SHOW
128-191 SOUND ACTIVATED SHOW (MUSIC)
192-255 DMX MODE (Other channels activated)
CH 2 000-255 32 Patterns as shown in PATTERN LIST
CH 3
ZOOMING
0-127 100%-5% Size
128-169 Zooming In
170-209 Zooming Out
210-255 Zooming In & Out
CH 4
Y AXIS
ROLLING
000-127 0 -359 degree fixed Y axis rolled
128-191 Clockwise rolling
192-255 Anticlockwise rolling
CH 5
X AXIS
ROLLING
000-127 0 -359 degree fixed X axis rolled
128-191 Clockwise rolling
192-255 Anticlockwise rolling
CH 6
Z AXIS
ROTATING
000-127 0 -359 degree fixed Z axis rotate
128-191 Clockwise rotating
128-255 Anticlockwise rotating
CH 7
X AXIS
MOVING
000-127 128 different fixed position on X
128-191 Clockwise moving
128-255 Anticlockwise moving
CH 8
Y AXIS
MOVING
000-127 128 different fixed position on Y
128-191 Clockwise moving
128-255 Anticlockwise moving

USER MANUAL
7
CH 9
COLOR
000-031 Original Color
032-063 Red
064-095 Green
096-127 Red & Green
128-255 Color Rolling

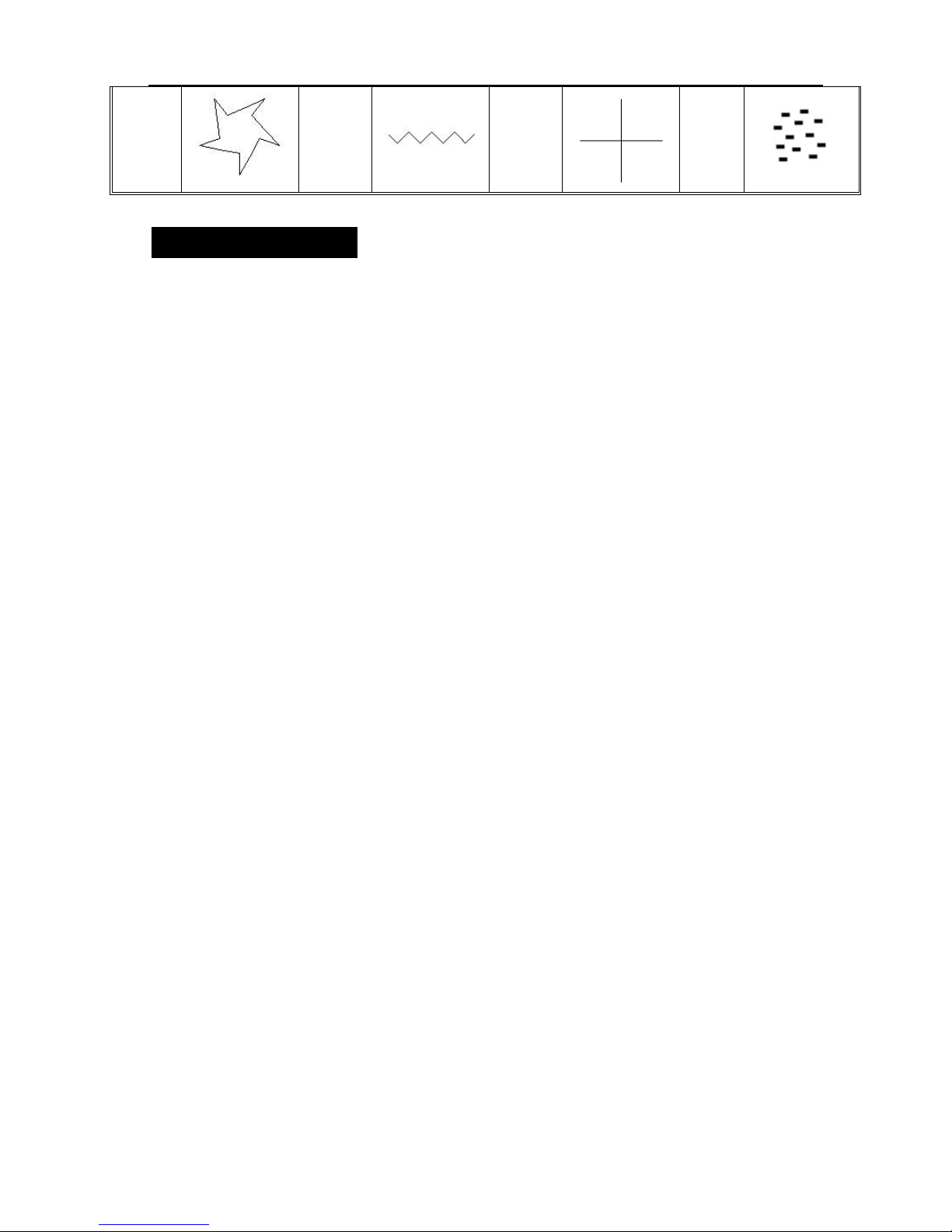

PATTERN LIST IN CHANNEL 2
DMX PATTERNS DMX PATTERNS DMX PATTERNS DMX PATTERNS
000-007 064-071 128-135 190-197
008-015 072-079 136-143 198-205
016-023 080-087 144-151 206-213
024-031 088-095 152-159 214-221
032-039 096-103 160-167 222-229
040-047 104-111 168-175 230-237
048-055 112-119 176-181 238-245

USER MANUAL
8
056-063 120-127 182-189 246-255
SPECIFICATIONS
Mains Input:
Fuse:
Total Power:
Music Control:
Laser Power:
Laser Classification:
Laser Safety Standard:
Condition Temperature:
DMX Connections:
DMX Channels
Measurement:
N Weight:
AC100-240V, 50/60Hz
250V 1 A Slow Blow (20mm Glass)
12W
Internal microphone
100mW-R+40mW-G CW
Class 3B
EN60825-1 2007
10~40℃
3 pins XLR Male/Female
9 channels
145x160x80mm
1.8 Kg
Specifications subject to change without prior notice.
