Craftsman INCREDI.PUL 316.794010 User manual

Sears Brands Management Corporation, Hoffman Estates, IL 60179 U.S.A.
Visit our website: www.craftsman.com
CAUTION: Before using
this product, read this
manual and follow all
safety rules and operating
instructions.
Operator’s Manual
4-Cycle

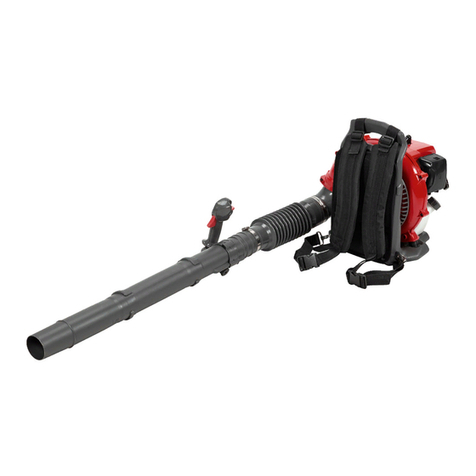

BACKPACK BLOWER
Model No. 316.794010
• SAFETY
• ASSEMBLY
• OPERATION
• MAINTENANCE
• PARTS LIST
• ESPAÑOL, P. 13
769-05890 P00 4/10

23
19
5
6
12
18
17
26
4
10
15
Item Part No. Description
1 753-05669 Muffler Assembly (includes 2 & 3)
2 791-182361 Muffler Screw
3 753-05670 Muffler Gasket
4 791-181025 Screw
5 753-05671 Rocker Cover
6 753-05672 Rocker Cover O-Ring
7 753-05784 Spark Plug
8 753-05673 Insulator Gasket
9 753-05248 Nut
10 753-05674 Insulator
11 791-181003 Screw
12 753-05675 Carburetor Gasket
13 753-05676 Carburetor
14 791-181751 Carburetor O-Ring
15 753-05253 Screw
16 753-05852 Air Cleaner Assembly (includes 16)
17 753-05677 Air Filter
18 753-05970 Throttle Cable
Item Part No. Description
19 753-05681 Cylinder Gasket
20 753-06091 Pawl Assembly
21 753-05400 Oil Plug
22 753-05682 Oil Fill Tube (includes 3)
23 753-05687 Nut
24 753-05688 Flywheel Asssembly
25 753-06003 Module Assembly
26 753-05690 Lead Wire
27 753-06367 Short Block Assembly (includes 4-7, 11, 19, 21 & 22)
14
13
9
8
7
11
22 21
4
20 16
24
1
11
11
2
3
25
27
26
PARTS LIST
REPLACEMENT PARTS - MODEL 316.794010
4-CYCLE BACKPACK BLOWER

9
15
18
15
23
22
21
25
17
24
13
7
5
6
5
4
3
2
1
Item Part No. Description
1 753-06001 Flared Nozzle
2 753-05971 Lower Blower Tube
3 753-05975 Throttle Grip Assembly
4 753-05991 Upper Blower Tube
5 753-05640 Clamp
6 753-05641 Flex Tube
7 753-05990 Elbow Tube
8 753-06340 Hip Belt
9 753-06141 Support System
10 753-05647 Nut
11 791-182678 Washer
12 753-05648 Isolator Mount
13 753-05649 Intake Cover
Item Part No. Description
14 753-04595 Screw
15 753-05658 Impeller Housing Assembly
16 791-180050 Nut
17 791-181003 Housing Screw
18 753-05989 Impeller (includes 19 & 25)
19 791-182409 Washer
20 753-05661 Throttle Retaining Clip
21 753-05289 Fuel Cap
22 753-05715 Fuel Tank Assembly (includes 21)
23 753-05663 Stand
24 753-06368 Engine Cover Assembly
25 791-182348 Impeller Screw
26 753-05771 Handle
27 753-06000 Concentrator Nozzle
28 753-06104 Electric Starter Adapter
20
19
14
17
14
17
17
19
25
16
14
12
10
11
10
11
8
27
12
14
14
16
26
14
27
PARTS LIST
REPLACEMENT PARTS - MODEL 316.794010
4-CYCLE BACKPACK BLOWER
28
