Craftsman Professional PYT9000 User manual

Sears Brands Management Corp., Hoffman Estates, IL 60179 U.S.A.
Visit our website: www.craftsman.com
Operator’s Manual
LAWN TRACTOR
26 HP, 46” Tractor
PYT9000
Model No. 247.28888
IMPORTANT:
Read and follow all Safety
Rules and Instructions before
operating this equipment.
For answers to your questions about
this product, Call:
1-800-659-5917
Craftsman Tractor Help Line
5am - 5 pm, Mon - Sat
This product has a low emission engine which operates differently
from previously built engines. Before you start the engine, read and
understand this Operator’s Manual.
• Español, p. 63
Form No. 769-06504
(November 1, 2010)

34
PARTS LIST
3
13 35
16
2
7
1918
14
36
11
8
10
17
1
17
7
9
4612
24
29
26
30
25 31
28
7
30
25
12
6
5
9
26
26
31
24
32
22 23
21 37
15
38
34 33
20
27
37
34
33
Steering and Axle — Model No. 247.28888

35
PARTS LIST
Ref.
No. Part No. Description
1710-04095 Hex Head Screw, 3/8-16:1.00
2710-0514 Hex Head Screw, 3/8-16:1.00
3710-0643 Hex Head Screw, 5/16-18:1.00
4711- 04998 LH Drag Link
5711-04999 RH Drag Link
6912-0240 Jam Nut, 7/16-20
7712-04065 Flangelock Nut, 3/8-16
8712-0459 Flangelock Nut, 7/16-20
9712-3004A Flangelock Nut, 5/16-18
10 717-1550F Steering Gear
11 717-1554 Steering Pinion Gear
12 923-0448A Ball Joint, 7/16-20
13 936-3004 Flat Washer, .406 X .875 X .105
14 736-3084 Flat Washer, .51 X 1.12 X .06:HT
15 634-04405-4042 Rim Assembly
16 738-04263 Steering Shaft, .625 OD X 24.25 LG
17 738-04363 Shoulder Spacer, .385X 1.25 X .3025
18 741-04237B Hex Flange Bearing 5/8 PM
19 783-06043-0637 Steering Support Bracket
Ref.
No. Part No. Description
20 638-04022-0637 RH Axle Assembly
21 638-04028-0637 LH Axle Assembly
22 710-0395 Hex Head Screw, 5/16-18:2.25
23 710-0859 Hex Head Screw, 3/8-16:2.50
24 710-3180 Hex Head Screw, 5/16-18:1.75
25 912-0214 Hexlock Nut, 3/8-24
26 712-04063 Flangelock Nut, 5/16-18
27 714-0162 Cotter Pin, 5/32:1.25
28 719-04413A Pivot Bar Axle
29 934-0255 Tubeless Air Valve
30 748-04065-0637 Steering Block
31 748-04068 Spacer, .71 ID X .125 OD X .56LG
32 750-05280 Spacer, .385 X 1.00 X 1.5075
33 731-05674 Bumper Cap
34 736-04228A Flat Washer, .781ID x 1.590OD
35 631-04415 Steering Wheel
36 731-06825 Steering Wheel Cap
37 634-04406-0961 Wheel Assembly
38 734-1731-0901 Tire
Steering and Axle — Model No. 247.28888

36
PARTS LIST
28 40
27
25
26
24
29
32
24
22
13
30
815
36
39
37
5
44
38
6
9
43
23
45
10
1
17 16
14
11
2
12
7
3
19
20
18
433
3533
34
31
24
4241
21

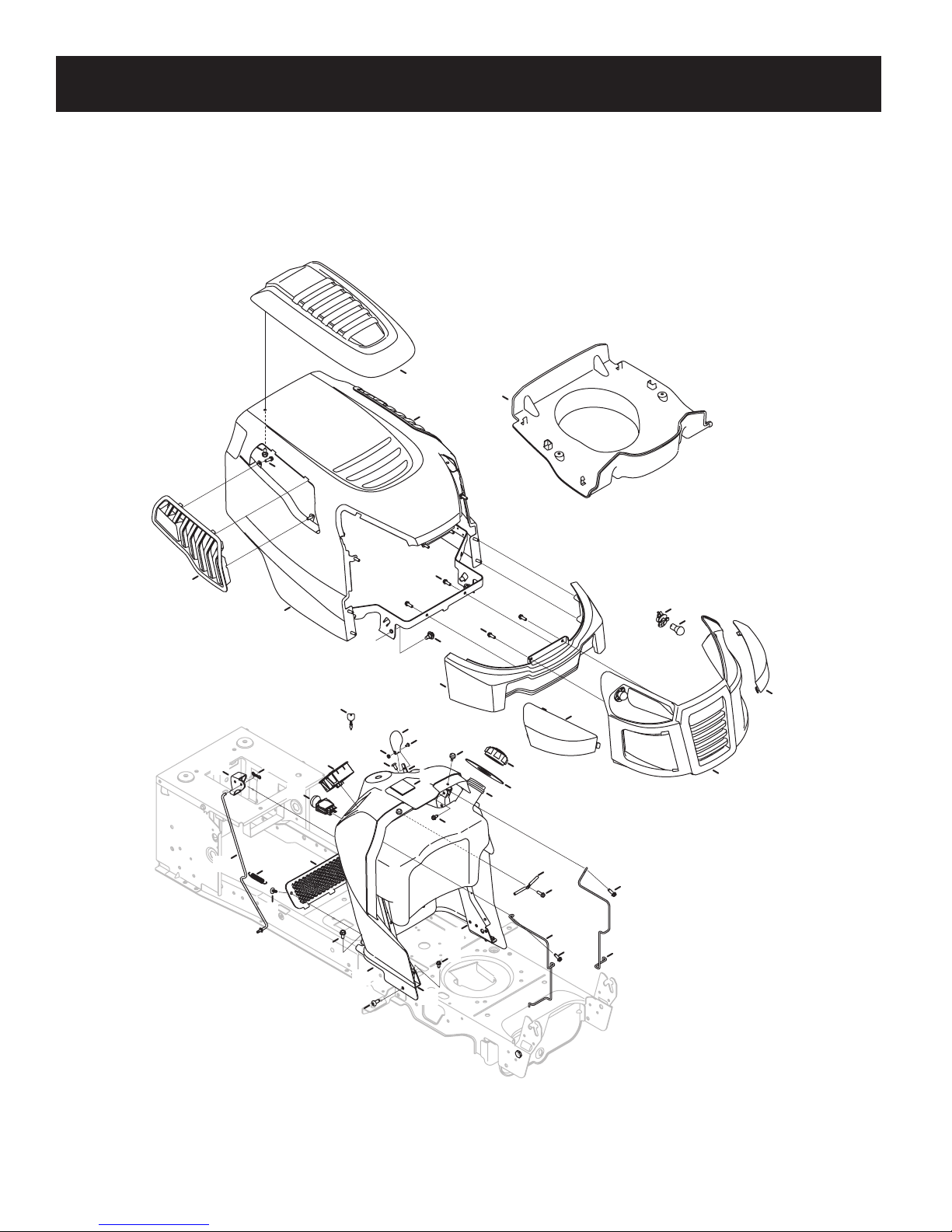

Hood and Dash — Model No. 247.28888

37
PARTS LIST
Ref.
No. Part No. Description
1631-04353A Dash Lever
2710-04484 Taptite Screw, Lock Washer, 5/16-18:.750
3710-0599 Taptite Screw, Lock Washer, 1/4-20:0.500
4710-0895 Hi-Lo Screw, Lock Washer, 1/4-15:0.750
5710-1652 Screw, Lock Washer, 1/4-20:0.625
6710-1017 Screw, 1/4-14:0.625
7710 -1611B Taptite Screw, 5/16-18:0.750
8710-3217 Machine Screw, #8-32:0.375
9712-0142 Hex Nut, #8-32:GRA
10 714-04040 Bow-tie Cotter Pin
11 726-3046 Ratchet Clip:.250 DIA
12 731-07456 Dash
13 731-07550 Control Knob
14 732-04580 Extension Spring, .500 DIA X 2.733 LG
15 735-0271A Bumper
16 735-04076 Accessory Net
17 747-05280 Control Rod Latch
18 747-1196 Lever Rod
19 783-04285F-0637 RH Dash Support Plate
20 783-04323F-0637 LH Dash Support Plate
21 625-04124 Keys (Set of 2)
22 683-04618-0691 Hood Assembly
23 710-04187 Hi-lo Screw, Lock Washer, 1/4-15:0.50
Ref.
No. Part No. Description
24 710-05108 Screw, Lock Washer, 1/4 DIA:.750
25 931-07457 Grill
26 731-07458 RH Lens
27 731-07459 LH Lens
28 931-07461 Hood Scoop
29 731-07467 Lower Grill
30 731-07469 LH Hood Scoop
31 731-07470 RH Hood Scoop
32 738-04091A Shoulder Screw, .43X.29:TT:5/16-18
33 710-0642 Taptite Screw, 1/4-20:0.750
34 747-05049 RH Tank Support Rod
35 747-05050 LH Tank Support Rod
36 751-0603A Fuel Cap
37 951-10573 Fuel Tank, 2.75 Gallons
38 946-04621 Throttle/Choke Control
39 735-04170 Fuel Tank Gasket
40 731-07495 P-Style Plen
41 925-0963 Miniature Lamp, 12V
42 925-1649 Lamp Socket
43 725-04992 Switch Key Module
44 925-04036C Hour Meter
45 725-04258 PTO Switch
Hood and Dash — Model No. 247.28888

38
PARTS LIST
33
38
20
32
25
22
18
17
40
21
18
23
27
24
18
31
39
12
615
1
4
9
13 8
14
16
7
2
5
3
11
26
28
19
30
10
36
37
29
34
2
35
A
A
Seat and Fender — Model No. 247.28888

39
PARTS LIST
Ref.
No. Part No. Description
1683-04223-0637 Lift Shaft Assembly
2712-04063 Flangelock Nut, 5/16-18
3712-04065 Flangelock Nut, 3/8-16
4914-0104 Cotter Pin, .072 DIA. X 1.13 LG
5714-04040 Bow-Tie Cotter Pin
6716-0106A E-Ring, .625 DIA. SHAFT
7720-04150 Handle Grip
8732-0874 Torsion Spring
9736-0105 Spring Washer, .401 X .870 X .063
10 738-0138A Shoulder Screw, .437 X .470:5/16-18
11 938-0380 Shoulder Bolt, .500X.270:3/8-16
12 941-0225 Hex Flange Bearing
13 746-0968 Lift Cable, 16.16 LG
14 747-04962A Lift Handle
15 756-04331 Pulley Roller Cable
16 783-05546A-0637 Lift Arm
17 710-04482 Hex Head Flange, 3/8-16:.875
18 710-04484 Taptite Screw, Lock Washer, 5/16-18:.750
19 712-3004A Flangelock Nut, 5/16-18
20 725-0157 Cable Tie, 3/16 X .05 X 7.4
21 732-04561 Compression Spring, 1.71 X 3.735 X .238
Ref.
No. Part No. Description
22 732-04563 Compression Spring, .68 X 1.065 X .055
23 938-0296 Shoulder Screw, .437 X .268:5/16-18
24 783-06049-0691 Seat Mounting Bracket
25 783-06050 SeatAdjustmentLever
26 783-06088-0691 Seat Pivot Bracket
27 783-06448 Switch Retainer Clip
28 710-04187 Hi-Lo Screw, Lock Washer, 1/4-15:0.50
29 710-0451 Carriage Bolt, 5/16-18:.750
30 710-0599 Taptite Screw, Lock Washer, 1/4-20:0.500
31 710-0895 Hi-Lo Screw, Lock Washer, 1/4-15:0.750
32 731-05837 LH Fender Cover
33 731-06754 RH Fender Cover
34 736-3078 Flat Washer, .344 X 1.00 X .063 HDN
35 783-06118-0691 Fender
36 726-3046 Ratchet Clip
37 735-04137 LH Foot Pad
—735-04139 RH Foot Pad
38 757-04127 Seat
39 783-06181-0637 Lift Bracket
40 925-05013 Seat Switch
Seat and Fender — Model No. 247.28888

40
PARTS LIST
14
54 62 5
66
5
64
52
49 50
48
5
58
67
55
53
62
51
57 56 63
5
59
65
61
59
69
71
70
68
20
6
17 19 3147 3
46
42
74 39
24
73
44
43
11
2
18
15
45
A
A
29
60
32
33
21
27
14
4
26
41
34 36
30
10
1
72
5
30
14
20
37
40
14
8
8
77
13
5
16
35
9
7
43
39
23
25
12
22
38
75
76
Drive and Rear Wheels — Model No. 247.28888

41
PARTS LIST
Ref.
No. Part No. Description
1918-0319 Hydro Transmission
2710-0176 Hex Head Screw, 5/16-18:2.75
3710-0227 Screw, Indented Washer, #8-18:0.500
4710-0351 Screw, #10-16:0.500
5710-04484 Taptite Screw, Indented Washer, 5/16-18:.750
6710-0653 Taptite Screw, Indented Washer, 1/4-20:0.375
7710-1007 Taptite Sems Screw, :3/8-16:1.500
8710-1325 Taptite Screw, Indented Washer, 1/4-20:1.625
9710 -3011 Hex Head Screw, 3/8-16:2.25
10 912-0240 Jam Nut, 7/16-20
11 912-0346 Jamlock Nut, 1/2-20
12 712-04063 Flangelock Nut, 5/16-18
13 912-0431 Flangelock Nut, 3/8-16
14 914-0111 Cotter Pin, 3/32:1.0
15 725-0157 Cable Tie. 3/16 X .05 X 7.4
16 725-04791A Jumper Harness
17 725-1644 Short Spring Switch
18 926-0154 Push Mount Cable Tie 7.5 LG
19 926-0320 Insulator Nut Plate
20 731-05299A Sleeve, .765 ID X 1.500 LG
21 731-06098 Hydro Fan
22 932-0209 Extension Spring, .48 OD X 2.03
23 732-04606 Extension Spring, .500 DIA X 12.6 LG
24 732-04792 Extension Spring, 1.00 DIA X 4.75
25 732-0716D Extension Spring, .59 OD X 4.00 LG
26 732-0729 Wire Ring
27 732-3118 Extension Spring, .375 OD X 1.44 LG
28 936-0264 Flat Washer, .330 X .630 X .0635
29 736-04263 Lock Washer
30 936-3008 Flat Washer, .344 X .750 X .120
31 736-3010 Flat Washer, .407 X .812 X .135
32 934-0255 Tubeless Air Valve
33 734-1730-0901 Tire
34 738-04420 Shoulder Spacer, 1.375 X .380 X .183
35 747-04139 Brake Rod
36 747-04957A Footpedal Bypass Transmission Rod
37 747-04979 Hydro Control Rod
38 747-04991 Hydro Bypass Rod
39 750-04456 Spacer, 260 X .372 X 1.420 LG
Ref.
No. Part No. Description
40 954-04207 V-Belt, 4L X 78.9 POLY
41 756-04224 Flat Idler Pulley, 2.75 OD
42 756-04308 Input Pulley, 4.13 DIA
43 756-04325 V Idler Pulley, X 3.06
44 783-06027A Center Idler Bracket
45 783-06133-0637 Hydro Mounting Bracket
46 783-06260-0637 Belt Disengage Support Bracket
47 783-1019B Switch Actuator Bracket
48 647-04152B Brake Control Assembly
49 683-04488 Hydro Pedal Bracket Assembly
50 710-0604A Taptite Screw, Indented Washer, 5/16-18:0.625
51 711-05068 Clevis Pin, 5/16 X 3.985
52 712-04065 Flangelock Nut, 3/8-16
53 714-04040 Bow-Tie Cotter Pin
54 726-0214 Push Cap
55 732-04587 Extension Spring, .63 DIA X 4.95 LG
56 735-04118A Forward Pedal Pad
57 735-04135 Reverse Pedal Pad
58 735-04136 Brake Pedal Pad
59 736-0242 Bell Washer, .340 X .872 X .060
60 634-04369-4042 Rim Assembly
61 938-0380 Shoulder Bolt, .500 X .270:3/8-16
62 741-0495 Flange Bearing, .630 IDX .695 OD X .60
63 748-04203 Cruise Latch
64 783-05914 Pedal Support Bracket
65 783-05940 Pedal Support Bracket, 5/8
66 783-06059-0637 Drive Pedal Bracket
67 783-06103A-0637 Brake Pedal Bracket
68 634-0104-0961 Wheel Assembly
69 710-0627 Hex Head Screw, 5/16-24:.750
70 736-0430 Flat Washer, .350 x 1.59 x .062
71 731-2290A Hub Cap
72 747-05444 Belt Keeper Rod
73 712-04065 Flangelock Nut, 3/8-16
74 738-0430 Shoulder Screw, .50 x .685:3/8-16
75 750-0566A Spacer, 260 X .375 X 1.030 LG
76 710-0809 Taptite Screw, Indented Washer, 1/4-20:0.375
77 936-0344 Flat Washer, .385 X 1.00 X .030
Drive and Rear Wheels — Model No. 247.28888

42
PARTS LIST

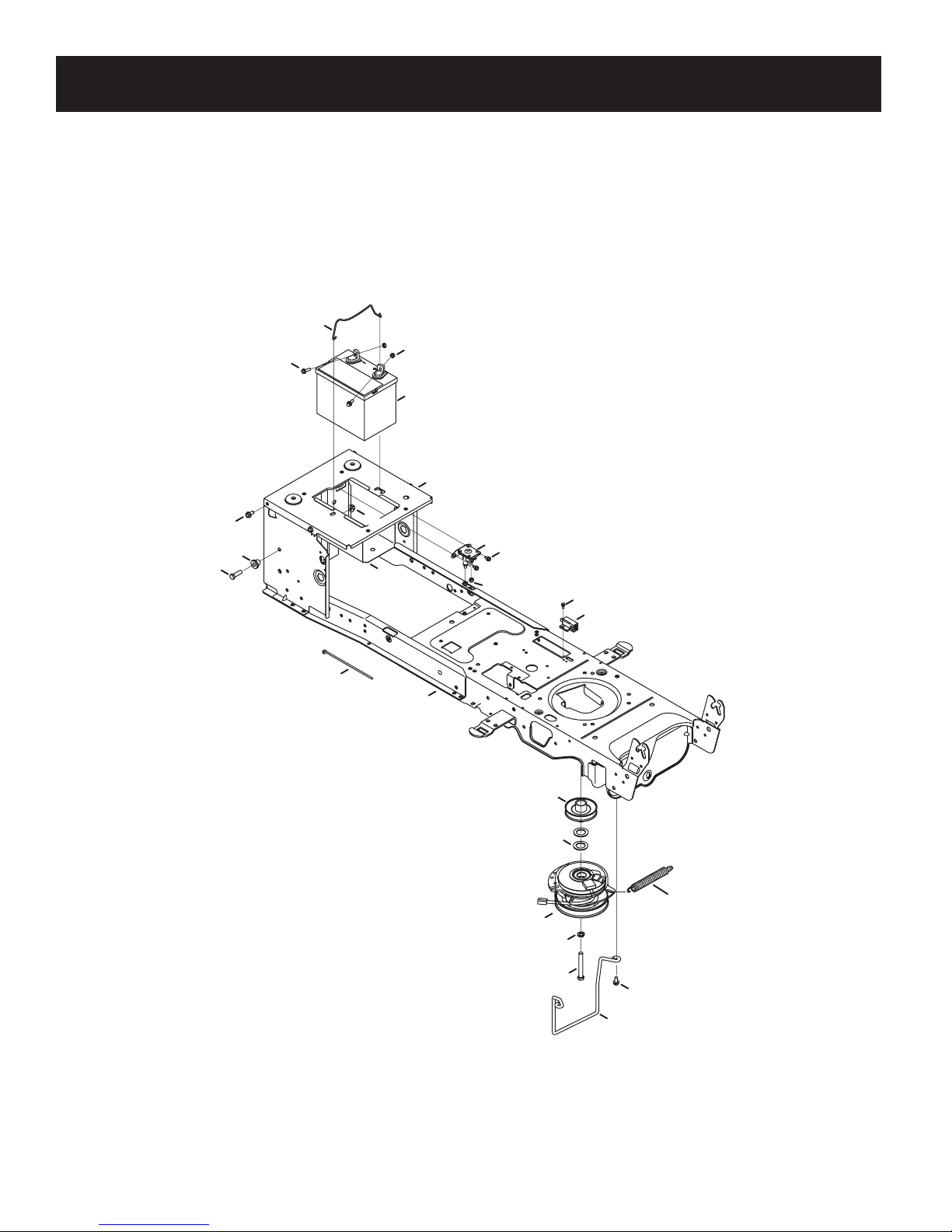

Engine Accessories — Model No. 247.28888
A
A
7
8
6
8
4
4
2
3
9
12
10
11
5
1
13
A
A
7
8
6
8
4
4
2
3
9
12
14
10
11
5
1
13
