Craftsman 919.326510 User manual

S£ARS
OWNERS
MANUAL
MODEL NO.
919.326510
IMPORTANT:
Read the Safety Guidelines
and All Instructions Carefully
Before Operating.

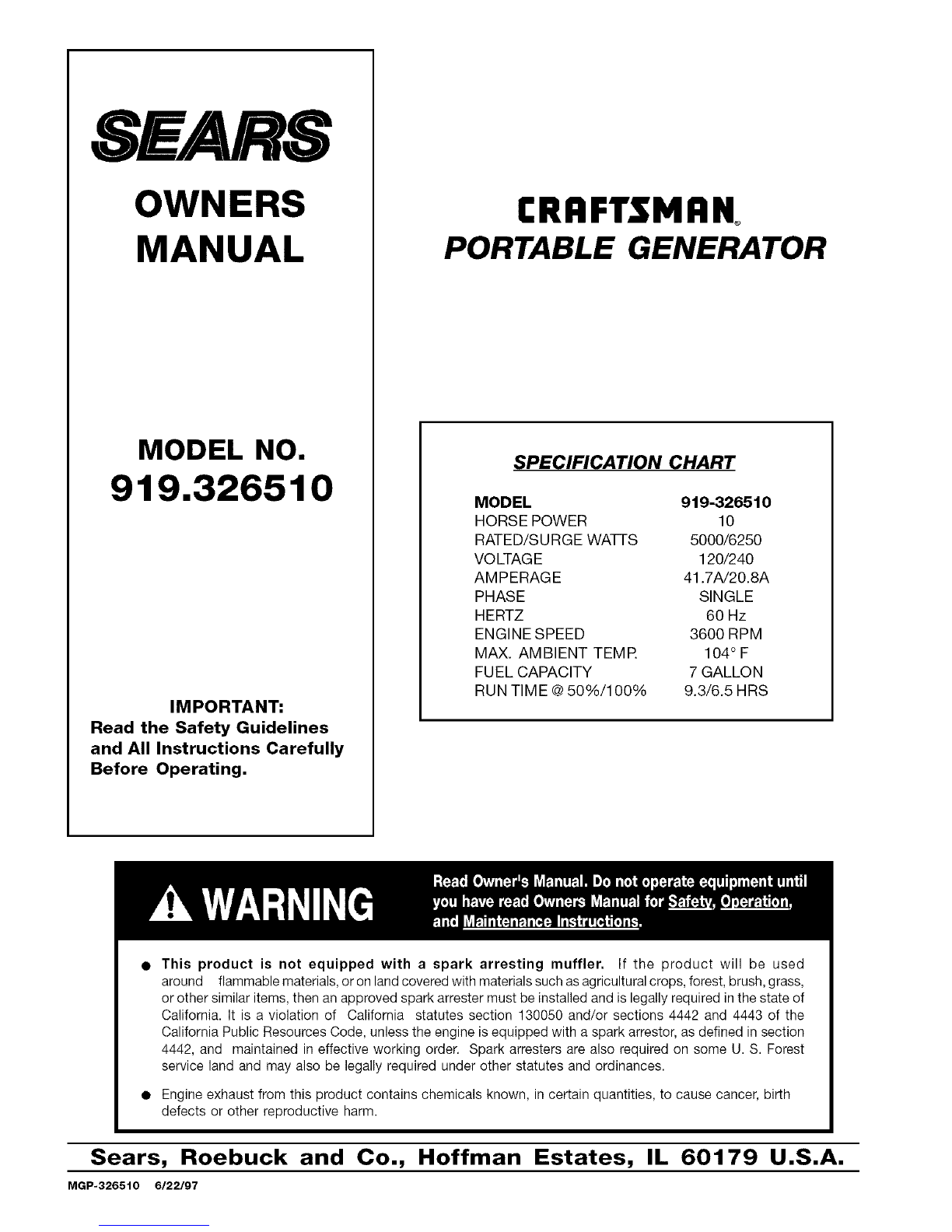

CRRFTSMRNo
PORTABLE GENERATOR
SPECIFICATION CHART
MODEL 919-326510
HORSE POWER 10
RATED/SURGE WATTS 5000/6250
VO LTAGE 120/240
AMPERAGE 41.7A/20.8A
PHASE SINGLE
HERTZ 60 Hz
ENGINE SPEED 3600 RPM
MAX. AMBIENT TEMP. 104° F
FUEL CAPACITY 7 GALLON
RUN TIME @50%/100% 9.3/6.5 HRS
• This product is not equipped with a spark arresting muffler. If the product will be used
around flammable materials, or on land covered with materials such asagricultural crops, forest, brush, grass,
or other similar items, then an approved spark arrester must be installed and is legally required in the state of
California. It is a violation of California statutes section 130050 and/or sections 4442 and 4443 of the
California Public Resources Code, unless the engine is equipped with a spark arrestor, as defined in section
4442, and maintained in effective working order. Spark arresters are also required on some U. S. Forest
service land and may also be legally required under other statutes and ordinances.
• Engine exhaust from this product contains chemicals known, in certain quantities, to cause cancer, birth
defects or other reproductive harm.
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
MGP-326510 6/22/97

TABLE OF CONTENTS
Page
SAFETY GUIDELINES ............................................................................. 3-7

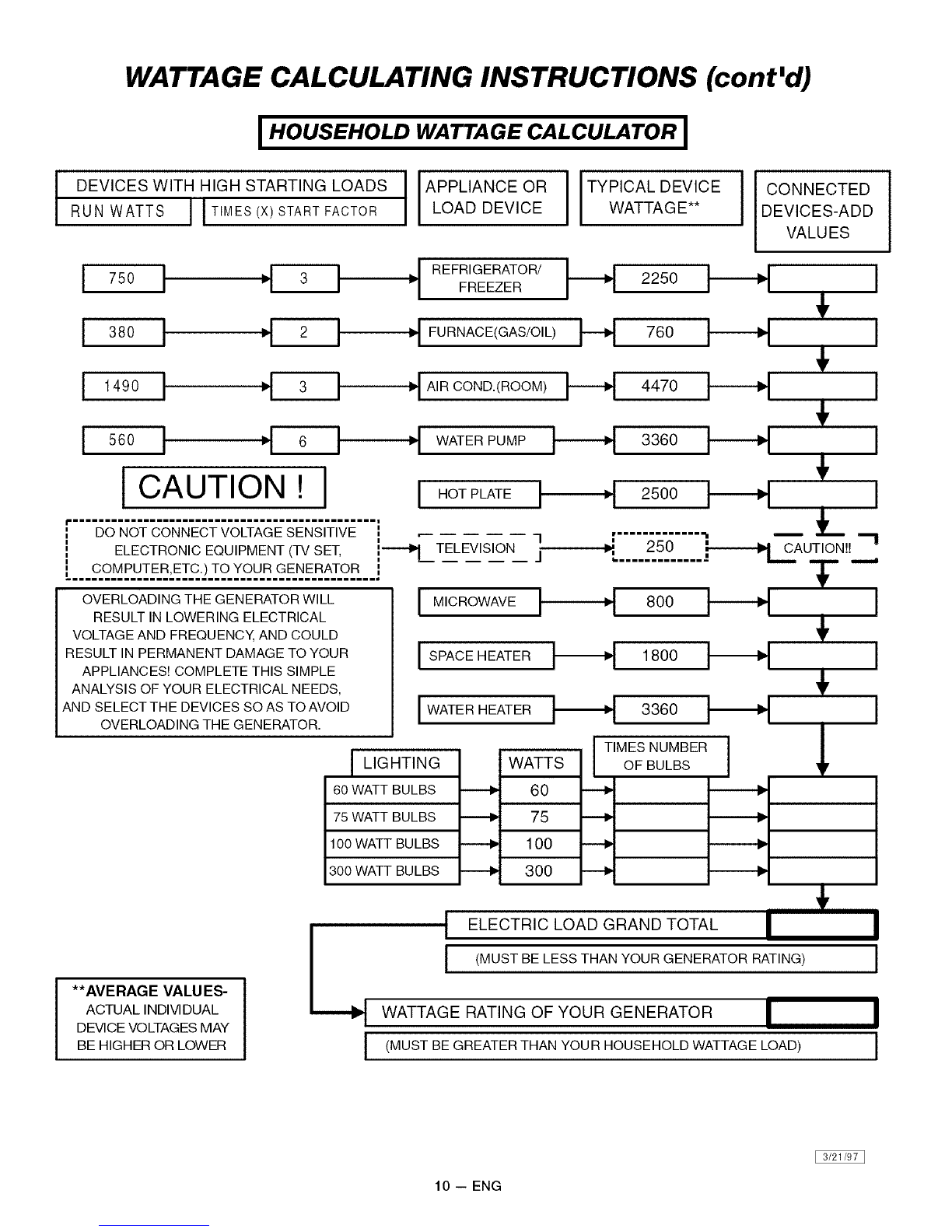

WATTAGE CALCULATING INSTRUCTIONS ........................................... 8-10

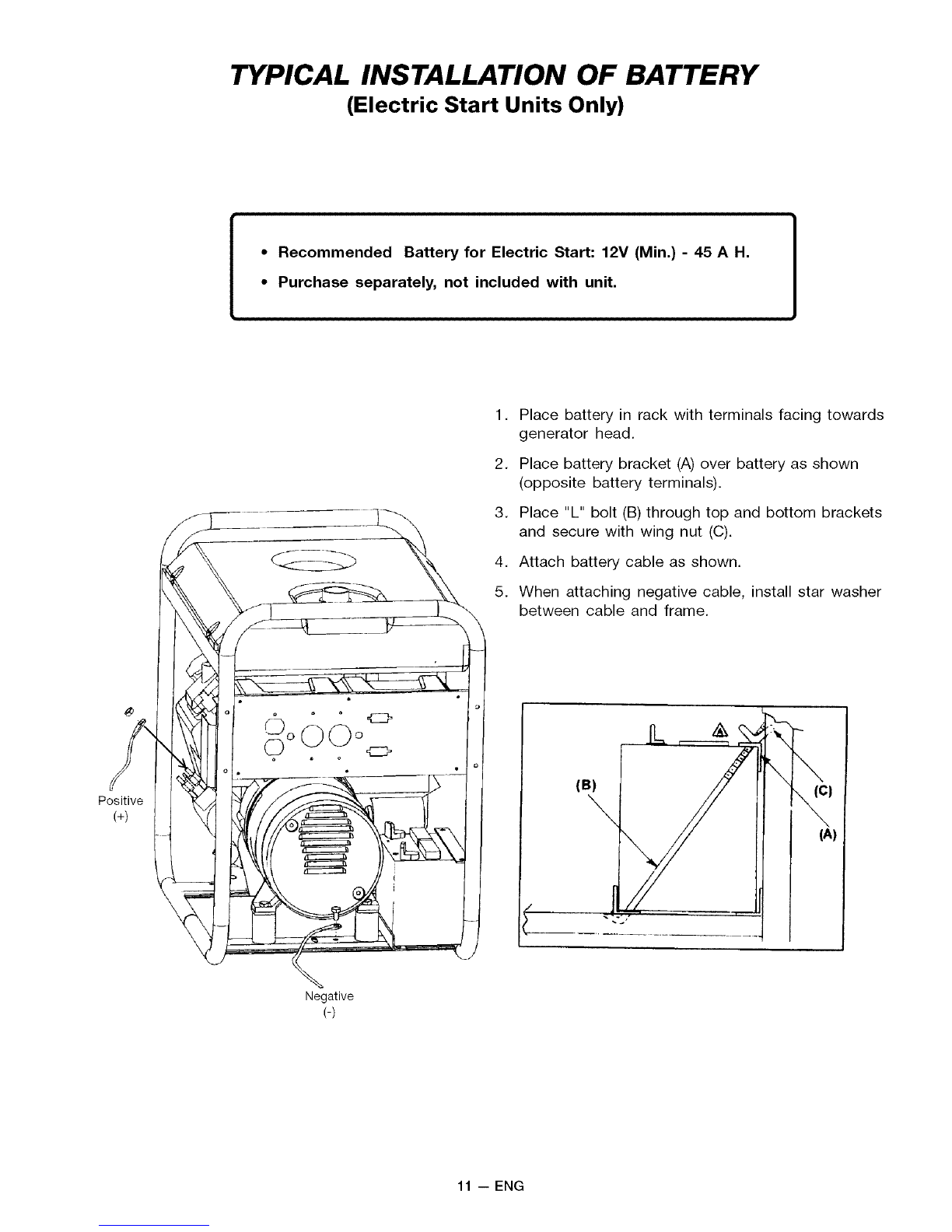

TYPICAL INSTALLATION OF BATTERY ................................................. 11
GROUNDING INSTRUCTIONS/EXTENSION CORDS .............................. 12
INSTALLATION OF G ENERATOR ........................................................... 12
OPERATING INSTRUCTIONS ................................................................. 13

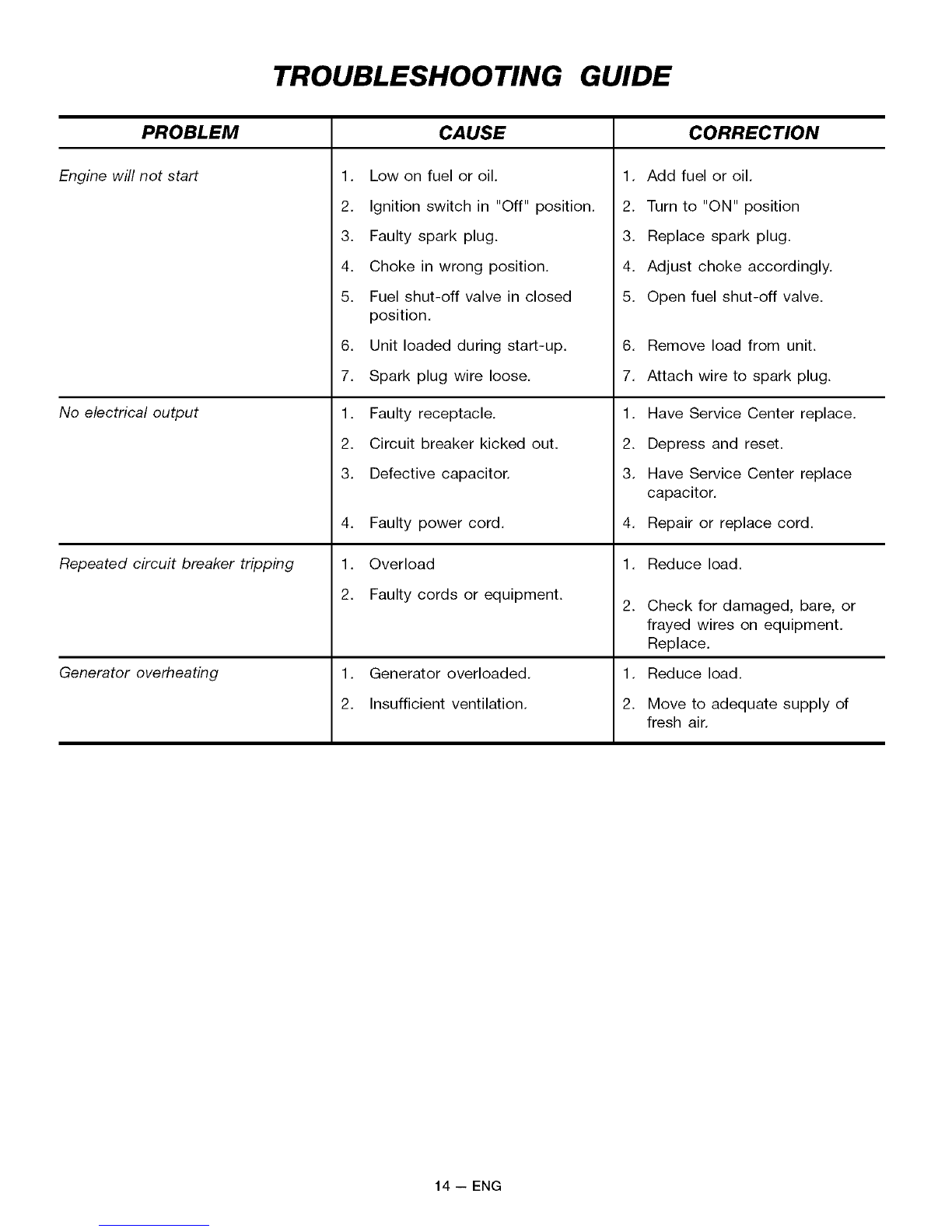

TROUBLESHOOTING GUIDE ................................................................. 14
GENERAL PARTS IDENTIFICATION ...................................................... 15
MAINTENANCE PARTS LIST ................................................................. 15
HOW TO ORDER REPAIR PARTS .......................................................... 16
WARRANTY ............................................................................................ 16
2 -- ENG

SAFETY GUIDELINES - DEFINITIONS
This manual contains information
that is important for you to know and
understand, This information relates
to protecting YOUR SAFETY and
PREVENTING EQUIPMENT PROB-
LEMS. To help you recognize this
information, we use symbols to the
right. Please read the manual and
pay attention to these sections.
I'& DANGER I
URGENT SAFETY INFORMATION -AHAZARD
THAT WILL CAUSE SERIOUS INJURY OR
LOSS OF LIFE,
I _WARNING I
IMPORTANT SAFETY INFORMATION -A
HAZARD THAT MIGHT CAUSE SERIOUS
INJURY OR LOSS OF LIFE,
I _iI,CAUTION I
Information for preventing damage to
equipment.
INOTE I
Information that you should pay special
attention to.
IMPORTANT SAFETY INSTUCTIONS
• SAVE THESE INSTRUCTIONS •
HAZARD
Attempting to connect generator directly
to the electrical system of any building
structure.
Inadequate electrical grounding of gen-
erator.
When using this product basic precautions should always be followed
including the following:
RISK OF ELECTROCUTION AND FIRE
WHAT COULD HAPPEN
Back feeding electricity through a
building's electrical system to the
outside utility feed lines could en-
danger repair persons attempting to
restore service.
Attempting to connect to the incoming
utility service could result in electrocu-
tion.
Restoration of electrical service while
the generator is connected to the in-
coming utility could result in a fire or
serious damage if a isolator switch is
not installed.
The failure of one of the generator's
electrical devices, a broken wire, wet
surfaces, etc. could result in the entire
unit becoming electrically charged.
Contact with electrically charged
surfaces could result in electrocution.
HOW TO PREVENT IT
To connect to a structure's electrical
system in a safe manner and in com-
)liance with local ordinances, it is
necessary to have a Double-Throw
Transfer Switch installed by a
qualified electrician. (When install-
ing a Double-Throw Transfer
Switch, a minimum of 10 gauge
wiring must be used.)
Make sure that the unit is connected
to an appropriate electrical ground,
m accordance with the requirement
of the National Electric Code. See
page 12 for grounding instructions.
3-- ENG

READ AND UNDERSTAND ALL WARNINGS BEFORE
ATTEMPTING TO OPERATE GENERATOR.

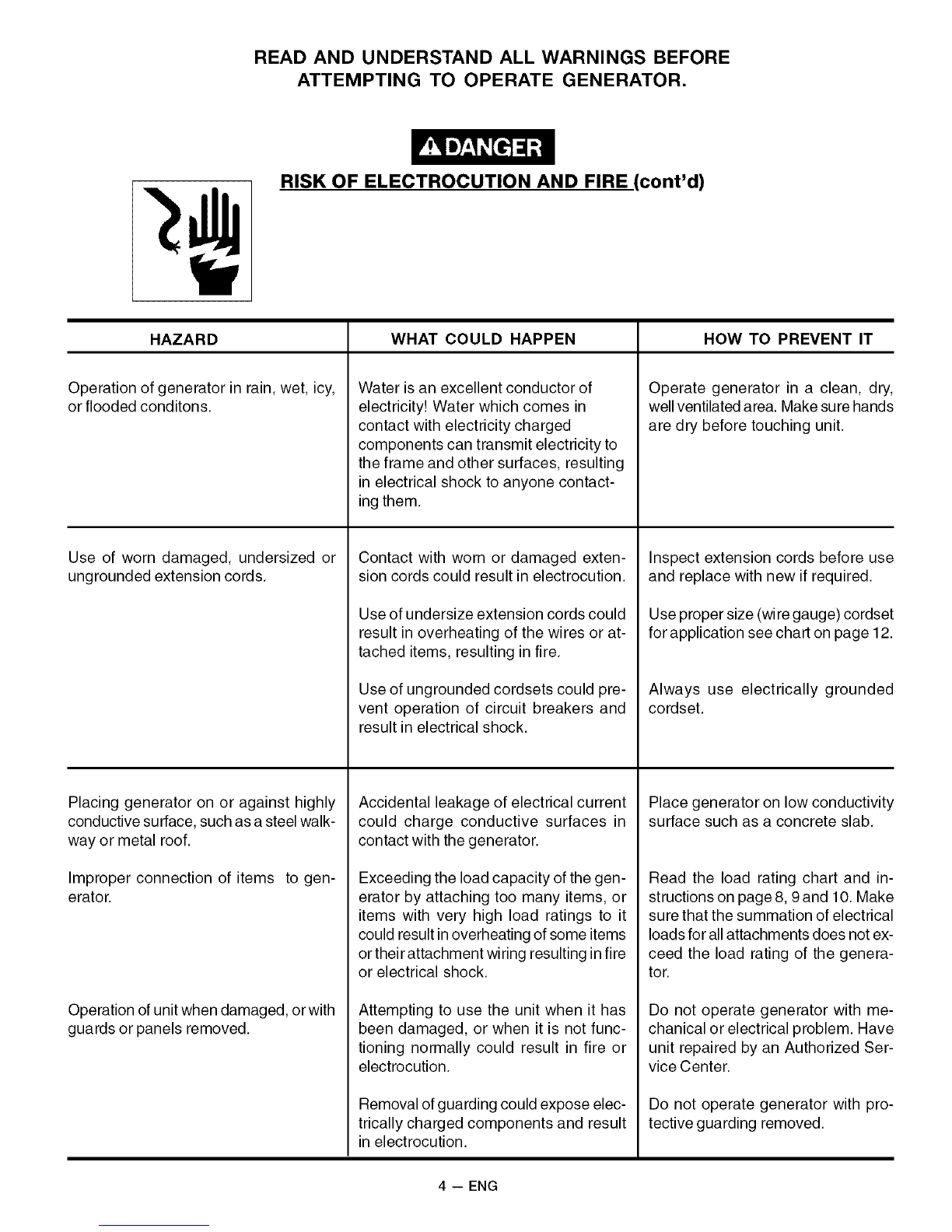

RISK OF ELECTROCUTION AND FIRE (cont'd)
HAZARD
Operation of generator in rain, wet, icy,
or flooded conditons.
Use of worn damaged, undersized or
ungrounded extension cords.
Placing generator on or against highly
conductive surface, such as a steel walk-
way or metal roof.
Improper connection of items to gen-
erator.
Operation of unit when damaged, or with
guards or panels removed.
WHAT COULD HAPPEN
Water is an excellent conductor of
electricity! Water which comes in
contact with electricity charged
components can transmit electricity to
the frame and other surfaces, resulting
in electrical shock to anyone contact-
ing them.
Contact with worn or damaged exten-
sion cords could result in electrocution.
Use of undersize extension cords could
result in overheating of the wires or at-
tached items, resulting in fire.
Use of ungrounded cordsets could pre-
vent operation of circuit breakers and
result in electrical shock.
Accidental leakage of electrical current
could charge conductive surfaces in
contact with the generator.
Exceeding the load capacity of the gen-
erator by attaching too many items, or
items with very high load ratings to it
could result in overheating of some items
or their attachment wiring resulting in fire
or electrical shock.
Attempting to use the unit when it has
been damaged, or when it is not func-
tioning normally could result in fire or
electrocution.
Removal of guarding could expose elec-
trically charged components and result
in electrocution.
HOW TO PREVENT IT
Operate generator in a clean, dry,
well ventilated area. Make sure hands
are dry before touching unit.
Inspect extension cords before use
and replace with new if required.
Use proper size (wire gauge) cordset
for application see chart on page 12.
Always use electrically grounded
cordset.
Place generator on low conductivity
surface such as a concrete slab.
Read the load rating chart and in-
structions on page 8, 9 and 10. Make
sure that the summation of electrical
loads for all attachments does not ex-
ceed the load rating of the genera-
tor.
Do not operate generator with me-
chanical or electrical problem. Have
unit repaired by an Authorized Ser-
vice Center.
Do not operate generator with pro-
tective guarding removed.
4-- ENG

READ AND UNDERSTAND ALL WARNINGS BEFORE
ATTEMPTING TO OPERATE GENERATOR.

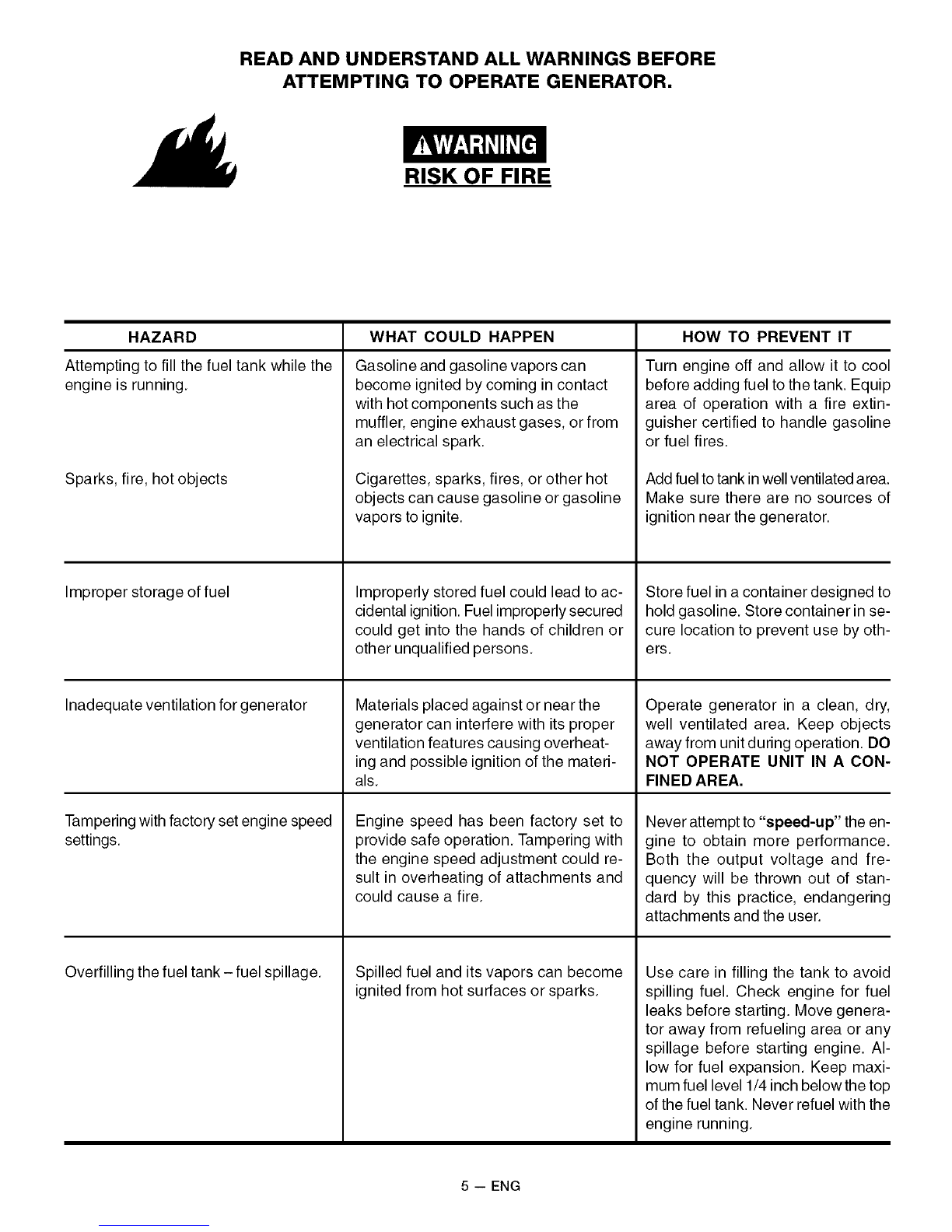

RISK OF FIRE
HAZARD
Attempting to fill the fuel tank while the
engine is running.
Sparks, fire, hot objects
Improper storage of fuel
Inadequate ventilation for generator
Tampering with factory set engine speed
settings.
Overfilling the fuel tank- fuel spillage.
WHAT COULD HAPPEN
Gasoline and gasoline vapors can
become ignited by coming in contact
with hot components such as the
muffler, engine exhaust gases, or from
an electrical spark.
Cigarettes, sparks, fires, or other hot
objects can cause gasoline or gasoline
vapors to ignite.
Improperly stored fuel could lead to ac-
cidental ignition. Fuel improperly secured
could get into the hands of children or
other unqualified persons.
Materials placed against or near the
generator can interfere with its proper
ventilation features causing overheat-
ing and possible ignition of the materi-
als.
Engine speed has been factory set to
provide safe operation. Tampering with
the engine speed adjustment could re-
sult in overheating of attachments and
could cause a fire.
Spilled fuel and its vapors can become
ignited from hot surfaces or sparks.
HOW TO PREVENT IT
Turn engine off and allow it to cool
before adding fuel to the tank. Equip
area of operation with a fire extin-
guisher certified to handle gasoline
or fuel fires.
Add fuel to tank in wellventilated area.
Make sure there are no sources of
ignition near the generator.
Store fuel in a container designed to
hold gasoline. Store container in se-
cure location to prevent use by oth-
ers.
Operate generator in a clean, dry,
well ventilated area. Keep objects
away from unit during operation. DO
NOT OPERATE UNIT IN A CON-
FINED AREA.
Never attempt to "speed-up" the en-
gine to obtain more performance.
Both the output voltage and fre-
quency will be thrown out of stan-
dard by this practice, endangering
attachments and the user.
Use care in filling the tank to avoid
spilling fuel. Check engine for fuel
leaks before starting. Move genera-
tor away from refueling area or any
spillage before starting engine. Al-
low for fuel expansion. Keep maxi-
mum fuel level 1/4 inch below the top
of the fuel tank. Never refuel with the
engine running.
5 -- ENG

READ AND UNDERSTAND ALL WARNINGS BEFORE
ATTEMPTING TO OPERATE GENERATOR.

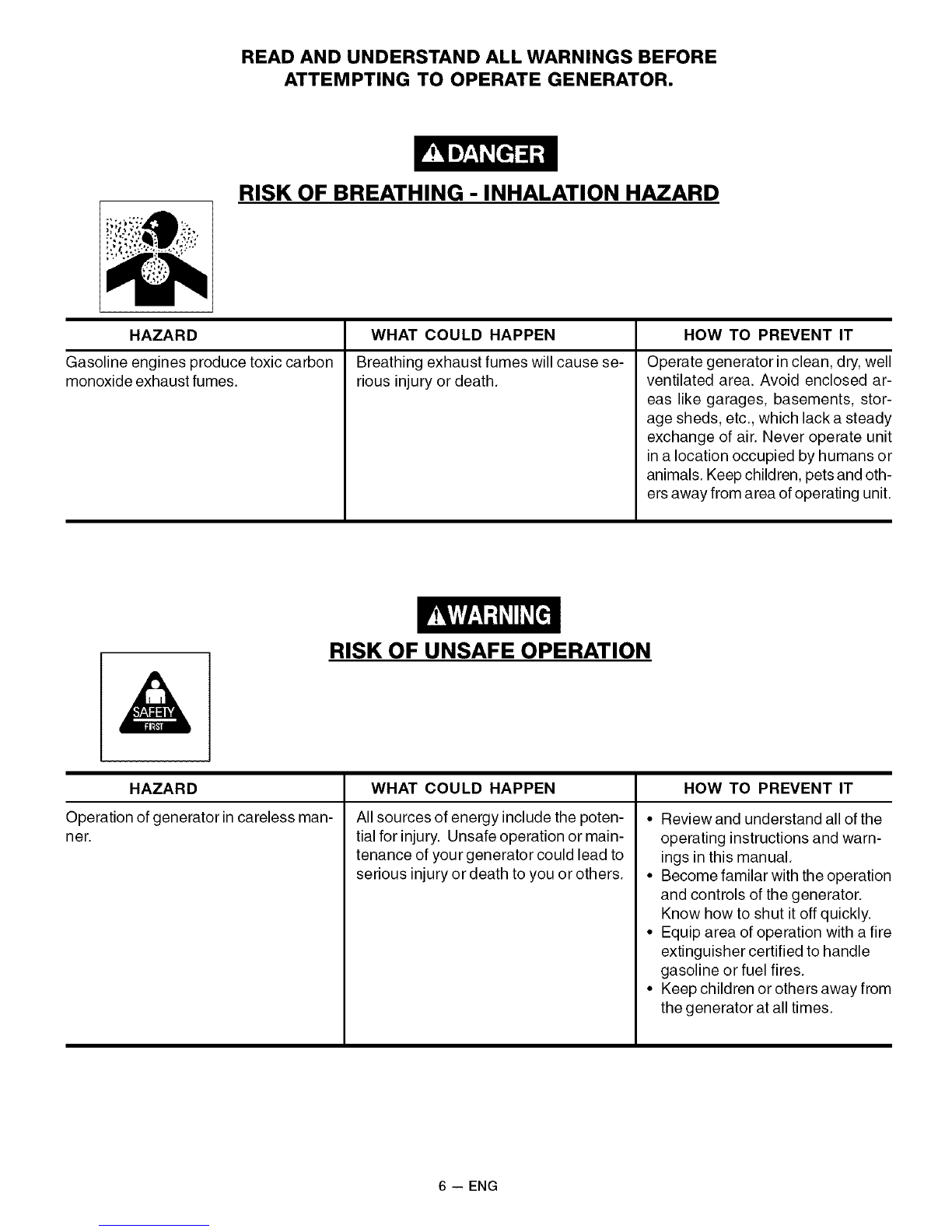

RISK OF BREATHING - INHALATION HAZARD
HAZARD
Gasoline engines produce toxic carbon
monoxide exhaust fumes.
WHAT COULD HAPPEN
Breathing exhaust fumes will cause se-
rious injury or death.
HOW TO PREVENT IT
Operate generator in clean, dry, well
ventilated area. Avoid enclosed ar-
eas like garages, basements, stor-
age sheds, etc., which lack a steady
exchange of air. Never operate unit
in a location occupied by humans or
animals. Keep children, pets and oth-
ers away from area of operating unit.
RISK OF UNSAFE OPERATION
HAZARD
Operation of generator in careless man-
ner.
WHAT COULD HAPPEN
All sources of energy include the poten-
tial for injury. Unsafe operation or main-
tenance of your generator could lead to
serious injury or death to you or others.
HOW TO PREVENT IT
•Reviewand understand all of the
operating instructions and warn-
ings in this manual.
• Become familar with the operation
and controls of the generator.
Know how to shut it off quickly.
• Equip area of operation with a fire
extinguisher certified to handle
gasoline or fuel fires.
• Keep children or others away from
the generator at all times.
6-- ENG

READ AND UNDERSTAND ALL WARNINGS BEFORE
ATTEMPTING TO OPERATE GENERATOR.

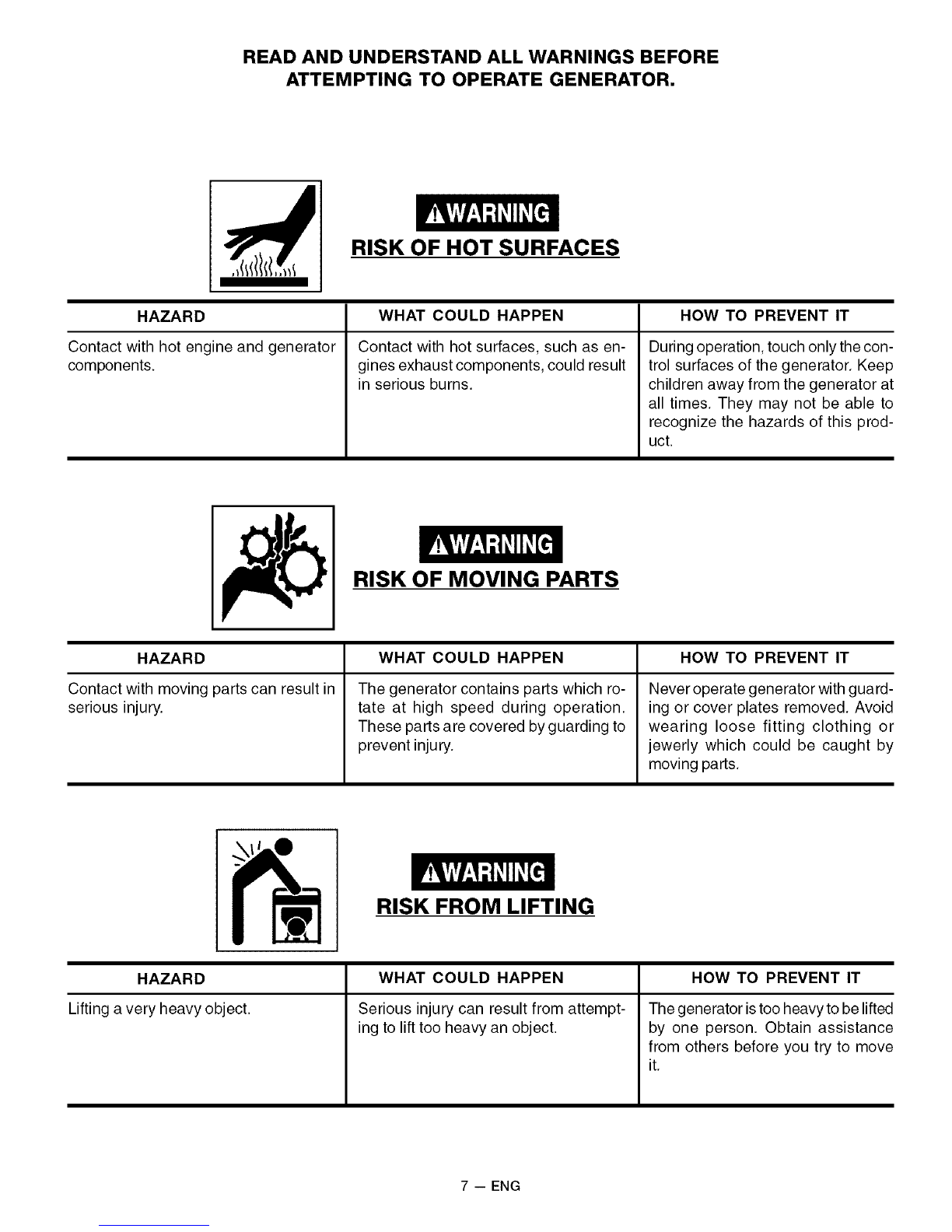

RISK OF HOT SURFACES
HAZARD
Contact with hot engine and generator
components.
WHAT COULD HAPPEN
Contact with hot surfaces, such as en-
gines exhaust components, could result
in serious burns.
HOW TO PREVENT IT
During operation, touch only the con-
trol surfaces of the generator. Keep
children away from the generator at
all times. They may not be able to
recognize the hazards of this prod-
uct.
RISK OF MOVING PARTS
HAZARD
Contact with moving parts can result in
serious injury.
WHAT COULD HAPPEN
The generator contains parts which ro-
tate at high speed during operation.
These parts are covered by guarding to
prevent injury.
HOW TO PREVENT IT
Never operate generator with guard-
ing or cover plates removed. Avoid
wearing loose fitting clothing or
jewerly which could be caught by
moving parts.
RISK FROM LIFTING
HAZARD
Lifting a very heavy object.
WHAT COULD HAPPEN
Serious injury can result from attempt-
ing to lift too heavy an object.
HOW TO PREVENT IT
The generator istoo heavy to be lifted
by one person. Obtain assistance
from others before you try to move
it.
7--ENG

WATTAGE CALCULATING INSTRUCTIONS
IMPORTANT
Never exceed the rated capacity of your generator. Serious damage to the generator or appliance could result
from an overload.
1.
2.
Starting and running wattage requirements should always be calculated when matching a generators
wattage capacity to the appliance or tool.
There are two types of electrical applicances that can be powered by your generator:
A. Items such as radios, light bulbs, television sets, and microwaves have a "resistive load". Starting
wattage and running wattage are the same.
B. Items such as refrigerators, air compressors, washer, dryer, and hand tools that use an electrical
motor have an "inductive load". Inductive load appliances and tools require approximately 2 to 4 times
the listed wattage for starting the equipment. This initial load only lasts for a few seconds on start-up
but is very important when figuring your total wattage to be used.
C. Always start your largest electric motor first, and then plug in other items, one at a time.
DETERMINING WATTAGE REQUIREMENTS
Before operating this generator list all of the applicances and/or tools that are going to operate at the same time. (Then
determine the starting wattage requirements and the running wattage requirements by following example and/or refer to
wattage calculator on page 10.)
1. First total the running wattage of all applicances and/or tools that will be operated at the same time.
Running Watts Starting Watts
Example 1:
Lights = 100 Watts
Television = 300 Watts
Slow Cooker = 250 Watts
TOTAL = 650 Watts
0
0
0
2. Next the starting wattages of any appliances and/or tools that will start and stop during operation.
Running Watts Starting Watts
Example2: Small Refrigerator 500 Watts 2000 Watts
TOTAL = 500 Watts 2000 Watts
3. The running wattage of examples 1 & 2 totals 1150 watts. The starting wattage of the small refrigerator is 2000 watts
which is 1500 watts more than the running watts. Take this difference of 1500 starting watts from the refrigerator and
add to the total running watts of 1150.
Example 3: 1500 Starting Watts
1150 Running Watts
TOTAL = 2650 Total Watts
Generator must have a maximum capacity of at least 2650 watts.
8 -- ENG

WATTAGE CALCULATING INSTRUCTIONS (cont'd)
STARTING WATTAGE REQUIREMENTS 2.
1. Some appliances and tools will list on the motor name
plate the starting and running voltage and amperage
requirements. Use the following formula to convert volt-
age and amperage to wattage:
Volts X Amp = Watts
Example 1: (Starting voltage and amperage for 1/3
HP furnace fan)
120 volts x 10 amps = 1200 watts
3.
Todetermine the approximate starting wattage require-
ment for most appliances and tools with inductive type
motors, multiply the wattage that was calculated by 2
to 4 times to assure adequate generator capacity. If
the nameplate information is not available use the
values on the following chart as a guide.
Remember that the starting and running wattage for
resistive loads are the same. (Example: a 100 watt
light bulb requires only 100 watts to start.) Most resis-
tive loads will be listed in wattage. (Refer to page 10 for
wattage calculations.)
To select the right generator for your needs, total the wattage
of the items to be run at the same time.
Wattage start
1
3/8" Hand Drill
Jigsaw
1/3 HP Airless Sprayer
6" Bench GrirKler
Belt Sander
Demolition Hammer
7 1/4 _Circular Saw
Light Bulb
Home Securify
Television
Microwave
Toaster Oven
Portable Heater {5,_0 BTU)
Furnace Fan
Refrigerator/Freezer
Sump Pump
Clothes Washer
Water Heater
Air Conditioner
I i
i i
i i
i i
i i
i i
i i
i i
i i
i i
i i
i i
i i
i i
i i
i i
i i
i i
i i
i i
i i
i i
i i
i i
i i
i i
i i
i i
I i
-. Radio .............
•_ Slow Cooker
_= Electric Blanket
El_ctric Skillet
Coffee Maker
m_
The wa_ge ratings shown are averages, Wattage _quirements may vary
with diffe_nt brands of appliances.
9-- ENG

WATTAGE CALCULATING INSTRUCTIONS (cont'd)
IHOUSEHOLD WATTAGE CALCULATOR I
IDEVICES WITH HIGH STARTING LOADS
RUN WATTS I [TIMES (X) START FACTOR
I
APPLIANCE OR ITYPICAL DEVICE
LOAD DEVICE IWATTAGE**
CONNECTED
DEVICES-ADD
VALUES
I] 750 ]._[ 3 IREFRIGERATOR/ _ 2250
'_ FREEZER
I]
380 ]_[ 2 j_-] FURNACE(GAS!OIL) H 760
I]
1490 ]_-[ 3 ] _-]AIR COND.(ROOM)_ 4470
I] 560 ]_[ 6 j
CAUTION! I'I
DO NOT CONNECT VOLTAGE SENSITIVE ,
#] WATERPUMP _ 3360
lHOTPLATE J_I 2500
TELEVISION J
1
ELECTRONIC EQUIPMENT (TV SET, I--"_
i--
....02_LU.TE2'ETO'2Tg.Y.2U.22E2E2229..."
OVERLOADING THE GENERATOR WILL
RESULT IN LOWERING ELECTRICAL
VOLTAGE AND FREQUENCY, AND COULD
RESULT IN PERMANENT DAMAGE TO YOUR
APPLIANCES! COMPLETE THIS SIMPLE
ANALYSIS OF YOUR ELECTRICAL NEEDS,
AND SELECT THE DEVICES SO AS TO AVOID
OVERLOADING THE GENERATOR.
lMICROWAVE #I
ISPAOEHEATER _
IWATERHEATER _
I LIGHTING
60WATT BULBS
75WATT BULBS
100WATT BULBS
300WATT BULBS
**AVERAGE VALUES-
ACTUAL INDIVIDUAL
DEVICE VOLTAGES MAY
BE HIGHER OR LOWER L1
WATTS
6O
75
100
3OO
TIMES NUMBER
OF BULBS
_-4 I
I
_-4 I
I
#; 250 _ CAUTION!! |
800I---*1 I
1800t_ I
3360t_ I
÷
I I
I
I LECTRIC LOAD GRAND TOTAL
I (MUST BE LESS THAN YOUR GENERATOR RATING)
WATTAGE RATING OF YOUR GENERATOR
BE GREATER THAN YOUR HOUSEHOLD WATTAGE LOAD)
(MUST 1
10 -- ENG

TYPICAL INSTALLATION OF BATTERY
(Electric Start Units Only)
• Recommended Battery for Electric Start: 12V (Min.) - 45 A H.
•Purchase separately, not included with unit.
1. Place battery in rack with terminals facing towards
generator head.
2. Place battery bracket (A) over battery as shown
(opposite battery terminals).
3. Place "L" bolt (B) through top and bottom brackets
and secure with wing nut (C).
4. Attach battery cable as shown.
5. When attaching negative cable, install star washer
between cable and frame.
Positive
(+)
(B)
(A)
Negative
(-)
11 -- ENG

GROUNDING INSTRUCTIONS/EXTENSION CORDS
GROUNDING INSTRUCTION
This generator should be grounded to help prevent accidental
electrical shock. Shown below is a picture of the grounding lug
supplied on your generator. Drive a 3/4" or 1" diameter copper
pipe or rod into the ground close to the generator set. The pipe
must penetrate moist earth. Using #10 gauge wire, connect
one end of the wire into the grounding lug. Connect the other
end of the wire to the copper pipe or rod using an approved
ground clamp.
Your generator is also equipped with a grounding strap. This
grounding strap bolts from the base of the gas engine directly
to the frame assembly of the generator.
[o
Grounding Lug
Extension Cord Wire Gauge Chart
Cord Wire Gauge
Length Size Amperage
0 to 1O0ft. 12ga. *Up to20 ampdraw
0 to 1O0ft. 10ga. Upto 30 ampdraw
EXTENSION CORDS
When using an appliance or tool at a considerable distance
from the generator, a 3-wire extension cord that has a 3-blade
grounding plug and a 3-slot receptacle that accepts the tool's
plug should be used. A cord of adequate size must be used.
Using the following chart to determine the minimum wire size
required.
There are basically 2 ways to obtain electricity from a genera-
tor:
1.Use of extension cords directly from the generator to the
appliance, lights, tools, etc.
2.Use of a double-throw transfer switch installed directly to
the main electrical supply outside of house. (See installa-
tion of generator below).
*NOTE: When amperage exceeds 20 amp; a
12 gauge extension cord should not be used
for long distances.
An extension cord that is hot to the touch is overloaded. Repair or replace damaged extension
cords immediately.
INSTALLATION OF GENERATOR
Potential hazards exist when a portable electric generator is connected to the main electrical supply coming into the house.
It is at that point that the electrical generator could feed back into the utility company's system causing possible electrocu-
tion of workers who are repairing the electrical lines.
To avoid back feeding of electricity into utility systems, a double-throw transfer switch must be installed between the
generator and utility power. The Double-Throw Transfer Switch should be installed by a licensed electrician and in compli-
ance with all state and local electrical codes. (When installing a Double-Throw Transfer Switch, a minimum of 10
gauge wiring must be used.)
The electrician could also install a sub-panel to isolate the circuits you would want to use during an emergency or electrical
power outage. You rgenerator might not be large enough to handle the load of all the lights, appliances, TV, etc. at one time.
To select which items to run during the electrical power outage, use chart on page 10.
12 -- ENG

OPERATING INSTRUCTIONS
BEFORE START UP
Follow the steps listed below before starting generator:
1. Check engine oil. Refer to the Engine Operator's
Manual for correct grade and quantity of oil.
This generator has been shipped from the
factory without oil in the crankcase. Oper-
ating the unit without oil can ruin the en-
gine.
2. Check fuel level, fillas required. Make sure generator
is turned off and has been allowed time to cool down.
3. Make sure generator is grounded.
4. All electrical loads should be disconnected.
IMPORTANT: Unit may be equipped with a low oil shut-
down system that will stop the engine should the crank-
case oil level fall below the safe operating level, If generator
shuts off and the oil level is according to specifications,
check to see if generator is sitting level, Place on an even
surface to correct this.
Engine speed has been factory set to provide
safe operation. Tampering with the engine
speed adjustment could result in overheating
of attachments and could cause a fire. Never
attempt to "speed-up" the engine to obtain
more performance. Both the output voltage
and frequency will be thrown out of standard
by this practice, endangering attachments and
the user.
4. Grasp handle on rope starter and pull slowly
until resistance is felt. Then pull cord rapidly to
overcome compression, prevent kickback, and
start engine. Repeat if necessary.
NOTE: IF ENGINE OIL LEVEL ISTOO LOW, ENGINE WILL
NOT START. CHECK OIL LEVEL AND ADD IF NECES-
SARY.
5. Open the choke gradually after engine starts. The
engine should come up to full operating speed quickly.
Do not allow choke to remain on after the engine has
run for a short time. Avoid over-choking.
6. Allow generator to run at no load for 5 minutes upon
each initial start-up to allow engine and generator to
stabilize.
START UP-(Electric start)
1, Repeat steps 1,2, and 3 listed above in recoil start
procedures.
2. Push ON\OFF\START switch on control panel to the
"START" position to start engine. Hold in "START"
position no longer than 15 seconds per minute when
trying to start engine, Extended cranking can damage
the starter motor,
3, Repeat steps 5 and 6 listed above,
STOPPING ENGINE
1, Disconnect all electrical loads.
2. Turn on\off switch to "OFF" position,
3, Close fuel shut-off valve,
STORING GENERATOR
When this generator isgoing to be stored for more than
one month, referto the Engine Operator's Manual for more
detailed information.
START UP-(Recoil start/Pull start_
Do not operate generator indoors-exhaust
fumes contain carbon monoxide, an odor-
less and deadly gas.
1. Open the fuel shut-off valve.
2. Position ON\OFF switch on to the "ON"
position.
3. Move the choke control to "CHOKE"
position. A cold engine may require to be
choked longer than a warm engine.
MAINTENANCE SCHEDULE
100 HOURS OR EVERY SEASON: Clean exterior with
cloth or brush. Do not use high pressure spray to clean
generator or engine.
Note: Refer to the Engine Operator's Manual for
service and maintenance of the engine.
13 -- ENG

TROUBLESHOOTING GUIDE
PROBLEM
Engine will not start
No electrical output
Repeated circuit breaker tripping
Generator overheating
CAUSE
1. Low on fuel or oil.
2. Ignition switch in "Off" position.
3. Faulty spark plug.
4. Choke in wrong position.
5. Fuel shut-off valve in closed
position.
6. Unit loaded during start-up.
7. Spark plug wire loose.
1. Faulty receptacle.
2. Circuit breaker kicked out.
3. Defective capacitor.
4. Faulty power cord.
1. Overload
2. Faulty cords or equipment.
1. Generator overloaded.
2. Insufficient ventilation.
CORRECTION
1. Add fuel or oil.
2. Turn to "ON" position
3. Replace spark plug.
4. Adjust choke accordingly.
5. Open fuel shut-off valve.
6. Remove load from unit.
7. Attach wire to spark plug.
1. Have Service Center replace.
2. Depress and reset.
3. Have Service Center replace
capacitor.
4. Repair or replace cord.
1. Reduce load.
2. Check for damaged, bare, or
frayed wires on equipment.
Replace.
1. Reduce load.
2. Move to adequate supply of
fresh air.
14 -- ENG

GENERAL PARTS IDENTIFICATION
1, Frame assembly
2. Fuel Tank- Seven (7) gallon capacity,
3, Fuel Cap
4, Fuel Shut-Off Valve
5, Fuel Hose
6. Fuel Filter
7. Receptacle- 120V 20 Amp Duplex .
8. Grounding Lug- (not shown) This is the
attachment point for a ground wire to an
external earth ground,
9. Circuit Breaker- 120/240V 20 amp,
10. Vibration Isolator
11. Receptacle- 240V 20 Amp Duplex.
12, Generator Housing
13 Oil Drain Plug
14. Oil Filler Cap
15. Exhaust Muffler
16, Air Filter
17, On/Off Switch
18, 10 lip Briggs & Stratton Engine- Included with this
generator is a copy of the Engine Manufacturer's
Operator's Manual. See this manual for more detail
on the engine,
10
16
MAINTENANCE PARTS LIST
Part No. Qty. Description
GS-0230
GS-0229
GS-0225
GS-0227
GS-0444
91895680
GS-0443
GS-0033
GS-0233
GA100
1
1
1
2
1
4
1
3
1
1
Air Filter
Fuel Filter
Fuel Line
Fuel Line Clamps
Gas Tank
Gas Tank Screws
Gas Cap
Isolators
Spark Arrester
Wheel/Handle Kit
15 -- ENG

S£ARS
OWNERS
MANUAL
MODEL NO.
919.326510
When requesting service or ordering
parts, always provide the following
information:
•Model Number
• Part Number
• Part Description
• Name of Item
FULL ONE YEAR WARRANTY
AIR COMPRESSOR
If this air compressor fails due to a defect
in material or workmanship within one year
from the date of purchase, RETURN IT TO
THE NEAREST SEARS REPAIR CENTER
THROUGHOUTTHE UNITED STATES AN D
SEARS WILL REPAIR IT,FREEOF CHARGE.
If this air compressor is used for commer-
cial or rental purposes, the warranty will
apply for ninety days from the date of
purchase. _=".Z.,Tltt._=';|W/_
This warranty gives you specific legal rights
and you may have other rights which vary
from state to state.
CRRFTSMRN
GENERATOR
For the repair or replacement parts you need
Call 7 am - 7 pm, 7 days aweek
1-800-366-PART
(1-800-366-7278)
For in-home major brand repair service
Call 24 hours a day, 7 days a week
1 -800-4-REPAIR
(1-800-473-7247)
For the location of a
Sears Parts and Repair Center in your are_
Call 24 hours a day, 7 days a week
1-800-488-1
For information on purchasing a Sears
Maintenance Agreement or to inquire _,..e_,.._,_
call 9 am - 5 pm, Monday-Saturday
1-800-827-665,5 __I"
SEARS
Arnenca's Repair Specialists
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
