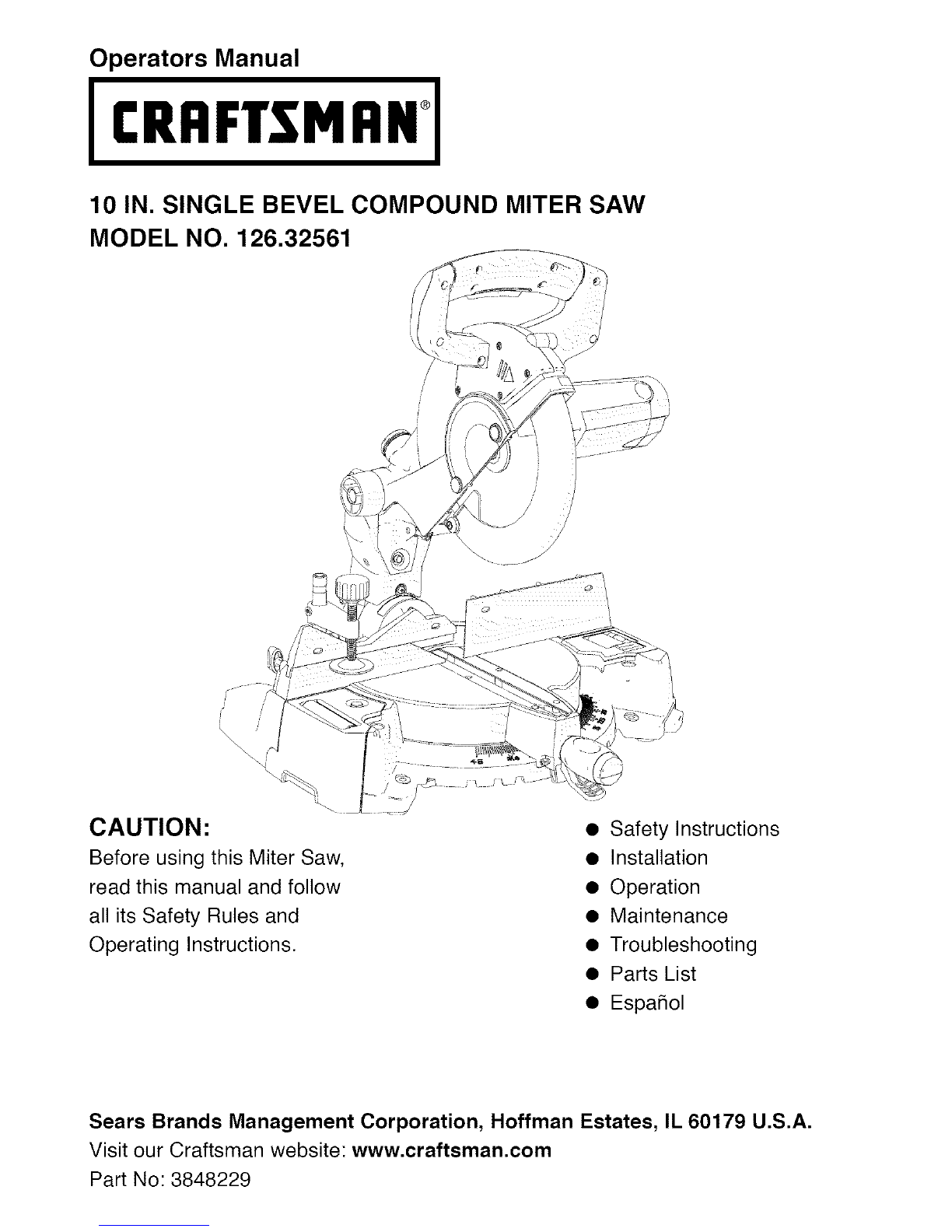

Craftsman 126.32561 User manual

Operators Manual
CRItFTSMI:INi
10 IN. SINGLE BEVEL COMPOUND MITER SAW
MODEL NO. 126.32561
CAUTION:
Before using this Miter Saw,
read this manual and follow
all its Safety Rules and
Operating Instructions.
• Safety Instructions
• Installation
• Operation
• Maintenance
• Troubleshooting
• Parts List
• Espa_ol
Sears Brands Management Corporation, Hoffman Estates, IL 60179 U.S.A.
Visit our Craftsman website: www.craftsman.com
Part No: 3848229

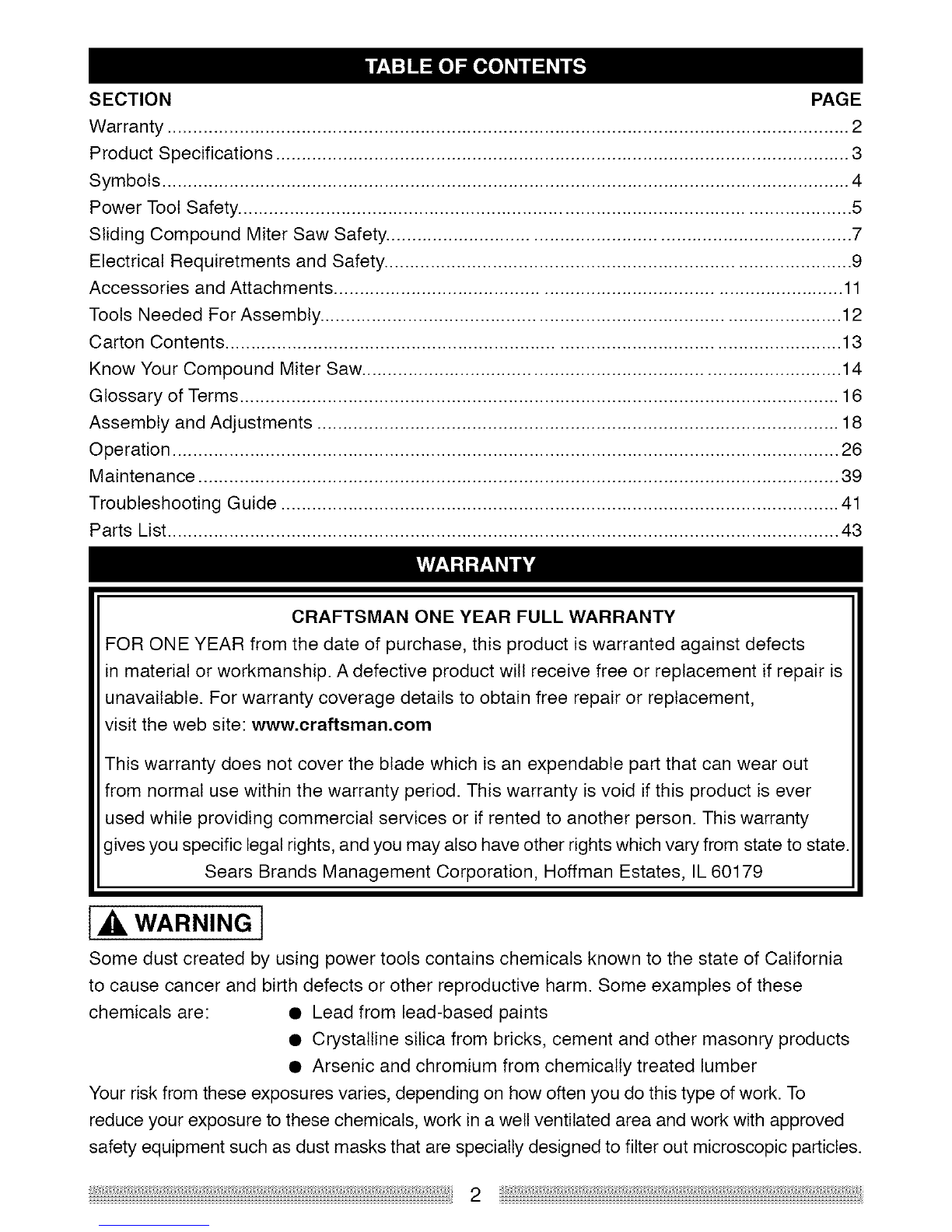

SECTION PAGE
Warranty .................................................................................................................................... 2
Product Specifications ............................................................................................................... 3
Symbols ..................................................................................................................................... 4
Power Tool Safety ...................................................................................................................... 5
Sliding Compound Miter Saw Safety ......................................................................................... 7
Electrical Requiretments and Safety .......................................................................................... 9
Accessories and Attachments ................................................................................................. 11
Tools Needed For Assembly .................................................................................................... 12
Carton Contents ...................................................................................................................... 13
Know Your Compound Miter Saw ............................................................................................ 14
Glossary of Terms .................................................................................................................... 16
Assembly and Adjustments ..................................................................................................... 18
Operation ................................................................................................................................. 26
Maintenance ............................................................................................................................ 39
Troubleshooting Guide ............................................................................................................ 41
Parts List.................................................................................................................................. 43
CRAFTSMAN ONE YEAR FULL WARRANTY
FOR ONE YEAR from the date of purchase, this product is warranted against defects
in material or workmanship. A defective product will receive free or replacement if repair is
unavailable. For warranty coverage details to obtain free repair or replacement,
visit the web site: www.craftsman.com
This warranty does not cover the blade which is an expendable part that can wear out
from normal use within the warranty period. This warranty is void if this product is ever
used while providing commercial services or if rented to another person. This warranty
gives you specific legal rights, and you may also have other rights which vary from state to state.
Sears Brands Management Corporation, Hoffman Estates, IL 60179
,_ WARNING l
Some dust created by using power tools contains chemicals known to the state of California
to cause cancer and birth defects or other reproductive harm. Some examples of these
chemicals are: • Lead from lead-based paints
• Crystalline silica from bricks, cement and other masonry products
• Arsenic and chromium from chemically treated lumber
Your risk from these exposures varies, depending on how often you do this type of work. To
reduce your exposure to these chemicals, work in a well ventilated area and work with approved
safety equipment such as dust masks that are specially designed to filter out microscopic particles.
2

MOTOR
Power Source ................................................................................................... 120V, 60Hz, 13A
Speed ......................................................................................................... 4800RPM (No Load)
Brake ............................................................................................................................... Electric
Double Insulated .................................................................................................................... Yes
BLADE SIZE
Diameter ............................................................................................................................. 10 in.
Arbor size .......................................................................................................................... 5/8 in.
Blade Type ......................................................................... 40T TCT (Tungsten Carbide Tipped)
ROTATING TABLE
Diameter ....................................................................................................................... 11-3/4 in.
CUTTING CAPACITY- LUMBER
At 90o......................................................................................... Max Section 2-7/8 in x 5-1/2 in.
At 45o......................................................................................... Max Section 2-7/8 in x 4-1/4 in.
At Compound Bevel (45ox 45°) ........................................................ Max Section 2 in x 4-1/4 in.
[,_ WARNING l
To avoid electrical hazards, fire hazards or damage to the tool, use proper circuit
protection.
This tool is wired at the factory for 110-120 Volt operation.
It must be connected to a 110-120 Volt /13 Ampere time delay fuse or circuit breaker.
To avoid shock or fire, replace power cord immediately if it is worn, cut or damaged in
any way.
Before using your tool, it is critical that you read and understand these safety rules.
Failure to follow these rules could result in serious injury to you or damage to the tool.
3

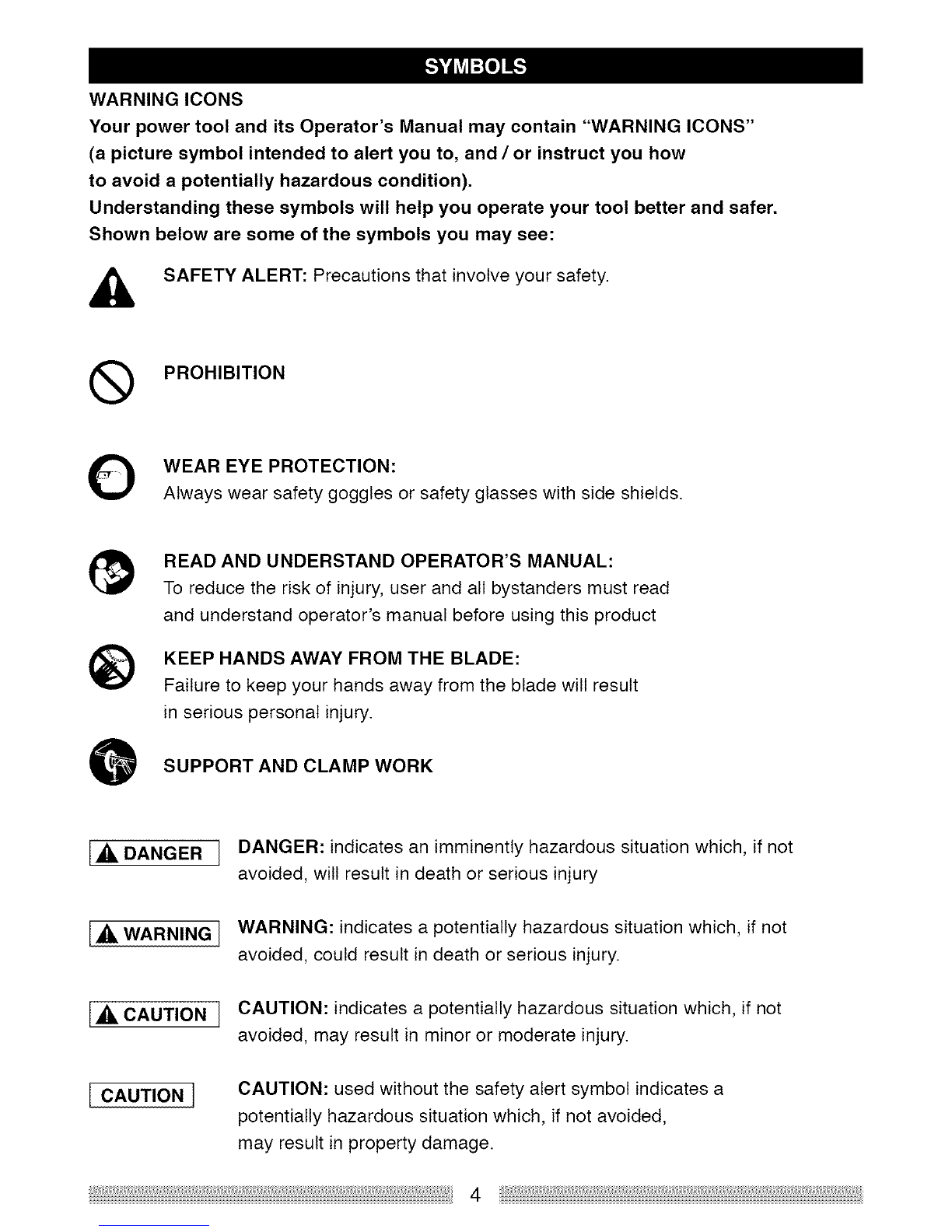

WARNING ICONS
Your power tool and its Operator's Manual may contain "WARNING ICONS"
(a picture symbol intended to alert you to, and /or instruct you how
to avoid a potentially hazardous condition).
Understanding these symbols will help you operate your tool better and safer.
Shown below are some of the symbols you may see:
_, SAFETY ALERT: Precautions that involve your safety.
(_ PROHIBITION
WEAR EYE PROTECTION:
Always wear safety goggles or safety glasses with side shields.
READ AND UNDERSTAND OPERATOR'S MANUAL:
To reduce the risk of injury, user and all bystanders must read
and understand operator's manual before using this product
KEEP HANDS AWAY FROM THE BLADE:
Failure to keep your hands away from the blade wilt result
in serious personal injury.
SUPPORT AND CLAMP WORK
L,_. DANGER J DANGER: indicates an imminently hazardous situation which, if not
avoided, will result in death or serious injury
l,_ WARNING J WARNING: indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
L,_. CAUTION JCAUTION: indicates a potentially hazardous situation which, if not
avoided, may result in minor or moderate injury.
lCAUTION 1CAUTION: used without the safety alert symbol indicates a
potentially hazardous situation which, if not avoided,
may result in property damage.
4

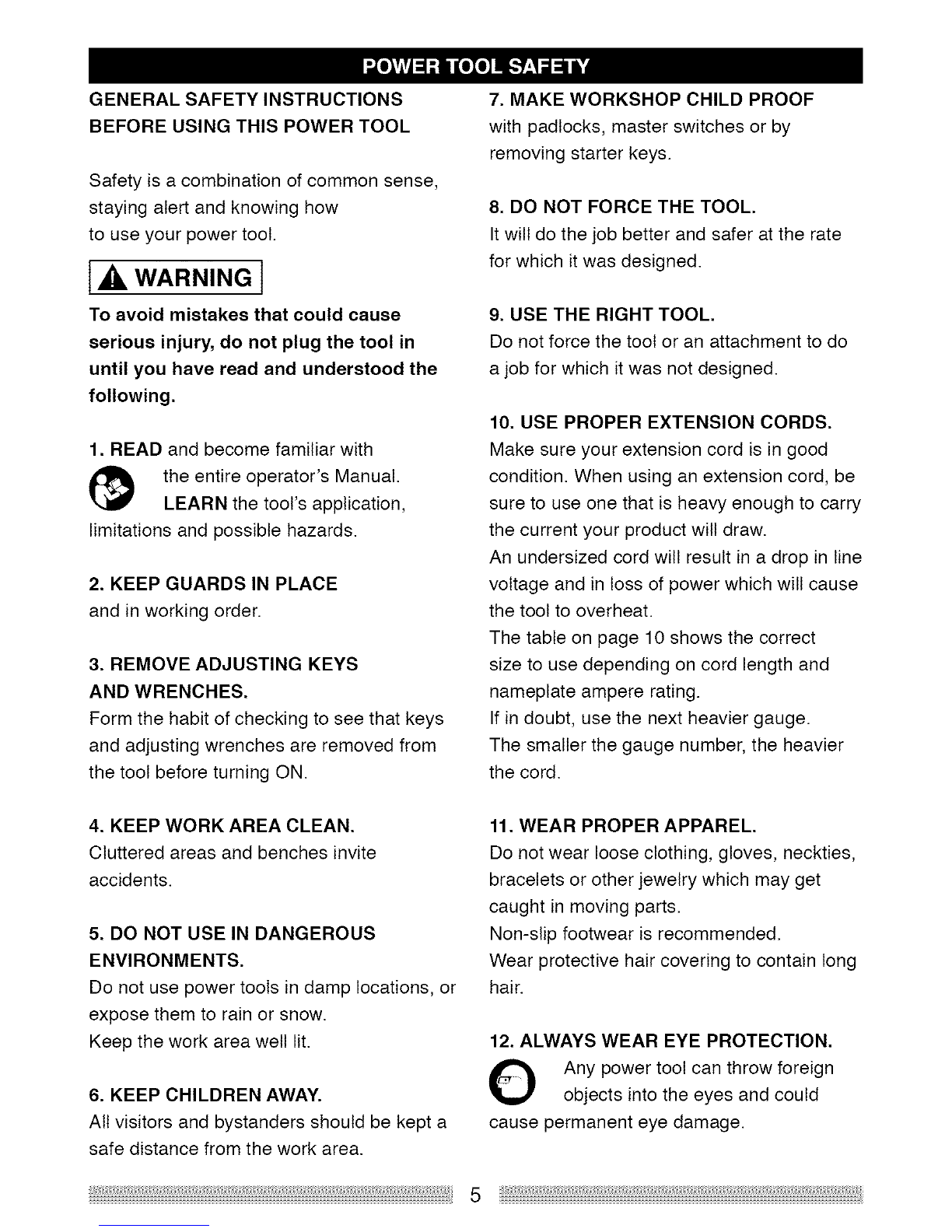

GENERAL SAFETY INSTRUCTIONS
BEFORE USING THIS POWER TOOL
Safety is a combination of common sense,
staying alert and knowing how
to use your power tool.
[,_ WARNING l
To avoid mistakes that could cause
serious injury, do not plug the tool in
until you have read and understood the
following.
1. READ and become familiar with
the entire operator's Manual.
LEARN the tool's application,
limitations and possible hazards.
2. KEEP GUARDS IN PLACE
and in working order.
3. REMOVE ADJUSTING KEYS
AND WRENCHES.
Form the habit of checking to see that keys
and adjusting wrenches are removed from
the tool before turning ON.
7. MAKE WORKSHOP CHILD PROOF
with padlocks, master switches or by
removing starter keys.
8. DO NOT FORCE THE TOOL.
Itwilt do the job better and safer at the rate
for which it was designed.
9. USE THE RIGHT TOOL.
Do not force the tool or an attachment to do
a job for which it was not designed.
10. USE PROPER EXTENSION CORDS.
Make sure your extension cord is in good
condition. When using an extension cord, be
sure to use one that is heavy enough to carry
the current your product will draw.
An undersized cord wilt result in a drop in line
voltage and in loss of power which will cause
the tool to overheat.
The table on page 10 shows the correct
size to use depending on cord length and
nameplate ampere rating.
If in doubt, use the next heavier gauge.
The smaller the gauge number, the heavier
the cord.
4. KEEP WORK AREA CLEAN.
Cluttered areas and benches invite
accidents.
5. DO NOT USE IN DANGEROUS
ENVIRONMENTS.
Do not use power tools in damp locations, or
expose them to rain or snow.
Keep the work area well lit.
6. KEEP CHILDREN AWAY.
All visitors and bystanders should be kept a
safe distance from the work area.
11. WEAR PROPER APPAREL.
Do not wear loose clothing, gloves, neckties,
bracelets or other jewelry which may get
caught in moving parts.
Non-slip footwear is recommended.
Wear protective hair covering to contain long
hair.
12. ALWAYS WEAR EYE PROTECTION.
Any power toot can throw foreign
objects into the eyes and could
cause permanent eye damage.
5

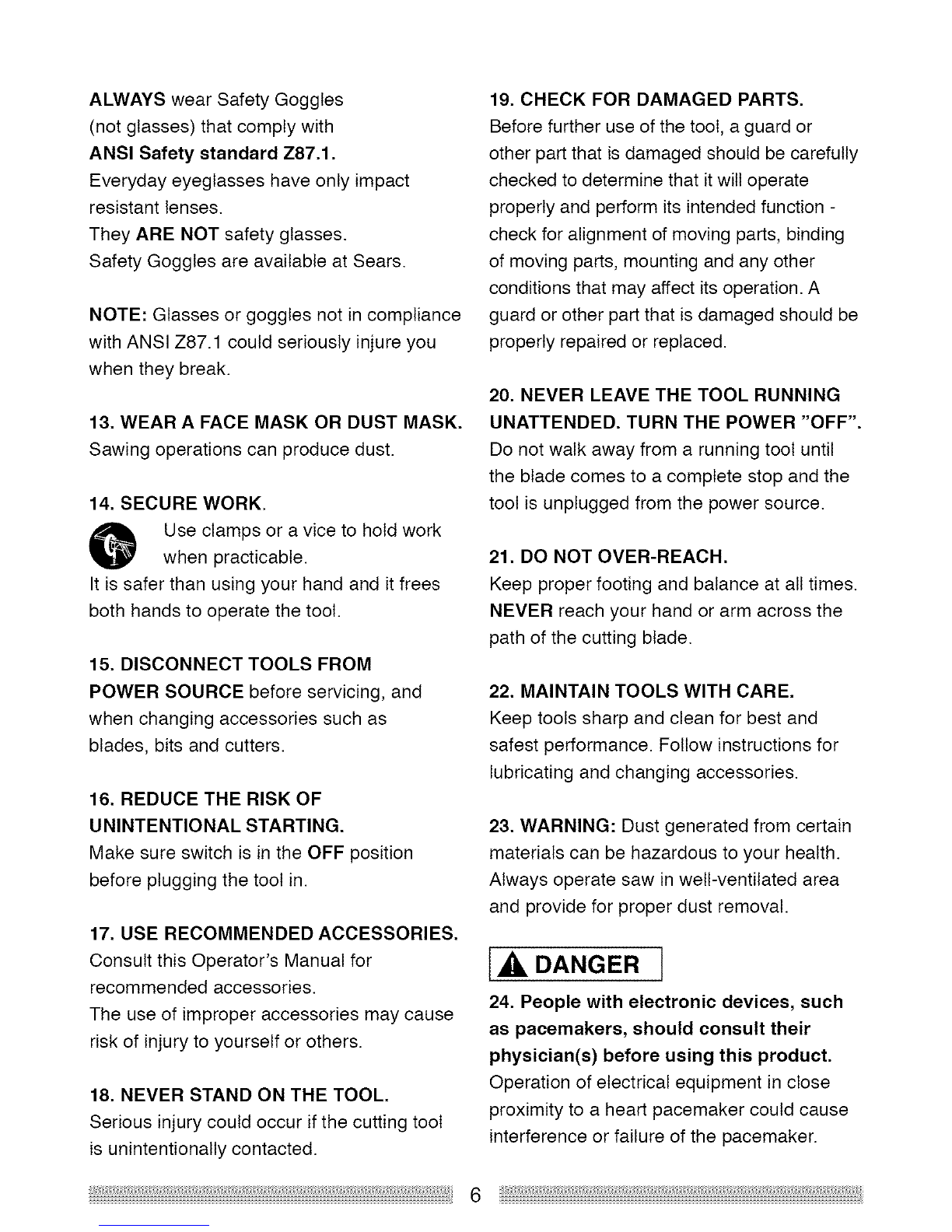

ALWAYS wear Safety Goggles
(not glasses) that comply with
ANSI Safety standard Z87.1.
Everyday eyeglasses have only impact
resistant lenses.
They ARE NOT safety glasses.
Safety Goggles are available at Sears.
NOTE: Glasses or goggles not in compliance
with ANSI Z87.1 could seriously injure you
when they break.
13. WEAR A FACE MASK OR DUST MASK.
Sawing operations can produce dust.
14. SECURE WORK.
O Use clamps or a vice to hold work
when practicable.
It is safer than using your hand and it frees
both hands to operate the toot.
15. DISCONNECT TOOLS FROM
POWER SOURCE before servicing, and
when changing accessories such as
blades, bits and cutters.
16. REDUCE THE RISK OF
UNINTENTIONAL STARTING.
Make sure switch is in the OFF position
before plugging the tool in.
17. USE RECOMMENDED ACCESSORIES.
Consult this Operator's Manual for
recommended accessories.
The use of improper accessories may cause
risk of injury to yourself or others.
18. NEVER STAND ON THE TOOL.
Serious injury could occur if the cutting tool
is unintentionally contacted.
19. CHECK FOR DAMAGED PARTS.
Before further use of the tool, a guard or
other part that is damaged should be carefully
checked to determine that it will operate
properly and perform its intended function -
check for alignment of moving parts, binding
of moving parts, mounting and any other
conditions that may affect its operation. A
guard or other part that is damaged should be
properly repaired or replaced.
20. NEVER LEAVE THE TOOL RUNNING
UNATTENDED. TURN THE POWER "OFF".
Do not walk away from a running tool until
the blade comes to a complete stop and the
tool is unplugged from the power source.
21. DO NOT OVER-REACH.
Keep proper footing and balance at all times.
NEVER reach your hand or arm across the
path of the cutting blade.
22. MAINTAIN TOOLS WITH CARE.
Keep tools sharp and clean for best and
safest performance. Follow instructions for
lubricating and changing accessories.
23. WARNING: Dust generated from certain
materials can be hazardous to your health.
Always operate saw in well-ventilated area
and provide for proper dust removal.
I_,DANGER l
24. People with electronic devices, such
as pacemakers, should consult their
physician(s) before using this product.
Operation of electrical equipment in close
proximity to a heart pacemaker could cause
interference or failure of the pacemaker.
6

SPECIFIC SAFETY INSTRUCTIONS
FOR THIS SINGLE BEVEL COMPOUND
MITER SAW
10. BE SURE both the blade and the collar
are clean and the arbor bolt is tightened
securely.
1. DO NOT USE THIN KERF BLADES
they can deflect and contact guard and can
cause possible injury to the operator.
2. DO NOT operate the miter saw until
it is completely assembled and installed
according to these instructions.
3. IF YOU ARE NOT thoroughly familiar with
the operation of miter saws, seek guidance
from your supervisor, instructor or
other qualified person.
11. USE only blade collars specified for your
saw.
12. NEVER use blades larger in diameter
than 10 inches.
13. NEVER apply lubricants to the blade
when it is running.
14. ALWAYS check the blade for cracks or
damage before operation. Replace a cracked
or damaged blade immediately.
4. ALWAYS hold the workpiece firmly against
the fence and table. DO NOT perform any
operation freehand. Use a clamp to secure
the workpiece whenever possible.
5. KEEP HANDS out of the path of the saw
blade. If the workpiece you are cutting would
cause your hands to be within 6-3/8 in.of the
saw blade, the workpiece should be clamped
in place before making the cut.
15. NEVER use blades recommended for
operation at less than 5000 RPM.
16. ALWAYS keep the blade guards in place,
and use at all times.
17. NEVER reach around the saw blade.
18. MAKE SURE the blade is not contacting
the workpiece before the switch is turned ON.
6. BE SURE the blade is sharp, runs freely
and is free of vibration.
7. ALLOW the motor to come up to full
speed before starting a cut.
8. KEEP THE MOTOR AIR SLOTS CLEAN
and free of chips or dust.
9. ALWAYS MAKE SURE all handles are
tight before cutting, even if the table is
positioned in one of the positive stops.
19. IMPORTANT: After completing the cut,
release the trigger and wait for the blade to
stop before returning the saw to the raised
position.
20. MAKE SURE the blade has come to a
complete stop before removing or securing
the workpiece, changing the workpiece angle
or changing the angle of the blade.
7

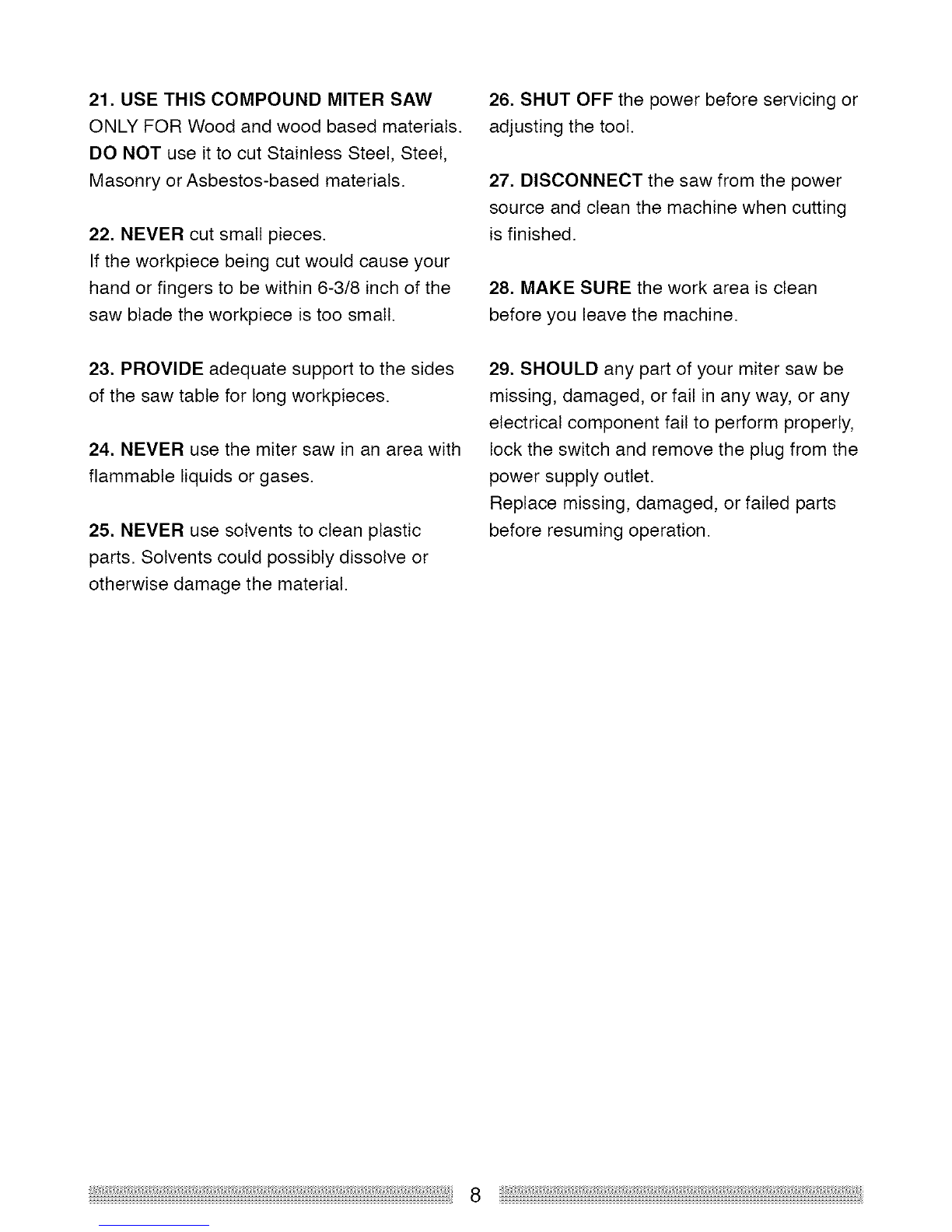

21. USE THIS COMPOUND MITER SAW
ONLY FOR Wood and wood based materials.
DO NOT use it to cut Stainless Steel, Steel,
Masonry or Asbestos-based materials.
22. NEVER cut small pieces.
If the workpiece being cut would cause your
hand or fingers to be within 6-3/8 inch of the
saw blade the workpiece is too small.
26. SHUT OFF the power before servicing or
adjusting the tool.
27. DISCONNECT the saw from the power
source and clean the machine when cutting
is finished.
28. MAKE SURE the work area is clean
before you leave the machine.
23. PROVIDE adequate support to the sides
of the saw table for long workpieces.
24. NEVER use the miter saw in an area with
flammable liquids or gases.
25. NEVER use solvents to clean plastic
parts. Solvents could possibly dissolve or
otherwise damage the material.
29. SHOULD any part of your miter saw be
missing, damaged, or fail in any way, or any
electrical component fail to perform properly,
lock the switch and remove the plug from the
power supply outlet.
Replace missing, damaged, or failed parts
before resuming operation.
8

WARNING l

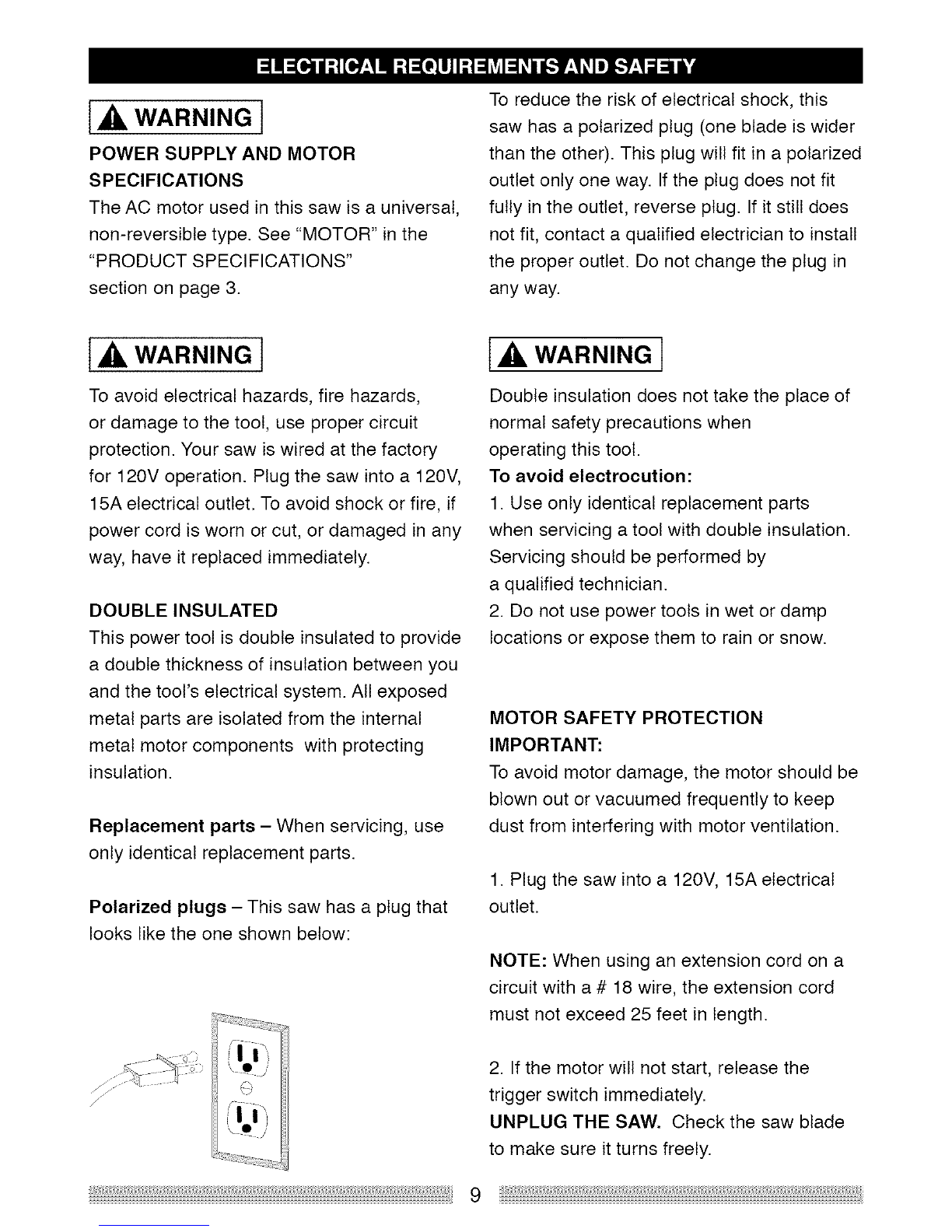

POWER SUPPLY AND MOTOR
SPECIFICATIONS
The AC motor used in this saw is a universal,
non-reversible type. See "MOTOR" in the
"PRODUCT SPECIFICATIONS"
section on page 3.
To reduce the risk of electrical shock, this
saw has a polarized plug (one blade is wider
than the other). This plug will fit in a polarized
outlet only one way. If the plug does not fit
fully in the outlet, reverse plug. If it still does
not fit, contact a qualified electrician to install
the proper outlet. Do not change the plug in
any way.
,A WARNING l
To avoid electrical hazards, fire hazards,
or damage to the tool, use proper circuit
protection. Your saw is wired at the factory
for 120V operation. Plug the saw into a 120V,
15A electrical outlet. To avoid shock or fire, if
power cord is worn or cut, or damaged in any
way, have it replaced immediately.
DOUBLE INSULATED
This power toot is double insulated to provide
a double thickness of insulation between you
and the tool's electrical system. All exposed
metal parts are isolated from the internal
metal motor components with protecting
insulation.
Replacement parts -When servicing, use
only identical replacement parts.
Polarized plugs - This saw has a plug that
looks like the one shown below:
1_. WARNING I
Double insulation does not take the place of
normal safety precautions when
operating this toot.
To avoid electrocution:
1. Use only identical replacement parts
when servicing a tool with double insulation.
Servicing should be performed by
a qualified technician.
2. Do not use power tools in wet or damp
locations or expose them to rain or snow.
MOTOR SAFETY PROTECTION
IMPORTANT:
To avoid motor damage, the motor should be
blown out or vacuumed frequently to keep
dust from interfering with motor ventilation.
1. Plug the saw into a 120V, 15A electrical
outlet.
NOTE: When using an extension cord on a
circuit with a # 18 wire, the extension cord
must not exceed 25 feet in length.
2. Ifthe motor will not start, release the
trigger switch immediately.
UNPLUG THE SAW. Check the saw blade
to make sure it turns freely.
9

If the blade is free, try to start the saw again.
If the motor still does not start, refer to the
TROUBLESHOOTING GUIDE.
3. If the tool suddenly stalls while cutting,
release the trigger switch and unplug the
tool. Free the blade from the workpiece.
Restart the machine and complete the cut.
4. FUSES may "blow" or circuit breakers
may trip if:
a. MOTOR is overloaded - overloading can
occur if you feed too rapidly or make too
many start /stops in a short time.
b. LINE VOLTAGE is more than 10% above
or below the nameplate voltage rating.
For heavy loads, the voltage at the motor
terminals must equal the voltage specified on
the nameplate.
c. IMPROPER or dull saw blades are used.
5. Most motor troubles can be traced to
loose or incorrect connections, overload, low
voltage or inadequate power supply wiring.
Always check the connections, the load and
the supply circuit if the motor does not run
welt. Check minimum gauge for the length of
cord you are using on the chart below.

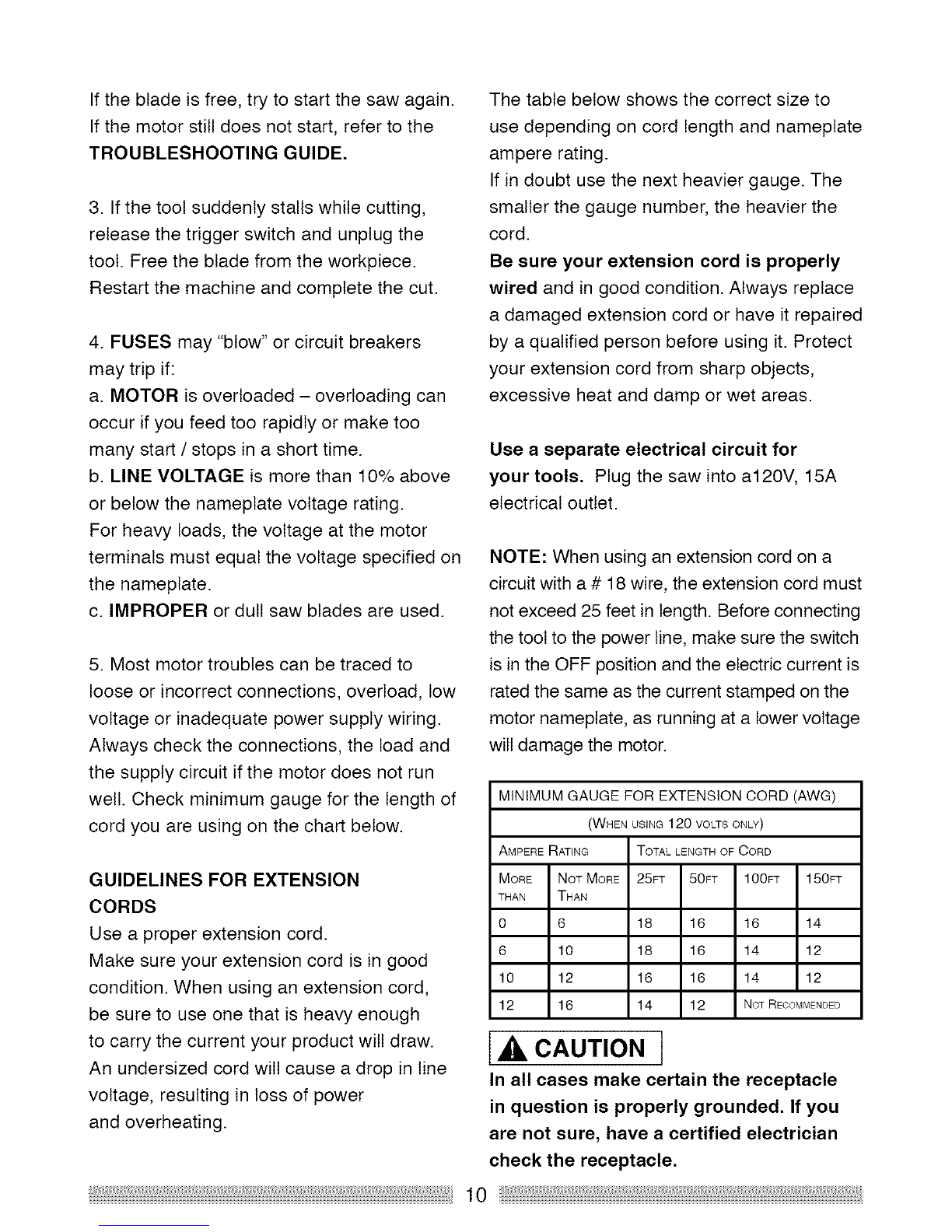

GUIDELINES FOR EXTENSION
CORDS
Use a proper extension cord.
Make sure your extension cord is in good
condition. When using an extension cord,
be sure to use one that is heavy enough
to carry the current your product will draw.
An undersized cord wilt cause a drop in line
voltage, resulting in loss of power
and overheating.
The table below shows the correct size to
use depending on cord length and nameplate
ampere rating.
If in doubt use the next heavier gauge. The
smaller the gauge number, the heavier the
cord.
Be sure your extension cord is properly
wired and in good condition. Always replace
a damaged extension cord or have it repaired
by a qualified person before using it. Protect
your extension cord from sharp objects,
excessive heat and damp or wet areas.
Use a separate electrical circuit for
your tools. Plug the saw into a120V, 15A
electrical outlet.
NOTE: When using an extension cord on a
circuit with a # 18 wire, the extension cord must
not exceed 25 feet in length. Before connecting
the tool to the power line, make sure the switch
is in the OFF position and the electric current is
rated the same as the current stamped on the
motor nameplate, as running at a lower voltage
will damage the motor.
MINIMUM GAUGE FOR EXTENSION CORD (AWG)
(WHEN USING 120 VOLTSONLY)
AMPERE RATING TOTAL LENGTH OF CORD
MORE NOT MORE 25FT 50FT 100FT 150PT
THAN THAN
0 6 18 16 16 14
6 10 18 16 14 12
10 12 16 16 14 12
12 16 14 12 NoTRECOMMENDED
_, CAUTION 1
In all cases make certain the receptacle
in question is properly grounded. Ifyou
are not sure, have a certified electrician
check the receptacle.
10

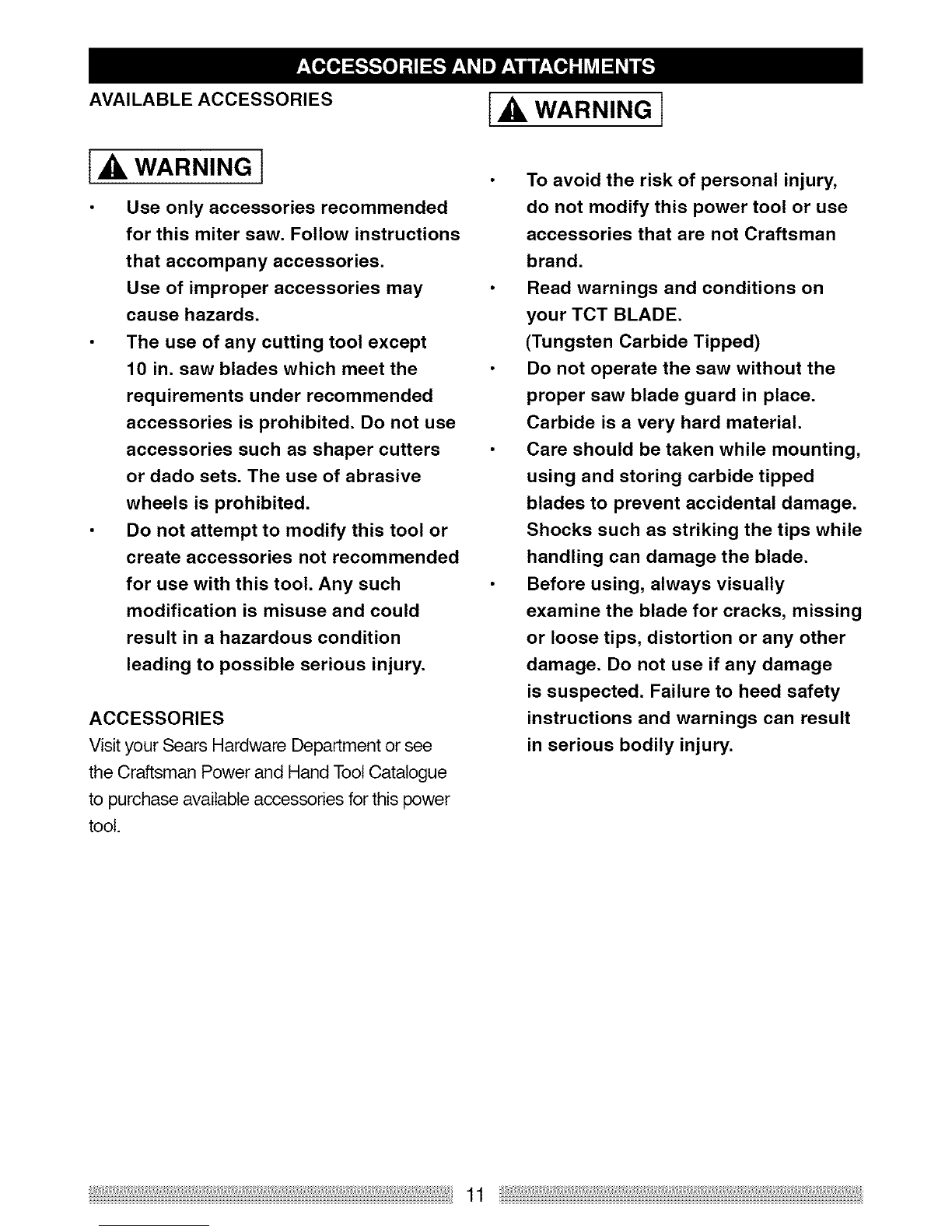

AVAILABLE ACCESSORIES
[,_ WARNING l
Use only accessories recommended
for this miter saw. Follow instructions
that accompany accessories.
Use of improper accessories may
cause hazards.
The use of any cutting tool except
10 in. saw blades which meet the
requirements under recommended
accessories is prohibited. Do not use
accessories such as shaper cutters
or dado sets. The use of abrasive
wheels is prohibited.
Do not attempt to modify this tool or
create accessories not recommended
for use with this tool. Any such
modification is misuse and could
result in a hazardous condition
leading to possible serious injury.
ACCESSORIES
Visit your Sears Hardware Department or see
the Craftsman Power and Hand Tool Catalogue
to purchase available accessories for this power
tool.
1_, WARNING j
To avoid the risk of personal injury,
do not modify this power tool or use
accessories that are not Craftsman
brand.
Read warnings and conditions on
your TCT BLADE.
(Tungsten Carbide Tipped)
Do not operate the saw without the
proper saw blade guard in place.
Carbide is a very hard material.
Care should be taken while mounting,
using and storing carbide tipped
blades to prevent accidental damage.
Shocks such as striking the tips while
handling can damage the blade.
Before using, always visually
examine the blade for cracks, missing
or loose tips, distortion or any other
damage. Do not use if any damage
is suspected. Failure to heed safety
instructions and warnings can result
in serious bodily injury.
11

SUPPLIED NOT SUPPLIED
/
/
/
/
/
Allen Key (Blade Change)
Adjustable Wrench
Phillips Screwdriver
Allen Key (Adjustments)
Slotted Screwdriver
,I,1,t,t,I,I,1,1_1 _
Combination Square
(Known to be accurate)

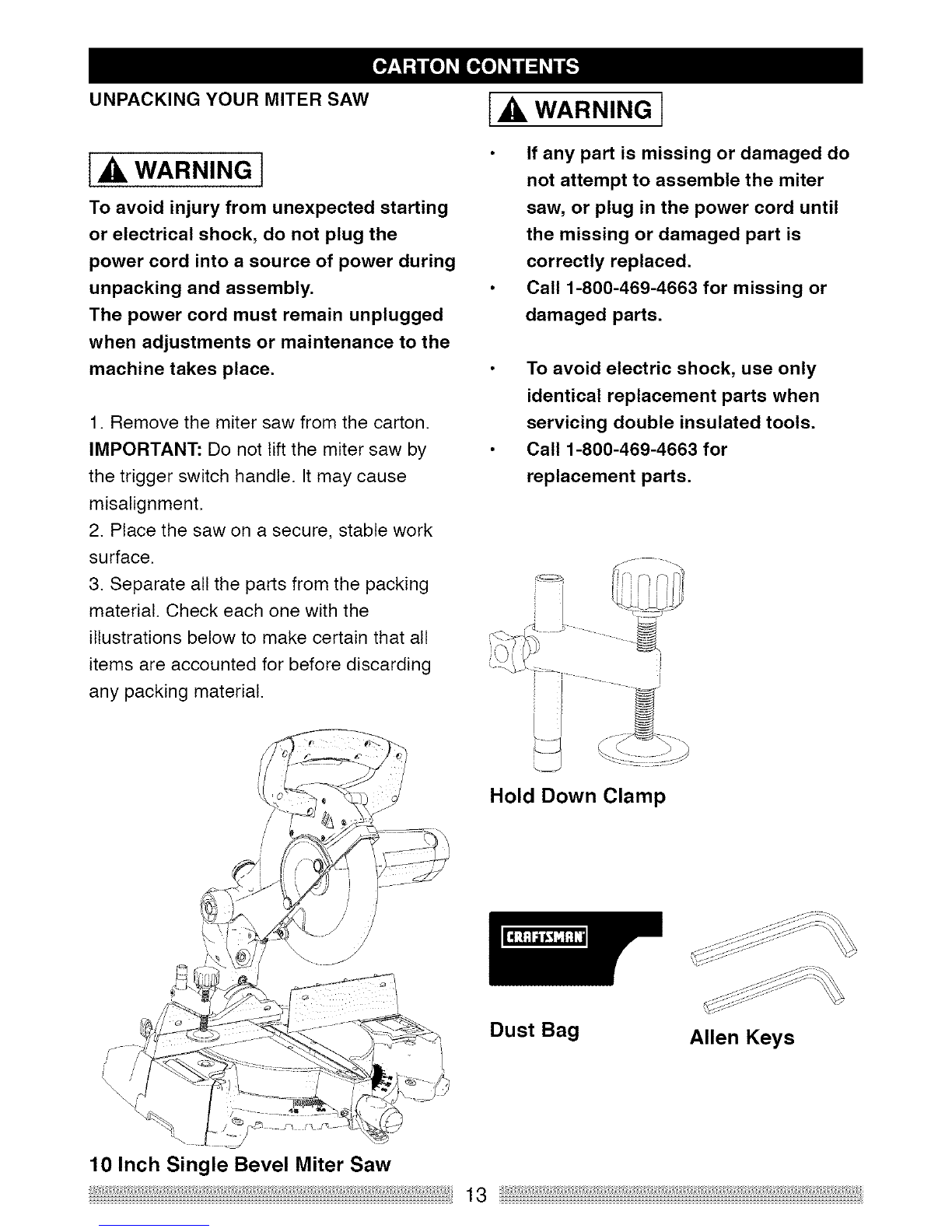

UNPACKING YOUR MITER SAW
WARNING l
To avoid injury from unexpected starting
or electrical shock, do not plug the
power cord into a source of power during
unpacking and assembly.
The power cord must remain unplugged
when adjustments or maintenance to the
machine takes place.
1. Remove the miter saw from the carton.
IMPORTANT: Do not lift the miter saw by
the trigger switch handle. It may cause
misalignment.
2. Place the saw on a secure, stable work
surface.
3. Separate all the parts from the packing
material. Check each one with the
illustrations below to make certain that all
items are accounted for before discarding
any packing material.
l,_ WARNING i
If any part is missing or damaged do
not attempt to assemble the miter
saw, or plug in the power cord until
the missing or damaged part is
correctly replaced.
Call 1-800-469-4663 for missing or
damaged parts.
To avoid electric shock, use only
identical replacement parts when
servicing double insulated tools.
Call 1-800-469-4663 for
replacement parts.
i
Hold Down Clamp
Dust Bag Allen Keys
10 Inch Single Bevel Miter Saw 13

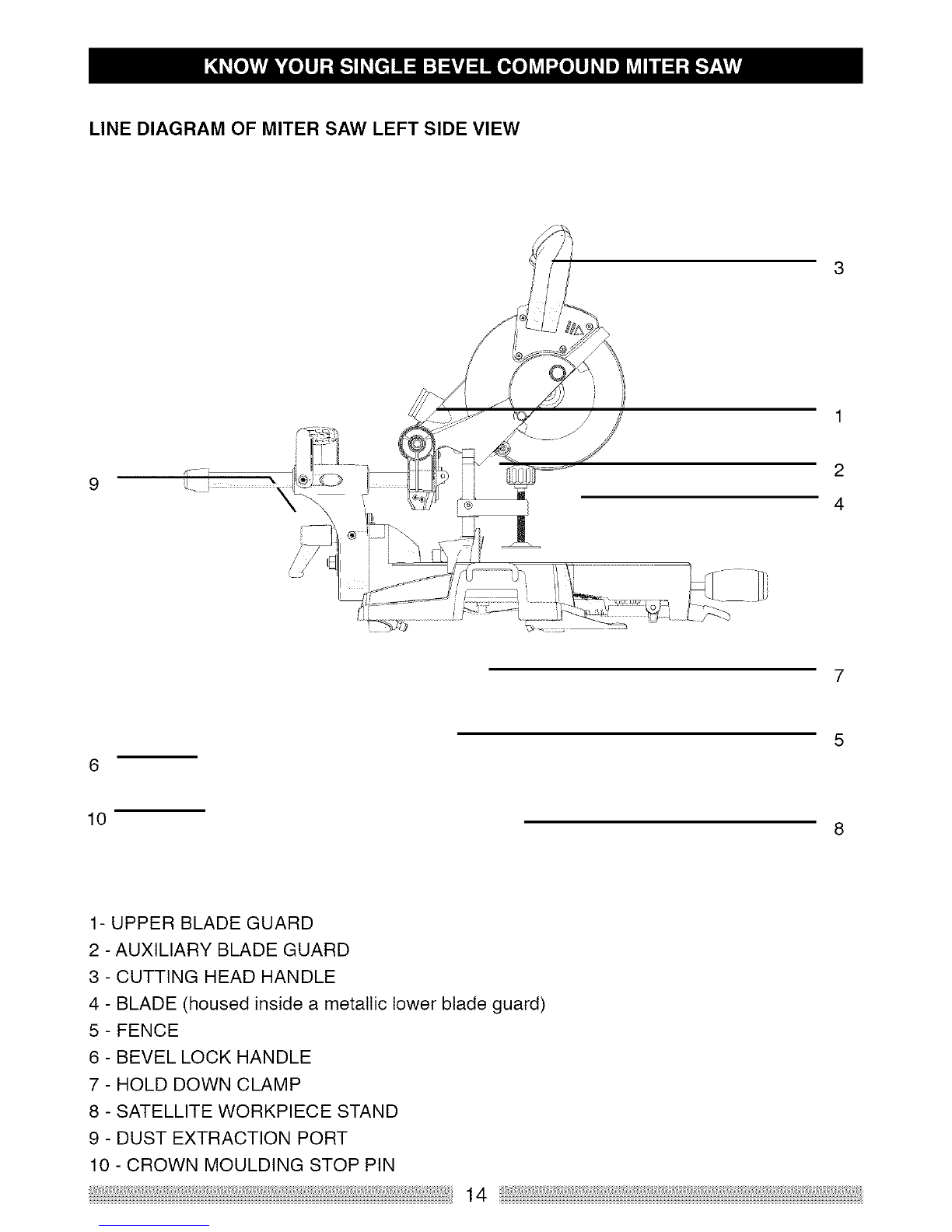

LINE DIAGRAM OF MITER SAW LEFT SIDE VIEW
92
4
6
10
1- UPPER BLADE GUARD
2 - AUXILIARY BLADE GUARD
3 - CUTTING HEAD HANDLE
4 - BLADE (housed inside a metallic bower blade guard)
5 - FENCE
6 - BEVEL LOCK HANDLE
7 - HOLD DOWN CLAMP
8 - SATELLITE WORKPIECE STAND
9 - DUST EXTRACTION PORT
10 - CROWN MOULDING STOP PIN
14

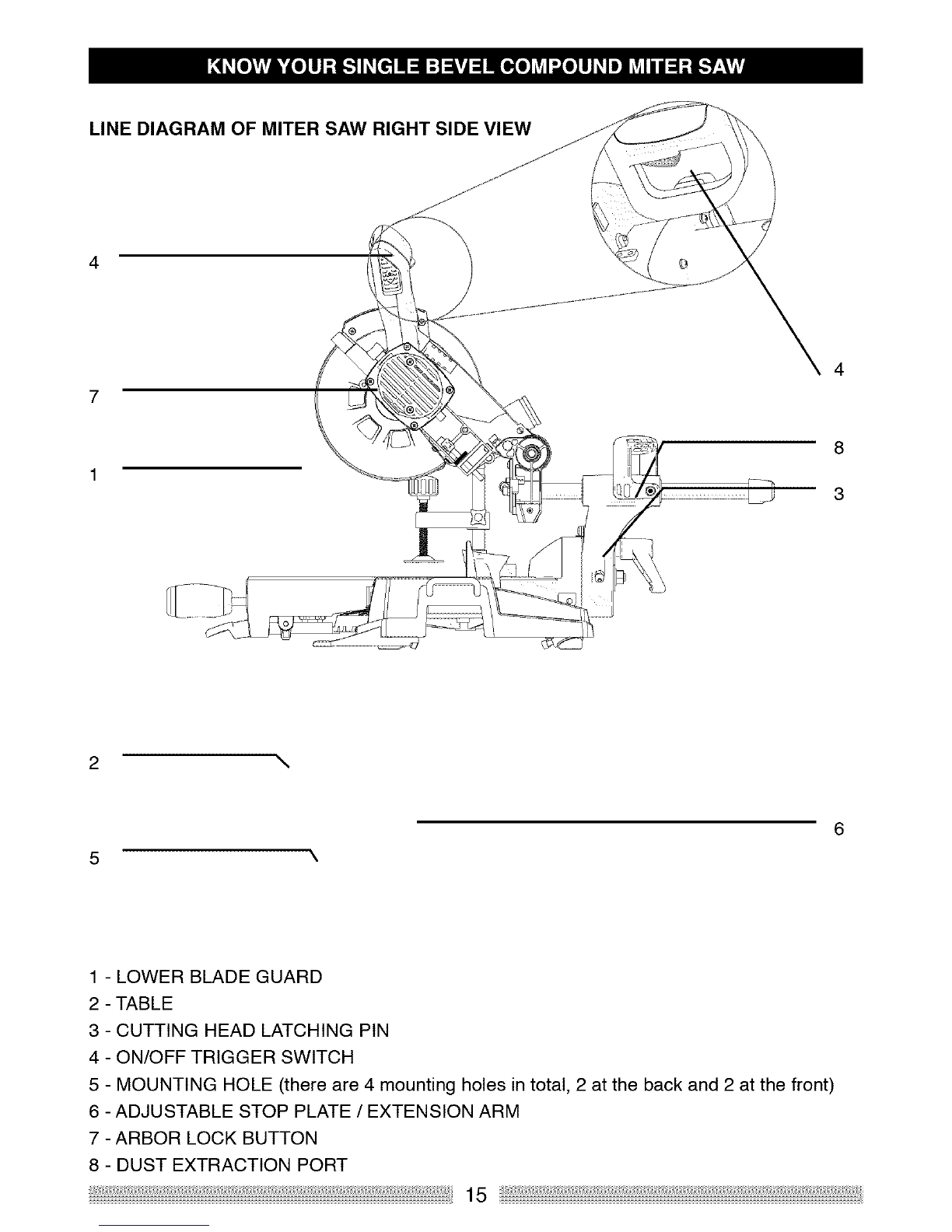

LINE DIAGRAM OF MITER SAW RIGHT SIDE VIEW
4
7
8
3
2 \
1 - LOWER BLADE GUARD
2 - TABLE
3 - CUTTING HEAD LATCHING PIN
4 - ON/OFF TRIGGER SWITCH
5 - MOUNTING HOLE (there are 4 mounting holes in total, 2 at the back and 2 at the front)
6 - ADJUSTABLE STOP PLATE /EXTENSION ARM
7 - ARBOR LOCK BUTTON
8 - DUST EXTRACTION PORT
15

AMPERAGE(AMPS)- Ameasureoftheflow
ofelectriccurrent.Higherratingsgenerally
meansthetootissuitedforheavieruse.
ARBOR- Theshaftonwhichthebladeis
mounted.
ARBORLOCK- Allowstheusertokeep
thebladefromrotatingwhiletightening
orlooseningthearborboltduringblade
replacementorremoval.
BASE- Supportsthetable,holds
accessoriesandallowsforworkbench
orlegsetmounting.
BEVELCUT-Ananglecutmadethrough
thefaceoftheworkpiece.
BEVELLOCKINGHANDLE- Locksthe
mitersawatadesiredbevelangle.
BEVELSCALE- Tomeasurethebevel
angleofthesawblade0°to45oleft.
TUNGSTENCARBIDETIPPED(TCT)
- Extremelyhardsteelpieceswithsharp
cuttingedgesfastenedtocuttingtools
suchassawblades.
COMPOUNDCUT- Acombinationofa
miterangleandabevelangle.
CUTTINGHEADLATCHINGPIN- Locks
themitersawintheloweredpositionfor
compactstorageandtransportation.
DOUBLE-INSULATED- Aformofelectrical
protectionfeaturingtwoseparateinsulation
systemstohelpprotectagainstelectric
shock.
MITERSCALE- Indicatesthemiterangle
selected0°to45ototherighthandorleft
handside.
EXTENSIONCORD-Anelectricalcord
usedbetweenpowertoolsandoutletsto
extendthedistancebetweenthetwo.
Themoreamperageyourtoolusesand
thelongerthedistance,thelargerthewire
neededinyourextensioncord.
EYEPROTECTION- Gogglesorspectacles
intendedtoprotectyoueyes.Eyeprotection
shouldmeettherequirementsofANSIZ.87.1
(USA)orCSAZ94.3-M88(CANADA).
FACESHIELD-Animpactresistantshield
toprotectyourfacefromchips,sparks,small
debris.Shouldonlybeusedinconjunction
withadditionaleyeprotection.
FENCE- Helpstokeeptheworkpiecefrom
movingduringcuttingoperations.
16

GUARD - Protective device that forms a
barrier between an hazardous object such as
a blade, wheel or cutter and the operator.
HOLD DOWN CLAMP - Secures the
workpiece during cutting operations.
OPERATOR'S MANUAL- Booklet
accompanying your power tool that describes
the hazards and safe operation procedures
and outlines basic tool operation, care and
maintenance.
KERF - The width of a saw cut, determined
by the thickness and set of the blade
KICKBACK - Sudden and unintended
movement of the tool or the workpiece.
It is typically caused by binding or pinching
of the workpiece.
MITER CUT - A miter is a type of joint where
the two parts to be joined are cut at an angle,
and typically the finished joint forms a 90
degree angle.
MOUNTING HOLES - Used to mount the
miter saw to a level stable work surface.
ON/OFF TRIGGER SWITCH - To start the
tool, squeeze the trigger. Release the trigger
to turn the miter saw OFF.
REVOLUTIONS PER MINUTE (RPM) -
The number of turns or rotations completed
by a spinning object in one minute.
SAW BLADE PATH - The area of the
workpiece or table top directly in line with
the travel of the blade or the part of the
workpiece which wilt be cut.
CUTTING HEAD HANDLE - Contains
the trigger switch. The blade is lowered by
pushing down on the handle. The saw wilt
return to its upright position when the handle
is released.
WARNING LABELS - For your own safety
read and understand any labels attached
to the machine.
17

WARNING I
To avoid injury from unexpected starting
or electrical shock, do not plug the
power cord into a power source during
unpacking or assembly. The power cord
must remain unplugged whenever you are
working on the saw.
WARNING I
To avoid injury and/or damage to the saw,
transport or store the miter saw with the
Cutting Head locked in the down position.
Always ensure that the Cutting Head is
released from its locked position before
beginning cutting operations.
CUTTING HEAD
WARNING: To avoid serious injury, NEVER
perform the unlocing or locking procedure
unless the saw is OFF and the blade
stopped.
Unlocking the Cutting Head (Fig. A)
a) With one hand, grasp and gently press
down on the Cutting Head Handle.
b) With your other hand pull out the Latching
Pin from its socket and allow the head to rise
to its upper position.
Note: When the machine is not in use, lock
the Cutting Head in the down position with
the latching pin fully engaged in its socket.
Locking the Cutting Head in the Down
Position (Fig. B)
When not using, transporting or storing the
miter saw, lock the Cutting Head in the down
position with the Latching Pin fully engaged
in its locking socket.
a) Lower the Cutting Head to its lowest
position.
b) Push the Latching Pin into the locking
socket
(Fig. B)
INSTALLING THE DUST COLLECTION BAG
Attach the dust collection bag at the dust
extraction port. (see KNOWYOUR SINGLE
BEVEL COMPOUND MITER SAW page 14- 15)
1. Slide the frame of the collection bag onto
the outlet of the extraction port, ensuring that
it is firmly connected.
2. To release the bag, slide the frame in the
opposite direction.
Note: To ensure optimal dust collection,
(Fig. A) empty the dust bag when it becomes
approximately 2/3 full.
18

CAUTION l
Dispose of the contents of the dust
collection bag in an environmentally
responsible way. It may be neccesary to
wear a dust mask when emptying the dust
collection bag.

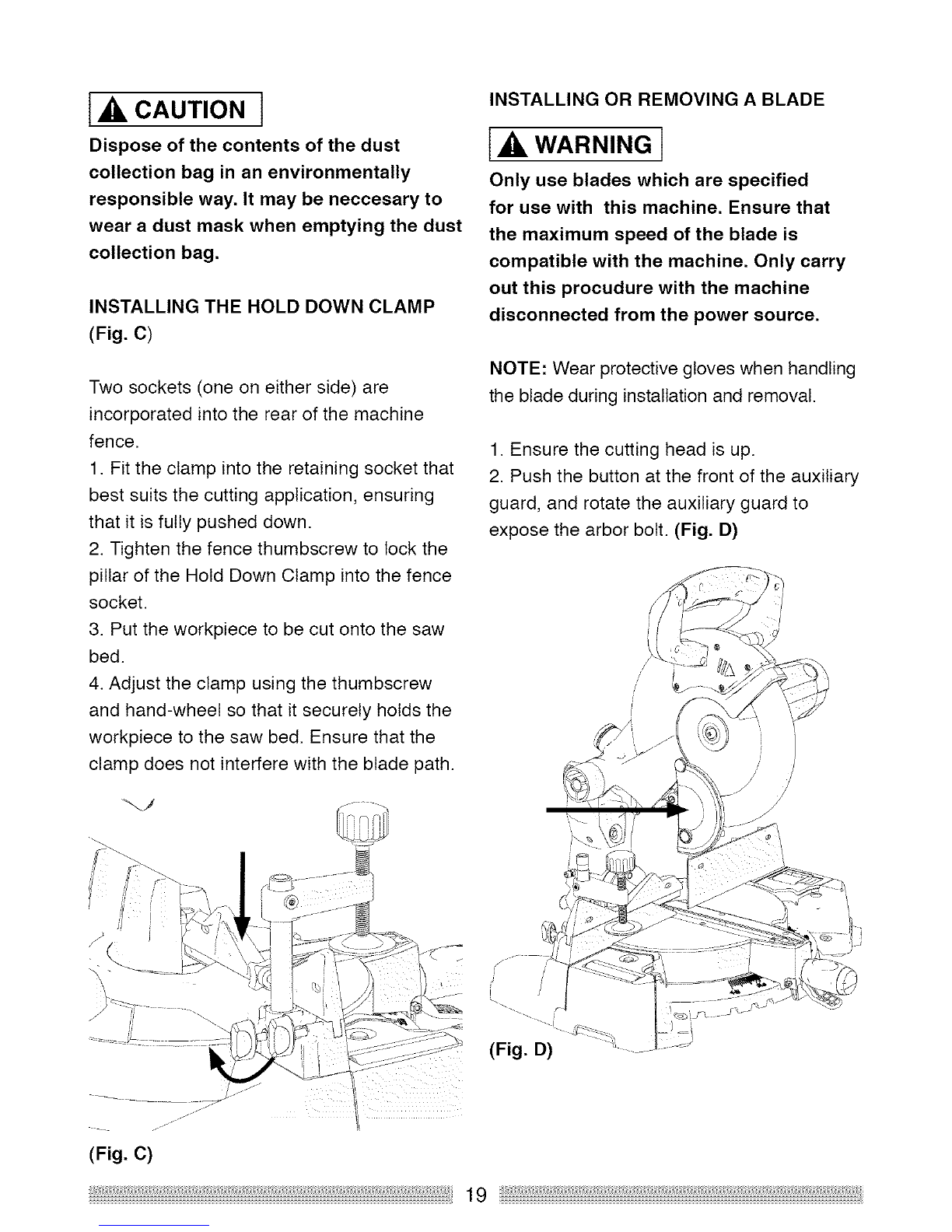

INSTALLING THE HOLD DOWN CLAMP
(Fig. C)
Two sockets (one on either side) are
incorporated into the rear of the machine
fence.
1. Fit the clamp intothe retaining socket that
best suits the cutting application, ensuring
that it is fully pushed down.
2. Tighten the fence thumbscrew to lock the
pillar of the Hold Down Clamp into the fence
socket.
3. Put the workpiece to be cut onto the saw
bed.
4. Adjust the clamp using the thumbscrew
and hand-wheel so that it securely holds the
workpiece to the saw bed. Ensure that the
clamp does not interfere with the blade path.
INSTALLING OR REMOVING ABLADE
1_, WARNING I
Only use blades which are specified
for use with this machine. Ensure that
the maximum speed of the blade is
compatible with the machine. Only carry
out this procudure with the machine
disconnected from the power source.
NOTE: Wear protective gloves when handling
the blade during installation and removal.
1. Ensure the cutting head is up.
2. Push the button at the front of the auxiliary
guard, and rotate the auxiliary guard to
expose the arbor bolt. (Fig. D)
(Fig. C)
19

3. Rotate the lower guard up and into the
upper blade guard to gain access to the
machine arbor. (Fig. E)
(Fig. E)
4. Press the arbor lock button to lock the arbor.
(Fig. F)
NOTE: The arbor screw is reversed threaded.
Turnto the rightto loosen and tothe lefttotighten.
6. Install the new 10 inch blade. Make sure
the rotation arrow on the blade matches the
rotation arrow on the upper blade guard.
NOTE: The blade teeth should always point
downwards at the front of the saw.
7. Install the blade, blade collar, washer and
arbor bolt. (Fig. G, 1, 2, 8, 4)
1
4 3 2
(Fig. G)
(Fig. F)
5. Using the supplied Allen key stored in the
back of the cutting head neck, release the
arbor screw to remove the blade.
8. Lock the arbor and tighten the arbor screw
using moderate force, but DO NOT over
tighten. (Fig. F)
9. Ensure that the Allen Key is removed and
the arbor lock has released by rotating the
blade by hand.
10. Return the Auxiliary Guard to its
procudureal position.
11. Ensure that all blade guards are correctly
positioned and fully functional.
12. Return the Allen key to its "on board"
storage position.
NOTE: Spacers and spindle rings should not
be used with this machine or blade.
20
