Operator's Manual
CRAFTSMAN°
28" SNOW THROWER
Model No. 247.881900
CAUTION: Before using
this product, read this
manual and follow all
safety rules and operating
instructions.
• SAFETY
ASSEMBLY
OPERATION
MAINTENANCE
PARTS LiST
ESPAI_OL
Sears, Roebuck and Co., Hoffman Estates, IL 60179, U.S.A.
Visit our website: www, craftsrnan.corn FORMNO.769-01909D
7/5/2007

WarrantyStatement.................... Page2
RepairProtectionAgreement............. Page3
SafeOperationPractices.............. Pages4-5
SafetyLabels......................... Page7
Assembly......................... Pages8-11
Operation........................ Pages12-15
Service&Maintenance.............. Pages16-23
Off-SeasonStorage................... Page24
Troubleshooting...................... Page25
PartsList......................... Pages26-37
Espa_ol............................. Page40
Two-YearWarranty on Craftsman SnowThrower
Thisequipmentiscoveredbyatwo-yearwarranty,providedthatitismaintained,lubricated,andtunedupaccordingtotheinstructionsinthe
operator'smanual.Duringthewarrantyyear,ifthisequipmentexperiencesanyfailureduetodefectsinmaterialorworkmanship,RETURNITTO
YOURNEARESTSEARSPARTS&REPAIRCENTER,andSearswillrepairit,freeofcharge.In-homewarrantyserviceisavailable,butyouwill
havetopayatripcharge.
Thiswarrantydoesnotcover:
Expendableitemswhichbecomewornduringnormaluse,suchasskidshoes,shaveplateandsparkplugs.
Repairsnecessarybecauseofoperatornegligence,includingbutnotlimitedto,electricalandmechanicaldamagecausedbyimproper
storage,bentcrankshafts,failuretousethepropergradeandamountofengineoil,orfailuretomaintaintheequipmentaccordingtothe
instructionscontainedintheoperator'smanual.
Engine(fuelsystem)cleaningorrepairscausedbyfueldeterminedtobecontaminatedoroxidized(stale).Ingeneral,fuelshouldbeused
within30daysofitspurchasedate.
Equipmentifusedforcommercialorrentalpurposes.
Thiswarrantyappliesforonly90daysifthisproductiseverusedforcommercialorrentalpurposes.
ThiswarrantyappliesonlywhilethisproductisusedintheUnitedStates.
Thiswarrantygivesyouspecificlegalrights,andyoumayalsohaveotherrightswhichvaryfromstatetostate.
Sears,RoebuckandCo.,HoffmanEstates,IL60179
EngineOilType: SAE5W-30
EngineOilCapacity: 26ounces
FuelCapacity: 4Quarts
SparkPlug: Champion®RJ19LM
SparkPlugGap: .030"
ModelNumber.................................................................
SerialNumber.................................................................
DateofPurchase.............................................................
Recordthemodelnumber,serialnumber
anddateof purchaseabove
©SearsBrands,LLC

Congratulationson makingasmartpurchase.YournewCraftsman®
productisdesignedandmanufacturedforyearsofdependableopera-
tion.Butlikeall products,it mayrequirerepairfromtimetotime.That's
whenhavinga RepairProtectionAgreementcansaveyoumoneyand
aggravation.
Here'swhat'sincludedintheAgreement:
,, Expertservicebyour 12,000professionalrepairspecialists
,, Unlimitedserviceand nochargefor partsandlaboronall covered
repairs
,, Productreplacementifyourcoveredproductcan'tbe fixed
,, Discountof 10%fromregularpriceofserviceandservice-related
partsnotcoveredbytheagreement;also,10%off regularpriceof
preventivemaintenancecheck
,, Fasthelpbyphone- phonesupportfroma Searstechnicianon
productsrequiringin-homerepair,plusconvenientrepair
scheduling
Purchasea RepairProtectionAgreementnowandprotectyourself
fromunexpectedhassleandexpense.
OnceyoupurchasetheAgreement,a simplephonecallisall thatit
takesforyoutoscheduleservice.Youcancallanytimedayornight,or
schedulea serviceappointmentonline.
Searshasover12,000professionalrepairspecialists,whohave
accesstoover4.5millionqualitypartsandaccessories.That'sthe
kindofprofessionalismyoucancounton tohelpprolongthelifeof
yournewpurchaseforyearstocome.PurchaseyourRepairProtection
Agreementtoday!
Somelimitationsand exclusionsapply. Forpricesand additional
informationcall 1-800-827-6655.
SearsInstallation Service
ForSearsprofessionalinstallationof homeappliances,garagedoor
openers,waterheaters,andothermajorhomeitems,in theU.S.A.call
1-800-4-MY-HOME®

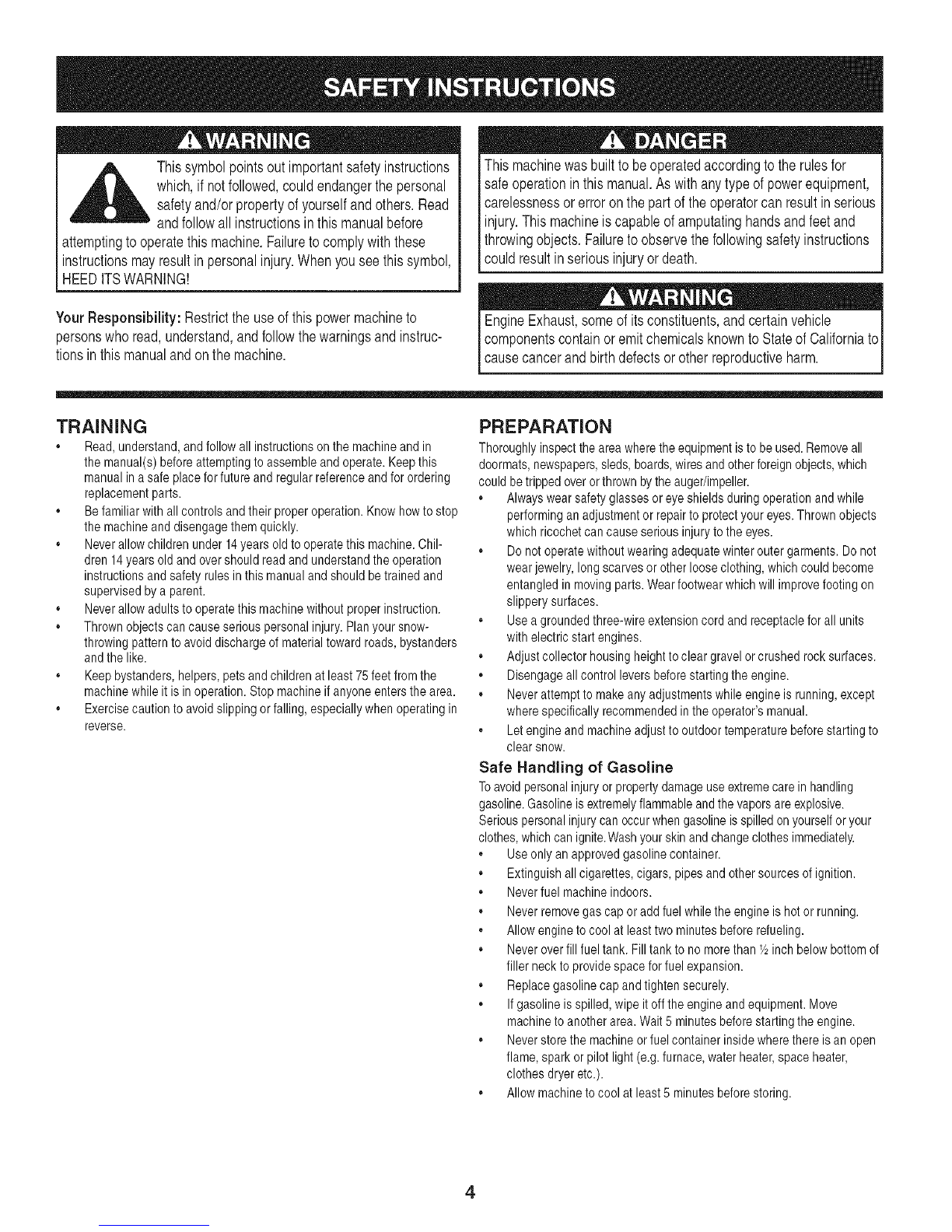

__L Thissymbolpointsoutimportantsafetyinstructions
which,ifnotfollowed,couldendangerthepersonal
safetyand/orpropertyofyourselfandothers.Read
andfollowallinstructionsinthismanualbefore
attemptingtooperatethismachine.Failuretocomplywiththese
instructionsmayresultinpersonalinjury.Whenyouseethissymbol,
HEEDITSWARNING!
YourResponsibility:Restricttheuseofthispowermachineto
personswhoread,understand,andfollowthewarningsandinstruc-
tionsinthismanualandonthemachine.
Thismachinewasbuilttobeoperatedaccordingtotherulesfor
safeoperationinthismanual.Aswithanytypeofpowerequipment,
carelessnessorerroronthepartoftheoperatorcanresultinserious
injury.Thismachineiscapableofamputatinghandsandfeetand
throwingobjects.Failuretoobservethefollowingsafetyinstructions
couldresultinseriousinjuryordeath.
Engine Exhaust, some of its constituents, and certain vehicle
components contain or emit chemicals known to State of California to1cause cancer and birth defects or other reproductive harm.
TRAINING
,, Read,understand,andfollowall instructionsonthe machineand in
the manual(s)beforeattemptingtoassembleandoperate.Keepthis
manualina safeplaceforfuture andregularreferenceandfor ordering
replacementparts.
,, Befamiliarwith allcontrolsandtheirproperoperation.Knowhowto stop
the machineanddisengagethemquickly.
,, Neverallowchildrenunder14yearsoldto operatethismachine.Chil-
dren14yearsoldand overshouldreadandunderstandthe operation
instructionsand safetyrulesin thismanualand shouldbetrained and
supervisedbya parent.
,, Neverallowadultsto operatethismachinewithoutproperinstruction.
,, Thrownobjectscancauseseriouspersonalinjury.Planyoursnow-
throwingpatterntoavoiddischargeof materialtowardroads,bystanders
andthe like.
,, Keepbystanders,helpers,petsandchildrenatleast75feet fromthe
machinewhileit isinoperation.Stopmachineif anyoneentersthearea.
,, Exercisecautiontoavoidslippingorfalling,especiallywhenoperatingin
reverse.
PREPARATION
Thoroughlyinspecttheareawheretheequipmentisto beused.Removeall
doormats,newspapers,sleds,boards,wiresandotherforeignobjects,which
couldbetrippedoverorthrownbythe auger/impeller.
,, Alwayswearsafetyglassesoreyeshieldsduringoperationandwhile
performinganadjustmentor repairto protectyoureyes.Thrownobjects
whichricochetcancauseseriousinjurytothe eyes.
,, Donotoperatewithoutwearingadequatewinteroutergarments.Donot
wearjewelry,longscarvesor otherlooseclothing,whichcouldbecome
entangledinmovingparts.Wearfootwearwhichwill improvefootingon
slipperysurfaces.
,, Usea groundedthree-wireextensioncordandreceptacleforall units
with electricstart engines.
,, Adjustcollectorhousingheighttoclear gravelor crushedrocksurfaces.
,, Disengageall controlleversbeforestartingthe engine.
,, Neverattemptto makeanyadjustmentswhileengineis running,except
wherespecificallyrecommendedinthe operator'smanual.
,, Letengineandmachineadjustto outdoortemperaturebeforestartingto
clearsnow.
Safe Handling of Gasoline
Toavoidpersonalinjuryorpropertydamageuseextremecarein handling
gasoline.Gasolineisextremelyflammableandthevaporsareexplosive.
Seriouspersonalinjurycanoccurwhengasolineis spilledonyourselfor your
clothes,whichcan ignite.Washyourskinandchangeclothesimmediately.
,, Useonlyan approvedgasolinecontainer.
,, Extinguishall cigarettes,cigars,pipesandothersourcesofignition.
,, Neverfuel machineindoors.
,, Neverremovegascapor addfuelwhilethe engineishot or running.
,, Allowenginetocoolatleasttwominutesbeforerefueling.
,, Neveroverfill fuel tank.Fill tankto nomorethan Y2inchbelowbottomof
fillerneckto providespacefor fuelexpansion.
,, Replacegasolinecapandtightensecurely.
,, Ifgasolineisspilled,wipeit offthe engineandequipment.Move
machineto anotherarea.Wait5 minutesbeforestartingthe engine.
,, Neverstorethe machineorfuelcontainerinsidewherethere isan open
flame,sparkor pilotlight(e.g.furnace,waterheater,space heater,
clothesdryeretc.).
,, Allowmachineto coolatleast5 minutesbeforestoring.
4

OPERATION
. Do notputhandsorfeet nearrotatingparts,in theauger/impeller
housingor chuteassembly.Contactwiththe rotatingpartscanamputate
handsand feet.
,, Theauger/impellercontrolleverisa safetydevice.Neverbypassits
operation.Doingsomakesthe machineunsafeandmaycause personal
injury.
,, Thecontrolleversmust operateeasilyin bothdirectionsand automati-
callyreturnto thedisengagedpositionwhenreleased.
,, Neveroperatewitha missingor damagedchuteassembly.Keepall
safetydevicesinplaceandworking.
,, Neverrunan engineindoorsor in a poorlyventilatedarea.Engine
exhaustcontainscarbonmonoxide,anodorlessanddeadlygas.
,, Do notoperatemachinewhileunderthe influenceofalcoholor drugs.
,, Mufflerand enginebecomehotand cancausea burn. Donottouch.
. Exerciseextremecautionwhenoperatingonorcrossinggravelsurfaces.
Stayalertforhiddenhazardsortraffic.
. Exercisecautionwhenchangingdirectionand whileoperatingon slopes.
. Planyoursnow-throwingpatterntoavoiddischargetowardswindows,
walls,carsetc.Thus,avoidingpossiblepropertydamageorpersonal
injurycausedbya ricochet.
. Neverdirectdischargeatchildren,bystandersand petsor allowanyone
infront ofthe machine.
. Do notoverloadmachinecapacityby attemptingto clearsnowattoofast
ofa rate.
. Neveroperatethismachinewithoutgoodvisibilityor light.Alwaysbe
sureofyourfootingandkeepafirm holdonthe handles.Walk, never
run.
. Disengagepowertothe auger/impellerwhentransportingor notin use.
,, Neveroperatemachineat hightransportspeedson slipperysurfaces.
Lookdownand behindandusecarewhenbackingup.
,, Ifthe machineshouldstarttovibrateabnormally,stopthe engine,
disconnectthe sparkplugwireandgroundit againsttheengine.Inspect
thoroughlyfordamage.Repairanydamagebeforestartingandoperat-
ing.
. Disengageallcontrolleversandstop enginebeforeyouleavethe
operatingposition(behindthe handles).Waituntilthe auger/impeller
comestoacompletestopbeforeuncloggingthe chute assembly,making
anyadjustments,orinspections.
,, Neverputyourhandin the dischargeor collectoropenings.Always
usetheclean-outtool providedto unclogthe dischargeopening.Do
not unclogchuteassemblywhileengineisrunning.Shut offengine
andremainbehindhandlesuntilall movingpartshavestoppedbefore
unclogging.
,, Useonlyattachmentsandaccessoriesapprovedbythe manufacturer
(e.g.wheelweights,tirechains,cabsetc.).
,, Ifsituationsoccurwhicharenotcoveredinthismanual,usecareand
goodjudgment.ContactyourSearsServiceCenterforassistance.
MAINTENANCE & STORAGE
. Nevertamperwith safetydevices.Checktheirproperoperation
regularly.Refertothe maintenanceandadjustmentsectionsofthis
manual.
,, Beforecleaning,repairing,or inspectingmachinedisengageallcontrol
leversand stopthe engine.Waituntiltheauger/impellercome toa
completestop.Disconnectthe sparkplug wireand groundagainstthe
enginetopreventunintendedstarting.
. Checkboltsandscrewsfor propertightnessatfrequentintervalsto keep
the machinein safeworkingcondition.Also,visuallyinspectmachinefor
anydamage.
. Donotchangethe enginegovernorsettingor over-speedthe engine.
Thegovernorcontrolsthe maximumsafeoperatingspeedofthe engine.
. Snowthrowershaveplatesandskid shoesare subjectto wearand
damage.Foryoursafetyprotection,frequentlycheckallcomponents
and replacewith originalequipmentmanufacturer's(OEM) partsonly.
"Useof partswhich donot meetthe originalequipmentspecifications
may leadto improperperformanceandcompromisesafety!"
. Checkcontrolsperiodicallytoverifytheyengageanddisengage
properlyandadjust,if necessary.Referto theadjustmentsectionin this
operator'smanualforinstructions.
. Maintainor replacesafetyandinstructionlabels,asnecessary.
. Observeproperdisposallawsand regulationsfor gas, oil,etc.to protect
the environment.
. Priortostoring,runmachineafewminutesto clearsnowfrom machine
andpreventfreezeup ofauger/impeller.
. Neverstorethe machineorfuelcontainerinsidewherethere isanopen
flame,sparkor pilotlightsuch asa waterheater,furnace,clothes dryer
etc.
,, Alwaysrefertothe operator'smanualfor properinstructionson
off-seasonstorage.
Do not modify engine
Toavoidseriousinjuryor death,do notmodifyenginein anyway.Tampering
withthegovernorsettingcanleadto arunawayengineandcauseitto operate
at unsafespeeds.Nevertamperwithfactorysettingofenginegovernor.
Notice Regarding Emissions
Engineswhichare certifiedtocomplywith CaliforniaandfederalEPAemission
regulationsfor SORE(SmallOffRoadEquipment)arecertifiedtooperateon
regularunleadedgasoline,and mayincludethefollowingemissioncontrolsys-
tems:EngineModification(EM)andThreeWayCatalyst(TWO)if soequipped.

Thispage left intentionallyblank.
6

1.KEEPAWAYFROMROTATINGIMPELLER
ANDAUGER.CONTACTWITHIMPELLEROR
AUGERCANAMPUTATEHANDSANDFEET.
2. USECLEAN-OUTTOOLTOUNCLOG
DISCHARGECHUTE.
3. DISENGAGECLUTCHLEVERS,STOPENGINE,
ANDREMAINBEHINDHANDLESUNTILALL
MOVINGPARTSHAVESTOPPEDBEFORE
UNCLOGGINGORSERVICINGMACHINE.
4. TOAVOIDTHROWNOBJECTSINJURIES,
NEVERDIRECTDISCHARGEATBYSTANDERS.
USEEXTRACAUTIONWHENOPERATINGON
GRAVELSURFACES.
5. READOPERATOR'SMANUAL.
CL_K-O_T_LU___
7

NOTE:Referencesto rightor leftsideofthesnowthrowerare
determinedfrombehindtheunitintheoperatingposition(standing
directlybehindthesnowthrower,facingthehandlepanel).
REMOVING FROM CARTON
1. Cutthecornersofthecartonandlaythesidesflat ontheground.
Removeand discardallpackinginserts.
2. Movethesnowthroweroutofthecarton.
3. Makecertainthecartonhasbeencompletelyemptiedbefore
discardingit.
LOOSE PARTS
Tworeplacementaugershearpinsare includedwiththis manual.Refer
toReplacingShearPinsintheOperationsectionformoreinformation
regardingshearpin replacement.
ASSEMBLY
1. Placetheshiftleverin theForward-6position.
2. Observethelowerrearareaofthesnowthrowertobesureboth
cablesarealignedwith rollerguidesbeforepivotingthehandle
upward.SeeFigure1.
Figure1
NOTE:Makecertaintheupperendsofeachcableare seatedproperly
in itsbracket.
3, Securethe handlebytighteningtheplasticwingknoblocatedon
boththeleft andrightsidesofthehandle.SeeFigure2.Remove
anddiscardanyrubberbands,if present.Theyareforpackaging
purposesonly.
/
/
J/
/ /
/
Figure2
/
/
/
/
8

4,
5. Positionthechuteassemblyoverthebase.SeeFigure3.
Closetheflangekeeperstosecurethechuteassemblytothe
chutebase.SeeFigure4.Theflangekeeperswillclickintoplace
whenproperlysecure.
NOTE:If theflangekeeperswillnoteasilyclickintoplace,usethe
palmofyourhandtoapplyswift,firm pressuretothebackof each.
6, a.
b.
Removetheflat washerand hairpinclipfromtheendofthe
chutedirectionalcontrol.
Inserttheendofthechutedirectionalcontrolintothelower
bracketandsecurewiththeflatwasherandhairpinclipjust
removed.SeeFigure5.If necessary,thelowerbracketcan
be adjusted.Referto ChuteBracketAdjustmentinthe
Service&Maintenancesection.
Figure4 J
Figure5
9

SET-UP
Chute Clean=Out Tool
A chute clean-out tool isfastenedtothetopoftheaugerhousing
witha mountingclip.SeeFigure6.Thetoolisdesignedtocleara
chuteassemblyoficeandsnow.Thisitemisfastenedwitha cabletie
atthefactory.Cutthecabletiebeforeoperatingthesnowthrower.
bever useyourhandstocleara cloggedchuteassembly.Shutoff I
_ngineandremainbehindhandlesuntilall movingpartshavestoppedI
_oeforeusingtheclean-outtooltoclearthechuteassembly. 1
Tire Pressure
Beforeoperating,checktirepressureand reducepressurein bothtires
tobetween15psiand20 psi.
NOTE:If thetirepressureisnotequalin bothtires,theunitmaynot
travelin a straightpathandtheshaveplatemaywearunevenly.
ADJUSTMENTS
Skid Shoes
Thesnowthrowerskidshoesareadjustedupwardatthefactoryfor
shippingpurposes.Adjustthemdownward,ifdesired,priorto operat-
ingthesnowthrower.
tt youoperate snow ongravelas
isnotrecommendedthat this thrower
caneasilypickupandthrowloosegravel,causingpersonalinjuryor I
amagetothesnowthrowerandsurroundingproperty. 1
•Forclosesnowremovalona smoothsurface,raiseskidshoes
higheron theaugerhousing.
•Usea middleor lowerpositionwhentheareatobe clearedis
uneven,suchasa graveldriveway
NOTE:If youchoosetooperatethesnowthroweron a gravelsurface,
keeptheskidshoesin positionformaximumclearancebetweenthe
groundandtheshaveplate.
Toadjusttheskidshoes:
1. Loosenthefourhexnuts(twooneachside)andcarriagebolts.
Moveskidshoestodesiredposition. SeeFigure7.
2. Makecertaintheentirebottomsurfaceof skidshoeisagainstthe
groundtoavoidunevenwearontheskidshoes.
3. Retightennutsand boltssecurely.
Chute Clean-out Tool
Figure6
,//
/
/
/
/
o, / /, ._
/J
//
/ //
/_//"
/ /
Figure7
10

Chute Assembly
Thedistancesnowisthrowncanbeadjustedbychangingtheangleof
thechuteassembly.Todo so:
1. Stoptheenginebyremovingtheignitionkeyand loosenthe
plasticwingknobfoundon theleftsideof thechuteassembly.
2. Pivotthechuteupwardordownwardbeforeretighteningthewing
knob.SeeFigure8.
Auger Control
Priorto operatingyoursnowthrower,carefullyreadandfollowall
instructionsbelow.Performalladjustmentstoverifyyoursnow
throwerisoperatingsafelyand properly.
Checktheadjustmentoftheaugercontrolasfollows:
1. Whentheaugercontrolisreleasedandin thedisengaged"up"
position,thecableshouldhaveverylittleslack.ItshouldNOTbe
tight.
2. Ina well-ventilatedarea,startthesnowthrowerengine.Refer
toStartingtheEngineinthaiOperationsection.Makesurethe
throttleissetin theFAST_1 position.
3. Whilestandingintheoperator'sposition(behindthesnow
thrower),engagetheauger.
4. Allowtheaugertoremainengagedforapproximatelyten(10)
secondsbeforereleasingtheaugercontrol.Repeatthisseveral
times.
5. WiththethrottlecontrolintheFAST(rabbit)_ positionand
theaugercontrolin thedisengaged"up"position,walktothefront
ofthemachine.
6. Confirmthattheaugerhascompletelystoppedrotatingand
showsNOsignsofmotion.If theaugershowsANYsignsof
rotating,immediatelyreturntotheoperator'spositionandshutoff
theengine.WaitforALL movingpartstostopbeforere-adjusting
theaugercontrol.
7. Toreadjustthecontrolcable,loosentheupperhex nuton the
augercablebracket.SeeFigure9.
8. Positionthebracketupwardtoprovidemoreslack(or downward
toincreasecabletension).
9. Retightentheupperhexnut.
10. Repeatsteps2-6aboveto verifyproperadjustmenthasbeen
achieved.
Figure8
x
Figure9
11

get Control
Chute
Assembly
ElectricStart Button
DirectionalControl
EnGineControls
RecoilStarter
Handle
ElectricStarterOutlet /
Ignition 1\ /_/'
\ J
%. ,j
Figure10
Nowthatyouhavesetupyoursnowthrower,it'simportanttobecome [GNITION KEY
acquaintedwith itscontrolsand features.RefertoFigure10. Theignitionkeyisasafetydevice.It mustbe fullyinsertedinorderfor
theenginetostart. Removetheignitionkeywhenthesnowthroweris
SHIFT LEVER notin use.
|
6
Theshiftleverislocatedon thedashpanel.Placetheshiftleverinto
anyofeightpositionstocontrolthedirectionof travelandground
speed.
Forward
Yoursnowthrowerhassix forward(F)speeds.Positionone(1)isthe
slowestand positionsix (6)is thefastest.
Reverse
Yoursnowthrowerhastwo reverse(R)speeds.One(1)is theslower
andtwo(2)is thefaster.
NOTE:Donotturntheignitionkeyinan attempttostarttheengine.
Doingso maycauseit tobreak.
CHOKE CONTROL III
Thechokecontrolisfoundon therearof theengineandisactivated
byrotatingtheknobclockwise.Activatingthechokecontrolclosesthe
chokeplateonthecarburetorandaidsinstartingtheengine.
Meets ANSi Safety Standards
CraftsmanSnowThrowersconformto thesafetystandardoftheAmericanNationalStandardsInstitute(ANSI).
12

THROTTLE CONTROL
Thethrottlecontrolis locatedontherearoftheengine.
It regulatesthespeedoftheengineandwillshutoff the
enginewhenmovedintotheSTOPposition.
RECOIL STARTER HANDLE
This handleisusedto manuallystarttheengine.
ELECTRIC STARTER BUTTON
Pressingtheelectricstarterbuttonengagestheengine's
electricstarterwhenpluggedintoa 120Vpowersource.
ELECTRIC STARTER OUTLET
Requirestheuseofa three-prongoutdoorextensioncord
(included)anda 120Vpowersource/walloutlet.
AUGERS
Whenengaged,theaugersrotateanddrawsnowintotheauger
housing.
CHUTE ASSEMBLY
Snowdrawnintotheaugerhousingisdischargedoutthechute
assembly.
PRIMER
Depressingtheprimerforcesfueldirectlyintotheengine'scarburetor
toaidin cold-weatherstarting.
OIL FILL
Engineoil levelcanbecheckedandoiladdedthroughtheoilfill.
GAS CAP
Unthreadthegascaptoaddgasolineto thefueltank.
AUGER CONTROL
f_
Theaugercontrolislocatedonthe lefthandle.Squeezethecontrol
gripagainstthehandletoengagetheaugersandstartsnowthrowing
action.Releasetostop.
J
DRIVE CONTROL/AUGER CONTROL LOCK
f- DRIVE
CONTROL
@
Thedrivecontrolis locatedon therighthandle.Squeezethecontrol
gripagainstthehandletoengagethewheeldrive.Releasetostop.
Thedrivecontrolalsolockstheaugercontrolsoyoucanoperate
thechutedirectionalcontrolwithoutinterruptingthesnowthrowing
process.If theaugercontrolisengagedsimultaneouslywiththedrive
control,theoperatorcanreleasetheaugercontrol(ontheleft handle)
andtheaugerswillremainengaged.Releasebothcontrolstostopthe
augersandwheeldrive.
NOTE:Alwaysreleasethedrivecontrolbeforechangingspeeds.
Failuretodosowillresultinincreasedwearon yourmachine'sdrive
system.
CHUTE DIRECTIONAL CONTROL
fCHUTE DiRECTiONAL CONTROL
DISCHARGE
LEFT
ADJUSTABLE
CHUTETiLT
Thechutedirectionalcontrolislocatedon leftsideofthesnowthrower.
Tochangethedirectioninwhichsnowisthrown,turnchutedirectional
controlasfollows:
,, Crankclockwisetodischargetotheleft.
,, Crankcounterclockwisetodischargetotheright.
SKID SHOES
Positiontheskidshoesbasedonsurfaceconditions.Adjustupward
forhard-packedsnow.Adjustdownwardwhenoperatingongravelor
crushedrocksurfaces.
13

CLEAN-OUT TOOL NOTE:A plasticdustcapmaybefoundinsidethefuelfillopening.
Removeanddiscard,ifpresent.
Neveruseyourhandstocleara cloggedchuteassembly.Shut
off engineand remainbehindhandlesuntilallmovingpartshave
stoppedbeforeunclogging.
Thechuteclean-outtoolisconvenientlyfastenedtothe rearofthe
augerhousingwitha mountingclip. Shouldsnowandicebecome
lodgedin thechuteassemblyduringoperation,proceedasfollowsto
safelycleanthechuteassemblyandchuteopening:
1. ReleaseboththeAugerControlandtheDriveControl.
2. Stoptheenginebyremovingtheignitionkey.
3. Removetheclean-outtoolfromtheclipwhichsecuresittothe
rearoftheaugerhousing.
4. Usetheshovel-shapedendof theclean-outtooltodislodgeand
scoopanysnowandicewhichhasformedin andnearthechute
assembly.
5. Refastentheclean-outtooltothemountingclipon therearof
theaugerhousing,reinsertthe ignitionkeyandstartthesnow
thrower'sengine.
6. Whilestandingintheoperator'sposition(behindthesnow
thrower),engagetheaugercontrolfora fewsecondsto clearany
remainingsnowandicefromthechuteassembly.
BEFORE STARTING ENGINE
Read,understand,andfollowall instructionsandwarningsonthe
machineand inthis manualbeforeoperating.
Oil
Theunitwasshippedwithoil intheengine.Checkoil levelbeforeeach
operationtoensureadequateoil intheengine.Forfurtherinstructions,
referto thestepsonpage 17.
1. Removethedipstickfromtheoilfill.
2. Checkandmakesurethatthelevelofoil isupto theFULLmark
onthedipstick.
3. If theoil levelis notupto FULL,pourfreshmotoroil (5W-30,with
a minimumclassificationofSL/SJ)slowlythroughtheopening.
Replaceoil filldipstickandcheckoil levelagain.
Gasoline
Useextremecarewhenhandlinggasoline.Gasolineisextremely
flammableandthevaporsareexplosive.Neverfuel themachine
indoorsor whiletheengineishotor running.Extinguishcigarettes,
[c gars,ppesand othersourcesof gnt on.
,, Storegasolinein aclean,approvedcontainerandkeepthecapin
placeonthecontainer.
,, Makesurethatthecontainerfromwhichyoupourthegasolineis
cleanandfreefromrustor otherforeignparticles.
,, Alwaysfill thefueltankoutdoorsand usea funnelorspoutto
preventspilling.
,, Fillfueltankwithclean,fresh,unleadedgasoline.
,, Neverfill thefueltankcompletely.Fillthetanktowithin1/2"from
thetoptoprovidespaceforexpansionoffuel.
,, Makesuretowipeoff anyspilledfuelbeforestartingtheengine.
STARTING THE ENGINE
1. Attachsparkplugwiretosparkplug.Makecertainthe metal
loopon theend ofthesparkplugwire(insidetherubberboot)is
fastenedsecurelyoverthemetaltip onthesparkplug.
2. Makecertainboththeaugercontrolanddrivecontrolarein the
disengaged(released)position.
3. MovethrottlecontroluptoFAST_ position.Insertignitionkey
intoslot.Makesureitsnapsintoplace.Donotattempttoturnthe
key.
NOTE:Theenginecannotstartwithoutthekeyis fullyinsertedintothe
ignitionswitch.
Electric Starter
Determinethatyourhome'swiringisa three-wiregroundedsystem.
Aska licensedelectricianifyouarenotcertain.
Theoptionalelectricstarterisequippedwitha groundedthree-wire
powercordandplug,and isdesignedtooperateon 120voltAC
householdcurrent.It mustbe usedwith aproperlygroundedthree-
prongreceptacleatall timestoavoidthepossibilityofelectricshock.
Followall instructionscarefullypriortooperatingtheelectricstarter.
Ifyouhavea groundedthree-prongreceptacle,proceedasfollows:
1. Plugtheextensioncordintotheoutletlocatedontheengine's
surface.Plugtheotherend ofextensioncordintoathree-prong
120-volt,grounded,ACoutletina well-ventilatedarea.
2. RotatechokecontroltoFULL I,.#'1chokeposition(foracold
enginestart).
NOTE:If theengineis alreadywarm,placechokecontrolin theOFF
positioninsteadofFULL IJl •
3. Pushtheprimertwoor threetimesforcoldenginestart, making
suretocoverventholeinthecenterofthe primerwhenpushing.
NOTE:DONOTuseprimerto restarta warmengineaftera short
shutdown.
4. Pushstarterbuttontostartengine.
NOTE:Donotholdthebuttondownforlongerthanseven(7)seconds
ata time.Doingso maydamageyourengine'selectricstarter.
14

5. Oncetheenginestarts,releasestarterbutton.
6. Astheenginewarms,slowlyrotatechokecontrolto theOFF
position.Iftheenginefalters,quicklyrotatechokecontrolbackto
FULL 14D"IthenslowlyintotheOFFpositionagain.
7. Whendisconnectingtheextensioncord,alwaysunplugtheend
atthethree-prongwalloutletbeforeunpluggingtheoppositeend
fromthesnowthrower.
Recoil Starter
1. RotatechokecontroltoFULL IJl chokeposition(coldengine
start).
NOTE:Iftheengineisalreadywarm,placechokecontrolintheOFF
insteadofFULLIJ|.
position
2. Pushtheprimertwoorthreetimesforcoldenginestart,making
sureto coverventholeinthecenteroftheprimerwhenpushing.
NOTE:DONOTuseprimertorestartawarmengineaftera short
shutdown.
NOTE:Additionalprimingmaybe necessaryifthetemperatureis
below15°Fahrenheit.
3. Grasptherecoilstarterhandleandslowlypulltheropeout.Atthe
pointwhereitbecomesslightlyhardertopullthe rope,slowly
allowtheropetorecoil.
4. Pullthestarterhandlewitha firm,rapidstroke.Donotrelease
thehandleandallowit tosnapback.Keepa firmholdon the
starterhandleandallowittoslowlyrecoil.
5. Astheenginewarms,slowlyrotatethechokecontroltotheOFF
position.Iftheenginefalters,quicklyrotatethechokecontrol
backtotheFULL I,_1 positionandthenslowlyintotheOFF
positionagain.
NOTE:Allowtheenginetowarmupforafew minutesafterstarting.
Theenginewill notdevelopfullpoweruntilit reachesoperating
temperatures.
STOPPING THE ENGINE
Runenginefora fewminutesbeforestoppingto helpdryoff any
moistureontheengine.
MovethrottlecontroltoSTOP
1. position.
2. Removethe ignitionkeyandstoreina safeplace.
3. Wipeall snowandmoisturefromtheareaaroundtheengineas
wellas theareainand aroundthedrivecontrolandaugercontrol.
Also,engageandreleasebothcontrolsseveraltimes.
TO ENGAGE DRIVE
1. WiththethrottlecontrolintheFast_ position,moveshiftlever
intooneofthesix forward(F)positionsor tworeverse(R)
positions.Selecta speedappropriateforthesnowconditionsand
a paceyou'recomfortablewith.
NOTE:Whenselectinga DriveSpeed,usetheslowerspeedsuntil
youarecomfortableandfamiliarwiththeoperationofthesnow
thrower.
2. Squeezethedrivecontrolagainstthehandlethesnowthrower
will move.Releaseitanddrivemotionwillstop.
NOTE:NEVERrepositiontheshiftlever(changespeedsor direction
of travel)withoutfirstreleasingthedrivecontrolandbringingthesnow
throwertoa completestop.Doingsowillresultin prematurewearto
thesnowthrower'sdrivesystem.
TO ENGAGE AUGERS
1. Toengagetheaugersandstartthrowingsnow,squeezethe
augercontrolagainstthelefthandle.Releasetostoptheaugers.
REPLACING SHEAR PiNS
Theaugersaresecuredtothespiralshaftwithtwoshearpinsandcot-
terpins.if theaugershouldstrikea foreignobjector icejam,thesnow
throwerisdesignedsothattheshearpinsmayshear.Iftheaugerswill
notturn,checktoseeifthepinshavesheared.SeeFigure11.
NEVERreplacetheaugershearpinswith anythingotherthanOEM
PartNo.738-04124Areplacementshearpins.Anydamagetothe
augergearboxorothercomponentsasa resultoffailingtodo sowill
NOTbecoveredbyyoursnowthrower'swarranty.
Alwaysturnoffthesnowthrower'sengineand removethekeypriortc
replacingshearpins.
f
\
Figure11
15

ENGINE MAINTENANCE
Beforelubricating,repairing,orinspecting,disengageallcontrols
land stopengine.Waituntilall movingpartshavecometoa complete
|stop.
Checking Engine Oil
1. Besureengineisuprightandlevel.
2. Unscrewoil fillcapfromoil fillertubeandwipedipstickclean.
3. Screwoil fillcapbackintooilfillertube.Tightensecurely.
4. Unscrewandremoveoilfillcapfromoilfillertube.Noteoil level.
ifoil readingondipstickisbelow"ADD"mark,slowlyaddoil to
reach"FULL"level.SeeFigure12.
5. Screwoil fillcapbackintooilfillertube.Tightensecurely.
6. Wipeawayanyspilledoil.
f --,,
FULL
ADD
Maintain Oil Level
_ Between FULLand ADD
Changing Engine Oil
Toavoidenginedamage,itisimportantto:
,, Checkoil levelbeforeeachuseandeveryfiveoperatinghours.
,, Changeoil afterfirsttwo (2)operatinghoursandevery25 operat-
inghoursthereafter.
,, Engineshouldstill bewarmbut nothotfromrecentuse.
1. Locatetheoildrainplug.SeeFigure13.
2. Besurethegascapisonand istightenedsecurely.
3. Cleanareaaroundoil drainplug.
4. Placeapprovedrecyclableoilcontainerunderoil drainplug.
5. Removeoil drainpluganddrainoil.
NOTE:Usedoil mustbedisposedofata propercollectioncenter.
6. Installoildrain plugandtightensecurely.
7. Refilltheenginewithrecommendedoil.SeeRecommendedOil
Usagechart.Theengine'soilcapacityis21ounces.
Synthetic Multi Grade i
SAE0W-30 *
Figure12
0il FIll -_
0il Draia_
Figure13
J
8. Wipeawayanyspilledoil.
16

Checking Spark Plug
Checksparkplugyearlyor every100operatinghours
1. Cleanareaaroundsparkplug.
2. Removeand inspectsparkplug.
3. Replacesparkplugif porcelainiscrackedor ifelectrodesare
pitted,burnedorfouledwithdeposits
4. Checkelectrodegapwitha feelergaugeandset gapto.030
(0.76ram)ifnecessary.SeeFigure14.
5. Reinstallsparkplugandtightensecurely.
NOTE:A resistorsparkplugmustbeusedforreplacement.Contacta
SearsPartsand RepairCenterfora replacementsparkplug.
Carburetor
If yoususpectyourcarburetorneedsadjusting,seea SearsPartsand
RepairCenter.Engineperformanceshouldnotbe affectedataltitudes
upto7,000feet(2,134meters).Foroperationathigherelevations,
contacta SearsPartsand RepairCenter.
Engine Speed
Avoidseriousinjuryor death,DONOTmodifyenginein anyway.
Tamperingwiththegovernorsettingcancausetheengineand
equipmenttooperateatunsafespeeds.NEVERtamperwithfactory
settingofenginegovernor.Runningtheenginefasterthanthespeed
set atthefactoryisdangerous.
LUBRICATION
Gear Shaft
Thegear(hex)shaftshouldbelubricatedatleastoncea seasonor
afterevery25 hoursofoperation.
1. Carefullypivotthesnowthrowerup andforwardsothat itrestson
theaugerhousing.
2. Removethe lowerframecoverfromtheundersideofthesnow
throwerbyremovingthefourself-tappingscrewswhichsecureit.
3. Applya lightcoatingofengineoil (or 3-in-1oil)tothehexshaft.
SeeFigure15.
NOTE:Whenlubricatingthehexshaft,be carefulnottogetanyoilon
thealuminumdriveplateor rubberfrictionwheel.Doingso willhinder
thesnowthrower'sdrivesystem.Wipeoff anyexcessor spilledoil.
Wheels
Atleastoncea season,removebothwheels.Cleanandcoattheaxles
witha multipurposeautomotivegreasebeforereinstallingwheels.
Chute Directional Control
Oncea season,lubricatetheeyeboltbushingandthespiralwith
3-in-1oil.
Auger Shaft
Atleastoncea season,removetheshearpinson augershaft.Spray
lubricantinsideshaft,andaroundthespacersandflangebearings
foundateitherendoftheshaft.SeeFigure16.
3
II
II
1..030 (.76ram)Gap
2. Electrodes
Porcelain Figure14 J
\\\\
\,, ........
Figure15
/
/ 7
/
J
Figure 16
17

SHAVE PLATE AND SKID SHOES
Theshaveplateandskidshoesonthe bottomofthesnowthrowerare
subjectto wear.Theyshouldbecheckedperiodicallyandreplaced
whennecessary.
Toremoveskid shoes:
1. Removethefourcarriageboltsandhexflangenutswhichsecure
themto thesnowthrower.
2. Reassemblenewskidshoeswiththefourcarriagebolts(twoon
eachside)andhexflangenuts.Referto Figure17.
Toremoveshaveplate:
1. Removethecarriageboltsand hexnutswhichattachittothe
snowthrowerhousing.
2. Reassemblenewshaveplate,makingsureheadsofcarriage
boltsaretotheinsideofhousing.Tightensecurely.
ADJUSTMENTS
Shift Cable
If thefullrangeofspeeds(forwardandreverse)cannotbe achieved,
refertothefiguretotherightandadjusttheshiftcableasfollows:
1. Placetheshiftleverin thefastest forwardspeedposition.
2. Loosenthehex nutontheshiftcableindexbracket.SeeFigure
18.
3. Pivotthebracketdownwardtotakeupslackinthecable.
4. Retightenthehexnut.
Drive Control
Whenthedrivecontrolisreleasedandin thedisengaged"up"position,
thecableshouldhavevery littleslack.It shouldNOTbe tight.Also,
ifthereisexcessiveslackin thedrivecableor iftheunitexperiences
intermittentdrivewhileusing,thecablemayneedtobeadjusted.
Checktheadjustmentofthedrivecontrolasfollows:
1. Withthedrivecontrolreleased,pushthesnowthrowergently
forward.Theunitshouldrollfreely.
2. Engagethedrivecontrolandgentlyattempttopushthesnow
throwerforward.Thewheelsshouldnotturn.Theunitshouldnot
rollfreely.
3. Withthedrivecontrolreleased,movetheshiftleverbackand
forthbetweentheR2positionandtheF5positionseveraltimes.
Thereshouldbenoresistanceintheshiftlever.
4. If anyoftheabovetestsfailed,thedrivecableisin needof adjust-
ment.Proceedasfollows:
5. Loosenthelowerhexnutonthedrivecablebracket.SeeFigure
19.
6. Positionthebracketupwardtoprovidemoreslack(ordownward
toincreasecabletension).
7. Retightenthelowerhexnut.
Figure17
f
Figure18 ,J
--,,,
18
Figure19 J

Chute Bracket
If thespiralatthebottomofthechutedirectionalcontrolisnotfully
engagingwiththechuteassembly,thechutebracketcanbeadjusted.
Todoso:
1. Loosenthetwonutswhichsecurethechutebracketand reposi-
tionitslightly.SeeFigure20.
2. Retightenthenuts.
Auger Control
RefertotheAssemblysectionforinstructionsonadjustingtheauger
controlcable.
Skid Shoes
RefertotheAssemblysectionforinstructionsonadjustingtheskid
shoes.
BELT REPLACEMENT
Auger Belt
Toremoveandreplaceyoursnowthrower'saugerbelt, proceedas
follows:
1. Topreventspillage,placea pieceofplasticwrapunderthegas
capand tightensecurely.
2. Removetheplasticbeltcoveron thefrontoftheenginebyremov-
ingthetwoself-tappingscrews.SeeFigure21.
3. Rolltheaugerbeltoff theenginepulley.SeeFigure22.
4. Carefullypivotthesnowthrowerup andforwardsothat itrestson
theaugerhousing.
f--,,
Figure20
f
/
19
Figure22 J

5. Removetheframecoverfromtheundersideofthesnowthrower
byremovingfourself-tappingscrewswhichsecureit. SeeFigure
23.
6. Removethe beltasfollows.RefertoFigure24.
a. Loosenand removetheshoulderscrewwhichactsas abelt
keeper.
b. Unhookthesupportbracketspringfromtheframe.
7. Removethebeltfromaroundtheaugerpulley,andslipthebelt
betweenthesupportbracketandtheaugerpulley.SeeFigure25.
8. Reassembleaugerbeltbyfollowinginstructionsin reverseorder.
NOTE:DoNOTforgetto reinstalltheshoulderscrewandreconnect
thespringto theframeafterinstallinga replacementaugerbelt.
Drive Belt
Toremoveand replaceyoursnowthrower'sdrivebelt,proceedas
follows: "_.
1. Placea pieceofplasticunderthegascap.
2. Removethe plasticbeltcoveronthefrontoftheenginebyremov-
ingthetwoself-tappingscrews.SeeFigure21on previouspage. f-
Figure23 J
--,,,,
ii_ii
/
Figure24
Figure25
2O
