Craftsman 254880 Owner's manual

REPAIR PARTS MANUAL
MODEL NUMBER 254880
1650 Series B&S Engine
30" Two-Stage Power-Propelled
SNOW THROWER
430586 08.26.09 SR Printed in U.S.A.

2
1
1
2
3
23
01.07.024-B
REPAIR PARTS CRAFTSMAN SNOW THROWER - MODEL NO. 254880
AUGER HOUSING / IMPELLER ASSEMBLY
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1 420478 AUGER BEARING
2 411939 BEARING PLUG
3 179582 SCREW 5/16−18 X 1.00
1
2
01.07.019-A
1 420497X479 AUGER ASSEMBLY 30 LH
2 420498X479 AUGER ASSEMBLY 30 RH

3
1
2
3
4
4
3
01.11.001-A
REPAIR PARTS CRAFTSMAN SNOW THROWER - MODEL NO. 254880
AUGER HOUSING / IMPELLER ASSEMBLY
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION

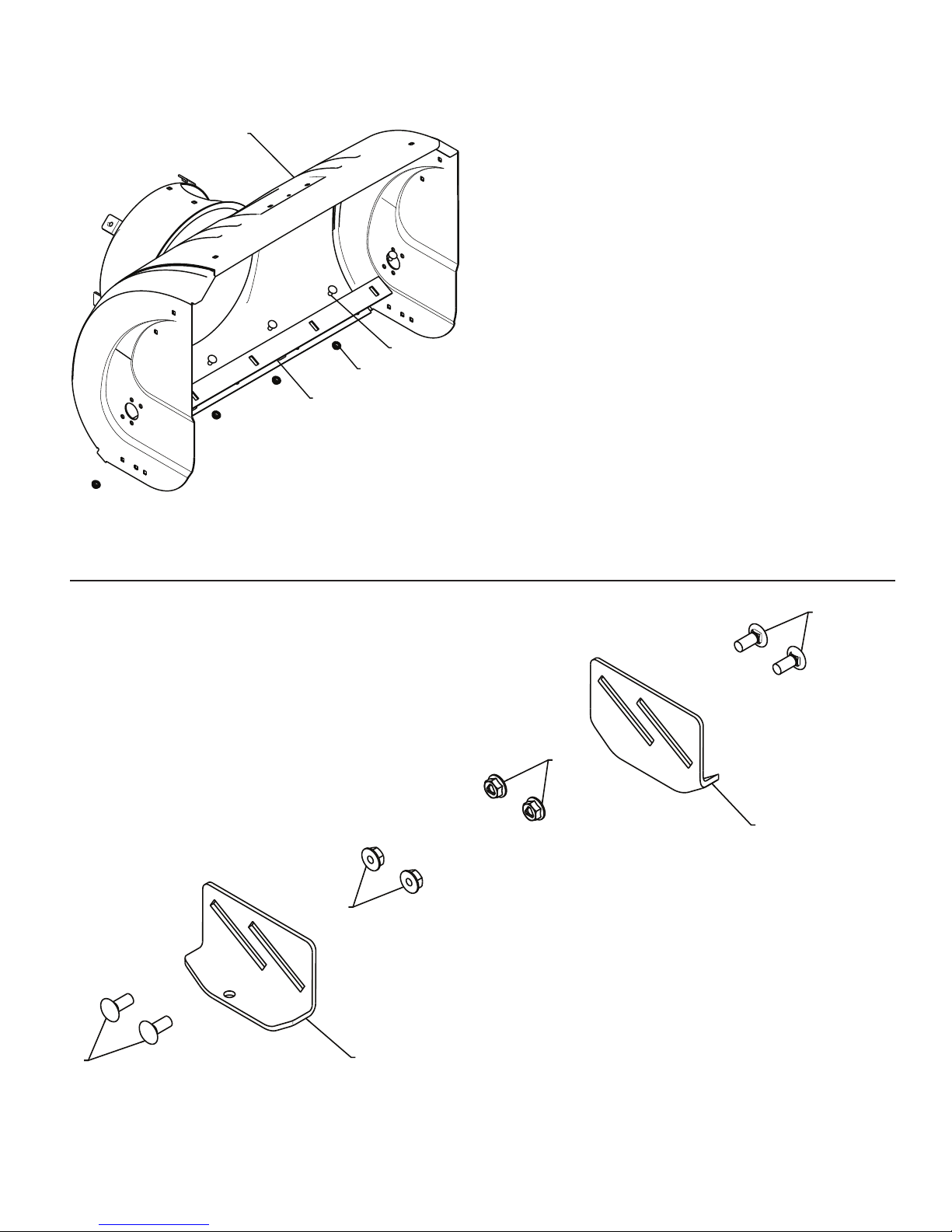

1 174762X479 SKID PLATE LH
2 178777X479 SKID PLATE RH
3 72270506 CARRIAGE BOLT 5/16−18 X .75
4 751153 NUT 5/16−18
1
2
3 (5x)
4 (5x)
01.07.003-A 1 404930X615 AUGER HOUSING
2 404933X479 SCRAPPER BAR
3 72270505 CARRIAGEBOLT 5/16−18 X .625
4 155377 NUT 5/16−18

4
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
REPAIR PARTS CRAFTSMAN SNOW THROWER - MODEL NO. 254880
AUGER HOUSING / IMPELLER ASSEMBLY
10
11
11
11
11
1
2
3
4
5
6
7
9
9
9
8
12
12
13
14
15
16
17
18 19
20
21
21
22
22
23
23
24
25
26
27
28
29
30
31
31
32
33
34
35
36
37
37
01.07.026-C
2(EXPLODED)

5
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
REPAIR PARTS CRAFTSMAN SNOW THROWER - MODEL NO. 254880
AUGER HOUSING / IMPELLER ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
1 175321X479 IMPELLER
2 427148 GEARBOX ASSEMBLY
3 188909 BEARING
4 427146 IMPELLER PULLEY
5 175322 DISCHARGE BASE
6 178675X008 CORNER BRACKET
7 192199 CLEAN OUT TOOL
8 405400 TOOL CLIP
9 73800400 NUT 1/4-20
10 74780426 SCREW 1/4-20 X .625
11 427942 NUT 5/16-18
12 163183 SCREW 5/16-18 X .625
13 427145 IMPELLER HUB
14 427154 IMPELLER SLEEVE
15 73900600 NUT 3/8-16
16 180355 CARRIAGE BOLT
17 194189 SCREW 13-16 X .625
18 407760 PLUG
19 427302 GEARBOX COVER RH
20 427345 GASKET
21 407770 SEAL
22 407762 BEARING
23 174697 THRUST WASHER 1.00
24 407763 WORM GEAR
25 407764 AUGER SHAFT
26 189282 SQUARE KEY
27 407758 BEARING
28 174683 THRUST WASHER
29 427147 IMPELLER SHAFT
30 7836M ROLL PIN
31 174681 THRUST WASHER
32 174684 THRUST BEARING
33 407769 BEARING
34 407768 O-RING
35 407767 SCREW 5/16-18 X .750
36 427317 GEARBOX COVER LH
37 192090 SHEAR BOLT

6
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
REPAIR PARTS CRAFTSMAN SNOW THROWER - MODEL NO. 254880
AUGER HOUSING / IMPELLER ASSEMBLY
1
2
5
34
34
1
2
53
4
3
4
01.16.001-A
1 181160X479 DRIFT CUTTER BAR
2 72270506 CARRIAGEBOLT 5/16−18 X .750
3 179246 PLASTIC WASHER
4 10040500 LOCKWASHER 5/16
5 128638 NUT 5/16−18

7
1
2
2
*3
*4 *5
*6
*7
01.09.010-A
REPAIR PARTS CRAFTSMAN SNOW THROWER - MODEL NO. 254880
CONTROL PANEL / DISCHARGE CHUTE
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1
2
01.15.005-A
1 188303 STEER CABLE
2 74041024 SCREW 10−24 X 1.50

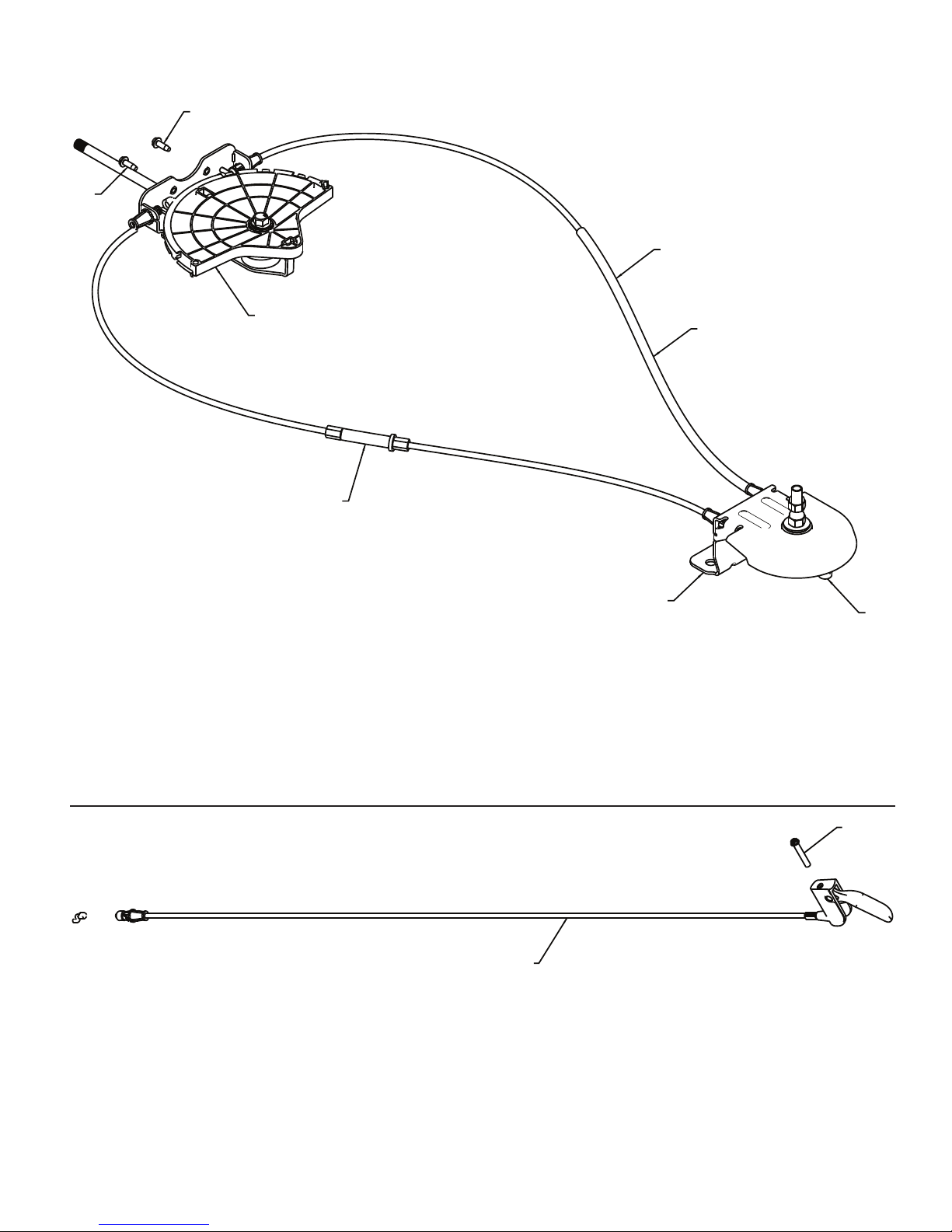

1 428272 LEVER/CABLE ROTATOR ASSEMBLY
2 17501010 SCREW 10-24 X .625
*3 420678 ROTATOR HEAD
*4 405932 ROTATOR PIVOT BRACKET
*5 420675 PULLEY PIVOT
*6 428273 CABLE ASSEMBLY ADJUSTABLE
*7 428310 CABLE ASSEMBLY HEAT SHIELD
NOTES:
1. ITEMS INDICATED WITH AN * ARE LISTED AS REFERENCE FOR SERVICE PARTS ONLY.

8
REPAIR PARTS CRAFTSMAN SNOW THROWER - MODEL NO. 254880
CONTROL PANEL / DISCHARGE CHUTE
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
*10
*11
1
2
3
4
5
6
6
7
*9
*8
*12
13
14
01.09.002-D
KEY PART
NO. NO. DESCRIPTION
1 420315X615 CHUTE WELDMENT
2 178633X615 DEFLECTOR WELDMENT
3 420673 DEFLECTOR CONTROL ASSEMBLY
4 420325 DEFLECTOR SEAL
5 414280 KNOB BLACK
6 128415 POP RIVET
7 17501010 SCREW 10-24 X .625
*8 179829 SHOULDER SCREW
*9 191730 NUT 1/4-20
*10 72250505 CARRIAGE BOLT 5/16-18 X .50
*11 751153 NUT 5/16-18
*12 184505 DEFLECTOR SPRING
13 420679 (SERVICE PART) DEFLECTOR CONTROL HEAD
14 420672 (SERVICE PART) DEFLECTOR CONTROL CABLE
NOTE:
1. ALL ITEMS INDICATED WITH AN * ARE PROVIDED IN THE BAG OF ITEMS SHIPPED LOOSE WITH PRODUCT.
2. ITEMS 13 AND 14 ARE SERVICE PART NUMBERS TO ALLOW PURCHASE OF INDIVIDUAL ITEMS IF NECESSARY.

9
REPAIR PARTS CRAFTSMAN SNOW THROWER - MODEL NO. 254880
HANDLES
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1
2
3
4
5
601.08.007-B
1 412675X004 INTERLOCK SPRING
2 414572 INTERLOCK CAM
3 178831 TORSION SPRING
4 169675 RETAINER
5 17060410 SCREW 1/4−20 X .625
6 421252X004 INTERLOCK STOP
1
2
3
4
6
67
7
8
8
8
9
9
5
5
10
10
01.08.005-A
1 419800X479 PLOW HANDLE LH
2 419801X479 PLOW HANDLE RH
3 196944X007 PANEL BRACKET LH
4 196943X007 PANEL BRACKET RH
5 414515 HEATED HANDLE GRIP
6 74780512 CREW 5/16−18 X .750
7 74780524 SCREW 5/16−18 X 1.50
8 751153 NUT 5/16−18
9 155415 WASHER
10 178775 POP RIVET 1/8

10
REPAIR PARTS CRAFTSMAN SNOW THROWER - MODEL NO. 254880
HANDLES
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
1
2
3
4
4
4
4
01.05.003-C
1
2
3
4
4
5
5
6
7
8
01.10.004-D

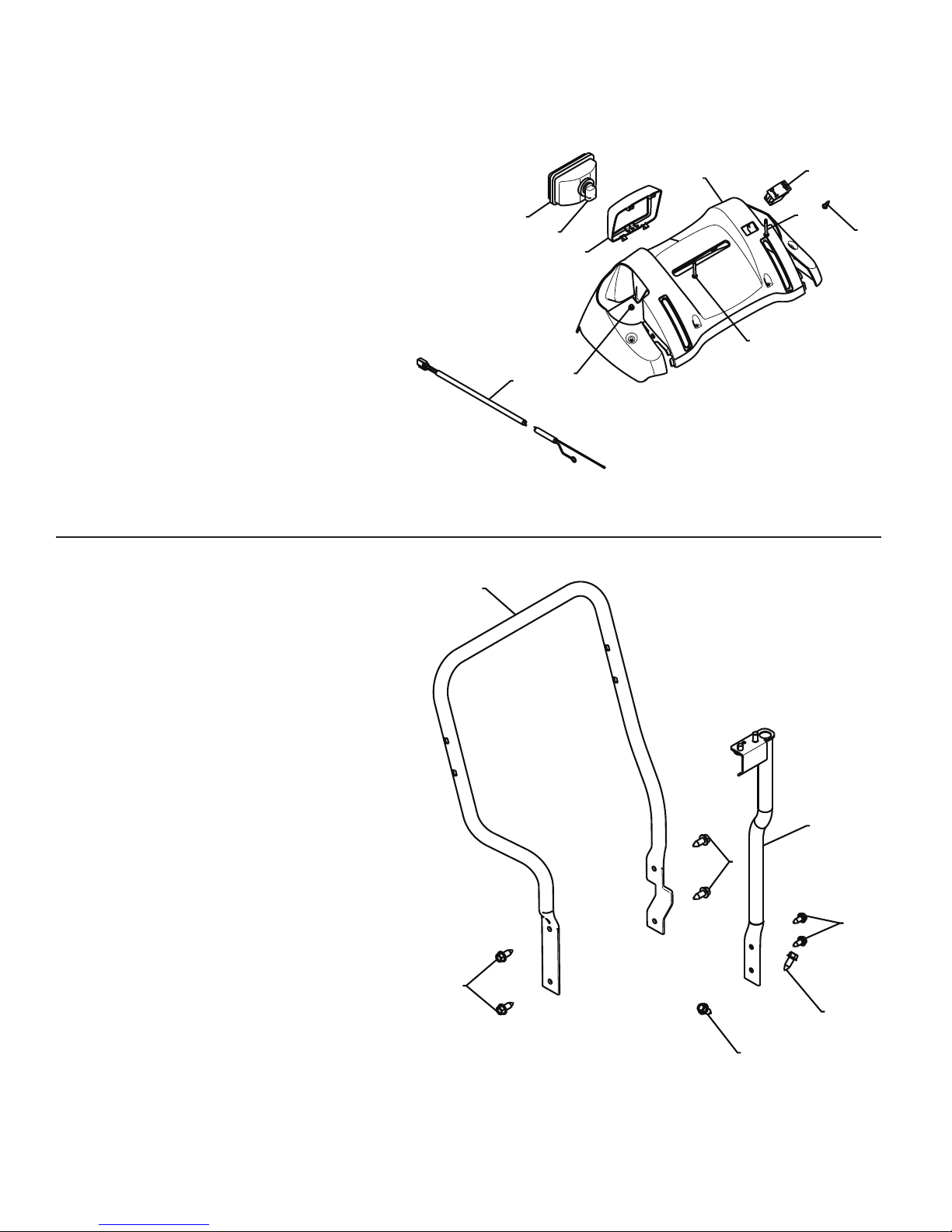

1 413927 CONSOLE PANEL BLACK
2 178668 HEADLIGHT BEZEL
3 178666 HALOGEN HEADLIGHT
4 184471 SHOULDER SCREW 10-24 X .625
5 175262 SCREW 10-24 X 1.25
6 417760 GRIP SWITCH
7 405699 WIRE HARNESS
8 401620 BULB
1 419796X479 LOWER TUBE
2 418313X479 PIVOT SUPPORT
3 428867 BOLT 5/16-18 X .750
4 17000616 SCREW 3/8-16 X 1 .00
KEY PART
NO. NO. DESCRIPTION

11
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
REPAIR PARTS CRAFTSMAN SNOW THROWER - MODEL NO. 254880
HANDLES
10
11
11
1
2
3
4
5
6
7
9
8
01-12-009-A

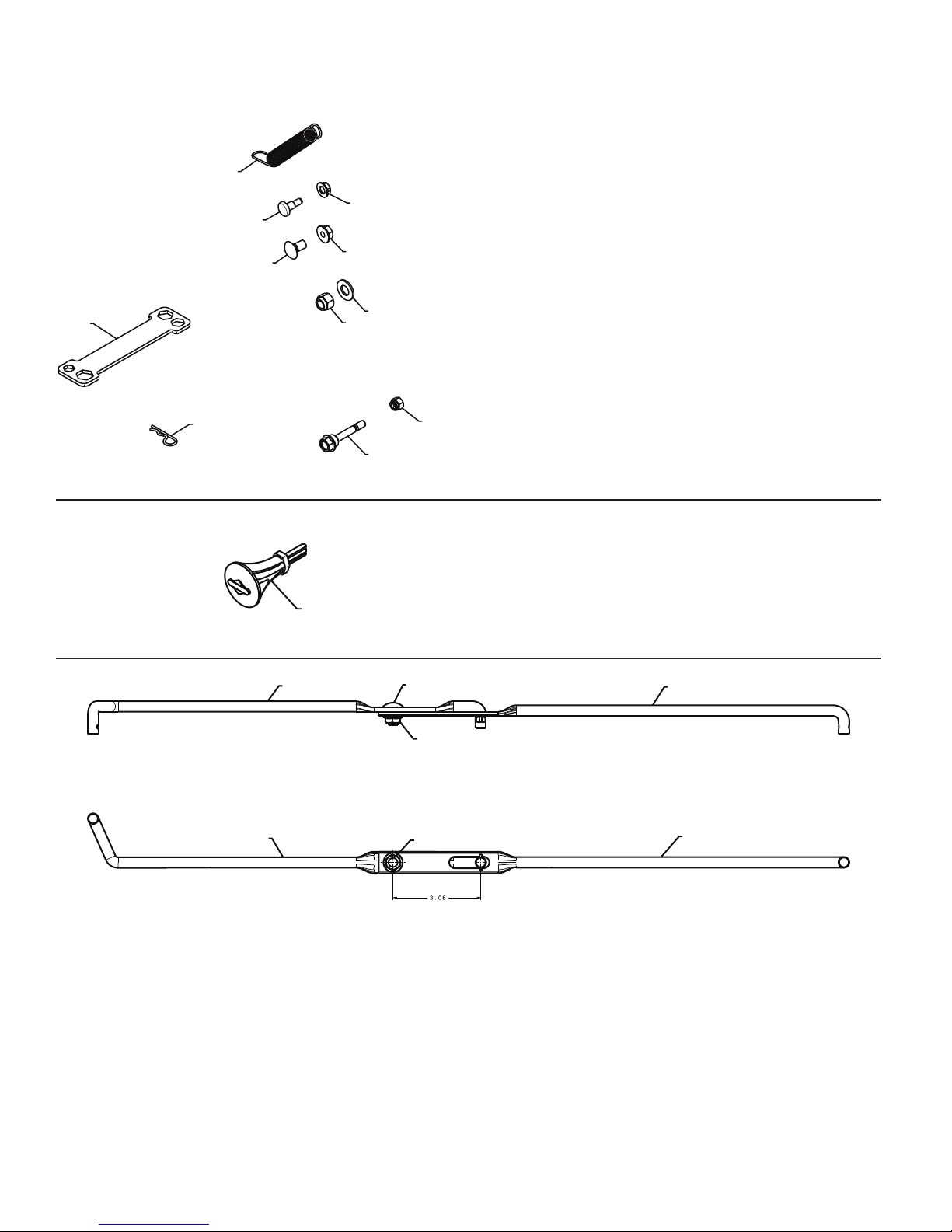

1 421763 IMPELLER ROD ASSEMBLY
2 429832 TRACTION ROD ASSEMBLY
3 187782 SHIFTER ROD TOP
4 187784 SHIFTER ROD BOTTOM
5 180447 SPRING SLEEVE
6 192091 SPRING SLEEVE
7 178669 IMPELLER SPRING
8 180926 TRACTION SPRING
9 72270505 CARRIAGE BOLT 5/16-18 X .750
10 155377 NUT 5/16-18
11 169675 RETAINER
KEY PART
NO. NO. DESCRIPTION

12
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
REPAIR PARTS CRAFTSMAN SNOW THROWER - MODEL NO. 254880
HANDLES
10
11
1
2
3
4
5
67
7
9
9
8
8
12
12
13
13
14
14
01.08.002-F
1 412683X479 CONTROL PANEL
2 424517X479 CONTROL LEVER LH
3 424516X479 CONTROL LEVER RH
4 426917X008 TRACTION ROD ARM
5 426918X008 IMPELLER ROD ARM
6 412677 INTERLOCK ROD
7 421613 SPACER
8 169675 RETAINER
9 17060410 SCREW 1/4-20 X .62
10 414280 KNOB BLACK
11 414281 KNOB RED
12 178899 HANDLE KNOB
13 19131316 WASHER 3/8
14 72120618 CARRIAGE BOLT 3/8-16 X 2.25
KEY PART
NO. NO. DESCRIPTION

13
3
4
6
2
1
4
3
7
7
5
6
2
8
9
01.03.003-A
REPAIR PARTS CRAFTSMAN SNOW THROWER - MODEL NO. 254880
DRIVE
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
1 404308 AXLE SHAFT
2 187794 SPACER
3 174697 THRUST WASHER
4 179830 BEARING
5 146315 SCREW 5/16−18 X .625
6 17490508 BOLT 5/16−18 X .500
7 155443 CLIK PIN
8 74780632 SCREW 3/8−16 X 2.00
9 73800600 NUT 3/8−16
KEY PART
NO. NO. DESCRIPTION

14
REPAIR PARTS CRAFTSMAN SNOW THROWER - MODEL NO. 254880
DRIVE
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
6
78
11
1
1
2
2
3
4
4
5
12
13 14
15
10
20
20
20
20
25
13
33
17
16
27
18
9
01.02.015-C
21
22
29
23
23
24
24
28
27
26
31
31
30
32
8
19

15
REPAIR PARTS CRAFTSMAN SNOW THROWER - MODEL NO. 254880
DRIVE
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.

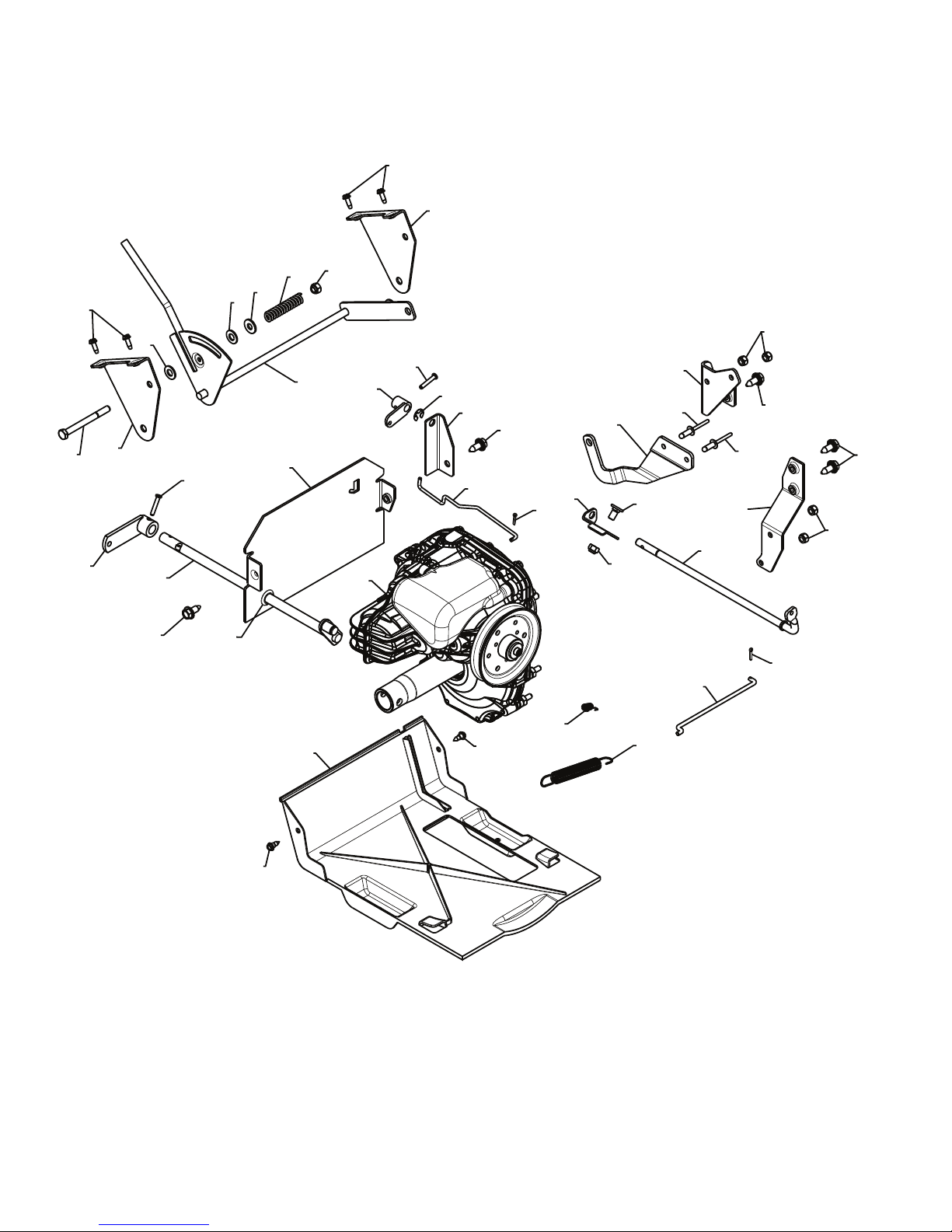

1 192002 SHIFT BRACKET
2 17501010 SCREW 10-24 X .625
3 74760552 SCREW 5/16-18 X 3.25
4 179246 PLASTIC WASHER
5 192001 SHIFT ASSEMBLY
6 155415 WASHER
7 192195 FRICTION SPRING
8 73800500 NUT 5/16-18
9 198247X008 FRONT CLUTCH BRACKET
10 405484 CONTROL ARM
11 427542 CONTROL SHAFT
12 188906 WASHER
13 198580 CLEVIS PIN
14 192115X615 REAR PLATE
15 187776 TRANSMISSION
16 193256 ROD
17 198248X004 REAR CLUTCH BRACKET
18 187787 CONTROL ARM
19 198251 CLUTCH SHAFT
20 428867 SCREW 5/16-18 X .750
21 180355 CARRIAGE BOLT 5/16-18 X .625
22 178828 BRAKE SPRING
23 73800400 NUT 1/4-20
24 191995 POP RIVET 1/4 X .475
25 198249 CLUTCH ARM
26 192873 TRACTION SPRING
27 700279 RETAINER CLIP
28 193255X479 ANTI-ROTATE BRACKET
29 414771 TORQUE STRAP BRACKET
30 403732 BOTTOM PAN
31 184471 SCREW 10-24 X .625
32 198250 CLUTCH ROD
33 428288 E-RING .375
KEY PART
NO. NO. DESCRIPTION

16

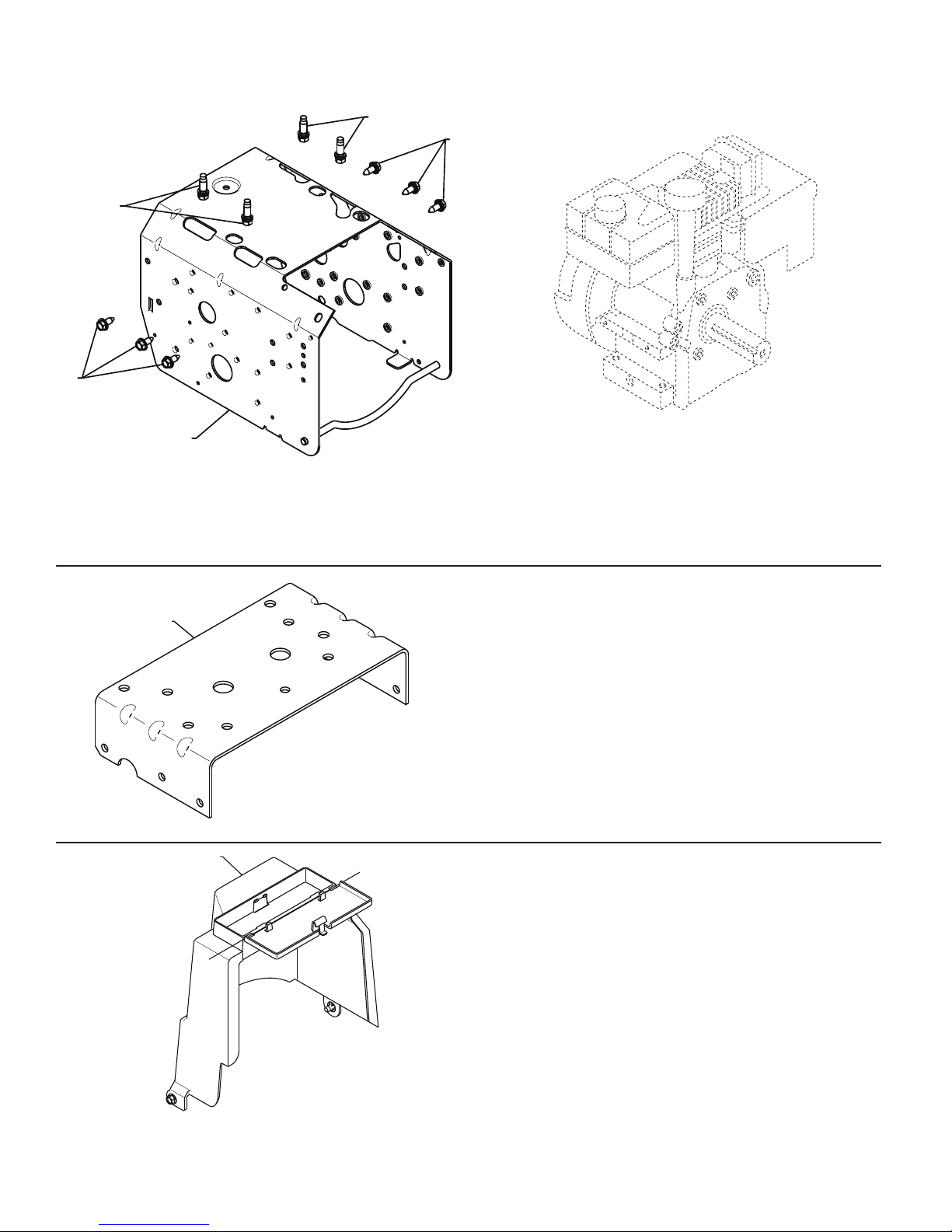

REPAIR PARTS CRAFTSMAN SNOW THROWER - MODEL NO. 254880
CHASSIS / ENGINE / PULLEYS
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
1
2
2
3
3
01.00.033-A - - - - - - - ENGINE, B&S
MODEL 21M314-1384-E1
KEY PART
NO. NO. DESCRIPTION
1
01.21.015-A
KEY PART
NO. NO. DESCRIPTION
1 418696X615 FRAME
2 150406 BOLT 3/8-16
3 428867 SCREW 5/16-18 X .750
1 428684 COVER ASSEMBLY
1
01.01.007-A
1 423185X615 ENGINE MOUNT PLATE
KEY PART
NO. NO. DESCRIPTION

17
REPAIR PARTS CRAFTSMAN SNOW THROWER - MODEL NO. 254880
CHASSIS / ENGINE / PULLEYS
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
10
11
1
2
3
4
5
6
7
9
8
12 13
13
13
14
15
16
17
18
19
20
20
21
21
22
23
24
01.21.009-B
1 408007 IMPELLER BELT
2 192383 TRACTION BELT
3 423723X479 IDLER ARM BRACKET
4 180523 IDLER PULLEY
5 423990X479 IDLER BRACKET
6 426589 NUT 5/16-18
7 74780524 SCREW 5/16-18 X 1 .50
8 424297 SHOULDER BOLT 5/16-18 X .50
9 428867 SCREW 5/16-18 X .625
10 751153 NUT 5/16-18 LOCK
11 187786 TRACTION IDLER BRACKET
12 180522 TRACTION PULLEY
13 59289 WASHER
14 73800500 NUT 5/16-18
15 74780520 SCREW 5/16-18 X 1 .25
16 851084 SCREW 3/8-24 X 1.375
17 400026 WASHER
18 426491 PULLEY ENG IMPELLER
19 180478 PULLEY ENG TRACTION
20 74610516 SCREW 5/16-24 X 1 .00
21 10040500 LOCKWASHER 5/16
22 193607 BELT GUIDE
23 11050500 LOCKWASHER 5/16
24 175331 IDLER BUSHING

18

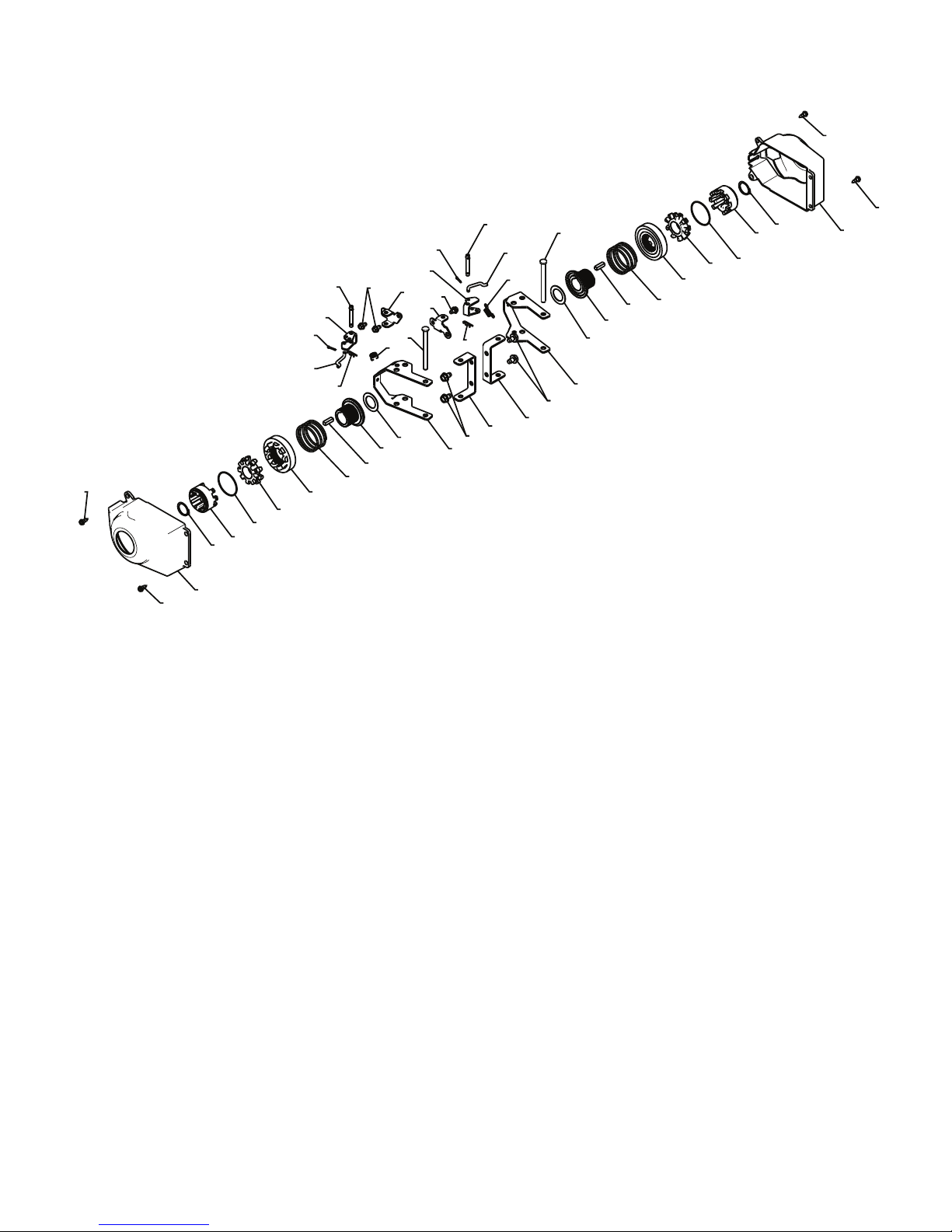

REPAIR PARTS CRAFTSMAN SNOW THROWER - MODEL NO. 254880
WHEELS
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
1
2
01.15.002-A
1
2
01.06.006-A
1 196752X417 WHEEL ASSEMBLY LH
2 196753X417 WHEEL ASSEMBLY RH
KEY PART
NO. NO. DESCRIPTION
1 185602X004 STEER CABLE BRACKET LH
2 185603X479 STEER CABLE BRACKET RH
KEY PART
NO. NO. DESCRIPTION

19
2
2
1
3456
7891011 12
13
14
13
14
12
11
10
98
7
65
431
2
2
23
17
19
20
16
18
24
22
21
23
22
15
18
17
16
20
19
21
01.15.001-A
REPAIR PARTS CRAFTSMAN SNOW THROWER - MODEL NO. 254880
WHEELS
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
1 405161 COVER
2 184471 SHOULDER SCREW
3 12000045 RETAINER RING
4 192126 WHEEL DRIVER
5 182466 RETAINER RING
6 187622 WHEEL LOBE
7 194941 CLUTCH SLIDE
8 179139 SPRING
9 189282 SQUARE KEY
10 194940 AXLE LOBE
11 174697 THRUST WASHER
12 193506X479 STEERING YOKE
13 179148X479 STEERING BRACKET
14 17490508 SCREW 5/16−18 X .50
15 194943X008 PIVOT BRACKET
16 194944X008 BELLCRANK
17 181847 BELLCRANK PIN
18 17600406 SCREW 1/4−20 X .375
19 405077 STEERING LINK
20 700279 RETAINER
21 85179 RETAINER
22 193885 SPRING
23 182015 LEVER PIN
24 194939X008 PIVOT BRACKET

20
REPAIR PARTS CRAFTSMAN SNOW THROWER - MODEL NO. 254880
BAG OF PARTS
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
1
01.14.007-A
1 193071 SAFETY IGNITION KEY
10
11
1
2
3
4
5
67
9
8
01.14.005-C
1 169675 RETAINER PIN
2 180684 WRENCH
3 184505 REMOTE SPRING
4 179829 SHOULDER BOLT 1/4−20
5 191730 LOCKNUT 1/4−20
6 72250505 CARRIAGE BOLT 5/16−18 X 5/8
7 751153 LOCKNUT 5/16−18
8 73800600 LOCKNUT 3/8−16
9 19131316 WASHER 3/8
10 192090 SHEAR BOLT 1/4−20 X 1−3/4
11 73800400 LOCKNUT 1/4−20
1
1
2
2
3
4
4
01.14.014-A
KEY PART
NO. NO. DESCRIPTION
1 187782 SHIFTER ROD TOP
2 187784 SHIFTER ROD BOTTOM
3 72270505 CARRIAGE BOLT 5/16-18 X .75
4 155377 NUT 5/16-18
KEY PART
NO. NO. DESCRIPTION
