Craftsman 113.170330 User manual

Save This Manual
for Future Reference
SEARS
owner's
manual
MODEL NO.
113.170330
Serial
Number
Model and serial
numbers may be found
on the side of the
detachable blower. You
should record both
model and serial
numbers in a safe
place for future use.
FOR YOU R
SAFETY
READ ALL
INSTRUCTIONS
CAREFULLY
k= J
CRRFTSMRN®
16 GALLON
WET/DRY VAC
WITH DETACHABLE
BLOWER
•assembly
•operating
•repair parts
Sears, Roebuck and Co., Hoffman Estates, IL. 60179 U.S.A.
,J
Part No. SP6481 Printed in U.S.A.

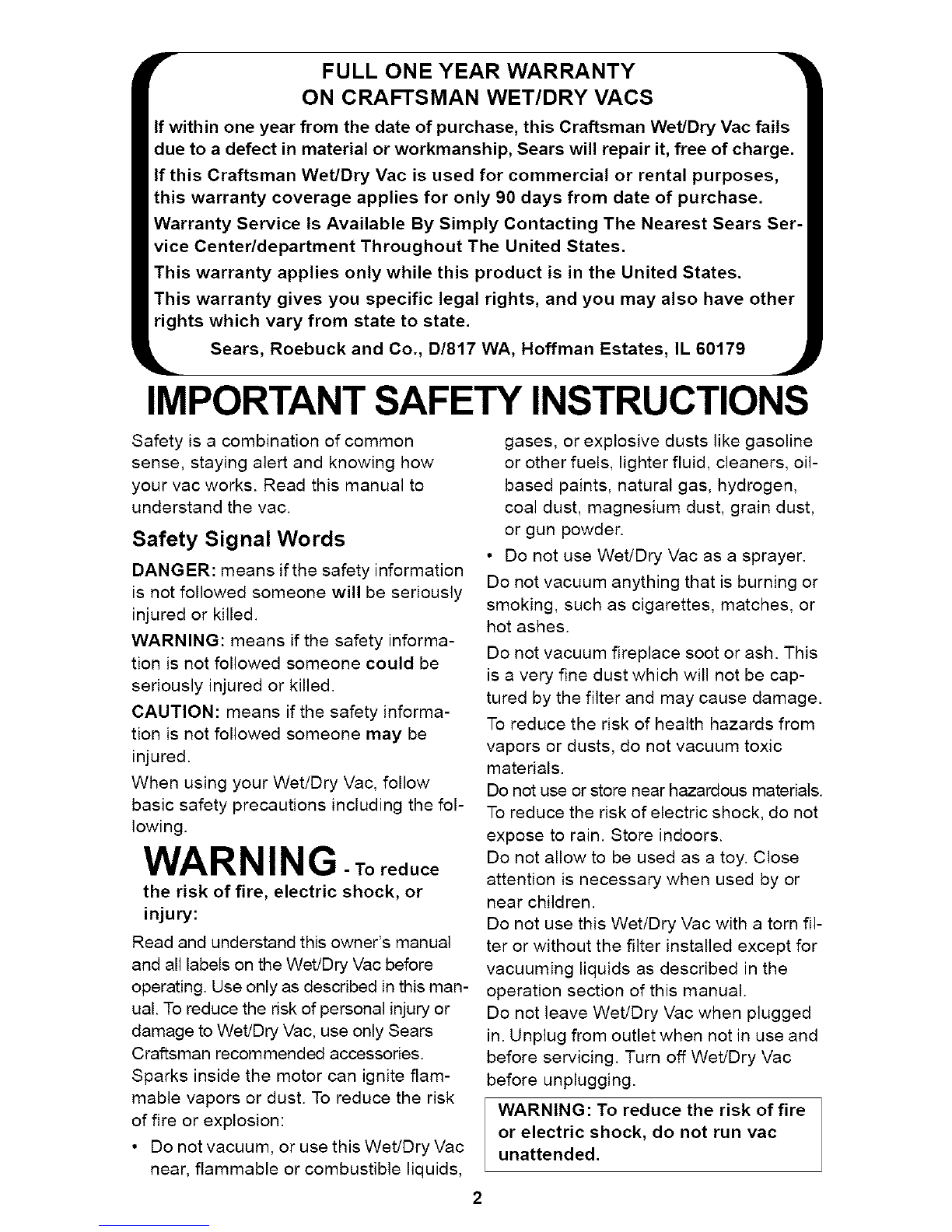

FULL ONE YEAR WARRANTY
ON CRAFTSMAN WET/DRY VACS
If within one year from the date of purchase, this Craftsman Wet/Dry Vac fails
due to a defect in material or workmanship, Sears will repair it, free of charge.
If this Craftsman Wet/Dry Vac is used for commercial or rental purposes,
this warranty coverage applies for only 90 days from date of purchase.
Warranty Service Is Available By Simply Contacting The Nearest Sears Ser-
vice Center/department Throughout The United States.
This warranty applies only while this product is in the United States.
This warranty gives you specific legal rights, and you may also have other
rights which vary from state to state.
Sears, Roebuck and Co., D/817 WA, Hoffman Estates, IL 60179
IMPORTANT SAFETY INSTRUCTIONS
Safety is a combination of common
sense, staying alert and knowing how
your vac works. Read this manual to
understand the vac.
Safety Signal Words
DANGER: means if the safety information
is not followed someone will be seriously
injured or killed.
WARNING: means if the safety informa-
tion is not followed someone could be
seriously injured or killed.
CAUTION: means if the safety informa-
tion is not followed someone may be
injured.
When using your Wet/Dry Vac, follow
basic safety precautions including the fol-
lowing.
WARNING.Toreduce
the risk of fire, electric shock, or
injury:
Read and understand this owner's manual
and all labels on the Wet/Dry Vac before
operating. Use only as described in this man-
ual. To reduce the risk of personal injury or
damage to Wet/Dry Vac, use only Sears
Craftsman recommended accessories.
Sparks inside the motor can ignite flam-
mable vapors or dust. To reduce the risk
of fire or explosion:
• Do not vacuum, or use this Wet/Dry Vac
near, flammable or combustible liquids,
2
gases, or explosive dusts like gasoline
or other fuels, lighter fluid, cleaners, oil-
based paints, natural gas, hydrogen,
coal dust, magnesium dust, grain dust,
or gun powder.
• Do not use Wet/Dry Vac as a sprayer.
Do not vacuum anything that is burning or
smoking, such as cigarettes, matches, or
hot ashes.
Do not vacuum fireplace soot or ash. This
is a very fine dust which will not be cap-
tured by the filter and may cause damage.
To reduce the risk of health hazards from
vapors or dusts, do not vacuum toxic
materials.
Do not use or store near hazardous materials.
To reduce the risk of electric shock, do not
expose to rain. Store indoors.
Do not allow to be used as a toy. Close
attention is necessary when used by or
near children.
Do not use this Wet/Dry Vac with a torn fil-
ter or without the filter installed except for
vacuuming liquids as described in the
operation section of this manual.
Do not leave Wet/Dry Vac when plugged
in. Unplug from outlet when not in use and
before servicing. Turn off Wet/Dry Vac
before unplugging.
WARNING: To reduce the risk of fire
or electric shock, do not run vac
unattended.

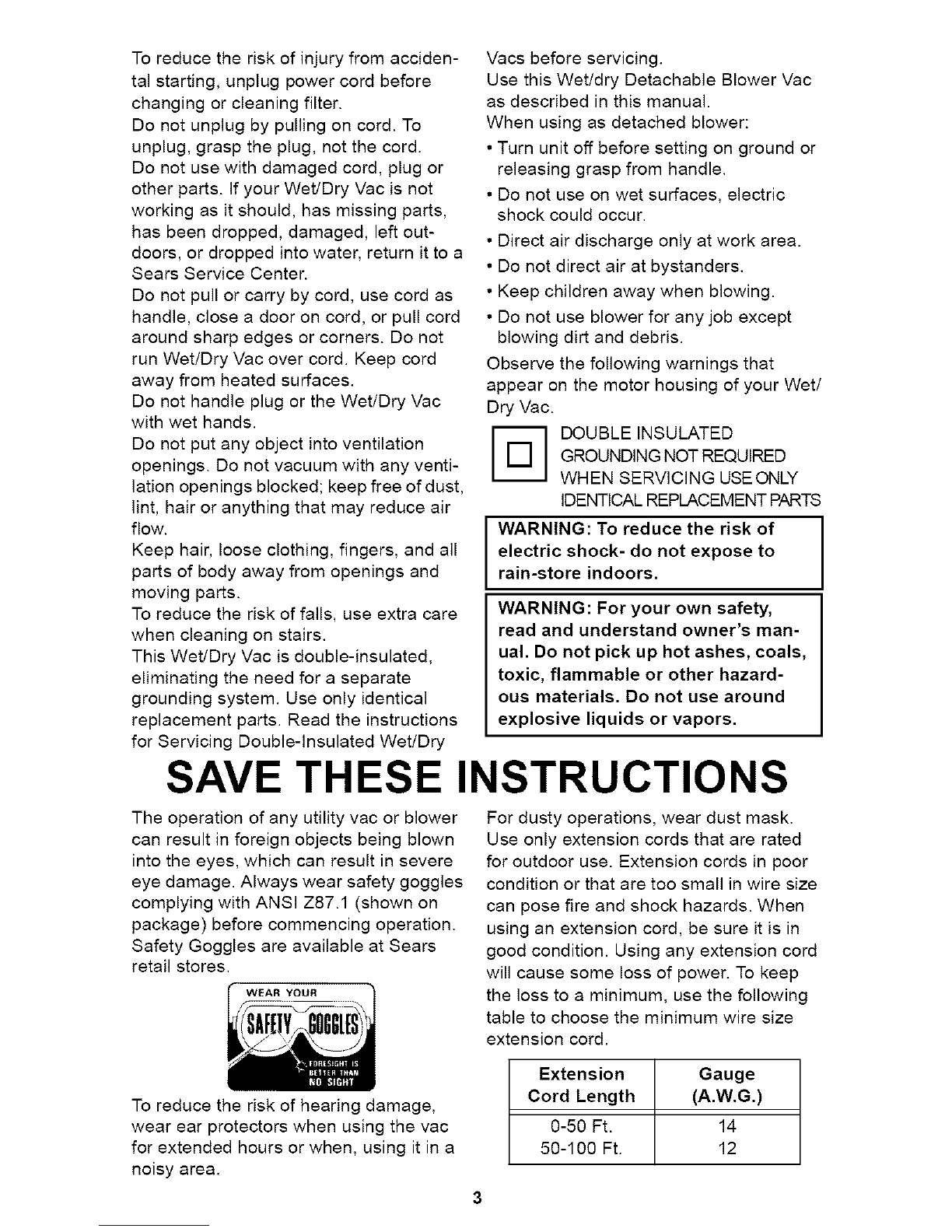

Toreducetheriskofinjuryfromacciden-
talstarting,unplugpowercordbefore
changingorcleaningfilter.
Donotunplugbypullingoncord.To
unplug,grasptheplug,notthecord.
Donotusewithdamagedcord,plugor
otherparts.IfyourWet/DryVacisnot
workingasitshould,hasmissingparts,
hasbeendropped,damaged,leftout-
doors,ordroppedintowater,returnittoa
SearsServiceCenter.
Donotpullorcarrybycord,usecordas
handle,closeadooroncord,orpullcord
aroundsharpedgesorcorners.Donot
runWet/DryVacovercord.Keepcord
awayfromheatedsurfaces.
DonothandleplugortheWet/DryVac
withwethands.
Donotputanyobjectintoventilation
openings.Donotvacuumwithanyventi-
lationopeningsblocked;keepfreeofdust,
lint,hairoranythingthatmayreduceair
flow.
Keephair,looseclothing,fingers,andall
partsofbodyawayfromopeningsand
movingparts.
Toreducetheriskoffalls,useextracare
whencleaningonstairs.
ThisWet/DryVacisdouble-insulated,
eliminatingtheneedforaseparate
groundingsystem.Useonlyidentical
replacementparts.Readtheinstructions
forServicingDouble-InsulatedWet/Dry
Vacsbeforeservicing.
UsethisWet/dryDetachableBlowerVac
asdescribedinthismanual.
Whenusingasdetachedblower:
•Turnunitoffbeforesettingongroundor
releasinggraspfromhandle.
•Donotuseonwetsurfaces,electric
shockcouldoccur.
•Directairdischargeonlyatworkarea.
•Donotdirectairatbystanders.
•Keepchildrenawaywhenblowing.
•Donotuseblowerforanyjobexcept
blowingdirtanddebris.
Observethefollowingwarningsthat
appearonthemotorhousingofyourWet/
DryVac.
-_ OUBLE INSULATED
GROUNDING NOT REQUIRED
WHEN SERVICING USE ONLY
IDENTICAL REPLACEMENT PARTS
WARNING: To reduce the risk of
electric shock- do not expose to
rain-store indoors.
WARNING: For your own safety,
read and understand owner's man-
ual. Do not pick up hot ashes, coals,
toxic, flammable or other hazard-
ous materials. Do not use around
explosive liquids or vapors.
SAVE THESE INSTRUCTIONS
The operation of any utility vac or blower
can result in foreign objects being blown
into the eyes, which can result in severe
eye damage. Always wear safety goggles
complying with ANSI Z87.1 (shown on
package) before commencing operation.
Safety Goggles are available at Sears
retail stores.
WEAR YOUR
To reduce the risk of hearing damage,
wear ear protectors when using the vac
for extended hours or when, using it in a
noisy area.
For dusty operations, wear dust mask.
Use only extension cords that are rated
for outdoor use. Extension cords in poor
condition or that are too small in wire size
can pose fire and shock hazards. When
using an extension cord, be sure it is in
good condition. Using any extension cord
will cause some loss of power. To keep
the loss to a minimum, use the following
table to choose the minimum wire size
extension cord.
Extension Gauge
Cord Length (A.W.G.)
0-50 Ft. 14
50-100 Ft. 12

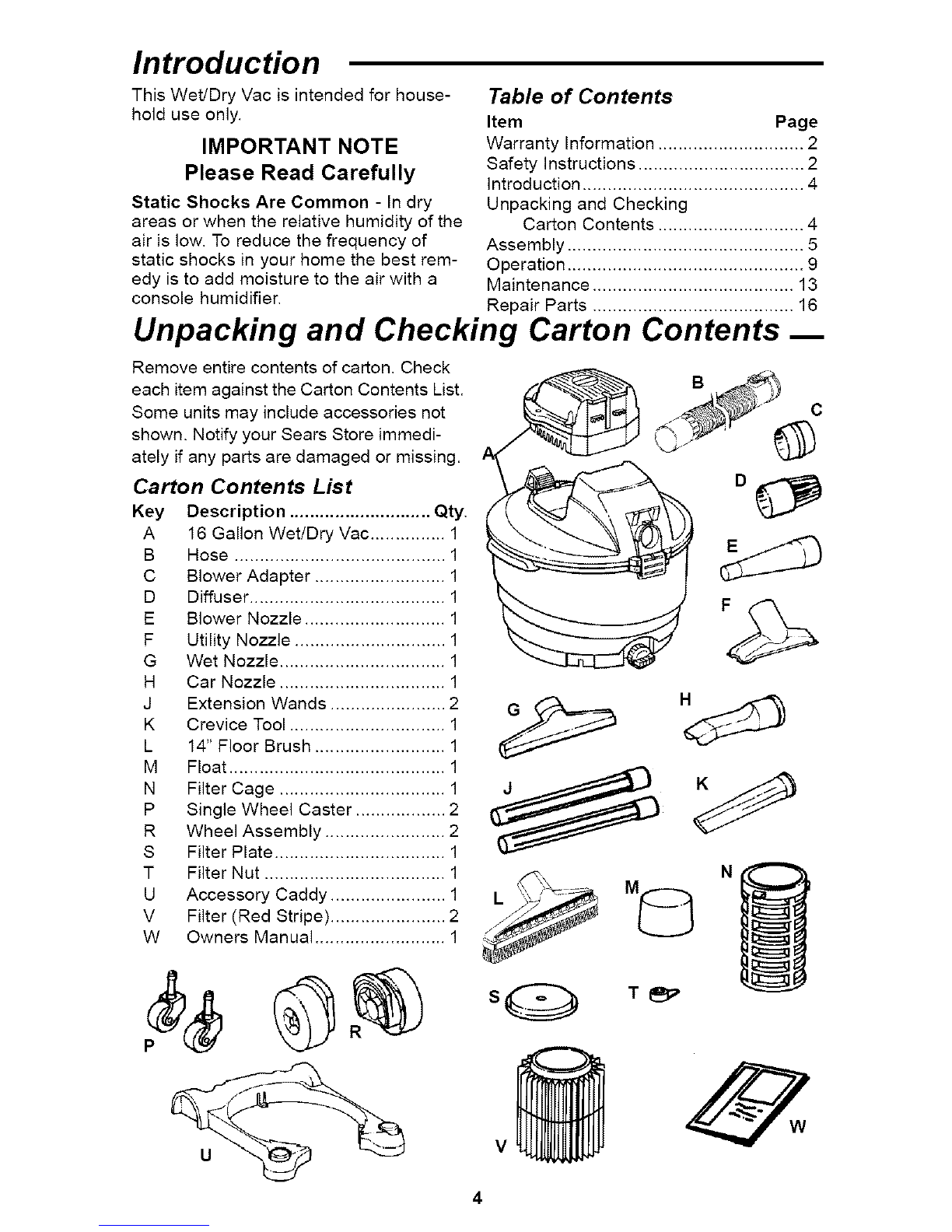

Introduction
This Wet/Dry Vac is intended for house-
hold use only.
IMPORTANT NOTE
Please Read Carefully
Static Shocks Are Common - In dry
areas or when the relative humidity of the
air is low. To reduce the frequency of
static shocks in your home the best rem-
edy is to add moisture to the air with a
console humidifier.
Table of Contents
Item Page
Warranty Information ............................. 2
Safety instructions ................................. 2
Introduction ............................................ 4
Unpacking and Checking
Carton Contents ............................. 4
Assembly ............................................... 5
Operation ............................................... 9
Maintenance ........................................ 13

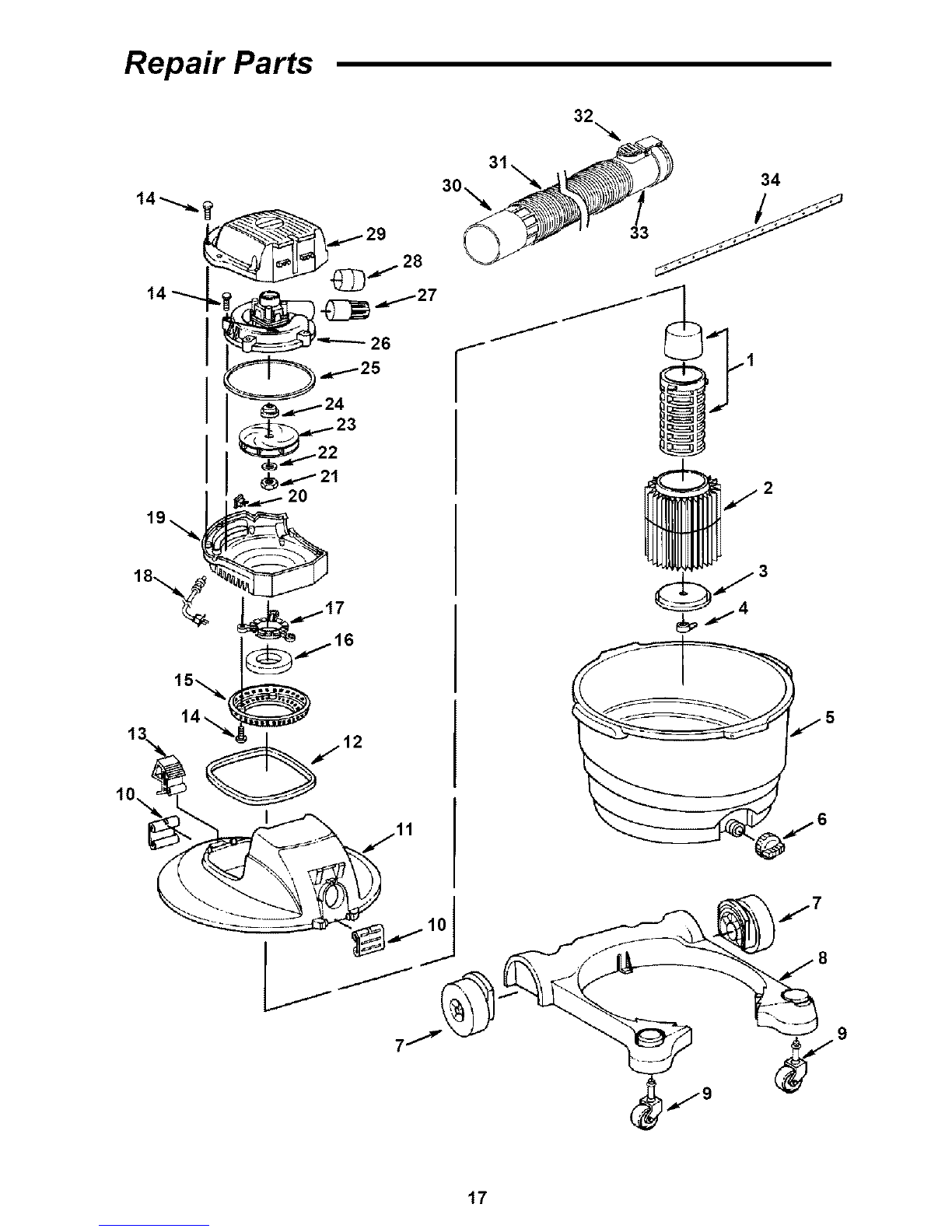

Repair Parts ........................................ 16
Unpacking and Checking Carton Contents m
Remove entire contents of carton. Check
each item against the Carton Contents List.
Some units may include accessories not
shown. Notify your Sears Store immedi-
ately if any parts are damaged or missing.
Carton Contents List
Key Description ............................ Qty.
A 16 Gallon Wet/Dry Vac ............... 1
B Hose .......................................... 1
C Blower Adapter .......................... 1
D Diffuser ....................................... 1
E Blower Nozzle ............................ 1
F Utility Nozzle .............................. 1
G Wet Nozzle ................................. 1
H Car Nozzle ................................. 1
J Extension Wands ....................... 2
K Crevice Tool ............................... 1
L 14" Floor Brush .......................... 1
M Float ........................................... 1
N Filter Cage ................................. 1
P Single Wheel Caster .................. 2
R Wheel Assembly ........................ 2
S Filter Plate .................................. 1
T Filter Nut .................................... 1
U Accessory Caddy ....................... 1
V Filter (Red Stripe) ....................... 2
W Owners Manual .......................... 1
B
C
F
N
sQ

Accessory Caddy Assembly
1. Unlatch the drum latches on the front
and rear of unit. The drum latches hold
the lid onto the drum. Lift the lid off the
drum. Place the lid upside down on a
clean smooth surface.
2. Flip the drum upside down on the floor.
3. Take the accessory caddy and position
it on the vac drum. The open end of
horseshoe shaped caddy should be
positioned under the drain cap.
4. Slide the caddy down onto the drum,
the open end of the caddy has two
dovetail slides that will press into the
molded area of the drum. The caddy
will press onto the drum until it rests
against the first step of the drum. The
bottom edge of the caddy will be even
with the bottom edge of the vac drum. If
it is not even with the bottom of the
drum, tap the edge until it is flush with
the drum bottom. The tab lock located
at the rear of the caddy will latch into
the recessed area at the rear of the vac
drum.
Accessory Dove
Caddy Tail
Orain
Cap
To Install the Wheels/Casters
1. Locate the two 5-1/4" wheel assemblies
and the single wheel casters.
2. Insert the single wheel casters into the
bottom of the accessory caddy as
shown (2 places).
3. Push on the caster until the end of the
caster stem is inserted all the way into
the socket. You will be able to hear the
end of the caster snap into the socket of
the caddy. The caster will rotate easily
when positioning is correct.
4. Position the dovetail section of one of
the wheel assemblies into the acces-
sory caddy as illustrated. Tap the wheel
support of the assembly with a soft mal-
let if necessary. Repeat for the second
wheel assembly.
5. Flip the drum/caddy assembly upright
with the wheels of the caddy resting on
the floor.
NOTE: When emptying debris from the
wet/dry drum, it is not necessary to
remove the vac caddy.

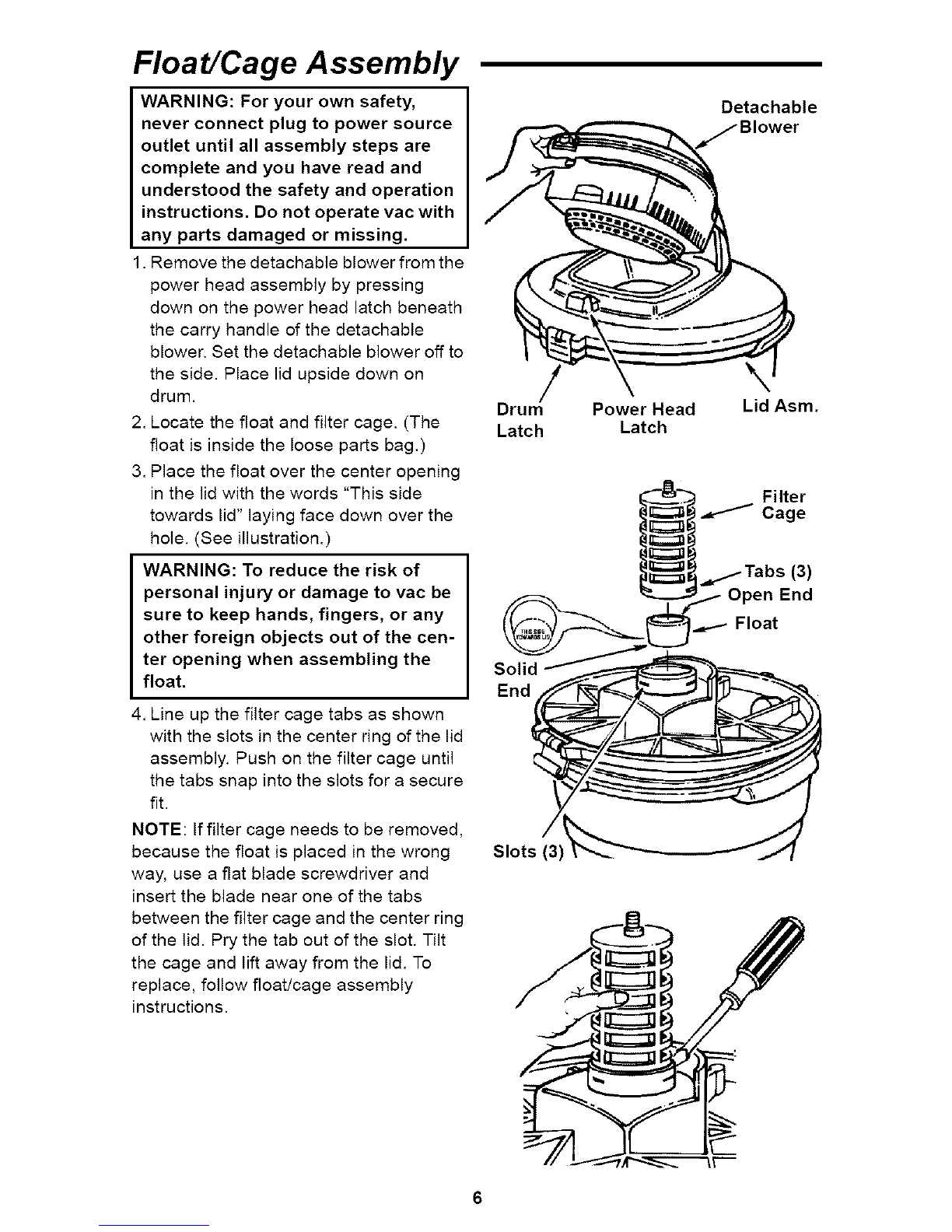

Float/Cage Assembly
WARNING: For your own safety,
never connect plug to power source
outlet until all assembly steps are
complete and you have read and
understood the safety and operation
instructions. Do not operate vac with
any parts damaged or missing.
1. Remove the detachable blower from the
power head assembly by pressing
down on the power head latch beneath
the carry handle of the detachable
blower. Set the detachable blower off to
the side. Place lid upside down on
drum.
2. Locate the float and filter cage. (The
float is inside the loose parts bag.)
3. Place the float over the center opening
in the lid with the words "This side
towards lid" laying face down over the
hole. (See illustration.)
WARNING: To reduce the risk of
personal injury or damage to vac be
sure to keep hands, fingers, or any
other foreign objects out of the cen-
ter opening when assembling the
float.
4. Line up the filter cage tabs as shown
with the slots in the center ring of the lid
assembly. Push on the filter cage until
the tabs snap into the slots for a secure
fit.
NOTE: If filter cage needs to be removed,
because the float is placed in the wrong
way, use a flat blade screwdriver and
insert the blade near one of the tabs
between the filter cage and the center ring
of the lid. Pry the tab out of the slot. Tilt
the cage and lift away from the lid. To
replace, follow float/cage assembly
instructions.
Detachable
/Blower
!
Drum /Power Head
Latch Latch
Lid Asm.
__'_'_ Filter
K ''I" Cage
_11_ _ _._ Tabs (3)
_..___f I_ Open End
__._.._ Float
Slots (3)

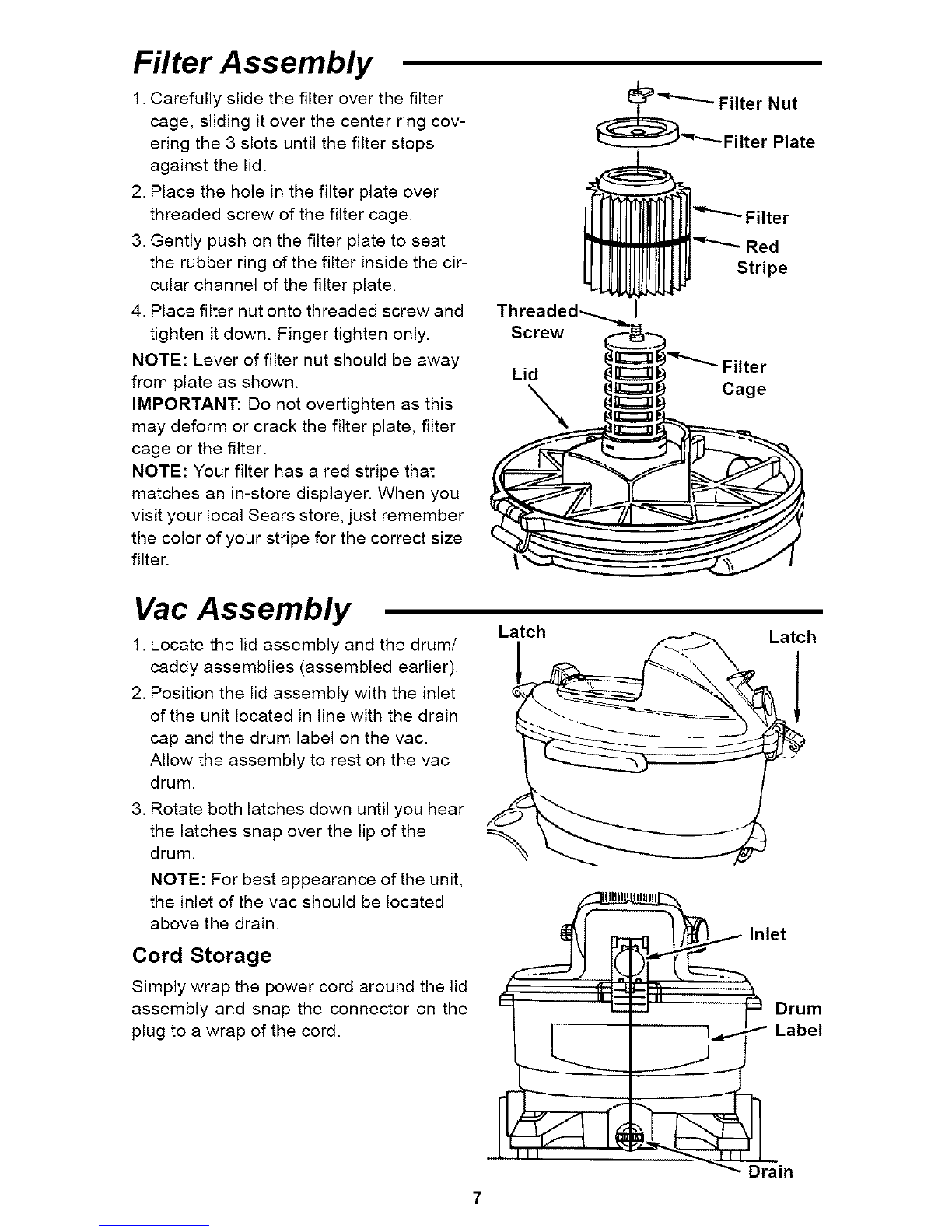

Filter Assembly
1. Carefully slide the filter over the filter
cage, sliding it over the center ring cov-
ering the 3 slots until the filter stops
against the lid.
2. Place the hole in the filter plate over
threaded screw of the filter cage.
3. Gently push on the filter plate to seat
the rubber ring of the filter inside the cir-
cular channel of the filter plate.
4. Place filter nut onto threaded screw and
tighten it down. Finger tighten only.
NOTE: Lever of filter nut should be away
from plate as shown.
IMPORTANT: Do not overtighten as this
may deform or crack the filter plate, filter
cage or the filter.
NOTE: Your filter has a red stripe that
matches an in-store displayer. When you
visit your local Sears store, just remember
the color of your stripe for the correct size
filter.
Vac Assembly
1. Locate the lid assembly and the drum/
caddy assemblies (assembled earlier).
2. Position the lid assembly with the inlet
of the unit located in line with the drain
cap and the drum label on the vac.
Allow the assembly to rest on the vac
drum.
3. Rotate both latches down until you hear
the latches snap over the lip of the
drum.
NOTE: For best appearance of the unit,
the inlet of the vac should be located
above the drain.
Cord Storage
Simply wrap the power cord around the lid
assembly and snap the connector on the
plug to a wrap of the cord.
_ _"'-" Filter Nut
__-'- Filter Plate
Filter
Red
Stripe
Threaded_,_ I
Screw _.-_
Lid _r_ _r''_ Filter
\ Caoe
Latch Latch

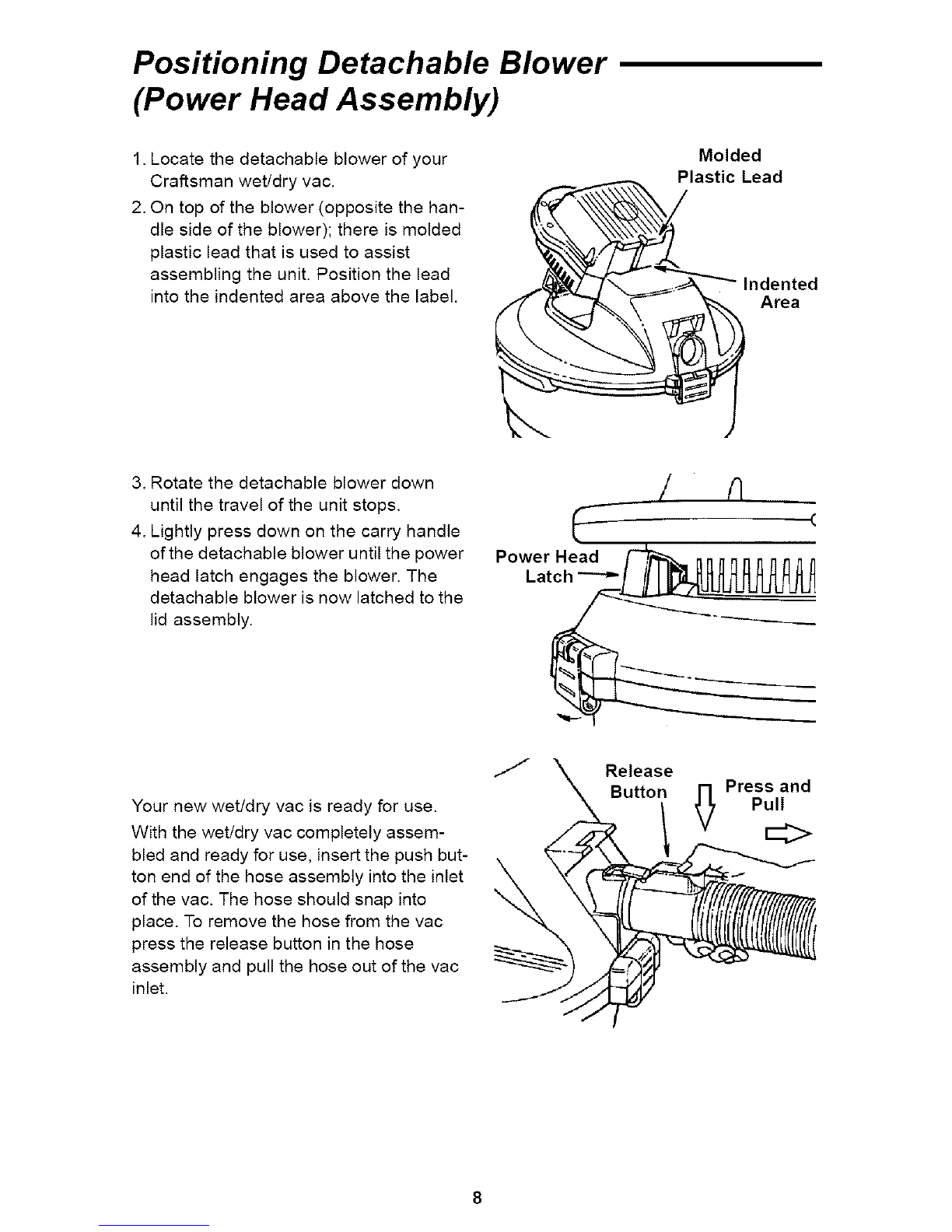

Positioning Detachable Blower
(Power Head Assembly)
1. Locate the detachable blower of your
Craftsman wet/dry vac.
2. On top of the blower (opposite the han-
dle side of the blower); there is molded
plastic lead that is used to assist
assembling the unit. Position the lead
into the indented area above the label.
Molded
Plastic Lead
ndented
Area
3. Rotate the detachable blower down
until the travel of the unit stops.
4. Lightly press down on the carry handle
of the detachable blower until the power
head latch engages the blower. The
detachable blower is now latched to the
lid assembly.
/ fq c
Your new wet/dry vac is ready for use.
With the wet/dry vac completely assem-
bled and ready for use, insert the push but-
ton end of the hose assembly into the inlet
of the vac. The hose should snap into
place. To remove the hose from the vac
press the release button in the hose
assembly and pull the hose out of the vac
inlet.
Release
Button
_Press and
Pull

Operation
V V/'_ r_ I_l I I_l v_._
To reduce the risk of fire or explosion, do not operate this vac in areas with
flammable gases or flammable vapors such as lighter fluid, cleaners, oil-base
paints, gasoline, alcohol or explosive dust such as coal, magnesium, grain or
gun powder in the air. Do not vacuum explosive dust, flammable or combusti-
ble liquids or hot ashes. Do not use this vac as a sprayer. To reduce the risk of
health hazards from vapors or dusts, do not vacuum toxic materials. To
reduce the risk of electrical shock do not expose to rain. Store vac indoors.
Unplug power cord before changing or cleaning filter or emptying the dust
drum.
CAUTION: To reduce the risk of hear-
ing damage wear ear protectors
when using the vac or blower for
extended hours or when using it in a
noisy area. The operation of any util-
ity vac or blower can result in for-
eign objects being blown into the
eyes, which can result in severe eye
damage. Always wear safety goggles
complying with ANSI Z87.1 (shown
on Package) before commencing
operation. Safety Goggles are avail-
able at Sears retail stores.
If the noise level of this unit is too loud,
purchase the Craftsman Noise Muffler;
accessory number 9-16991 found in
Sears retail stores or the Sears Power
and Hand Tool Catalog.
To reduce the risk of electric shock, this
appliance has a polarized plug (one blade
is wider than the other). This plug will fit in
a polarized outlet only one way. If the plug
does not fit fully in the outlet, reverse the
plug. if it still does not fit, contact a quali-
fied electrician to install the proper outlet.
Do not change the plug in any way.
NOTE: When using the unit in the vacu-
uming mode, always insert the air diffuser
in the exhaust port on the detachable
blower. This breaks up the direct flow of
air and diffuses it.
Vacuuming Dry Materials
1. The filter must be in correct position at
all times to reduce the risk of leaks and
possible damage to vac.
2. When using your vac to pick up very
fine dust, it will be necessary for you to
empty the drum and clean the filter at
more frequent intervals to maintain
peak vac performance.
NOTE: A dry filter is necessary to pick up
dry material. If you use your vac to pick up
dust when the filter is wet, the filter will
clog quickly and be very difficult to clean.
3. If your filter is wet but you need to use
the vac to pick up dry material, you can
quickly dry the filter by running the vac
without hose attached for about 10 min-
utes. The clean air rushing through the
vac will help dry the filter.
The optional Craftsman Fine Particle Fil-
ter, stock number 9-17916 will do a bet-
ter job stopping the very fine particles
than the 9-17816 filter. This filter will stop
99.99% of all particles as small as one
micron.
Vacuuming Liquids
1. When picking up small amounts of liq-
uid the filter may be left in place.
2. When picking up large amounts of liq-
uid we recommend that the filter be
removed. If the filter is not removed, it
will become saturated and misting may
appear in the exhaust.
3. After using the vac to pick up liquids,
the filter must be dried to reduce the
risk of possible mildew and damage to
the filter.

Operation (continued)
4. When the liquid in the drum reaches a
predetermined level, the float mecha-
nism will rise automatically to cut off air-
flow. When this happens, turn off the
vac, unplug the power cord, and empty
the drum. You will know that the float
has risen because vac airflow ceases
and the motor noise will become higher
in pitch, due to increased motor speed.
IMPORTANT: To reduce the risk of dam-
age to the vac do not run motor with float
in raised position.
Emptying Dust Drum
WARNING: To reduce the risk of
injury from accidental starting,
unplug power cord before emptying
the drum.
1. To remove the lid to empty contents of
the dust drum, simply lift the two drum
latches at the front and rear of the dust
drum and lift the lid assembly up and off
the dust drum and set to the side.
NOTE: Do not pick up the lid assembly
by lifting on the handle to the detach-
able blower. Lift the lid assembly by the
latches. This will ensure that the
detachable blower and the lid will not
separate during removal of the lid
assembly.
2. Lay the lid assembly upside down on a
clean dry area while emptying the drum
or changing the filter.
3. Dump the drum contents into the proper
waste disposal container.
Latch
4. If the contents are liquid, you may dis-
pose by using the drain provided in the
drum for easy emptying. Simply
unscrew the drain cap and allow the liq-
uid to drain completely out of the vac
drum.
WARNING: To reduce the risk of
back injury or falls, do not lift a vac
heavy with liquid or debris. Scoop or
drain enough contents out to make
the vac light enough to lift comfort-
ably.
10

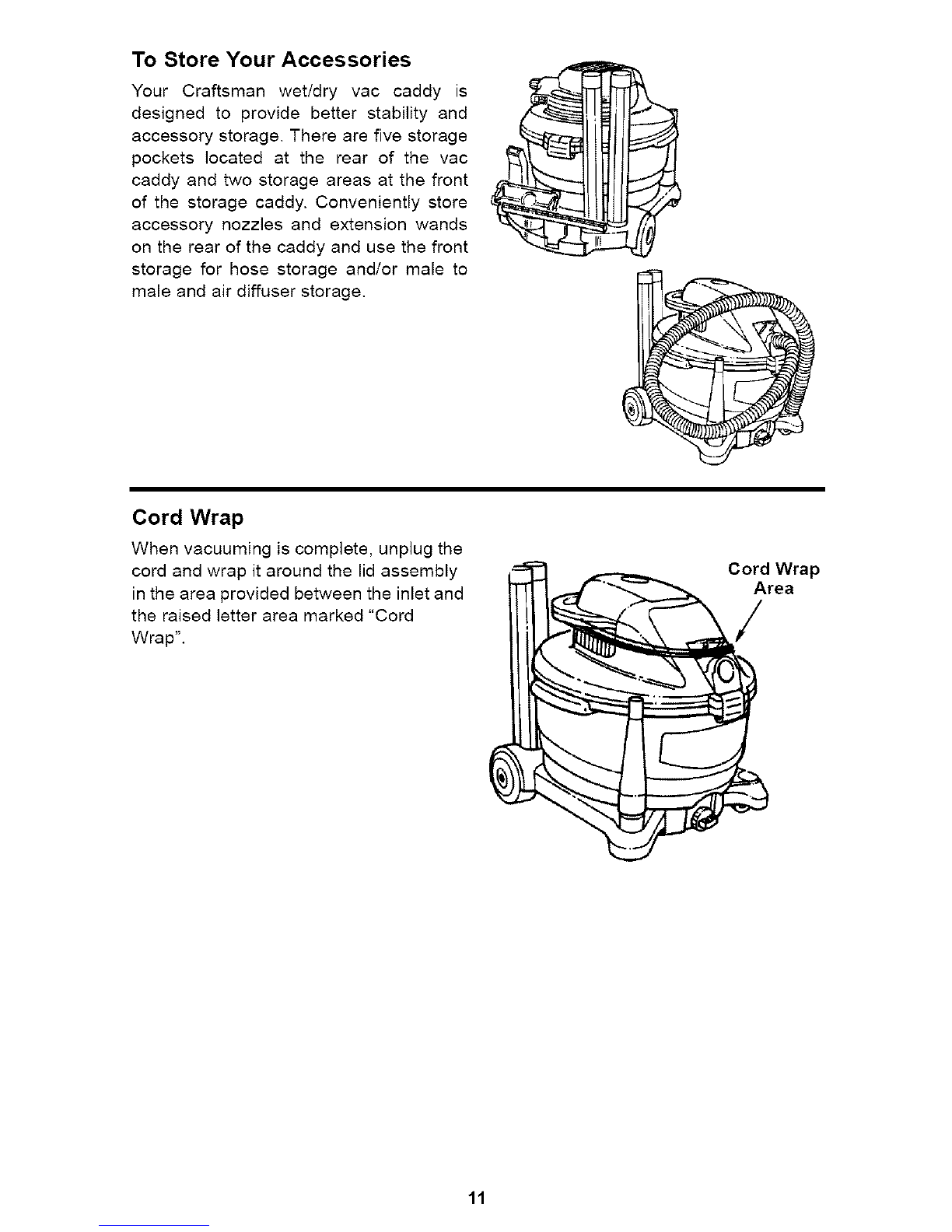

To Store Your Accessories
Your Craftsman wet/dry vac caddy is
designed to provide better stability and I_
accessory storage. There are five storage
pockets located at the rear of the vac
caddy and two storage areas at the front
of the storage caddy. Conveniently store
accessory nozzles and extension wands
on the rear of the caddy and use the front
storage for hose storage and/or male to
male and air diffuser storage.
Cord Wrap
When vacuuming is complete, unplug the
cord and wrap it around the lid assembly
in the area provided between the inlet and
the raised letter area marked "Cord
Wrap".
Cord Wrap
Area
11

Operation (continued)
Moving the Vac
Should it become necessary to pick the
vac up to move it, the handles may be
used on the sides of the dust drum. Do
not use the handle located on the detach-
able blower to pick up the entire wet/dry
vac or the lid assembly.
die
Handle _
Blowing Feature
Your wet/dry vac features a "detachable
blower". It has the capability to be used as
a dedicated blower for yard work, patio
cleanup and workshop applications to
blow sawdust and other debris.
WARNING: Always wear safety gog-
gles complying with ANSI Z87.1
when using as a blower.
WARNING: Wear a dust mask if
blowing creates dust which might be
inhaled.
CAUTION: To reduce the risk of hear-
ing damage wear ear protectors
when using the vac/blower for
extended hours or when using it in a
noisy area.
IWARNING: To reduce the risk of
injury to bystanders, keep them
clear of blowing debris.
1. Familiarize yourself with the detachable
blower portion of your wet/dry vac.
2. Remove the detachable blower of your
vac by pressing down on the latch
under the handle of the detachable
blower. This latch holds the detachable
blower to the lid assembly.
3. Lift the detachable blower up by raising
the handle upward and pulling the unit
away from the nested position of the
hinges.
Assemble the Detachable Blower for "Blowing"
This may be assembled two ways.
1. Insert the small end of one of the exten- ~
sion wands into the blowing port of the _
detachable blower, insert the blowing \
adapter into the extension wand and
install the blower nozzle onto the blow-
ing adapter. -OR-
2. Insert the blowing adapter into the
blowing port of the detachable blower.
Connect the large end of the extension
wand to the blowing adapter. Connect
the blower nozzle to the extension
wand.
Blowing Port
Extension
Wand
Blowin( Blower
Adapter Nozzle
3. Turn the blower "ON" by toggling the
switch in the handle of the blower to the
"ON" position.
12

The wet/dry vac may also be used for
blowing using the seven foot hose sup-
plied with the wet/dry vac.
install the blower adapter in the blowing
port of the wet/dry vac.
The blower adapter will insert into the
inside of the push button end of the vac
hose. Assemble the hose to the blower
adapter and connect the blower nozzle to
the opposite end of the hose.
The unit is ready for blowing applications.
Blowing Port
Blower Nozzle
Blower Nozzle
Blower
Adapter
Maintenance
Blower Intake
WARNING: To reduce the risk of I
I
injury from accidental starting,
unplug power cord before changing
or cleaning filter.
After using the detachable blower of your
wet/dry vac, examine the bottom of the
blower for dust and debris. Check to see if
the intake to the blower has debris stuck
to the plastic vents and foam pad.
To clean the foam pad under the intake
shield of the detachable blower:
1. Remove the three screws holding the
intake shield.
2. Lift the intake shield off and set aside.
3. Lift the foam pad away from the
detached blower, the foam pad holder
will also lift away from the blower.
4. Remove the foam pad from the foam
pad holder and set the foam pad holder
to the side. Clean the foam pad in warm
soapy water or brush debris away.
Allow foam pad to dry.
5. Examine foam pad for reuse. If you
need to replace it, check the service
part section of this manual.
'_ Foam Pad
Holder
Foam Pad
_Intake
_Shield
4"= Screws (3)
6. Replace foam pad holder on blower
with the tabs away from the blower.
Reinstall foam pad under the tabs of
the holder.
7. Reinstall intake shield and 3 screws.
The unit is ready for use.
13

Maintenance (continued)
Cleaning Vac Filter
Your filter should be cleaned often to
maintain peak vac performance.
Be sure to dry the filter before storing or
picking up dry debris.
IMPORTANT: After cleaning, check the fil- 2.
ter for tears or small holes. Do not use a
filter with holes or tears in it. Even a small
hole can cause a lot of dust to come out of
your vac. Replace it immediately. 3.
NOTE: This filter is made of high quality
paper designed to stop very small parti-
cles of dust. The filter can be used for wet
or dry pick up. Handle the filter carefully
when removing to clean or installing it.
Creases in the filter pleats may occur
from installation but creases will not affect
the performance of the filter.
Removal
To remove the filter for cleaning or
replacement, remove filter nut from the
screw on the filter cage, remove filter
plate and lift off filter.
IMPORTANT: To reduce the risk of dam-
age to the blower wheel and motor,
always reinstall the filter before using the
vac for dry material pickup.
CAUTION: Do not remove the filter
cage or float. It is there to shut off air-
f ow when the drum sfu of quds.
Dry Filter
1. Some removal of dry debris can be
accomplished without removing the filter
from the vac by slapping your hand on
top of the lid while the vac is turned off.
For best results of cleaning due to
accumulated dust, clean the filter in an
open area. Cleaning SHOULD be done
outdoors and not in the living quarters.
After filter removal from vac, remove the
dry debris by gently tapping the filter
against the inside wall of your dust drum
and the debris will loosen and fall.
4. For thorough cleaning of dry filter with fine
dust (no debris), you may run water
through it as described under "Wet Filter".
Wet Filter
After filter is removed, run water through
the filter from a hose or spigot. Take care
that water pressure from the hose is not
strong enough to damage filter. Remem-
ber: To dry a filter quickly, reinstall the fil-
ter on the vac and allow the unit to run for
approximately 10 minutes. The clean air
rushing through the filter will dry it.
Installation
Refer to "Filter Assembly".
Allow the filter to dry before reinstalling
and storing the vac.
Wet/Dry Vac
To keep your Wet/Dry Vac looking its best,
clean the outside with a cloth dampened
with warm water and mild soap.
To clean the drum:
1. Dump debris out.
2. Wash drum thoroughly.
3.Wipe out with dry cloth.
WARNING: To assure product
SAFETY and RELIABILITY, repairs and
adjustment should be performed by
Sears Service Centers, always using
Sears replacement parts.
14

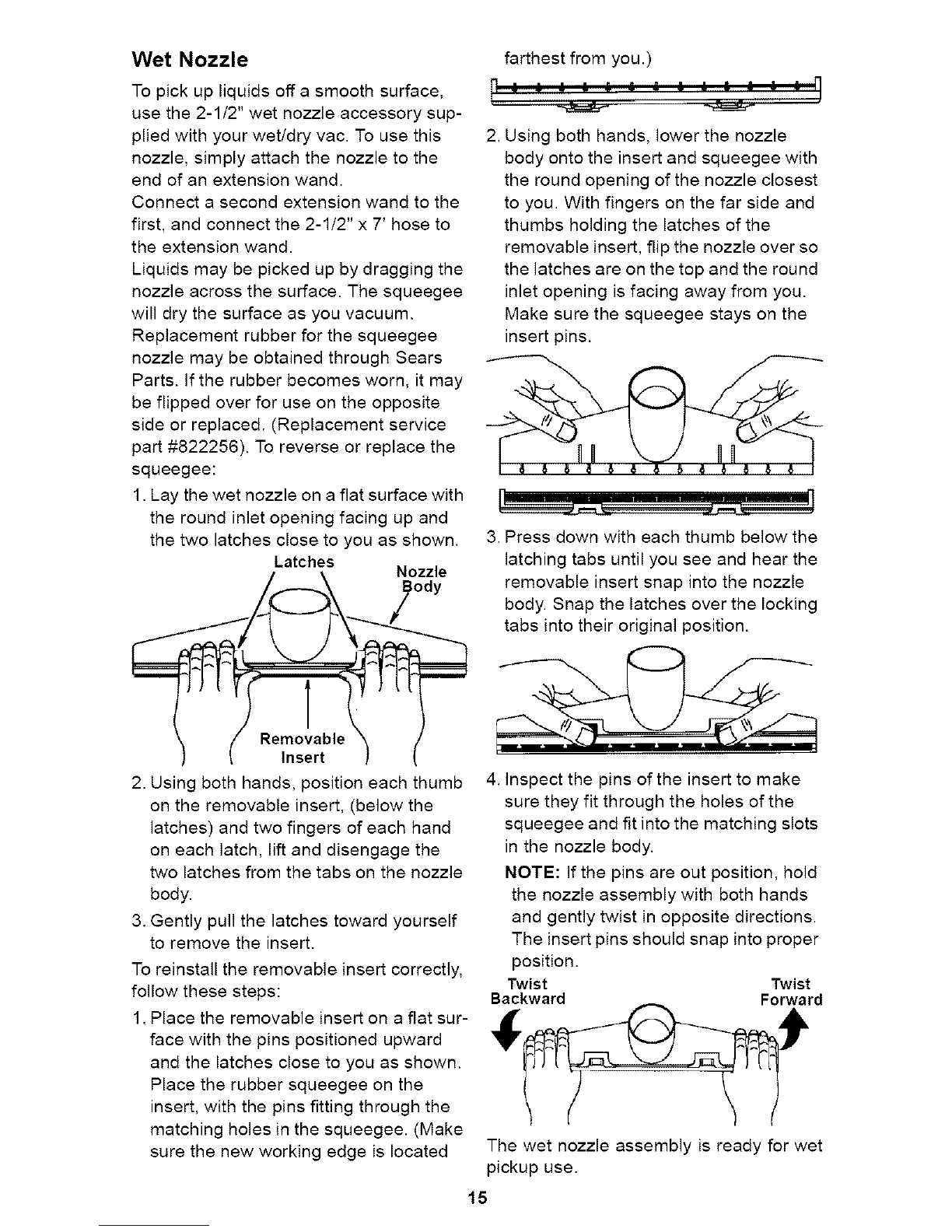

Wet Nozzle
To pick up liquids off a smooth surface,
use the 2-1/2" wet nozzle accessory sup-
plied with your wet!dry vac. To use this
nozzle, simply attach the nozzle to the
end of an extension wand.
Connect a second extension wand to the
first, and connect the 2-112" x 7' hose to
the extension wand.
Liquids may be picked up by dragging the
nozzle across the surface. The squeegee
will dry the surface as you vacuum.
Replacement rubber for the squeegee
nozzle may be obtained through Sears
Parts. If the rubber becomes worn, it may
be flipped over for use on the opposite
side or replaced. (Replacement service
part #822256). To reverse or replace the
squeegee:
1. Lay the wet nozzle on a fiat surface with
the round inlet opening facing up and
the two latches close to you as shown.
Latches
/.__ Nozzle
ody
2. Using both hands, position each thumb
on the removable insert, (below the
latches) and two fingers of each hand
on each latch, lift and disengage the
two latches from the tabs on the nozzle
body.
3. Gently pull the latches toward yourself
to remove the insert.
To reinstall the removable insert correctly,
follow these steps:
1. Place the removable insert on a flat sur-
face with the pins positioned upward
and the latches close to you as shown.
Place the rubber squeegee on the
insert, with the pins fitting through the
matching holes in the squeegee. (Make
sure the new working edge is located
farthest from you.)
rl . . , , m _n _, , - = * = • .q
i...... -- J
2. Using both hands, lower the nozzle
body onto the insert and squeegee with
the round opening of the nozzle closest
to you. With fingers on the far side and
thumbs holding the latches of the
removable insert, flip the nozzle over so
the latches are on the top and the round
inlet opening is facing away from you.
Make sure the squeegee stays on the
insert pins.
3. Press down with each thumb below the
latching tabs until you see and hear the
removable insert snap into the nozzle
body. Snap the latches over the locking
tabs into their original position.
4. inspect the pins of the insert to make
sure they fit through the holes of the
squeegee and fit into the matching slots
in the nozzle body.
NOTE: If the pins are out position, hold
the nozzle assembly with both hands
and gently twist in opposite directions.
The insert pins should snap into proper
position.
Twist Twist
Backward Forward
The wet nozzle assembly is ready for wet
pickup use.
15

Repair Parts
16 Gallon Wet/Dry Vac With Detachable Blower
Model Number 113.170330
Always order by Part Number - Not by Key Number
WARNING
SERVICING OF DOUBLE-INSULATED WET/DRY VAC
In a double-insulated Wet/Dry Vac, two systems of insulation are provided
instead of grounding. No grounding means is provided on a double-insulated
appliance, nor should a means for grounding be added. Servicing a double-insu-
lated Wet/Dry Vac requires extreme care and knowledge of the system, and
should be done only by qualified service personnel. Replacement parts for a
double-insulated Wet/Dry Vac must be identical to the parts they replace. Your
double-insulated Wet/Dry Vac is marked with the words "DOUBLE INSULATED"
and the symbol r_-I(square within a square) may also be marked on the appli-
ance.
Key
No. Part No.
1 509238
2 9-17816
3 9-16937
4 9-16938
5 826286-1
6 73185
7 822479
8 826285
9 73102
10 826387
11 826386
12 822442-1
13 826388
14 820563-7
15 826383
16 826411
17 826389
18 822467-10
19 826382
20 823871
Description
Cage Filter/Float
1Filter (Red Stripe)
1Filter Plate
1 Filter Nut
Drum
Drain Cap
Wheel
Accessory Caddy
Caster
Drum Latch
Lid
Gasket Lid
Power Head Latch
* Screw Pan Hd. Ty
AB #10 x 3/4
intake Shield
Foam Pad
Foam Pad Holder
Cord w/Plug
Detachable Lid
Rocker Switch
Key
No. Part No. Description
21 816345-1
22 15534-1
23 818413
24 818961
25 822459-1
26 826404
27
28
29
3O
31
822480
822482
826385
815096
826356-1
32 826355
33 826354
34 822256
-- SP6481
Nut-Hex Flange 1/4-20
Washer
Blower Wheel
Spacer
Collector Gasket
Motor (includes Key
Nos.21, thru 24)
Blowing Diffuser
Blower Adapter
Motor Cover
Hose Adapter
tHose 2 1/2" x 7'
(Includes Key Nos.
30 thru 33)
Spring Tab
Hose End Interlock
Squeegee
Owners Manual
(Not illustrated)
1 Stock Item -May be secured through the hardware department of most Sears retail
stores.
* Standard Hardware Item - May be purchased locally
16

Repair Parts
32
34
17

£RAFTSMAN®

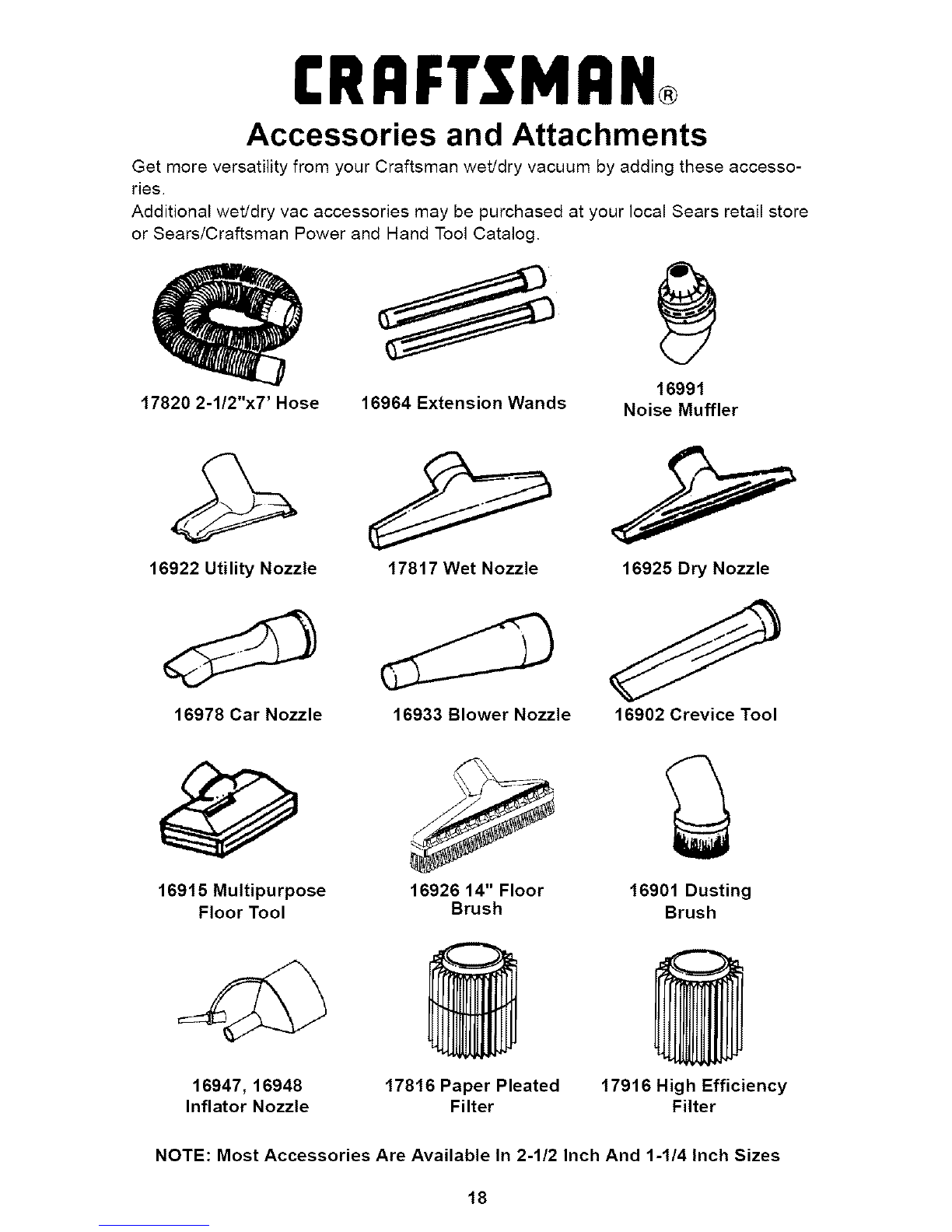

Accessories and Attachments
Get more versatility from your Craftsman wet/dry vacuum by adding these accesso-
ries.
Additional wet/dry vac accessories may be purchased at your local Sears retail store
or Sears/Craftsman Power and Hand Tool Catalog.
@
17820 2-1/2"x7' Hose 16964 Extension Wands
16922 Utility Nozzle
16978 Car Nozzle
16991
Noise Muffler
17817 Wet Nozzle 16925 Dry Nozzle
16933 Blower Nozzle 16902 Crevice Tool
16915 Multipurpose 16926 14" Floor 16901 Dusting
Floor Tool Brush Brush
16947, 16948 17816 Paper Pleated 17916 High Efficiency
Inflator Nozzle Filter Filter
NOTE: Most Accessories Are Available In 2-1/2 Inch And 1-1/4 Inch Sizes
18

16934 Hose Grip 16917 Hose 16930 Hose Lock
Connector 16935 Gutter Nozzle
Sawdust Collection Series
Whole-shop Sawdust Manifold-Type Collection System
29964
Radial Arm Saw
Dust Collection Kit
29963
Table Saw Dust
Collection Kit
29962
19

For in-home major brand repair service:
Call 24 hours a day, 7 days a week
1-800-4-MY-HOME (1-800-469-4663)
Para pedir servicio de reparacion a domicilio- 1-800-676-5811
For the repair or replacement parts you need:
Call 6 am -11 pm CST, 7 days a week
PartsDirect
1-800-366-PART (1-800-366-7278)
Para ordenar piezas con entrega a domicilio - 1-800-659-7084
For the location of a Sears Parts and Repair Center
in your area:
Call 24 hours a day, 7 days a week
1-800-488-1222
For information on purchasing a Sears Maintenance Agreement
or to inquire about an existing Agreement:
Call 9 am - 5 pm, Monday - Saturday
1-800-827-6655
SEARS SM
HomeCentral
The model and serial numbers will be found on the handle.
When requesting service or ordering parts, always provide the
following information:
•Product Type •Model Number
•Part Number •Part Description
©2002 Emerson
Sears, Roebuck and Co., Hoffman Estates, IL. 60179 U.S.A.
Part No. SP6481 Form No. SP6481 Printed in U.S.A. 5/02
