Cranborne Audio Camden EC1 User manual
Congratulations on your purchase of Camden EC1 and thank you for
selecting Cranborne Audio to be a part of your music creation process.
Cranborne Audio, for us, means so much more than metal boxes with
components in them. These are our labours of love that embody and
demonstrate our demand for excellence. By distilling what matters and
putting our soul into these tools, we hope to help other people make magic
and express themselves, and in some way, become part of our Cranborne
Audio family.
So welcome to our family. We care for our family. And we care about making
your tracks, albums, scores sound as good as they should.
Controls and Connectors
Page 2 ©2020 Cranborne Audio Ltd
[1] Mojo Control: Adjusts the level of
Mojo
analogue saturation. Bypasses Mojo
and clicks off when turned fully
anti-clockwise.
[10] 48v Status Indicator: Bicolour LED
that displays 48v status.
Off = 48v Off, voltage fully discharged
Amber = 48v voltage
charging/discharging
Red = 48v fully charged
[2] Mojo Style Switch: Toggles the
Mojo style between 2 discrete styles:
Thump & Cream.
[11] Preamp Level Control: Adjusts the
level of the Camden Preamp into the
Aux bus.
[3] Signal Indicator: RGB LED that
displays incoming signal level and clip
status.
[12] Aux In/C.A.S.T. Level Control:
Adjusts the level of the rear Aux Inputs
and C.A.S.T. OUT RR into the Aux bus.
[4] HPF Switch: Engages the 80Hz
High Pass (Low Cut) filter. -3dB @
80Hz.
(Switch Down = ON)
[13] EXT In Level Control: Adjusts the
level of the EXT IN jack into the Aux
bus.
[5] Polarity Switch: Inverts the polarity
of the input signal by 180°.
(Switch Down = ON)
[14] Aux Headphone Level: Adjusts the
main level of the Aux bus to the Aux
Headphones output.
[6] Gain Control: 12 position switched
pot. Adjusts the input sensitivity of the
preamp from 8 to 68.5dB in 5.5dB
increments.
[15] EXT IN Line Input: Connects a
mono, analogue playback source
directly into Camden EC1’s monitoring
path. EXT In is also sent to the second
‘T’ path of the C.A.S.T. Output.
[7] Input Type Switch: 3-way switch.
Adjusts the input Impedance and pad
status of the preamp input to match
the desired input type; hi-z, line, or mic.
[16] Aux Headphone Output: Used for
connecting headphones to the Aux
bus.
[8] 48v Switch: Engages 48v phantom
power for the rear XLR input
connector.
(Switch Down = ON)
[17] Power Switch: Safely powers on
and off Camden EC1. Tap to power on,
press and hold to power off.
[9] Hi-Z/Line Input: Used to connect
line or hi-z instruments directly into
the preamp’s front panel. Hi-z/line
input interrupts rear XLR or C.A.S.T.
input connections.
Page 3 ©2020 Cranborne Audio Ltd

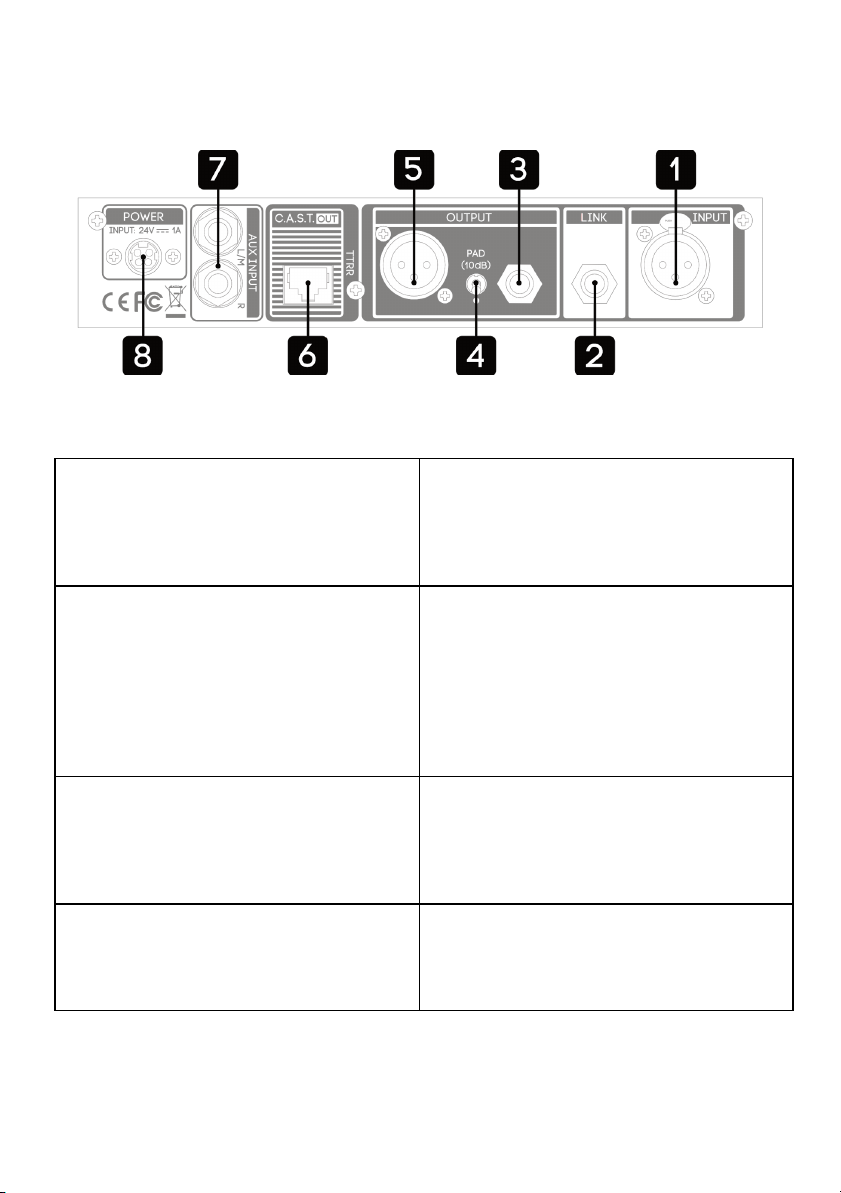

[1] Preamp Input: Connects balanced
XLR analogue inputs into the
Preamp. Input sensitivity varies
depending on the Input Type Switch
on the front of the preamp.
[5] Preamp Output (+24dBu): Sends
balanced, line-level outputs of the
Preamp for connection to external
converters and equipment.
[2] Link Output: Outputs an
unaffected, buffered output to
connect downstream equipment
such as guitar amplifiers in parallel to
Camden EC1’s hi-z and line inputs.
[6] C.A.S.T. Output: Enables Camden
EC1’s Preamp signal and EXT In to be
sent directly to the C.A.S.T. Inputs on
another Cranborne Audio device.
C.A.S.T. Out also receives the Aux Mix
(inc Talkback) from the connected
500ADAT/500R8 for monitoring on
Camden EC1’s Aux mixer.
[3] Preamp Output (+18dBu): Sends
balanced, line-level outputs of each
Preamp for connection to external
converters and equipment.
[7] Aux Input: Connects analogue
playback sources from external audio
interfaces directly into Camden EC1’s
monitoring paths. Inputs are summed
with the C.A.S.T. OUT RR Paths.
[4] PAD Switch: Reduces the output
level of both Preamp Outputs by
10dB to for use with low-headroom
audio interfaces.
[8] Power: Provides Camden EC1 with
power via the provided external 24v 1A
DC power supply. No other power
supply should be used.
Page 4 ©2020 Cranborne Audio Ltd
Package Contents
So now your Camden EC1 is out of it’s packaging, you’re probably itching to
get it powered on and making music! But before you get started, please read
the sections below that will help guide you through the process of getting
Camden EC1 setup, plugged in, and ready-to-record as quickly as possible!
The following items can be found in the packaging alongside Camden EC1:
-External power adapter
-IEC cable
- 4 adhesive rubber feet
-Quickstart Guide
Powering Procedures
Powering On
First, make sure your speakers/audio interface is switched off and any
headphones are disconnected. Briefly tap the power button located on the
top right of Camden EC1’s front panel. The power icon will illuminate blue
and you will see the Signal and 48v Indicator LED light up in sequence.
Powering Off
First, make sure your speakers are switched off and any headphones are
disconnected. Press and hold the power button for approximately 3 seconds.
The power icon will deluminate and you will hear the soft ‘clicking’ of the
relays indicating that the unit has been powered off.
Note:
Please follow these safe powering sequences carefully in order
to prevent any unwanted pops and spikes causing damage to
downstream audio components including speakers and
headphones.
Page 5 ©2020 Cranborne Audio Ltd
Hardware Setup: Audio Interface
1) Connect mains power into the external PSU supplied in Camden
EC1’s packaging and connect the Power Connector into Camden
EC1’s Power Inlet [8].
2) Connect the Preamp Output [3] of Camden EC1 to an available line
input on the Audio Interface. Use either Camden EC1’s balanced ¼”
jack or XLR outputs depending on your audio interface’s
connections.
Note:
If your audio interface has a low max input level, engage
the PAD Switch [4] to reduce the output level of Camden
EC1.
3) Power On Camden EC1 using a brief tap of the Power button. Then
Power On your Audio Interface.
Connect mic/line/hi-z sources to Camden EC1’s preamp input, apply Gain
and your desired Mojo setting, and now the preamp signal will be sent out
from Camden EC1 and directly into the Audio Interface’s inputs for recording.
Page 6 ©2020 Cranborne Audio Ltd

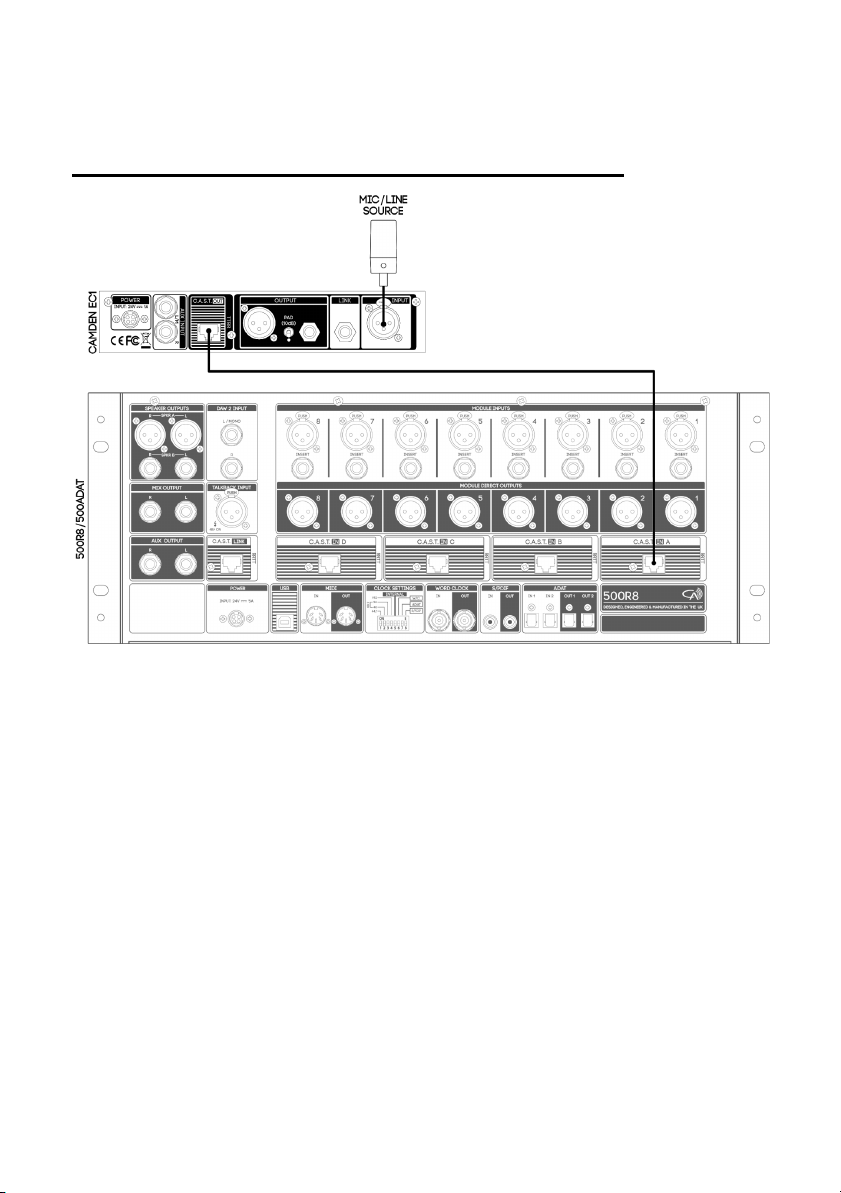

Hardware Setup: Using C.A.S.T.
This hardware setup diagram will get Camden EC1 connected within a
C.A.S.T. enabled system alongside a 500R8/500ADAT:
1. Connect mains power into the external PSU supplied in Camden
EC1’s packaging and connect the Power Connector into Camden
EC1’s Power Inlet [8].
2. Connect Camden EC1’s C.A.S.T. Output [6] to a C.A.S.T. Input on
500R8/500ADAT using a shielded Cat 5e, Cat 6, or Cat 7 cable.
3. Power On Camden EC1, followed by 500R8/500ADAT and other
downstream equipment.
Connect mic/line sources to Camden EC1, and now the Preamp Output will
be sent from Camden EC1 and directly into 500R8’s slots ready for further
processing and recording.
At the same time, the Aux Mix created on 500R8/500ADAT is sent down
C.A.S.T., into Camden EC1, and into Camden EC1’s Aux Headphone output.
Page 7 ©2020 Cranborne Audio Ltd
Safety Information
General Safety
- Read these instructions carefully
- Keep these instructions
- Heed all warnings
- Follow all instructions
- Do not use this apparatus near water
- Clean only with a dry cloth
- Do not block any ventilation openings and install in accordance with the
manufacturer’s instructions.
- Do not install near any heat sources such as radiators, heat registers, stoves or
other apparatus (including amplifiers) that produce heat.
- Do not defeat the safety purpose or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding type plug has two
blades with a third grounding prong. The wide blade or the 3rd prong are
provided for your safety. If the provided plug does not fit your outlet, consult
an electrician for replacement of the obsolete outlet.
- Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
- Only use attachments/accessories recommended by the manufacturer.
- Unplug this apparatus during lightning storms or when unused for long
periods of time.
- Refer all servicing to qualified service personnel. Servicing is required when
the apparatus has been damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
- Do NOT modify this unit, altercations may affect performance, safety and/or
international compliance standards.
- Cranborne Audio does not accept liability for damage caused by
maintenance, repair or modification by unauthorized personnel.
Page 8 ©2020 Cranborne Audio Ltd
Installation notes
- When installing the apparatus either fit it into a standard 19” rack using the
optional half rack kit [Page 12] or place it on a secure level surface.
- If the unit is rack mounted, fit all rack screws.
- When rack mounting, allow a 1U gap above and below the unit for cooling.
- Ensure that no strain is placed on any cables connected to this apparatus.
Ensure that all such cables are not placed where they can be stepped on,
pulled, or tripped over.
WARNING: To reduce the risk of fire or electric shock, do not
expose this apparatus to rain or moisture.
ATTENTION: Afin de réduire les risques de choc électrique, ne pas
exposer cet appareil à l’humidité ou à la pluie.
Power Safety
- The unit is supplied with an external power supply and suitable mains lead.
Only use the supplied external power supply, however if you decide to use a
mains lead of your choice, bear in mind the following:
- Refer to the rating label of the unit and always use a suitable mains
cords.
- The unit should ALWAYS be earthed with the earth on the IEC
socket.
- Please use compliant 60320 C13 TYPE SOCKET. When connecting to
supply outlets ensure that appropriate sized conductors and plugs
are used to suit local electrical requirements.
- Maximum cord length should be 4.5m (15’)
- The cord should bear the approval mark of the country it is to be
used.
- Connect only to an AC power source that contains a protective earthing (PE)
conductor.
- Only connect unit to single phase supplies with the neutral conductor at
earth potential.
GB The apparatus shall be connected to mains socket outlets with a protective
earthing connection.
DEN Apparatets stikprop skal tilsluttes en stikkontakt med jord, som giver
forbindelse til stikproppens jord.
FIN Laite on lilettävä sojamaadoituskoskettimilla varustettuun pistorasiaan.
NOR Apparatet må tilkoples jordet stikkontakt.
SWE Apparaten skall anslutas till jordat uttag.
ATTENTION: Un-earthed metal parts may be present inside the
enclosure. No user serviceable parts inside - to be serviced only by
qualified personnel. When servicing, disconnect all power sources
before removing any panels.
Page 9 ©2020 Cranborne Audio Ltd
CE Certification
This unit is CE compliant. Note that any cables supplied with Cranborne
Audio equipment may be fitted with ferrite rings at each end. This is to
comply with the current regulations and these ferrites should not be
removed.
FCC Certification
- Do not modify this unit! This product, when installed as indicated in the
instructions contained in the installation manual, meets FCC requirements.
- Important: this product satisfies FCC regulations when high quality shielded
cables are used to connect with other equipment. Failure to use high quality
shielded cables or to follow the installation instructions may cause magnetic
interference appliances such as radios televisions and will void your FCC
authorisation to use this product in the USA.
- This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of FCC rules. These limits are
designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and if
not installed and used in accordance with the instruction manual may cause
harmful interference to radio communications. Operation of this equipment
in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at their own expense.
RoHS Notice
Cranborne Audio complies with and this product conforms to European Union’s
directive 2011/165/EU on Restrictions of Hazardous Substances (RoHS) as well as the
following sections of California law which refer to RoHS, namely sections 25214.10,
25214.10.2, and 58012, Health and Safety Code Section 42475.2, Public Resources Code.
Page 10 ©2020 Cranborne Audio Ltd
Instructions for disposal of WEEE by end users in
the European Union
The symbol shown here, which is on the product or on its packaging
indicates that this product must not be disposed of with other
waste. It is the user’s responsibility to dispose of their waste
equipment by handing it over to a designated collection point for
recycling waste electrical equipment and electronic equipment. For
more information about where you can drop off your waste
equipment for recycling, please contact your local city office, your
household waste disposal service or where you purchased the
product.
WARNING: cancer and reproductive harm -
www.P65Warnings.ca.gov
Evaluation of apparatus based on altitude not exceeding 2000m.
There may be some potential safety hazard if the apparatus is
operated at altitude exceeding 2000m.
Evaluation of apparatus based on the temperate climate conditions
only. There may be some potential safety hazard if the apparatus is
operated in tropical climate conditions.
Electromagnetic Compatibility
EN 55032:2015, Class B, EN 55016-2-1:2009 A1 2011. EN 55016-2-3:2010 A1 2010, EN
55035:2017, EN 61000-4-2:2009, EN 61000-4-3:2006 A1 2008 A2 2010, EN 61000-4-4:2012,
EN 61000-4-5:2014 A1 2017, EN 61000-4-6:2014, EN 6100-4-11:2004 A1 2017, EN
61000-3-2:2014, EN 61000-3-2:2013, FCC Part 15B Class B, ANSI C63.4:2014, ICES-003
Issue 6: Class B
Audio input and output ports are screened cable ports and any connections to them
should be made using braid-screened cable and metal conductor shells in order to
provide a low impedance connection between the cable screen and the equipment.
WARNING: Operation of this equipment in a residential environment could cause
radio interference.
Environmental
- Operating Temperature:: +1 to 30 degrees Celsius.
- Storage: -20 to 50 degrees Celsius.
Page 11 ©2020 Cranborne Audio Ltd
Optional: Half Rack Kit
The Cranborne Audio Half Rack Kit (Sold separately) allows you to securely
mount Camden EC1 into any 19” rack. The kit includes a long rack ear, two
short rack ears, and all required fixings to enable either a single or pair of
Camden EC1’s to mount into the same 19”, 1U space.
Camden EC1 Single Rackmount
Camden EC1 Dual Rackmount
For more information on the Camden EC1 rackmount kit, please
contact your Cranborne Audio dealer and use our reference part number:
CA-HALFRACKKIT
Page 12 ©2020 Cranborne Audio Ltd
Table of contents
Other Cranborne Audio Music Mixer manuals
