Crane EE-9004 User manual

Crane Double Electric Breast Pump
EE-9004
PLEASE READ AND SAVE ALL INSTRUCTIONS TO ENSURE
THE SAFE AND EFFECTIVE USE OF THIS BREAST PUMP.
If you have any questions about the operation of your breast
pump, please contact Crane Customer Care.
Toll Free: 888-599-0992
Email: [e-mail]
Register your product online
https://crane-usa.com/product-registration/

2
SAVE YOUR DATED PROOF OF PURCHASE!
[ You will need this in case of warranty ]

3
Congratulations on choosing the Crane Double Electric Breast
Pump. The Crane Double Electric Breast Pump is designed to
mimic a baby’s natural sucking. Use it to express your milk
efficiently in whisper quiet comfort. The soft silicone breast
cushion and easily adjustable modes help to stimulate milk let
down, while gently massaging and squeezing the breast and
nipple.
Indication for use: The Crane Double Electric Breast Pump is
intended to be used by lactating women to express and collect
milk from their breast, to alleviate engorgement of the breast,
maintain the ability if lactation, and provide mother’s milk for
future feedings when separation of mother and baby occurs.
Design for Better Living.
TABLE OF CONTENTS
Safety Instructions Pg. 4-5
Functions and Features Pg. 6
Parts Pg. 7
Assembling Your Crane Pump Pg. 8-10
Cleaning, Hygiene, and Care Pg. 10-13
Button and Display Guide Pg. 13-15
Ready To Pump Pg. 15-16
Milk Storage Pg. 17
Troubleshooting & Customer Care Pg. 18-20
Find Your Fit & Technical Information Pg. 21-23

4
IMPORTANT SAFETY INSTRUCTIONS
This is a single user product, use by more than one person can present health
risk and performance questions and will void the warranty.
WARNING! READ ALL INSTRUCTIONS BEFORE USING THIS PRODUCT.
When using this pump and other electrical products, basic safety precautions should
always be maintained, including the following:
·The lactating women are the intended operator for this electric breast pump.
·The device can be used at home, institution and hospital, but using on an aircraft is not
recommended as the cabin pressure may affect the breast pumps performance.
·The breast shield kit is an accessory for the Crane Double Electric Breast Pump. The
collection kits are personal care items intended for use by a single user only and should not
be shared between users. Use by more than one mother may pose a health risk (e.g. risk of
cross-contamination) and voids the warranty.
·If you are a mother who is infected with Hepatitis B, Hepatitis C or Human
Immunodeficiency Virus (HIV), pumping breast milk will not reduce or remove the risk of
transmitting the virus to your baby through your breast milk.
·The device is not suitable for use in the presence of flammable anesthetic mixtures with
air or with oxygen or nitrous oxide.
·There are no user-serviceable parts inside the device. DO NOT ATTEMPT TO REPAIR the
electric breast pump YOURSELF. No modifications to this device are permitted.
·No servicing or maintenance is permitted while the product is in use.
·The device requires no calibration.
·The user must check that the equipment functions safely and see that it is in proper
working condition before being used.
·This product should never be left unattended when plugged.
·Never operate this product if it has a damage cord or plug, if it is not working properly, if
it has been dropped or damaged, or dropped into water.
·Sanitize the Express Collection Kit parts before each use.
·Plug the main adapter into breast pump first and then into wall socket.
·Using any other AC/DC adapter that not approved by the manufacturer voids the
warranty.
·Inbuilt Li-ion Cylindrical battery is non-removable, it’s prohibited to discharge for use.
·If the power adapter outer casings become loose or are separating, stop use and contact
the device manufacturer immediately. Separation of the casing can result in electric
shock.
·This electric breast pump cannot be serviced or repaired while in use. Do not repair
yourself. Do not modify this electric breast pump.
·Use this electric breast pump only for its intended use as described in this manual.

5
·The replacement of Li-ion Cylindrical battery by inadequately trained personnel could
result in a hazard.
·Plastic bottles and component parts become brittle when frozen and may break when
dropped.
·Bottles and component parts may become damaged if mishandled, e.g. dropped, over-
tightened, or knocked over.
·Take appropriate care in handling bottles and components.
·Do not use the breast milk if bottles or components become damaged.
SAVE THESE INSTRUCTIONS!
GENERAL SAFETY INSTRUCTIONS
PRECAUTIONS
·Do not use outdoors.
·Do not use while bathing.
·Do not use while sleeping or over drowsy.
·Do not place the product in direct sunlight.
·Do not reach for an electrical device that has fallen into water. Unplug immediately.
·Do not place in or drop into water or other liquid.
·Do not spray or pour liquid directly on to the pump.
·Do not place or use this product where it can fall or be pulled into a tub or sink.
·Do not drop or insert any object into any opening or Tubing.
·Do not drop or hit the product.
·Do not touch the product with bare hands right after boiling to avoid scalds and burns.
·Do not over-boil to avoid premature aging of the product material.
·No components should be sterilized in a microwave oven.
·Do not operate the product in the MRI environment.
·Keep the adapter away from heated surface.
·Supervision is necessary when this product is used near children or person requiring
supervision.
·Make sure all the parts are assembled correctly before pumping.
·If pumping is uncomfortable or causing pain, turn the unit off, break the seal between the
breast and the funnel adapter with your finger and remove the funnel adapter from your
breast. Consult your lactation consultant or physician.

6
·If discomfort is felt, then suction can be broken by inserting a finger between the breast
and the breast shield.
·If irritation or discomfort occurs, discontinue use and see a doctor.
·Contact your healthcare professional or lactation professional if you can only express only
minimal or no milk.
·Do not try and express with vacuum that is too high and uncomfortable (painful). The
pain, along with potential breast and nipple trauma, may decrease milk output.
·Before each use visually inspect the individual components for cracks, chips, tears,
discoloration or deterioration. In the event that damage to the device is observed, please
discontinue use until the parts have been replaced.
·Do not use the components if dirt, mold or other contamination is visible.
·Wash and sanitize all parts that come in contact with your breast and breast milk prior to
first use.
·Wash all parts that come into contact with your breast and breast milk after every use.
·Tubing –Inspect the tubing. If you find condensation in the tubing, wash and dry it
immediately or replace the tubing. If you see breast milk inside the tubing or tubing
connector do not attempt to wash, clean or sterilize the tubing or tubing connector,
instead contact the manufacturer.
·Do not store wet or damp parts as mold may develop.
·If tubing becomes moldy, discontinue use and replace tubing.
·Keep the product dry, do not get the product wet.
·Keep this product and the components out the reach of babies and children.
·Wash hands before each using.
·Always unplug the breast pump immediately after every use.
·Do not attempt to repair the product.
·During the long-term placement of breast pump unit, it’s recommended to charge the Li-
ion Cylindrical battery every month, and each charging time shall not more than 6 hours
in order to maintain its service life.
·After six months the Li-ion Cylindrical r battery has been used, each discharge time will be
relatively reduced, this is a normal phenomenon.
·Built-in Li-ion Cylindrical battery can be used 5 to 6 cycles, each cycle time is 30mins.
·Do not operate a motor vehicle while using the breast pump.
Keep this product and the components out of the reach of babies and children.
·Warning: Long power cable and tubing. To avoid strangulation and entanglement, keep
cable and tubing out of reach of babies and children.
·This product is not heat resistant. Keep away from radiators and open flames.
·Separation from the mains is only assured through the disconnection of the power cord
from the wall socket outlet.

7
·Always inspect power cord wires prior to use for damage or expose wire. If damage is
found, immediately discontinue use of power cord and contact the after-sales service.
·Once finished pumping, switch off the breast pump, unplug it, and disassemble the pump
kit items. Close the bottle and store it for later use. Use bottle stand to prevent tip over.
·Separate and wash all parts that come in contact with breast milk immediately after use
to avoid dry up of breast milk residue and prevent growth of bacteria.
THIS PRODUCT IS INTENDED FOR PERSONAL USE ONLY
Introduction
Functions & Features
Your Crane breast pump has the following functions and features:
Double sided pumping: Your pump includes everything you need for double
pumping. Pumping from both sides at once saves you time and supports better
milk supply.
A fully closed system with anti-backflow.
Ergonomic milk collection kit: Silicone 3D Cushions allow for a more comfortable
fit and help to apply gentle pressure, better suction and massage action to
stimulate lactation while pumping.
2-Phase expression- Stimulation and Expression
Stimulation: 7 adjustable suction levels, 3 adjustable speed levels
Expression: 10 adjustable suction levels, 6 adjustable sped levels
Control in your hands: With a flexible range of modes, levels and dual pumping
options, the Crane double electric breast pump lets you find the ideal pumping
combination.
Touch control: Easy use and & wipe clean controls
Two illumination levels for nighttime use
30 min count-up timer: Time your current pumping session up to half an hour.
Alarm setting helps schedule pumping sessions
User mode to set personalized settings
All parts are BPA Free.
Portable, compact design: Gives you and baby more flexibility to pump whether
at home or on the go. Your Crane double electric breast pump comes complete
with a built in rechargeable li-ion polymer battery.

8
Parts

9
Other available parts
The Silicone 3D cushions fit around the nipple and come in a range of sizes, you’ll find
the most commonly used size in your Crane breast pump box. Your nipple will
expand while milk is being expressed. If you find the standard sized Silicone 3D
cushion is too small or too large, other sizes are available from Crane. See the back of
the instructions for information on how to measure your nipple for the correct sized
cushion.
15-20mm - 21mm Silicone 3D Cushion
22-26mm - 25mm Silicone 3D Cushion (MEDIUM included)
27-30mm - 29mm Silicone 3D Cushion
*Contact Crane customer service to receive one- time complimentary set of the correct
cushion size in the SMALL 21mm or LARGE 29mm cushion size. Contact Crane at 1-888-599-
0992 or [e-mail]

10
Assembling Your Crane Pump
MILK Collection Kit
(3D Cushion, Breast Shield, Diaphragm and Diaphragm Cap)
Insert the silicone 3D cushion into the breast shield
body. Ensure the edge of the 3D cushion
Is attached to the breast shield body.
Secure valve
Once the silicone 3D cushion is inserted
Into the breast shield body, gently push
Upwards on the valve to make sure it is
Securely attached to the inside body of
The breast shield.
Diaphragm and Cap
Carefully insert the diaphragm into the
top of the breast shield body. Make sure
the edge is flush and the seal is good.
Screw the cap on tightly to prevent
Any air from leaking.
Assemble the Bottle
Place the assembled breast shield body
onto the bottle. Screw the bottle onto
the breast shield body.

11
Connecting the Pump Unit to
the Milk Collection Kit
Insert the tubing connector into the air
vent on the diaphragm cap. Then insert
the other end of the tubing with the
connector into the pump unit.
If you are double pumping, connect the 2nd
tubing into the 2nd milk Collection kit and
insert the tubing with the connector into
the pump unit.
Note: for single pumping only attach 1
tube and insert tab to close off the other
port.
Ensure the tubing is securely connected to the pump unit and the milk Collection kits.
Connecting the Pump Unit to Power
To Connect to the power supply, plug the A/C adaptor into the wall outlet.
Attach the power cord to the back of the pump unit.Fully charge the pump unit
before using for the first time.
Li-ion Polymer Battery Power Supply/Charging
Your Crane Double Electric Breast Pump can operate on built-in battery or power
outlet. The built-in rechargeable battery charges fully after about four and a half
hours. Do not charge for more than 6 hours. From a full charge your pump can work
continuously for about 2 hours.
When the battery power is low, battery indicator will flash to indicate the battery
needs to be charged. Charging the battery before it is fully drained will protect the li-
ion polymer battery. When the battery is fully charged, it will stop charging
automatically to avoid damage to the li-ion polymer battery.

12
Cleaning, Hygiene & Care
How to keep your pump clean
Follow the instructions for cleaning, caring and storing for your Crane breast pump
and parts. Failure to do so may pose a health risk and void the warranty.
Your Crane pump kit is designed for single use only, it is not intended for multiple
users. Every mother should have their own pump kit. Use multiple users risks the
spread of transmissible diseases.
Make sure to wash your hands with soap and warm water prior to touching the
breast pump and the breast pump parts. Avoid touching the inner parts of the milk
collection kit parts which come in to contact with breast milk. The motor unit must
never be exposed or immersed into water or other liquids for cleaning. The motor
unit must not be Sterilized in a microwave sterilizer.
General Cleaning Instructions
When to Wash
Breast pump kit
Bottle & Lids
Silicone cushion
(silicone 3D flanges) ,
breast shield body,
diaphragm
Bottle, lid, nipple
Before 1st use
√wash
√sanitize
√wash
√sanitize
After each use
√wash
√wash
Once per day
√sanitize
√sanitize
Bottles:
Bottles should be sterilized after every use with babies under 3 months of age.
Wash and sanitize the Bottle Kit before your first use. Sterilize daily and wash after
each use.

13
Milk Collection Kit:
Wash and sanitize the Milk Collection Kit before your first use. Sanitize daily and
wash after each use. The breast pump milk collection kit has a closed system
therefore cleaning the tubes is not necessary. If you happen to see moisture in the
tubes alter pumping, remove the tubes from the breast shields. Turn on the motor
for a few minutes until the moisture is gone.
Pump unit:
Wipe pump unit with clean damp cloth. Sterilize the unit using a disinfectant wipe
and wipe off the outside of the tubing and the tubing jack (where tubing attaches to
the pump unit). NEVER submerge the pump unit in water or use in a sterilizer.
First time using your breast pump
Carefully read this instruction manual before using your Crane Double Electric Breast
Pump. Failure to follow these instructions and safety guidelines can lead to harm or
injury from the device and may also damage the pump and kit.
• Wash your hands with soap and warm water.
• Disassemble all parts that come into contact with the breast/breast milk: Breast
shield body, silicone cushions & diaphragms & bottles & bottle parts
NOTE: silicone cushion comes assembled onto the breast shield.
• Sterilize these parts using by boiling for 3-5 minutes or with another sterilization
technique. See ‘STERILZING YOUR PUMP PARTS’ for more information.
• Leave to dry or dry with a clean cloth or paper towel.
STERILIZING YOUR PUMP PARTS
BEFORE FIRST USE AND ONCE DAILY
Place disassembled breast shield, silicone cushions, diaphragm, bottle and
bottle parts that are safe to boil into a pot and cover with water. DO NOT
BOIL TUBES AND CONNECTORS.
1. Put the pot over the heat and bring to a boil.
2. Boil for 3-5 minutes.
3. Allow water to cool and gently remove items with clean tongs
4. Do not boil tubes or connectors
5. Allow to air-dry thoroughly. Place sanitized pump parts and bottle brush on a
clean, unused dish towel or paper towel in an area protected from dirt and dust.

14
Do not use a dish towel to rub or pat items dry because doing so may transfer
germs to the items.
6. Store dry parts in a cool, clean place when not in use. DO NOT store wet or
damp parts.
Before Each Use
Wash your hands well with soap and water and dry thoroughly before touching any
part of your pump.
• Make sure that all parts are totally dry prior to use. Wet or damp parts will cause
poor suction.
• Once all parts are totally dry, re-assemble the milk collection kit.
• Make sure that you check for wear and tear on tubes, plastic and silicone parts.
• Replace worn out or damaged parts immediately as this will affect suction.
CLEANING THE TUBES
The Crane Double Electric Breast Pump is a closed system, therefore cleaning the
tubes is not necessary. If you see moisture in the tubes after pumping, remove the
tubes from the breast shields. Turn the unit on for a few minutes until the moisture
is gone.
TUBE CARE for Moisture in the tubes
If you see still moisture in the tubing:
Wash tubing in warm, soapy water.
Rinse with clean water
Shake out water droplets and hang to dry.
After each pumping session
• Rinse each part that has come into contact with the breast and/or breast milk
immediately after pumping. Parts that come into contact with the breast and breast
milk are; bottles, breast shield body, silicone 3D Cushions, diaphragm. This avoids
buildup of milk residue in the collection kit bottles/parts and growth of any bacteria.
• Wash all parts above in warm soapy water using any fragrance-free mild liquid
dishwashing detergent. This degreases the parts of the milk collection kit. Grease
residue affects suction and passage of milk into the collection bottles.
• Use a separate cleaning sponge and bottle brush with a smaller brush to reach the
tiny nooks of the collection kit parts.
• Rinse each piece thoroughly with warm water for 10 to 15 seconds.

15
• You may sanitize the parts through a sterilization method of your choice after each
use.
• Parts may become damaged or deform if exposed to high temperatures for any
more than 5 minutes.
• Make sure that you check on wear and tear on tubes and all plastic or silicone
parts.
• Replace worn out or damaged parts immediately as this will affect suction.
Allow to air-dry thoroughly. Place sanitized pump parts and bottle brush on a clean,
unused dish towel or paper towel in an area protected from dirt and dust. Do not use
a dish towel to rub or pat items dry because doing so may transfer germs to the
items.
• Make sure that all parts are totally dry prior to use. Wet or damp parts will cause
poor suction. Once all parts are totally dry, re-assemble the milk collection kit.
You will need to re-assemble your milk collection kit after each cleaning.
Before assembling, the parts which directly come in to contact with breast
milk must be cleaned and sterilized before each use. These parts include;
the milk bottle, Silicone 3D Cushions, breast shield body,
diaphragm and bottle lid.

16

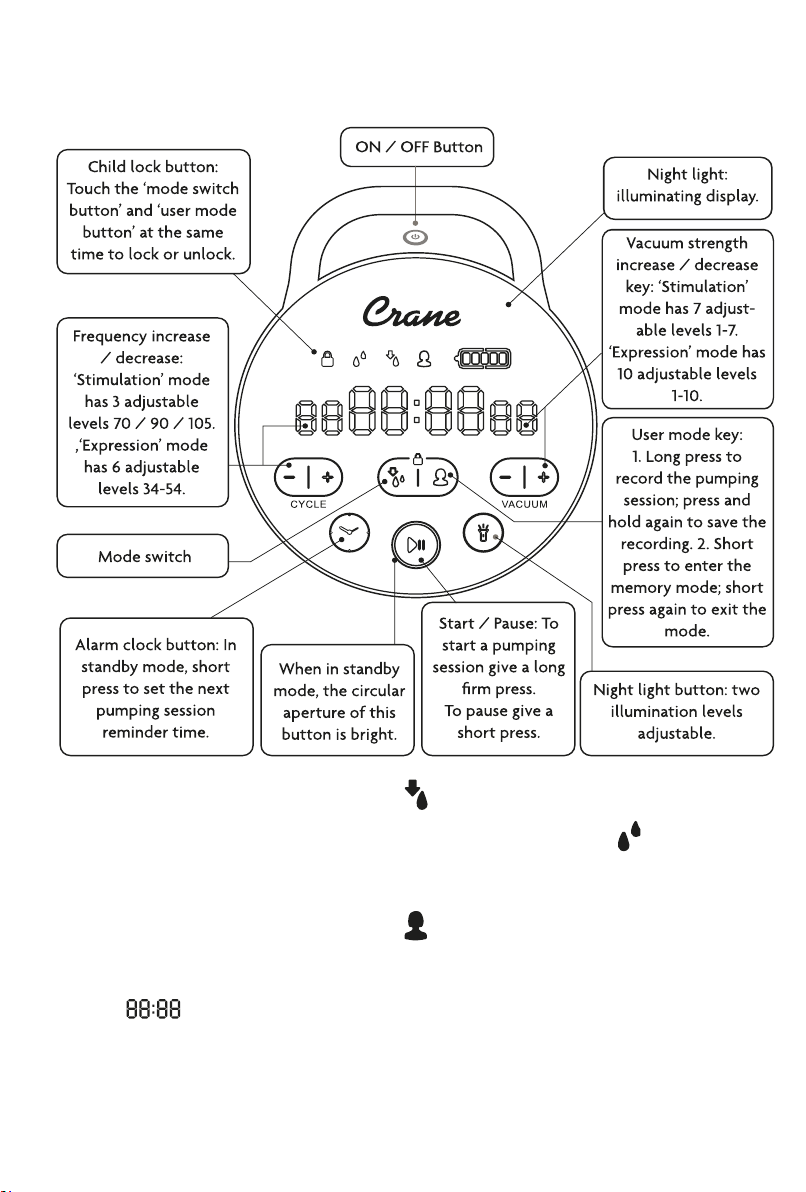

Button & Display Guide

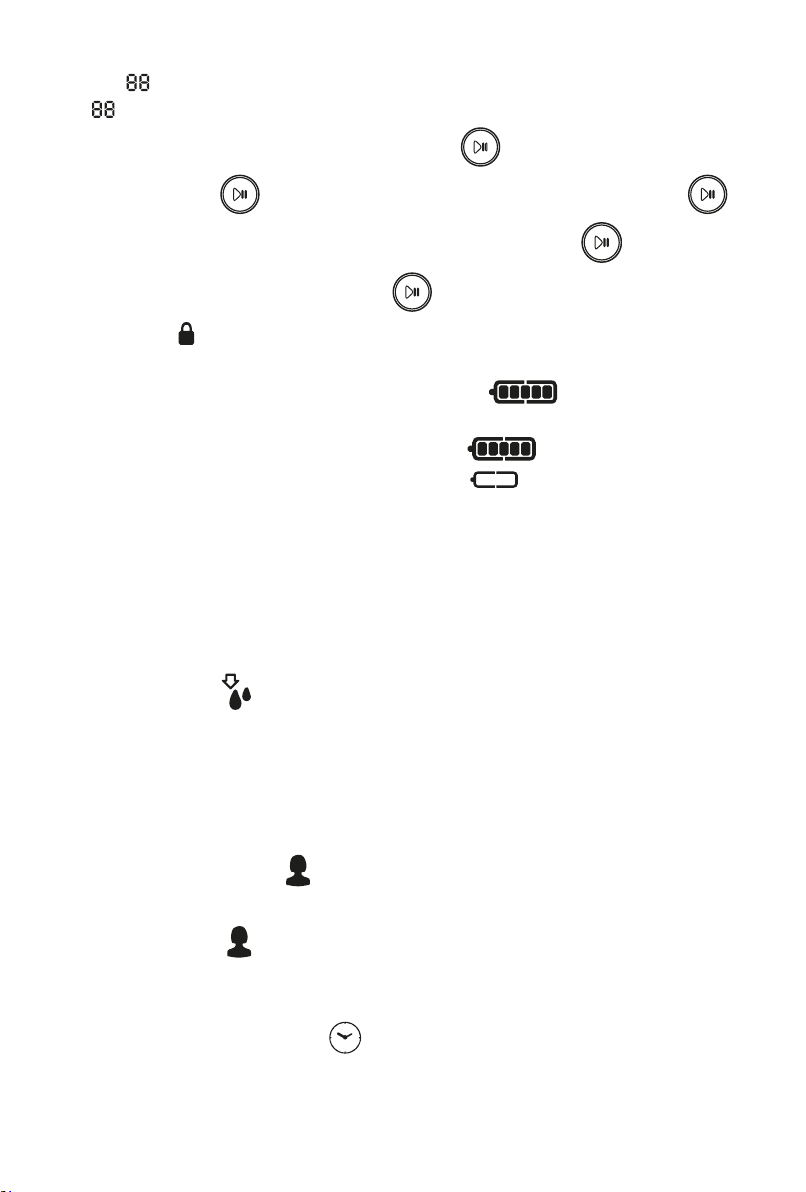

1. When the display screen lights up the , it indicates that the current mode is
the STIMULATION MODE. When the display screen lights up the ,
It indicates that the current mode is the EXPRESSION MODE. Press button to
switch the modes.
2. When the display screen lights up the , it indicates that the “user mode” is
being used for pumping. When the symbol on the display screen is flashing, it
indicates that the pumping session is currently being recorded.
3. The in the middle of the display screen indicates the duration of the
pumping session.

17
4. The on the left side of the display screen indicates the pumping speed. The
on the right side of the display screen indicates the vacuum strength.
5. When in standby mode, the outer ring of the button will light up.
6. Short press the to pause the pumping session, the outer ring of the
will keep flashing until the pause is released. Long press the to return to
standby mode, the outer ring of the will light up.
7. When the on the display screen lights up, it indicates that the child lock
function is initialized, the pump unit is in lock state.
8. When charging the Li-ion Cylindrical battery, the on the display screen
lights up, and the current power status will be displayed in real time. When
powered by the Li-ion Cylindrical battery, the lights up and displays the
current battery power status in real time. The on the display screen
flashes when the Li-ion Cylindrical battery is running out.
How to use the buttons on your pump unit
1. Press ON/OFF button on the top of the pump unit to turn on.
2. Pumping: Long press the Switch/Pause button to start pumping.
NOTE: You can manually change to Expression mode or stay in stimulation mode
by pressing the
3. Timing Function: The timer on the display will automatically start when the
pumping session starts. The timer will count up from 0- 30 minutes. After 30
minutes, the unit will stop pumping automatically.
4. User Mode: Allows you to record the pumping session to memory for further
ease of pumping sessions. Maximum recording time is 30 minutes.
1. Press and hold the to enter USER MODE to start recording the pumping
session. Press and hold again to save and exit the recording.
2. Short press to start and stop recorded pumping session.
5. Alarm Clock: Schedule your next pumping session or use as an alarm clock. In
the standby mode, press the to enter the time setting for the pumping

18
session reminder. Press the on the left side to set the hour, while the
on the right side to set the minute. After completing setting, if there is no
further operation within 3 seconds, the time will be automatically set and
countdown will be started. The pump starts ringing with buzzer for one minute
after countdown finishes. Press the to stop the buzzer.
6. Child Lock: Touch the and the at the same time to enable or disable the
child lock function. The symbol on the display screen lights up, it indicates child
lock is on.
7. Night Light Function: Touch the to switch on the night light. There are two
lighting levels to choose from. Press the button once to enable the lighting level
1, press twice to enable level 2, press again to turn off the light function.
Preparing to pump
So, your pump is clean, sterilized, assembled and you’ve familiarized yourself with
the controls. Now it’s time to start pumping.
Be prepared - Make sure you have everything you need for the 30 minutes or so.
Have a glass of water and a snack in arms reach a cloth for any spills. Do you have
your phone charged, or something else to read, watch or listen to.
You can do this! Take a breath and relax. Whether this is your first time using your
pump or you’ve done it many times…just take a moment to relax, think about your
baby and know you’ve got this.
See & hear your baby - Many moms find that pumping is more successful if they
have the right sensory cues. Watching a video or seeing a picture of your baby may
be enough to help your milk let down. Listening to a recording of your baby or having
an item of clothing that has their smell may also help to get your milk flowing.
The power of routine - Your body will also respond to the familiarities of how and
where you pump, so expressing at the same times of day helps your body know what
is expected.
Get comfortable –Pumping where you normally feed your baby can be a good cue
for your body. Try to choose a chair or position that takes care of your neck and back.
Supporting your breast with a cushion may help too, particularly if you are expressing
from both breasts at once and need a hand free.

19
Using Your Crane Pump
Remove the dust cover –Always remove the dust cover before you start to pump.
Position the breast shield - Massage around your breast, then position your nipple in
the center of the silicone 3D cushion.
Pumping Mode - Switch on your pump, starting with the stimulation mode icon to
encourage letdown. Once your milk begins to flow (usually after a couple of
minutes), switch to an expression mode icon
Finding the right settings for you:
• When using your pump for the first few times, experiment with the different
expression setting (-/+) to find the one that works well for you.
• If your milk flow begins to drop, you may find it helpful to gently massaging your
breast.
• Adjust the suction level gradually to one that is effective but still comfortable.
Don’t choose a level that’s too high and uncomfortable.
• You may find it helpful to switch between the Expression icon and stimulation icon
Phases while you are pumping.
How long to pump - Use your pump to express your milk until the breast is empty,
which is usually between 15-30 minutes.
Finishing your pumping session - When you are ready to stop expressing,
switch your Crane pump off. Ensure the pump motor is OFF before removing
the milk collection kit from your breasts.
Time to clean - Please see the instructions for rinsing and washing or sterilizing
your pump parts that have come in contact with your breast or breast milk.
Wipe your pump unit.
Double Pumping
As you learn to use your Crane Pump, you may find it easier to pump one side at a
time to begin with. Once you are confident with positioning the breast shield and
have an understanding of the controls, you can be more confident using both sides at
once. Pumping both sides at once can help increase your milk supply as well as
reduce the time needed to pump.
A cushion under one breast can help you still have one hand free to have a drink or
hold something to read. Hands free expressing bras can free up your hands if you
want to move about while you are pumping from both breasts.

20
Milk Storage

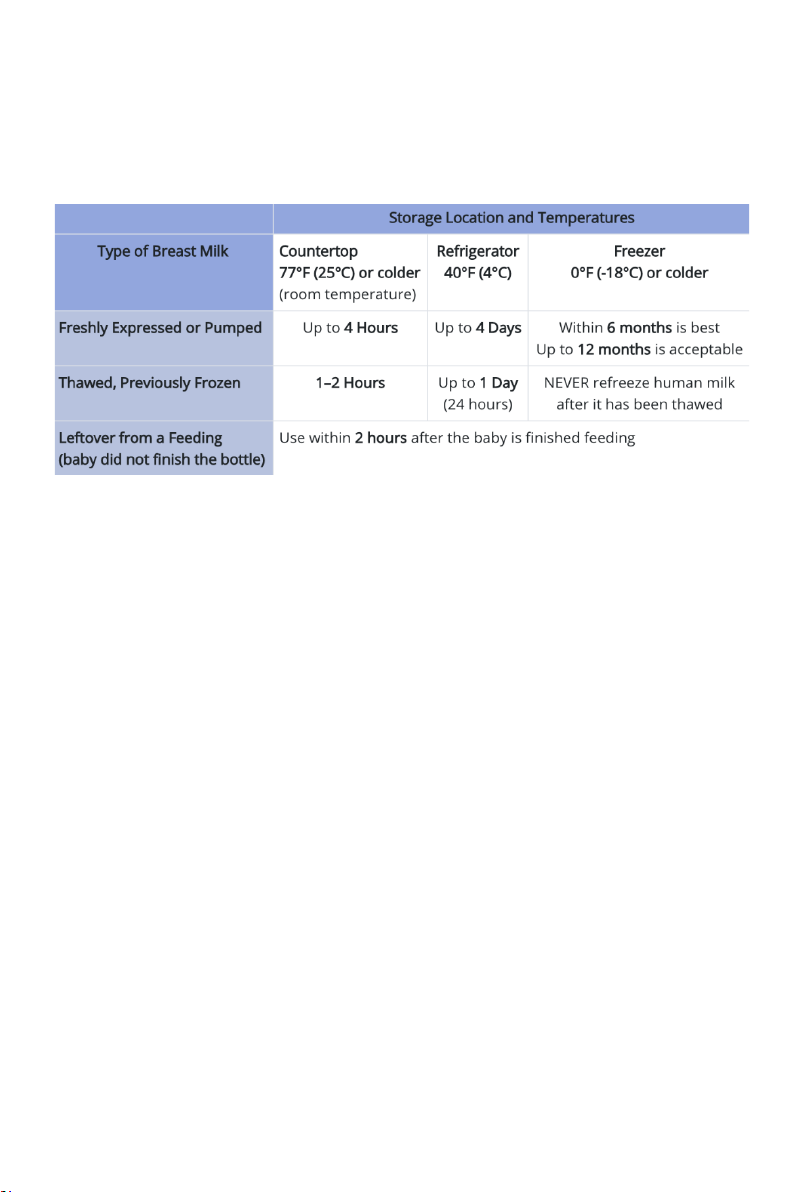

Human Milk Storage Guidelines
CRANE CUSTOMER CARE
CALL US: 1-888-599-0992 (Mon-Fri 9:00am –4:00pm CST)
EMAIL US: [e-mail]
LIVE CHAT: available at www.crane-usa.com
