TABLE OF CONTENTS
CARUM BREASTPUMP FOR HOSPITALS AND HIRE
Thank you for choosing the Carum breastpump from Ardo.
These instructions for use contain important and useful information about using the Carum.
When using electrical devices, all safety regulations must be followed. Please take your time. Read the
instructions for use through carefully before using the Carum breastpump for the first time.
The Carum is a vacuum pump that uses a double piston system. Using the control elements, every mother
can adjust the settings for the vacuum and cycle to her own needs. The vacuum does not change when
you adjust the cycle settings. The cycle also does not change when you adjust the vacuum settings. You
must be able to read and understand these instructions for use.
1. Product location in the container 4
2. Intended Use 5
2.1. Indications 5
2.2. Contraindications 5
3. Safety Instructions 5
4. Product Description 7
5. Start-up / Operation 8
5.1. Key 8
5.2. Start-up 9
5.2.1. Electrical connection 9
5.2.2. Connecting the pumpset (applied part) 9
5.2.3. Attaching the bottle holder 9
5.2.4. Attaching the Easy Freeze holder 9
5.3. Operation 10
5.3.1. Switching the pump on and off 10
5.3.2. Stimulation mode –
Orange background 10
5.3.3. Expression mode – Green background 11
5.3.4. "Sensitive Programme" 11
5.3.5. Triggering the let-down reflex again 11
5.3.6. Time measurement / Stopwatch 12
5.3.7. Dimmer function 12
5.3.8. Carum Battery 12
6. Useful tips 13
6.1. Expressing must never be painful. 13
6.2. Stimulating the milk let-down reflex 13
6.3. Efficient expressing 13
6.4. Increasing the volume of milk 13
7. Accessories / replacement parts 14
8. Error messages / status messages 14
8.1. Other possible faults during pumping 14
9. Cleaning / inspection / maintenance 15
9.1. Cleaning / disinfection 15
9.2. Inspection before switching on 15
9.3. Maintenance 15
9.3.1. Inspection checklist for hiring 15
9.3.2. Inspection checklist for use in hospitals 15
10. Warranty 16
11. Technical information 16
11.1. Technical data 16
11.2. Conformity 17
11.3. EMC test record 17
12. Transport and Storage 17
13. Service life and disposal 17

en
4

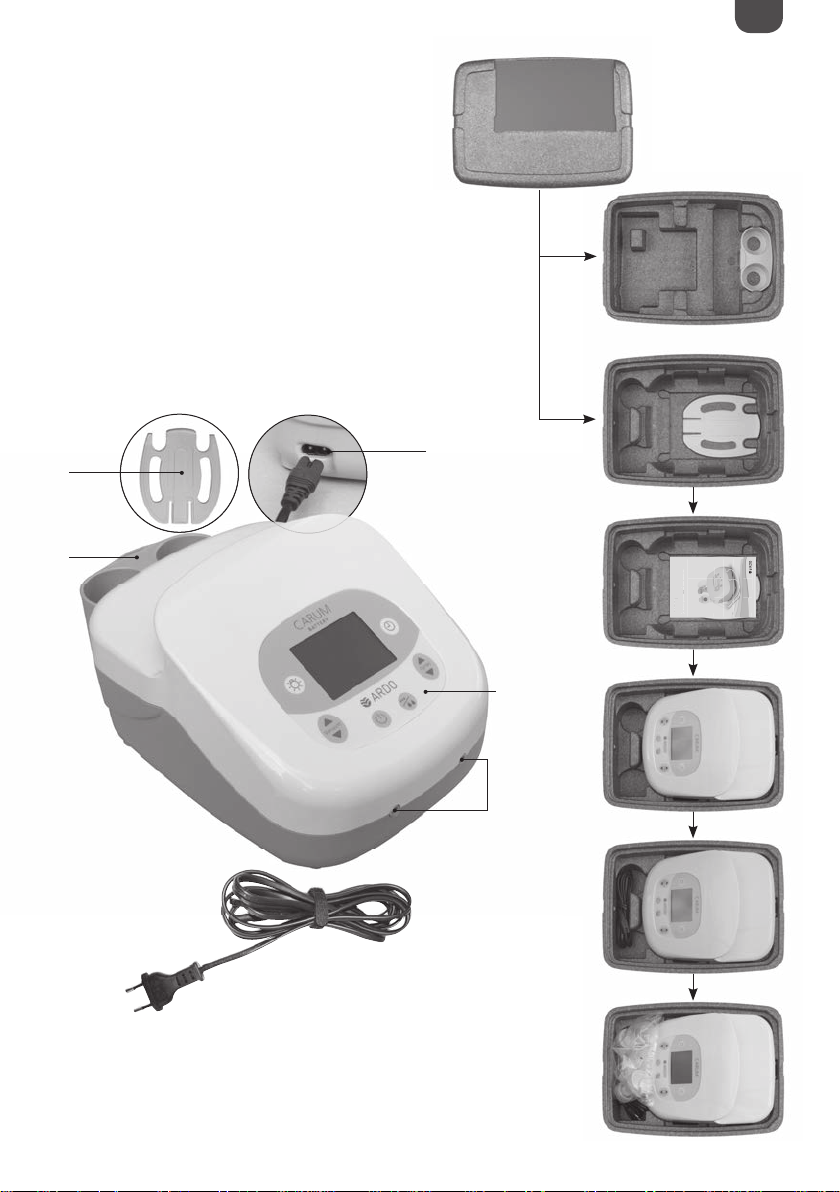

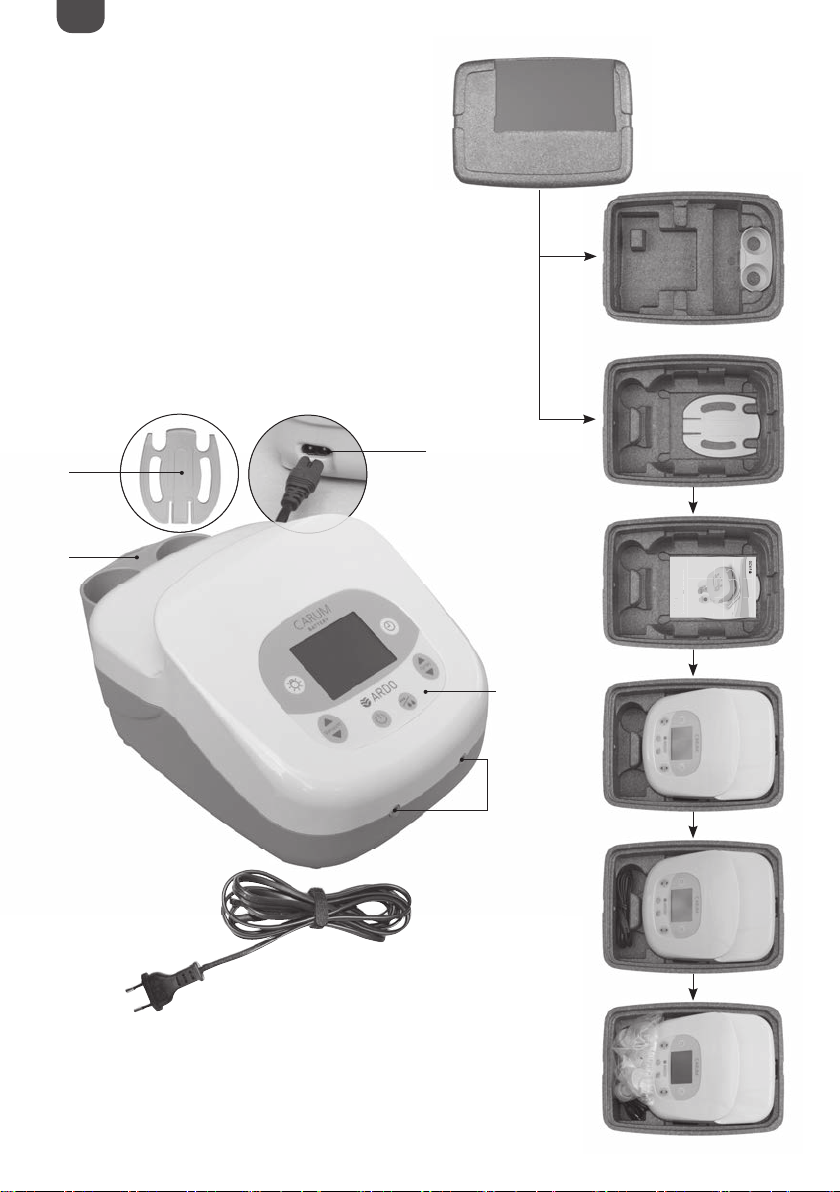

1. Product location in the container
a Carum breastpump
bConnector openings for the pumpset
c Control panel with LCD screen
d Connector for power cord
e Bottle holder
f Easy Freeze holder (holds freezer bag)
g Power cord
h Carum container
i Address field
j Pumpset (not included in the delivery contents)
kInstructions for use
g
b
f
ea
c
d
e
f
a
g
j
i
h
CARUM
Instructionsfor use | Gebrauchsanweisung | Mode d'emploi | Istruzioni per l’uso | Instrucciones de uso | Instruçõesde utilização | Gebruiksaanwijzing | Bruksanvisning | Käyttöohjeet | Instrukcja użycia | Οδηγίες χρήσης| Kullanım kılavuzu | ماﺪﺨﺘﺳﻻاتﻴﻠﻌﺗ | 使用说明
CARUM
Instructionsfor use | Gebrauchsanweisung | Mode d'emploi |
I
struzioniper l’uso | Instrucciones de uso |
I
nstruçõesde utilização |
G
ebruiksaanwijzing|
B
ruksanvisning|
K
äyttöohjeet|
I
nstrukcja użycia
|
Οδηγίες
χρήσης
| Kullanım kılavuzu |
ماﺪﺨﺘﺳﻻاتﻴﻠﻌﺗ
|
使用说明
k

en
5
2. Intended Use
2.1. Indications
The Carum breastpump is intended for use by breastfeeding women to express and collect their milk. It
can be used as a single pump or as a double pump. The device is only intended for use indoors and is
meant for several users.
2.2. Contraindications
The Carum must not be used during pregnancy because expressing milk can trigger contractions.
3. Safety Instructions
Important safety information
Please read the instructions for use carefully
before using the pump for the first time. Keep
these instructions for use in a safe place for later
reference.
The Carum is an electric breastpump for use in hospitals and for hire. For your health and safety and to
prevent damage to the device, the following safety rules must be followed.
Safety rules
DANGER: To avoid a fatal electric shock
• Only use the original power cord supplied by Ardo.
• Never use a faulty power cord.
• Never position an electrical device where it may fall into liquid.
• Never touch an electrical device that has fallen into liquid or is wet. Disconnect the device immediately
from the power supply.
• Never use a device that has fallen into liquid or is wet but send the device to a service point or the
manufacturer for inspection.
• Never use the Carum when taking a bath or showering.
• Never open the Carum! There is the risk of an electric shock.

en
6
WARNING: To avoid damage, electric shock, fire or injury
• The Carum is not intended for use outdoors.
• Never use the Carum if it is not functioning correctly, has been dropped, or is faulty.
• When using an electrical device, pay particular attention to children or people of impaired intelligence
who are nearby; electrical devices are not toys.
• You must always connect the power cord to the Carum first and then plug it into the power socket.
• Never leave the Carum unattended when it is connected to mains power supply.
• Disconnect the Carum from the mains power supply after use.
• The device is only disconnected when the power plug is removed from the power socket.
• Position the Carum so that it can be easily disconnected from the mains power supply.
• Keep the Carum as well as the power cord and all accessory parts away from hot surfaces.
• Only use the Carum for the purposes listed in the section "Intended use".
• Only use original Ardo pumpsets and original Ardo parts.
• Do not insert any objects into openings or tubes on the Carum and do not allow any objects to fall
into openings or tubes.
• Do not use the Carum in an environment in which oxygen is administered or sprays are used.
• The Carum must not be modified without the permission of the manufacturer.
WARNING: To avoid damaging your health or injuries
• Check the Carum and the associated parts before every use.
• Never use the Carum when you are sleeping or feeling tired.
• If expressing milk is uncomfortable or painful, stop pumping and ask for advice from the responsible
qualified personnel.
• Do not use the Carum if you are pregnant because expressing milk can trigger contractions.
• Follow the instructions in the relevant section "Cleaning / Inspection / Maintenance" for cleaning.
Car adapter
• The Carum and the Carum Battery are not intended for use outdoors even with the car adapter.
• Only use the original electrically protected car battery cable supplied by Ardo.
• Ensure that your car has a 12 V DC connection.
• Do not express milk while driving, even as a passenger. This may lead to an accident.
• Disconnect the Carum from the electrical system after use or after recharging.

en
7
4. Product Description
• The Carum electric breastpump is intended for use in hospitals and for hire.
• The Carum can be used for single pumping and double pumping (expressing milk from both breasts
at the same time).
• The cycles and the vacuum can be adjusted as required and independently of each other.
• The color screen provides visual orientation and the integrated stopwatch indicates the duration of
pumping.
• To mimic the natural suckling behavior of the baby, milk can be expressed in two phases using the
Carum: the stimulation mode and the actual expression mode. The stimulation mode starts the milk
flow and the subsequent expression mode enables efficient pumping of the milk.
• The Carum starts with the stimulation mode and changes independently to the expression mode after
two minutes. If required, you can switch to the expression mode early by pressing the mode button
during this two minute period.
• To stimulate the milk flow again while expressing, you can easily change back to the stimulation mode
at any time by pressing the mode button.
• The "Sensitive Programme" can be used if your nipples are sore to gently express milk with the
minimum starting vacuum and minimum cycle.
• Ardo pumpsets create a 100% hygienic barrier between the breast milk and the breastpump.
This closed system ensures that breast milk cannot end up in the tube of the pumpset or in the
breastpump itself.
• The Carum Battery contains a rechargeable battery unit.
• The Carum and the Carum Battery can be operated with mains power or with an optional car cable in
the car.
Carum Battery – the Carum with integrated rechargeable battery unit
The Carum Battery enables milk to be expressed anywhere and allows you to express milk beside the crib
of an ill or newborn baby. Being close to your baby helps with the let-down reflex.
• The running time with a fully charged battery unit is about four hours (at max. vacuum and max.
cycle). Recharging a flat battery unit takes about two hours.
• If the running time with a fully charged battery unit drops to less than one hour, the battery unit
needs to be replaced at the closest service point or the manufacturer to restore optimal operation.
• If the device is connected to the mains power, the battery unit is recharged while milk is being
expressed. The recharging time is prolonged in this case.
• If the Carum is connected to the electrical system of a vehicle via the car cable, the battery unit is not
recharged while milk is being expressed. After switching the device off, the battery unit is charged via
the electrical system of the car.

en
8
5. Start-up / Operation
5.1. Key

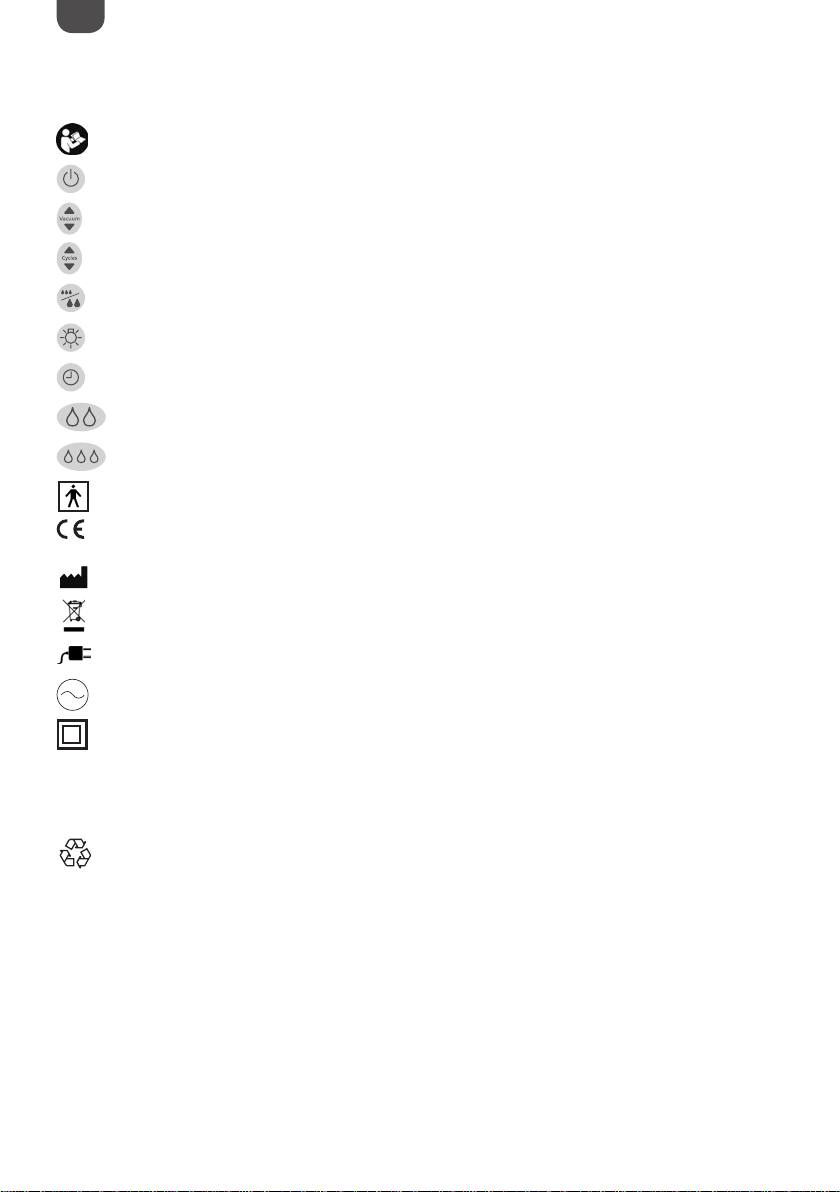

Follow the instructions for use
On / off button (stand-by button)
Vacuum button (to change the vacuum)
Cycle button (to change the cycle)
Mode button (to switch between stimulation / expression / "Sensitive Programme")
Dimmer button
Button for time measurement
Expression mode
Stimulation mode
Device with applied part BF
012
3
Conformity according to MDD 93 / 42 / EEC
Manufacturer
The device is subject to the requirements of the WEEE Directive
Power supply unit
Alternating current
Device is protection class II
IP21 Drip proof
Li-Ion Contains a lithium ion rechargeable battery unit
Device can be recycled

en
9
5.2. Start-up
5.2.1. Electrical connection

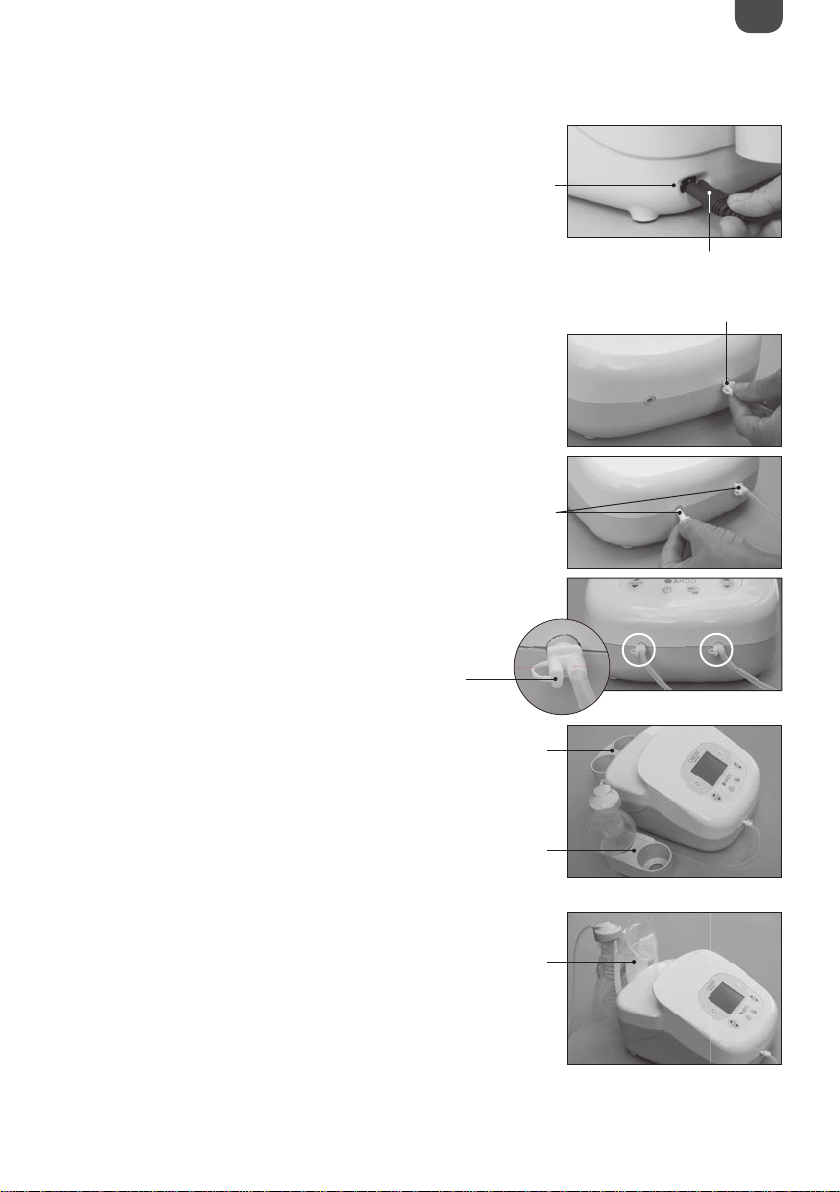

• Insert the power cord (a) into the Carum power connection (b)
and connect to the power socket.
5.2.2. Connecting the pumpset (applied part)
The use of the pumpset is described in the separate operating
instructions for the "Ardo Pumpset".
• Pumping with single pumpset:
Insert the tube connector (c) into one of the two connection
openings on the pump.
• Pumping with double pumpset:
Insert both tube connectors (d) into the connection openings
of the pump.
• The second opening (e) of the tube connector must always be
closed for both single and double pumping.
5.2.3. Attaching the bottle holder
The bottle holder (f) can be hung onto the back of the Carum or
freely positioned.
5.2.4. Attaching the Easy Freeze holder
The Easy Freeze holder (g) is used to hang a freezer bag or breast milk
bottle on the pumpset. It can be hung onto the back in place
of a bottle holder.
e
f
f
g
b
a
d
c

en
10
5.3. Operation
Vacuum and cycles can be adjusted independently of one another. Select
the setting that is most comfortable for you.
a
b
c
d
e
f
g
h
i
j
k
l
m
n
On / off button (stand-by button)
Vacuum button (to change the vacuum)
Vacuum indicator
Dimmer button
Dimmer information
Time information
Stopwatch information
Button for time measurement
Cycle indicator
Cycle button (to change the cycle)
Mode button (to switch between
stimulation / expression / "Sensitive Programme")
Expression mode
Stimulation mode
Information ribbon (n = e + f + g)
5.3.1. Switching the pump on and off
The Carum is switched on by pressing the on / off button once.
The display starts with the Welcome page. To switch the Carum off,
press the on / off button again.
00:00
Vacuum Cycles
CARUM
5.3.2. Stimulation mode – Orange background
When it is switched on, the Carum starts automatically in the stimulation
mode (orange background) with a rapid cycle and a slight vacuum. This
mode stimulates the let-down reflex. The automatic setting imitates the
natural behavior of the baby. At the start of breastfeeding, babies suckle
with rapid sucking movements and low suction strength which triggers
the flow of breast milk.
The stimulation mode lasts for two minutes and then switches
automatically to the expression mode.
The vacuum and the cycles can be increased or reduced by pressing the
buttons repeatedly or holding them down. The selected settings are
shown using bars. Adjust the vacuum and / or cycle so that you feel
comfortable.
00:00
Vacuum Cycles
CARUM
orange
00:00
Vacuum Cycles
CARUM
a
b
d
e f g
cl
m
i
h
k
j
n
