CRC STS PRO 10 User manual

STS PRO 10 Instruction Manual
DIMENSIONS
Length: 390mm
Width: 200mm
Height: 120mm
Weight (ready to run): About 1800g
DRIVETRAIN
Type: 3-belt 4WD
Transmission: 2-speed
Differentials: Front One Way / Solid Rear Axles
Clutch: Ball Clutch Set
Fuel tank: 75cc with built-in filter
Final drive ratio: 6.71(1st)/5.06(2nd)
Ball bearings: 18 pieces
CHASSIS
Type: Double deck
Bottom chassis: 3mm 7075 Aluminum machined chassis
Upper deck: Aluminum upper deck
SUSPENSION
Type: Double wishbone ball-adjustable
Shocks: Aluminum oil-filled shocks with high-low kit
Camber: Adjustable
Front Caster: Adjustable
Toe-in: Adjustable
Top-stops: Adjustable
Front/Rear Anti-roll bars: included

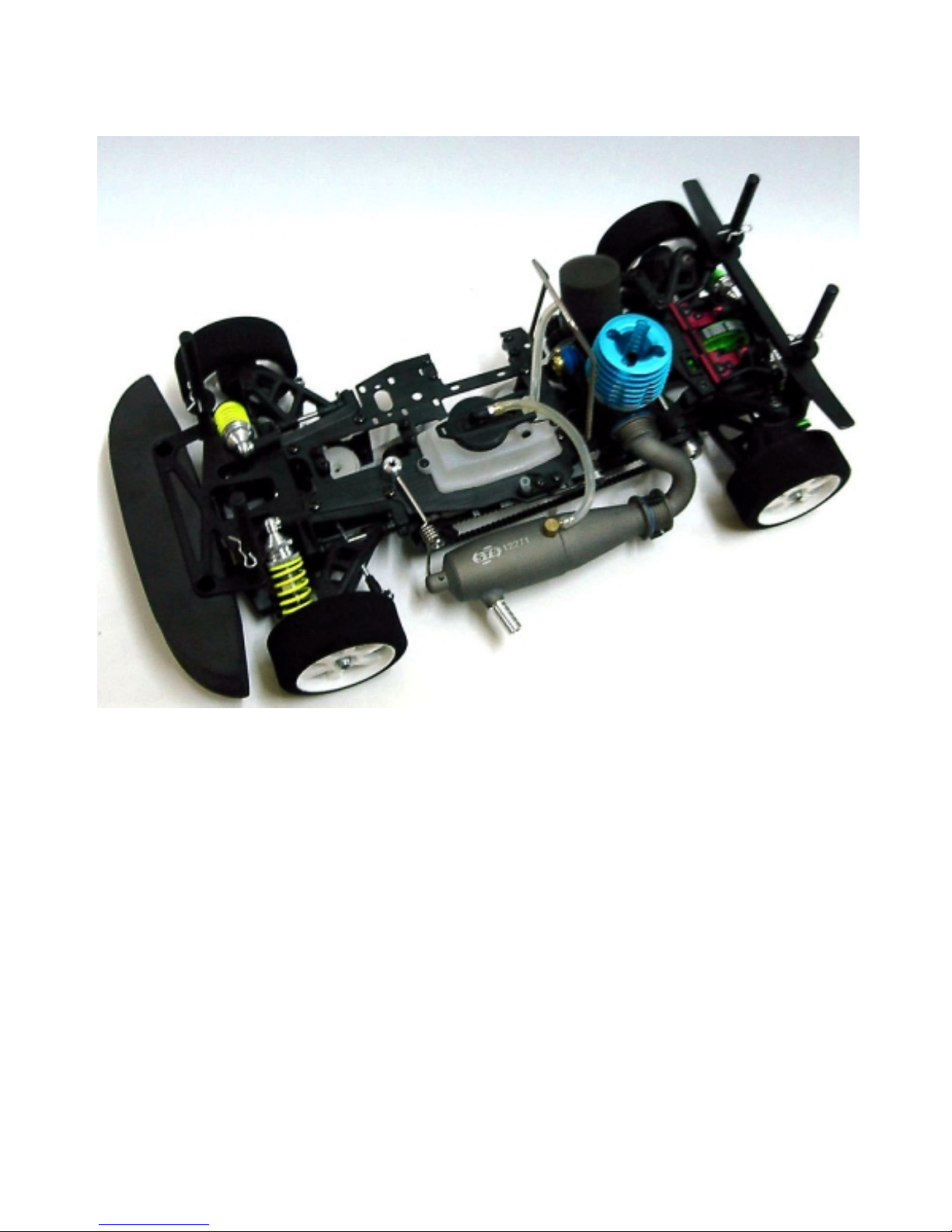

1/10 Scale 4WD 200mm Gas Power Touring Car

Additional items needed for completion.
2.11cc Exhaust Engine
.12 Pipe
Additional items needed for start engine.
Fuel & Pump
Glow Plug Igniter
Starter
Tools needed for assembly.
Phillips Type Screw Driver
( Small and Large )
Needle Nose Pliers
Pliers
Box Wrenches
( 5.5mm and 7mm)
Hexagonal Wrenches
( 1.5 / 2.0 / 2.5 / 5.0 mm)
Hobby Knife
Scissors
Double-Side Tape
Grease
Screw Lock Liquid
NOTICE :
Additional items needed for run.
200mm Body Shell Foam Tires
Before you start to assemble this kit,please read the instruction manual from start to end.
This high-performance R/C racing car is recommended for racers.If you don’t have any
experience of assembly,please request some help from your local hobby shop.
The following items are needed for completion of PRO 10.They are not included with this kit,
and should be obtained from your local hobby shop.
2 Channel Radio System

Assembly Index 1. Front Suspension (P1~P2) 2. Rear Suspension (P3~P4)
3. Front Bulkhead (P5~P6) 4. Rear Bulkhead (P7)
5. 2Speed System (P8)
7. Shock (P10) 6. Rear Arms & Anti-roll Bar (P9)
8. Rear Body Mount & Front Anti-roll Bar (P11)
9. Front Bumper & Body Mount (P12)
10. Servo Assembly (P13)
11. Radio Plate (P14~P15)
13. Pipe &Engine Mount (P17)
12. Clutch (P16)

69 M3*3mm SET SCREW X1
178 10*19*5mm BALL
BEARING X2
256 2*9mm PIN X1
255 4mm NYLON NUT X1
1
243
178 78
73
73
178
110
256
245
255
69 M3*3
73 KING PIN X2
78 FRONT RIGHT UPRIGHT X1
80 FRONT UPPER RIGHT ARM X1
82 FRONT LOWER RIGHT ARM X1
110 ADJUSTING NUT X2
243 FRONT AXLE SHAFT X1
245 FRONT ALU. WHEEL ADAPTER X1
5m/m Hexagonal Wrenches
(Not Included)
2.5m/m Hexagonal Wrenches
(Not Included)
80
82
1. Front Suspension

2
110
73
73
178
178
79
243
5m/m Hexagonal Wrenches
(Not Included)
2.5m/m Hexagonal Wrenches
(Not Included)
255 256
69 M3*3
245
M3*3mm SET SCREW X1
10*19*5mm BALL
BEARING X2
4mm NYLON NUT X1
255
256 2*9mm PIN X1
178
69 73 KING PIN X2
79 FRONT LEFT UPRIGHT X1
81 FRONT UPPER LEFT ARM X1
83 FRONT LOWER LEFT ARM X1
110 ADJUSTING NUT X2
243 FRONT AXLE SHAFT X1
245 FRONT ALU. WHEEL ADAPTER X1
81
83

3
111
166
244
178 178
92
73
110 5m/m Hexagonal Wrenches
(Not Included)
256
246 255
69 M3*3
96
69 M4*4
233
94
69 M4*6
69 M4*4
2.5m/m Hexagonal Wrenches
(Not Included)
255
256
178
69
4mm NYLON NUT X1
M3*3mm SET SCREW X1
M4*6mm SET SCREW X1
2*9mm PIN X1
10*19*5mm BALL
BEARING X2
73 KING PIN X2
92 REAR UPRIGHT X1
94 REAR UPPER RIGHT ARM X1
96 REAR LOWER RIGHT ARM X1
110 ADJUSTING NUT X2
111 REAR UPRIGHT BALL X1
166 CAP SCREW M4*0.7mm X1
233 REAR ANTI-ROLL BAR BALL TUD X1
244 REAR AXLE SHAFT X1
246 REAR ALU. WHEEL ADAPTER X1
2. Rear Suspension
M4*4mm SET SCREW X2

4
95
69 M4*4
233
93
69 M4*4
69 M4*6
110
73
178
92
244
166
111
5m/m Hexagonal Wrenches
(Not Included)
256
69 M3*3
255 246
2*9mm PIN X1
4mm NYLON NUT X1
255
256
10*19*5mm BALL
BEARING X2
M4*6mm SET SCREW X1
178
69
73 KING PIN X2
92 REAR UPRIGHT X1
93 REAR UPPER LEFT ARM X1
95 REAR LOWER LEFT ARM X1
110 ADJUSTING NUT X2
111 REAR UPRIGHT BALL X1
166 CAP SCREW M4*0.7mm X1
233 REAR ANTI-ROLL BAR BALL TUD X1
244 REAR AXLE SHAFT X1
246 REAR ALU. WHEEL ADAPTER X1
2.5m/m Hexagonal Wrenches
(Not Included)
M4*4mm SET SCREW X2
M3*3mm SET SCREW X1

5
241
179
168
190 24T Pulley
241
179
242
168
179
241
190 24T Pulley
179
241
168
179
O-RING 11*1.8MM X1
BALL BEARING
12*18*4 X2
84 FRONT RIGHT BULKHEAD X1
85 FRONT LEFT BULKHEAD X1
172 4mm FRONT DRIVE BELT 3M192UG X1
190 24T PULLEY X1
241 INNER DRIVE JOINT X2
242 FRONT ONE-WAY DRIVE AXLE X1
247 CHASSIS X1
164 B/H TAPPING SCREW 3.5*12mm X6
164 3.5*12
172
247
84
85
3. Front Bulkhead

126 3*54mm FRONT UPPER SUS. SHAFT X2
3*88mm FRONT LOWER SUS. SHAFT X2
6
188 23T PULLEY
69 M4*4
122
61 E-7
65
65 61 E-5
61 E-7
188 16T PULLEY
69 M4*4
122
69 M4*6
69 M4*4
69 M4*4
145
145
145
145
126
B/H TAPPING SCREW 3.5*12mm X4
164
61 E-RING 5mm X1
E-RING 7mm X2
65 BALL BEARING 6*13*5 X2
69 M4*4mm SET SCREW X6
74 FRONT DRIVE SHAFT X2
86 MIDDLE SHAFT BRACKET X1
121 MIDDLE SHAFT X1
122 ALU. PULLEY ADAPTOR X2
188 PULLEY SET 16T/23T X2
145 ADJUST PART X1
74
74
86 164 3.5*12
M4*6mm SET SCREW X2

7
62
51 3*10mm
Knock pin to the limit.
108 2.5*19.8mm
179
179
191 46T
PULLEY
109
64 23T
PULLEY
118
88
66
67 M3*8
164 3.5*12
55
65
59
56 3*12.8
164 3.5*12
54 SIDE PULLEY 19T X1
55 2 SPEED SHAFT X1
57 ALU. COLLAR BRAKE-PULLEY X1
59 BRAKE DISK X1
60 BRAKE PAD & PLATE 2X2
62 BRAKE PULLEY ADAPTER X1
64 BRAKE PULLEY 23T X1
66 BRAKE CAM X1
88 BRAKE BRACKET PARTS X1
97 REAR BULKHEAD L X1
98 REAR BULKHEAD R X1
109 REAR SOLID AXLE X1
118 BRAKE BAR SET X1
122 SIDE PULLEY ADAPTER X1
174 6mm REAR DRIVE BELT 3M201UG X1
191 REAR PULLEY 46T X1
60
54 19T PULLEY
61 E-7
122
69 M4*4
57
69 M4*4
97
98
174
69
164
108
67
65
61
56
51
M4X4mm SET SCREW X2
B/H TAPPING SCREW 3.5*12mm X6
PIN 2.5*19.8mm X2
R/H SCREW M3*8mm X1
GUIDE PIN 3*10mm X2
BALL BEARING
6*13*5mm X1
E-RING 7mm X1
PIN 3*12.8 X1
BALL BEARING
12*18*4mm X2
179
4. Rear Bulkhead

8
58
143
46 43T
47
45
40
38
39 47T
44 45
45
FLANGE BALL BEARING
6*10*3mm X2
38 ALU. REVERSE NUT X1
39 1st. GEAR 47T X1
40 1st. GEAR HOUSING X1
44 2nd. GEAR HOUSING X1
46 2ND. GEAR 43T X1
47 ALU. NUT X1
48 M3*16
50 33
43
42
43
33 48 M3*16
50
68 M6*7
37
1.5mm
0.5mm
37
68 M6*7
P/N 38 is a reverse nut.
56 3*11.8
68
48
SET SCREW M6*7mm X2
CAP SCREW M3*16 X2
33 NYLON NUT M3mm X2
37 STEEL BALL 4.0mm X2
42 2 SPEED ADAPTOR X1
43 2 SPEED SHOE X2
65 BALL BEARING
6*13*5mm X1
58 ALU. SPACER
6*8*2.5mm X1
56 PIN 3*11.8mm X1
214 REVERSE SCREW M3*5mm X1
143 NYLON DUSTCAP X1
50 2 SPEED SHOE SPRING X2
5. 2-speed System

9
126
164 3.5*12
B/H TAPPING SCREW 3.5*12mm X2
164
75
75
REAR UPPER SUS. SHAFT 3*43mm X2
REAR LOWER SUS. SHAFT 3*64mm X2
75 REAR DRIVE SHAFT X2
91 REAR BACK PLATE X1
126
45mm
48 M4*6
167
3*10
185
88
16 232
16 232
167 B/H SCREW 3*10mm X2
48 B/H SCREW M4*6mm X2
16 BALL JOINT 3.0mm*12.8L X4
88 REAR ANTI-ROLL BAR PLATE X1
185 REAR ANTI-ROLL BAR X1
232 R. ANTI-ROLL BAR ADJUSTING ROD X2
164 3.5*16
B/H TAPPING SCREW 3.5*16mm X2
91
6. Rear Arms & Anti-roll Bar

10
REAR (Long) FRONT (Short)
5
61 E-2 13
8
716 3*12.8
3
11
2
1
15
20 21
6
9
7. Shocks
Step 1 Step 2 Step 3 Step 4 Step 5
Step 6 Step 7 Step 8

11
158
108 2.5*11.8
120
167 3*16
167 3*16 167 3*10
165 63
63
167 TP. SCREW 3*16mm X8
TP. SCREW 3*10mm X1
108 PIN 2.5*11.8 X2
165 TP. SCREW 3.5*16mm X2
210 WASHER 10*3.1*1mm X1
115
89
90
10 ALU. BUSHING X2
63 BALL STUD X4
89 REAR BODY MOUNT X1
90 REAR SHOCK MOUNT X1
115 BODY WASHER X2
116 F. ANTI-ROLL BAR HOLDER X2
120 REAR BUSHING X2
145 ADJUST PART X1
158 BODY PIN X2
251 FRONT ANTI-ROLL BAR X2
116
251
167 3*16
10
167 3*16
63
63 145
3.5*16
24mm 26mm
210
8. Rear Body Mount & Front Anti-roll Bar

12
108 2.5*11.8
115
114
165 3.5*10
165 3.5*10
259
258
255
253 M4*10
260
165 TAPPING SCREW 3.5*10mm x6
253 F/H SCREW M4*10mm X3
255 M4mm NYLON NUT X3
114 FRONT BODY SUPPORT X2
115 BODY WASHER X2
258 FRONT BUMPER PLATE X1
259 BUMPER FOAM X1
260 FRONT BODY MOUNT PLATE X1
108 2.5*11.8
165 3.5*10
PIN 2.5*11.8 X2
108
9. Front Bumper & Body Mount

13
33
144
125
16
125
146
33
16
249 33
125
36mm
30mm
R. 30mm
L. 36mm
156
145
159 15mm FUEL PIPE
167 3*10
193
69 M3*4
145
195
69 M3*4
193
167 3*10
157
16 2.0mm*20.5
33 NYLON NUT M3mm X4
69 SET SCREW M3*4mm X2
167 SCREW 3*10mm X2
16 BALL JOINT 2.6mm*20.5L X4
16 BALL JOINT 2.0mm*20.5L X1
125 BALL STUD 2.6mm X4
144 SERVO SAVER KIT X1
145 ADJUST PART X1
146 LEFT STEERING ROD X1
156 BRAKE LINKAGE ROD X1
157 THROTTLE LINKAGE ROD X1
159 FUEL PIPE X1
193 SET COLLAR X2
195 SPRING X2
249 RIGHT STEERING ROD X1
10. Servo Assembly

14
167 SCREW 3*12mm X8
167 3*12
145 ADJUST PART X1
163
69 M4*6
M4*6mm SET SCREW X2
69
145
135 RADIO PLATE MOUNT X1
161 CABLE TIES X6
163 ROLL BAR X1
248 RADIO PLATE X1
272 6V BATTERY AAA*5(Not included)
272
167 3*12
248
11. Radio Plate
135
TAPPING SCREW 3.5*10mm X2
165
165 3.5*10
161
161

15
167 3*10
153
119
159 FUEL PIPE(10mm)
69 M3*4
61 E-4
124
35
131
167 3*12
SET SCREW M3*4mm X1
SCREW 3*10mm X2
167
69
61 E-RING 4mm X1
35 FLANGE BELL BEARING
5*8*2.5mm X2
119 BELT STAND NYLON SEAT X1
124 ALU. SIDE BELT ADAPTER X1
131 FUEL TANK 75cc X1
153 TENSIONER WIRE X1
159 FUEL PIPE X1
250 DRIVE BELT SIDE 4mm 3M360UG X1
164 4.2*12
B/H TAPPING SCREW 4.2*12mm X2
164
165 TAPPING SCREW 3.5*10mm X4
165 3.5*10
250
SCREW 3*12mm X2

16
182 M3*12
24
87 32 31 7~8mm
0.5~1.0mm
27
36
30
37 29 28
34
35
71
35
101
PUSH PULL
AB
Take the measure A,pushing s/n 71 in the direction indicated.Take the
measure B,pulling s/n 71 in the direction indicated.A-B=C.
The space C should between 0.3~0.5mm.If too big,fix some s/n 87
washers.If too small,take out some s/n 87 washers.
Fix some s/n 110 washers to make some
distance between s/n 71 and s/n 28.
The s/n 71 should be rotating smoothly.
12. Clutch
230

17
253 M4*10
254
252
182 M3*12
182 CAP SCREW M3*12mm
253 F/H SCREW M4*10mm
254 ALU. WASHER
10*5*1.8mm
12271
69 M4*10
69 M4*6
69 M4*10 SET SCREW
OPTIONAL PARTS (Not included)
12127 .12 PIPE
69 M4*6 SET SCREW
106 SILICONE MANIFOLD GASKET
208 SMALL SPRINGS FOR ONE-PIECE PIPE
209 PIPE MOUNT SPRING
209
106 SILICONE MANIFOLD GASKET
155 PIPE MOUNT WIRE
209 PIPE MOUNT SPRING
252 ENGINE MOUNT
270 AIR FILTER
106
13. Pipe & Engine Mount
208
155
270
