Creative T6 Series Operating and safety instructions

© 2012 Creative Technology Ltd. All rights reserved. Creative and the Creative logo are trademarks or registered trademarks of Creative Technology Ltd in the United States and/or other countries. iPod, iPhone, iPad and Mac are trademarks of Apple, Inc., registered in the U.S. and other countries. The Bluetooth®word mark and logos are owned by Bluetooth SIG, Inc. and any use of such marks by
Creative Technology Ltd is under license. All other trademarks are the property of their respective owners and are hereby recognized as such. aptX is a trademark of CSR plc. All other trademarks are the property of their respective owners and are hereby recognized as such. All specifications are subject to change without notice. Use of this product is subject to a limited warranty. Actual contents may
differ slightly from those pictured.
AC IN
Right Satellite Speaker
Left Satellite Speaker
Audio In - To analog in
USB - USB Audio
Audio Control Pod
Bass Level Control
6
7
541
13
8 9 10
11
3
2
RL
12
1
2
3
4
5
6
7
8
9
12
11
10
13

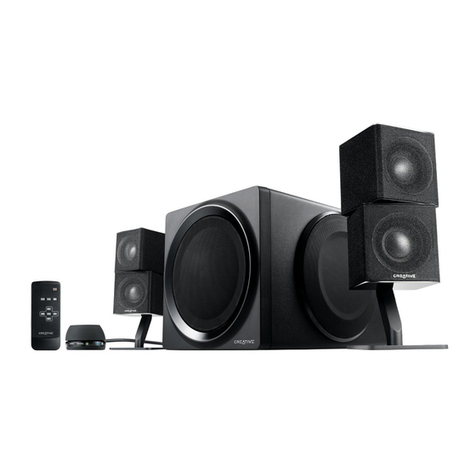

Product Overview
Note: Allow the flashing LED indicators to stop after plugging the speaker system to the mains. This indicates that the speaker system is initialized and ready to be
powered ON.
+The speaker enters power saving mode when no audio is detected for approx
10 mins. Alternatively you can power OFF and ON your speaker.
Wall-mountable satellites
Creative T6 Series II satellites are wall-mountable, for more
specific instructions on wall mounting, please consult your wall
mount adapter manufacture’s manual.
For more information, please refer to
creative.com/products/speakers/wallmount
Remote Control overview
To replace the battery in the remote control
• Depress (A) and pull out (B)
• Replace the battery with the positive polarity facing upward and push (B) back
to remote control
A
BThe remote control uses a
CR2025 3V lithium coin battery
AUDIO CONTROL POD
Headphone
Power ON/OFF +
Source
CONNECT Button - Bluetooth Pair and Connection
AUX In - Auxiliary line-in for Audio Devices
SLAMTM Subwoofer
Power
AUX Source
Volume +
Previous Track
Play/Pause
Bluetooth Stereo
Source
USB Audio
Next Track
Volume -

Connectivity diagram
C
CAux In/Line In
Windows XP Windows 7 Mac OS
BUSB PC/Mac for 5.1
1. Plug in the USB cable, wait for a series of “Found New Hardware” message to appear on
computer screen.
2. Select Creative T6 USB Audio and click Set default.
3. Switch to “USB” audio by pressing the “USB” button on remote or “Source” button on audio
control pod.
4. Play your music.
[
[• Optional (sold separately)
NOTE: Switch to Aux-In/Line In by pressing the “Aux” button on remote or
“source” button on audio control pod.
A
B
ABluetooth®
3. Turn on Bluetooth feature on your device.
4. Search for Creative T6.
5. Pair and connect to Creative T6, if prompted for password, enter 0000.
6. Pairing successful, ready to stream music.
NOTE: A Bluetooth connection will take precedence over a USB audio connection.
1. Power on the speaker and LED status indicator will show green.
2. Press and hold CONNECT button for 3 seconds while Creative
T6 Series II is ON.
Bluetooth
Network
Connections
Operator
Internet
USB
ON
ConnectivityConnectivity
Search results
Creative T6
Creative T6 Creative T6
PASSCODE
0000
CONNECTED
i. ii. iii. iv.
Enjoy audio from Stereo Bluetooth devices
1. Power OFF the speaker.
2. Press and hold Power button for 7 seconds.
3. Creative T6 will auto Power up. When the Blue LED starts to blick, Creative T6
is ready for pairing.
Reset to factory setting
To stop streaming music from the BT-D1 to your receiving Bluetooth device,
simply either plug out the BT-D1 or press the CONNECT button once. Pressing
once more will reconnect the BT-D1 back to its last connected Bluetooth device.
● To disconnect from the BT-D1
1. Power ON the speaker by pressing the Power ON/OFF button.
2. Insert the BT-D1 into PC/Mac USB port.
3. Wait for computer to install hardware.
4. BT-D1 connected when speaker LED shows steady Blue.
NOTE: A Bluetooth connection will take precedence over a USB audio connection.
● Connect your BT-D1 to your speaker
1. LED status indicator.
2. Multi function CONNECT button.
● Enjoy high performance wireless audio via BT-D1
1
2
BT-D1 Bluetooth®Audio Transmitter
1. Press and hold CONNECT button for 3 seconds while Creative T6 is ON.
2. Put the BT-D1 into pairing mode for pairing.
3. Press and hold the CONNECT button (BT-D1) for 3 seconds then release.
Wait for LED pattern to turn from Pairing pattern to Connected pattern.
4. Ready to stream music from computer.
● To established a new connection between BT-D1 with
Creative T6
For Mac OS:
a) Go to “System Preferences” ,
choose “Sound”
b) Choose the Output tab, select
“Creative Bluetooth®Audio D1”
. . .
. . .
Pairing
Connected (2 sec blink interval)
