Creda HBD130G Parts list manual

Note: Ensure that the oven is securely fixed to the
cabinet before use.
Users Instruction & Installation Book for:
This appliance shall be installed in accordance with
the regulations in force and only used in a well
ventilated space.
Read the instructions before installing or using the
appliance and retain them for future use
Cordialle Gas
Built in

2
For more information on our exciting product range ring
Creda Answer Centre 0541 54 64 74
OR
Visit us on the NET at
http://www.creda.co.uk
General Domestic Appliances Ltd. Morley Way Peterborough PE2 9JB
Creda Answer Centre 0541 54 64 74
Web http://www.creda.co.uk
It may be necessary from time to time to change the specification outlined in this booklet with-
out notice. Any change which is made will not affect your statutory rights.
Our site invites you to make use of our interactive cookbook and product selector. Feel
free to browse our product range to see what’s bubbling away at the moment or to ask
for help on our products and services

Introduction 4
CONTENTS
For Your Safety – Always 5
For Your Safety – Never 6
Features 7
Controls 8
Clock/Minute Minder Operation 9-10
Grill Pan and Handle 11
Using The Grill 12
Using the Oven 13-15
Care and Cleaning 18-20
Oven Cooking Charts 16-17
Installation 21-27
Something Wrong? 28
Service Back Cover
3
DISPOSAL OF YOUR PRODUCT
To minimise the risk of injury to children please dispose of your product carefully and
safely. Remove all doors and lids (where fitted). Remove the mains cable (where
fitted) by cutting off flush with the appliance and always ensure that no plug is left in a
condition where it could be connected to the electricity supply.
To help the environment, Local Authority instructions should be followed for the
disposal of your product.

INTRODUCTION
Your new cooker is guaranteed* and will give lasting service. This guarantee is only applicable if
the appliance has been installed in accordance with the installation instructions detailed in this
booklet.
To help make best use of your cooking equipment,
please read this booklet carefully.
The cooker is designed specifically for domestic use and responsibility will not be accepted for use
in any other installation.
When first using the cooker ensure that the room is well ventilated (e.g. open a window or use an
extractor fan) and that persons who may be sensitive to the odour avoid any fumes. It is suggested
that any pets be removed from the room until the smell has ceased. This odour is due to any
temporary finish and also any moisture absorbed by the insulation.
* The guarantee is subject to the provisions that the appliance:
(a) Has been used solely in accordance with the Users Instruction Book.
(b) Has been properly connected to a suitable supply voltage and gas supply as stated on
the Data badge attached to this equipment.
(c) Has not been subjected to misuse or accident or has not been modified or repaired by
any person other than the authorised employee or agent.
(d) Has been correctly installed.
4
This appliance conforms to the following EEC Directives:
Low Voltage Equipment Gas Appliances
73/23/EEC 90/396/EEC
93/68/EEC
Electromagnetic Compatibility
89/336/EEC
92/31/EEC
93/68/EEC

FOR YOUR SAFETY
When used properly, your appliance is completely safe but as with any
product there are certain precautions that must be observed.
PLEASE READ THE PRECAUTIONS BELOW BEFORE USING YOUR
APPLIANCE.
ALWAYS
●Always make sure you remove all packaging and literature from inside the oven
and grill compartments before switching on for the first time.
●Always make sure you understand the controls prior to using the appliance.
●Always keep children away from the appliance when in use as the surfaces will get
extremely hot during and after cooking.
●Always make sure all controls are turned off when you have finished cooking and
when not in use.
●Always stand back when opening an oven door to allow any build up of steam or
heat to disperse.
●Always use dry, good quality oven gloves when removing items from the
oven/grill.
●Always take care to avoid heat/steam burns when operating the controls.
●Always turn off the electricity supply at the wall switch before cleaning and allow
the appliance to cool.
●Always make sure the shelves are in the correct position before switching on the
oven.
●Always keep the oven and grill doors closed when the appliance is not in use.
●Always take care when removing utensils from the grill when the oven is in use as
the contents may be hot.
●Always keep the appliance clean as a build up of grease or fat from cooking can
cause a fire.
●Always follow the basic principles of food handling and hygiene to prevent the
possibility of bacterial growth.
●Always keep ventilation slots clear of obstructions.
●Always refer servicing to a CORGI registered service engineer.
5

FOR YOUR SAFETY
NEVER
●Never leave children unsupervised where a cooking appliance is installed as all
cooking surfaces will be hot during and after use.
●Never allow anyone to sit or stand on any part of the appliance.
●Never store items above the appliance that children may attempt to reach.
●Never remove the oven shelves whilst the oven is hot.
●Never heat up unopened food containers as pressure can build up causing the
container to burst.
●Never store chemicals, food stuffs or pressurised containers in or on the appliance,
or in cabinets immediately above or next to the appliance.
●Never use the appliance as a room heater.
●Never use the grill to warm plates.
●Never dry any items on the oven doors.
●Never allow children to play with the controls.
6
NOTE: The use of a gas cooking appliance results in the production of heat and moisture
in the room in which it is installed. Always Ensure that the kitchen is well ventilated; keep
natural ventilation holes open or install a mechanical ventilation device (mechanical
extractor hood).
In particular, when using the grill or more than one hotplate burner, open a window if a
mechanical ventilation device is not operating.

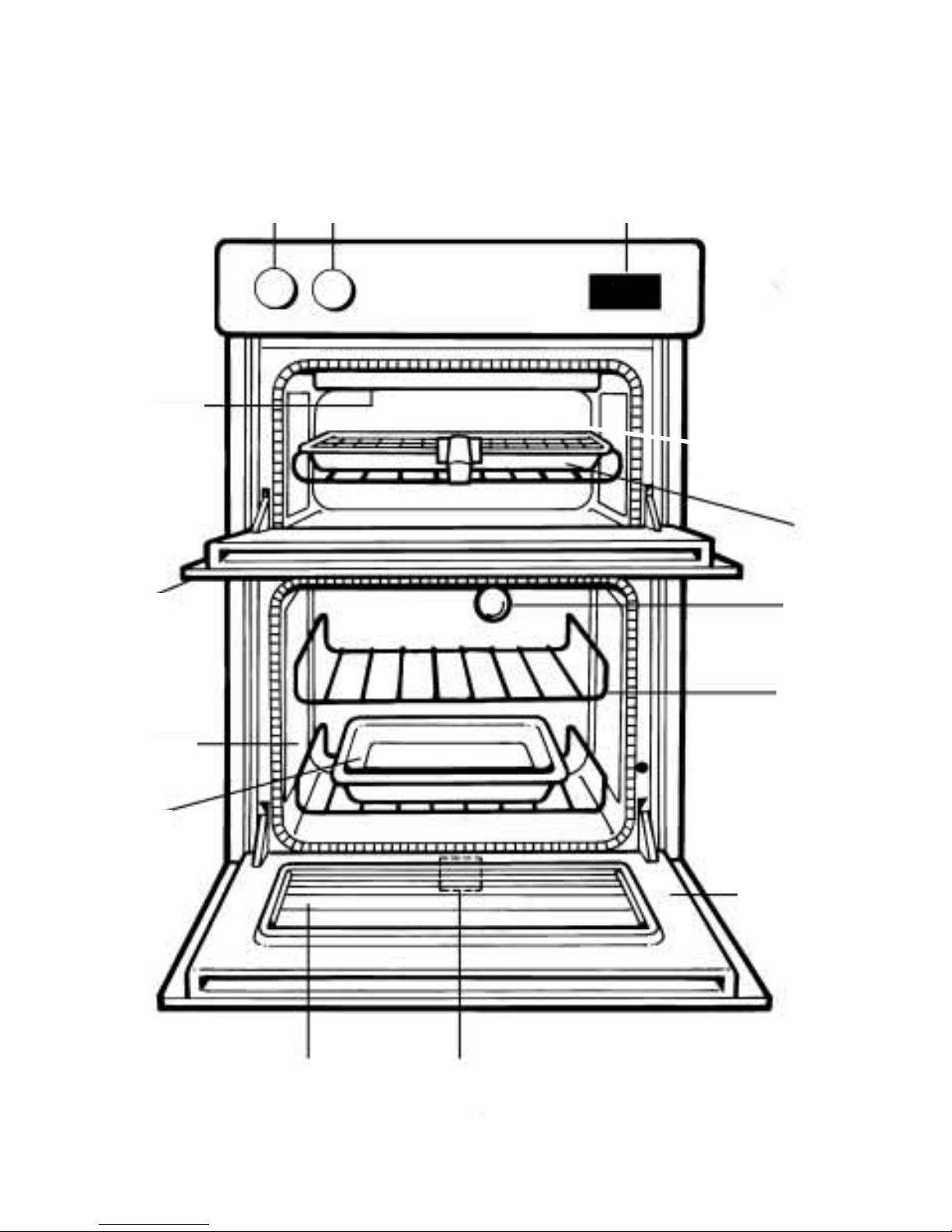

FEATURES
7
GRILL
CONTROL CLOCK/MINUTE MINDER
GRILL PAN
Grill DOOR OVEN LIGHT
OVEN SHELF
DATA BADGE – Record the Model No. and the Serial
No. on the Service Page.
OVEN
TEMPERATURE
CONTROL
GRILL BURNER
STAY CLEAN LINER
MEAT PAN
INNER DOOR GLASS
OVEN DOOR

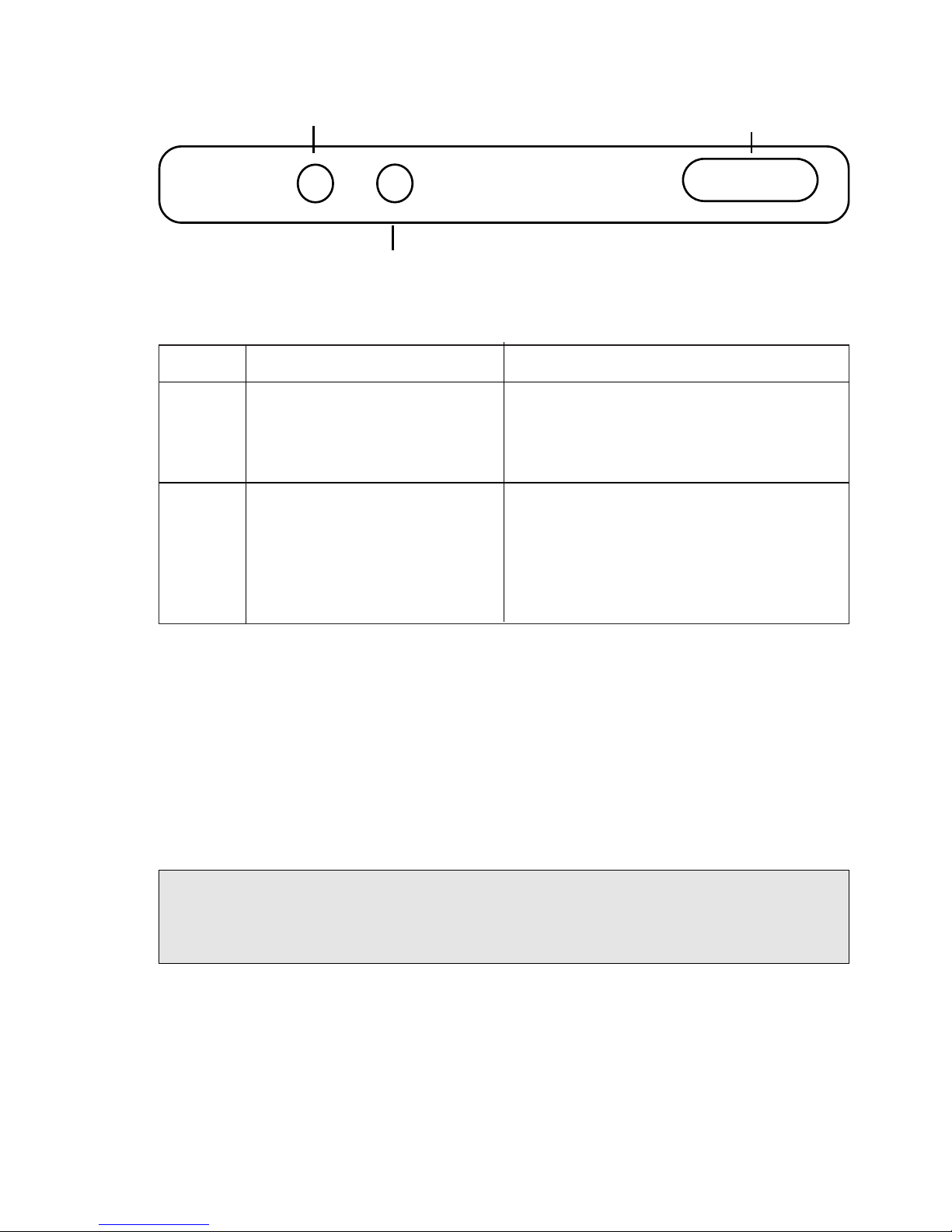

CONTROLS
CONTROL MARKINGS
Note: It is advisable to check that all controls have been switched off when you have
finished using the appliance.
8
Control
Knob Description
Oven Temperature Control
Grill Control
A
B
Function
Push in and turn the control knob fully
anti-clockwise, wait for the oven burner to ignite,
and then turn to the required gas mark number.
Note: The oven burner will only operate when the
door is closed.
Push in and turn the control knob anti-clockwise
to the large flame symbol. Wait for the burner to
ignite, and then turn to the required setting.
AB
OVEN TEMPERATURE CONTROL CLOCK/MINUTE MINDER
GRILL CONTROL
Cooling Fan:
A gentle flow of air will be blown below the control panel when any control is used.
Note: Whenever the appliance has been used, the cooling fan may continue to run or restart
itself after all the controls have been turned off. This indicates that the appliance is still warm.
Oven Interior Light
The oven light is operated when the oven control is used.
"E" Setting
The oven has a “E Setting” this can be used for slow cooking, keeping food warm and
warming plates for a short period.

CLOCK/MINUTE MINDER OPERATION
9
CLOCKFACE
The timer incorporates a 24 hour clock.
Ensure the correct time of day is always set before using your
cooker.
PLEASE NOTE THAT THE DISPLAY WILL DIM BETWEEN 22.00 HOURS
AND 06.00 HOURS TO PREVENT GLARE.
However, should you operate the timer during these hours the
display will return to normal brightness for a few seconds and then
dim again.
SYMBOLS
will light up when you select a Minute Minder Period and will
remain lit for the period set. At the end of the Minute Minder Period,
the timer will emit an audible tone for 2 minutes, the symbol will
start to flash and will continue to flash until the Minute Minder function
is cancelled.
NB.
If at any time the display shows a ‘KEY’ symbol, the operation of the
timer is unaffected.
The ‘KEY’ symbol can be deleted by pressing both buttons for a period
of approximately 8 seconds, followed by a single press of the ‘+’ button.

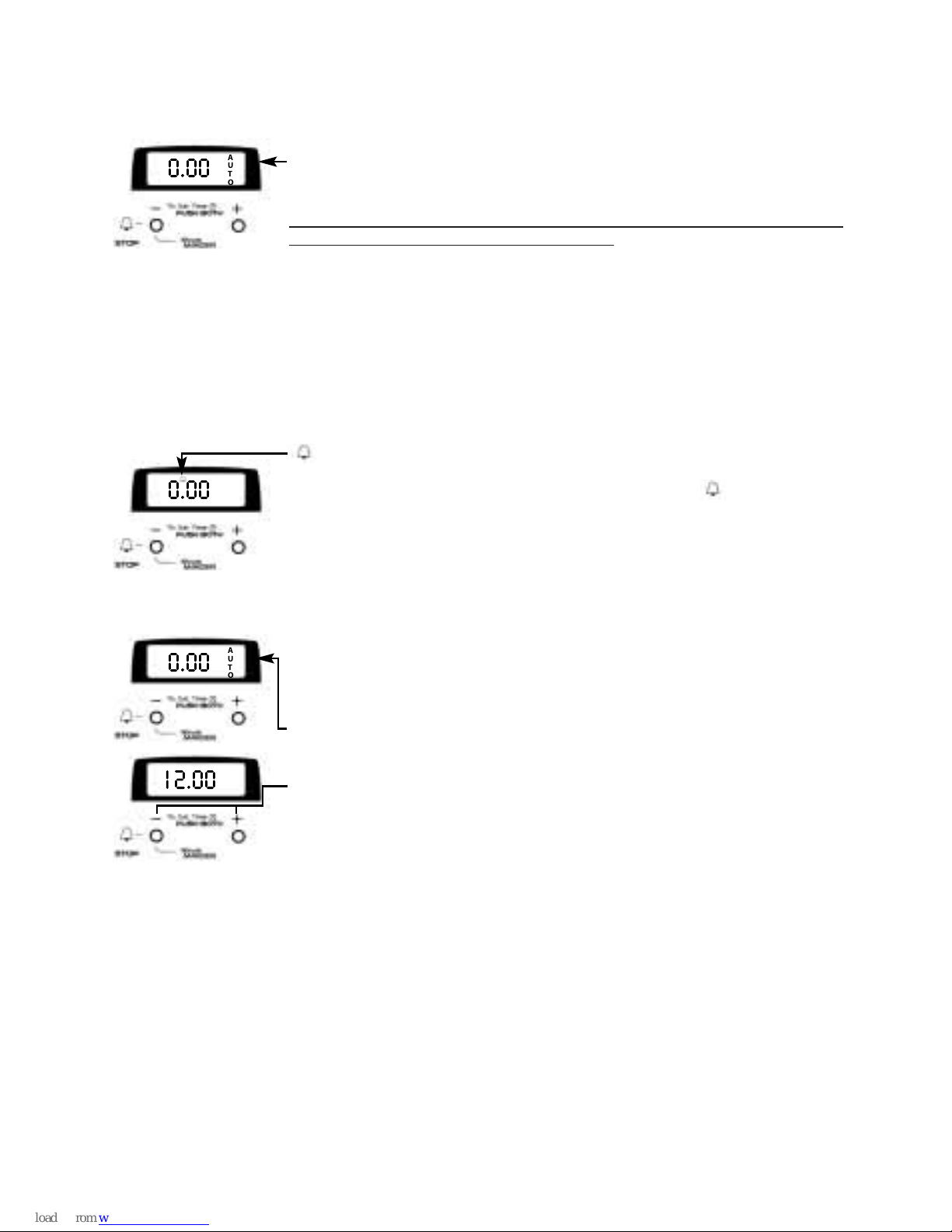

SETTING THE TIME OF DAY
Step 1 Make sure all oven controls are turned off.
Step 2 Check the electricity supply to the cooker is turned on.
Step 3 When switched on, the display will show 0.00 / AUTO.
THIS NEXT STEP SHOULD BE COMPLETED WITHIN 4 SECONDS...
Step 4 Press and release both the ‘+’ and ‘-’ buttons together.
Press the ‘+’ button and the display will show 12.00
Then press the ‘+’ or ‘-’ button to set the correct time of day.
THE TIME OF DAY IS NOW SET.
To change the time of day repeat Step 4 above.
0.00
A
U
T
O
0.00
A
U
T
O
0.00
A
U
T
O
12.00

CLOCK/MINUTE MINDER OPERATION
10
TIMER FUNCTION BUTTONS
Minute Minder
Here you can set a time period of up to 23 hours 59 minutes, that will
count down. When it reaches zero, the timer will emit an audible tone.
For Example: If you set 20 minutes, the audible tone will occur 20
minutes later.
SETTING THE MINUTE MINDER
Step 1 Ensure the time of day is set correctly.
Step 2 Press and release the ‘-’ button, a symbol will light up.
Step 3 Within 4 seconds press the ‘+’ button to set the correct
period of time required.
Release the ‘+’ button.
The time is set and will continue to count down and the symbol will
be lit.
At the end of the set time a bleeping sound will be heard and the
symbol will flash for approximately 2 minutes.
After approximately 2 minutes the bleeping sound will stop.
To cancel the symbol flashing, press the ‘-’ button once.
Step 4 To cancel the bleeping sound and the symbol, within the
2 minutes, press the ‘-’ button.
To cancel the minute minder period press the ‘-’ button.
Press the ‘-’ button again until the display shows 0.00
After 5 seconds the display will return to the time of day.
If at any time the display shows flashing zero’s / AUTO, it is likely that
the electricity supply has been interrupted.
Reset the timer to the correct time of day.
NOTE: WHEN THE MINUTE MINDER HAS BEEN SET, THE DISPLAY
WILL REVERT TO SHOW THE TIME OF DAY.
ANY REMAINING TIMED PERIOD CAN BE VIEWED BY
PRESSING THE ‘-’ BUTTON.
13.23
0.20
Bell Symbol
