Crest Audio DM-NAX-8ZSA User manual

DM-NAX-8ZSA QuickStart
DM NAX™ 8-Zone Streaming Amplifier
The Crestron® DM-NAX-8ZSA is a next generation Audio-over-IP (AoIP) amplifier that puts Crestron multiroom audio distribution on the network.
Streaming services are built-in with media player access available for each stereo amplified zone.

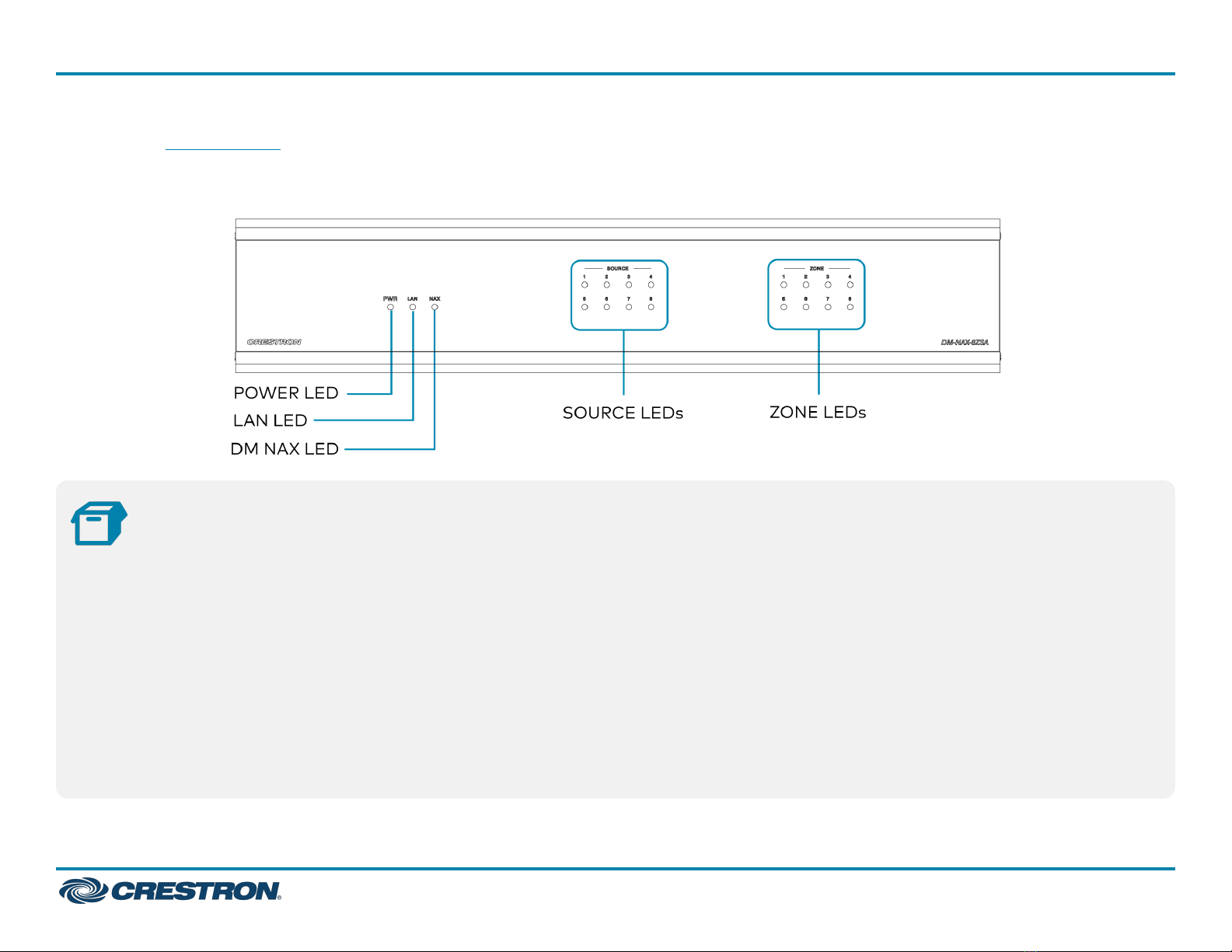

Front Panel
In the Box
1 DM-NAX-8ZSA
Additional Items
2 Bracket, Rack Ear, 2 RU (2053799)
1 Power Cord, approx. 6.5 ft (2 m) (2014835)
1 Cable, CAT6, RJ45-to-RJ-45, approx. 5 ft (1.5 m) (2036196)
16 Connector, 2-Pin (2012361)
2 Connector, 4-Pin (2003576)
3 Connector, 5-Pin (2003577)
6 Screw, 4B x 1/4 in., Pan Head, Phillips (2007195)
1

Install the Device
Refer to the Safety Instructions (Doc. 6607) prior to installation.
The device can be placed on a table or installed in a rack.
Place on a Table
Place the device on a table or stack on top of another device.
Rack Installation
This device occupies 2 RU of rack space.
To install the included rack ears:
1. Use a #1 Phillips screwdriver to remove the three screws from each
side of the front of the device as shown in the illustration.
2. Use the screwdriver and the six included 1/4 in. Phillips Pan Head
screws to attach the included rack ears to the device.
3. Mount the device into the rack using four rack mounting screws (not
included).
DM-NAX-8ZSA QuickStart
DM NAX™ 8-Zone Streaming Amplifier
2

Rack Mounting Safety Precautions
Elevated Operating Ambient Temperature: If installed in a closed or
multi-unit rack assembly, the operating ambient temperature of the
rack environment may be greater than room ambient temperature.
Therefore, consideration should be given to installing the equipment in
an environment compatible with the maximum ambient temperature
(Tma) specified by the manufacturer.
Reduced Airflow: Installation of the equipment in a rack should be such
that the amount of airflow required for safe operation of the equipment
is not compromised.
Mechanical Loading: Mounting of the equipment in the rack should be
such that a hazardous condition is not achieved due to uneven
mechanical loading.
Circuit Overloading: Consideration should be given to the connection of
the equipment to the supply circuit and the effect that overloading of
the circuits might have on overcurrent protection and supply wiring.
Appropriate consideration of equipment nameplate ratings should be
used when addressing this concern.
Reliable Earthing: Reliable earthing of rack-mounted equipment should
be maintained. Particular attention should be given to supply
connections other than direct connections to the branch circuit (e.g., use
of power strips).
Connect the Device
Make the necessary connections as called out in the following
illustration. Connect power last.
CAUTION:
lKeep the device unplugged until all of the input, network, output,
and speaker wiring is complete.
lCheck the speaker cables for shorts and frayed wiring around the
SPEAKER OUTPUTS connectors.
NOTE:
lEnsure that the unit is properly grounded by connecting the
chassis ground lug to an earth ground (building steel).
lTo prevent overheating, do not operate this product in an area
that exceeds the environmental temperature range listed in the
product specifications.
lDo not bundle power cords together with connection cables.
Doing so can result in noise.
3
DM-NAX-8ZSA QuickStart
DM NAX™ 8-Zone Streaming Amplifier

Rear Panel
4
DM-NAX-8ZSA QuickStart
DM NAX™ 8-Zone Streaming Amplifier

Digital Inputs
Refer to the following illustration when connecting digital audio sources.
NOTE: Only 2-channel PCM digital audio is supported at the digital
inputs.
Analog Inputs
Refer to the following illustration when connecting analog audio sources.
Speaker Connections
The speaker outputs can be wired conventionally or bridged together to
deliver higher output power.
NOTE: The Line Outputs 1-4 mirror their respective Speaker Outputs
1-4. These outputs can feed another amplifier or an active
subwoofer.
Conventional Wiring
Connect speakers to the DM-NAX-8ZSA as shown in the following
illustration.
5
DM-NAX-8ZSA QuickStart
DM NAX™ 8-Zone Streaming Amplifier

Bridged Wiring
Connect speaker outputs as shown in the following illustration to deliver
more power to the speakers (8 ohm speakers only).
NOTE:
lBefore wiring the speakers for bridging, ensure that the device is
configured for bridging using web UI, Crestron Home™ software,
or a Crestron SIMPL program running on a control system.
lBridging can only be done between a left and a right output
within the labeled zone.
Balanced/Unbalanced Audio Output
Refer to the following table and illustration for analog audio output pin
assignments and connection information.
Signal Name Balanced Audio Output Unbalanced Audio Output
+ L+ L+ Out
- L− Open
G Shield/ground Open
+ R+ R+ Out
- R- Open
Configure the Device
For detailed information on configuring the device, refer to DM NAX™
Product Manual (Doc. 9045).
6
DM-NAX-8ZSA QuickStart
DM NAX™ 8-Zone Streaming Amplifier

Apple® AirPlay® Setup
The DM-NAX-8ZSA supports AirPlay 2 and requires iOS11.4 or later.
AirPlay can be enabled on any of the built-in media players on the DM-
NAX-8ZSA.
To stream media from an iOS device to a speaker zone in your
distributed audio system:
1. Ensure that the iOS device and DM-NAX-8ZSA are on the same
network.
2. On the DM-NAX-8ZSA, enable AirPlay for the built-in media player
you would like to stream to, either using the web UI or programming.
For more information, refer to the DM NAX™ Product Manual (Doc.
9045).
NOTE: If the control/media and Audio-over-IP network traffic is
isolated between two network ports on the DM-NAX-8ZSA,
AirPlay will use the port specified for the Control/Media traffic.
3. On your iOS device:
a. Enable AirPlay
b. From the list of available AirPlay destinations, select the DM-
NAX-8ZSA zone you would like to stream to.
The media player will play back audio to the selected zone(s).
NOTE: By default, media players 1 - 8 route the audio signals to their
respectively numbered speaker zones 1 - 8. If the user has not
specified the speaker zone when Airplay streaming begins, the
media player will automatically route to its default speaker zone.
For example, the audio from the media player 5 will be routed to
speaker zone 5.
After the AirPlay streaming begins, you will be able to control the
volume of the streaming DM-NAX-8ZSA speaker zones directly from
your iOS device.
7
DM-NAX-8ZSA QuickStart
DM NAX™ 8-Zone Streaming Amplifier

Spotify Connect™ Setup
The DM-NAX-8ZSA supports Spotify Connect.
To configure Spotify, use your phone, tablet or computer as a remote
control for Spotify. Go to spotify.com/connect to learn how.
Spotify can be enabled on any of the built-in media players on the DM-
NAX-8ZSA.
To stream media from a device to a speaker zone in your distributed
audio system:
1. Ensure that the device and DM-NAX-8ZSA are on the same network.
2. On the DM-NAX-8ZSA, enable Spotify for the built-in media player
you would like to stream to, either using the web UI or programming.
For more information, refer to the DM NAX™ Product Manual (Doc.
9045).
NOTE: If the control/media and Audio-over-IP network traffic is
isolated between two network ports on the DM-NAX-8ZSA,
Spotify will use the port specified for the Control/Media traffic.
3. On your device:
a. Enable Spotify
b. From the list of available Spotify destinations, select the DM-
NAX-8ZSA zone you would like to stream to.
The media player will play back audio to the selected zone(s).
NOTE: By default, media players 1 - 8 route the audio signals to their
respectively numbered speaker zones 1 - 8. If the user has not
specified the speaker zone when Spotify streaming begins, the
media player will automatically route to its default speaker zone.
For example, the audio from the media player 5 will be routed to
speaker zone 5.
After the Spotify streaming begins, you will be able to control the
volume of the streaming DM-NAX-8ZSA speaker zones directly from
your device.
Reset
A network reset or factory restore may be performed when
troubleshooting.
lNetwork Reset
1. Ensure the device is powered on.
2. Press and hold the SETUP button for up to 15 seconds until the
SETUPLEDflashes red.
The device will reboot, and the default network settings will be
reset, such as default Hostname, DHCP enabled, no static IP.
lFactory Restore
1. Turn off the device by disconnecting the power cable from the
device.
2. Press and hold the SETUPbutton and then reconnect the power
cable while still holding the SETUP button. Continue holding the
SETUPbutton for up to 30 seconds until the SETUPLEDflashes.
The device will reboot, and all the factory default settings will be
restored, such as Zone settings, names, multicast addressing, etc.
CAUTION: Performing a factory restore will clear all settings
from the device configuration.
8
DM-NAX-8ZSA QuickStart
DM NAX™ 8-Zone Streaming Amplifier

Observe the LED Indicators
Refer to the following table for information about the LED indicators on
the device.
LED Indicator Color Meaning
PWR Amber Power is being applied to the device.
Thedevice is booting.
White Device is powered on with audio
passing.
Red Device is in standby mode.
LAN White The device is powered on and has a
valid IP address.
Off Device is not connected to a network
or the IP address is invalid.
NAX White AoIP is ready to pass and the unit's
PTP clock is synced.
Off No AoIP is passing to or from and/or
PTP is not synced.
SOURCE 1-8 White Signal is detected on the specified
input/source.
Red There is clipping on an analog input or
bitstream audio detected on a digital
input.
Off There is no signal detected on the
specified input/source.
ZONE 1-8 White There is audio output on the indicated
zone.
Red Clipping or a fault is detected on the
zone output due to over current, over
temperature, or low voltage.
LED Indicator Color Meaning
SETUP Solid Red The SETUP button is pressed.
Blinking Red A network reset or factory restore has
been initiated via the adjacent SETUP
button.
Legal Notice
Use of the Works with Apple badge means that an accessory has been
designed to work specifically with the technology identified in the badge
and has been certified by the developer to meet Apple performance
standards.
Visit the Product Page
Scan the QR code to visit the product page.
DM-NAX-8ZSA
www.crestron.com/model/6510878
9
DM-NAX-8ZSA QuickStart
DM NAX™ 8-Zone Streaming Amplifier

Additional Information
Original Instructions
The U.S. English version of this document is the original instructions.
All other languages are a translation of the original instructions.
Regulatory Model: M1845004
Crestron product development software is licensed to Crestron dealers and Crestron
Service Providers (CSPs) under a limited nonexclusive, nontransferable Software
Development Tools License Agreement. Crestron product operating system software
is licensed to Crestron dealers, CSPs, and end-users under a separate End-User
License Agreement. Both of these Agreements can be found on the Crestron website
at www.crestron.com/legal/software_license_agreement.
The product warranty can be found at www.crestron.com/warranty.
The specific patents that cover Crestron products are listed at
www.crestron.com/legal/patents.
Certain Crestron products contain open source software. For specific information,
visit www.crestron.com/opensource.
The Spotify Software is subject to third party licenses found
here:www.spotify.com/connect/third-party-licenses.
Crestron, the Crestron logo, Crestron Home, and DM NAX are either trademarks or
registered trademarks of Crestron Electronics, Inc. in the United States and/or other
countries. Apple and AirPlay are either trademarks or registered trademarks of Apple
Inc., registered in the U.S. and other countries. Spotify Connect is either a trademark
or a registered trademark of Spotify Inc. in the United States and/or other countries.
TOSLINK is either a trademark or a registered trademark of Toshiba Electronics
Devices & Storage Corporation in the United States and/or other countries. Other
trademarks, registered trademarks, and trade names may be used in this document
to refer to either the entities claiming the marks and names or their products.
Crestron disclaims any proprietary interest in the marks and names of others.
Crestron is not responsible for errors in typography or photography.
©2022 Crestron Electronics, Inc.
Doc. 8846C
06/30/22
10
DM-NAX-8ZSA QuickStart
DM NAX™ 8-Zone Streaming Amplifier
