Crestron onCue BPC-HPLIR User manual

Crestron BPC-HPLIR
onCue™IRLearner&Programmer
Operations Guide

This document was prepared and written by the Technical Documentation department at:
Crestron Electronics, Inc.
15 Volvo Drive
Rockleigh, NJ 07647
1-888-CRESTRON
Regulatory Compliance
Federal Communications Commission (FCC) Compliance Statement
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Industry Canada (IC) Compliance Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions:
(1) This device may not cause harmful interference and (2) this device must accept any interference received,
including interference that may cause undesired operation.
CAUTION: Changes or modifications not expressly approved by the manufacturer responsible for compliance
could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
Consult the dealer or an experienced radio/TV technician for help
As of the date of manufacture, the BPC-HPLIR has been tested and found to comply with specifications for CE
marking and standards per EMC and Radiocommunications Compliance Labelling.
All brand names, product names and trademarks are the property of their respective owners.
©2011 Crestron Electronics, Inc.

Crestron BPC-HPLIR onCue™ IR Learner & Programmer
Contents
onCue™ IR Learner & Programmer: BPC-HPLIR 1
Introduction ...............................................................................................................................1
Specifications ..............................................................................................................2
Physical Description....................................................................................................3
Setup..........................................................................................................................................7
Installation...................................................................................................................7
Hardware Hookup .......................................................................................................8
Uploading and Upgrading..........................................................................................................9
Establishing Communication.......................................................................................9
Firmware .....................................................................................................................9
Operation.................................................................................................................................11
Learning Third-Party IR Codes.................................................................................11
Developing onCue BPC-8 Projects ...........................................................................14
Problem Solving ......................................................................................................................17
Troubleshooting.........................................................................................................17
Further Inquiries........................................................................................................17
Future Updates ..........................................................................................................18
Return and Warranty Policies..................................................................................................19
Merchandise Returns / Repair Service ......................................................................19
CRESTRON Limited Warranty.................................................................................19
Operations Guide – DOC. 7109A Contents •i

Crestron BPC-HPLIR onCue™ IR Learner & Programmer
onCue™ IR Learner & Programmer:
BPC-HPLIR
Introduction
The onCue™ BPC-HPLIR is a dual-function handheld tool designed for
use with the Crestron®onCue BPC-8 Basic Presentation Controller. It is
both a full featured IR learner, providing a simple means to learn IR
commands from third-party remotes via the Device Learner tool, as well
as a configuration loader that transfers configuration files created using
the onCue BPC-8 Tool directly to the BPC-8.
The BPC-HPLIR enables the installer to upload a single configuration to
any number of BPC-8 controllers, requiring mere seconds to transfer the
file via a simple optical cable (included). There is no need to remove the
BPC-8 from the wall or even remove its faceplate, and one configuration
can be used repeatedly for any number of identically equipped rooms,
affording quick and easy setup of each room without any need to carry
around a laptop.
Operations Guide – DOC. 7109A IR Learner & Programmer: BPC-HPLIR •1

onCue™ IR Learner & Programmer Crestron BPC-HPLIR
Specifications
Specifications for the BPC-HPLIR are listed in the following table.
BPC-HPLIR Specifications
SPECIFICATION DETAILS
Communications
USB
IR
Optical
For console, USB 2.0 client
Learns infrared control commands
up to 455 kHz
Transmits configuration file via IR to
BPC-8
Power Requirements
Battery
USB
9 Volt disposable alkaline, 625 mAh
(included)
83 mA @ 5 Volts DC, overrides
battery when sufficient power is
available
Environmental
Temperature 32° to 113° F (0° to 45° C)
Humidity 10% to 90% RH (non-condensing)
Enclosure Plastic, black, handheld
Dimensions
Height 5.78 in (147 mm)
Width 3.60 in (92 mm)
Depth 1.12 in (29 mm)
Weight 10 oz (283 g)
Included Accessories
CBL-SERIAL-DB9F-6 3.5mm TRS to DB9F RS-232
Control Cable, 6 ft (~2 m)
Optical Cable, 3 ft (~1 m)
2 •IR Learner & Programmer: BCP-HPLIR Operations Guide – DOC. 7109A

Crestron BPC-HPLIR onCue™ IR Learner & Programmer
Physical Description
This section provides information on the connections, controls and
indicators available on your BPC-HPLIR.

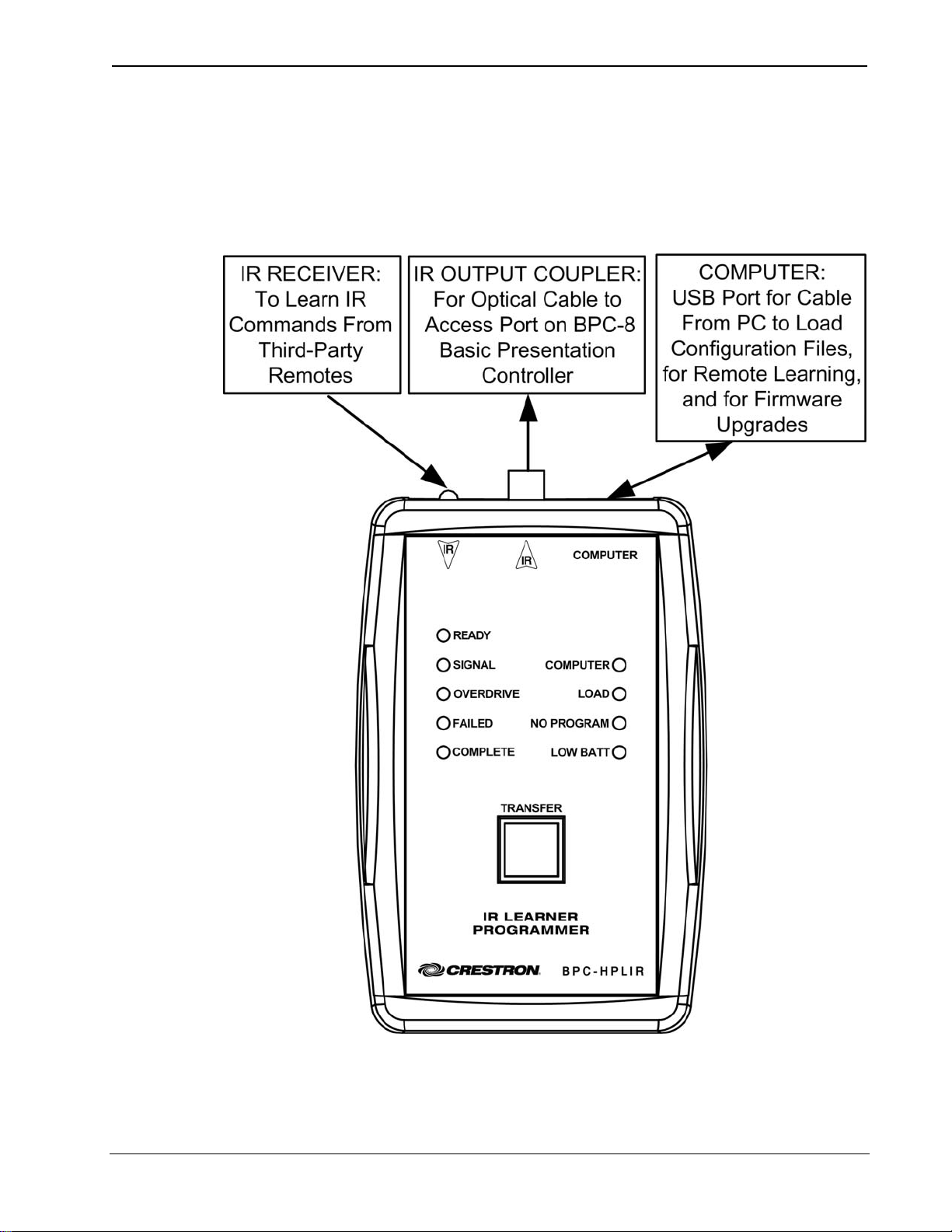

BPC-HPLIR Physical View
Operations Guide – DOC. 7109A IR Learner & Programmer: BPC-HPLIR •3

onCue™ IR Learner & Programmer Crestron BPC-HPLIR
BPC-HPLIR Overall Dimensions
4 •IR Learner & Programmer: BCP-HPLIR Operations Guide – DOC. 7109A

Crestron BPC-HPLIR onCue™ IR Learner & Programmer
Connectors, Controls & Indicators
# CONNECTORS1,
CONTROLS &
INDICATORS
DESCRIPTION
1 IR In (1) IR receiver
Receives IR signals up to 455 kHz
2 IR Out (1) 1000 µm fiber coupler
Configuration file upload link to BPC-8
~3 ft (~1 m) optical cable included
3 COMPUTER
(1) USB Type B female;
USB 2.0 computer console port;
(6 ft (~2 m) cable included)
PIN DESCRIPTION
1 +5 VDC
2 Data -
3 Data +
4 Ground
(Continued on following page)
Operations Guide – DOC. 7109A IR Learner & Programmer: BPC-HPLIR •5

onCue™ IR Learner & Programmer Crestron BPC-HPLIR
Connectors, Controls & Indicators (Continued)
# CONNECTORS1,
CONTROLS &
INDICATORS
DESCRIPTION
4 LEDs
READY
SIGNAL
OVERDRIVE
FAILED
COMPLETE
COMPUTER
LOAD
(Amber) Indicates unit is ready to
learn an IR command
(Amber) Indicates an IR signal has
been detected
(Red) Indicates IR signal is too
strong and cannot be learned
(Red) indicates IR command could
not be learned successfully
(Green) Indicates IR command has
been learned successfully
(Green) Indicates a computer is
connected and providing power via
USB
(Green) Indicates configuration file
is being uploaded to the BPC-8
NO PROGRAM
LOW BATT
(Amber) Indicates no configuration
file exists in the BPC-HPLIR
(Red) Indicates the battery is
running low
5 TRANSFER (1) Pushbutton, initiates
transmission of stored configuration
file to the BPC-8
6 •IR Learner & Programmer: BCP-HPLIR Operations Guide – DOC. 7109A

Crestron BPC-HPLIR onCue™ IR Learner & Programmer
Setup
Installation
The only installation procedures required for the BPC-HPLIR are to
insert the supplied 9-Volt battery into the compartment in the rear of the
unit, and to connect the supplied fiber cable to the IR Output Coupler
port.
Fiber Cable
To connect supplied fiber cable to the BPC-HPLIR, loosen the output
coupler knob, insert the cut end of the cable, and re-tighten the knob.
To connect the fiber cable to a BPC-8, remove the clear plastic dust cap
from the connector end of the cable. Insert the cable into the optical cable
access port on the lower right of the BPC-8 faceplate. Retain the dust cap
to protect the cable when not in use.
Operations Guide – DOC. 7109A IR Learner & Programmer: BPC-HPLIR •7

onCue™ IR Learner & Programmer Crestron BPC-HPLIR
Hardware Hookup
The following illustration defines the connections required for the
BPC-HPLIR.
Hardware Connections for the BPC-HPLIR
8 •IR Learner & Programmer: BCP-HPLIR Operations Guide – DOC. 7109A

Crestron BPC-HPLIR onCue™ IR Learner & Programmer
Uploading and Upgrading
Crestron recommends using the latest programming software and that
each device contains the latest firmware to take advantage of the most
recently released features. However, before attempting to upload or
upgrade it is necessary to establish communication. Once communication
has been established, files (for example, programs or firmware) can be
transferred to the control system (and/or device). Finally, program checks
can be performed (such as changing the device ID or creating an IP table)
to ensure proper functioning.
Establishing Communication
Use Crestron Toolbox™ for communicating with the BPC-HPLIR; refer
to the Crestron Toolbox help file for details. There is a single method of
communication: USB communication.
USB Communication
USB
PC Running
Crestron Toolbox BPC-HPLIR
The COMPUTER port on the BPC-HPLIR connects to the USB port on
the PC via the included Type A to Type B USB cable:
1. Use the Address Book in Crestron Toolbox to create an entry using
the expected communication protocol (USB).
2. Display the BPC-HPLIR’s “System Info” window (click the
icon); communications are confirmed when the device information
is displayed.
Firmware
Firmware files may be distributed from programmers to installers or from
Crestron to dealers. Firmware upgrades are available from the Crestron
Web site as new features are developed after product releases. One has
the option to upload and upgrade via the Crestron Toolbox. For details on
uploading and upgrading, refer to the Crestron Toolbox help file.
Operations Guide – DOC. 7109A IR Learner & Programmer: BPC-HPLIR •9

onCue™ IR Learner & Programmer Crestron BPC-HPLIR
Upgrade BPC-HPLIR firmware via Crestron Toolbox.
1. Establish communication with the BPC-HPLIR and display the
“System Info” window.
2. Select Functions | Firmware… to upgrade the BPC-HPLIR
firmware.
10 •IR Learner & Programmer: BCP-HPLIR Operations Guide – DOC. 7109A

Crestron BPC-HPLIR onCue™ IR Learner & Programmer
Operation
The first step in developing a configuration program for the BPC-8 is to
use the onCue BPC-8 Tool to determine if the device to be controlled is
already contained in the Crestron Database.
• If it is not, use the BPC-HPLIR and the Device Learner tool to
create a new IR file and save it to the User Database, then use the
onCue BPC-8 Tool to create the BPC-8 Configuration file. Refer
to “Learning Third-Party IR Codes” below.
• If it is, use the BPC-HPLIR and the onCue BPC-8 Tool to develop
a program for the BPC-8. Refer to “Developing onCue BPC-8
Projects” on page 14.
NOTE: The onCue BPC-8 Tool and Device Learner tool software
programs are included with Crestron Toolbox, which is available at the
Crestron onCue Web site:
www.crestron.com/oncuesoftware.
Learning Third-Party IR Codes
When used in conjunction with an IR learner such as the Crestron
BPC-HPLIR, the Device Learner tool allows users to create and test
custom IR driver files, and to save the learned files in the User Database
where they can be uploaded to the BPC-HPLIR for subsequent upload to
the BPC-8.
The following paragraphs provide an overview of the functions available
via the Device Learner tool. For detailed instructions, refer to the Device
Learner help file.
Operations Guide – DOC. 7109A IR Learner & Programmer: BPC-HPLIR •11

onCue™ IR Learner & Programmer Crestron BPC-HPLIR
Device Learner Main Screen
Standard Operations
Create New IR Files
1. Upon starting Device Learner, click New on the File menu.
2. Use the Device Description button to fill out details about the device
to be controlled.
3. Use the Remote Buttons button to configure buttons and
corresponding standard commands. The list of buttons will be based
on the device listed in step 2.
4. Use the Crestron BPC-HPLIR to learn the remote button functions.
Learn Remote Button Functions
Use the Remote Buttons button to learn IR functions as follows:
1. Set up the IR learner and remote (refer to the Crestron IR learner's
hardware documentation).
The components should be positioned close to each other, on a level
surface, and should not move.
12 •IR Learner & Programmer: BCP-HPLIR Operations Guide – DOC. 7109A

Crestron BPC-HPLIR onCue™ IR Learner & Programmer
2. On the Remote Buttons table, click the desired button (to multi-select
press the Ctrl or Shift key) and click Learn.
-or-
Click Learn All to learn all the buttons in the table.
3. Following the prompts on the "Learn IR" dialog box, press the
specified button on the remote for about 1 second.
Depending on the function, you may be prompted to press and release
the button again. If the button is multi-code you will be prompted to
press the button multiple times.
4. Continue pressing and releasing the button as prompted until the
button is learned. The dialog box will show a green circle icon next to
the button name when the button is learned.
5. If you are learning multiple buttons or all buttons, click Next to
continue to the next button. You can skip buttons or cycle between
them by clicking Next and Previous.
6. Click Close when all buttons are learned. Repeat the above steps for
any additional buttons that need to be learned.
7. Save the file to your user database.
Edit an Existing IR File
Open an existing IR file from the Crestron Database, User Database, or
elsewhere.
NOTE: The onCue BPC-8 interface module, BPC-8-IMC, does not
support simultaneous IR and RS-232 Control. That is, an IR driver can
not be stacked together with a 1-way serial driver. Multiple IR devices
are supported. For more information, refer to the onCue BPC-8 Tool help
file.
Advanced Operations
Remote Button Operations
The Remote Buttons button enables controls that allow you to add
custom buttons, remove buttons, sort buttons by category or name, and
format the button label text.
The following operations on page 14 are accessed by right-clicking on a
particular button.
Operations Guide – DOC. 7109A IR Learner & Programmer: BPC-HPLIR •13

onCue™ IR Learner & Programmer Crestron BPC-HPLIR
Convert IR Pulse Type
You can convert an IR command from "Pulse and Hold" to "Pulse Only"
and vice versa. This adjusts the header and repeater sections of the IR
command to convert the selected button from repeating to non-repeating
and vice versa.
Set Minimum Repeats
The minimum repeats setting guarantees that a “Pulse and Hold” IR
command will be transmitted the specified number of times, even if the
button that triggers the command is released quickly.
Pronto .CCF Data Format
You can learn IR codes by directly entering the data in CCF format.
Developing onCue BPC-8 Projects
Use the Crestron Toolbox onCue BPC-8 Tool to create projects for the
onCue BPC-8 Basic Presentation Controller.
onCue BPC-8 Tool Main Screen
14 •IR Learner & Programmer: BCP-HPLIR Operations Guide – DOC. 7109A

Crestron BPC-HPLIR onCue™ IR Learner & Programmer
The following paragraphs provide an overview of the functions available
via the onCue BPC-8 Tool. For detailed instructions, refer to the onCue
BPC-8 Tool help file.
Create, Open and Save Projects
Launching the onCue BPC-8 Tool automatically creates a new, blank
project.
The buttons across the top of the tool allow you to:
• Create a new project when an existing project is already open
• Open an existing project
• Save a project
• Save a project in a different directory or under a new name
• Access the onCue BPC-8 Tool help file
Display Devices
Use the Display Devices tab to add IR-controlled display devices to the
project. The onCue BPC-8 Tool allows you to access the Crestron
Database and/or the User Database.
Controlled Sources
Use the Controlled Sources tab to add IR-controlled devices to the
project.
RS-232 Commands
Use the RS-232 Commands tab to specify the commands that will be sent
to the serial device.
The BPC-8 supports one-way RS-232 communication with one (1) serial
device via the RS-232 port on the unit.
Macros
Use the Macros tab to create macros that can be assigned to button
presses via the Buttons tab. A macro consists of up to five actions
separated by optional delays.
Buttons
Use the Buttons tab to assign actions to buttons. An "action" is a
command (IR or RS-232) or macro that will be triggered when the button
is pressed.
Operations Guide – DOC. 7109A IR Learner & Programmer: BPC-HPLIR •15

onCue™ IR Learner & Programmer Crestron BPC-HPLIR
Advanced
Use the Advanced tab to add password protection and auto timeout
capabilities for the display device.
These functions should only be added if the display device supports
discrete Power On and Power Off commands, instead of a single
command such as Power that toggles the power state.
Finish
Use the Finish tab to transfer the configuration file to the onCue
BPC-HPLIR and BPC-8 units.
16 •IR Learner & Programmer: BCP-HPLIR Operations Guide – DOC. 7109A
