Front View
123456978
2. Speaker
1. Stand base
9. Power indicator
7. Remote Sensor
3. Input Button
6. Channel up/down Buttons
5. Volume Control
4. Menu Button
8. Power Button
2

3589
K SIZE:144X210MM
TV-3589 Eng IB 0211-12481-20
11

K SIZE:144X210MM
TV-3589 Eng IB 0211-12481-20
12
3589
You can enjoy picture, sound and a PC monitor by connecting a DVD player, video game system or
computer to the inputs located on the rear of the LED TV set.
• For the cable, use a commercially available audio/video cable.
• For more information about external device connections, see the operation manuals of your
external devices.
• Make sure that the corresponding cables are connected to each input. Connecting other cables
may result in a malfunction.
• Component Input (YPbPr): Picture can be displayed only when a 480i or 480p or greater signal is
received.
VGA
cable
Audio
cable
PC
DVD Player
cable receiver/satellite box
HDMI
cable
or
cable TV
company
VHF/UHF
antenna
or
RF coaxial
cable
Audio
cable
Video
cable
Component
cable

3589
K SIZE:144X210MM
TV-3589 Eng IB 0211-12481-20
13

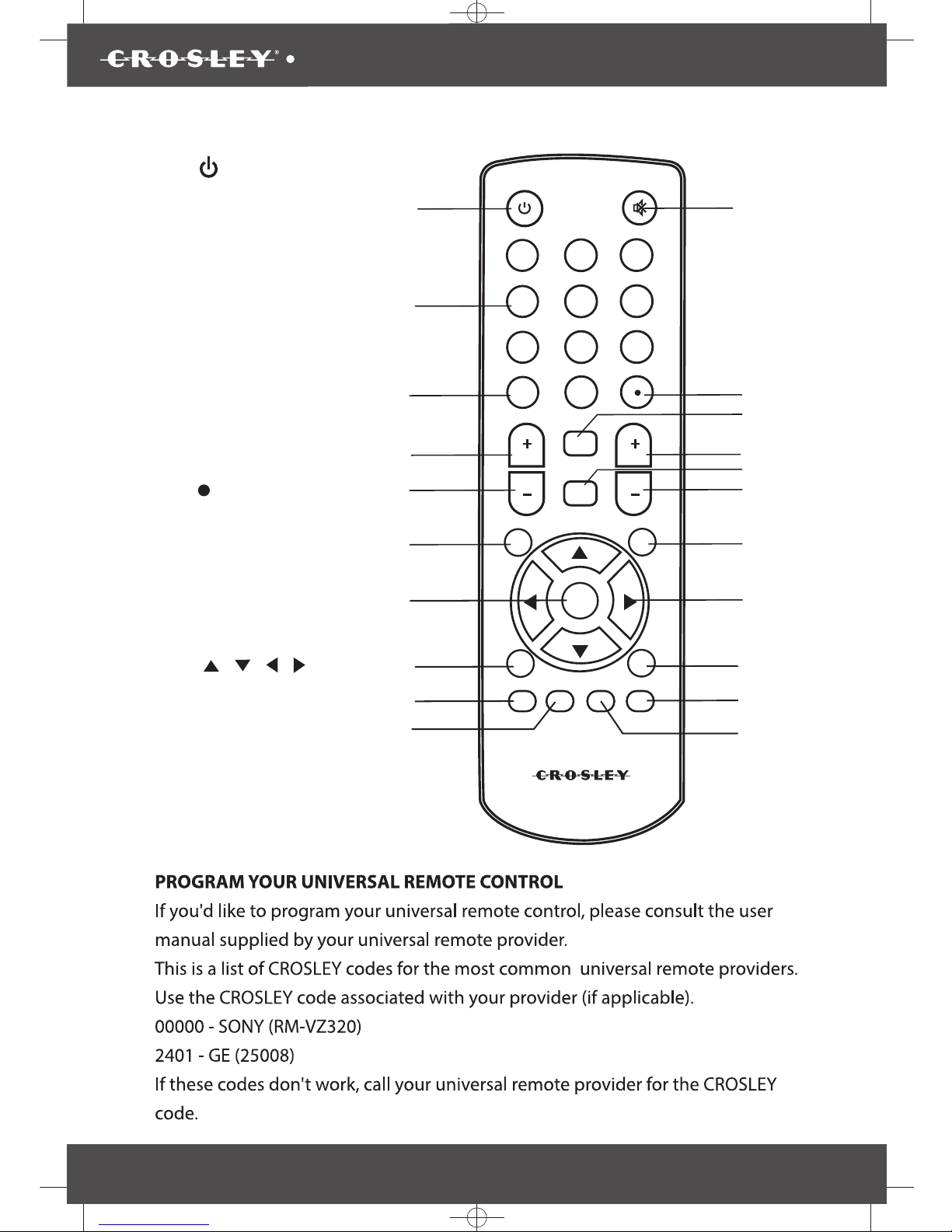

1. Power button
2. Numeric button
3. Swap button
7. Enter button
8. Menu button
4. Volume + button
5. Volume - button
11. Mute button
17. Favorite button
19. CH-LIST button
12. button
13. Input button
14. CH + button
15. PP button
18. / / / button
16. CH – button
10. Zoom button
9. Info button
n
20. CCD button
6. Guide button
POWER MUTE
12 3
45 6
78 9
SWAP
GUIDE
FAVORITE
INPUT
PP
INFO
ZOOM
AUDIO
CCD
VOL
VOL
CH
CH
MENU
CH-LIST
0
ENTER
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21. Audio butto

K SIZE:144X210MM
TV-3589 Eng IB 0211-12481-20
14
3589

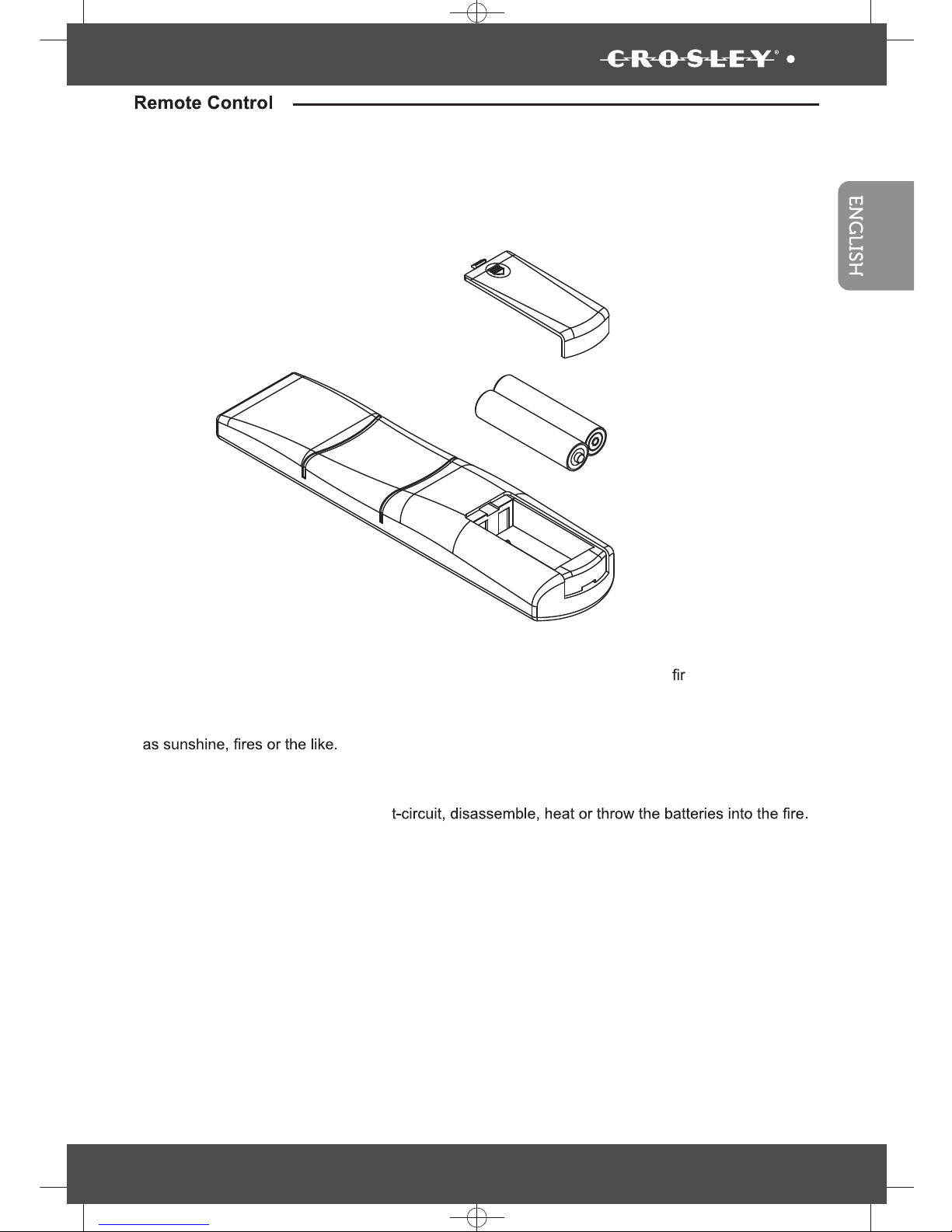

Inserting Remote Control Batteries
On the back of the remote control, push down the catch on the battery compartment cover and lift to
remove it.
remove it.
Insert the two AAA batteries supplied, ensuring that you follow the polarity diagram inside the battery
compartment.
+
+-
-
Battery Disposal
Please ensure batteries are disposed safely. Never dispose batteries in a e or with household
waste. Check with your local authority for disposal regulations.
The batteries (battery pack or batteries installed) shall not be exposed to excessive heat such
CAUTION
• Do not attempt to recharge, shor
• Placing with wrong or mixed polarities batteries will result in damage to the batteries and/or may
result in a malfunction of the unit.
• Do not mix old and new batteries.
• Dispose of batteries properly in accordance with local law.
• Do not mix alkaline, standard (carbon-zinc),or rechargeable (nickel-cadmium) batteries.

3589
K SIZE:144X210MM
TV-3589 Eng IB 0211-12481-20
15
To return back to the previous channel viewed
• Press the “SWAP” button to review the previous channel.
To turn on or turn off the close captioning
• Press the “CCD” button to turn ON or turn OFF close caption function.
To change the picture effect
• Press the “PP” button to select the picture effect.
• There are four modes for picture with different effect.
User (The picture brightness/contrast/color/sharpness is preset by user)
Standard (Fixed mode for normal condition)
Dynamic (Fixed mode for day time with high brightness environment)
Mild (Fixed mode suitable for bedroom without light condition)
To mute the sound
• Press the “MUTE” button to mute the sound, press once again to resume the sound.
To select Input mode
• Press the “INPUT” button to select source model.
AUTO POWER OFF
If no signal is continuously detected from the antenna or broadcasting for more than 10
minutes, the TV will power-off automatically.
Changing Channels
• Press the “CH / ” buttons to change higher or lower stored main channels and sub-channels.
• Press numeric button “0-9” and “ ” button to select the main channels and sub-channels then
press the “ENTER
For example: to select CH90-2
• Press number “9” and number “0” button then press the “ ” button and press number “2” button.
Then press the“ENTER
To review the stored Channel
• Press the “CH-LIST” button to review the stored channels.
To Select the Favorite Channel
• Press the “FAVORITE” button to enter to favorite channel list, to select the desired channel
press the “ / ” button then press the “ENTER” button.
To Change to Audio Channel
• Press the “AUDIO” button to choose the desired audio channel, if the bilingual language is
available by the broadcasting station.
To review the station information
• Press the “INFO” button to review the station informations.
To review the program information
• Press the “GUIDE” button to enter to the guide menu, and press the “ /egaptxeneesotnottub”
if the contents of information is more than one page.
To change the screen aspect ratio
• Press the “ZOOM” button to change the aspect ratio of picture size.

K SIZE:144X210MM
TV-3589 Eng IB 0211-12481-20
16
3589
Once you have connected your TV to an antenna or cable system, plugged the TV in, and put bat-
teries in the remote, you are ready to use the TV. The thing you should do is program your TV to
memorize all of the available channels in you area.
Turning Your TV On
To turn your TV ON, press the “ ” button on the remote control or press the “ ” button on the front
panel. (The LED light is red when the TV is in the standby mode and blue when powered up.)
There are 3 option in initial setup menu:
•Menu Language: English, Francais or Espanol
•Signal type: Air or Cable
• Auto Search
• Press the “ /” button to highlight desired menu
language or signal type and press the “ /” but-
ton to select desired menu language and signal
type.
• Press the “ /” button to highlight Auto Search
and press “ ” button to perform auto channel
scan, the Auto scan process will take about 30
minutes, while the auto scan process is
then the memorized channel will appear on
the screen.
You can Scan for channels at any time using the
following instructions:
First time installation

3589
K SIZE:144X210MM
TV-3589 Eng IB 0211-12481-20
17
•
Channel Programming
Press the “MENU” button on the remote control,
then press the “ / ” button to highlight Channel
and press the“ ” button to access to the menu.
• Signal Type:Air or Cable
• Auto Search
• Favorite
• Channel Skip
• Channel No.
• Channel Label
Channel Skip
• Press the “
Press the “ / ”buttons to select a channel
you want to hide, then press “ ENTER” button.
The check mark appears to the channel
disappears and the screen turns black.
” button to highlight the lennahC
Skip, then press the“ ”button to enter to the sub-
menu.
•
Press the “ ENTER” button again to sho w
the channel. The check mark Disappear s
and the screen shows the channel.
•
Press the “ ” button to highlight Signal Type,
then press the “ ” button to select desired
Air or
/
Cable.
•
•
Press the “ ” button to highlight Auto search
and press the“ ” button to launch the Auto
channels scanning. The scanning process
will take about 30 minutes or m ore (depends on
how many TV stations are in
when the auto scanning process is
your area),
screen.on the

K SIZE:144X210MM
TV-3589 Eng IB 0211-12481-20
18
3589
Press the “ MENU ” button then press the “ ” button
to highlight the Picture and press “ ”
access to the menu.
Press the “ “button to select one off the following
settings, then press the “ “ button to change the
setting.
Picture Mode: Standard, Mild, Dynamic or User
Brightness
Contrast
Color
Tint
Sharpness
Color Temp.: Normal, Warm or Cool
Noise Reduction: Low, Medium, High or Off
PC setting (for pc only)
button to
/
/
•
•
PC Settings
When PC Settings ehtsserp,dethgilhgihsi
“ENTER” button to enter to the sub-menu, then
press the “ /” button to highlight desired item
which you want to adjust, then press the “ /”
button to change the parameter of selected item.
Auto -(Press to activate the auto
adjust feature for PC mode).
• H-pos
• V- Pos
• Clock
• Phase
•

3589
K SIZE:144X210MM
TV-3589 Eng IB 0211-12481-20
19
/
Audio
Press the “
Press the “ / ” button to select one off the following
settings then press the “ ” button to change
the setting
.
Sound Mode: Standard, Movie, Music or user
Bass
Treble
Balance
Surround Sound: On or Off
Auto Volume: On or Off
SPDIF Type: PCM, RAW or Off
Digital Sound
Analog Sound
MENU ” button then press the “ ” button
to highlight the Audio and press “ ” button to
access to the menu.
•
•
•
•
•
•
•
•
•
•
•
PC input signal chart
The following chart shows the suggested screen resolutions.
lf “Unsupported” appears on the screen, adjust the PC display setting to correspond to one of the
settings in the above table.
640 x 480
800 x 600
1024 x 768
1366 x 768
1920x1080
VGA
SVGA
XGA
WXGA
WUXGA
Format Resolution Freq.(Hz)
60
60
