Crosswater Digital Duo Water control system User manual

Duo water
control system
Operation and care guide
DIGITAL
DIGITAL WATER CONTROL AT YOUR FINGERTIPS
DIGITAL
DIGITAL WATER CONTROL AT YOUR FINGERTIPS
This operation and care guide must be left with the user.
DUOUSER

1
Important Safety Information
DIGITAL
DIGITAL WATER CONTROL AT YOUR FINGERTIPS
Please read these instructions carefully before
using this system and keep in a safe place for
future reference.
To reduce the risk of electric shock and injury,
basic safety precautions, including the following,
should always be followed when using electrical
appliances.
Children MUST be supervised at all times when
using this shower control. Training should be
given to children and vulnerable individuals
before permitting them to operate the controls.
Do not pull on the power cable: this may
damage it and cause electric shock.
Operating the Duo water control system
To turn ON / OFF
Setting the temperature
Setting the water flow
Diverting the water flow
Setting the memory (shower only)
Contents
2
2
2
3
3
4
Bath filling memory option
(bath processor only)
Opening and closing the pop up
bath waste (*using Viega drain valve)
Self check mode
Thermal disinfection
Cleaning (safe) mode
Cleaning / maintenance
Servicing / contact information
4
5
5
6
6
7
7
Never operate any appliance with a damaged
cable or plug. Do not use an appliance that
has been dropped or damaged or after any
malfunctions.
WARNING
CONTINUOUSLY TURNING THE
CONTROL WHEEL IN THE CLOCKWISE
DIRECTION MAY OVERRIDE THE PRE-
SET MAXIMUM TEMPERATURE, WITH
CONSEQUENT RISK OF SCALDING.
ALWAYS TAKE CARE WHEN
OPERATING THE CONTROL WHEEL,
AND DO NOT LEAVE CHILDREN
UNATTENDED WHILST THE PRODUCT
IS IN OPERATION.

2
Operating the Duo water control system
DIGITAL WATER CONTROL AT YOUR FINGERTIPS

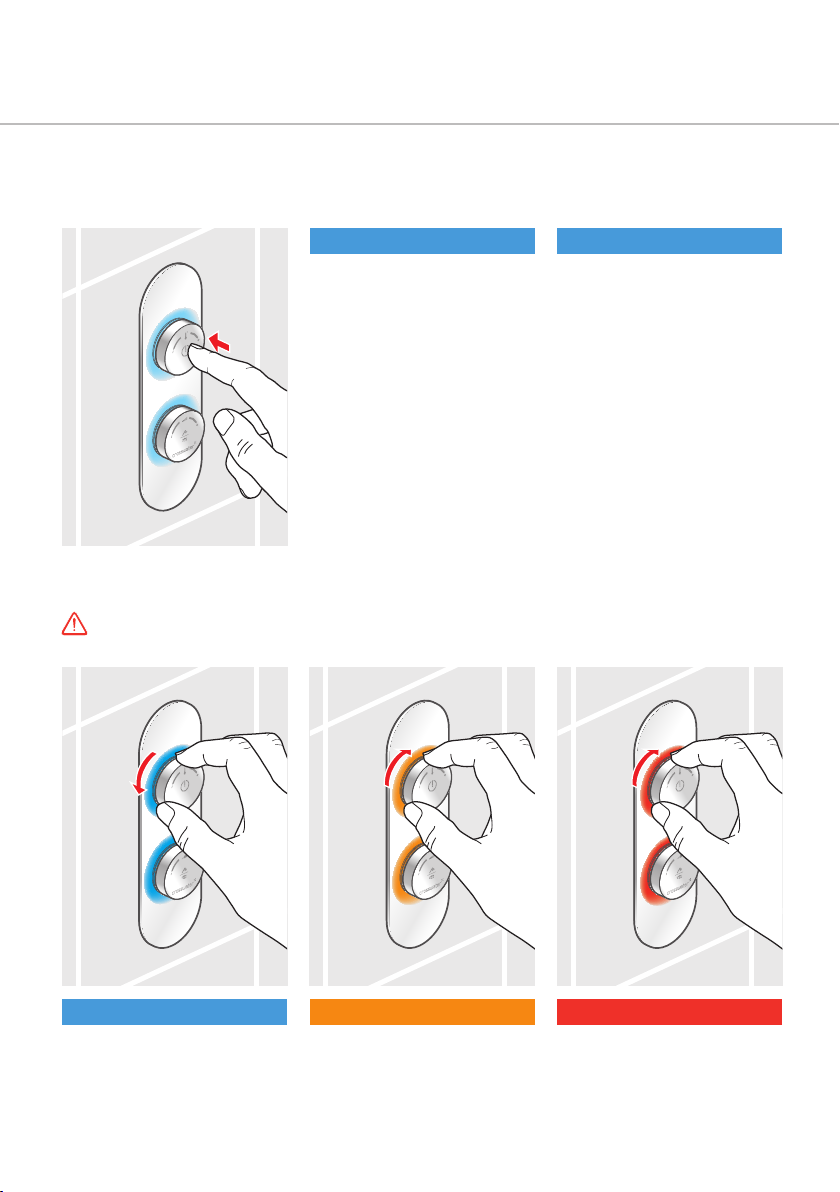

Setting the temperature
Turn the top control anti-
clockwise, the controls will
illuminate Blue and will flash until
the set temperature is reached.
Turn the top control until the
controls illuminate Orange,
the lights will flash until the set
temperature is reached.
Turn the top control clockwise,
the controls will illuminate Red,
the lights will flash until the set
temperature is reached.
Cold Warm Hot
To turn ON
Press the top control once, the
controls illuminate and water
will start to flow through
‘default’ outlet.
Note: The ‘default outlet’ is
the outlet that the water flows
through first when the control is
turned on.
The default outlet is decided
during installation.
To turn OFF
Press the top control once, the
water and lights will turn o.
Important note: Risk of scalding, please read the Safety Information on page 1 before using.

3
DIGITAL
DIGITAL WATER CONTROL AT YOUR FINGERTIPS

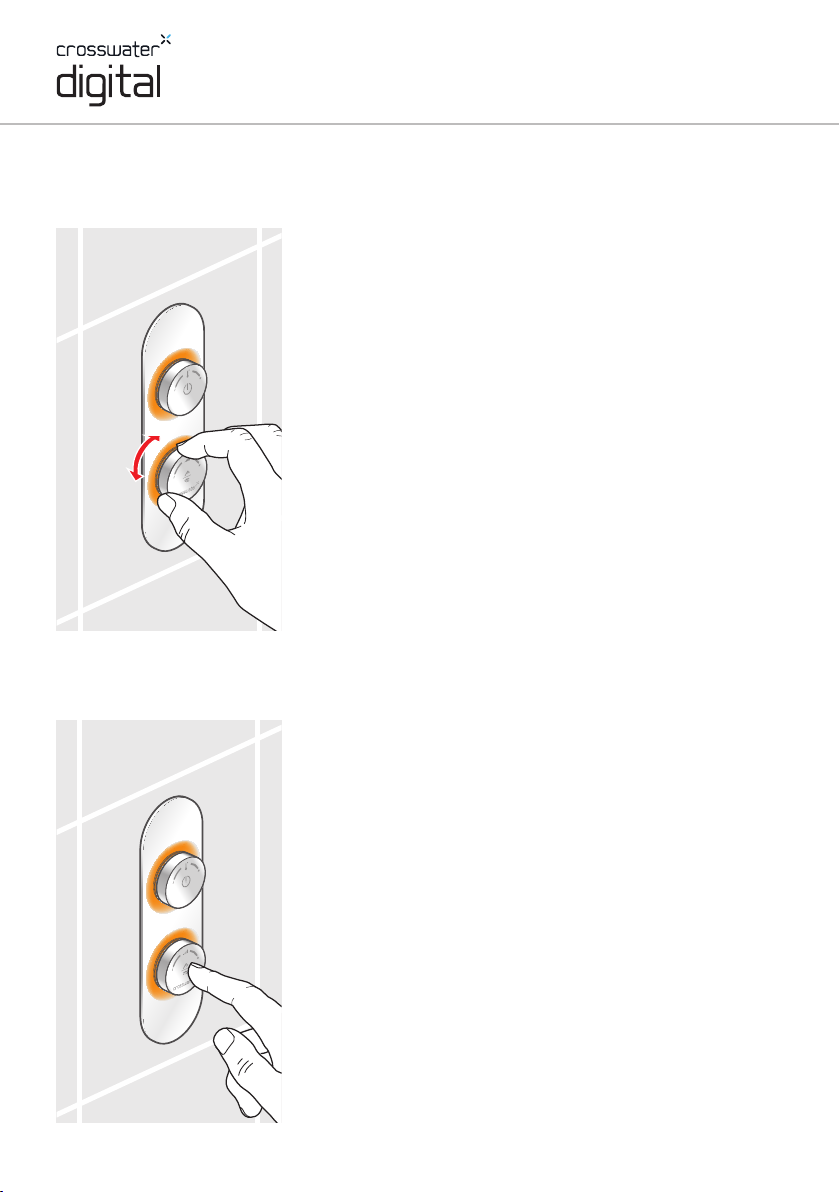

Setting the water flow
Turn the bottom control
clockwise to increase the flow
and anti-clockwise to decrease
the flow.
The lights will flash until the
desired flow has been reached.
Note: When increasing
the water flow the colour
(indicating the temperature)
will increase in brightness
to show the flow is being
increased. When decreasing
the flow the brightness of the
colour will decrease.
Press the bottom control once
to divert from one outlet to the
other.
Diverting the water flow

4
DIGITAL WATER CONTROL AT YOUR FINGERTIPS

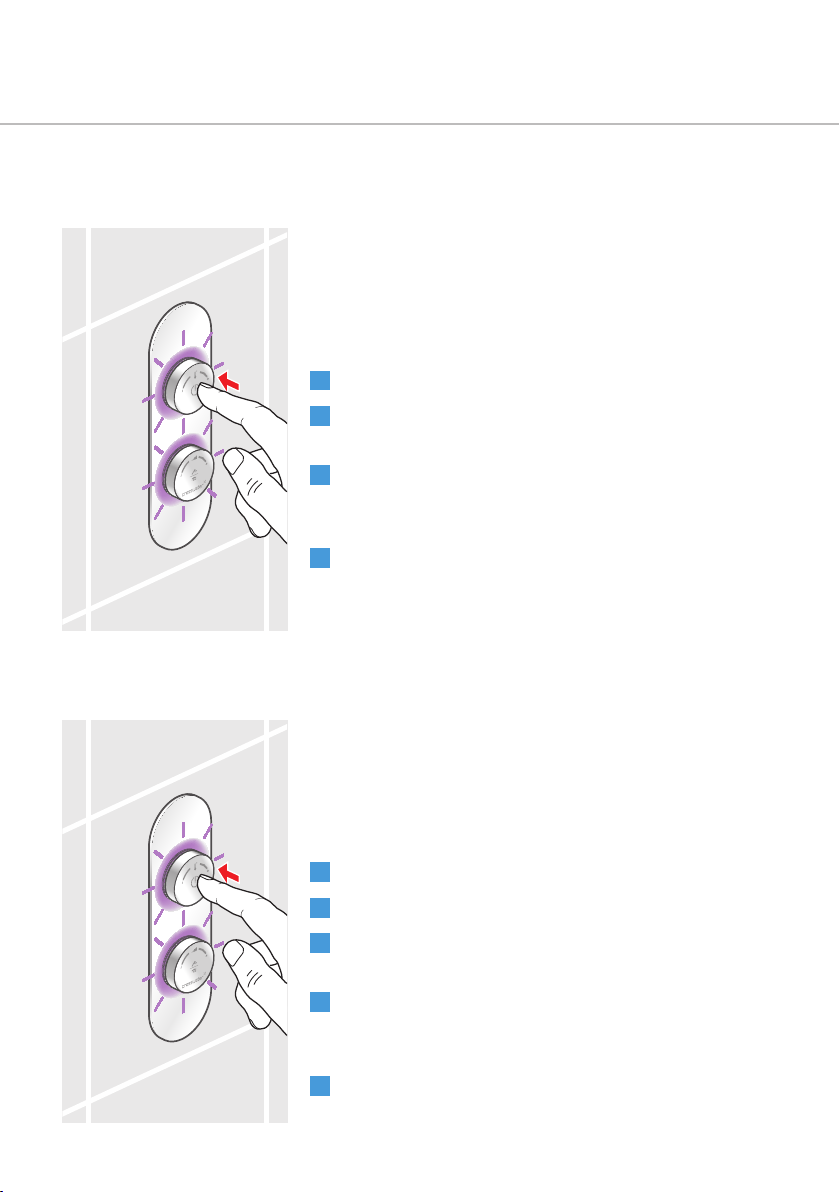

Setting the memory (shower only)
Up to three memory settings
can be stored.
Note: Only the ‘default outlet’
temperature can be set to
memory.
Press the top control once.
Set the desired
temperature.
Hold down the top control
until the control flashes Purple,
then release.
The shower temperature is
now stored.
Up to three memory settings
can be stored.
Note: To fill the bath from a
memory setting the bath must be
connected to the ‘default outlet’.
Press the top control once.
The bath will start to fill.
Fill to the desired
temperature and depth.
Hold down the top control
until the control flashes Purple,
then release.
The bath temperature and
depth are now stored.
Bath filling memory option (bath processor only)
To set memory 1, press the
top control once when turning
on, press twice to set memory
2 and three times to set
memory 3.
To access a stored memory;
press the top control once
to select memory 1, twice for
memory 2 and three times for
memory 3.
To set memory 1, press the
top control once when turning
on, press twice to set memory
2 and three times to set
memory 3.
To access a stored memory
press the top control once
to select memory 1, twice for
memory 2 and three times for
memory 3.
1
2
3
4
1
2
3
4
5

5
ER CONTROL AT YOUR FINGERTIPS

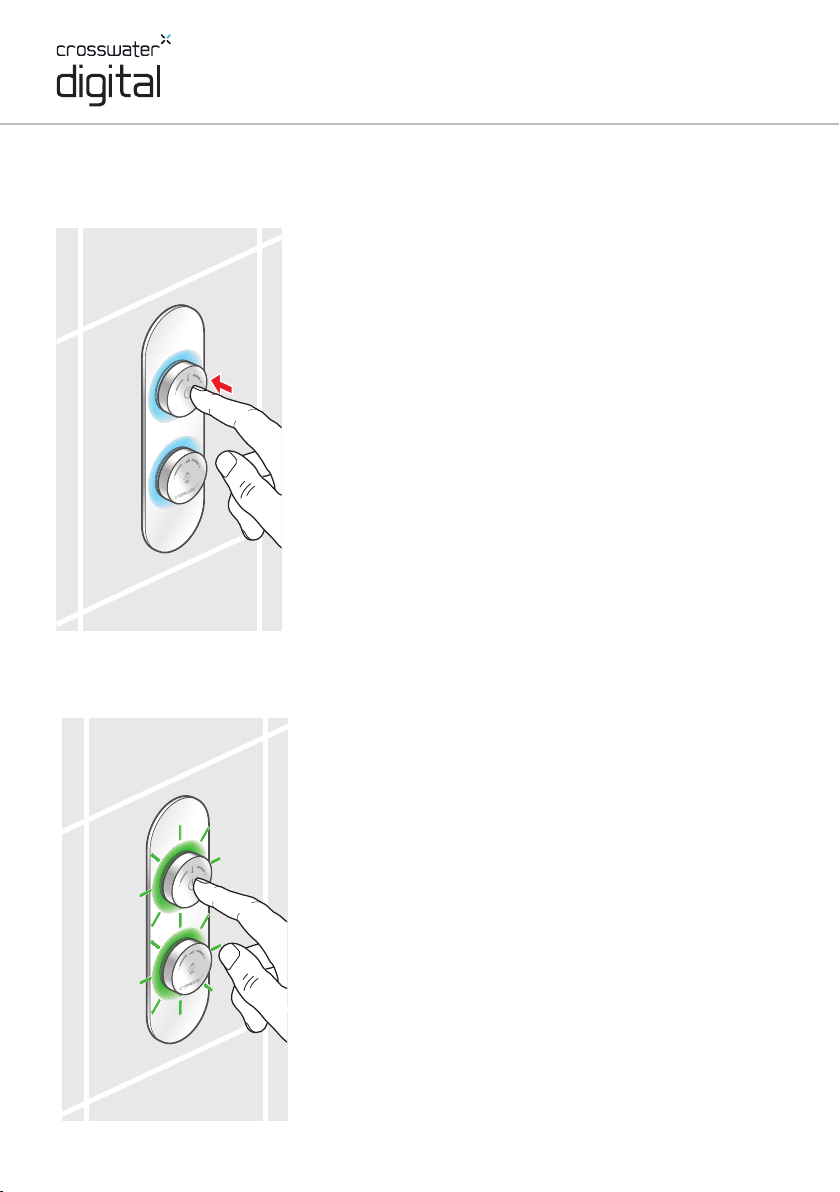

Opening and closing the pop up bath waste
This option is only available if
using a *Viega drain valve.
Press and hold the top control
until the Turquoise light
appears, then release: this will
open the bath waste.
To close the bath waste repeat
the process.
Press the top control until
the Green light appears,
then release, this will disable
the controls for 45 seconds
to allow the controls to be
cleaned without turning on the
controls.
Cleaning (safe) mode

6
DIGITAL WATER CONTROL AT YOUR FINGERTIPS
Note: Care should be
taken through this thermal
disinfection process as the
pipes will get extremely hot and
there is a risk of scalding.
Press the top control and keep
pressing until the Red light
comes on, then release.
Caution: The water is hot
during this process and there is
a risk of scalding.
The controls will flash Red
during thermal disinfection
and will last for 5 minutes,
afterwards cold water is
flushed through the system.
Thermal disinfection can
be stopped at any time by
pressing the top control.

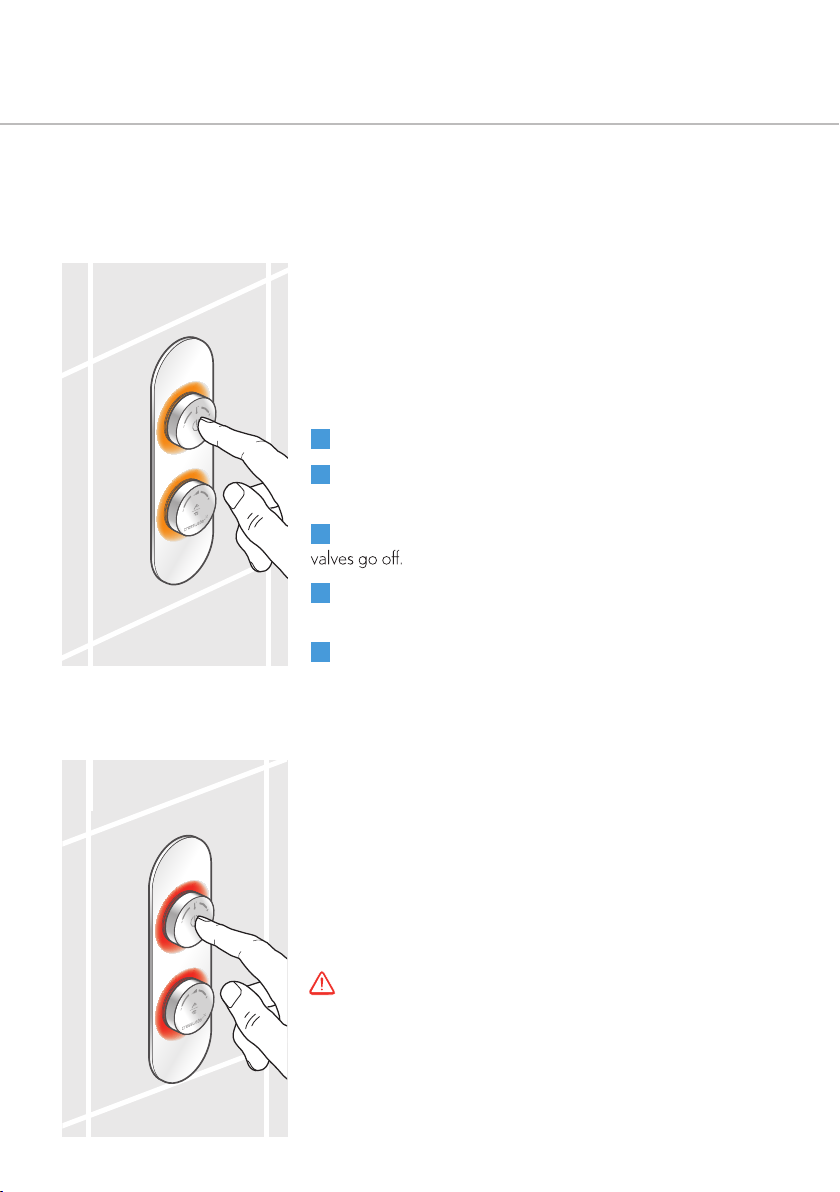

Press and hold the top control
until the Orange light appears,
then release, the system will
then run through a series of
diagnostic checks.
The system checks:
Adjustment of the valves.
Red lights up - the valve
goes hot.
Green lights up - the
Blue lights up - the valve
goes cold.
The valves are closed.
Self check mode
1
2
3
4
5
Once the check is complete
you will see:
2 x flashes - the control unit is
alright.
3 x flashes - malfunction of the
temperature sensor.
4 x flashes - malfunction of the
flow sensor*.
* Applicable to bath processor only.
Thermal disinfection

For any further information please contact
Crosswater on: 0345 873 8840
Or visit our web-site at:
www.crosswaterdigital.co.uk
Crosswater reserves the right to make technical
modifications without prior notice.
DIGITAL
DIGITAL WATER CONTROL AT YOUR FINGERTIPS
Cleaning / maintenance
Only clean the controls with soapy water, do not use abrasive cleaners as these could damage the
brass which would not be covered under any guarantee.
Please do not open the processor unit as this will invalidate your guarantee.
Servicing / contact info
In the unlikely event that you are experiencing diculties with your new Crosswater Digital product,
please contact the Crosswater Technical Advice team on:
0345 873 8840 or via e-mail – [e-mail]
Website: crosswaterdigital.co.uk
